2011-2020 Hyundai Elantra 1.4L L4 | Front Brake Kit 11.03" | OE#517123X000/12151044 - PHILTOP

2011-2020 Hyundai Elantra 1.4L L4 | Front Brake Kit 11.03" | OE#517123X000/12151044 - PHILTOP

Front, Left, Right

Solid

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
9232DBR02P5US

Specifications

Brand
PHILTOP
Outside Diameter
11.03 inch (280mm)
Bolt Hole Quantity
5+2
Rotor Material
G3000

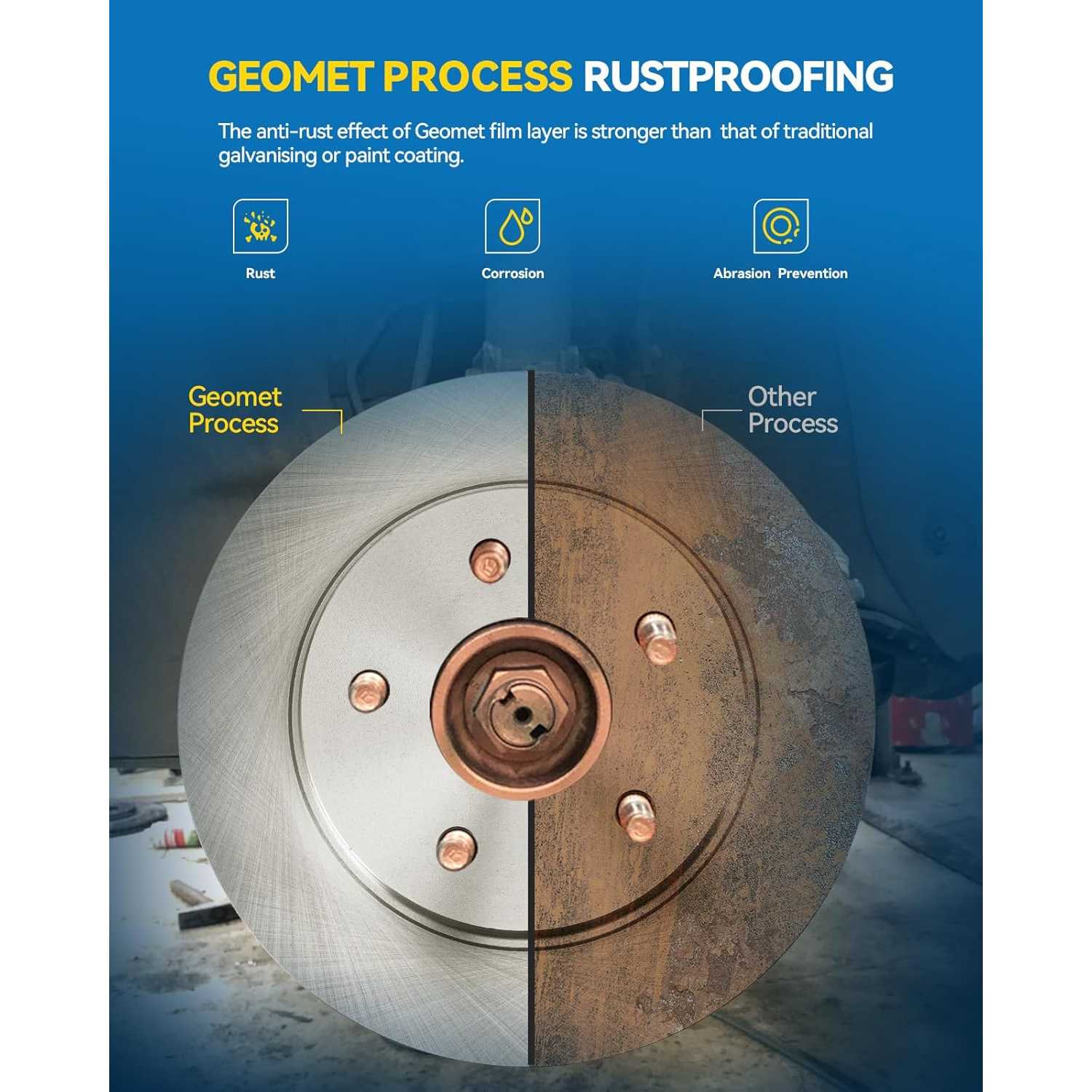

Surface Coating
Rust Preventative
Position
Front, Left, Right

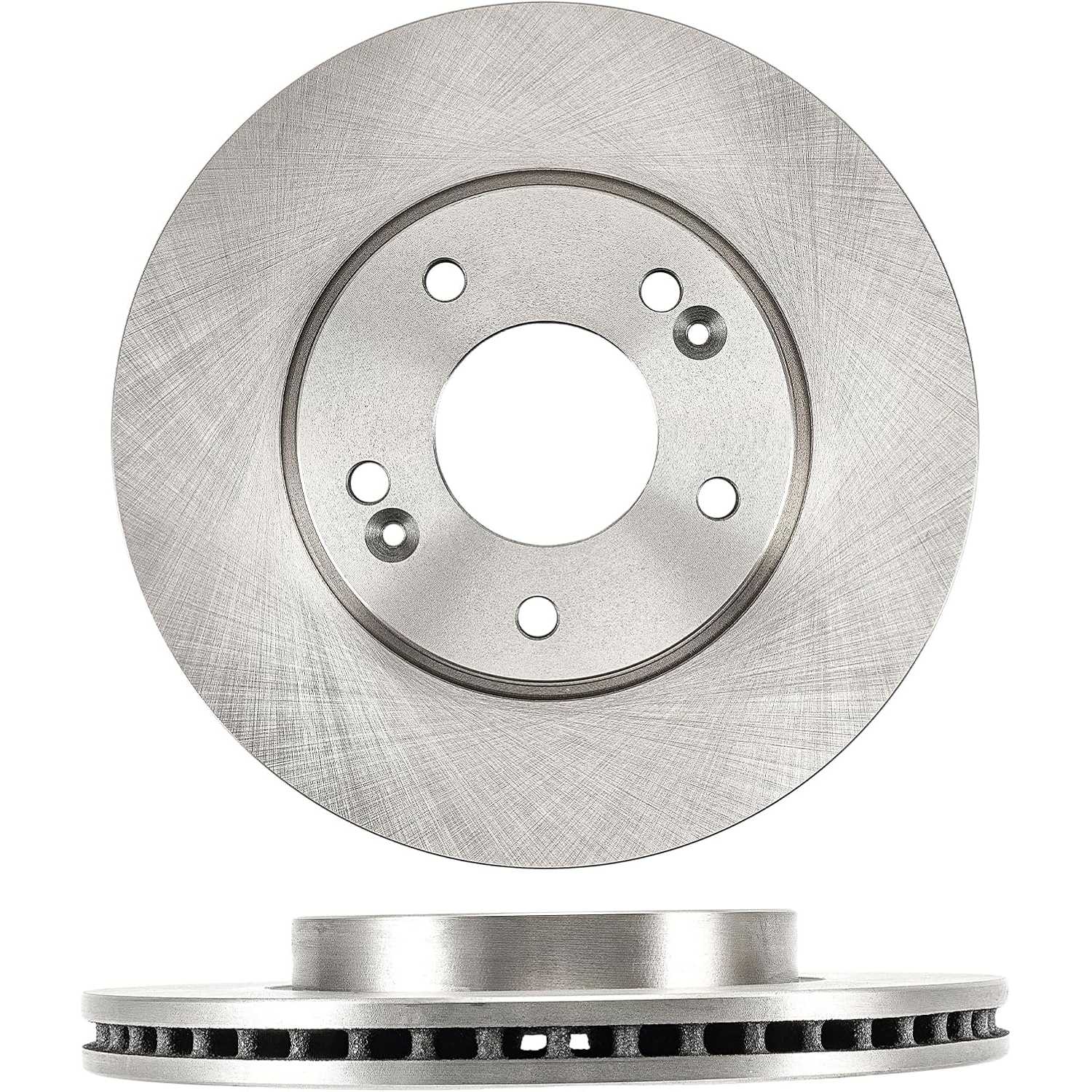

Rotor Type

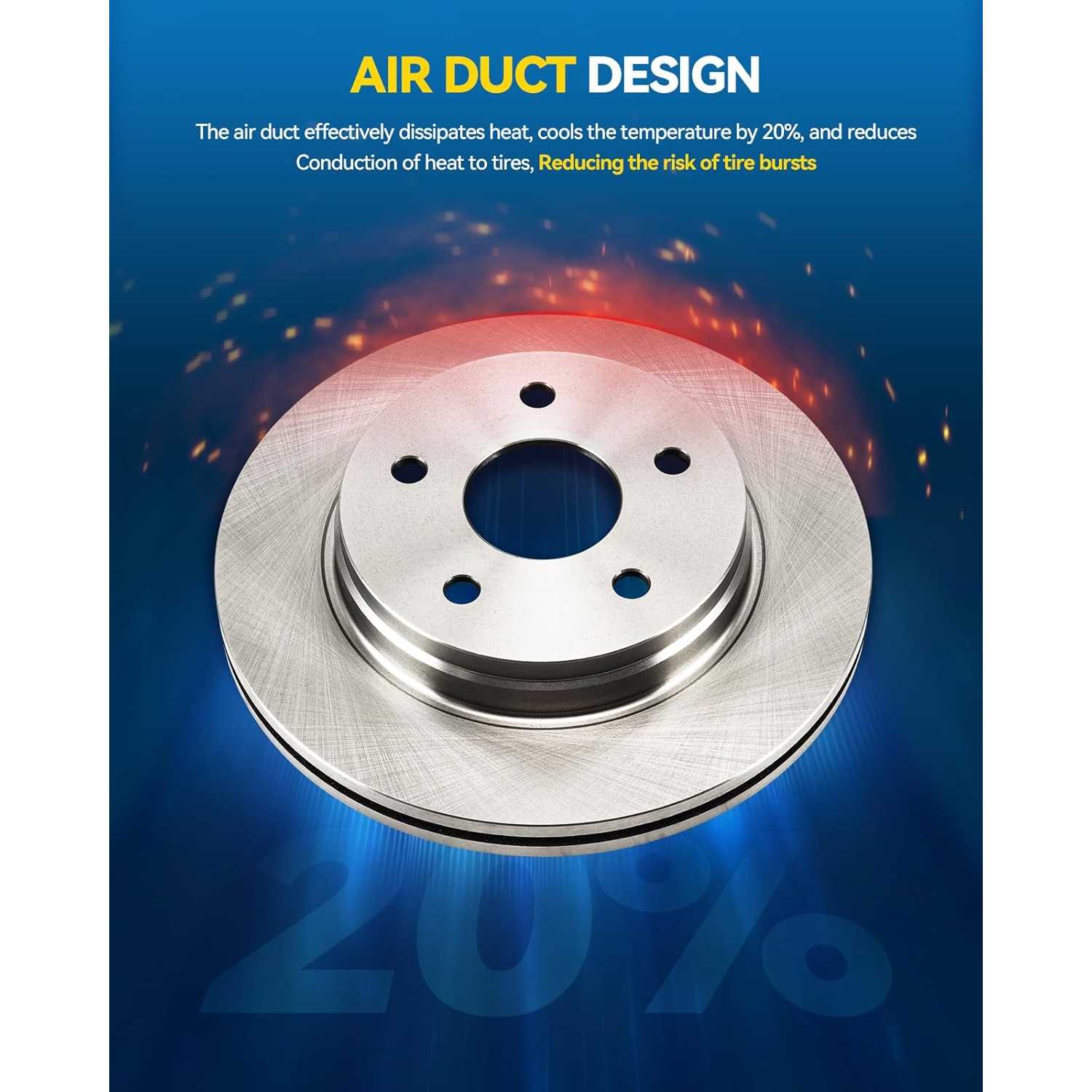

Vented
Rotor Style
Solid

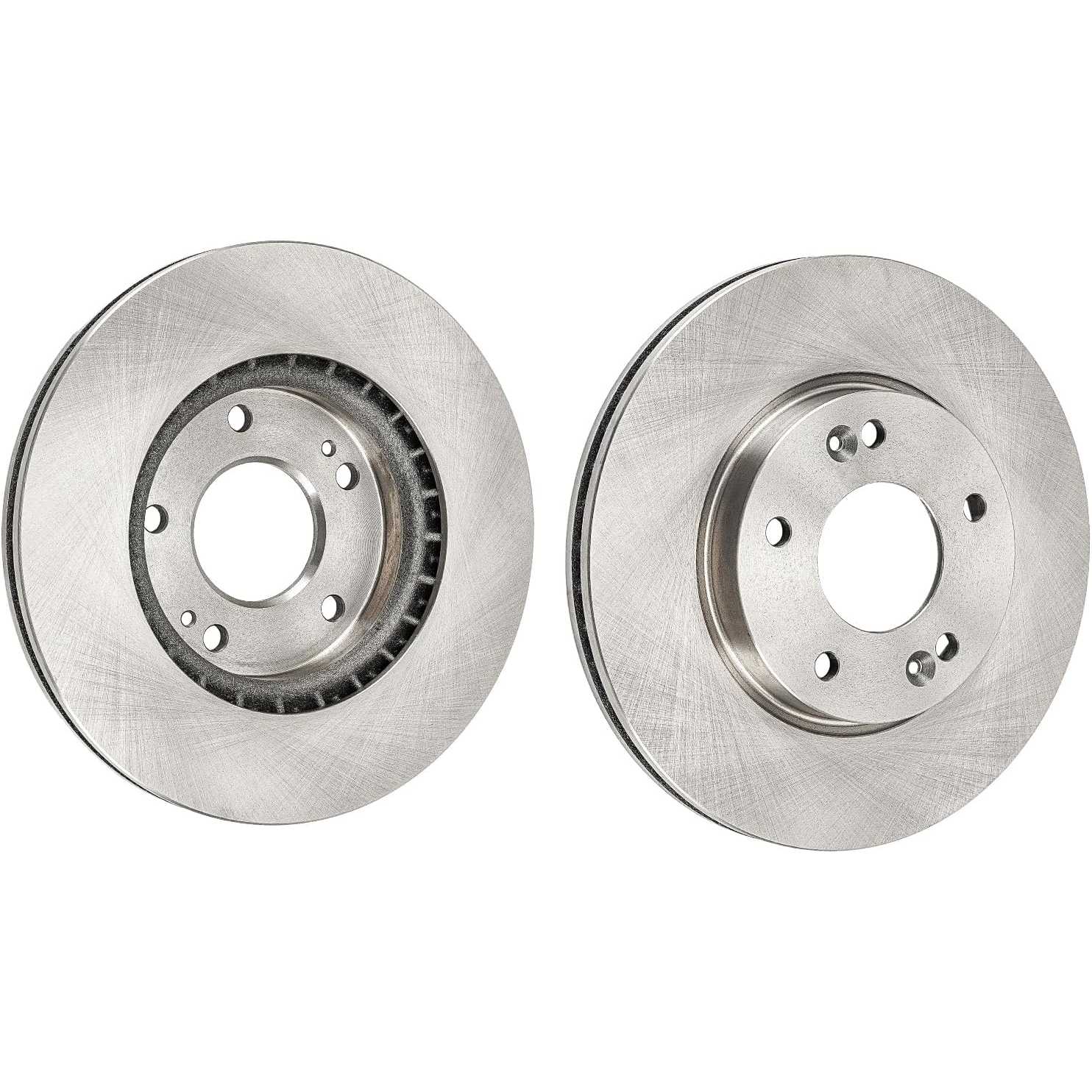

Items Included

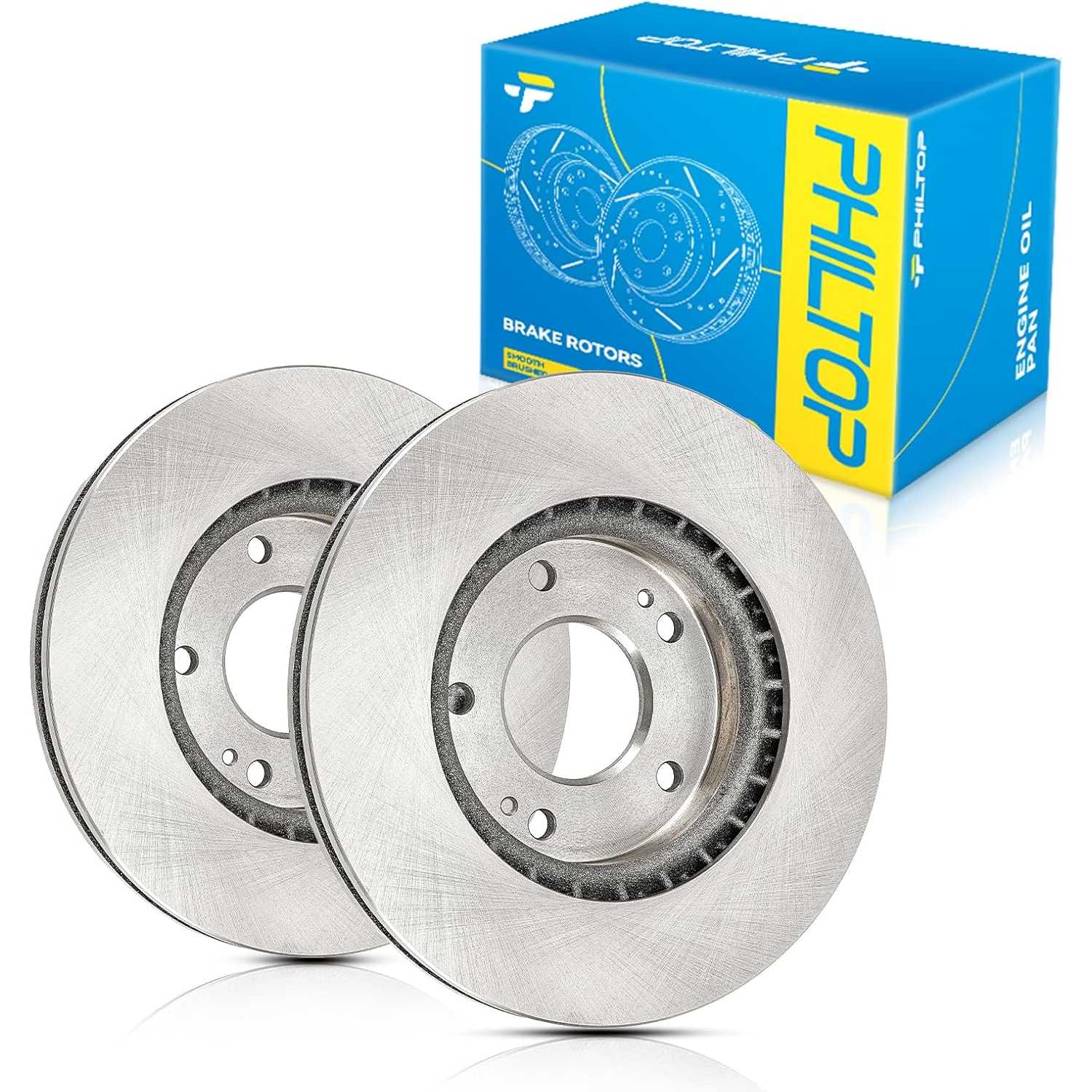

2x Front Disc Brake Rotor - 31584
Warranty Period
1-Year
OE Number
517123X000,51712A7000,51712M7000,517123Y000,517122V000,51712A6000
Part Number
12151044,980897R,12051044,BD180377E,980897FZN,980897R2,31584,980897,BR901096,901096,YH321985,YH321985C,JBR1564,44745,0833519,60003038,44745G,850273,BR90109602,70111,32051044F,YH321985P,BR90109601,1407321985,248880897,48880897,880897CR,90003038,90109600
Discard Thickness
21.40 mm
Quantity
2
Center Hole Diameter
69 mm
Nominal Thickness
23.00 mm
Overall Height
44.40 mm
Bolt Circle Diameter
114.30 mm
Type
Brake Disc Rotor

Highlights

  • [Perfect Fitment]: Compatible with Hyundai Elantra 2017-2020, fit for Elantra Coupe 2013-2014, fit for Elantra GT 2013-2017/2019-2020, Kona 2018-2021, Compatible with Veloster 2012-2020, Venue 2020-2021; Compatible with Kia Forte 2014-2019, Forte Koup 2014-2017, Forte5 2014-2018, Soul 2017-2019---Front Left and Right, Driver and Passenger Side
  • [Reference Number]: The PHILTOP Disc Brake Rotor' reference number: R-31584, R31584, 12151044, JBR1564, 32051044, PRT6148. Before placing an order, verify that the part is compatible with your vehicle using the compatibility system.

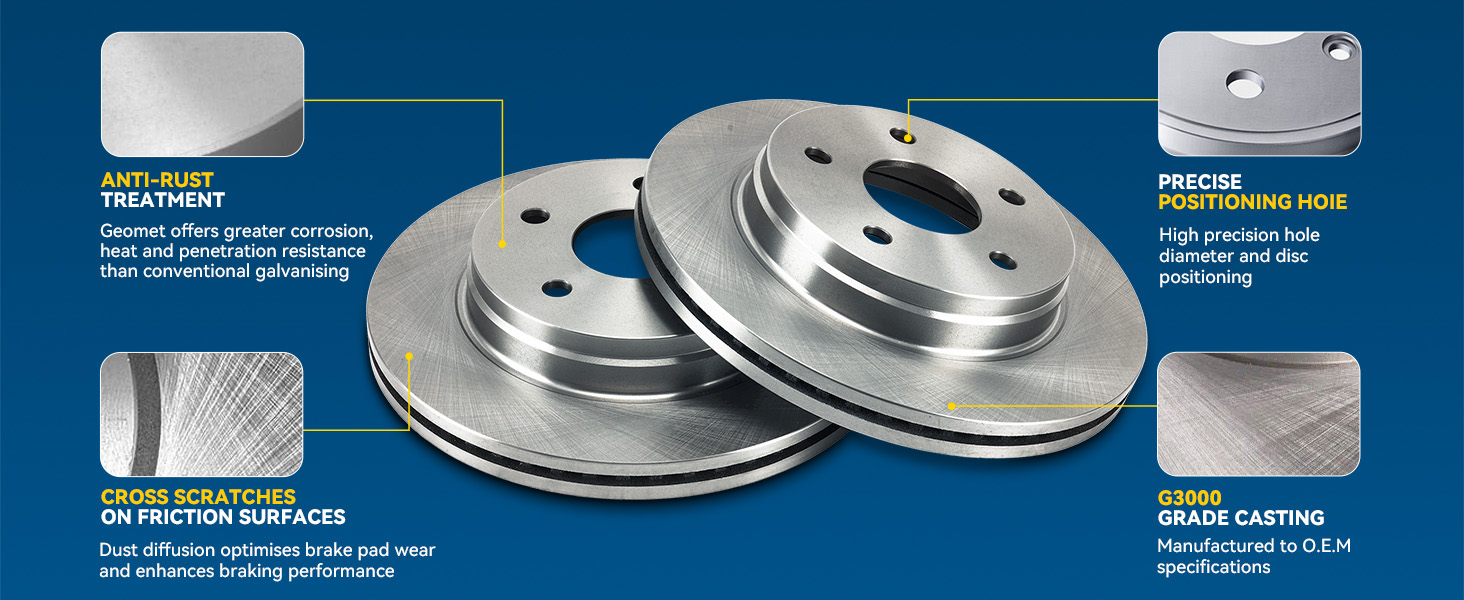

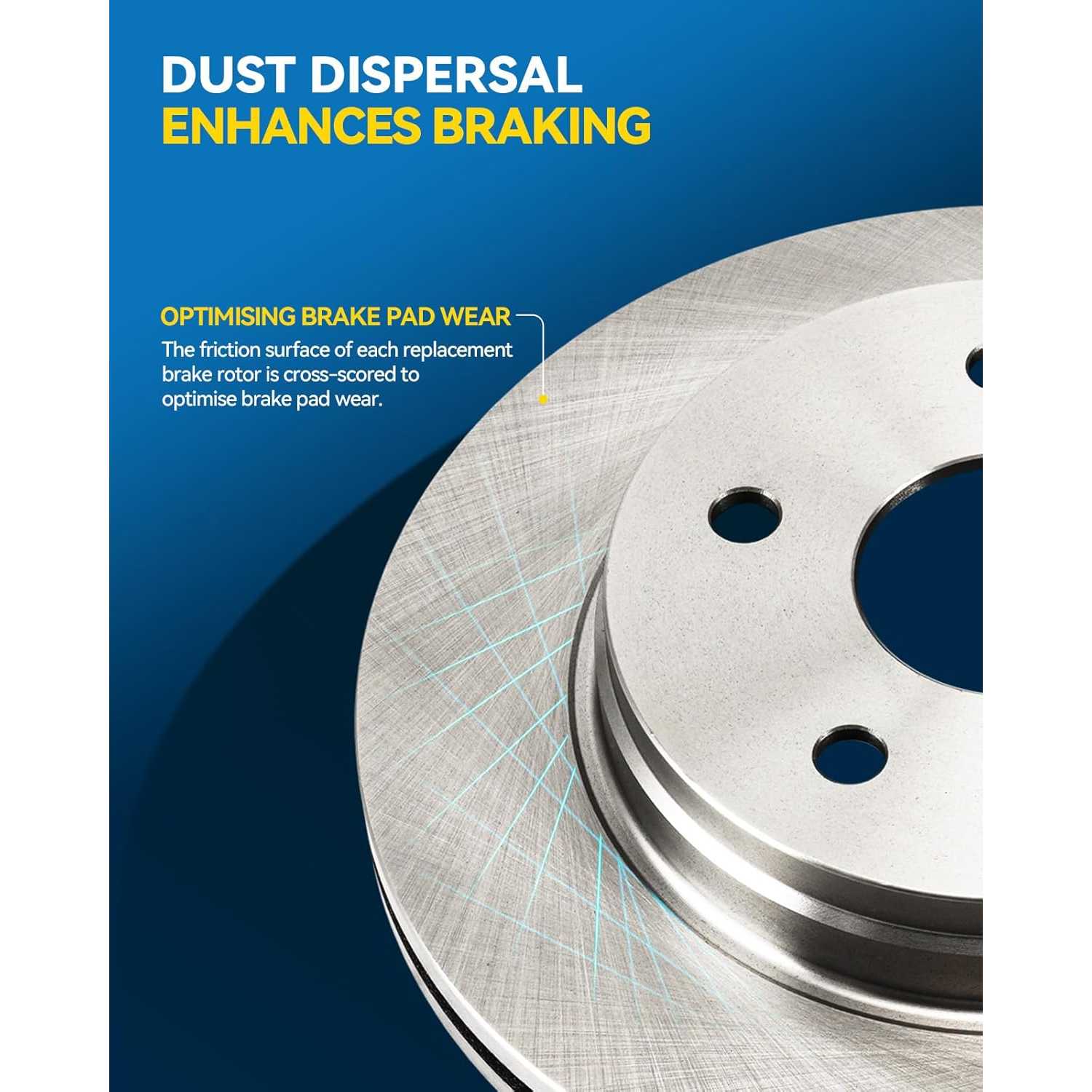

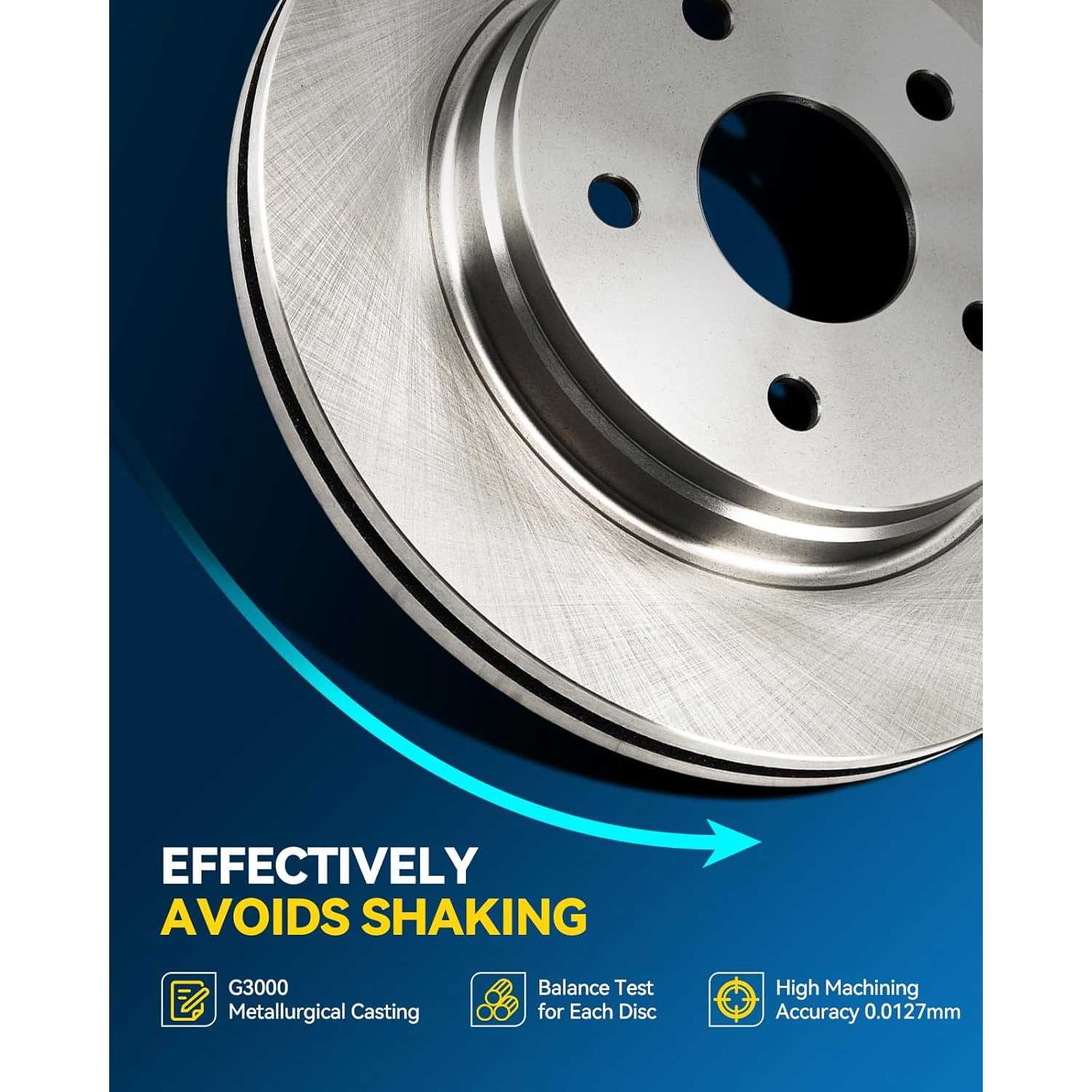

  • [Specification]: ①2x Vented Disc Brake Rotor, ②Material: G3000 Metallurgy, ③High processing accuracy :0.0127mm. Our brake discs have undergone balance tests and are processed with high precision, which can effectively prevent shaking. The metal coating on the surface of the brake disc can effectively prevent rust and corrosion, thereby extending its service life
  • [Excellent Braking Efficiency]: Our brake rotor meet OEM specifications, ensuring reliability, durability and stability. They can respond to braking commands instantaneously, effectively reducing the braking distance and guaranteeing your driving safety.

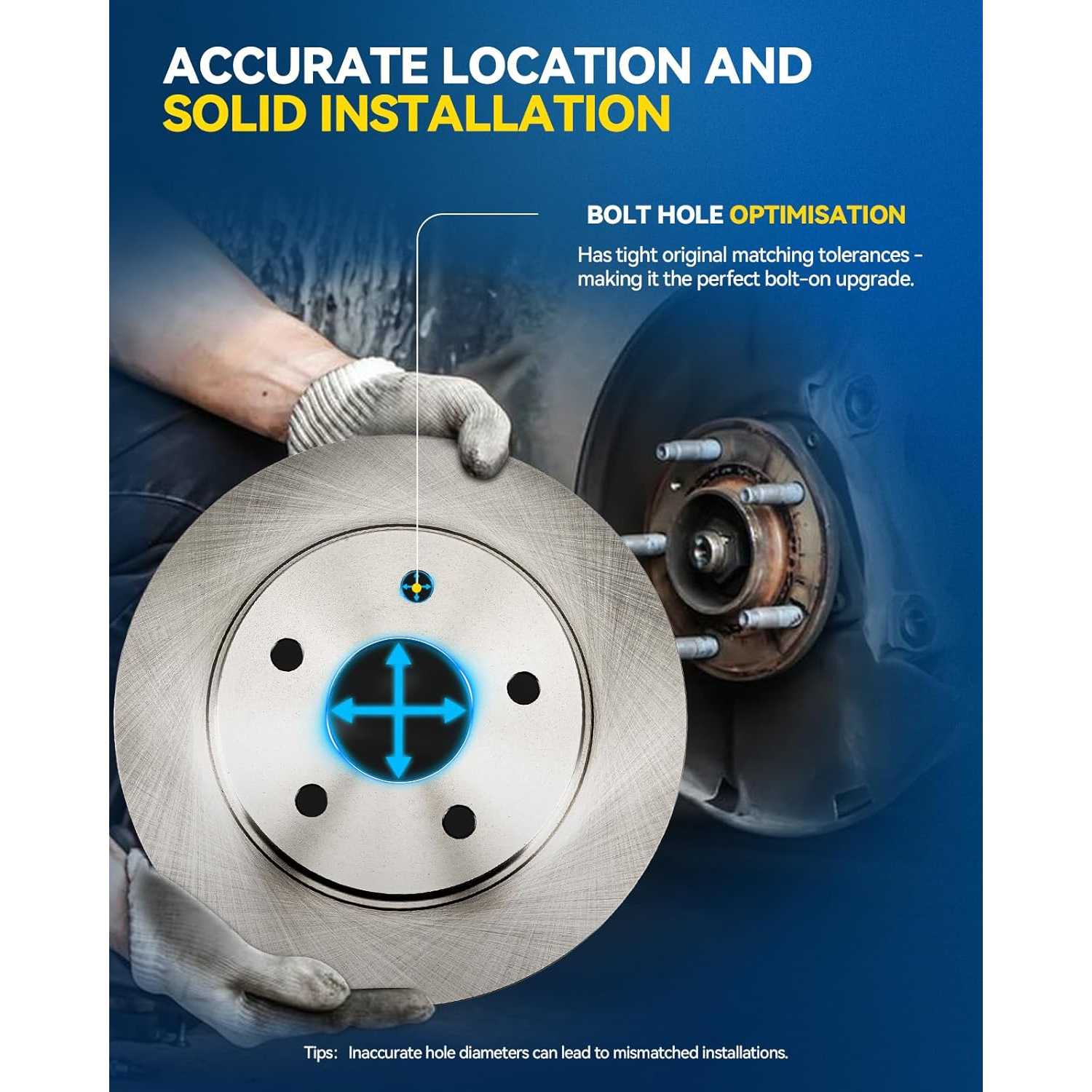

  • [Customer Support]: Complete Replacement: Ready for installation with no modifications needed. Please check the “Suncentauto Confirmed Fit” bar at the top of this page before buying product to ensure this product works for your vehicle. Please feel free to contact us if there is any quality problem with the product, such as damage or not suitable for your car.

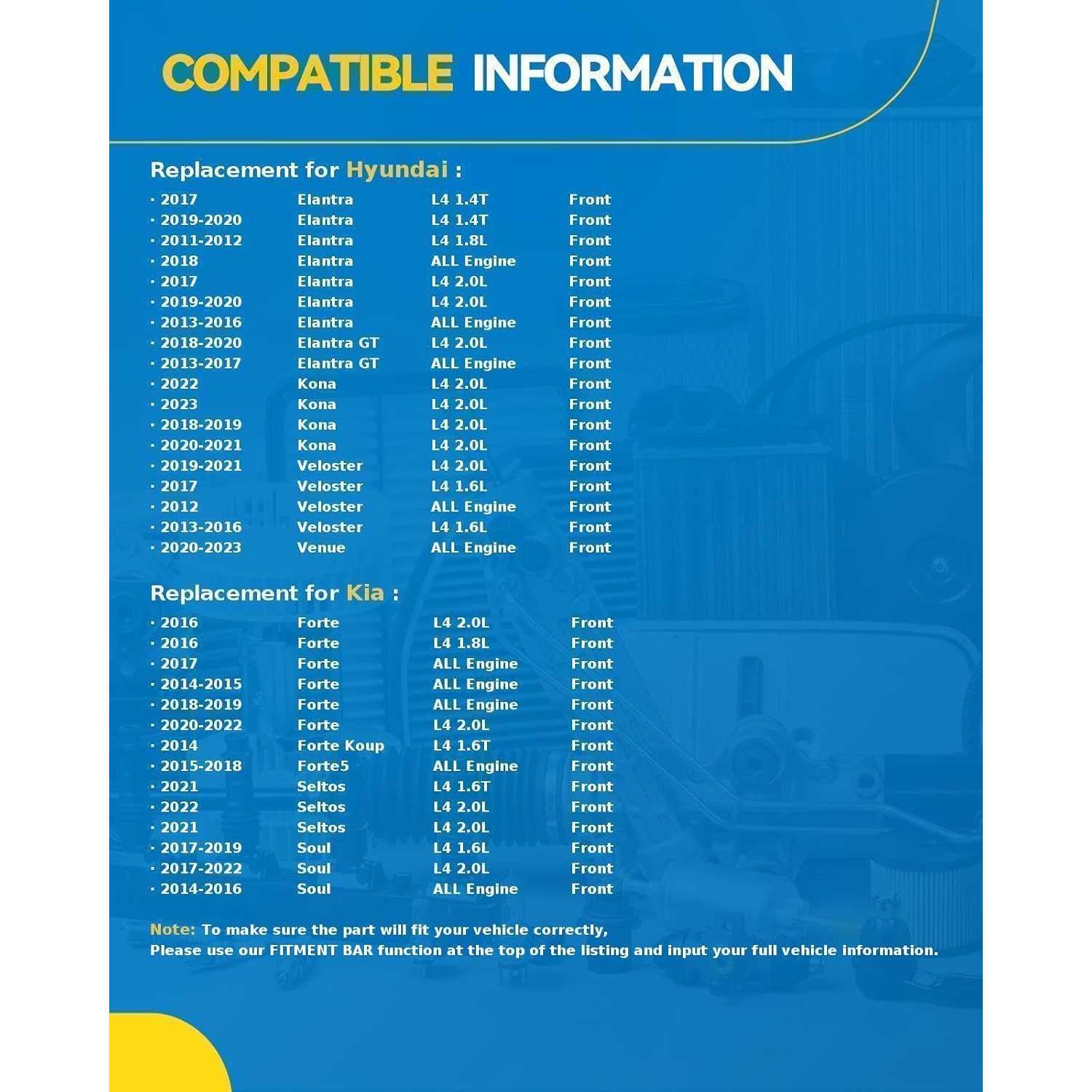

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2017 - 20182019 - 20202011 - 20132011 - 20162017 - 20182019 - 20202014 - 20162017 - 20182019 - 202020182019 - 202020182014 - 201620162017 - 20182019 - 202020132014 - 20202018 - 20192020 - 2021202220232018 - 20192020 - 2021202220232020 - 20212012 - 201620172019 - 20212019 - 20212014 - 201520172020 - 20212022 - 20232020 - 20232020 - 20232014 - 2015201620172018 - 20212019 - 20222020 - 20222014 - 20152016201720182019 - 202220172018 - 201920142015 - 20182016 - 20182015 - 2018202120222021202220212021202220212014 - 20162014 - 20192014 - 20192020 - 20222020 - 20222020 - 20222020 - 20222020 - 2022
MakeHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKia
ModelElantraElantraElantraElantraElantraElantraElantraElantraElantraElantraElantraElantraElantraElantraElantraElantraElantra GTElantra GTKonaKonaKonaKonaKonaKonaKonaKonaKonaVelosterVelosterVelosterVelosterVelosterVelosterVenueVenueVenueVenueForteForteForteForteForteForteForteForteForteForteForteForteForteForte KoupForte5Forte5Forte5SeltosSeltosSeltosSeltosSeltosSeltosSeltosSeltosSoulSoulSoulSoulSoulSoulSoulSoul
TrimEcoEcoGLSLimitedLimitedLimitedSESESESELSELSportSportValue EditionValue EditionValue EditionBaseBaseSESESESESELSELSELSELSEL PlusBaseBaseBasePremiumRE:FLEXValue EditionDenimLimitedSESELEXEXEXEXFEGT-LineLXLXLXLXLXSSSSXEXLXSXEXEXLXLXSSSSX!+BaseEXGT-LineLXSX-Line
Engine1.4L L41.4L L41.8L L41.8L L42.0L L42.0L L41.8L L42.0L L42.0L L42.0L L42.0L L41.6L L42.0L L41.8L L42.0L L42.0L L41.8L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L41.6L L41.6L L42.0L L42.0L L41.6L L41.6L L41.6L L41.6L L41.6L L41.6L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L41.8L L41.8L L42.0L L42.0L L42.0L L42.0L L42.0L L41.6L L42.0L L42.0L L41.6L L42.0L L42.0L L42.0L L42.0L L41.6L L42.0L L42.0L L41.6L L42.0L L42.0L L41.6L L42.0L L42.0L L42.0L L42.0L L42.0L L4
Note-
Front
Front
Front
-
Front
Front
-
Front
-
Front
-
Front
Front
-
Front
Front
Front
FWD, Front
FWD, Front, SE Model, SEL Model
Front
Front, FWD
FWD, Front
FWD, Front, SE Model, SEL Model
Front
Front, FWD
FWD, Front, SE Model, SEL Model
Front
Front, Base Model
--
Front
Front, Base Model
Front
Front
Front
Front
Front
Front, EX Model, LX Model
Front, EX Model, LX Model, S Model
Front
Front
Front
Front
Front, EX Model, LX Model
Front, EX Model, LX Model, S Model
Front
Front
Front, EX Model, LX Model, S Model
Front
Front
Front, With 280mm Diameter Rotor
Front, With 280mm Diameter Rotor
Front, With 280mm Diameter Rotor
Automatic CVT trans., FWD, Front
Front, FWD
Automatic CVT trans., FWD, Front
Front, FWD
Automatic CVT trans., FWD, Front
Automatic CVT trans., FWD, Front
Front, FWD
Automatic CVT trans., FWD, Front
Front
Front
Front
Front
Front
Front
Front
Front

How to Install?

Installation Manual Download

User manual (PDF)
Download

Read This After Installation

Quick Brake Rotor & Pad Bedding-In Guide:

  • STEP 1 — Accelerate to 40 mph on a safe, open road.
  • STEP 2 — Apply moderate brake pressure to slow down to about 10 mph. Do NOT come to a full stop.
  • STEP 3 — Repeat Steps 1–2 8–10 times, waiting at least 30 seconds between each stop to let the brakes cool slightly.
  • STEP 4 — Accelerate to 60 mph and brake more firmly down to 10 mph. Repeat 4–5 times.
  • STEP 5 — Drive 5–10 minutes without braking to let the rotors cool naturally. Do NOT stop the vehicle immediately, engage the parking brake, or allow cold water to come into contact with the brake rotors.

Note: For the first 200 miles, drive gently and avoid hard stops.

Product Video

Product Description

12

Reviews

5.0/5

Based on 4 reviews

5100%
40%
30%
20%
10%

Ahmad Naser

05/22/2026

Verified buyer

Solid and durable

aras

10/12/2025

Verified buyer

This coat is good quality and feels classy and elegant. I got compliments on it immediately. Not especially warm if you have cold winters, but is nice for fall weather. The material is medium thick and hangs nice. The coat has a nice lining. It is a good quality coat. It does come a wrinkled, but that's to be expected with how it's packaged.

FAQS

Warranty coverage and duration may vary by product. For specific warranty period details by product category, please refer to our Warranty & Returns Policy page. Damage related to incorrect fitment, installation or other vehicle problems may require further review.

Light surface rust may develop on exposed braking surfaces after moisture exposure and may clear during normal braking. Heavy or uneven corrosion should be inspected.

New pads are commonly recommended with new rotors, especially if the existing pads are worn, uneven, or contaminated.
