2011-2013 Kia Sorento 2.4L L4 | Fuel Pump Assembly | OE#311101U000/FG1572 - PHILTOP

2011-2013 Kia Sorento 2.4L L4 | Fuel Pump Assembly | OE#311101U000/FG1572 - PHILTOP

Carbon Commutator

Precision Ceramic Resistor

Pressure Sensor Included

4.7

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
1438FUP194FUS

Specifications

Brand
PHILTOP
Gasket or Seal Included
Yes
Pressure Sensor Included
Yes
Strainer Included
Yes
Fuel Level Sender Assembly Included
Yes
Resistance Ohms Empty
94.0 Ω
Resistance Ohms Full
7.0 Ω
Average Flow Rating
24 GPH
In Tank or External
In Tank
Lock Ring Included
No
Material
Metal, Plastic
Maximum Pressure
48.0 PSI
Outlet Outside Diameter
0.313 in
Outlet Quantity
2
Outlet Type
Quick Connect
Pump Structure
Turbine Impeller
Items Included

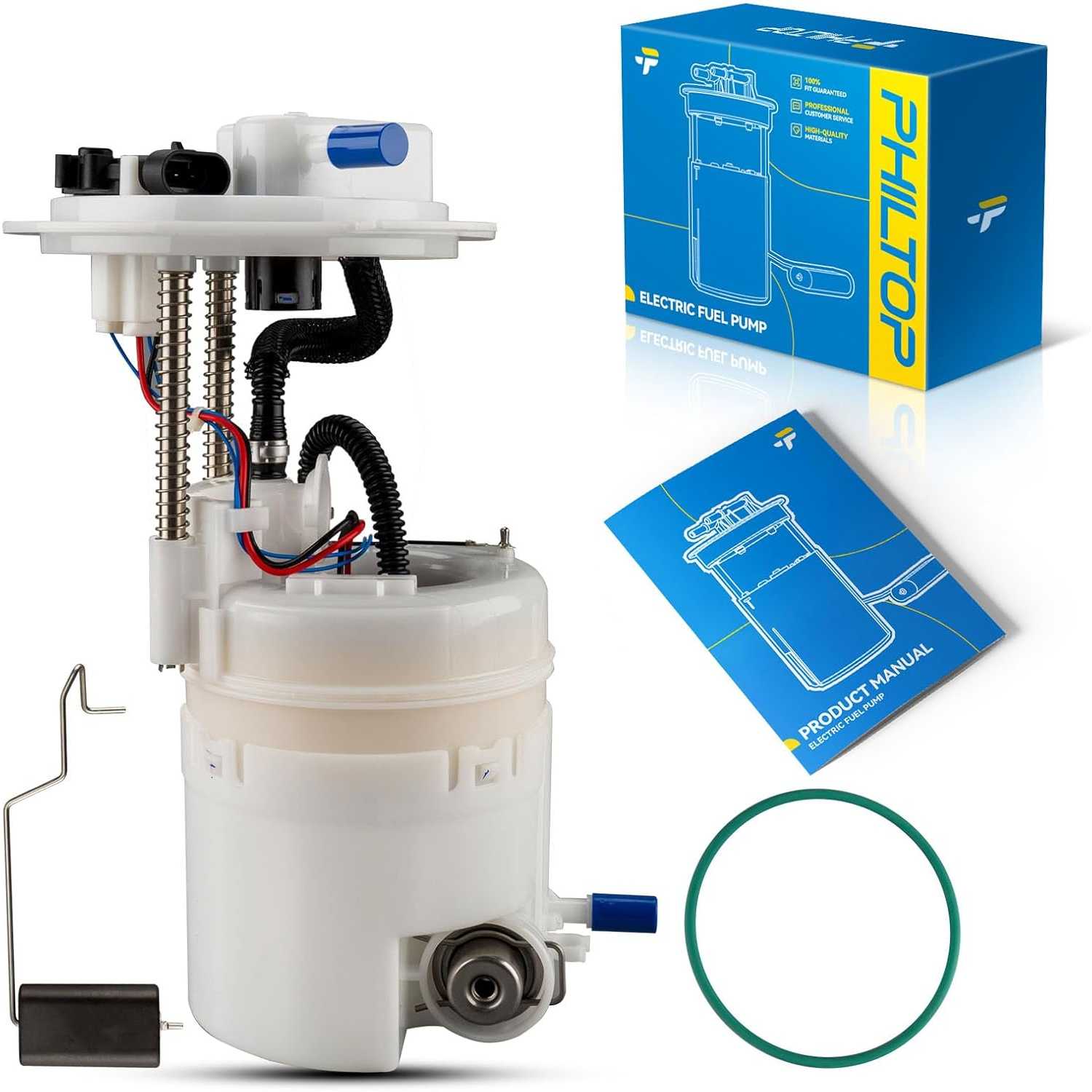

1x Fuel Pump Assembly - FG1572
Warranty Period
2-Year
OE Number
311101U000,311101U300
Part Number
FG1572,SP3079M,P77425M,USEP9098M,E9029M,SP3042M,P76774M,A30451,CFG1572,4011278,C0736M,USEP9029M,TU331,TNKSP3079M,A46724,M2528791,A47161

Highlights

  • Fitment: Compatible with [Kia] 2011-2013 Sorento 2.4L, [Hyundai] 2010-2012 Santa Fe 2.4L.
  • Reference Number: 4011278, USEP9029M, E9029M, 311101U000, SP3042M, USEP9098M, C0736M, FG1572, 311101U300, SP3079M, P76774M, A30451, CFG1572, P77425M, TU331, TNKSP3079M, A46724, M2528791, A47161.
  • Related Parts: ① Fuel Pump, ② Strainer, ③Pressure Sensors.
  • 20% Improved Fuel Delivery Efficiency: The commutator is made of carbon material, achieving an all-round performance leap compared with traditional copper commutators; it features superior electrical performance, shorter arc duration, stable current transmission, reduced motor energy consumption, and enhanced fuel delivery efficiency.
  • Superior Durability: The contacts are made of gold-palladium alloy with a melting point of up to 1450℃, featuring stable electrical conductivity, excellent corrosion resistance and wear resistance, and can achieve 1 million contact cycles without obvious damage.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2010 - 20122010 - 20122011 - 20122011 - 20132011 - 2013
MakeHyundaiHyundaiKiaKiaKia
ModelSanta FeSanta FeSorentoSorentoSorento
TrimGLSLimitedBaseEXLX
Engine2.4L L42.4L L42.4L L42.4L L42.4L L4
Note-----

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the fuel-pump sound at key-on and test the fuse, relay, power supply and ground.
  • Check fuel pressure before confirming that the pump requires replacement.
  • Compare the connector, fuel ports, mounting points and fuel-level sensor with the original unit.
  • Work in a well-ventilated area away from flames, sparks and smoking.
  • Relieve fuel-system pressure and disconnect the negative battery cable.
  • Confirm that a new fuel-pump sealing ring is available.

Installation Steps

  • Step-1: Relieve fuel pressure and clean the area around the tank opening.
  • Step-2: Label and disconnect the fuel lines and electrical connector.
  • Step-3: Remove the retaining ring using the correct tool—never strike it with a steel tool.
  • Step-4: Carefully lift out the old module without damaging the float arm.
  • Step-5: Discard the old sealing ring and install a new one.
  • Step-6: Install the new module in the correct orientation and secure the retaining ring.
  • Step-7: Reconnect the fuel lines and electrical connector, ensuring every clip is locked.

After Installation

  • Cycle the ignition ON two or three times without starting to prime the fuel system.
  • Start the engine and inspect every connection for leakage or fuel odor.
  • Verify fuel pressure and fuel-gauge operation.
  • Stop the engine immediately if a leak or strong gasoline odor is detected.
  • Avoid regularly operating the vehicle with a very low fuel level, which may overheat the pump.

Product Description

Electric Fuel PumpElectric Fuel Pump
