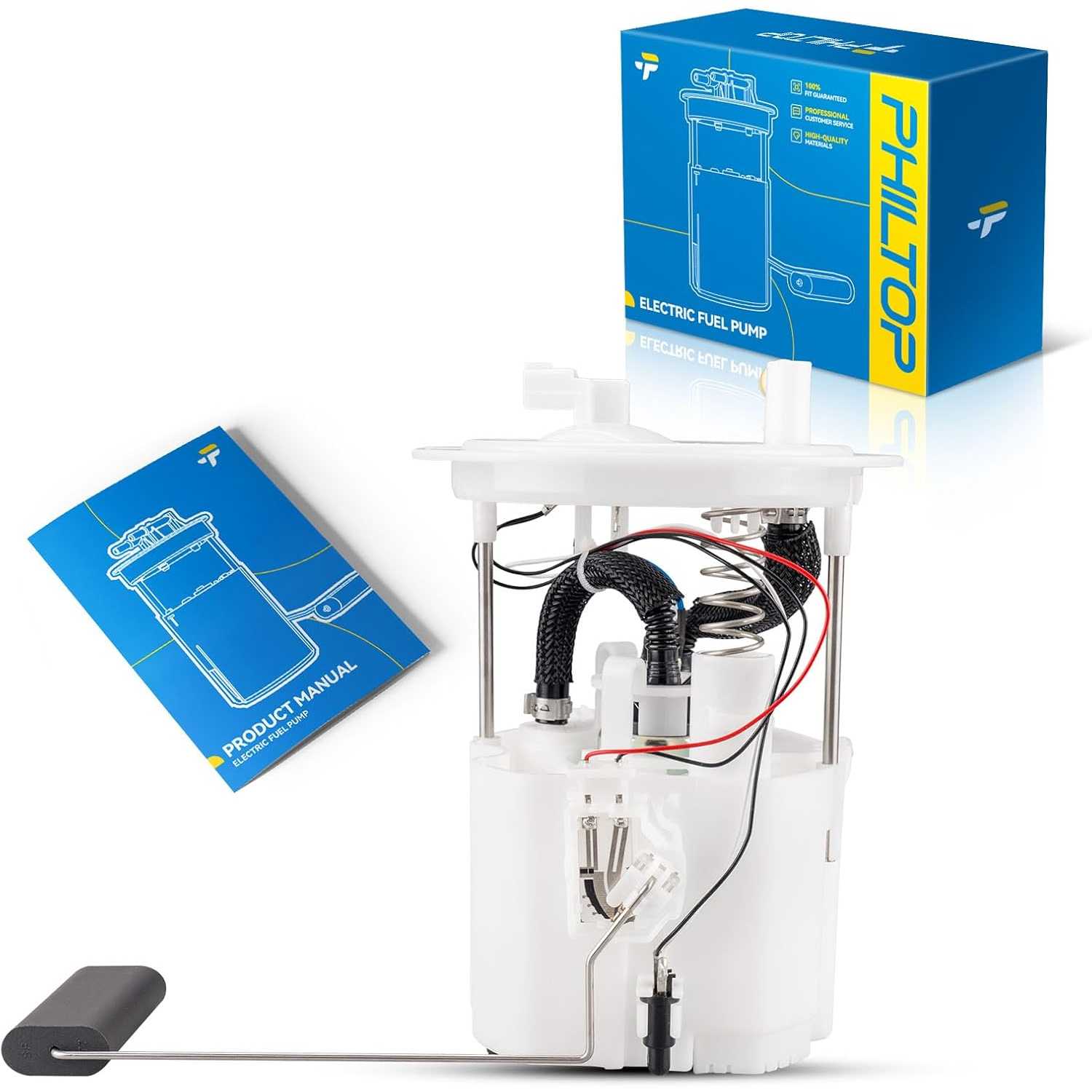

2007-2012 Nissan Sentra 2.0L/2.5L | Fuel Pump Assembly | OE#170409AA0B/P76492M - PHILTOP

2007-2012 Nissan Sentra 2.0L/2.5L | Fuel Pump Assembly | OE#170409AA0B/P76492M - PHILTOP

Carbon Commutator

Precision Ceramic Resistor

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
1473FUP035CUS

Specifications

Brand
PHILTOP
Gasket or Seal Included
No
Pressure Sensor Included
No

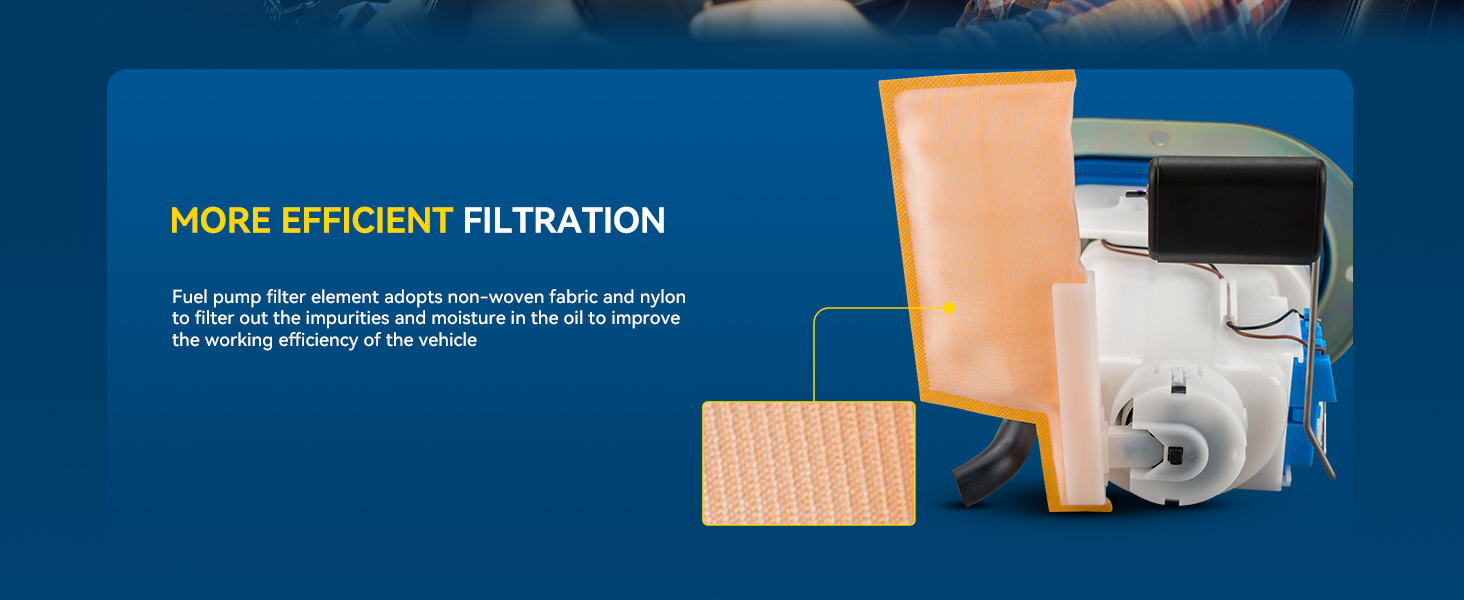

Strainer Included
Yes

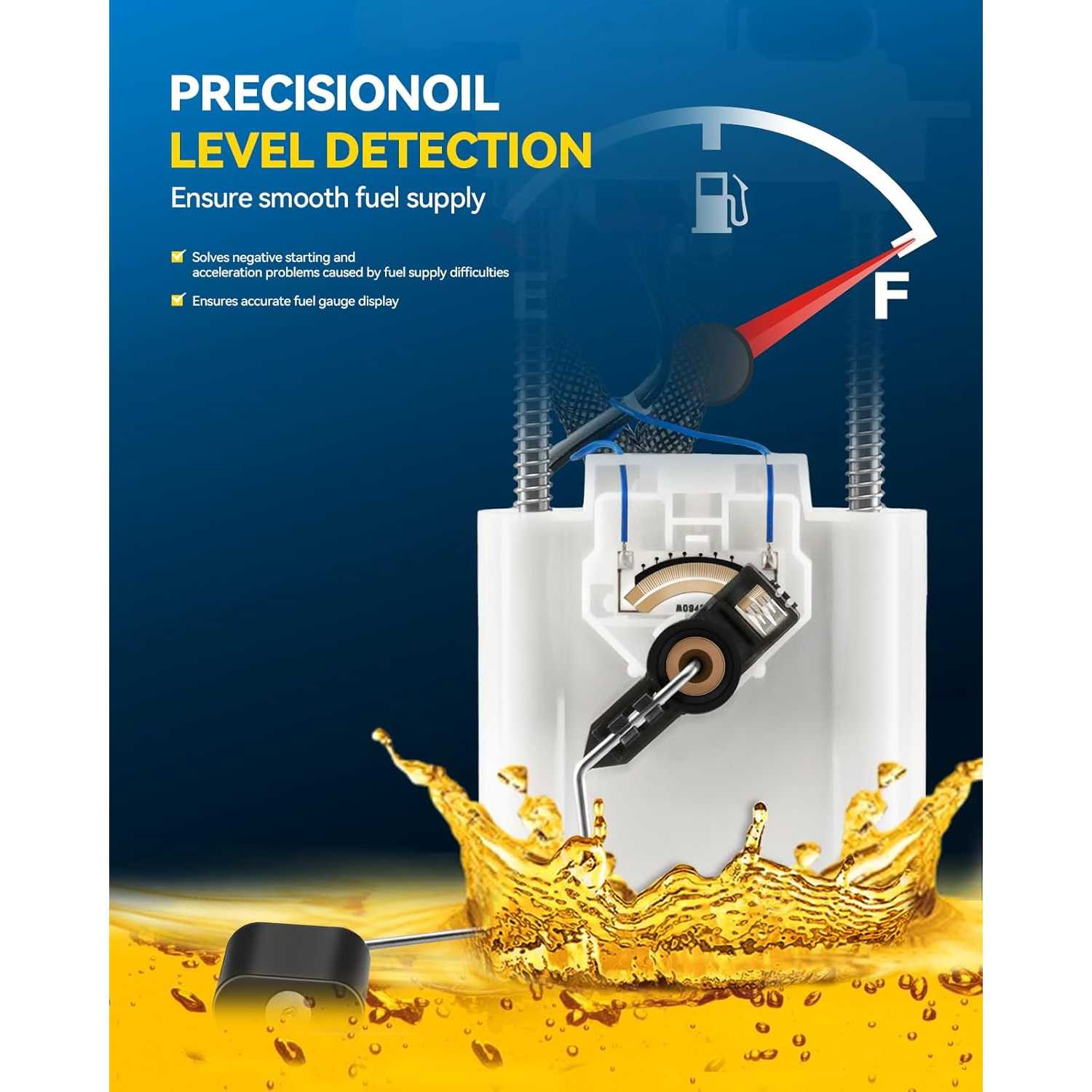

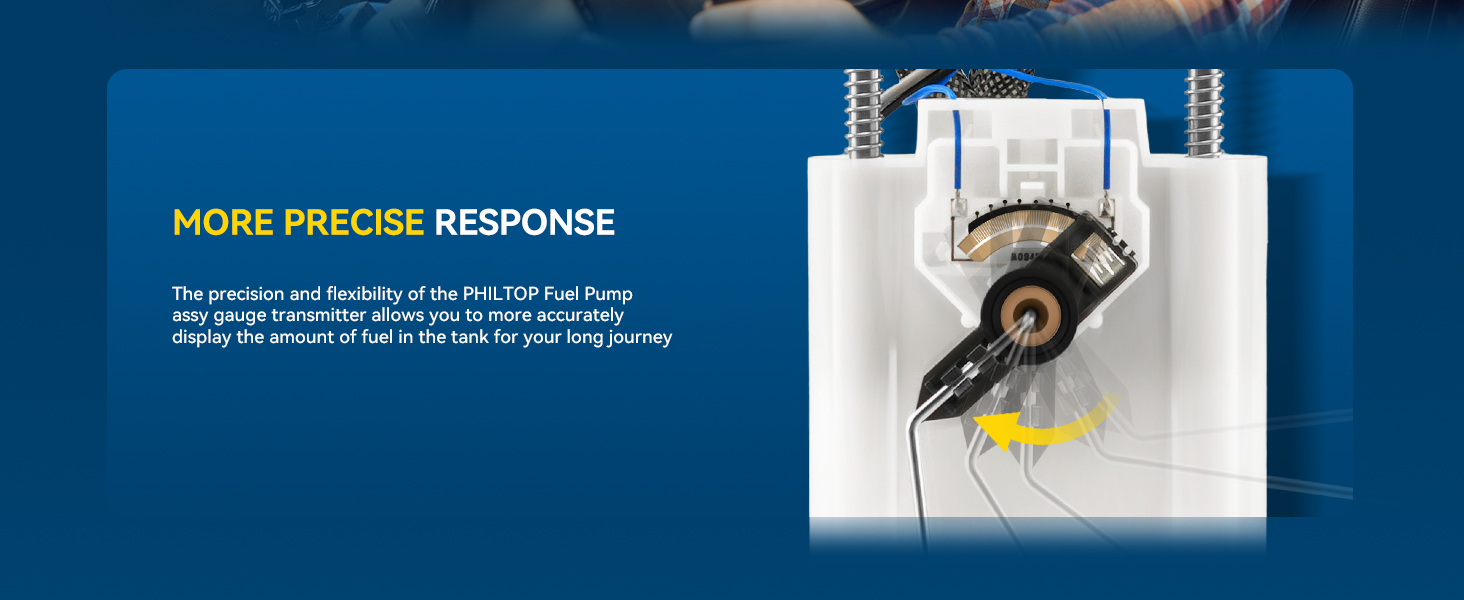

Fuel Level Sender Assembly Included
Yes
Resistance Ohms Empty
81.0 Ω
Resistance Ohms Full
4.0 Ω
Average Flow Rating
32 GPH
In Tank or External
In Tank
Lock Ring Included
No
Material
Metal, Plastic
Outlet Outside Diameter
0.375 in
Outlet Quantity
1
Outlet Type
Quick Connect
Pump Structure
Turbine Impeller
Items Included

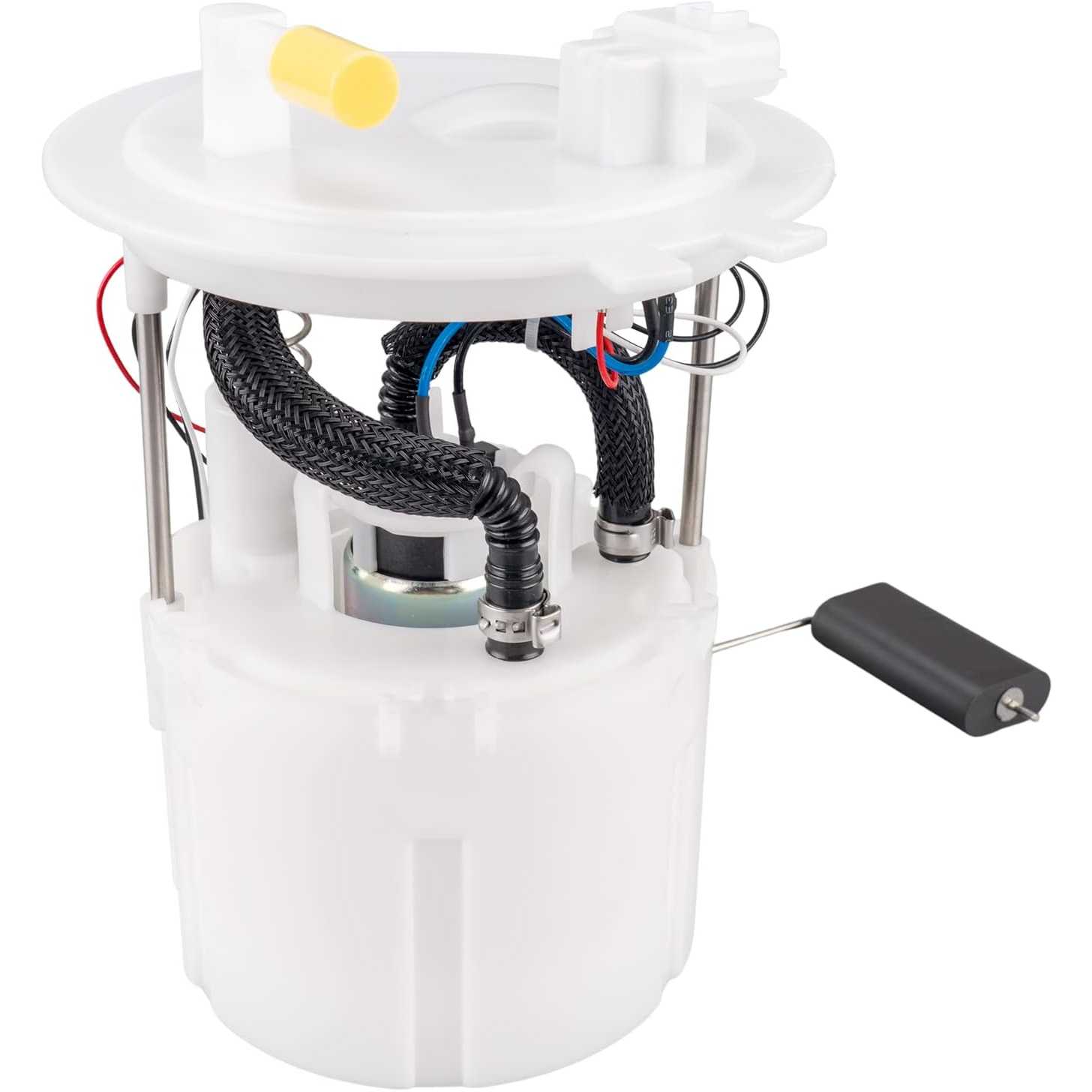

1x Fuel Pump Assembly - FG1958
Warranty Period
2-Year
OE Number
170409AA0B,170409AA0A,17040ET00A
Part Number
P76492M,SP4020M,FG1958,5502040,USEP8752M,230GE,E8752M,4010651,DFG1958,F4763A,402P8752M,2920643,1234754,M3496382,TNKSP4020M,B14112096TG,C0672M

Highlights

  • (Direct Fit for Nissan Sentra 2007–2012) Engineered as a direct replacement for 2007–2012 Nissan Sentra Sedans with 2.0L or 2.5L L4 GAS naturally aspirated engines. Matches OEM specifications for proper fit and hassle-free installation
  • (OEM Part Numbers & Compatibility) Replaces part numbers: FG0986, E8752M, 17040-9AA0A, 17040-9AA0B, 17040-ET00A, FG1958, P76492M, SP4020M. Compatible with QR25DE engine. Please confirm your original part number to ensure the correct fit

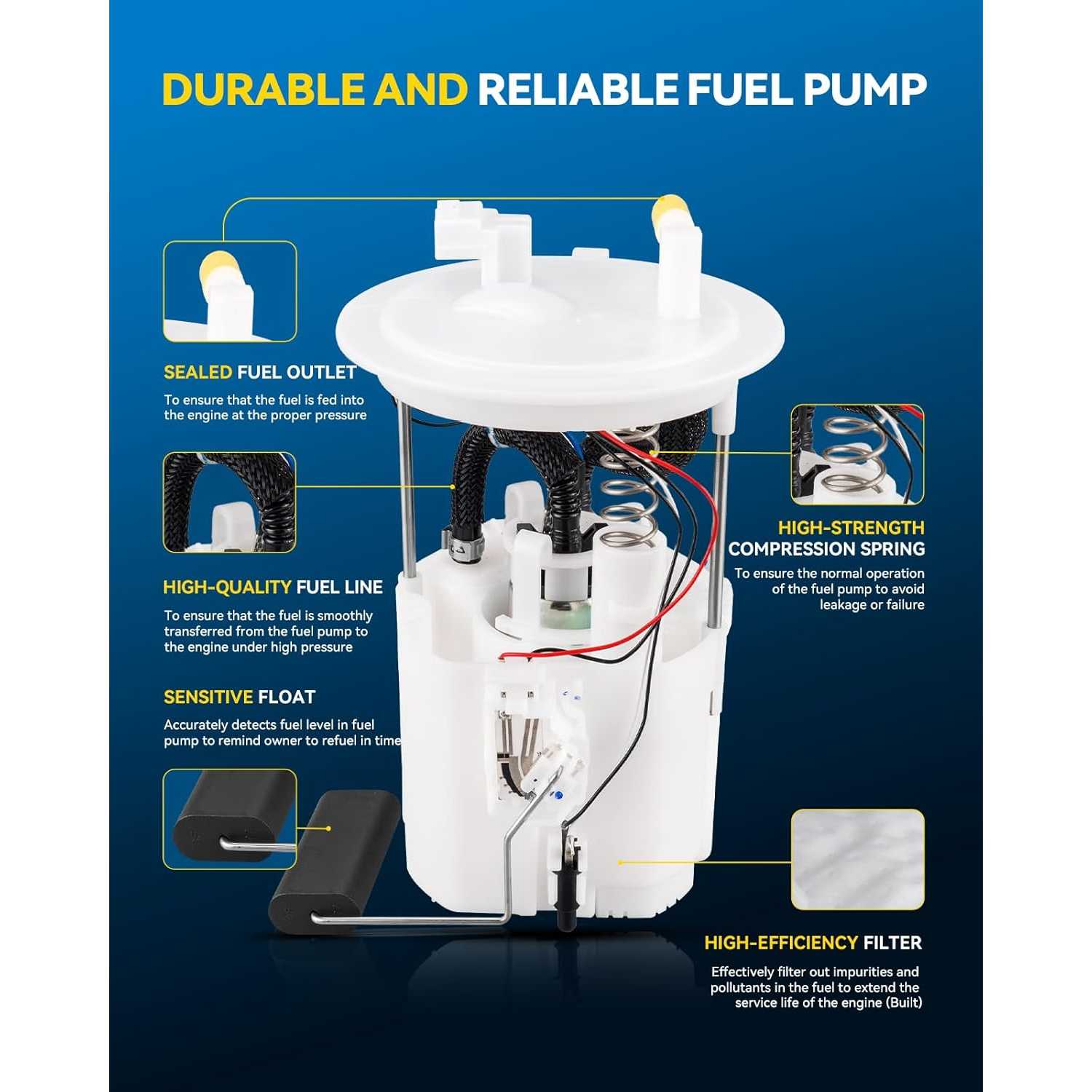

  • (Durable Materials & Reliable Performance) Constructed with high-quality POM plastic and a proven OE-style module design. Offers excellent ethanol resistance and improved fuel efficiency. Built to meet or exceed OEM standards for long-term durability
  • (Low Noise, Long Lifespan) Operates quietly at just 48 dB. Each unit passes a 3,500-hour endurance test with less than 15% flow loss. Delivers stable fuel pressure across gasoline and ethanol blends for consistent engine performance
  • (Easy Installation – No Extra Tools Needed) Comes fully assembled with pump, pressure sensor, float, and tank seal for quick replacement. Use Suncentauto’s "Garage" tool or check the fitment chart to verify vehicle compatibility before purchase

Compatible Vehicles

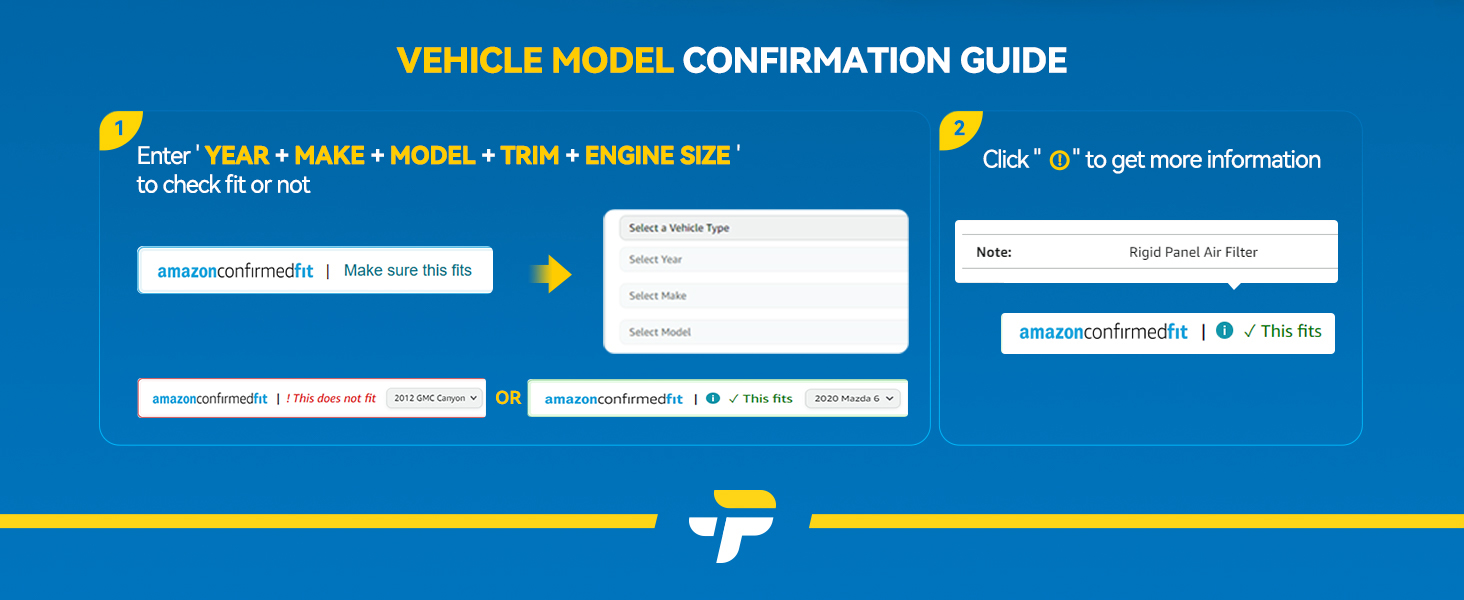

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2007 - 20122007 - 20122007 - 20122007 - 20122007 - 20122009 - 2012
MakeNissanNissanNissanNissanNissanNissan
ModelSentraSentraSentraSentraSentraSentra
TrimBaseSSE-RSE-R Spec VSLSR
Engine2.0L L42.0L L42.5L L42.5L L42.0L L42.0L L4
Note------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the fuel-pump sound at key-on and test the fuse, relay, power supply and ground.
  • Check fuel pressure before confirming that the pump requires replacement.
  • Compare the connector, fuel ports, mounting points and fuel-level sensor with the original unit.
  • Work in a well-ventilated area away from flames, sparks and smoking.
  • Relieve fuel-system pressure and disconnect the negative battery cable.
  • Confirm that a new fuel-pump sealing ring is available.

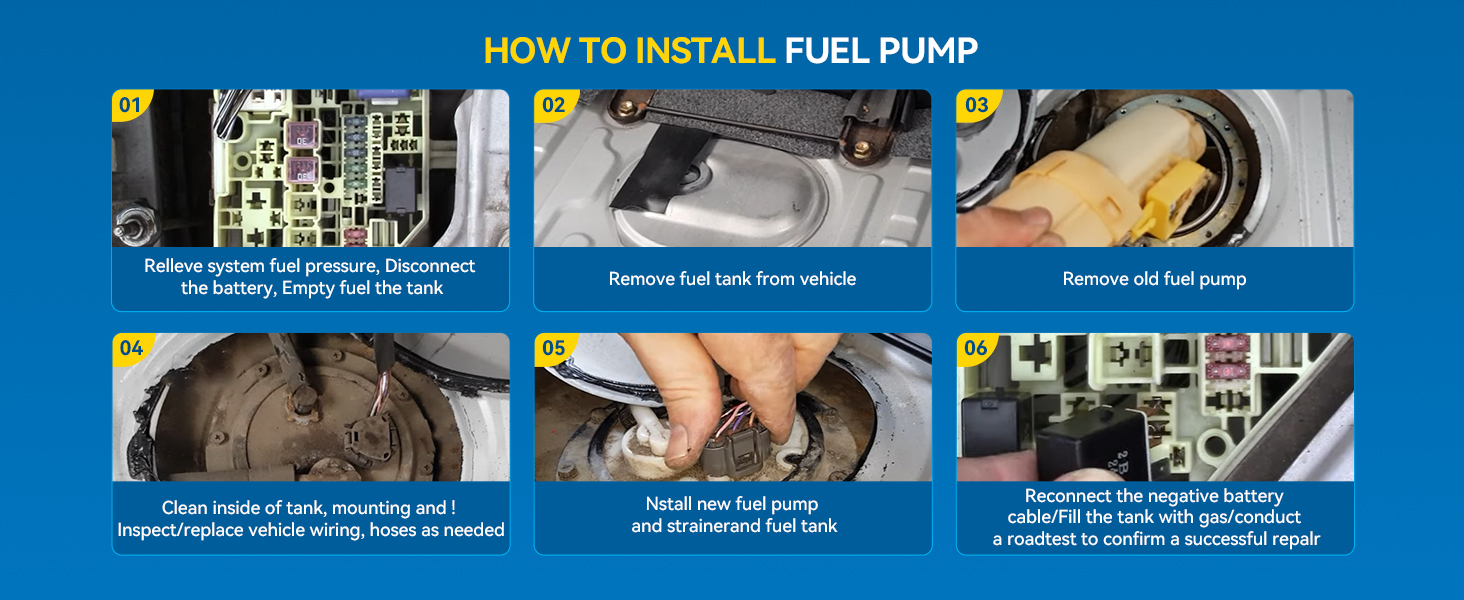

Installation Steps

  • Step-1: Relieve fuel pressure and clean the area around the tank opening.
  • Step-2: Label and disconnect the fuel lines and electrical connector.
  • Step-3: Remove the retaining ring using the correct tool—never strike it with a steel tool.
  • Step-4: Carefully lift out the old module without damaging the float arm.
  • Step-5: Discard the old sealing ring and install a new one.
  • Step-6: Install the new module in the correct orientation and secure the retaining ring.
  • Step-7: Reconnect the fuel lines and electrical connector, ensuring every clip is locked.

After Installation

  • Cycle the ignition ON two or three times without starting to prime the fuel system.
  • Start the engine and inspect every connection for leakage or fuel odor.
  • Verify fuel pressure and fuel-gauge operation.
  • Stop the engine immediately if a leak or strong gasoline odor is detected.
  • Avoid regularly operating the vehicle with a very low fuel level, which may overheat the pump.

Product Description

Electric Fuel Pumpfuel pump

Reviews

5.0/5

Based on 36 reviews

5100%
40%
30%
20%
10%

Customer photos and videos

DorothyK

03/12/2026

Verified buyer

Hubby was impressed. We have 3 Dodge trucks. 01 diesel, 02 gas, 08 diesel. Parts are pricey. This is the second part we ordered from this brand/store and so far we are impressed. A full set of instructions comes with it, as well as the seal and float. We have had no problems with parts matching. I took several photos so you can determine for yourself if you wish to give it a try. So far, we've liked what we've seen.

Nassim Daher

08/02/2026

Verified buyer

Fits just right. 2012 VW 2012 2.5 SE. Easy to change in 45 minutes.
