2007-2009 Hyundai Santa Fe 2.7L V6/3.3L V6 | Fuel Pump Assembly | OE#311100W000/FG1272 - PHILTOP

2007-2009 Hyundai Santa Fe 2.7L V6/3.3L V6 | Fuel Pump Assembly | OE#311100W000/FG1272 - PHILTOP

Carbon Commutator

Precision Ceramic Resistor

Pressure Sensor Included

5.0

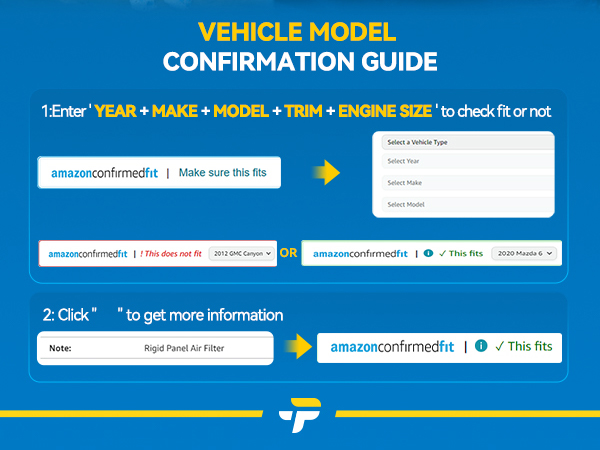

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
6307FUP114HUS

Specifications

Brand
PHILTOP
Gasket or Seal Included
Yes
Pressure Sensor Included
Yes

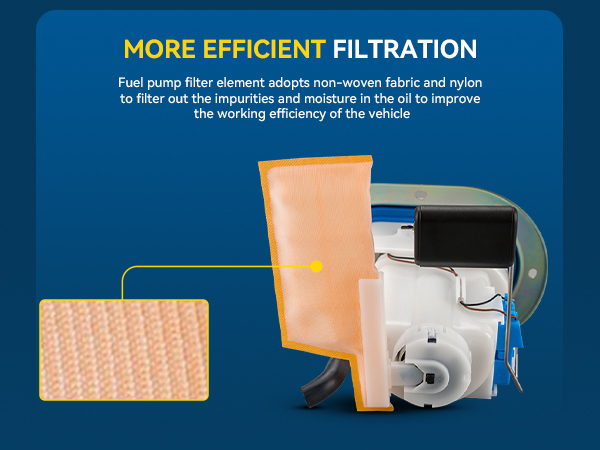

Strainer Included
Yes

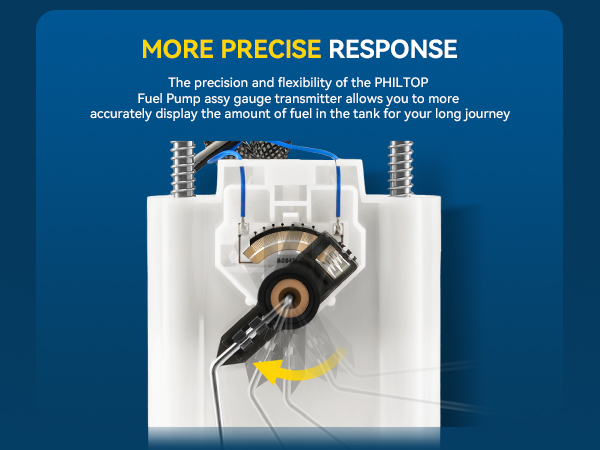

Fuel Level Sender Assembly Included
Yes
Resistance Ohms Empty
83.0 Ω
Resistance Ohms Full
4.0 Ω
Average Flow Rating
55 GPH
In Tank or External
In Tank
Lock Ring Included
No
Material
Metal, Plastic
Maximum Pressure
80.0 PSI
Outlet Outside Diameter
0.313 in
Outlet Quantity
2
Outlet Type
Quick Connect
Pump Structure
Turbine Impeller
Items Included

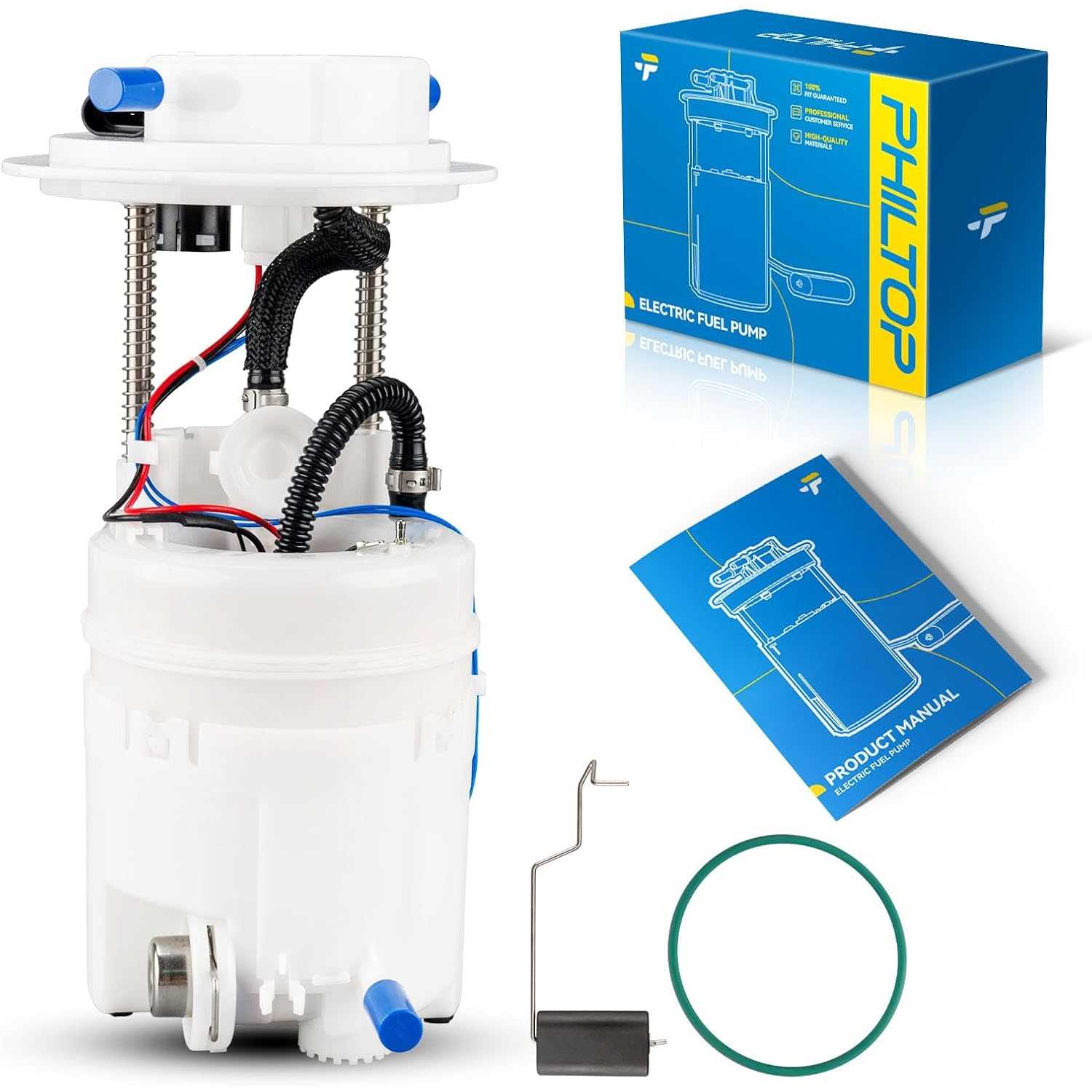

1x Fuel Pump Assembly - FG1272
Warranty Period
2-Year
OE Number
311100W000
Part Number
FG1272,SP3022M,P76603M,USEP8821M,E8821M,4010633,69856,CFG1272,F4832A,M3496396,150342,PN3126,D17111074TG,TU333,C0691M,1234776,TNKSP3022M,2920653

Highlights

Product highlights are being verified.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2007 - 20092007 - 20092007 - 2009
MakeHyundaiHyundaiHyundai
ModelSanta FeSanta FeSanta Fe
TrimGLSLimitedSE
Engine2.7L V63.3L V63.3L V6
Note---

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the fuel-pump sound at key-on and test the fuse, relay, power supply and ground.
  • Check fuel pressure before confirming that the pump requires replacement.
  • Compare the connector, fuel ports, mounting points and fuel-level sensor with the original unit.
  • Work in a well-ventilated area away from flames, sparks and smoking.
  • Relieve fuel-system pressure and disconnect the negative battery cable.
  • Confirm that a new fuel-pump sealing ring is available.

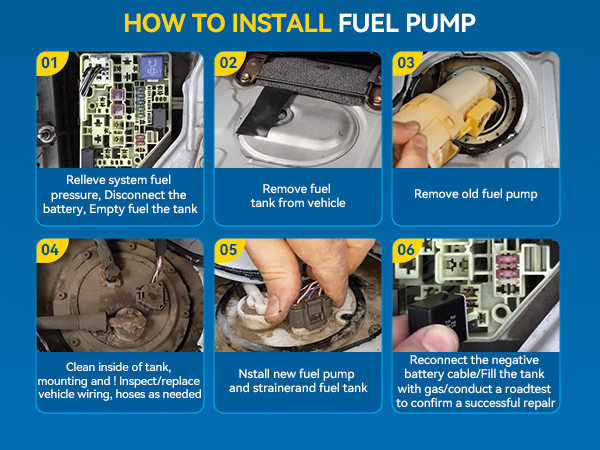

Installation Steps

  • Step-1: Relieve fuel pressure and clean the area around the tank opening.
  • Step-2: Label and disconnect the fuel lines and electrical connector.
  • Step-3: Remove the retaining ring using the correct tool—never strike it with a steel tool.
  • Step-4: Carefully lift out the old module without damaging the float arm.
  • Step-5: Discard the old sealing ring and install a new one.
  • Step-6: Install the new module in the correct orientation and secure the retaining ring.
  • Step-7: Reconnect the fuel lines and electrical connector, ensuring every clip is locked.

After Installation

  • Cycle the ignition ON two or three times without starting to prime the fuel system.
  • Start the engine and inspect every connection for leakage or fuel odor.
  • Verify fuel pressure and fuel-gauge operation.
  • Stop the engine immediately if a leak or strong gasoline odor is detected.

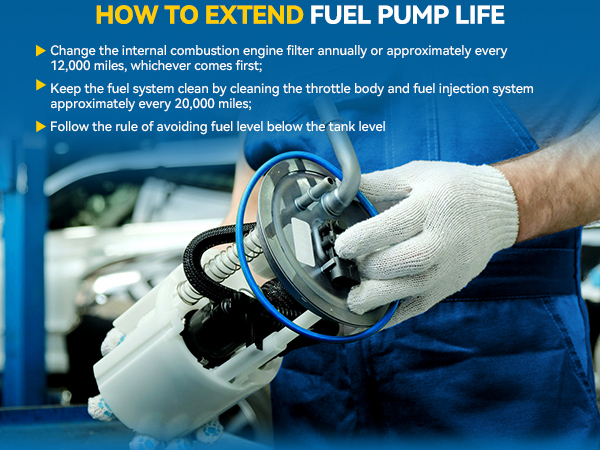

  • Avoid regularly operating the vehicle with a very low fuel level, which may overheat the pump.

Product Description

Electric Fuel PumpElectric Fuel Pump

Reviews

5.0/5

Based on 2 reviews

5100%
40%
30%
20%
10%

Jorge

06/22/2024

Verified buyer

Fue perfecto que súper bien

Travel Coach

08/14/2023

Verified buyer

This fuel pump fit and works perfectly. Operation is quiet. Though it is an aftermarket product, the quality appears to be equal to the OEM. Time will tell how long it performs.
