2013-2016 Dodge Dart 2.4L L4/2.0L L4 | Fuel Pump Assembly | OE#68166594AB/FG1560 - PHILTOP

2013-2016 Dodge Dart 2.4L L4/2.0L L4 | Fuel Pump Assembly | OE#68166594AB/FG1560 - PHILTOP

Carbon Commutator

Precision Ceramic Resistor

Seal Included

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
5943FUP341DUS

Specifications

Brand
PHILTOP
Gasket or Seal Included
Yes
Pressure Sensor Included
No
Strainer Included
Yes
Fuel Level Sender Assembly Included
Yes
Resistance Ohms Empty
990.0 Ω
Resistance Ohms Full
50.0 Ω
Average Flow Rating
55 GPH
In Tank or External
In Tank
Lock Ring Included
No
Material
Metal, Plastic
Maximum Pressure
138.0 PSI
Outlet Outside Diameter
0.313 in
Outlet Quantity
3
Outlet Type
Quick Connect
Pump Structure
Turbine Impeller
Items Included

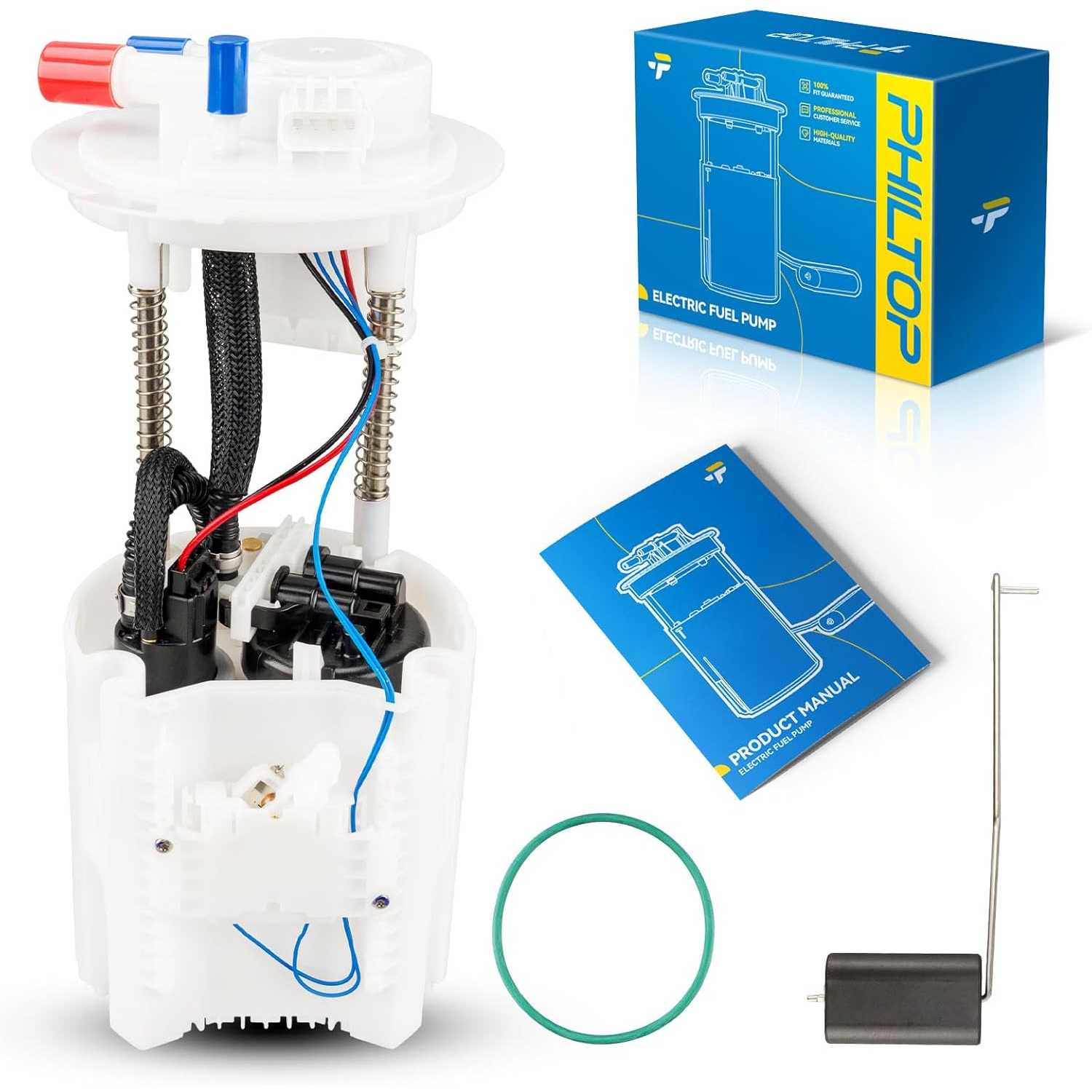

1x Fuel Pump Assembly - FG1560
Warranty Period
2-Year
OE Number
68166594AB,68166589AA,68166589AB,68166589AC
Part Number
FG1560,P77057M

Highlights

  • (Direct Fit) - Direct replacement for worn fuel pump assembly, suitable for the following models: Forte 2010-2013 2.0L, 2.4L, Forte Koup 2010-2013 2.0L, 2.4L
  • (OEM Number)--PHILTOP fuel pump meets OE standard, interchangeable with the following numbers: FG1560, 6816 6589AC, A30509, DFG1560, E7280M, P77057M, SP7224M
  • (Premium Quality & Service)--One year hassle-free return and exchange. All plastic parts are made of imported high performance POM raw materials, and the module adopts the most mature fuel pump structure, which is ethanol resistant, more efficient and longer service life.
  • (Package)---Electric fuel pump assembly includes:the fuel pump, pressure sensor, float and tank seal and is ready for direct replacement.
  • (Easy to install)--No need to buy other accessories, can be installed directly. Please confirm the year/make/model of the vehicle you are purchasing before purchasing. You can refer to the fitment description on the product detail page or use the "Suncentautoconfirmedfit" in the upper left corner of the link to confirm.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2015 - 20162015 - 20162015 - 20162015 - 201620132014 - 201620132014 - 201620132013201320132014 - 201620162014 - 20162014 - 201620162014 - 2016
MakeChryslerChryslerChryslerChryslerDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeJeepJeepJeepJeepJeep
Model200200200200DartDartDartDartDartDartDartDartDartCherokeeCherokeeCherokeeCherokeeCherokee
TrimCLXLimitedSGTGTLimitedLimitedR/TRallyeSESXTSXT75th AnniversaryLatitudeLimitedOverlandSport
Engine2.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.0L L42.4L L42.4L L42.0L L42.0L L42.0L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L4
Note
without Start/Stop Feature
without Start/Stop Feature
without Start/Stop Feature
without Start/Stop Feature
-
with 15.8 Gallon Tank
-
with 15.8 Gallon Tank
----
with 15.8 Gallon Tank
-----

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the fuel-pump sound at key-on and test the fuse, relay, power supply and ground.
  • Check fuel pressure before confirming that the pump requires replacement.
  • Compare the connector, fuel ports, mounting points and fuel-level sensor with the original unit.
  • Work in a well-ventilated area away from flames, sparks and smoking.
  • Relieve fuel-system pressure and disconnect the negative battery cable.
  • Confirm that a new fuel-pump sealing ring is available.

Installation Steps

  • Step-1: Relieve fuel pressure and clean the area around the tank opening.
  • Step-2: Label and disconnect the fuel lines and electrical connector.
  • Step-3: Remove the retaining ring using the correct tool—never strike it with a steel tool.
  • Step-4: Carefully lift out the old module without damaging the float arm.
  • Step-5: Discard the old sealing ring and install a new one.
  • Step-6: Install the new module in the correct orientation and secure the retaining ring.
  • Step-7: Reconnect the fuel lines and electrical connector, ensuring every clip is locked.

After Installation

  • Cycle the ignition ON two or three times without starting to prime the fuel system.
  • Start the engine and inspect every connection for leakage or fuel odor.
  • Verify fuel pressure and fuel-gauge operation.
  • Stop the engine immediately if a leak or strong gasoline odor is detected.
  • Avoid regularly operating the vehicle with a very low fuel level, which may overheat the pump.
