2010-2013 Mazda 3 2.5L L4/2.0L L4 | Fuel Pump Assembly | OE#LF3T1335XC/P76882M - PHILTOP

2010-2013 Mazda 3 2.5L L4/2.0L L4 | Fuel Pump Assembly | OE#LF3T1335XC/P76882M - PHILTOP

Carbon Commutator

Precision Ceramic Resistor

Seal Included

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
7405FUP208ZUS

Specifications

Brand
PHILTOP
Gasket or Seal Included
Yes
Pressure Sensor Included
No
Strainer Included
Yes
Fuel Level Sender Assembly Included
Yes
Resistance Ohms Empty
400.0 Ω
Resistance Ohms Full
20.0 Ω
Average Flow Rating
50 GPH
In Tank or External
In Tank
Lock Ring Included
No
Material
Metal, Plastic
Maximum Pressure
94.0 PSI
Outlet Outside Diameter
0.313 in
Outlet Quantity
1
Outlet Type
Quick Connect
Pump Structure
Turbine Impeller
Items Included

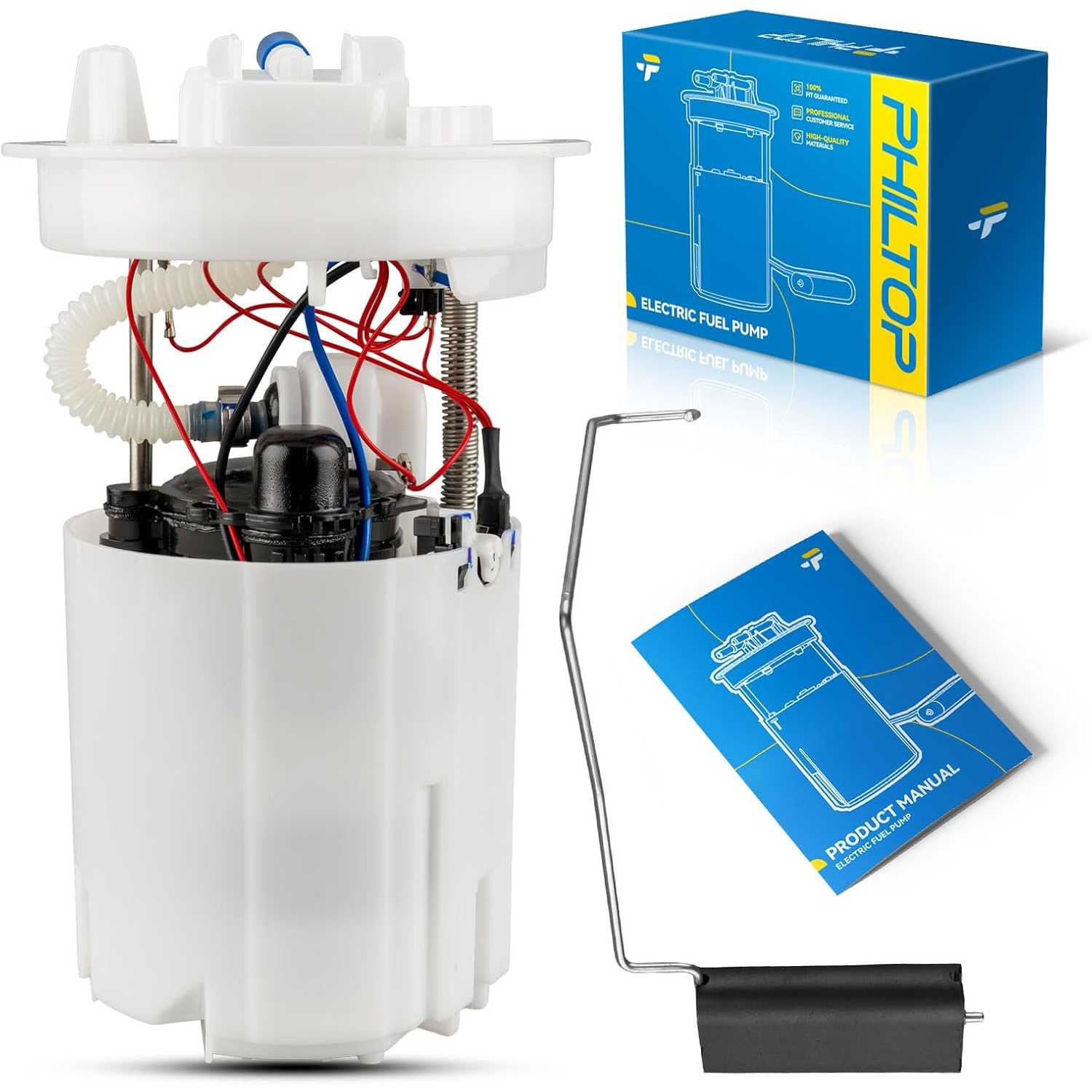

1x Fuel Pump Assembly - FG1286
Warranty Period
2-Year
OE Number
LF3T1335XC,LF3T1335XA,LF3T1335X,LF3T1335XD,LF3T1335XB
Part Number
P76882M,SP4060M,FG1286,USEP9049M,A30193,CFG1286,4010742,B19111443TG,C0740M,A33210,M2521044,1234967,2920773,TNKSP4060M,A46505

Highlights

  • Fitment: Compatible with [Mazda] 2010-2013 Mazda 3 2.0/2.5L(2000/2488cc).
  • Reference Number: LF3T1335XC, LF3T1335XA, A30193, CFG1286, 4010742, P76882M, LF3T1335XD, LF3T1335XB, SP4060M, FG1286, USEP9049M, LF3T1335X, 2920773, 1234967, M2521044, A33210, A46505, TNKSP4060M, C0740M, B19111443TG.

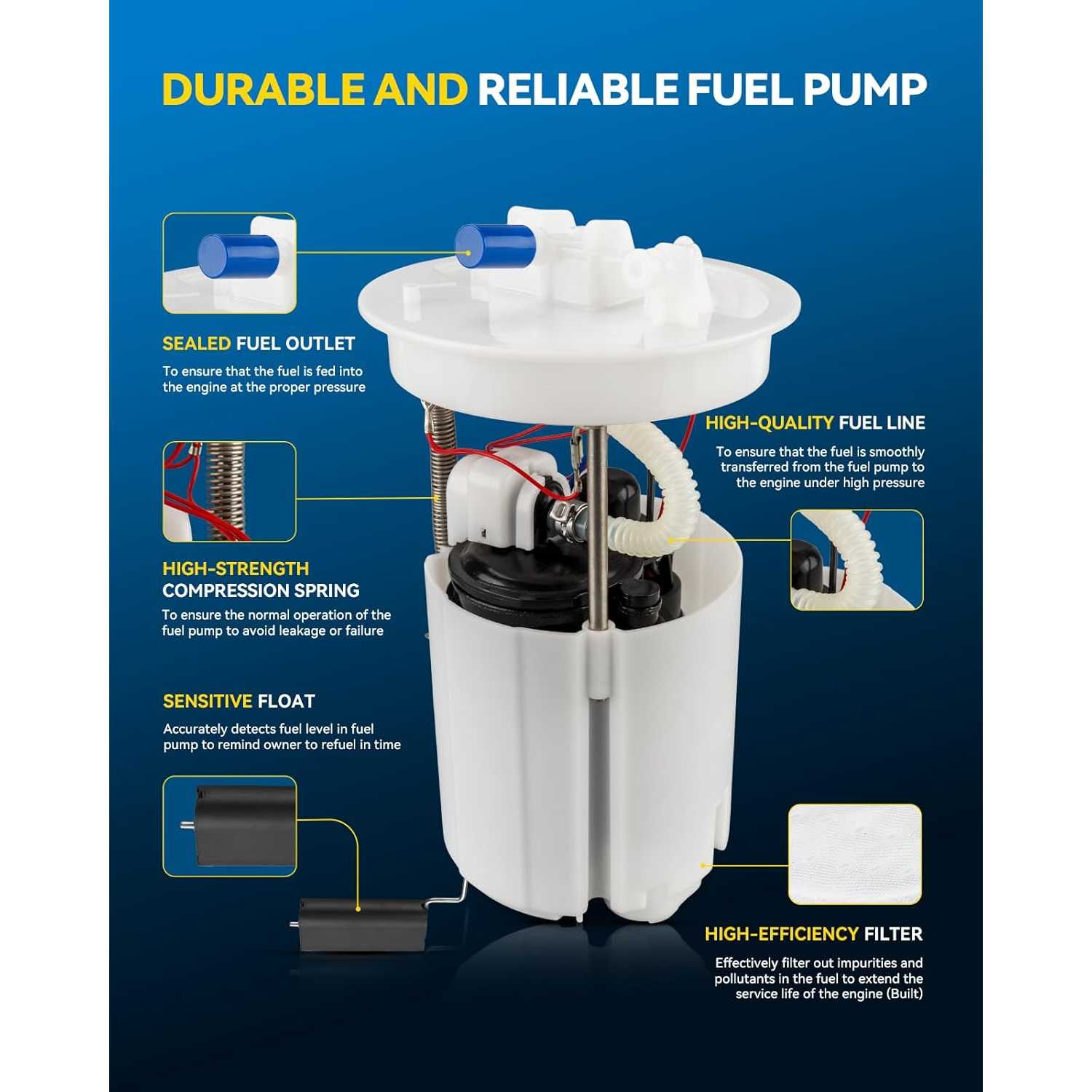

  • Related Parts: ① Fuel Pump, ② Strainer, ③ Seal Ring.
  • 20% Improved Fuel Delivery Efficiency: The commutator is made of carbon material, achieving an all-round performance leap compared with traditional copper commutators; it features superior electrical performance, shorter arc duration, stable current transmission, reduced motor energy consumption, and enhanced fuel delivery efficiency.
  • Superior Durability: The contacts are made of gold-palladium alloy with a melting point of up to 1450℃, featuring stable electrical conductivity, excellent corrosion resistance and wear resistance, and can achieve 1 million contact cycles without obvious damage.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2010 - 20132010 - 2013
MakeMazdaMazda
Model33
TrimSi
Engine2.5L L42.0L L4
Note--

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the fuel-pump sound at key-on and test the fuse, relay, power supply and ground.
  • Check fuel pressure before confirming that the pump requires replacement.
  • Compare the connector, fuel ports, mounting points and fuel-level sensor with the original unit.
  • Work in a well-ventilated area away from flames, sparks and smoking.
  • Relieve fuel-system pressure and disconnect the negative battery cable.
  • Confirm that a new fuel-pump sealing ring is available.

Installation Steps

  • Step-1: Relieve fuel pressure and clean the area around the tank opening.
  • Step-2: Label and disconnect the fuel lines and electrical connector.
  • Step-3: Remove the retaining ring using the correct tool—never strike it with a steel tool.
  • Step-4: Carefully lift out the old module without damaging the float arm.
  • Step-5: Discard the old sealing ring and install a new one.
  • Step-6: Install the new module in the correct orientation and secure the retaining ring.
  • Step-7: Reconnect the fuel lines and electrical connector, ensuring every clip is locked.

After Installation

  • Cycle the ignition ON two or three times without starting to prime the fuel system.
  • Start the engine and inspect every connection for leakage or fuel odor.
  • Verify fuel pressure and fuel-gauge operation.
  • Stop the engine immediately if a leak or strong gasoline odor is detected.
  • Avoid regularly operating the vehicle with a very low fuel level, which may overheat the pump.

Product Description

Electric Fuel PumpElectric Fuel Pump
