Carbon Commutator

Precision Ceramic Resistor

Seal Included

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
1367FUP1529US

Specifications

Brand
PHILTOP
Gasket or Seal Included
Yes
Pressure Sensor Included
No
Strainer Included
Yes
Fuel Level Sender Assembly Included
Yes
Resistance Ohms Empty
81.0 Ω
Resistance Ohms Full
6.0 Ω
Average Flow Rating
22 GPH
In Tank or External
In Tank
Lock Ring Included
No
Material
Metal, Plastic
Maximum Pressure
94.0 PSI
Outlet Outside Diameter
0.375 in
Outlet Quantity
1
Outlet Type
Quick Connect
Pump Structure
Turbine Impeller

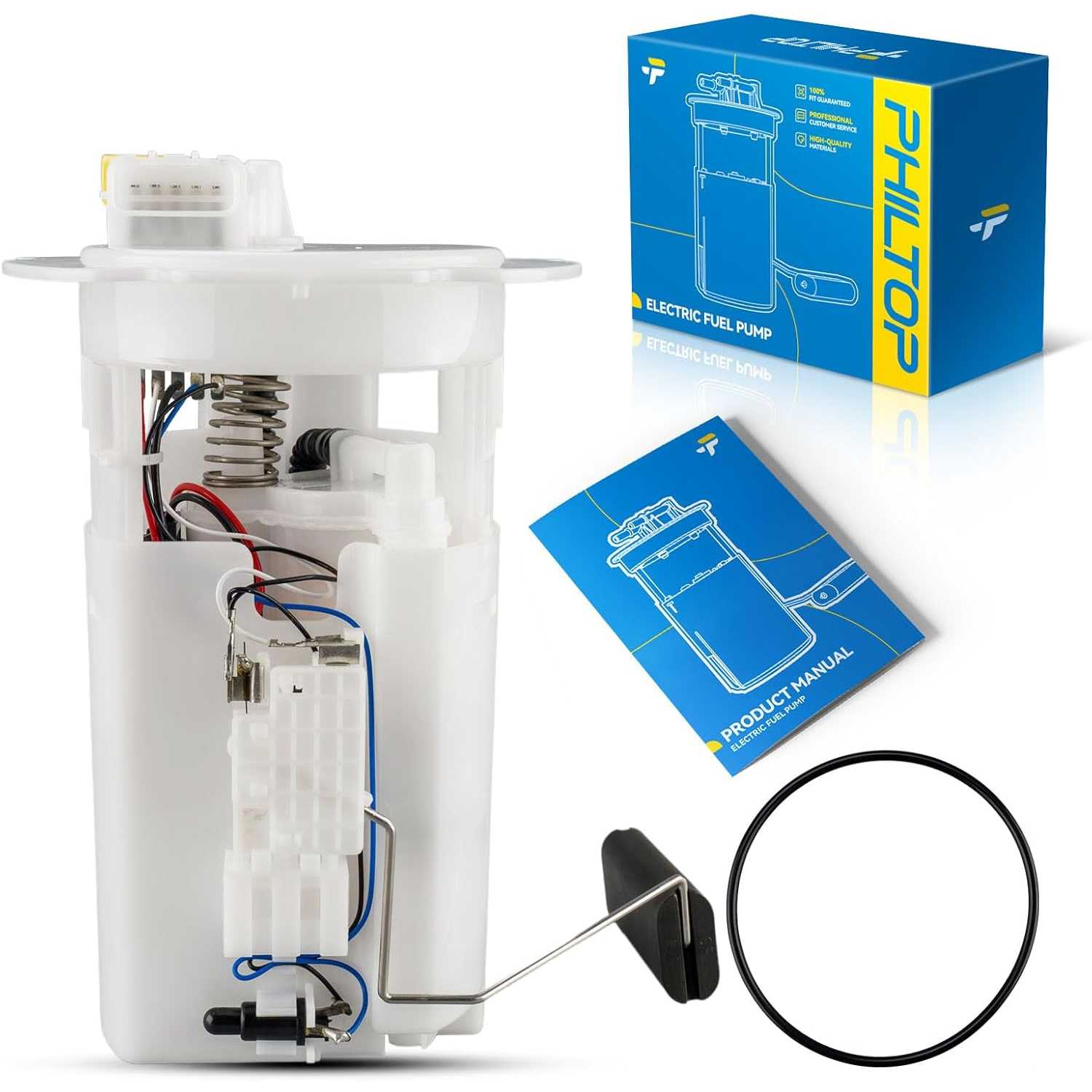

Items Included
1x Fuel Pump Assembly - FG1783
Warranty Period
2-Year
OE Number
17040ZD90A,170408J020
Part Number
P76174M,FG1783,SP4065M,USEP8660M,E8660M,F4671A,A33172,A27057,4010436,PN3172,CFG1783,2920837,M2520958,TNKSP4065M,C14112600TG,C0634M

Highlights

  • Fitment - 2004-2006 Altima SL L4 2.5, 2004-2006 Altima S L4 2.5, 2004,2006 Altima Base L4 2.5, 2006 Altima SE-R V6 3.5, 2006 Altima SE V6 3.5, 2006 Altima SL V6 3.5(Note:with California Emissions System)
  • OE Reference No. - FG1783, 17040ZD90A, 17040-ZD90A, 170408J020, 17040-8J020, P76174M, SP4065M, E8660M, 69906, A27057, 261GE, 4010436, 550-2180, USEP8660M, CFG1783
  • Quality Materials Manufacturing: All components are manufactured in strict accordance with requirements and meet or exceed OEM performance requirements in terms of manufacturing and materials. All plastic parts are made of imported high-performance POM raw materials, modules using the most mature fuel pump structure, ethanol resistance, higher efficiency, longer service life
  • More efficient filtration: fuel pump assembly filter element is generally made of non-woven fabric and nylon, filter out impurities and moisture in the oil, improve the working efficiency of the vehicle
  • Easy to install: No need to buy other accessories, can be installed directly. Please confirm the year/make/model of the vehicle you are purchasing before purchasing. You can refer to the fitment description on the product detail page or use the "Suncentautoconfirmedfit" in the upper left corner of the link to confirm.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year200420062004 - 20052006200620062004 - 200520062006
MakeNissanNissanNissanNissanNissanNissanNissanNissanNissan
ModelAltimaAltimaAltimaAltimaAltimaAltimaAltimaAltimaAltima
TrimBaseBaseSSSESE-RSLSLSL
Engine2.5L L42.5L L42.5L L42.5L L43.5L V63.5L V62.5L L42.5L L43.5L V6
Note
From 09/2003;with California Emissions System
with California Emissions System
From 09/2003;with California Emissions System
with California Emissions System
with California Emissions System
with California Emissions System
From 09/2003;with California Emissions System
with California Emissions System
with California Emissions System

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the fuel-pump sound at key-on and test the fuse, relay, power supply and ground.
  • Check fuel pressure before confirming that the pump requires replacement.
  • Compare the connector, fuel ports, mounting points and fuel-level sensor with the original unit.
  • Work in a well-ventilated area away from flames, sparks and smoking.
  • Relieve fuel-system pressure and disconnect the negative battery cable.
  • Confirm that a new fuel-pump sealing ring is available.

Installation Steps

  • Step-1: Relieve fuel pressure and clean the area around the tank opening.
  • Step-2: Label and disconnect the fuel lines and electrical connector.
  • Step-3: Remove the retaining ring using the correct tool—never strike it with a steel tool.
  • Step-4: Carefully lift out the old module without damaging the float arm.
  • Step-5: Discard the old sealing ring and install a new one.
  • Step-6: Install the new module in the correct orientation and secure the retaining ring.
  • Step-7: Reconnect the fuel lines and electrical connector, ensuring every clip is locked.

After Installation

  • Cycle the ignition ON two or three times without starting to prime the fuel system.
  • Start the engine and inspect every connection for leakage or fuel odor.
  • Verify fuel pressure and fuel-gauge operation.
  • Stop the engine immediately if a leak or strong gasoline odor is detected.
  • Avoid regularly operating the vehicle with a very low fuel level, which may overheat the pump.
