2003-2004 Jeep Wrangler 4.0L L6/2.4L L4 | Fuel Pump Assembly | OE#5093788AB/FG1221 - PHILTOP

2003-2004 Jeep Wrangler 4.0L L6/2.4L L4 | Fuel Pump Assembly | OE#5093788AB/FG1221 - PHILTOP

Carbon Commutator

Precision Ceramic Resistor

Seal Included

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
3523FUP316XUS

Specifications

Brand
PHILTOP
Gasket or Seal Included
Yes
Pressure Sensor Included
No
Strainer Included
Yes
Fuel Level Sender Assembly Included
Yes
Resistance Ohms Empty
325.0 Ω
Resistance Ohms Full
18.0 Ω
Average Flow Rating
45 GPH
In Tank or External
In Tank
Lock Ring Included
No
Material
Metal, Plastic
Maximum Pressure
51.0 PSI
Outlet Outside Diameter
0.375 in
Outlet Quantity
1
Outlet Type
Quick Connect
Pump Structure
Turbine Impeller
Items Included

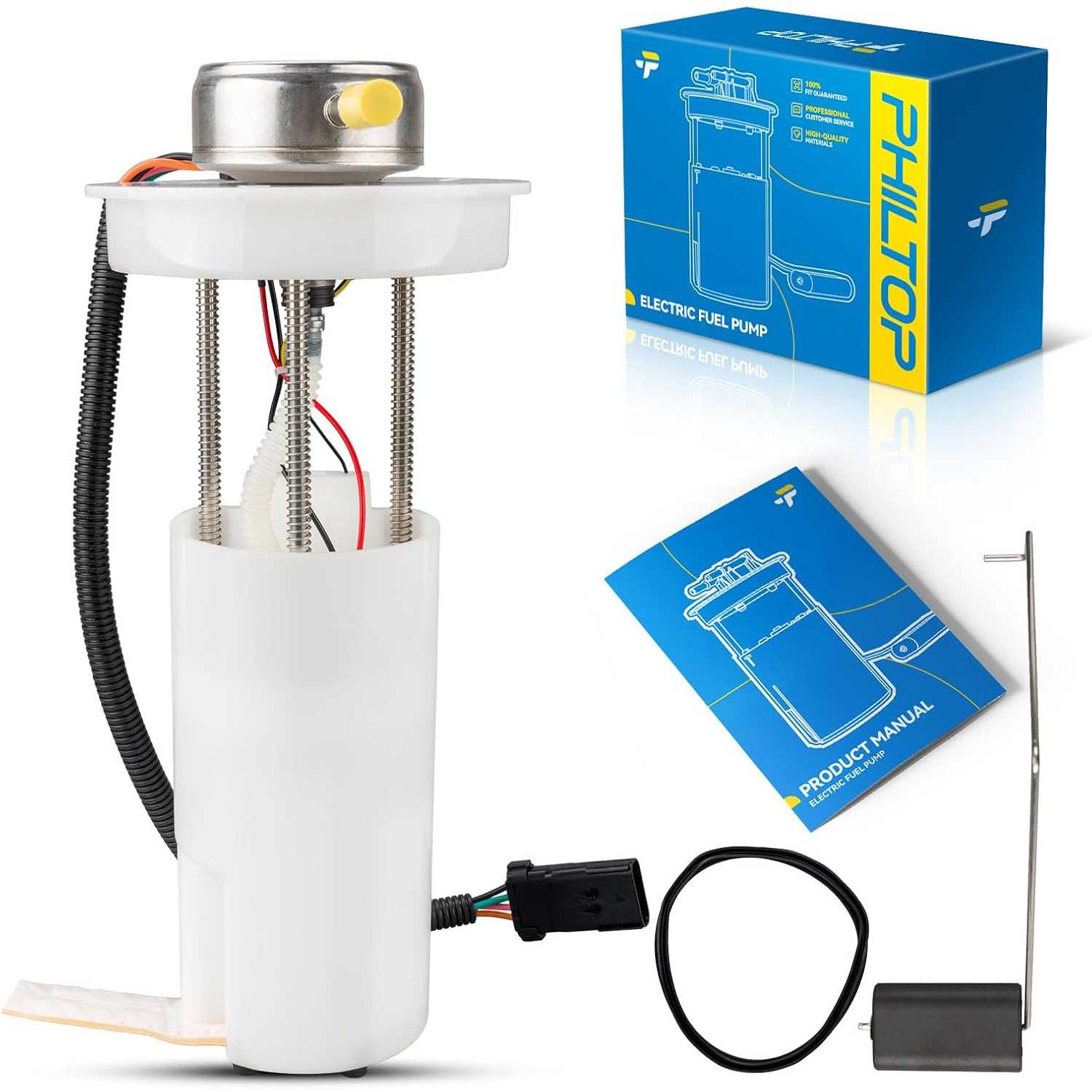

1x Fuel Pump Assembly - FG1221
Warranty Period
2-Year
OE Number
5093788AB,RL093788AC,5093788AA,RL093788AB,P824M
Part Number
FG1221,SP7156M,P76520M,5202015,USEP7156MN

Highlights

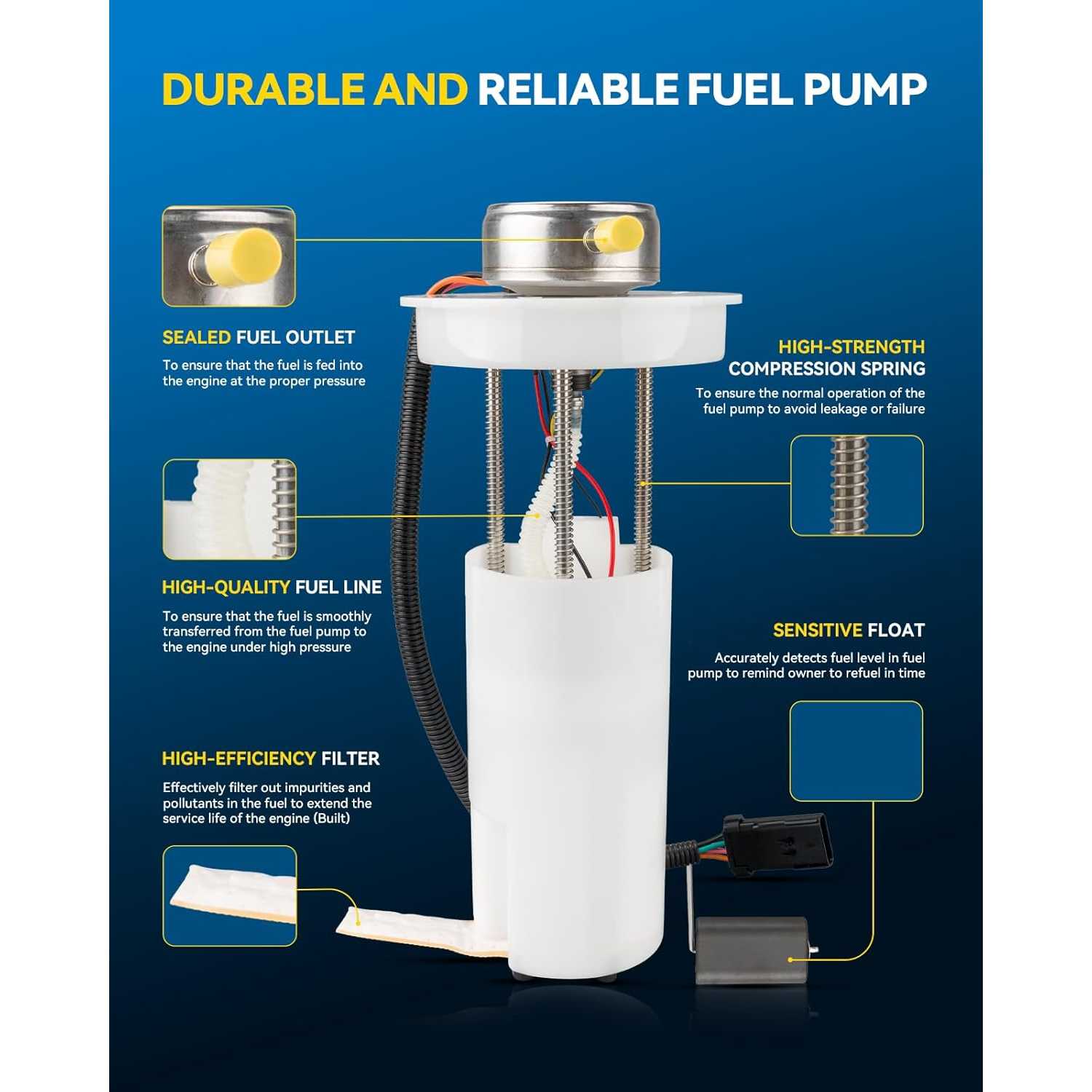

  • Fitment: Compatible with [Jeep] 2003-2004 Wrangler, 2003 TJ, 2004 TJ 4.0L.
  • Reference Number: 5093788AA, FG1221, SP7156M, RL093788AB, 5093788AB, USEP7156MN, P76520M, RL093788AC, 5202015, P824M.
  • Related Parts: ① Fuel Pump, ② Strainer, ③ Seal Ring.

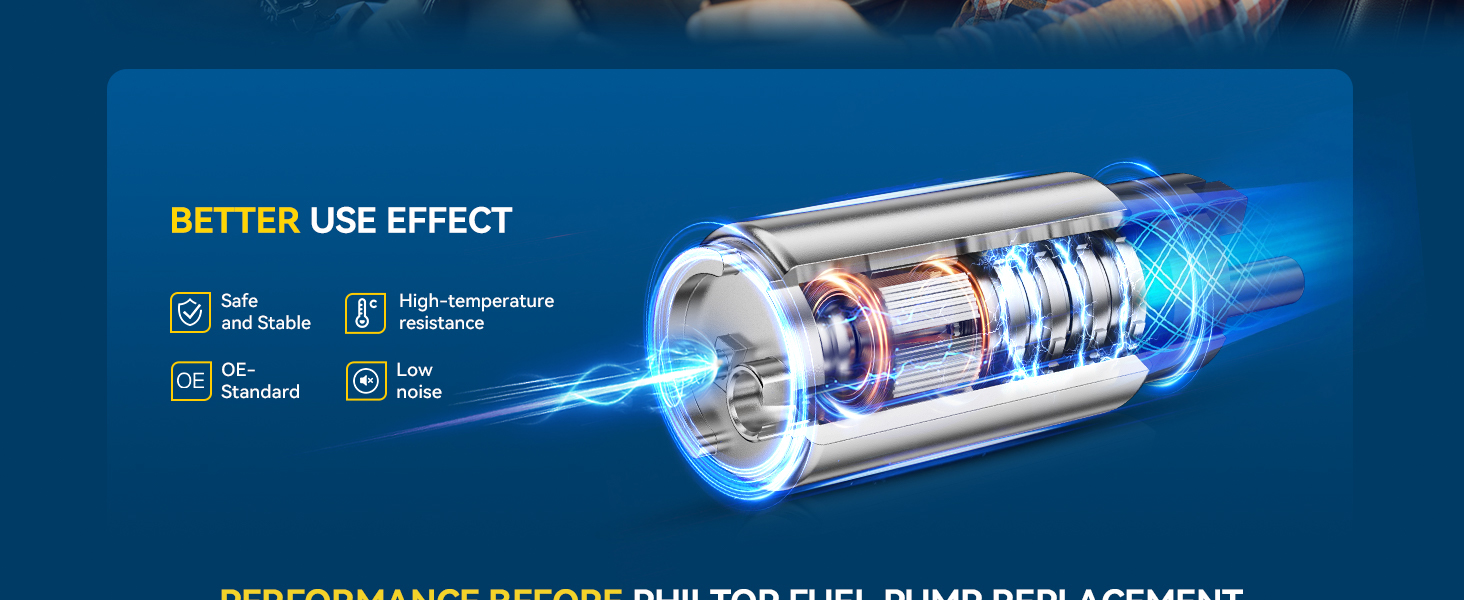

  • 20% Improved Fuel Delivery Efficiency: The commutator is made of carbon material, achieving an all-round performance leap compared with traditional copper commutators; it features superior electrical performance, shorter arc duration, stable current transmission, reduced motor energy consumption, and enhanced fuel delivery efficiency.
  • Superior Durability: The contacts are made of gold-palladium alloy with a melting point of up to 1450℃, featuring stable electrical conductivity, excellent corrosion resistance and wear resistance, and can achieve 1 million contact cycles without obvious damage.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2003 - 20042003 - 20042003 - 20042003 - 200420042003 - 2004
MakeJeepJeepJeepJeepJeepJeep
ModelWranglerWranglerWranglerWranglerWranglerWrangler
TrimRubiconSESaharaSportUnlimitedX
Engine4.0L L62.4L L44.0L L64.0L L64.0L L64.0L L6
Note------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the fuel-pump sound at key-on and test the fuse, relay, power supply and ground.
  • Check fuel pressure before confirming that the pump requires replacement.
  • Compare the connector, fuel ports, mounting points and fuel-level sensor with the original unit.
  • Work in a well-ventilated area away from flames, sparks and smoking.
  • Relieve fuel-system pressure and disconnect the negative battery cable.
  • Confirm that a new fuel-pump sealing ring is available.

Installation Steps

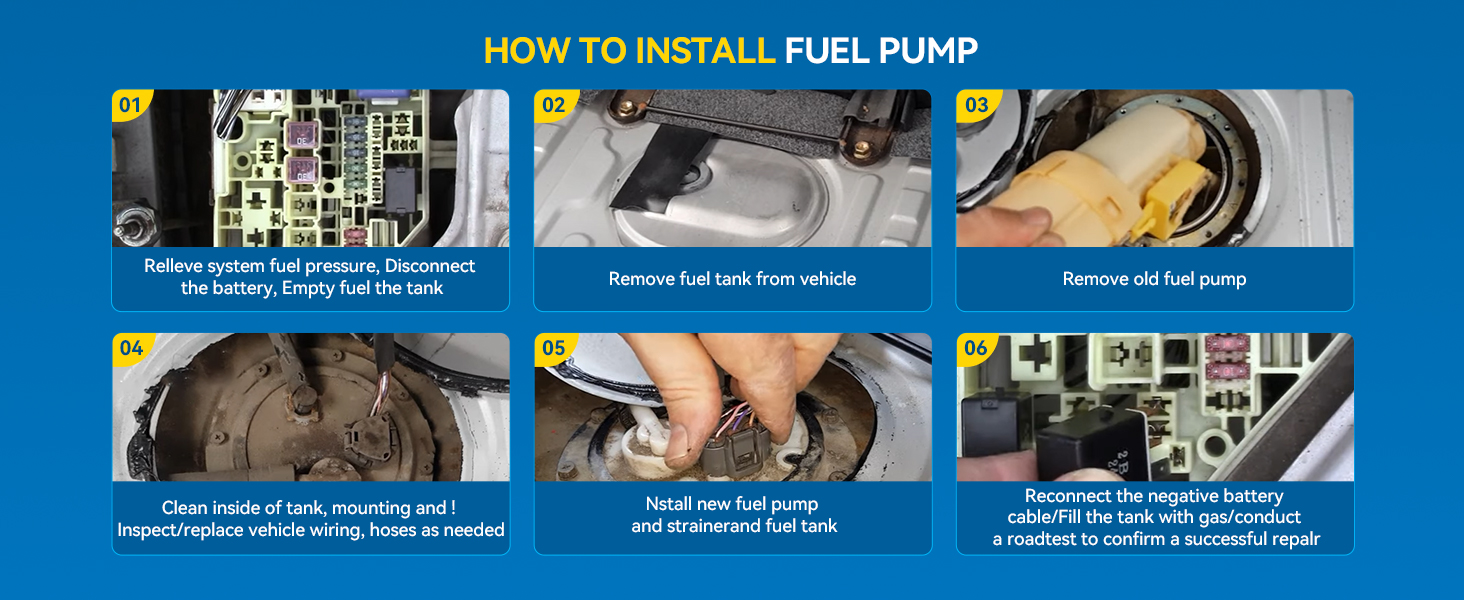

  • Step-1: Relieve fuel pressure and clean the area around the tank opening.
  • Step-2: Label and disconnect the fuel lines and electrical connector.
  • Step-3: Remove the retaining ring using the correct tool—never strike it with a steel tool.
  • Step-4: Carefully lift out the old module without damaging the float arm.
  • Step-5: Discard the old sealing ring and install a new one.
  • Step-6: Install the new module in the correct orientation and secure the retaining ring.
  • Step-7: Reconnect the fuel lines and electrical connector, ensuring every clip is locked.

After Installation

  • Cycle the ignition ON two or three times without starting to prime the fuel system.
  • Start the engine and inspect every connection for leakage or fuel odor.
  • Verify fuel pressure and fuel-gauge operation.
  • Stop the engine immediately if a leak or strong gasoline odor is detected.
  • Avoid regularly operating the vehicle with a very low fuel level, which may overheat the pump.
