Hydraulic Power

Effortless Steering

Leak-Tested

4.3

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
4609SGE009BUS

Specifications

Brand
PHILTOP
Steering Type
Hydraulic Power
Input Shaft Diameter
0.79 in
Input Shaft Length
2.13 in
Rack Length
54.88 in
Thread Length
2.40 in
Material
Aluminum / Iron
Items Included

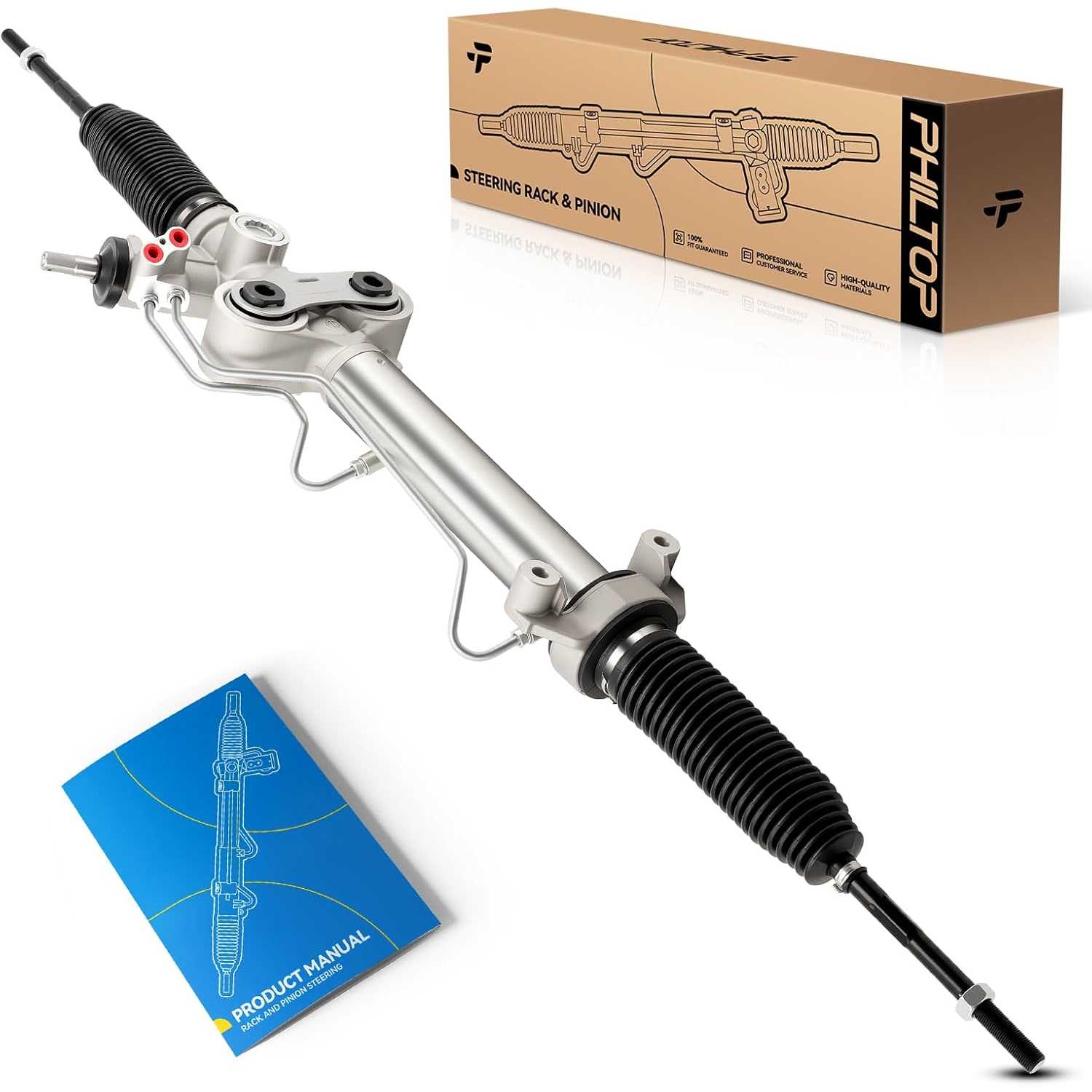

1x Rack and Pinion - 221145
Warranty Period
2-Year
Part Number
221145

Highlights

  • [Vehicle Fitment]: Hydraulic steering rack and pinion assembly compatible with 2007-2014 Escalade ESV, Escalade(Exc.Hybrid Models), 2007-2013 Escalade EXT, Avalanche, 2007-2014 Tahoe/Yukon(Exc.Hybrid), Suburban/Yukon XL 1500.
  • [Reference Number]: Rack and pinion steering assembly OE number 22-1145, 19153072, 19207492, 15254062, 221145, 2024, 42250, 59190, QSA292, P616648, CA240, AF253, P015838, MA234, MA1102.
  • [Specifications]: Package included - Hydraulic power rack and pinion assembly with inner tie rods. ①Rack Length: 54.78 In; ②Thread Length: 2.4 In; ③Input Shaft Length: 2.12 In; ④Input Shaft Diameter: 0.78 In; ⑤Pressure Port ID: 0.472
  • [Superior Quality]: Our power steering rack and pinion assembly is made of high-strength alloy steel processed by high-precision CNC, with good wear resistance, high temperature resistance, corrosion resistance, aging resistance, which can guarantee maximum strength and durability with long service life.

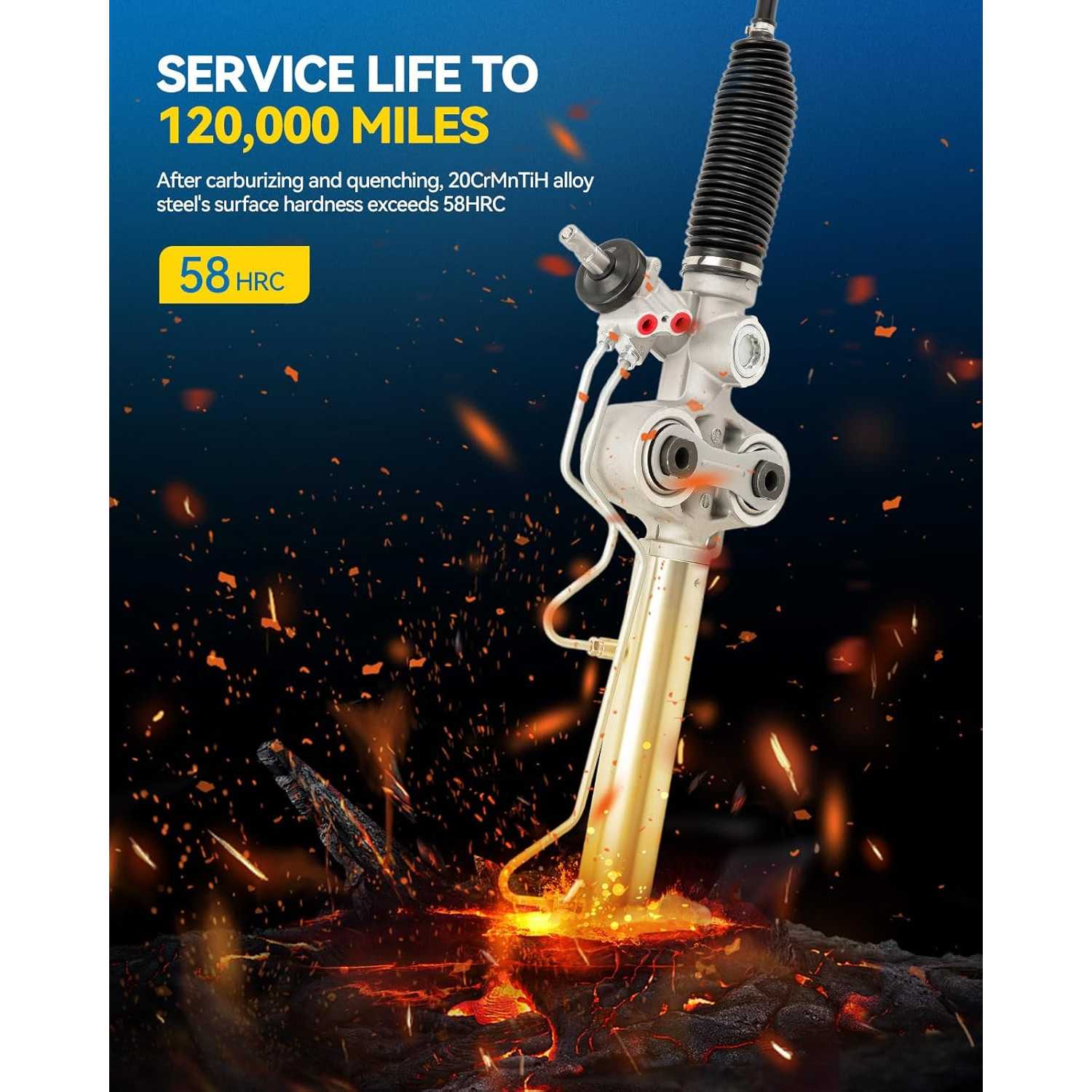

  • [Easy Installation]: Plug and play design, no modification or drilling, quick installation. Shock, abrasion and fatigue tested to help ensure quality and durability.Service life more than 120,000 miles, 24-month unlimited mileage guarantee.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2007 - 20142011 - 20142008 - 20142011 - 20142007 - 20142011 - 20142008 - 20142011 - 20142007 - 20132011 - 20132011 - 20132013201320132007 - 20122007 - 20122007 - 20092007 - 20122007 - 20092007 - 20142007 - 20142007 - 20092007 - 20142007 - 20092007 - 20092007 - 20142007 - 20142007 - 20142008 - 20092007 - 20142012 - 20142007 - 20142010 - 20132007 - 20092007 - 20142007 - 20142007 - 20142007 - 20142007 - 20092007 - 20142007 - 20092010 - 20122014
MakeCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMC
ModelEscaladeEscaladeEscaladeEscaladeEscalade ESVEscalade ESVEscalade ESVEscalade ESVEscalade EXTEscalade EXTEscalade EXTAvalancheAvalancheAvalancheAvalancheAvalancheAvalancheAvalancheAvalancheSuburban 1500Suburban 1500Suburban 1500Suburban 1500Suburban 1500TahoeTahoeTahoeTahoeTahoeTahoeTahoeYukonYukonYukonYukonYukonYukon XL 1500Yukon XL 1500Yukon XL 1500Yukon XL 1500Yukon XL 1500Yukon XL 1500Yukon XL 1500
TrimBaseLuxuryPlatinumPremiumBaseLuxuryPlatinumPremiumBaseLuxuryPremiumBlack Diamond LSBlack Diamond LTBlack Diamond LTZLSLTLTLTZLTZLSLTLTLTZLTZLSLSLTLTZLTZPPVSSVDenaliDenali HybridSLESLESLTDenaliSLESLESLTSLTSLTSLT
Engine6.2L V86.2L V86.2L V86.2L V86.2L V86.2L V86.2L V86.2L V86.2L V86.2L V86.2L V85.3L V85.3L V85.3L V85.3L V85.3L V86.0L V85.3L V86.0L V85.3L V85.3L V86.0L V85.3L V86.0L V84.8L V85.3L V85.3L V85.3L V86.2L V85.3L V85.3L V86.2L V86.0L V84.8L V85.3L V85.3L V86.2L V85.3L V86.0L V85.3L V86.0L V86.2L V86.2L V8
Note
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
-
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
-
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
------
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
-
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
---
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm fitment: Compare mounting dimensions, input shaft connections, and hydraulic ports.
  • Inspect related parts: Check tires, suspension, tie rods, steering joints, pump, and hoses.
  • Prepare the system: Flush contaminated fluid and prepare new seals that match vehicle specifications.

Installation Steps

  • STEP 1 — Secure the vehicle, disconnect the negative battery cable, and secure the steering wheel to prevent free rotation.
  • STEP 2 — Mark connection positions. Disconnect tie rods, hydraulic lines, and the steering shaft; collect drained fluid.
  • STEP 3 — Remove the old rack and flush the lines before connecting the replacement.
  • STEP 4 — Center the new rack and install it in alignment with the steering wheel. Tighten fasteners to vehicle specifications.
  • STEP 5 — Reconnect the steering shaft, tie rods, and hydraulic lines using new specified seals.
  • STEP 6 — Refill with the correct power steering fluid and bleed the system using the vehicle-specific procedure. Never run the system without sufficient fluid.

After Installation

  • Check fluid level, hydraulic connections, and fasteners.
  • Verify smooth steering without binding, unusual noise, or fluid foaming.
  • Have a four-wheel alignment performed.
  • After the alignment and safety checks, road-test for straight tracking, steering wheel centering, and normal steering return.

Product Video

Product Description

POWER RACK AND PINION ASSEMBLYPOWER STEERING RACK AND PINION ASSEMBLY

Reviews

4.3/5

Based on 6 reviews

550%
433%
317%
20%
10%

Customer photos and videos

Louis Grenier

07/18/2025

Verified buyer

rack and pinion is engineered to factory specs. Immediate improvement in steering response with no alignment deviation

Jason_Trucks_986

01/03/2026

My old steering was loose and making clunking noises. After putting this new one on, my Tahoe drives like it's brand new! Steering is tight, no more weird sounds. It completely fixed the problems I was having.

FAQS

You can expect a rack and pinion to last between fifteen and twenty years, on average.

The steering type varies by product. Check the specifications and compare the connectors, fluid ports, and motor configuration with the original unit.

Included components vary by product. Please check the Package Contents section and product images before ordering.
