Hydraulic Power

Effortless Steering

Leak-Tested

4.9

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
6562PSP166YUS

Specifications

Brand
PHILTOP
Steering Type
Hydraulic Power
Pressure Port Thread Size
M18 X 1.5
Return Port Thread Size
M16 X 1.5
Input Shaft Diameter
0.79 in
Input Shaft Length
1.75 in
Rack Length
48.75 in
Thread Length
2.44 in
Material
Aluminum / Iron
Items Included

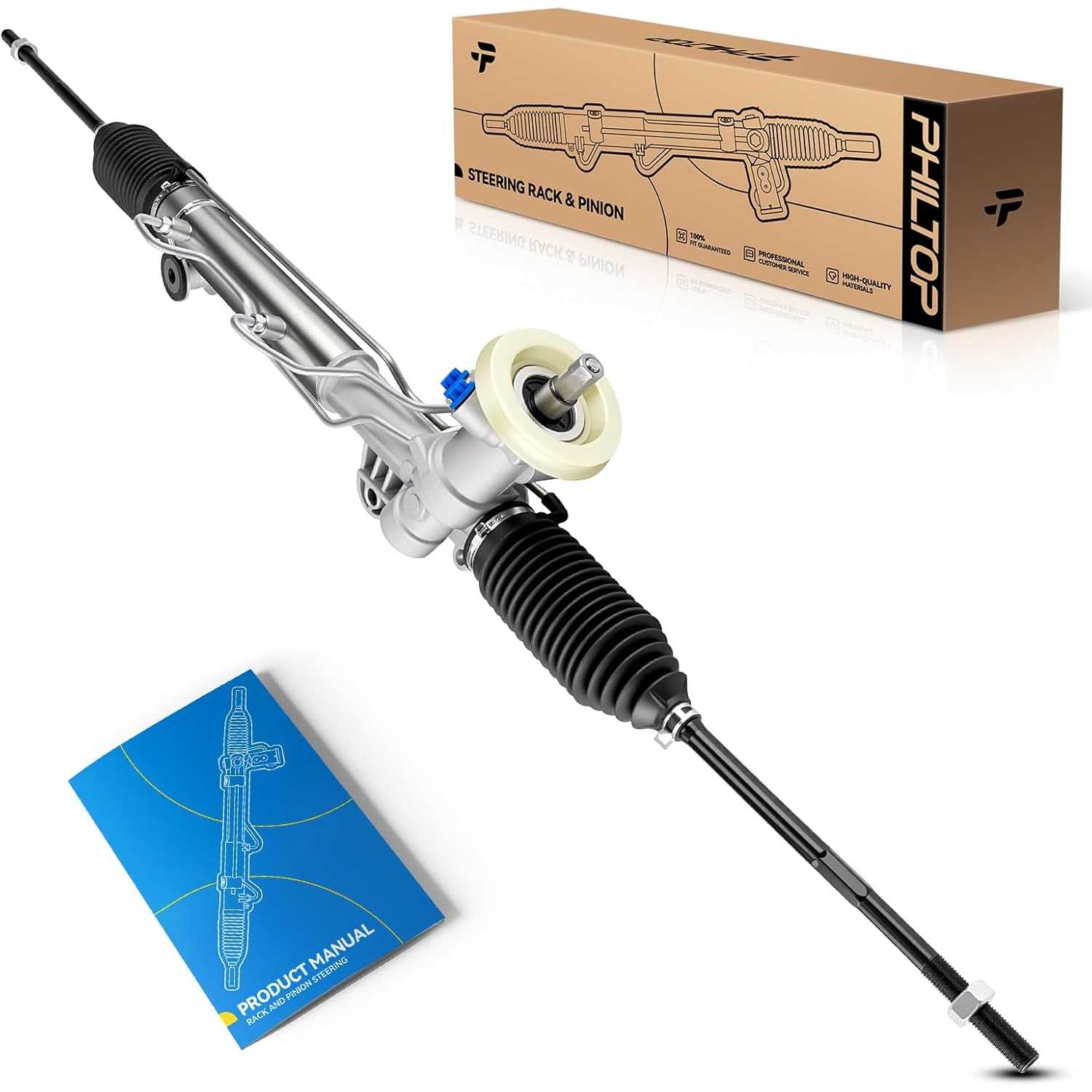

1x Rack and Pinion - 22-1012
Warranty Period
2-Year
Part Number
221012

Highlights

  • [Vehicle Fitment]: Hydraulic steering rack and pinion assembly compatible with 2004-2005 Impala 2006-2007 Impala 5.3L, 2008-2011 Impala, 2004-2007 Monte Carlo 3.4/3.8/5.3L. NOTE: 2004–2005 Monte Carlo and Impala with Special Ride Handling Suspension (FE4); 2008–2011 Impala with Sport Suspension (FE3).
  • [Reference Number]: Rack and pinion steering assembly OE number 19207777, 88955466, 88964322, 221012, 22-1012.
  • [Specifications]: ①Steering Type: Hydraulic Power; ②Rack Length(In): 48.75; ③Thread Length(In): 2.44; ④Input Shaft Length(In): 1.75; ⑤Input Shaft Diameter(In): 0.79; ⑥Pressure Port Thread Size: M18 x 1.5; ⑦Return Port Thread Size: M16 x 1.5. Package included: 1x Rack and Pinion - 22-1012.

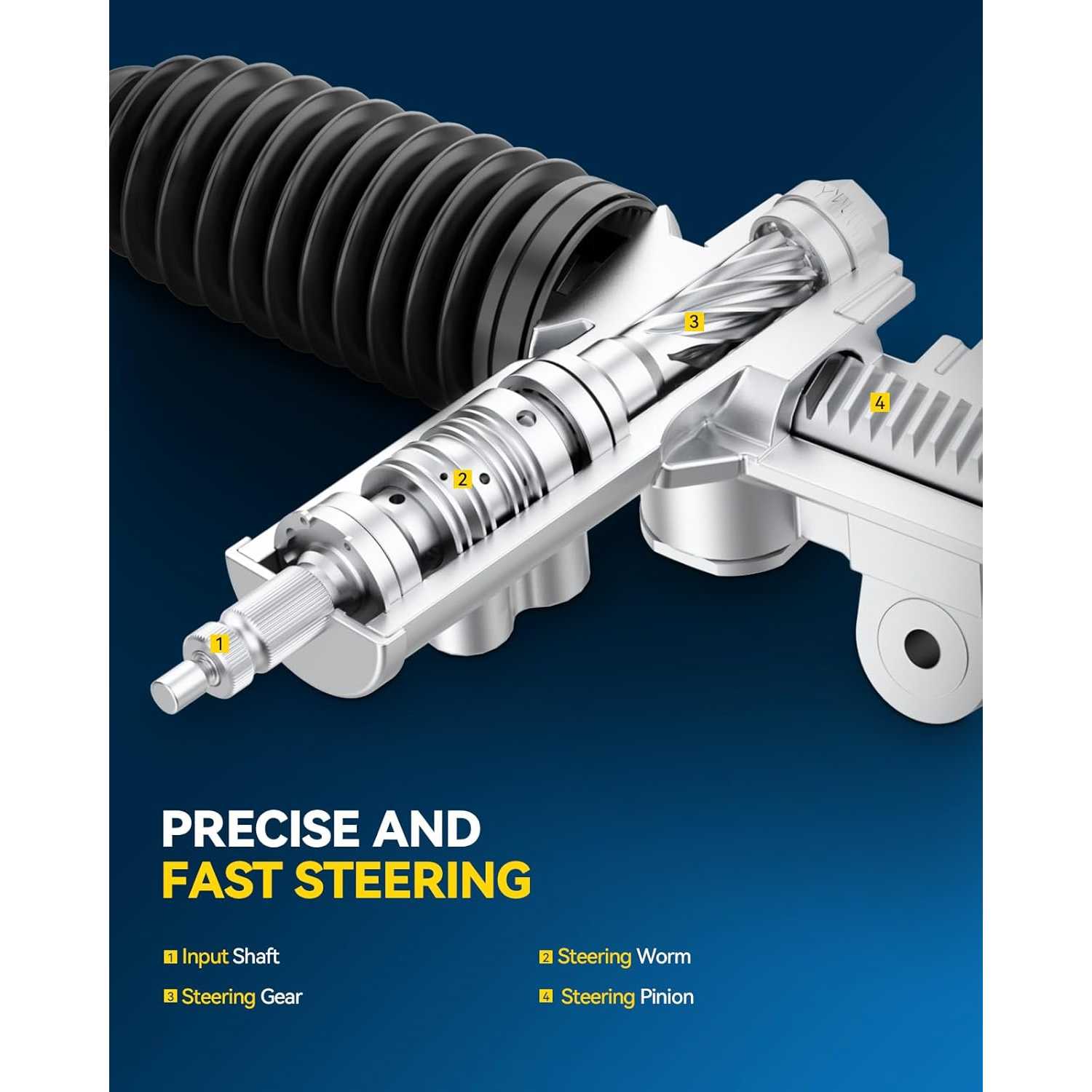

  • [High Verticality]: The rack and worm gear in the steering rack and pinion are made of high-strength alloy steel processed by high-precision CNC, which ensures the high verticality of the helical gear system, making the steering wheel operation more stable and driving safer. Closely integrated with the vehicle chassis will not produce noise and vibration.

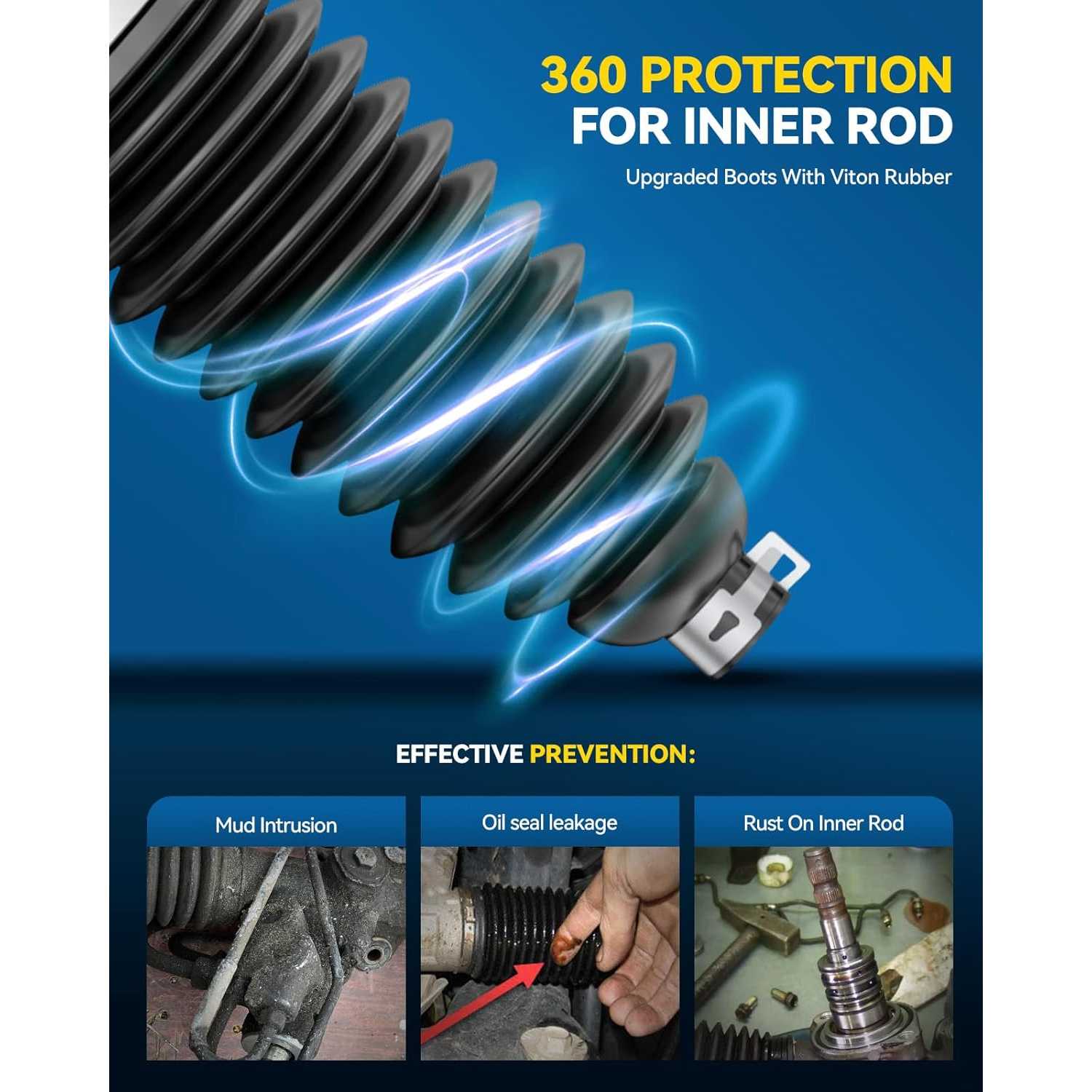

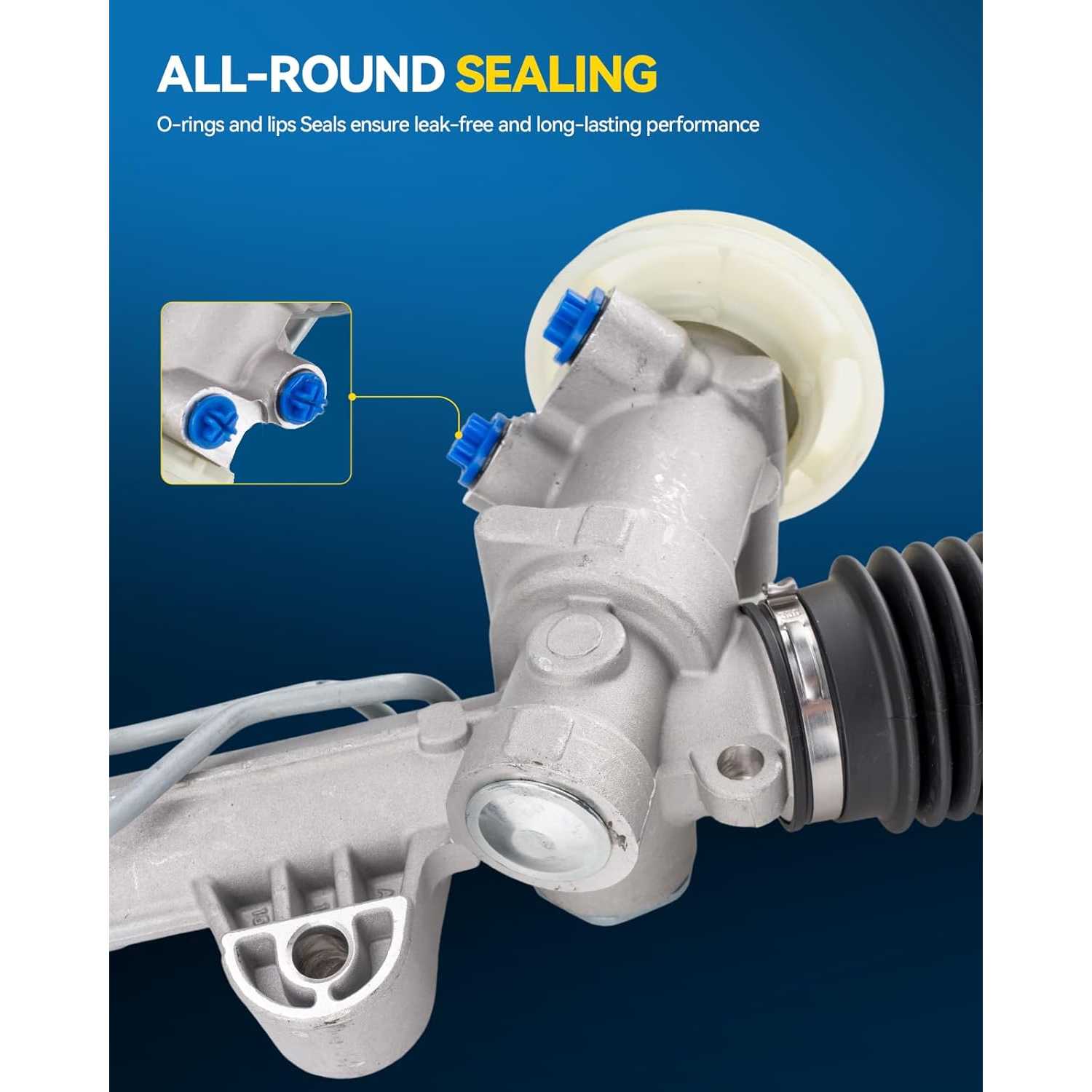

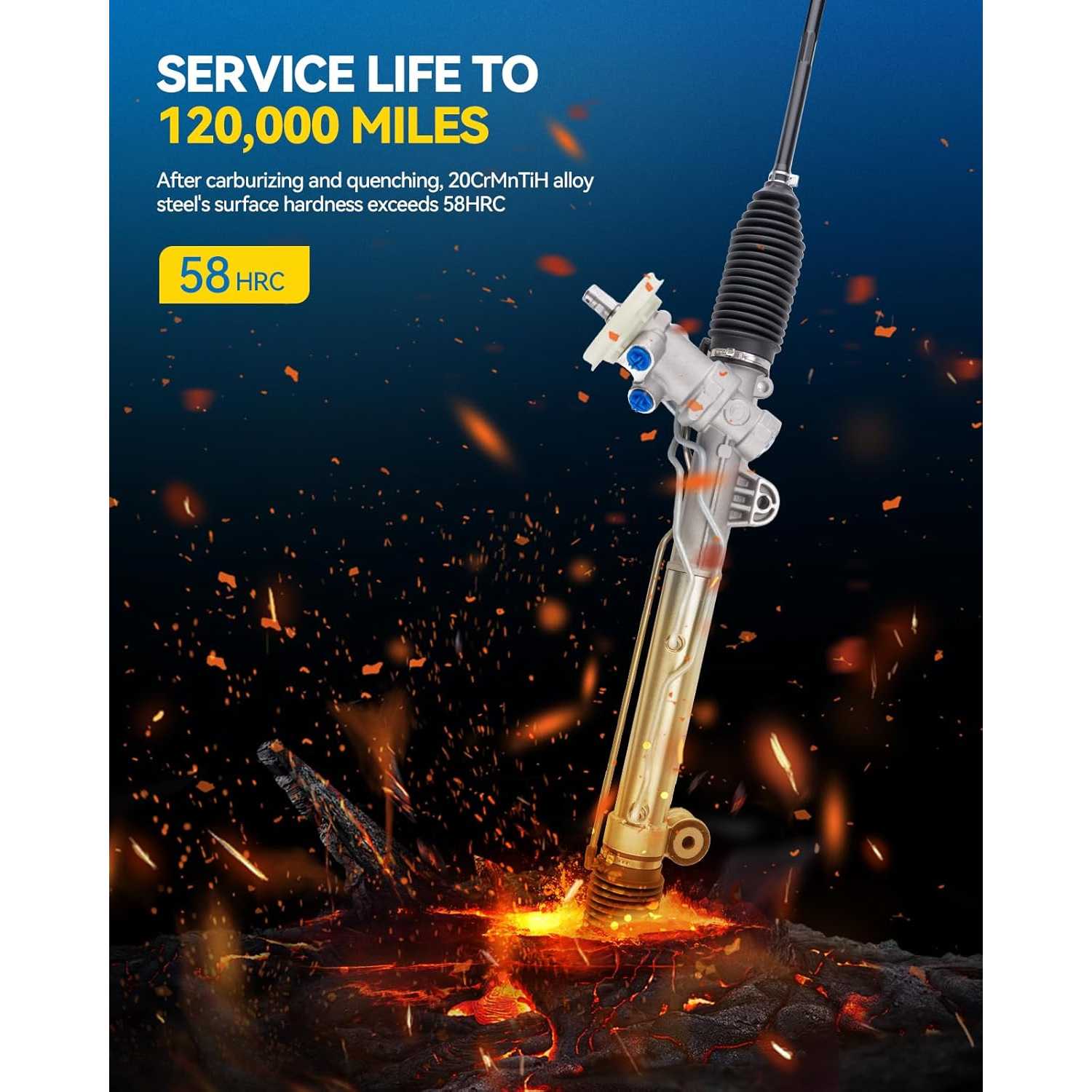

  • [Durable Performance]: PHILTOP steering rack and pinion adopts corrosion-resistant oil seals and lip seals, and butyl rubber sealing covers. The 360°dust cover is fully protected to effectively prevent dust and dirt from entering the rack gear to cause wear and oil leakage. Service life more than 120,000 miles, 24-month unlimited mileage guarantee.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year20082004 - 20052004 - 20052008 - 20112004 - 20052010 - 20112008 - 20112008 - 20092008 - 20112004 - 20052008 - 20112004 - 20052006 - 20072008 - 20092004 - 200520052004 - 20052006 - 2007
MakeChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevrolet
ModelImpalaImpalaImpalaImpalaImpalaImpalaImpalaImpalaImpalaImpalaImpalaImpalaImpalaImpalaMonte CarloMonte CarloMonte CarloMonte Carlo
Trim50th Anniversary EditionBaseBaseLSLSLSLTLTLTZPolicePoliceSSSSSSLSLTSSSS
Engine3.5L V63.4L V63.8L V63.5L V63.8L V63.9L V63.5L V63.9L V63.9L V63.8L V63.9L V63.8L V65.3L V85.3L V83.4L V63.8L V63.8L V65.3L V8
Note
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;Option Codes are on the Service Parts Identification Sticker;with Hydraulic Power;with Sport Suspension ( (FE3) )
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power;with Special Ride, Handling Suspension ( (FE4) )
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power;with Special Ride, Handling Suspension ( (FE4) )
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;Option Codes are on the Service Parts Identification Sticker;with Hydraulic Power;with Sport Suspension ( (FE3) )
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power;with Special Ride, Handling Suspension ( (FE4) )
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;Option Codes are on the Service Parts Identification Sticker;with Hydraulic Power;with Sport Suspension ( (FE3) )
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;Option Codes are on the Service Parts Identification Sticker;with Hydraulic Power;with Sport Suspension ( (FE3) )
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;Option Codes are on the Service Parts Identification Sticker;with Hydraulic Power;with Sport Suspension ( (FE3) )
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;Option Codes are on the Service Parts Identification Sticker;with Hydraulic Power;with Sport Suspension ( (FE3) )
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power;with Special Ride, Handling Suspension ( (FE4) )
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;Option Codes are on the Service Parts Identification Sticker;with Hydraulic Power;with Sport Suspension ( (FE3) )
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power;with Special Ride, Handling Suspension ( (FE4) )
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;Option Codes are on the Service Parts Identification Sticker;with Hydraulic Power;with Sport Suspension ( (FE3) )
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power;with Special Ride, Handling Suspension ( (FE4) )
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power;with Special Ride, Handling Suspension ( (FE4) )
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power;with Special Ride, Handling Suspension ( (FE4) )
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm fitment: Compare mounting dimensions, input shaft connections, and hydraulic ports.
  • Inspect related parts: Check tires, suspension, tie rods, steering joints, pump, and hoses.
  • Prepare the system: Flush contaminated fluid and prepare new seals that match vehicle specifications.

Installation Steps

  • STEP 1 — Secure the vehicle, disconnect the negative battery cable, and secure the steering wheel to prevent free rotation.
  • STEP 2 — Mark connection positions. Disconnect tie rods, hydraulic lines, and the steering shaft; collect drained fluid.
  • STEP 3 — Remove the old rack and flush the lines before connecting the replacement.
  • STEP 4 — Center the new rack and install it in alignment with the steering wheel. Tighten fasteners to vehicle specifications.
  • STEP 5 — Reconnect the steering shaft, tie rods, and hydraulic lines using new specified seals.
  • STEP 6 — Refill with the correct power steering fluid and bleed the system using the vehicle-specific procedure. Never run the system without sufficient fluid.

After Installation

  • Check fluid level, hydraulic connections, and fasteners.
  • Verify smooth steering without binding, unusual noise, or fluid foaming.
  • Have a four-wheel alignment performed.
  • After the alignment and safety checks, road-test for straight tracking, steering wheel centering, and normal steering return.

Product Video

Product Description

Reviews

4.9/5

Based on 15 reviews

587%
413%
30%
20%
10%

305

08/29/2026

Verified buyer

This rack and pinion was a direct fit. Couldn’t have asked for a perfect fit. I will order if I need parts from this seller again. Great seeker and product.

Ethan M.

04/30/2026

Verified buyer

This hydraulic power steering rack and pinion assembly is a high-quality solution for restoring the tight, responsive handling of your vehicle. Over time, original steering components can develop leaks or internal play, making the vehicle feel loose or difficult to maneuver. This unit serves as a good replacement for a worn steering rack, providing a smooth and consistent steering feel that matches the original factory performance.The build quality is impressive, featuring durable seals and precision-machined internal components designed to withstand the high pressures of a hydraulic system. It is a direct fit for the specified models, ensuring that mounting points and hydraulic lines align correctly for a professional installation. The assembly feels rugged and well-engineered, effectively eliminating the vibrations or "dead spots" often associated with an aging steering system. If you are performing a major front-end refresh or simply need a reliable fix for a leaking rack, this unit offers a dependable, cost-effective way to ensure your vehicle remains safe and easy to drive.

FAQS

Normally, failures are due to normal wear and tear, lack of power steering fluid maintenance, and impacts.

They may be reused if they are compatible and remain in serviceable condition. Inspect them for looseness, damaged threads, or worn joints before installation.

Check the fasteners, fluid level, hose connections, steering movement, and wheel alignment. Confirm that there is no binding, leakage, or unusual noise before normal driving.
