2004-2008 Ford F-150 4.6L V8 | Hydraulic Power Steering Rack & Pinion Assembly | 22277 - PHILTOP

2004-2008 Ford F-150 4.6L V8 | Hydraulic Power Steering Rack & Pinion Assembly | 22277 - PHILTOP

Hydraulic Power

Effortless Steering

Leak-Tested

4.9

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
5857SGE051PUS

Specifications

Brand
PHILTOP
Steering Type
Hydraulic Power
Input Shaft Diameter
0.81 in
Input Shaft Length
1.50 in
Rack Length
57.75 in
Thread Length
3.63 in
Material
Aluminum / Iron
Items Included

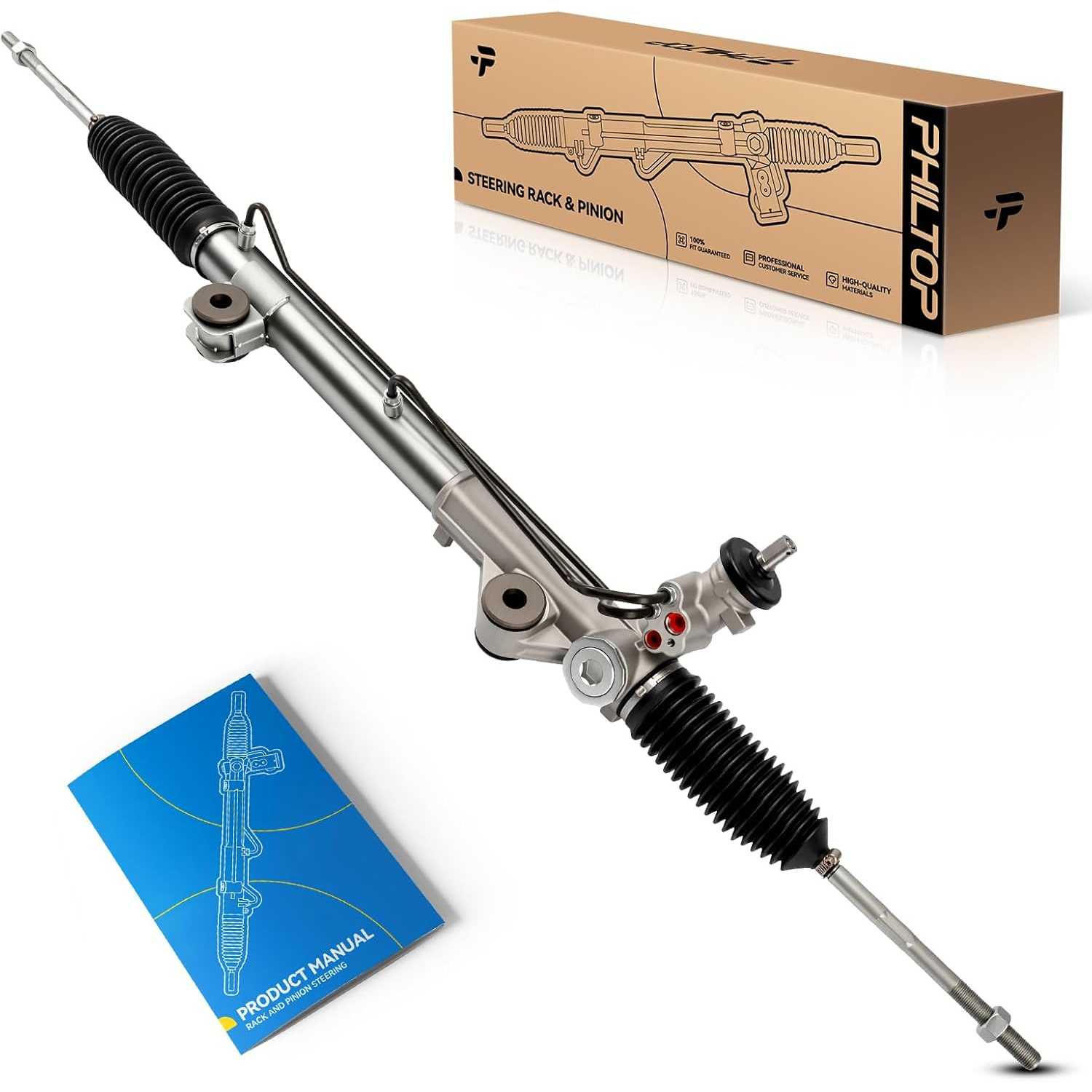

1x Rack and Pinion - 22277
Warranty Period
2-Year
Part Number
22277

Highlights

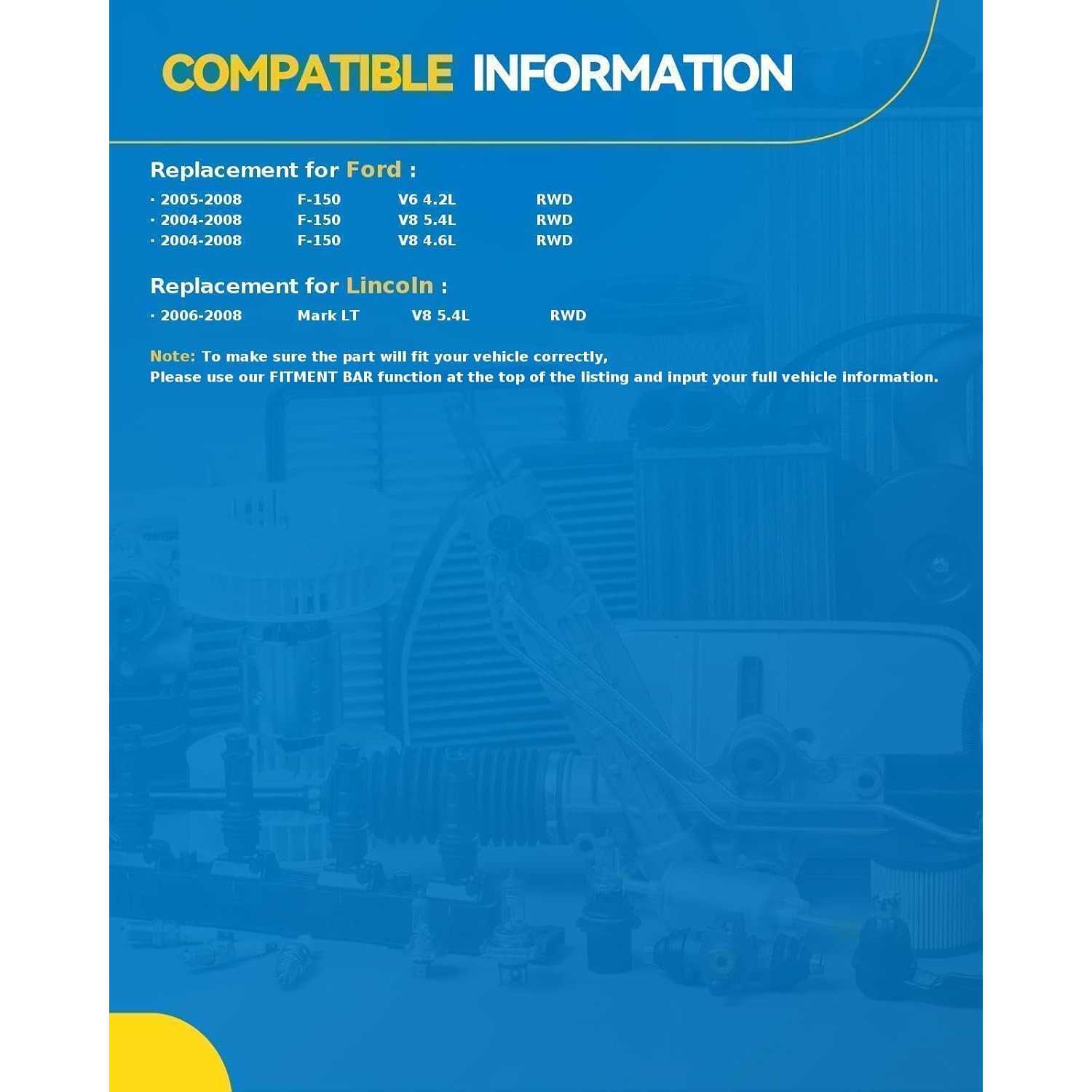

  • [Compatible Models]: Hydraulic power steering rack and pinion assembly compatible with F-150 2004-2008 4.6L 5.4L RWD, F-150 2005-2008 4.2L RWD, Mark LT 2006-2008 5.4L RWD.
  • [Reference Number]: Rack and pinion steering assembly OE number 22-277, 2006, 22277, 8L3Z3504ARM, 8L3Z3504A, 8L3Z3504C, 4L3Z3504AB, 4L3Z3504CB, 7L3Z3504A, 6L3Z3504AA, 6L3Z3504CA, 1P2638.
  • [Specifications]: Package included - Hydraulic power rack and pinion assembly with inner tie rods. ①Thread Length: 92.08mm; ②Rack Length: 1466.85mm; ③Input Shaft Diameter: 20.62mm; ④Input Shaft Length: 38.1mm.

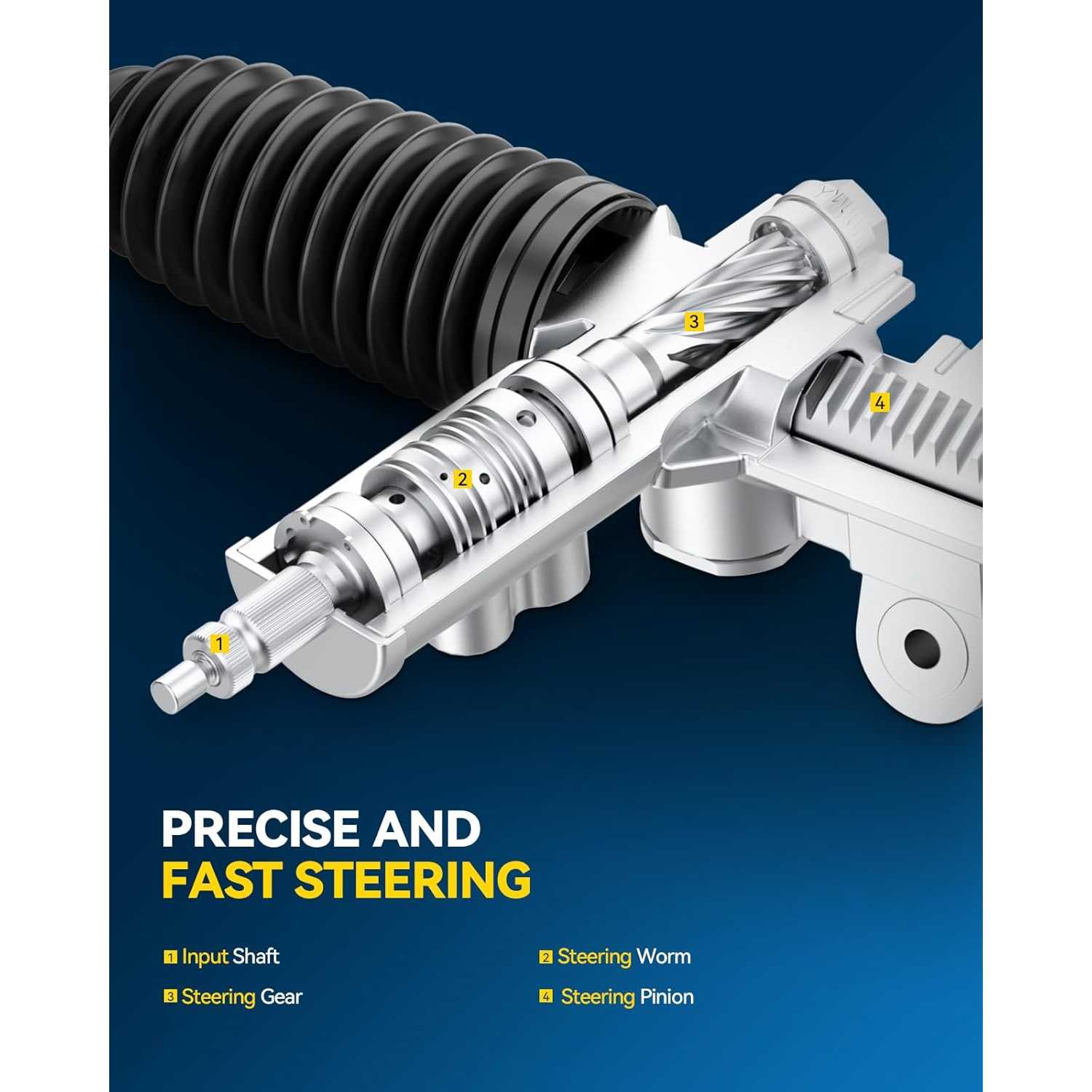

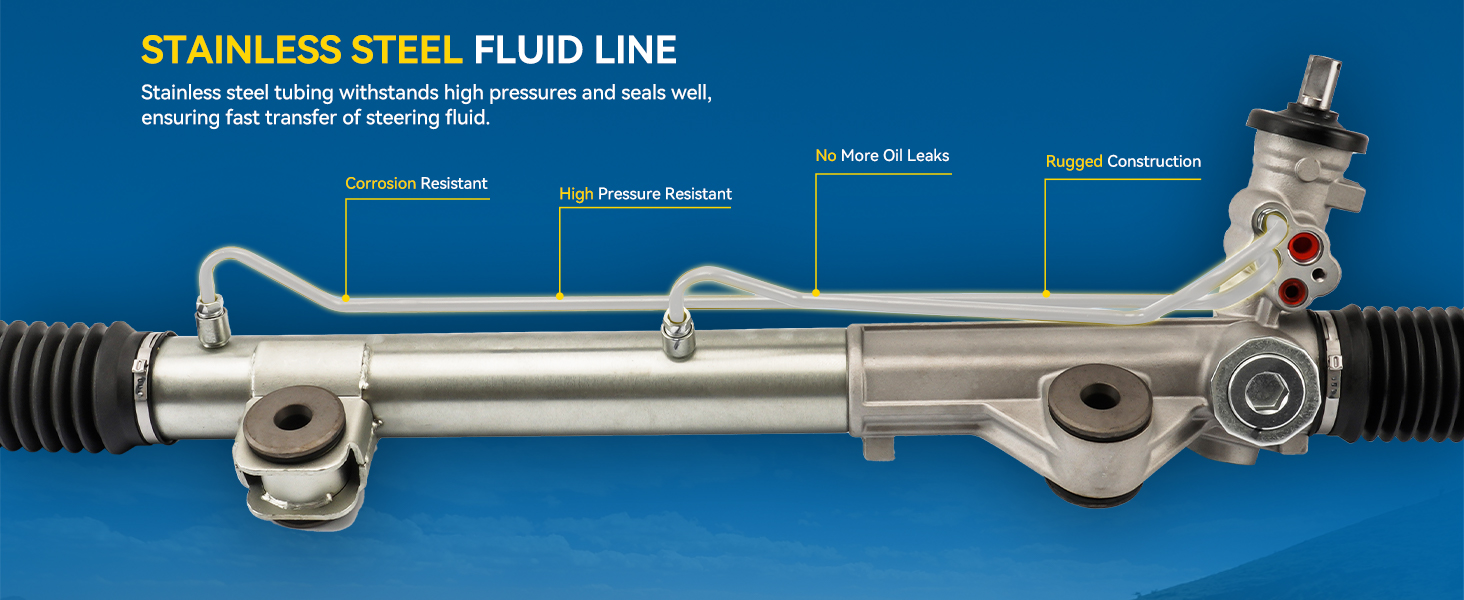

  • [High Verticality]: The rack and worm gear in the steering rack and pinion are made of high-strength alloy steel processed by high-precision CNC, which ensures the high verticality of the helical gear system, making the steering wheel operation more stable and driving safer. Closely integrated with the vehicle chassis will not produce noise and vibration.

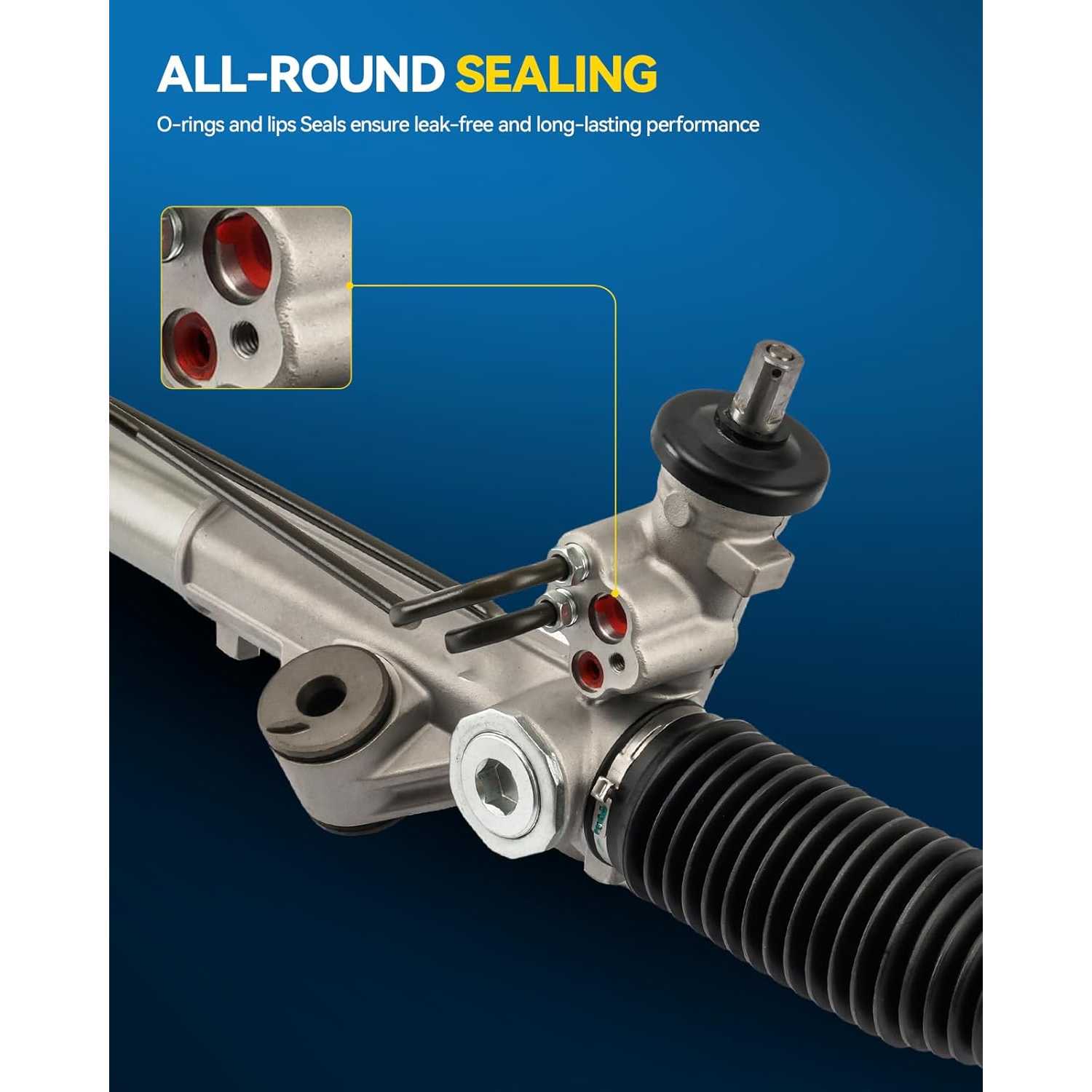

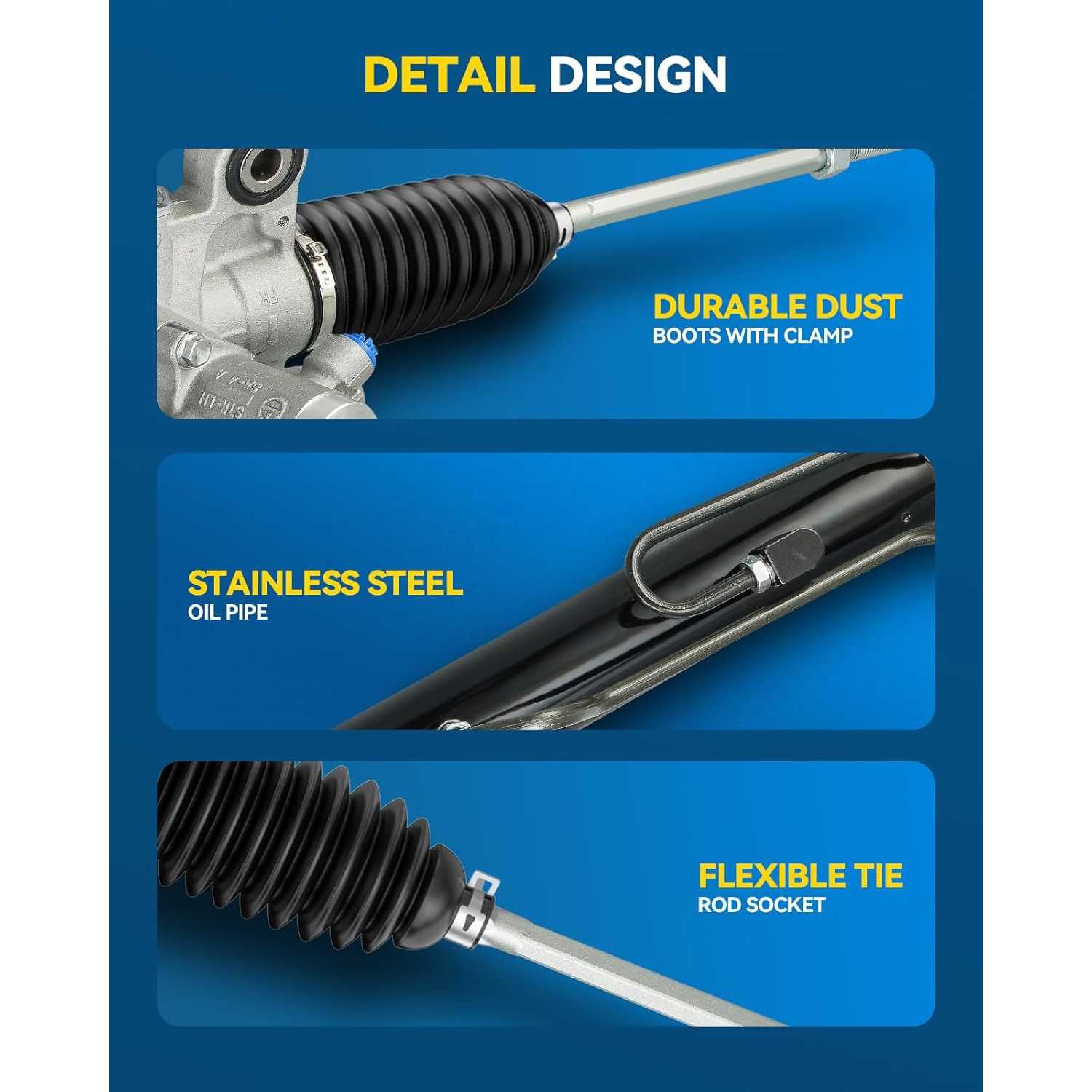

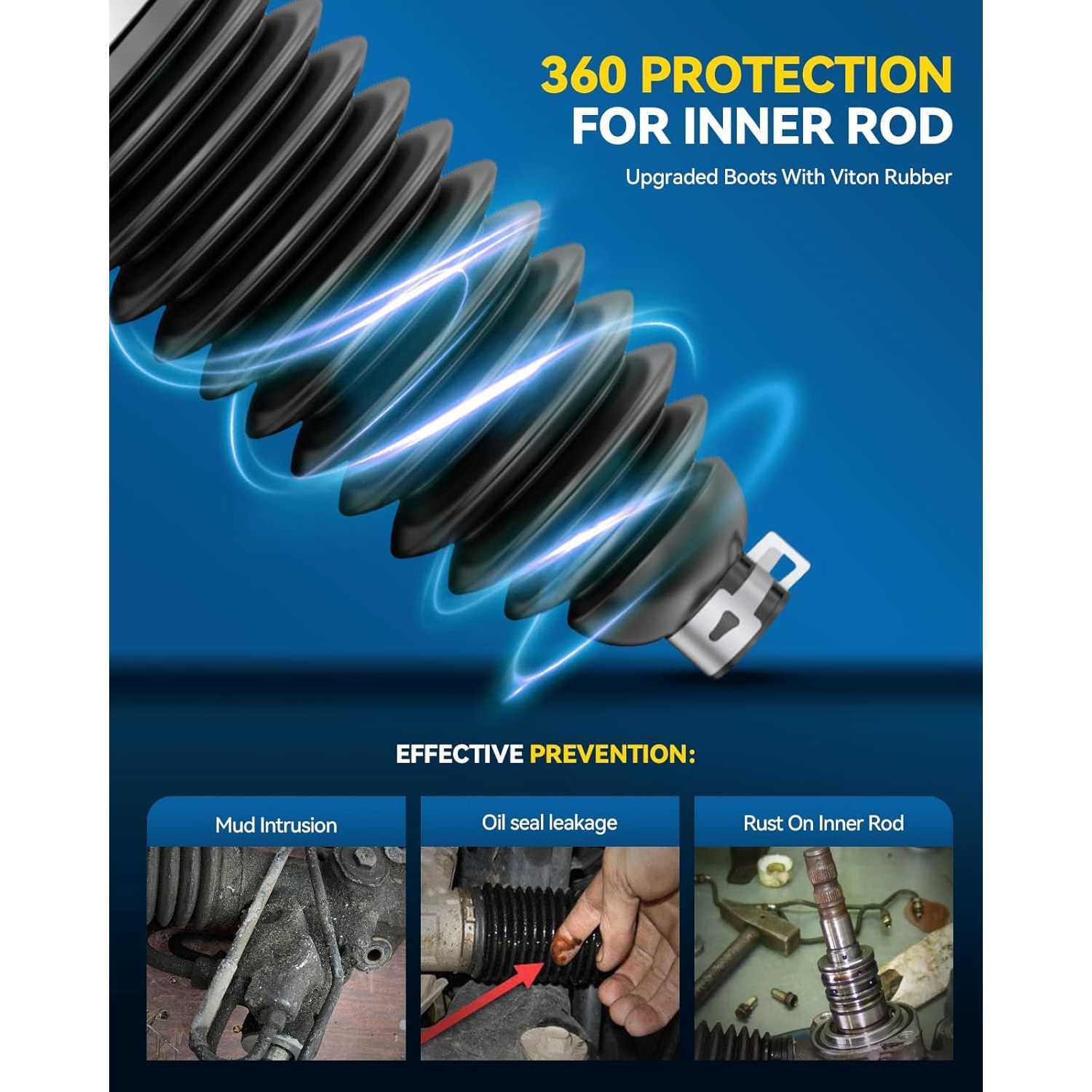

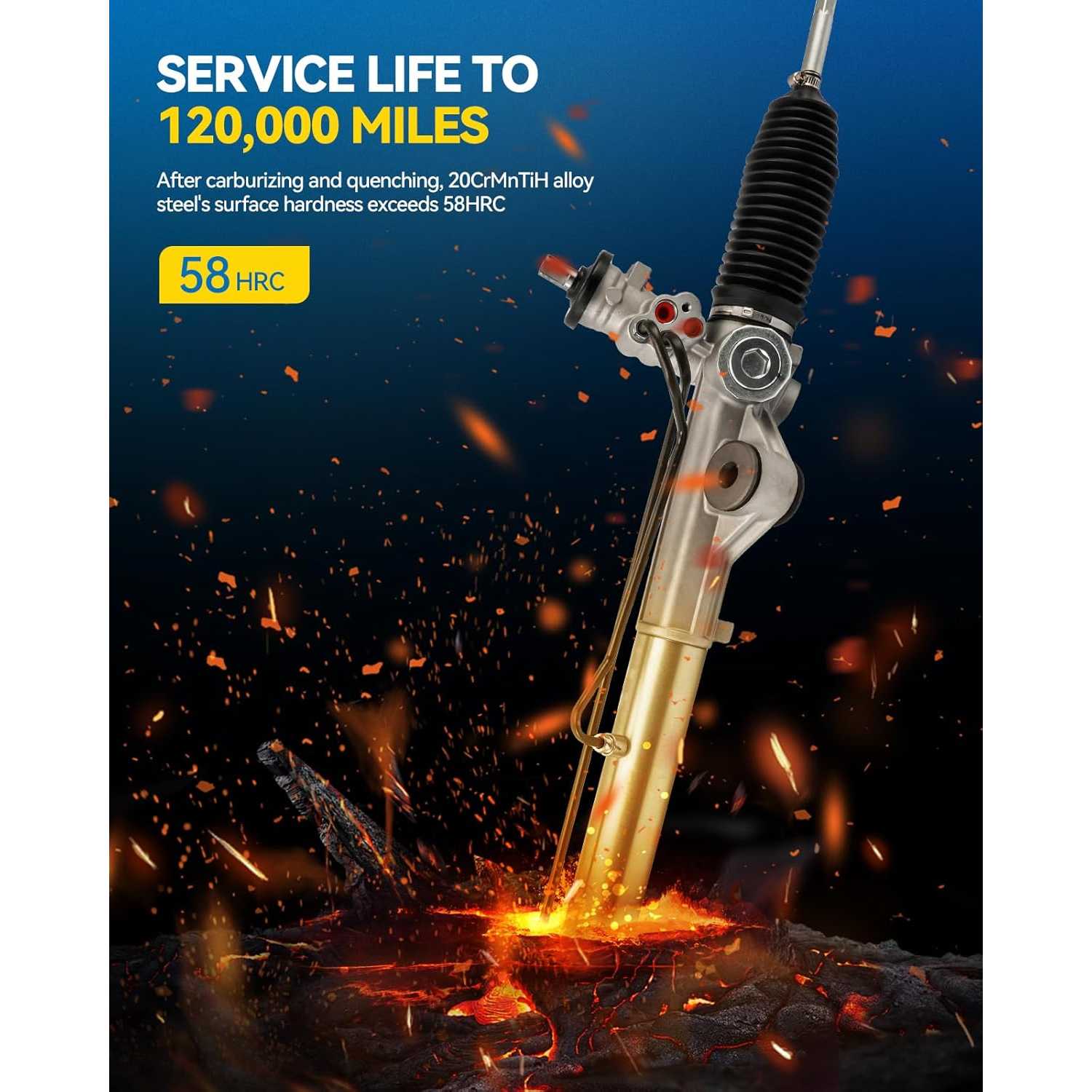

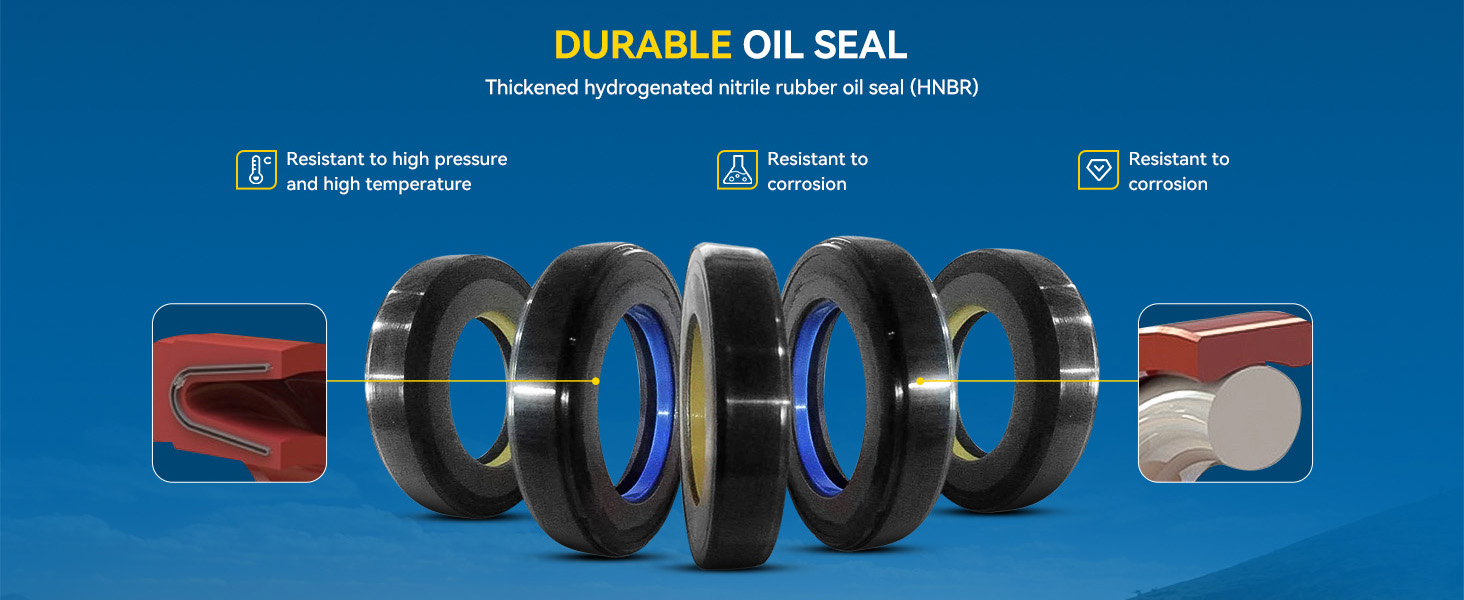

  • [Durable Performance]: PHILTOP steering rack and pinion adopts corrosion-resistant oil seals and lip seals, and butyl rubber sealing covers. The 360°dust cover is fully protected to effectively prevent dust and dirt from entering the rack gear to cause wear and oil leakage, Ensures a service life of more than 120,000 miles. 12-month unlimited mileage guarantee.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year20082007 - 20082006 - 20082005 - 20082004 - 200820082005 - 20082004 - 2008200820082005 - 20082004 - 20082004 - 20082005 - 20082004 - 20082004 - 20082006 - 2008
MakeFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordLincoln
ModelF-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150Mark LT
TrimFX2FX2Harley-Davidson EditionKing RanchLariatLimitedSTXSTXTHE 60TH ANNIVERSARY EDITIONTHE 60TH ANNIVERSARY EDITIONXLXLXLXLTXLTXLTBase
Engine4.6L V85.4L V85.4L V85.4L V85.4L V85.4L V84.2L V64.6L V84.6L V85.4L V84.2L V64.6L V85.4L V84.2L V64.6L V85.4L V85.4L V8
Note
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm fitment: Compare mounting dimensions, input shaft connections, and hydraulic ports.
  • Inspect related parts: Check tires, suspension, tie rods, steering joints, pump, and hoses.
  • Prepare the system: Flush contaminated fluid and prepare new seals that match vehicle specifications.

Installation Steps

  • STEP 1 — Secure the vehicle, disconnect the negative battery cable, and secure the steering wheel to prevent free rotation.
  • STEP 2 — Mark connection positions. Disconnect tie rods, hydraulic lines, and the steering shaft; collect drained fluid.
  • STEP 3 — Remove the old rack and flush the lines before connecting the replacement.
  • STEP 4 — Center the new rack and install it in alignment with the steering wheel. Tighten fasteners to vehicle specifications.
  • STEP 5 — Reconnect the steering shaft, tie rods, and hydraulic lines using new specified seals.
  • STEP 6 — Refill with the correct power steering fluid and bleed the system using the vehicle-specific procedure. Never run the system without sufficient fluid.

After Installation

  • Check fluid level, hydraulic connections, and fasteners.
  • Verify smooth steering without binding, unusual noise, or fluid foaming.
  • Have a four-wheel alignment performed.
  • After the alignment and safety checks, road-test for straight tracking, steering wheel centering, and normal steering return.

Product Video

Product Description

power rack and pinion assemblyPower Steering Rack and Pinion

Reviews

4.9/5

Based on 8 reviews

588%
413%
30%
20%
10%

Jim

05/12/2026

Verified buyer

Plug-in play bolted right up no problems

Juan Serrata

11/23/2025

Verified buyer

Installed this rack and pinion on my 2004 Ford F150 rack and pinion. Steering feels smooth and accurate again with no leaks. Really impressive performance.

FAQS

The name ‘rack and pinion’ is more accurately called a power steering gear. It’s a complete assembly, and the parts aren’t replaced individually

A hydraulic system generally needs to be bled after installation to remove trapped air. Follow the procedure specified for the vehicle.

A wheel alignment is generally recommended because steering and suspension components may be moved during installation.
