Hydraulic Power

Effortless Steering

Leak-Tested

4.4

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
3307SGE088QUS

Specifications

Brand
PHILTOP
Steering Type
Hydraulic Power
Pressure Port Thread Size
M18 X 1.5
Return Port Thread Size
M16 X 1.5
Input Shaft Diameter
0.69 in
Input Shaft Length
1.94 in
Rack Length
45.25 in
Thread Length
1.75 in
Material
Aluminum / Iron
Items Included

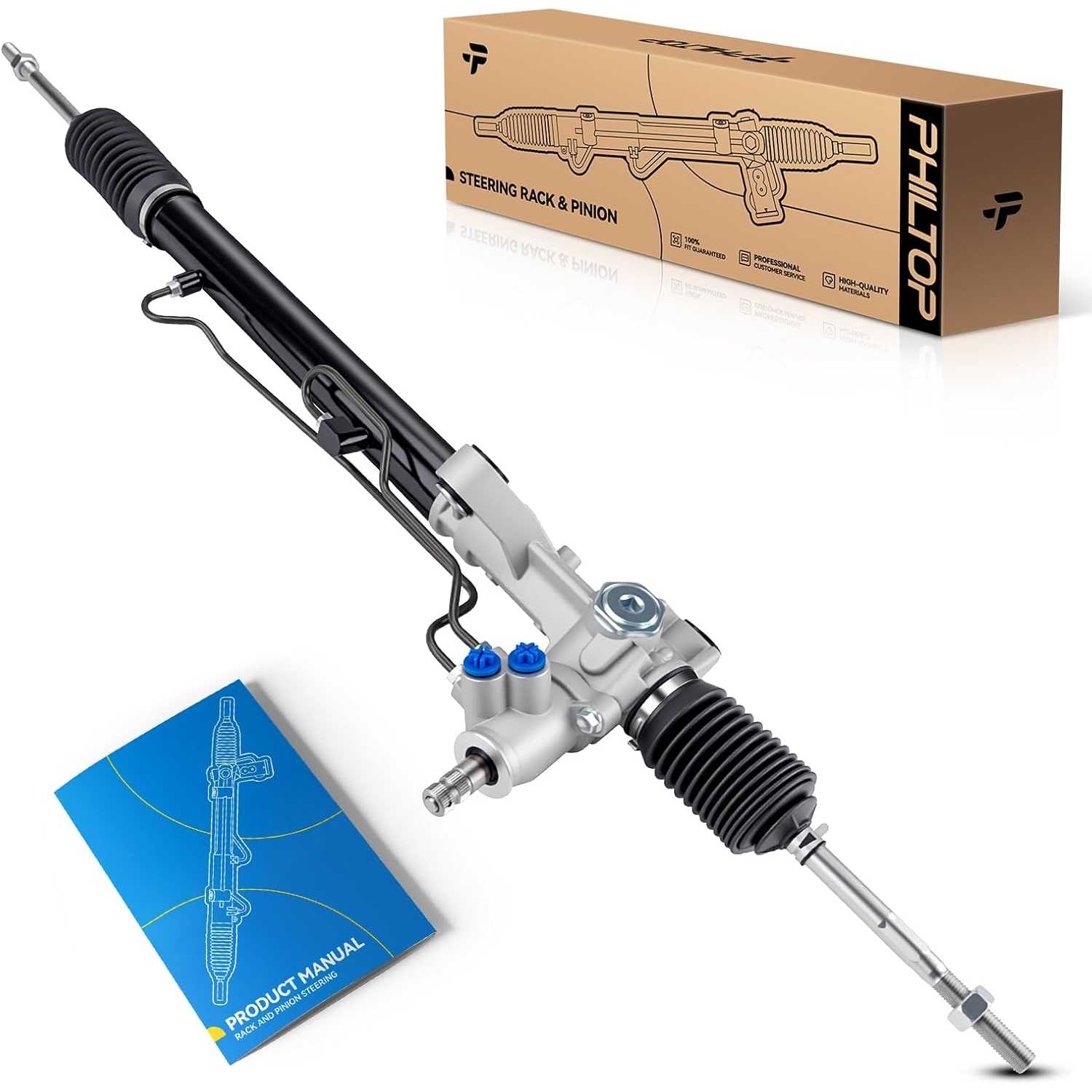

1x Rack and Pinion - 262749
Warranty Period
2-Year
Part Number
262749

Highlights

  • [Vehicle Fitment]: Hydraulic steering rack and pinion assembly compatible with 1997-2001 CR-V.
  • [Reference Number]: Rack and pinion steering assembly OE number 26-1776, 261776, 53601S10A01, 53601S10A03, 53601S10A02, 2102, 53010S10000, 53010S10003, A2102.
  • [Specifications]: Package included - Hydraulic power rack and pinion assembly with inner tie rods. ①Rack Length: 43.8 Inch; ②Thread Length: 1.83 Inch; ③Input Shaft Length: 1.43 Inch; ④Input Shaft Diameter: 0.68 Inch; ⑤Pressure Port Thread Size: M14 x 1.5; ⑥Return Port Thread Size: M16 x 1.5;

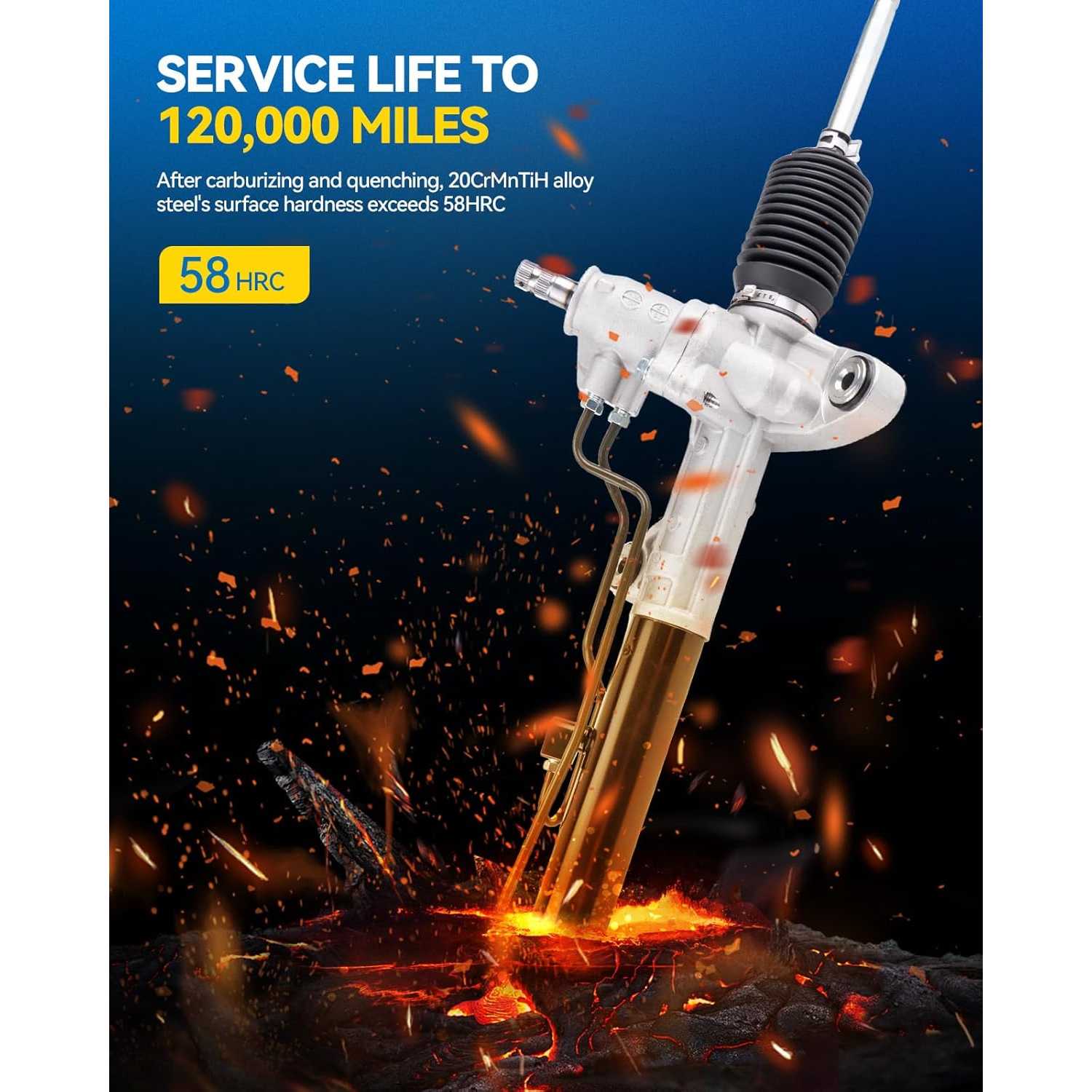

  • [High Verticality]: The rack and worm gear in the steering rack and pinion are made of high-strength alloy steel processed by high-precision CNC, which ensures the high verticality of the helical gear system, making the steering wheel operation more stable and driving safer. Closely integrated with the vehicle chassis will not produce noise and vibration.

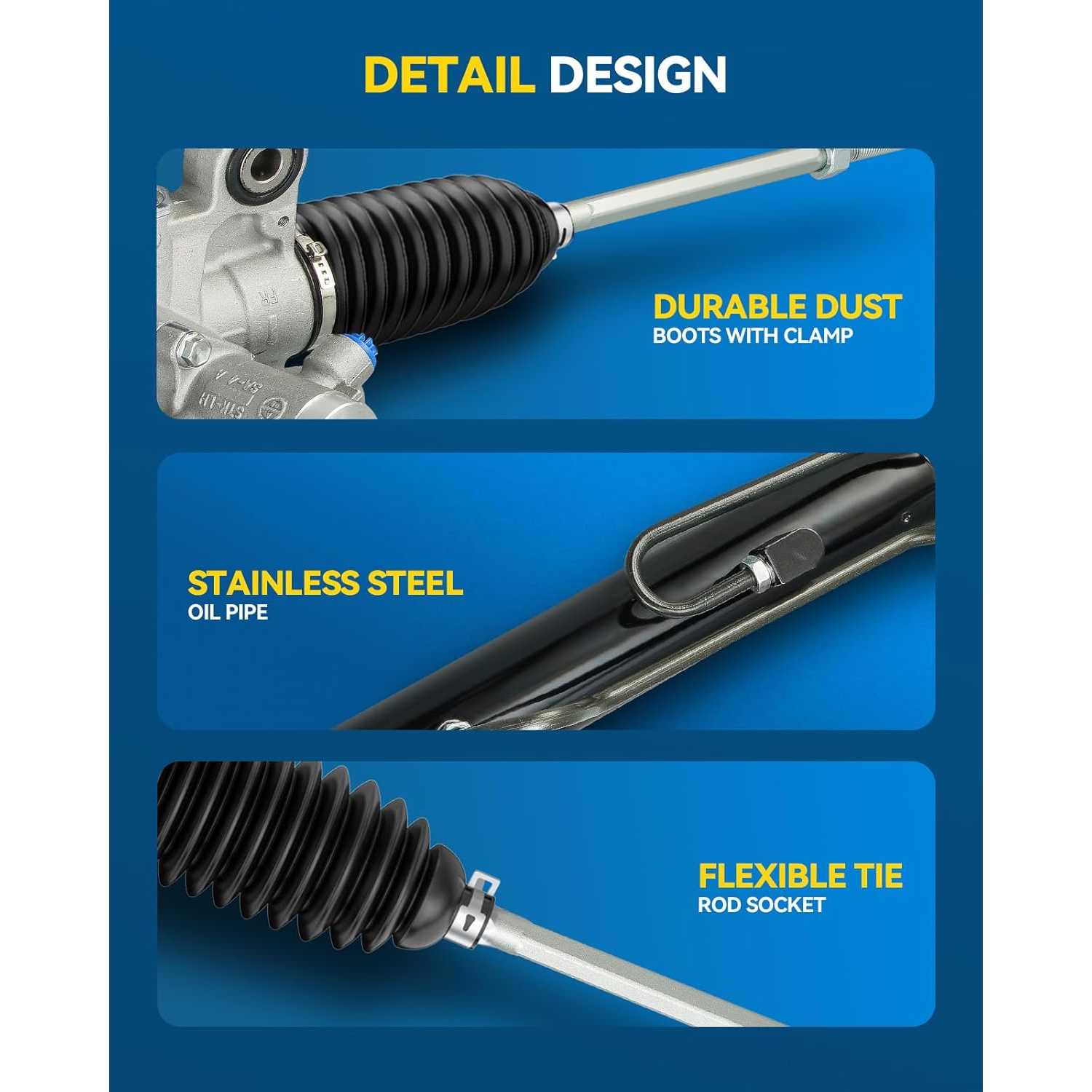

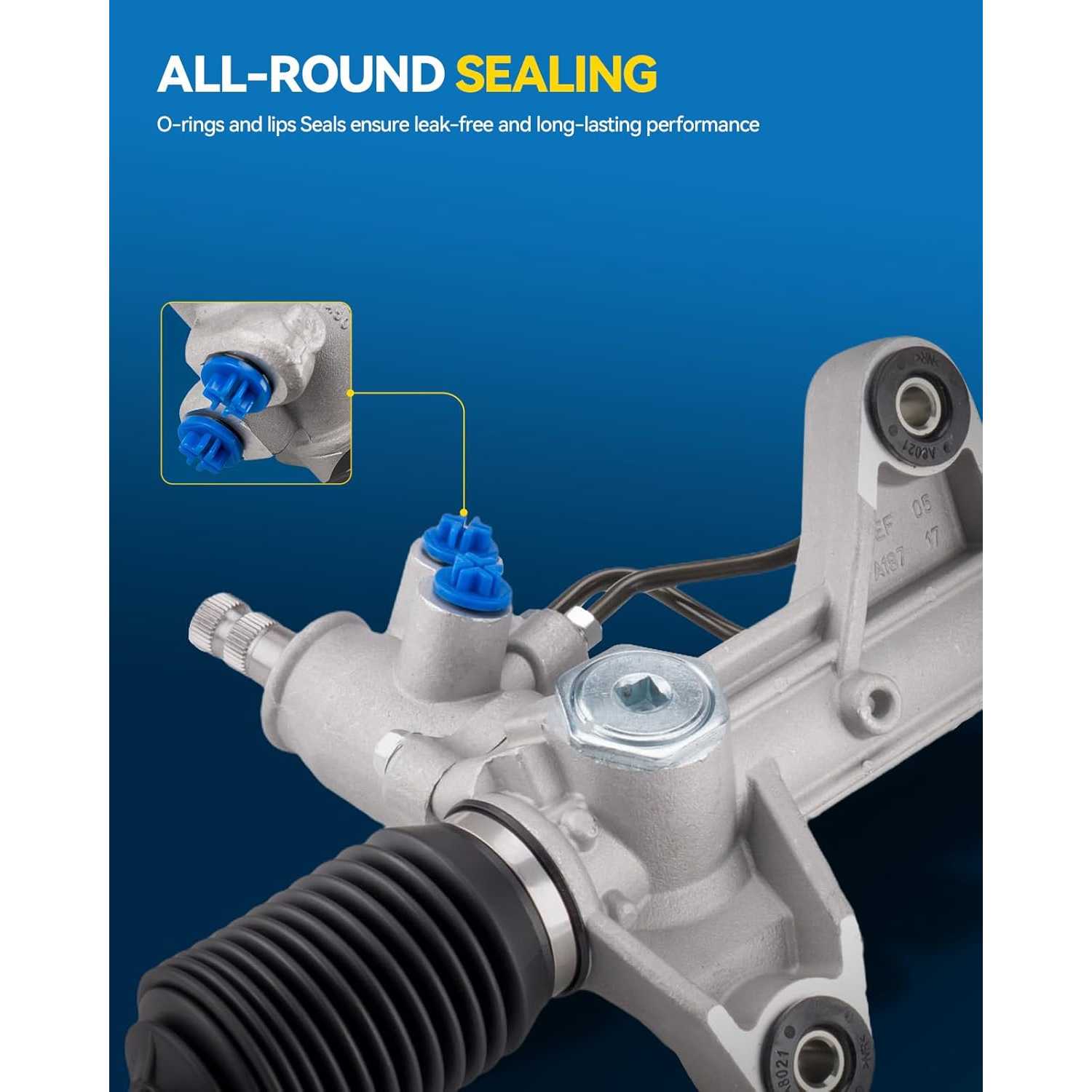

  • [Durable Performance]: PHILTOP steering rack and pinion adopts corrosion-resistant oil seals and lip seals, and butyl rubber sealing covers. The 360°dust cover is fully protected to effectively prevent dust and dirt from entering the rack gear to cause wear and oil leakage, Ensures a service life of more than 120,000 miles. 12-month unlimited mileage guarantee.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2007 - 20112007 - 20112007 - 20112011
MakeHondaHondaHondaHonda
ModelCR-VCR-VCR-VCR-V
TrimEXEX-LLXSE
Engine2.4L L42.4L L42.4L L42.4L L4
Note
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;North American Built;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;North American Built;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;North American Built;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;North American Built;with Hydraulic Power

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm fitment: Compare mounting dimensions, input shaft connections, and hydraulic ports.
  • Inspect related parts: Check tires, suspension, tie rods, steering joints, pump, and hoses.
  • Prepare the system: Flush contaminated fluid and prepare new seals that match vehicle specifications.

Installation Steps

  • STEP 1 — Secure the vehicle, disconnect the negative battery cable, and secure the steering wheel to prevent free rotation.
  • STEP 2 — Mark connection positions. Disconnect tie rods, hydraulic lines, and the steering shaft; collect drained fluid.
  • STEP 3 — Remove the old rack and flush the lines before connecting the replacement.
  • STEP 4 — Center the new rack and install it in alignment with the steering wheel. Tighten fasteners to vehicle specifications.
  • STEP 5 — Reconnect the steering shaft, tie rods, and hydraulic lines using new specified seals.
  • STEP 6 — Refill with the correct power steering fluid and bleed the system using the vehicle-specific procedure. Never run the system without sufficient fluid.

After Installation

  • Check fluid level, hydraulic connections, and fasteners.
  • Verify smooth steering without binding, unusual noise, or fluid foaming.
  • Have a four-wheel alignment performed.
  • After the alignment and safety checks, road-test for straight tracking, steering wheel centering, and normal steering return.

Product Video

Product Description

POWER RACK AND PINION ASSEMBLYPOWER STEERING RACK AND PINION ASSEMBLY

Reviews

4.4/5

Based on 7 reviews

557%
429%
314%
20%
10%

Customer photos and videos

Air CooledAir Cooled

11/16/2025

Verified buyer

This is a very impressive & high-quality steering rack. This assembly even has steel pre-bent hydraulic lines installed on it. They even did a great job of packaging in order to ensure that an unharmed unit is what gets delivered.My 2 sons are going to install this in my CRV in 2 weeks' time, and if there are ANY issues with this assembly - I will report back to this review. However - I am not expecting any issues based on the quality I see so far.

Donald Lane

12/08/2025

Verified buyer

My stepson's CRV has a lot of miles on it, so I thought I would get this as a replacement. Excellent choice. This rack and pinion assembly is well made out of good quality materials. Fit and finish are very good. Perfect replacement. While it is possible to rebuild one of these, it's kind of a pain, and far easier and faster to just replace the whole assembly. Installation for this part following the factory removal and installation procedure I would rate at a difficulty of about three out of five. You will also need to have a wheel alignment performed after replacing this part. Highly recommend. 5 stars.

FAQS

Normally, failures are due to normal wear and tear, lack of power steering fluid maintenance, and impacts.

They may be reused if they are compatible and remain in serviceable condition. Inspect them for looseness, damaged threads, or worn joints before installation.

Check the fasteners, fluid level, hose connections, steering movement, and wheel alignment. Confirm that there is no binding, leakage, or unusual noise before normal driving.
