Hydraulic Power

Effortless Steering

Leak-Tested

4.6

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
8367SGE054KUS

Specifications

Brand
PHILTOP
Steering Type
Hydraulic Power
Pressure Port Thread Size
9/16 X 18
Return Port Thread Size
5/8"- 18
Input Shaft Diameter
0.73 in
Input Shaft Length
2.80 in
Rack Length
48.50 in
Thread Length
3.00 in
Material
Aluminum / Iron
Items Included

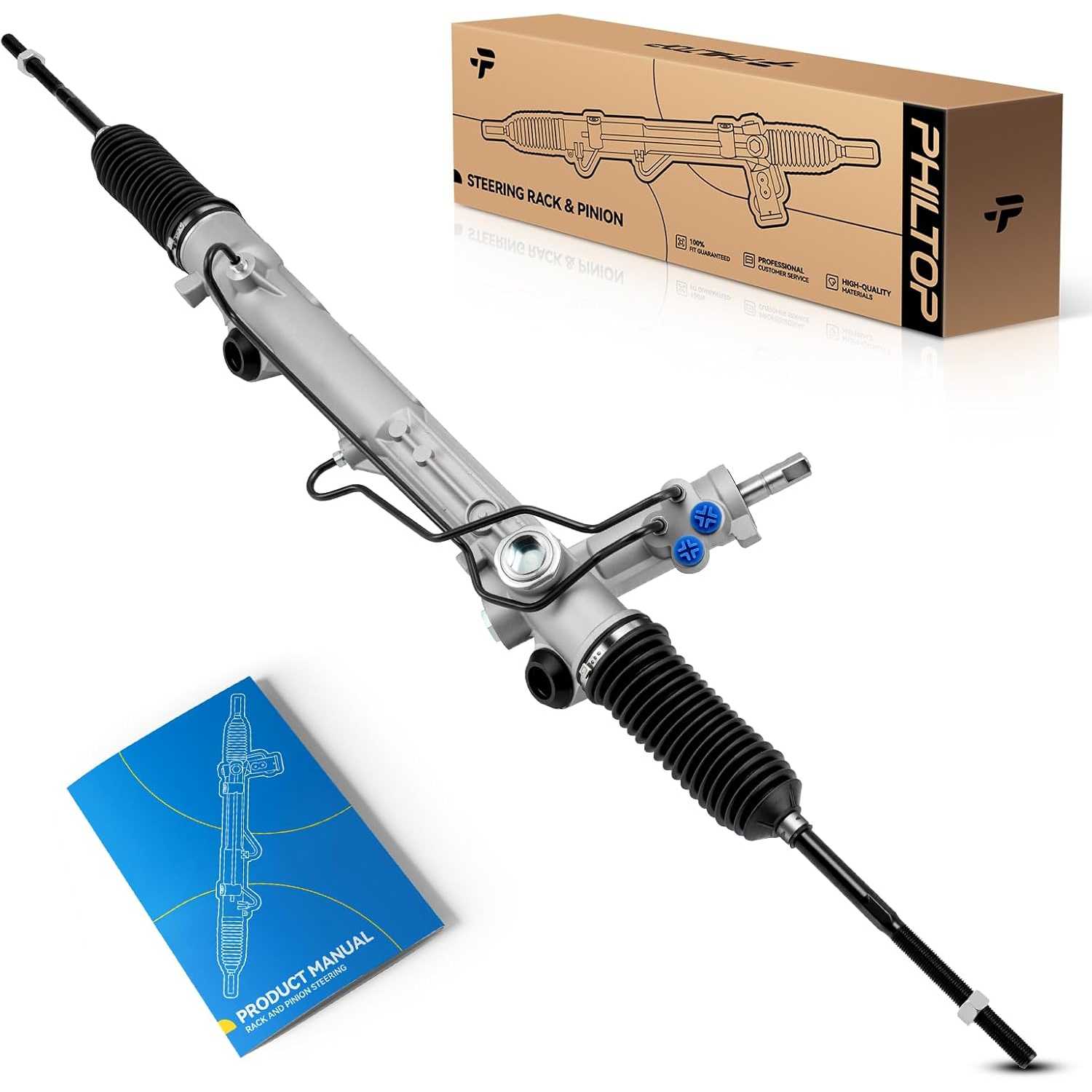

1x Rack and Pinion - 22238
Warranty Period
2-Year
Part Number
22238

Highlights

  • [Vehicle Fitment]: Hydraulic steering rack and pinion assembly compatible with 1999-2000 Mustang 4.6L, 2001 GT/GT Bullitt, 2002-2004 Mustang 4.6L with Production Code SPR-ZK only.
  • [Reference Number]: Rack and pinion steering assembly OE number 22-238, F6SZ3280BA, 22238, 2R3Z3504BARM, XR3Z3504BBRM, XR3Z3504BCRM, 2133, 1512.
  • [Specifications]: ①Steering Type: Hydraulic Power; ②Rack Length(In): 48.5; ③Thread Length(In): 3; ④Input Shaft Length(In): 2.8; ⑤Input Shaft Diameter(In): 0.73; ⑥Pressure Port Thread Size: 9/16 x 18; ⑦Return Port Thread Size: 5/8"- 18. Package included: 1x Rack and Pinion - 22238.

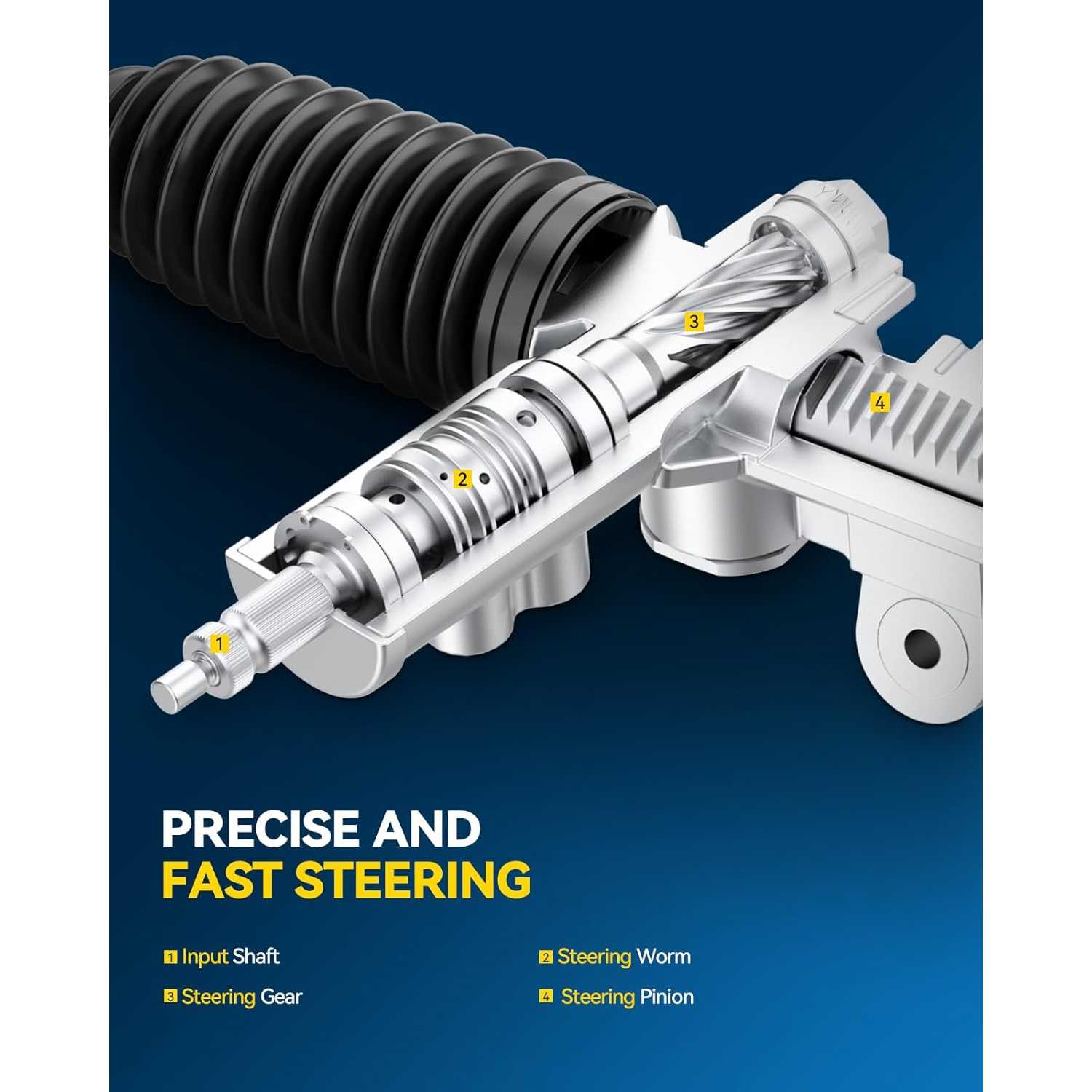

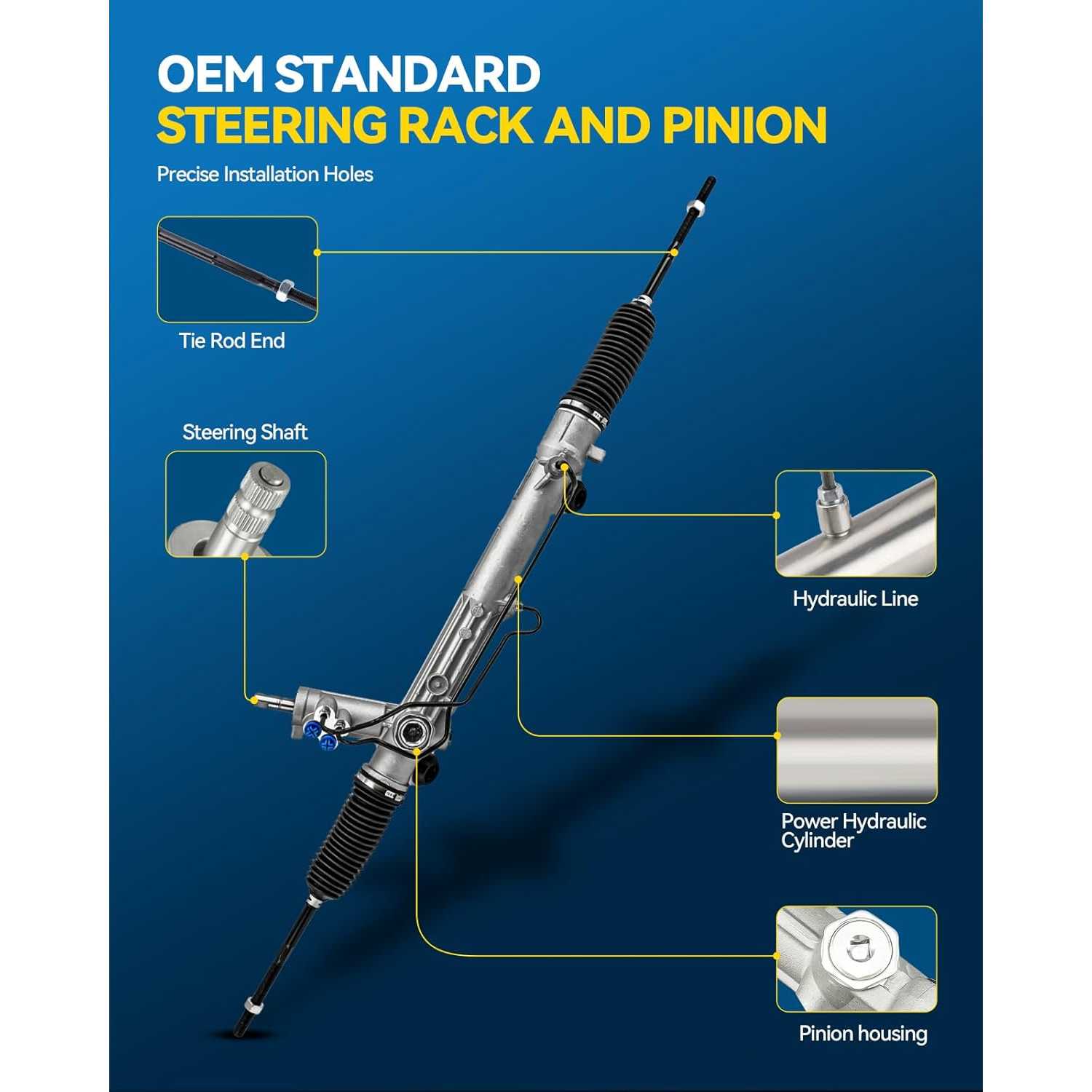

  • [High Verticality]: The rack and worm gear in the steering rack and pinion are made of high-strength alloy steel processed by high-precision CNC, which ensures the high verticality of the helical gear system, making the steering wheel operation more stable and driving safer. Closely integrated with the vehicle chassis will not produce noise and vibration.

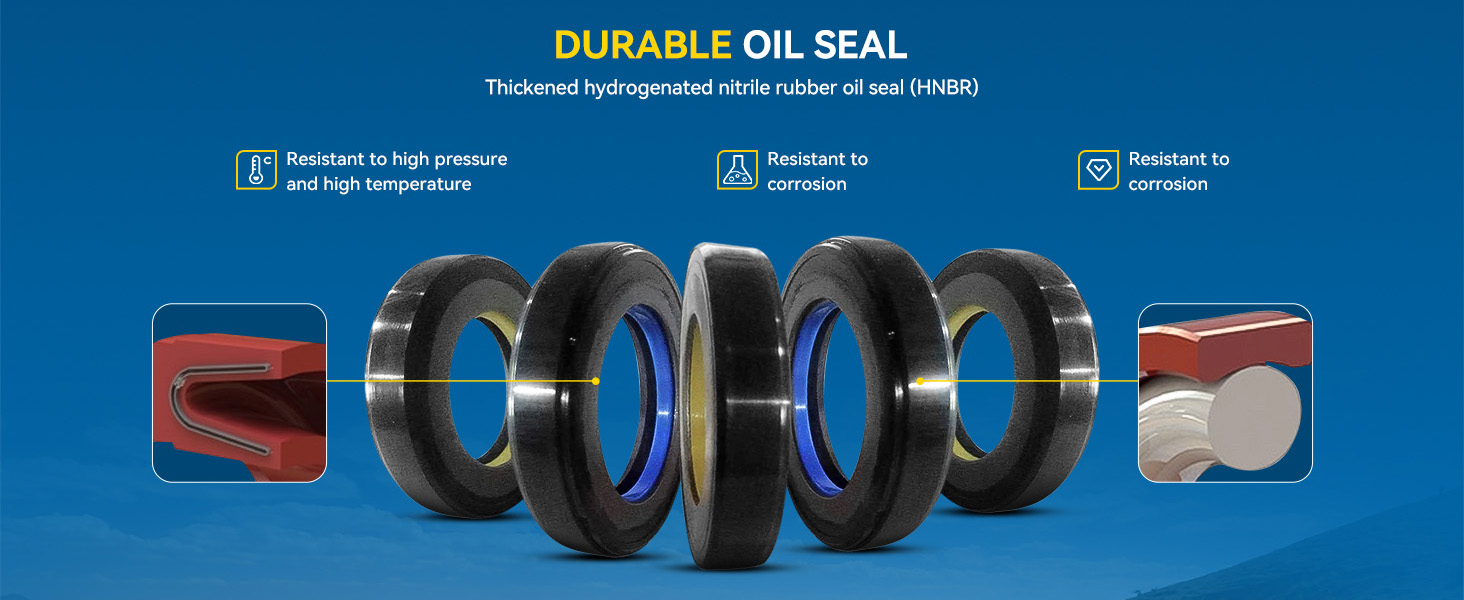

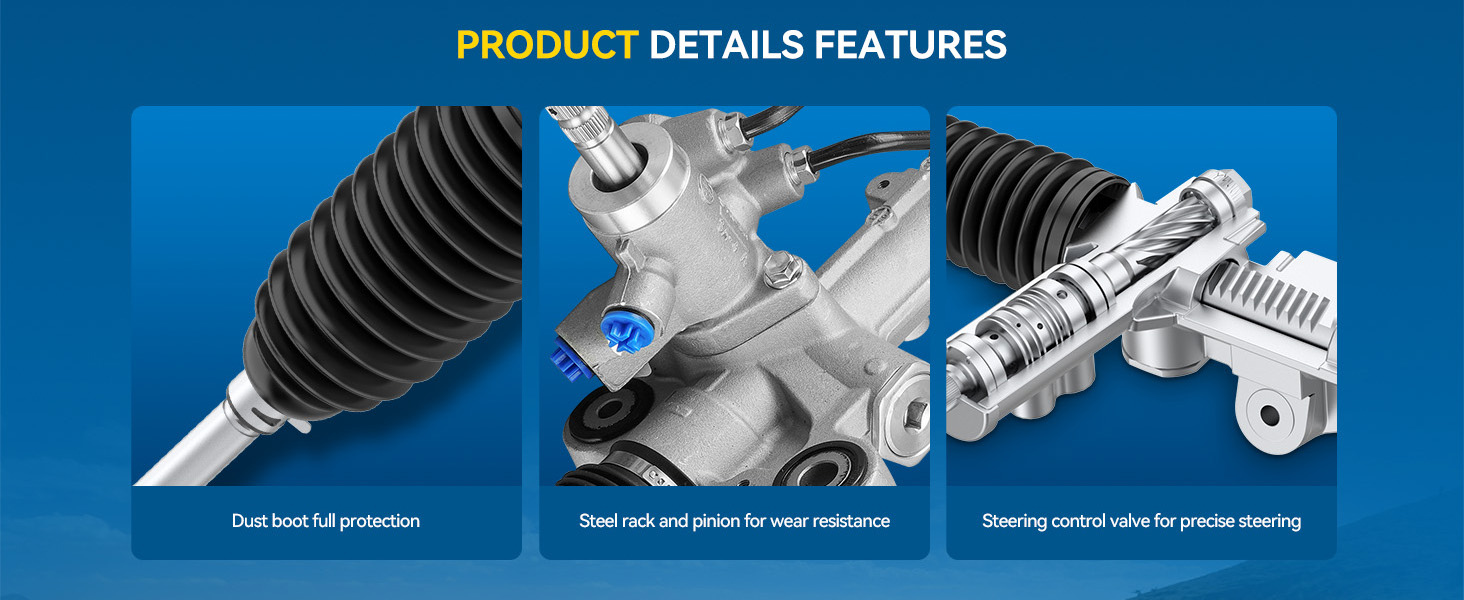

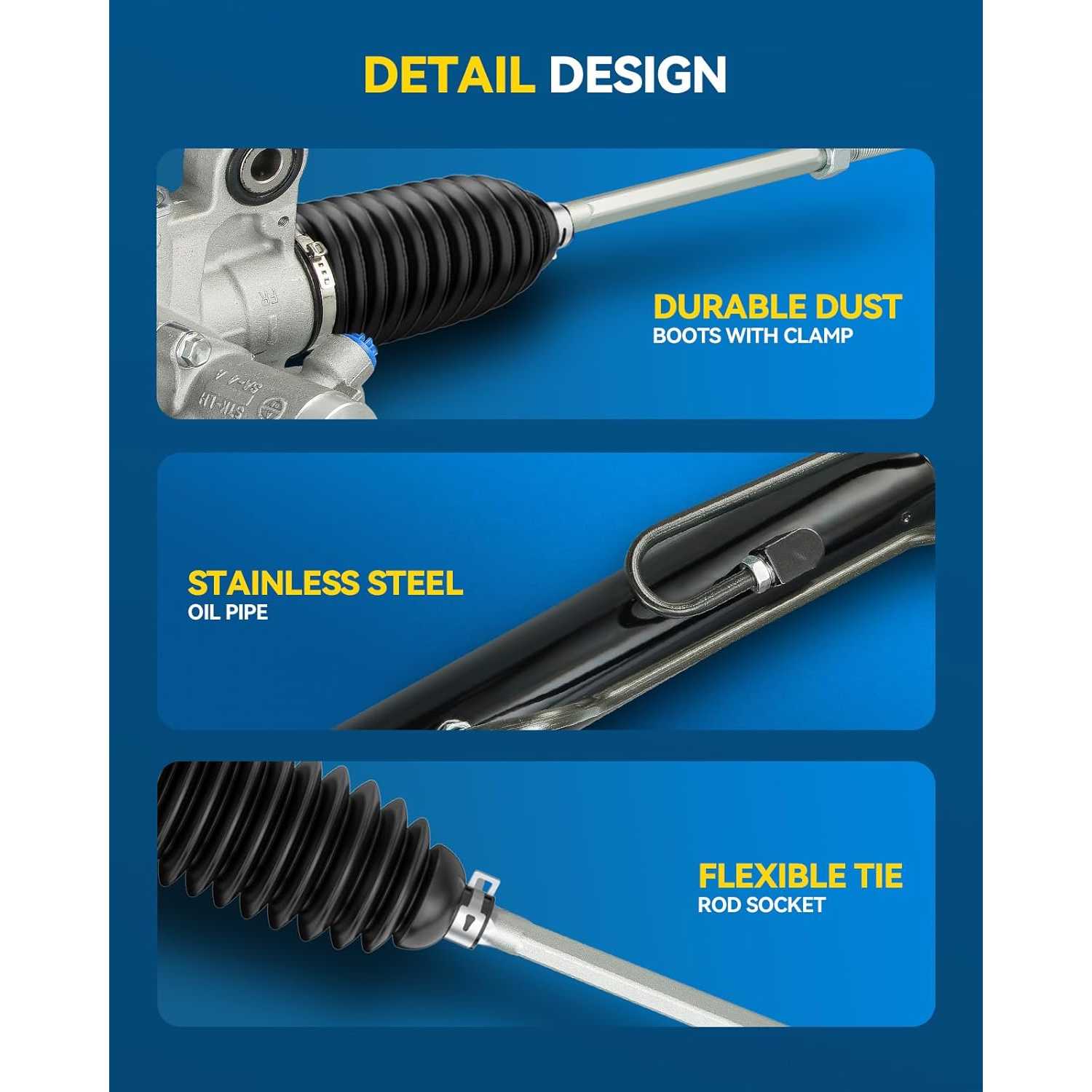

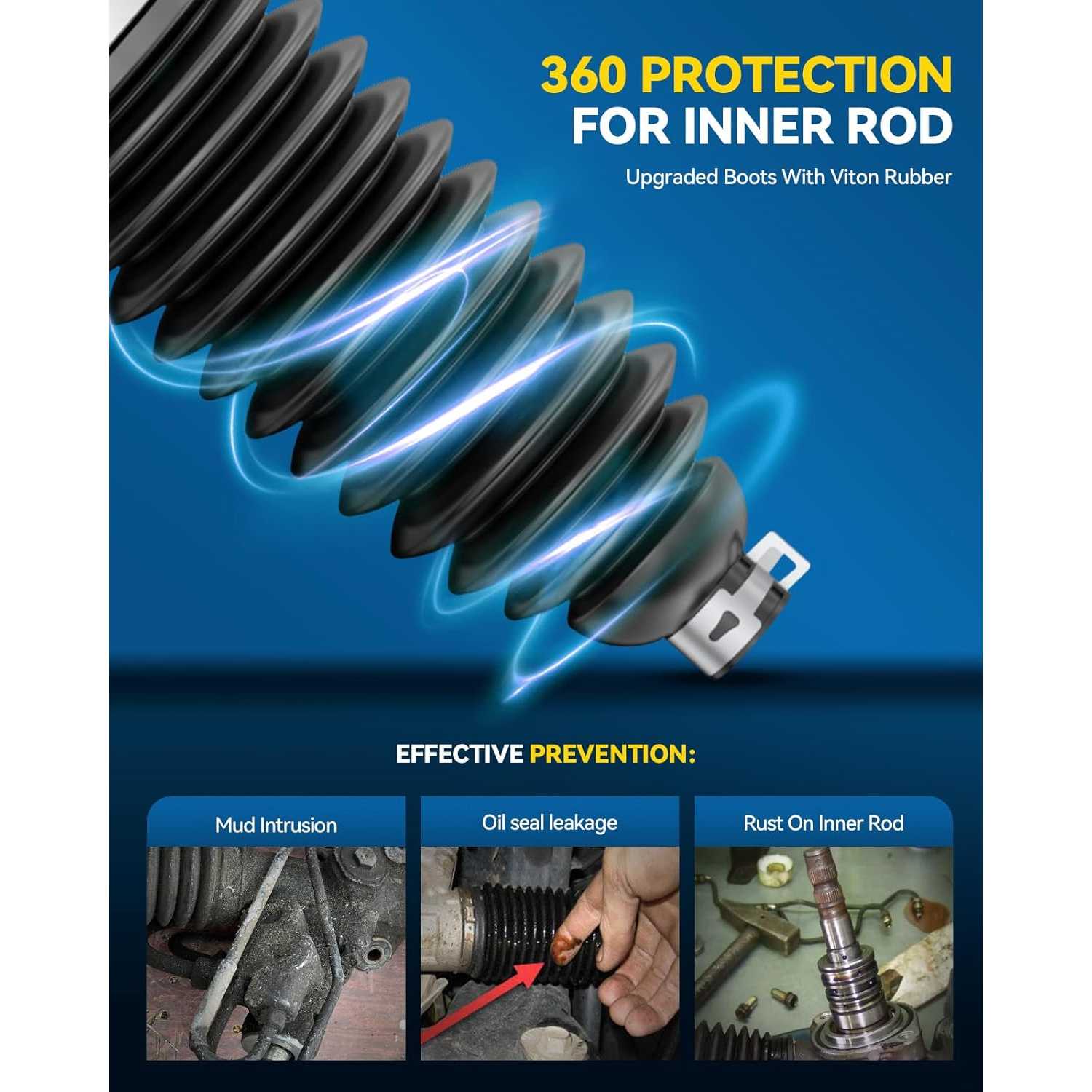

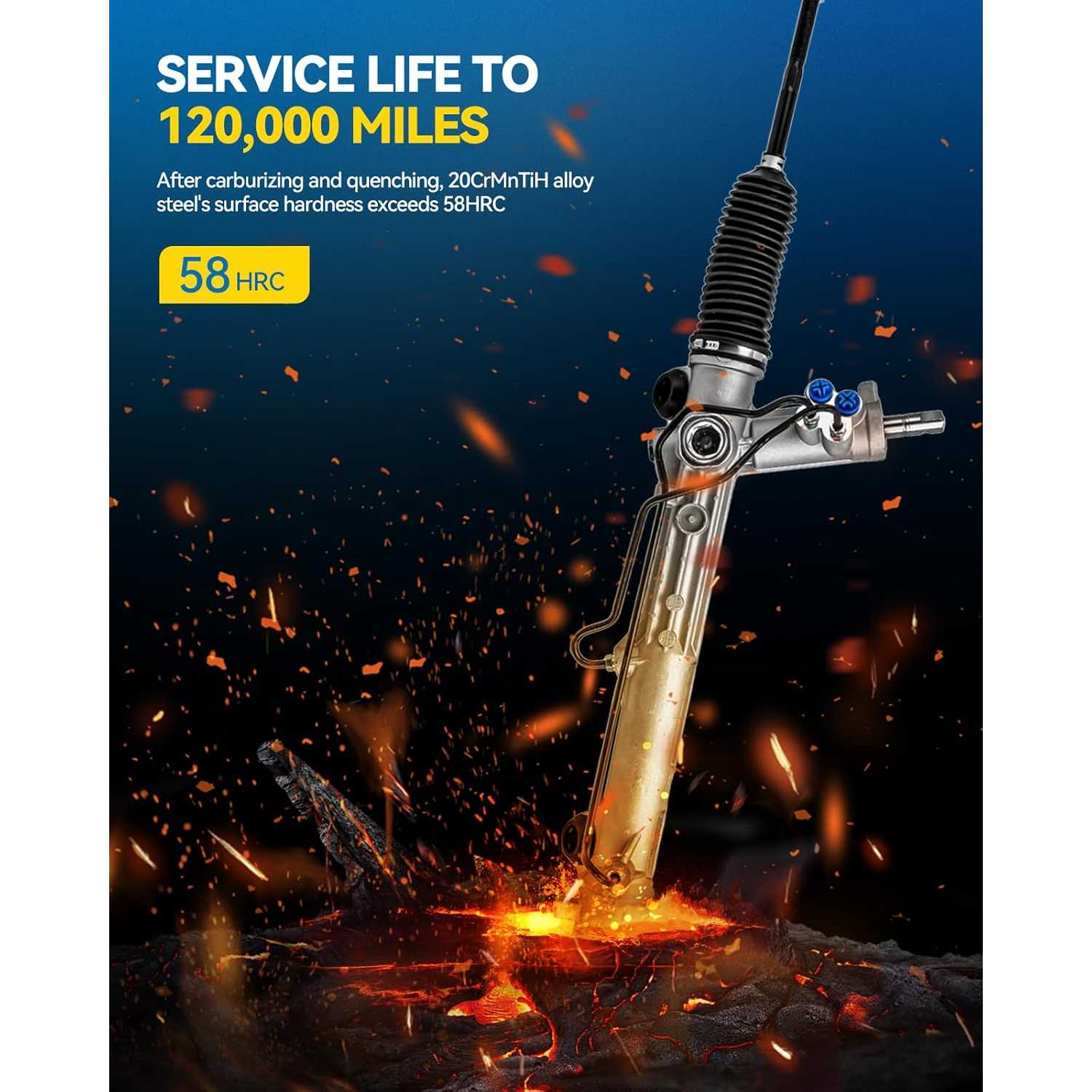

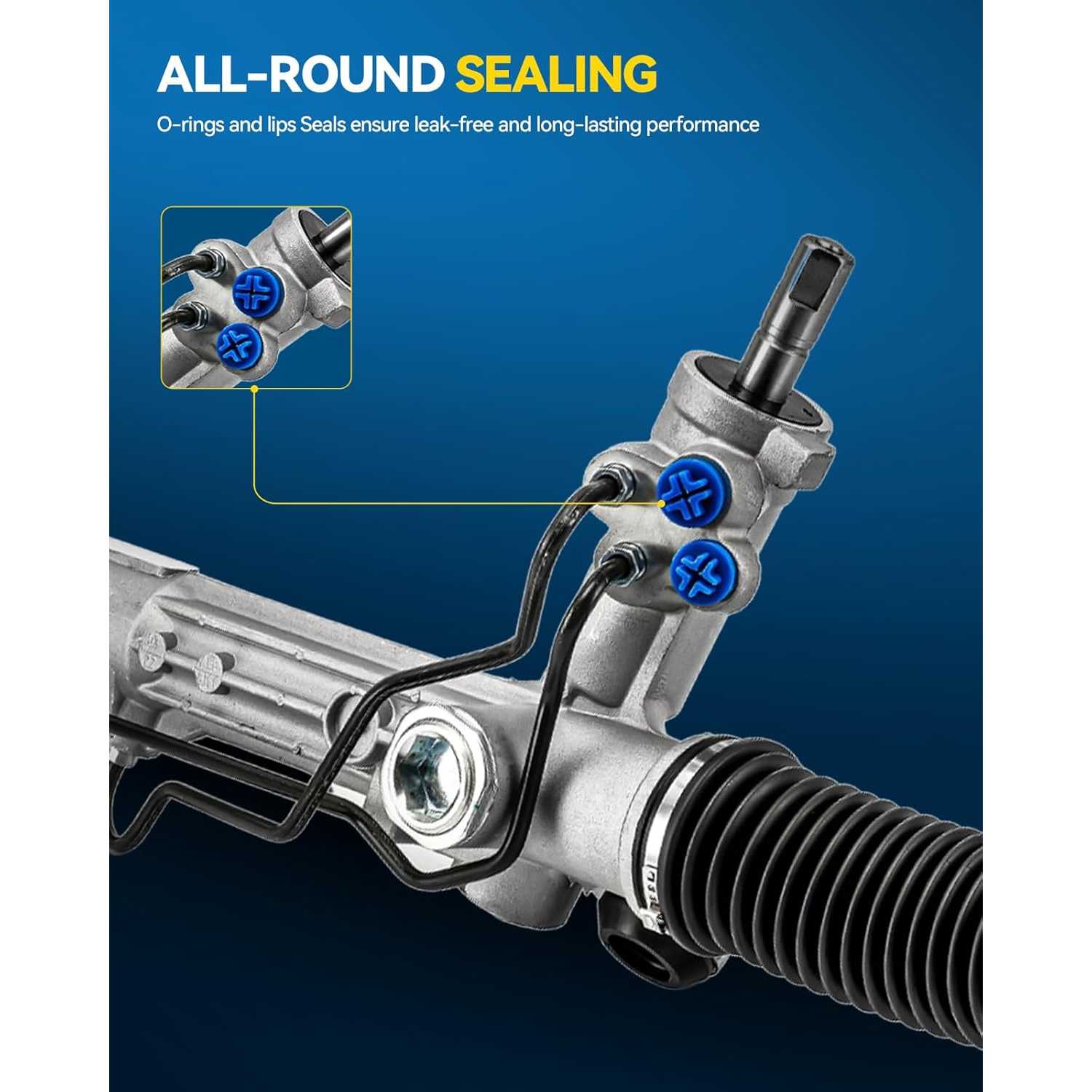

  • [Durable Performance]: PHILTOP steering rack and pinion adopts corrosion-resistant oil seals and lip seals, and butyl rubber sealing covers. The 360°dust cover is fully protected to effectively prevent dust and dirt from entering the rack gear to cause wear and oil leakage. Service life more than 120,000 miles, 24-month unlimited mileage guarantee.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year1999 - 20002001 - 20022003 - 200420012003 - 200419992003 - 20042003
MakeFordFordFordFordFordFordFordFord
ModelMustangMustangMustangMustangMustangMustangMustangMustang
TrimGTGTGTGT BullittMach 1SVT CobraSVT CobraSVT Cobra 10th Anniversary
Engine4.6L V84.6L V84.6L V84.6L V84.6L V84.6L V84.6L V84.6L V8
Note
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
-
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;Production Code SPR-ZK;with Hydraulic Power
-
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;Production Code SPR-ZK;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;Production Code SPR-ZK;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;Production Code SPR-ZK;with Hydraulic Power

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm fitment: Compare mounting dimensions, input shaft connections, and hydraulic ports.
  • Inspect related parts: Check tires, suspension, tie rods, steering joints, pump, and hoses.
  • Prepare the system: Flush contaminated fluid and prepare new seals that match vehicle specifications.

Installation Steps

  • STEP 1 — Secure the vehicle, disconnect the negative battery cable, and secure the steering wheel to prevent free rotation.
  • STEP 2 — Mark connection positions. Disconnect tie rods, hydraulic lines, and the steering shaft; collect drained fluid.
  • STEP 3 — Remove the old rack and flush the lines before connecting the replacement.
  • STEP 4 — Center the new rack and install it in alignment with the steering wheel. Tighten fasteners to vehicle specifications.
  • STEP 5 — Reconnect the steering shaft, tie rods, and hydraulic lines using new specified seals.
  • STEP 6 — Refill with the correct power steering fluid and bleed the system using the vehicle-specific procedure. Never run the system without sufficient fluid.

After Installation

  • Check fluid level, hydraulic connections, and fasteners.
  • Verify smooth steering without binding, unusual noise, or fluid foaming.
  • Have a four-wheel alignment performed.
  • After the alignment and safety checks, road-test for straight tracking, steering wheel centering, and normal steering return.

Product Video

Product Description

POWER RACK AND PINION ASSEMBLYPOWER STEERING RACK AND PINION ASSEMBLY

Reviews

4.6/5

Based on 7 reviews

571%
414%
314%
20%
10%

Celina Ussoletti

04/13/2025

Verified buyer

Installed this hydraulic rack and pinion on my 2003 Ford Mustang and it fits perfectly. Steering is now smooth and accurate with no more pulling or noise.

Chris_GearHead_433

01/04/2026

Came fast, no issues with the delivery. Installation was pretty straightforward, and it bolted right up. Steering feels great now. Happy with the whole process.

FAQS

You can expect a rack and pinion to last between fifteen and twenty years, on average.

The steering type varies by product. Check the specifications and compare the connectors, fluid ports, and motor configuration with the original unit.

Included components vary by product. Please check the Package Contents section and product images before ordering.
