2000-2006 Toyota Tundra 3.4L/4.0L/4.7L | Hydraulic Power Steering Rack & Pinion Assembly | 261618 - PHILTOP

2000-2006 Toyota Tundra 3.4L/4.0L/4.7L | Hydraulic Power Steering Rack & Pinion Assembly | 261618 - PHILTOP

Hydraulic Power

Effortless Steering

Leak-Tested

4.7

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
8220PSP1604US

Specifications

Brand
PHILTOP
Steering Type
Hydraulic Power
Pressure Port Thread Size
M16 X 1.5
Return Port Thread Size
M17 X 1.5
Input Shaft Diameter
0.75 in
Input Shaft Length
2.62 in
Rack Length
49.25 in
Thread Length
2.29 in
Material
Aluminum / Iron
Items Included
1x Rack and Pinion - 261618
Warranty Period
2-Year
Part Number
261618

Highlights

  • [Vehicle Fitment]: Hydraulic steering rack and pinion assembly compatible with 2000-2006 Tundra, 2001-2007 Sequoia.
  • [Reference Number]: Rack and pinion steering assembly OE number 26-1618, 442500C010, 442500C041, 261618, 442500C050, 442500C030, 4550309120, 4550309240, 2026.
  • [Specifications]: Package included - Hydraulic power rack and pinion assembly with inner tie rods. ①Rack Length: 49.16 Inch; ②Thread Length: 2.28 Inch; ③Input Shaft Length: 2.62 Inch; ④Pressure Port Thread Size: M16 x 1.5;
  • [High Verticality]: The rack and worm gear in the steering rack and pinion are made of high-strength alloy steel processed by high-precision CNC, which ensures the high verticality of the helical gear system, making the steering wheel operation more stable and driving safer. Closely integrated with the vehicle chassis will not produce noise and vibration.

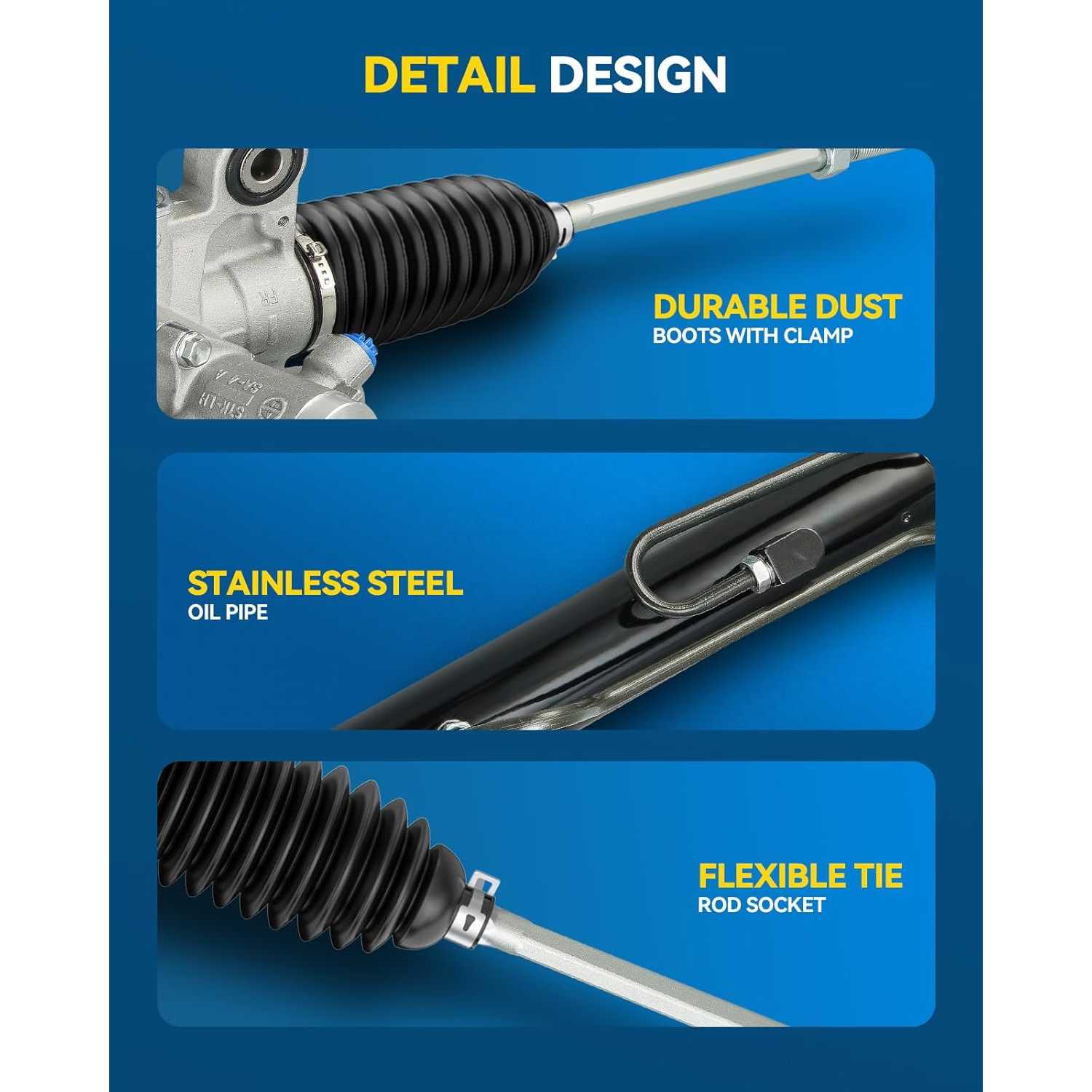

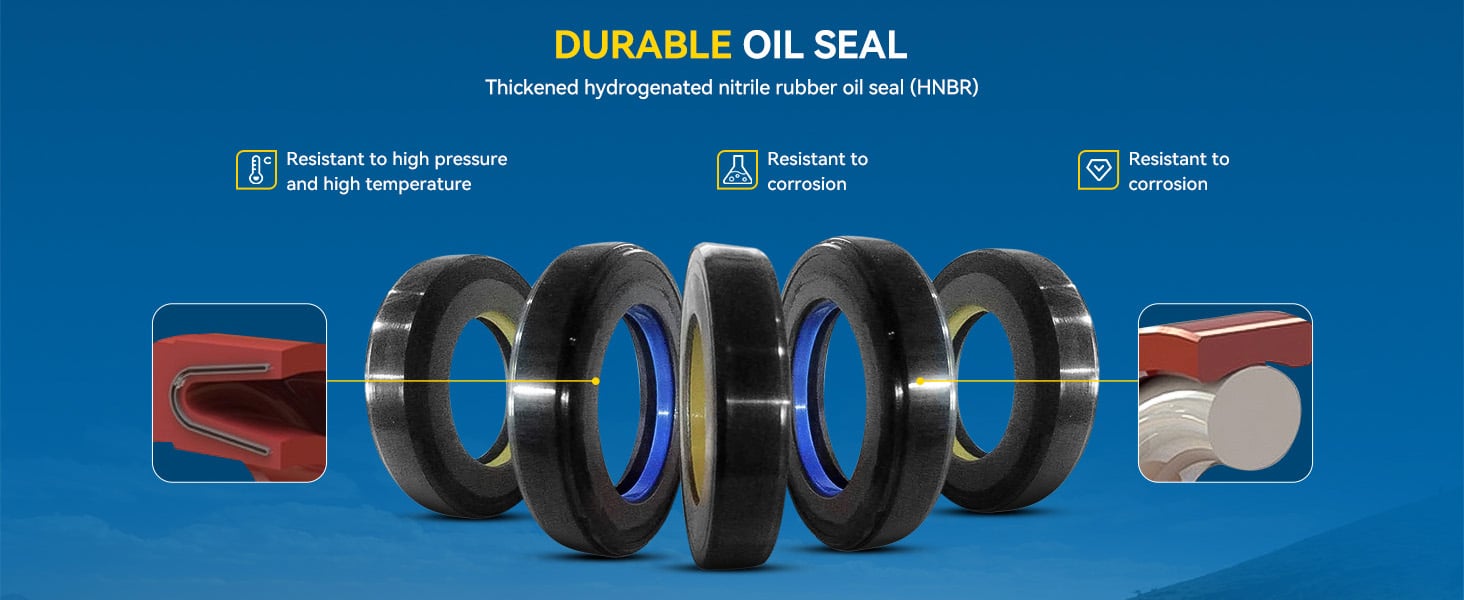

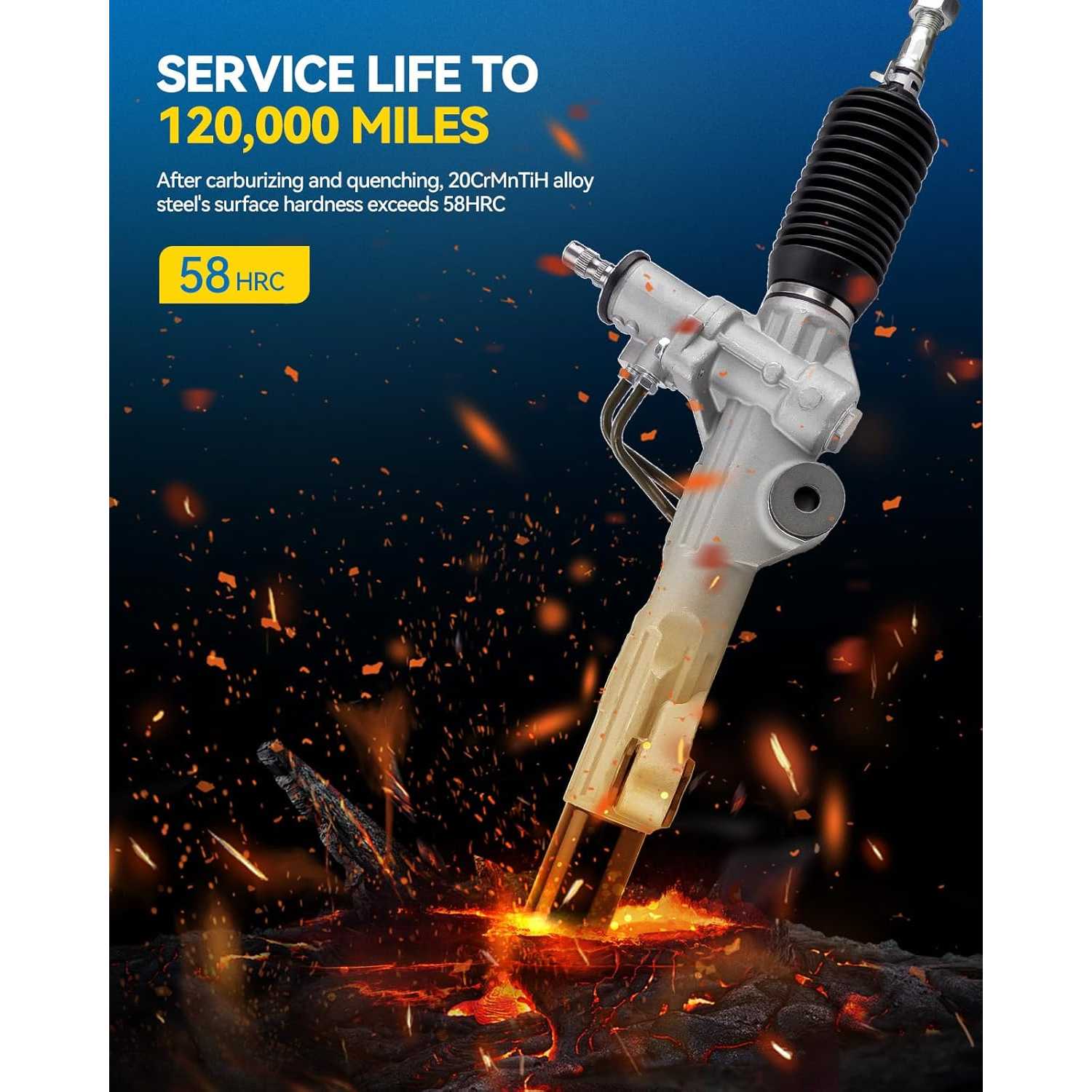

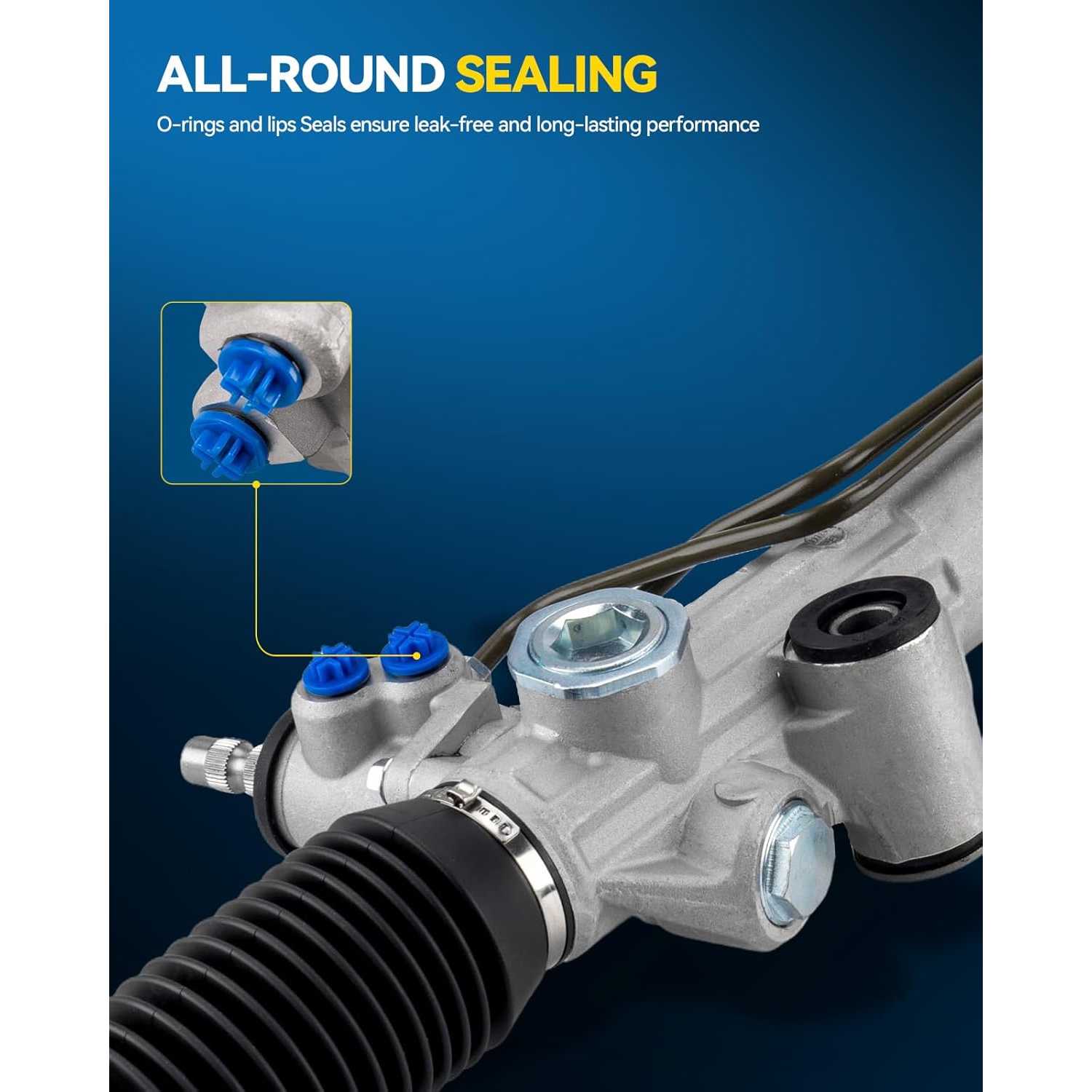

  • [Durable Performance]: PHILTOP steering rack and pinion adopts corrosion-resistant oil seals and lip seals, and butyl rubber sealing covers. The 360°dust cover is fully protected to effectively prevent dust and dirt from entering the rack gear to cause wear and oil leakage, Ensures a service life of more than 120,000 miles. 12-month unlimited mileage guarantee.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2001 - 20072001 - 20072000 - 20042005 - 20062005 - 20062000 - 20062000 - 20042005 - 20062000 - 2006
MakeToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyota
ModelSequoiaSequoiaTundraTundraTundraTundraTundraTundraTundra
TrimLimitedSR5BaseBaseBaseLimitedSR5SR5SR5
Engine4.7L V84.7L V83.4L V64.0L V64.7L V84.7L V83.4L V64.0L V64.7L V8
Note
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm fitment: Compare mounting dimensions, input shaft connections, and hydraulic ports.
  • Inspect related parts: Check tires, suspension, tie rods, steering joints, pump, and hoses.
  • Prepare the system: Flush contaminated fluid and prepare new seals that match vehicle specifications.

Installation Steps

  • STEP 1 — Secure the vehicle, disconnect the negative battery cable, and secure the steering wheel to prevent free rotation.
  • STEP 2 — Mark connection positions. Disconnect tie rods, hydraulic lines, and the steering shaft; collect drained fluid.
  • STEP 3 — Remove the old rack and flush the lines before connecting the replacement.
  • STEP 4 — Center the new rack and install it in alignment with the steering wheel. Tighten fasteners to vehicle specifications.
  • STEP 5 — Reconnect the steering shaft, tie rods, and hydraulic lines using new specified seals.
  • STEP 6 — Refill with the correct power steering fluid and bleed the system using the vehicle-specific procedure. Never run the system without sufficient fluid.

After Installation

  • Check fluid level, hydraulic connections, and fasteners.
  • Verify smooth steering without binding, unusual noise, or fluid foaming.
  • Have a four-wheel alignment performed.
  • After the alignment and safety checks, road-test for straight tracking, steering wheel centering, and normal steering return.

Product Video

Product Description

POWER RACK AND PINION ASSEMBLYPOWER STEERING RACK AND PINION ASSEMBLY

Reviews

4.7/5

Based on 12 reviews

575%
417%
38%
20%
10%

Jiuber

04/15/2026

Verified buyer

Muy buenos

I ordered 4 mounts which arrived in time but one of mount, upper right was wrong part. I had to purchase it again from a local store to replace.

04/04/2026

Verified buyer

Worked out great. Happiness.

FAQS

You can expect a rack and pinion to last between fifteen and twenty years, on average.

They may be reused if they are compatible and remain in serviceable condition. Inspect them for looseness, damaged threads, or worn joints before installation.

Check the fasteners, fluid level, hose connections, steering movement, and wheel alignment. Confirm that there is no binding, leakage, or unusual noise before normal driving.
