2003-2011 Ford Focus 2.3L | 4 PC Ignition Coil | FD505 - PHILTOP

2003-2011 Ford Focus 2.3L | 4 PC Ignition Coil | FD505 - PHILTOP

Quick Ignition Response

High-Grade Insulation

Built to Last

4.8

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
6905IGC258QUS

Specifications

Brand
PHILTOP
Items Included

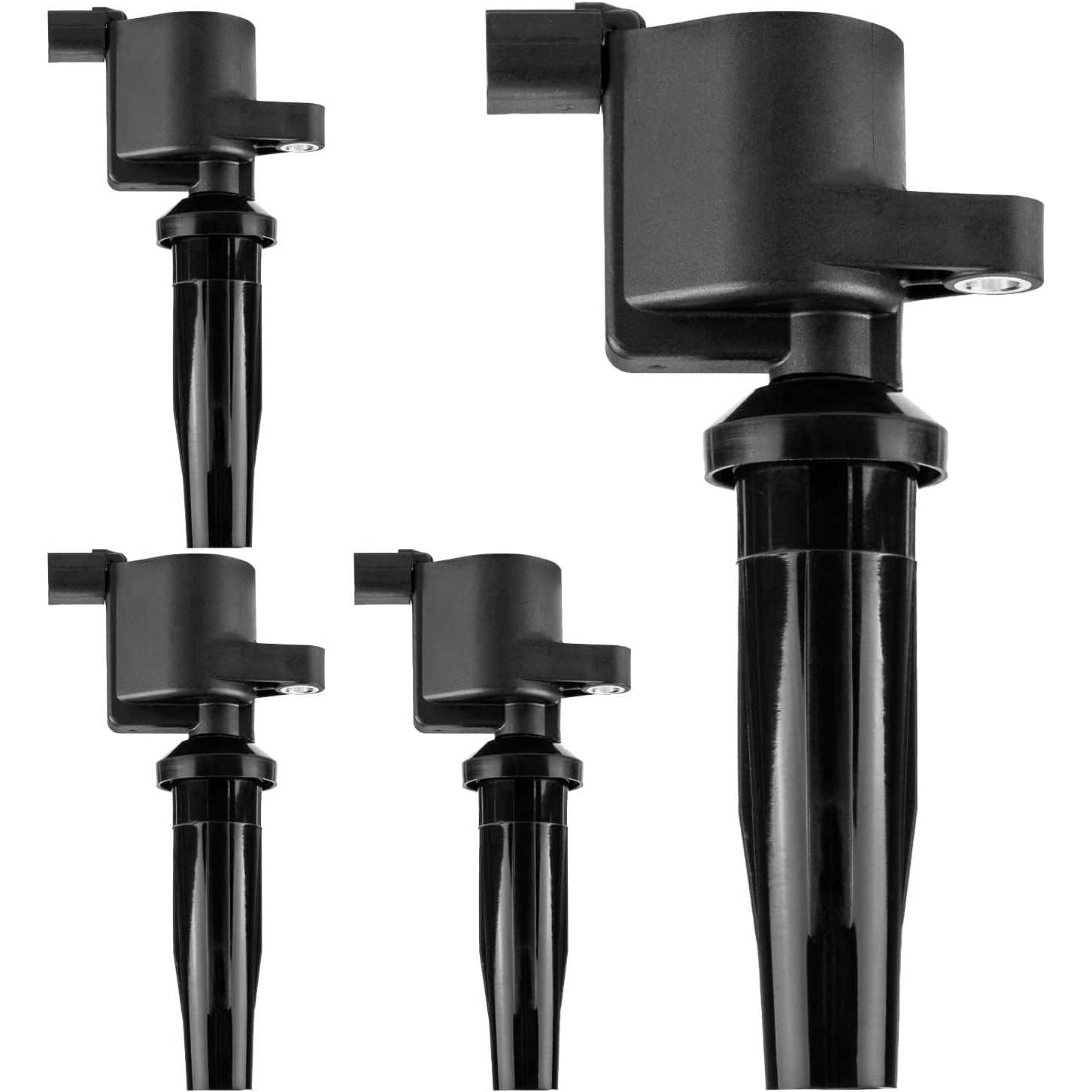

4x Ignition Coil - FD505
Type
Pen-Type
Quantity
4
Color
Black
Pin Count
2
Warranty Period
2-Year
Part Number
FD505

Highlights

  • [Compatible Vehicle] The ignition coil pack is compatible with 2003-2011 Focus, 2010-2013 Transit Connect, 2005-2008 Escape, 2004-2005 Mazda3, 2005-2006 Tribute, 2005 Mazda6, 2008 Tribute, 2005-2008 Mariner
  • [Easy Installation] OE Interchange Number: 4M5G12A366BC, 4M5Z12029A, 4M5Z12029B, 4M5Z12029BA, 4M5Z12029BB, 4M5Z12029BC, LF1618100, LF1618100A, ZZCA18100. OE Standards ensure fast and easy installation. Please check the compatibility at the top of the page to confirm match your vehicle
  • [Security] PHILTOP coil packs undergone strict quality control testing, providing excellent performance and reliability, and no worry for misfire.

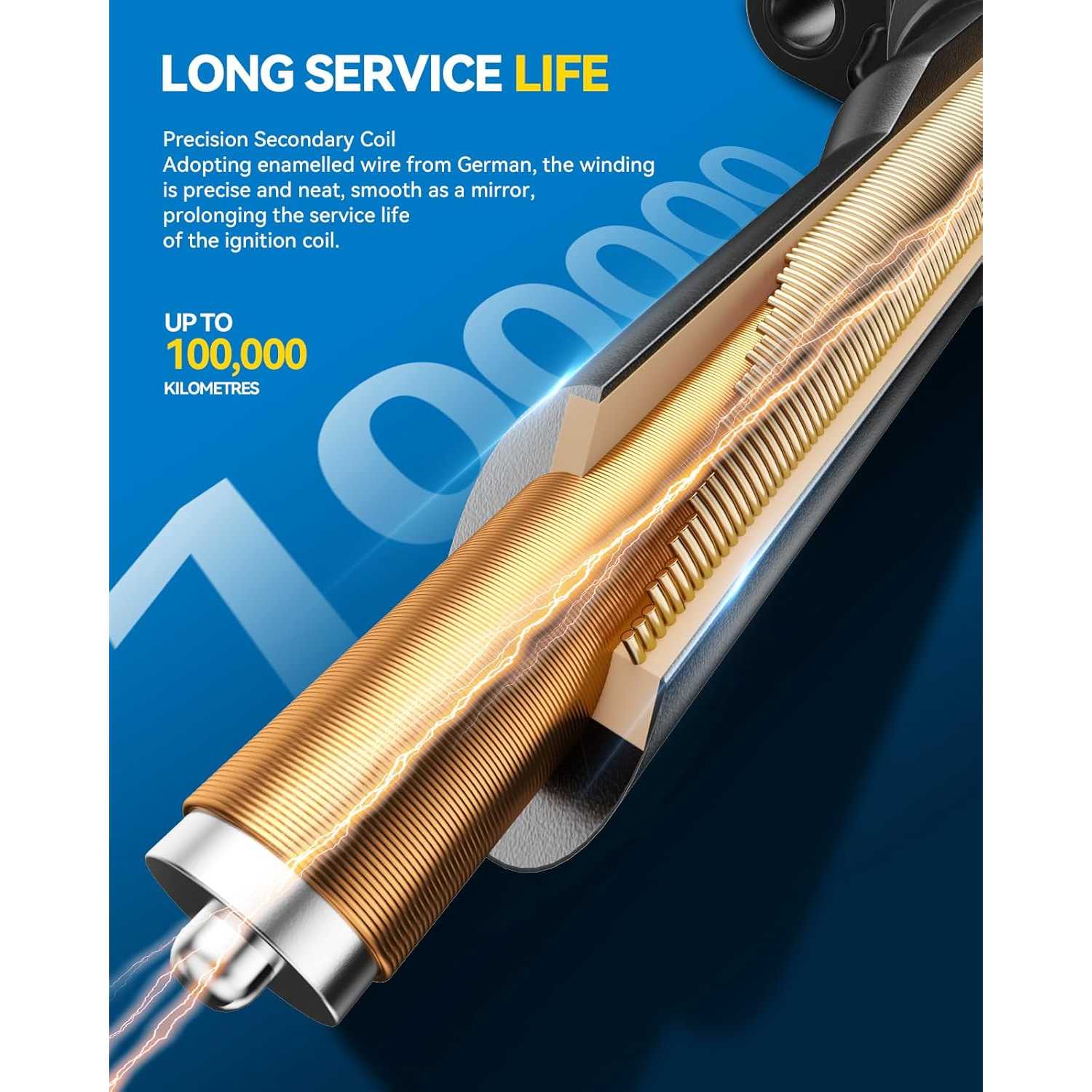

  • [Long Life] The coils with premium quality provide high corrosion and temperature resistance, for high energy output and fast ignition, extend the service life.
  • [What You Get] Automotive replacement ignition coil | Fast ignition within 0.1-0.2 seconds | 140°C high temperature and corrosion resistance | RF Interference Protection | 6500Mi Longer lifespan | High voltage output | Smoothly Engine runs | After Sales Service

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2005 - 20082005 - 20082005 - 200820052003 - 20042007 - 20112007 - 20112003 - 20042009 - 20112007 - 201120072003 - 20042003 - 20042005 - 20062003 - 20042005 - 20062005 - 20062005 - 20062003 - 20042005 - 20062011 - 20122010 - 20132010 - 20132011 - 20132004 - 200520052004 - 2005200520082005 - 20062008200520082006 - 20072006 - 2008
MakeFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordMazdaMazdaMazdaMazdaMazdaMazdaMazdaMercuryMercuryMercuryMercury
ModelEscapeEscapeEscapeEscapeFocusFocusFocusFocusFocusFocusFocusFocusFocusFocusFocusFocusFocusFocusFocusFocusTransit ConnectTransit ConnectTransit ConnectTransit Connect3336TributeTributeTributeMarinerMarinerMarinerMariner
TrimHybridXLSXLTXLT No BoundariesLXSSESESELSESSTZTSZTWZX3ZX3ZX4ZX4 STZX5ZX5ZXWElectricXLXLTXLT PremiumSSP23iiHybridiiBaseBaseConvenienceHybrid
Engine2.3L L42.3L L42.3L L42.3L L42.3L L42.0L L42.0L L42.3L L42.0L L42.0L L42.3L L42.3L L42.3L L42.0L L42.3L L42.0L L42.3L L42.0L L42.3L L42.0L L4-2.0L L42.0L L42.0L L42.3L L42.3L L42.0L L42.3L L42.3L L42.3L L42.3L L42.3L L42.3L L42.3L L42.3L L4
Note
Blue Streak Premium Quality
Blue Streak Premium Quality
Blue Streak Premium Quality
Blue Streak Premium Quality
Blue Streak Premium Quality
Blue Streak Premium Quality
Blue Streak Premium Quality
Blue Streak Premium Quality
Blue Streak Premium Quality
Blue Streak Premium Quality
Blue Streak Premium Quality
Blue Streak Premium Quality
Blue Streak Premium Quality
Blue Streak Premium Quality
Blue Streak Premium Quality
Blue Streak Premium Quality
Blue Streak Premium Quality
Blue Streak Premium Quality
Blue Streak Premium Quality
Blue Streak Premium Quality
Blue Streak Premium Quality
Blue Streak Premium Quality
Blue Streak Premium Quality
Blue Streak Premium Quality
Blue Streak Premium Quality
Blue Streak Premium Quality
Blue Streak Premium Quality
Blue Streak Premium Quality;w/o Distributor
-
Blue Streak Premium Quality
-
Blue Streak Premium Quality
Blue Streak Premium Quality
Blue Streak Premium Quality
Blue Streak Premium Quality

How to Install?

Installation Manual Download

User manual (PDF)
Download

Related Diagnostic Codes

  • P0300-Random/multiple-cylinder misfire — inspect the spark plugs, ignition coils, wiring and fuel system.
  • P0301–P0306-Specific-cylinder misfire — inspect the plug, coil and wiring for the indicated cylinder.
  • P0350-Ignition-coil primary/secondary circuit fault — check coil resistance, connectors and wiring.
  • P0351–P0356-Specific ignition-coil circuit fault — inspect the corresponding coil circuit and wiring.

Checks Before Installation

  • Confirm the ignition coils and spark plugs match the vehicle and original parts.
  • Check that the battery voltage meets the vehicle specification; the manual recommends at least 12.4V with the engine off.
  • Inspect the coil housings, connectors and wiring for cracks, corrosion or damage.
  • Check the spark-plug wells for oil, carbon deposits or debris.
  • Allow the engine to cool completely before removing the spark plugs.
  • Confirm the specified spark-plug gap and installation torque in the vehicle service manual.

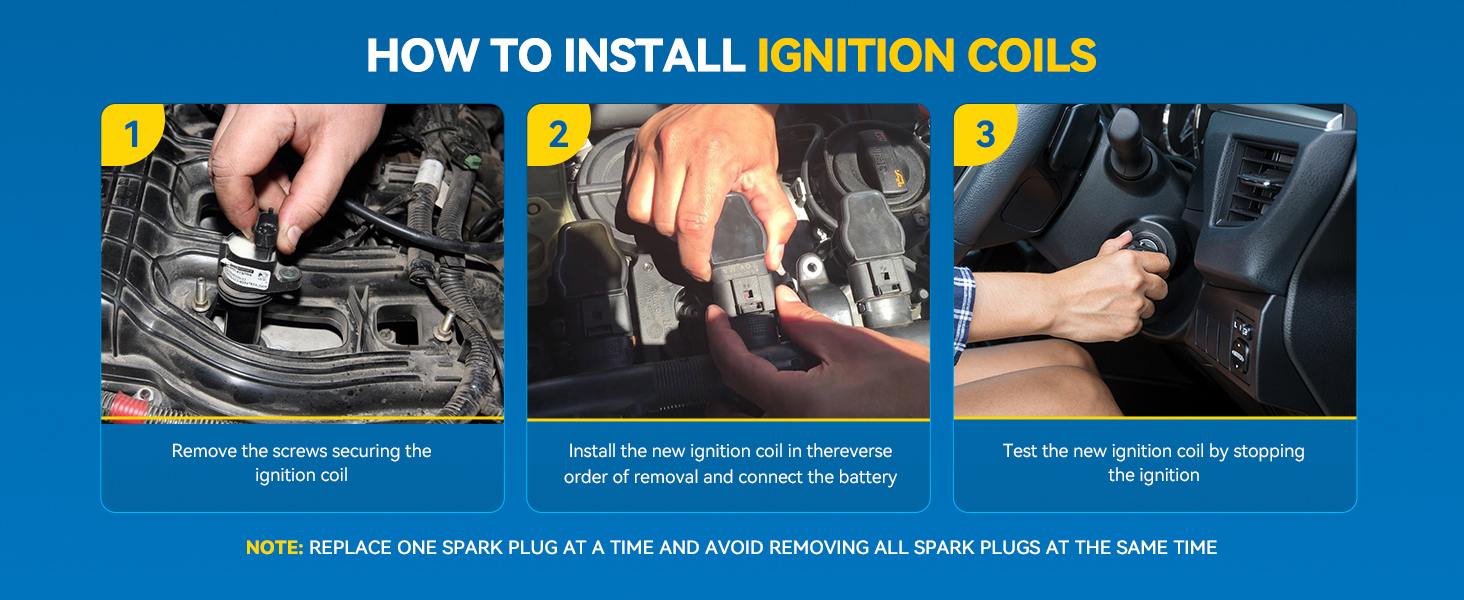

Installation Steps

  • Step-1: Disconnect the Battery: Switch off the ignition and disconnect the negative battery cable to prevent short circuits or accidental starting.
  • Step-2: Remove the Old Parts: Label the connectors when necessary, unplug and remove the ignition coils, then clean around each spark-plug well before removing the plugs.
  • Step-3: Check the New Spark Plugs: Confirm the correct model and measure the electrode gap with a feeler gauge. Do not install dropped or damaged spark plugs.
  • Step-4: Install and Torque the Spark Plugs: Thread each spark plug fully by hand to prevent cross-threading. Then tighten it with a torque wrench to the vehicle manufacturer’s specified torque. Do not overtighten.
    Gasket seat and tapered seat spark plugs compared

    Gasket Seat Spark Plug: Uses a crush gasket to seal against the cylinder head.

    Tapered Seat Spark Plug – No Gasket: Uses the tapered metal seat to seal directly against the cylinder head.

  • Step-5: Complete the Installation: Install the ignition coils, tighten the mounting bolts to specification, fully seat every connector and reconnect the negative battery cable.

Spark Plug Torque Reference

Spark Plug ThreadRecommended Torque
18 mm (M18)35–40 N·m (25.8–29.5 lb-ft)
14 mm (M14)25–30 N·m (18.4–22.1 lb-ft)
12 mm (M12)15–20 N·m (11.1–14.8 lb-ft)
10 mm (M10)10–12 N·m (7.4–8.9 lb-ft)
8 mm (M8)8–10 N·m (5.9–7.4 lb-ft)
Tapered Seat – No Gasket10–20 N·m (7.4–14.8 lb-ft)

Important: This table is for general reference only. Required torque varies by spark-plug design, seat type and cylinder-head material. Always follow the vehicle service manual or spark-plug manufacturer’s specification when available.

After Installation

  • Clear historical fault codes with an OBD-II scanner.
  • Start the engine and let it idle for several minutes.
  • Confirm smooth idle, normal acceleration and no misfire or unusual vibration.
  • Check that the malfunction indicator light remains off.
  • Perform a short road test, then rescan for returned fault codes.

Product Video

Product Description

11

Reviews

4.8/5

Based on 87 reviews

585%
414%
31%
20%
10%

Customer photos and videos

Brittany Damron

08/17/2026

Verified buyer

I purchased this ignition coil pack and iridium spark plug set for my 2006 Mercedes-Benz C230 Sport, and so far I am very pleased with the results. Everything fit perfectly with no compatibility issues, which made the replacement process straightforward. After installation, I immediately noticed that my vehicle was running smoother. The engine feels more refined, and the RPMs don't seem to run as high as they were before. Overall, the car appears to idle better and feels more responsive during normal driving. I had a family member install these for me. While he is not a certified mechanic, he is very mechanically inclined and regularly works on vehicles for family and friends. He commented that the installation was relatively easy and that the components fit properly without any issues. He did have to look up what the spark plug guauges should be for my vehicle then set the guauges before installing. Don't forget that step or it could affect their performance. The ignition coils and spark plugs appear to be well made and comparable in quality to more expensive options. Having both the coils and iridium spark plugs included in one kit makes this a convenient value for anyone performing routine ignition system maintenance. Overall, this kit delivered exactly what I was hoping for: proper fitment, easy installation, and improved engine performance. Based on my experience, I would recommend this set to anyone looking for a replacement ignition coil and spark plug kit for a compatible Mercedes-Benz.

Amanda

08/10/2026

Verified buyer

I received this ignition coil and spark plug set for a Mercedes-Benz, and I like that everything needed for the job comes together in one package. The coils and iridium plugs feel well made, and the components fit as expected when matched to the correct application. Having six coils and six plugs together saves the hassle of sourcing everything separately. Pros: * Complete set of six coils and spark plugs * Iridium spark plugs feel like good quality * Coils fit securely * Convenient alternative to purchasing parts separately * Helpful for addressing worn ignition components * Good value for a complete set Cons: * Fitment varies considerably between Mercedes-Benz models and engines * Double-check the OEM numbers before installation * Installation difficulty depends heavily on the specific vehicle Recommendation: Overall, I'm happy with this ignition coil and spark plug kit. Having a complete matching set makes replacing the ignition components much more convenient. Just make sure to carefully verify your exact year, model, engine, and OEM part numbers before installing. Item: PHILTOP Ignition Coil Pack and Iridium Spark Plugs Fits for Benz 2008-2012 C300, 2006-2010 E350, 2010-2012 GLK350, 2007-2011 S550, 2006-2009 ML350, 2007-2012 GL450, 2011 E350 3.5L, 6PCS UF535

FAQS

Fitment depends on your engine size and year. Please enter your vehicle's Brand, Year, and Model into the "Fitment Checker" at the top of the page to confirm a 100% match.

We stand behind the quality of our ignition systems with a 3-Year Limited Warranty. Scroll to the "Warranty & Support" section at the bottom of the page for full details on our 3-year reliability guarantee.

Yes, these are common symptoms of a failing coil (Code P0300-P0308). Review the "Product Highlights" section to see how our high-voltage output restores smooth engine performance.
