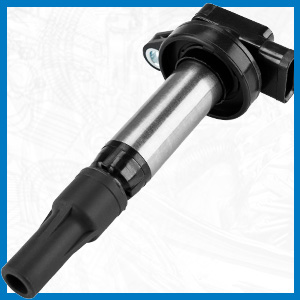

2006-2009 Land Rover Range Rover Sport 4.4L V8 | 1 PC Ignition Coil | OE#6R8312A366AA/UF519 - PHILTOP

2006-2009 Land Rover Range Rover Sport 4.4L V8 | 1 PC Ignition Coil | OE#6R8312A366AA/UF519 - PHILTOP

Quick Ignition Response

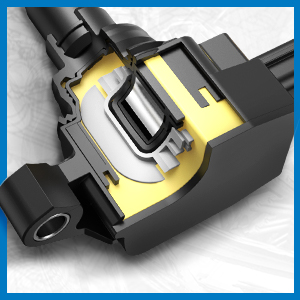

High-Grade Insulation

Built to Last

4.6

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
1688IGC173XUS

Specifications

Brand
PHILTOP
Items Included

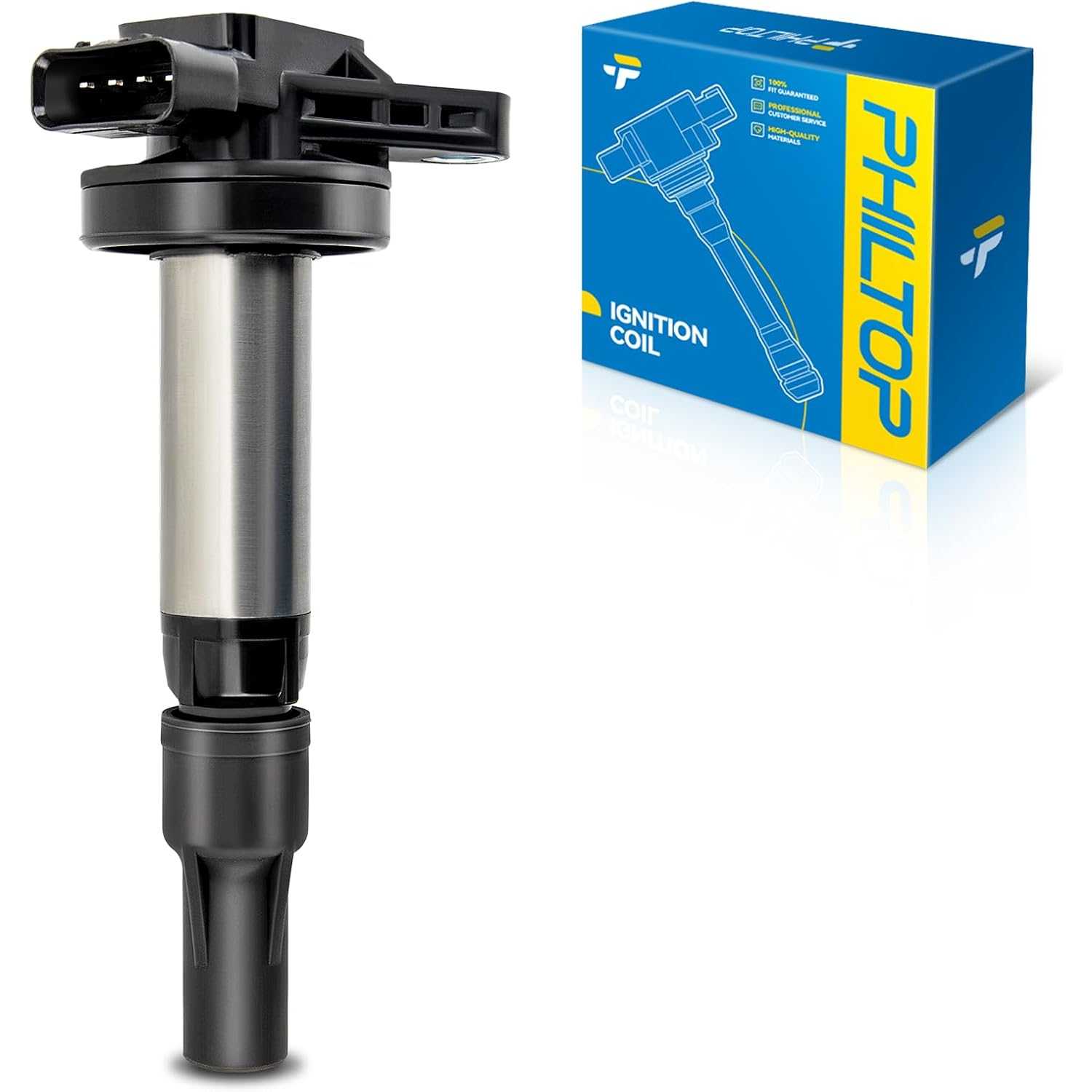

1x Ignition Coil - UF519
Type
Pen-Type
Quantity
1
Color
Black

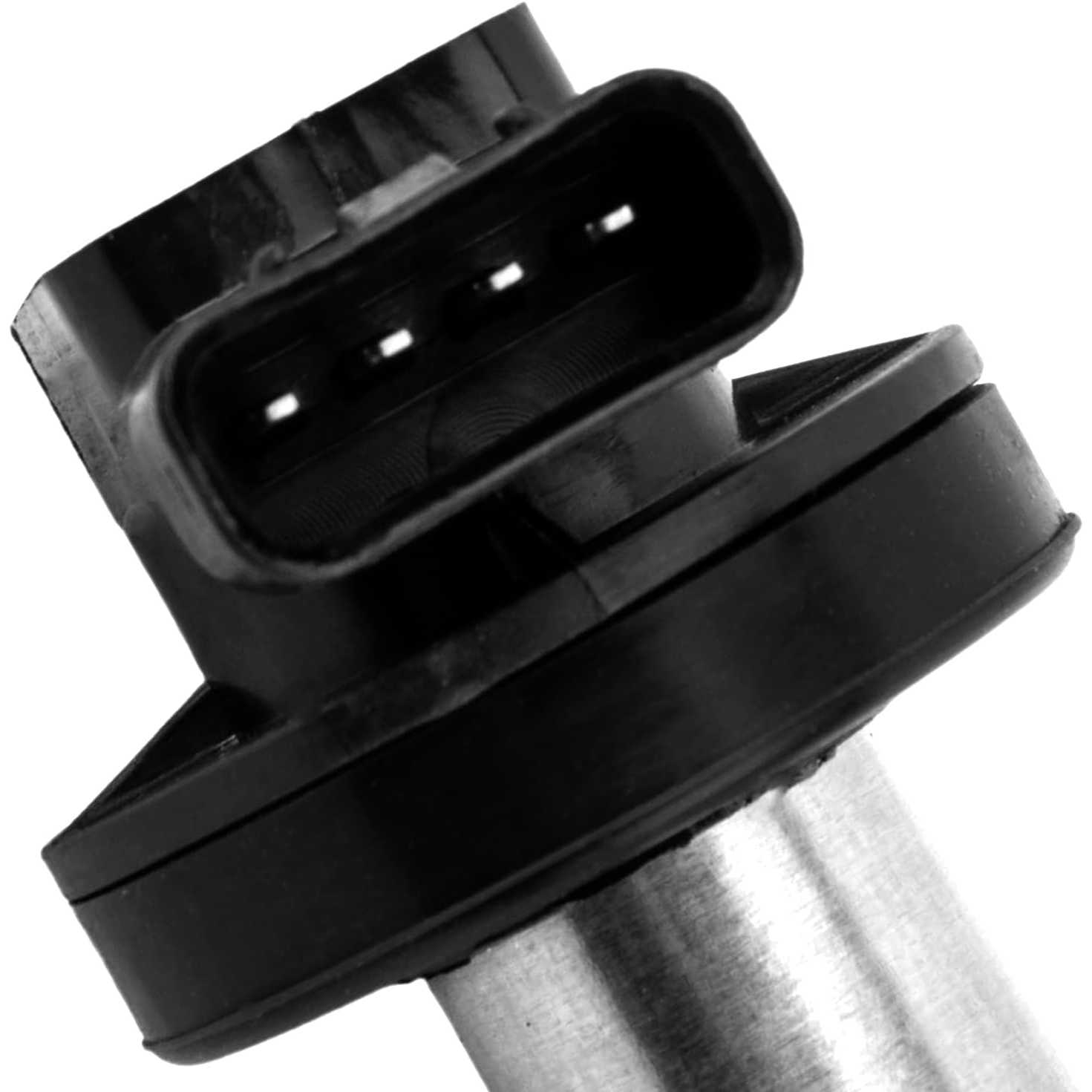

Pin Count
4
Warranty Period
2-Year
OE Number
6R8312A366AA,4744015,AJ810445,AJ83415,AJ87644,4526466
Part Number
UF519,E1019,GN10448,C777,48927,U5082,6739331,UF519T,5C1420,C1427,521766,CLS1216,CUF2442,IC599SB,5121,368187,72926017001,72926017,CF78,921X2097,48267,230192,E1019P,191231

Highlights

  • Compatible Vehicle - Ignition coils compatible with [Land Rover] Range Rover Sport 2006-2009, LR3 2005-2009, Range Rover 2006-2009, [Jaguar] S-Type 2003-2008, Super V8 2005-2009, Vanden Plas 2004-2009, XF 2009-2010, XJ8 2004-2009, XJR 2003-2009, XK 2007-2009, XK8 2003-2006, XKR 2003-2009
  • Directly Replacement - Automotive replacement ignition coil pack with OE design ensures fast and easy installation with a perfect fit. Please enter your vehicle information in the top left corner to confirm you get the correct product.

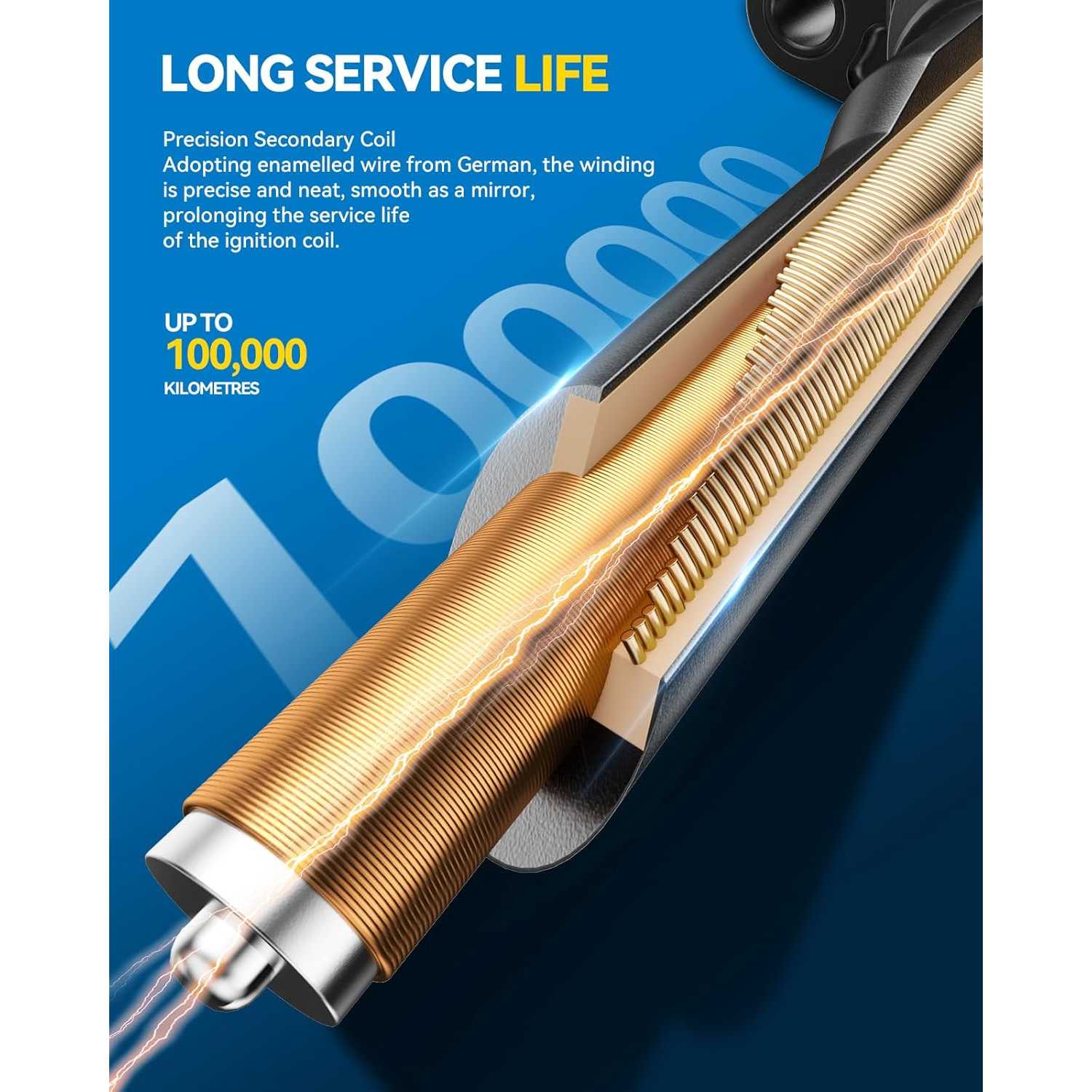

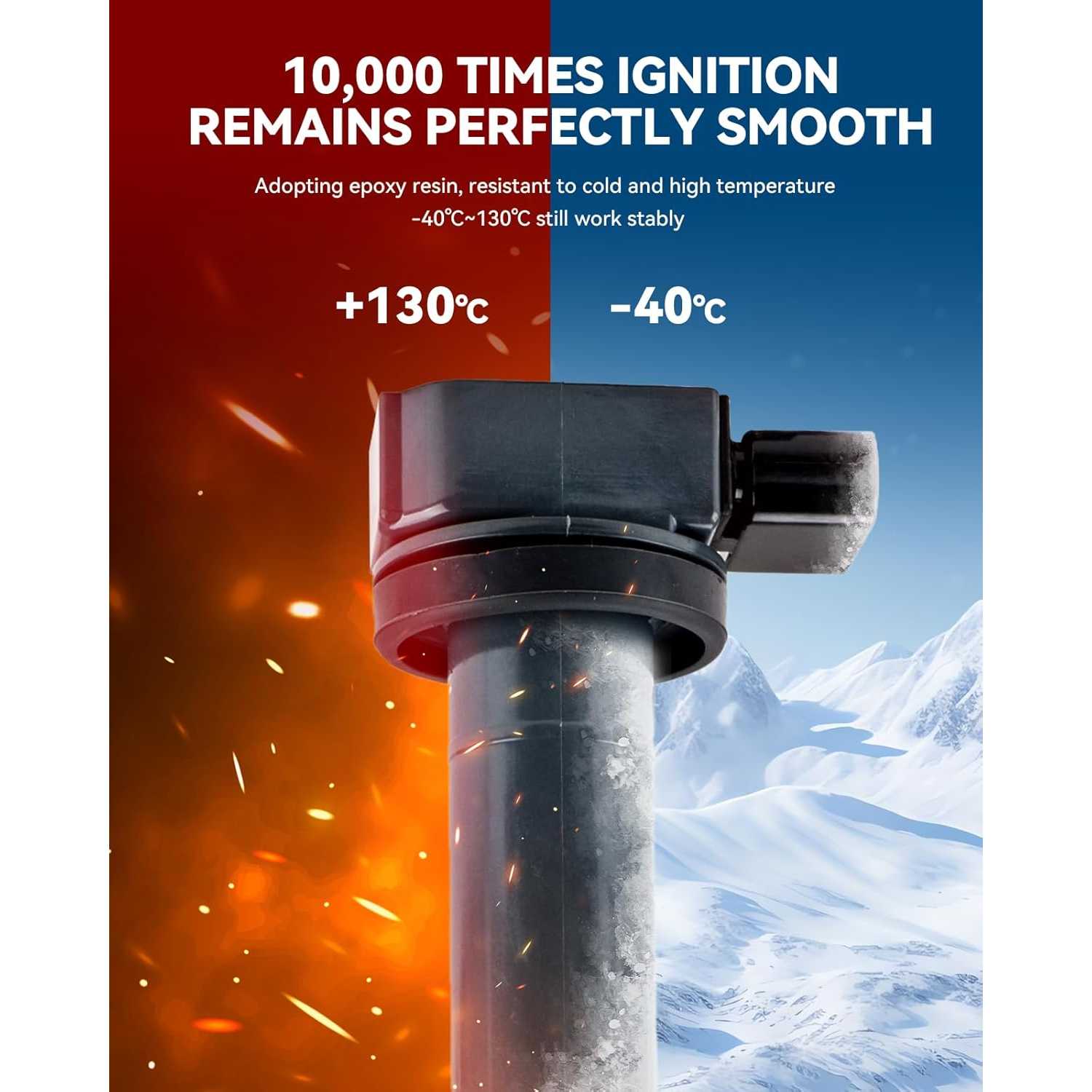

  • Long Life - PHILTOP coil pack with premium quality provide high corrosion and temperature resistance, designed for low-emissions, high energy output, and fast ignition, expanding service life and no worry for a misfire
  • By with Confidence - With 12 months of replacement for free and 24-hour online. Any further questions, please feel free to contact us at any time.
  • Reference Number - 4526466, 4744015, AJ810445, AJ83415, AJ87644, UF519, UF-519, GN10448, 6R8312A366AA, UF533, UF-533, C1678, 5C1735, CLS1216, E1019, 610-58724

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year200320042006 - 200820032004 - 2008200520062005 - 200920062004 - 200920102009200920092004 - 20092005 - 200920032004 - 20092007 - 20092003 - 200620062003 - 20092008 - 200920062005 - 200920092005 - 20082006 - 20092006 - 200920082006 - 200920082006 - 2009
MakeJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarJaguarLand RoverLand RoverLand RoverLand RoverLand RoverLand RoverLand RoverLand RoverLand Rover
ModelS-TypeS-TypeS-TypeS-TypeS-TypeS-TypeS-TypeSuper V8Super V8Vanden PlasXFXFXFXFXJ8XJ8XJRXJRXKXK8XK8XKRXKRXKRLR3LR3LR3Range RoverRange RoverRange RoverRange Rover SportRange Rover SportRange Rover Sport
TrimBaseBaseBaseRRSportVDP EditionBasePortfolioBaseBaseLuxuryPremium LuxurySuperchargedBaseLBaseBaseBaseBaseVictory EditionBasePortfolioVictory EditionHSEHSE LuxSEHSESuperchargedWestminster EditionHSELESupercharged
Engine4.2L V84.2L V84.2L V84.2L V84.2L V84.2L V84.2L V84.2L V84.2L V84.2L V84.2L V84.2L V84.2L V84.2L V84.2L V84.2L V84.0L V84.2L V84.2L V84.2L V84.2L V84.2L V84.2L V84.2L V84.4L V84.4L V84.4L V84.4L V84.2L V84.2L V84.4L V84.2L V84.2L V8
Note
4 Term.
--
4 Term.
-----------------------------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Related Diagnostic Codes

  • P0300-Random/multiple-cylinder misfire — inspect the spark plugs, ignition coils, wiring and fuel system.
  • P0301–P0306-Specific-cylinder misfire — inspect the plug, coil and wiring for the indicated cylinder.
  • P0350-Ignition-coil primary/secondary circuit fault — check coil resistance, connectors and wiring.
  • P0351–P0356-Specific ignition-coil circuit fault — inspect the corresponding coil circuit and wiring.

Checks Before Installation

  • Confirm the ignition coils and spark plugs match the vehicle and original parts.
  • Check that the battery voltage meets the vehicle specification; the manual recommends at least 12.4V with the engine off.
  • Inspect the coil housings, connectors and wiring for cracks, corrosion or damage.
  • Check the spark-plug wells for oil, carbon deposits or debris.
  • Allow the engine to cool completely before removing the spark plugs.
  • Confirm the specified spark-plug gap and installation torque in the vehicle service manual.

Installation Steps

  • Step-1: Disconnect the Battery: Switch off the ignition and disconnect the negative battery cable to prevent short circuits or accidental starting.
  • Step-2: Remove the Old Parts: Label the connectors when necessary, unplug and remove the ignition coils, then clean around each spark-plug well before removing the plugs.
  • Step-3: Check the New Spark Plugs: Confirm the correct model and measure the electrode gap with a feeler gauge. Do not install dropped or damaged spark plugs.
  • Step-4: Install and Torque the Spark Plugs: Thread each spark plug fully by hand to prevent cross-threading. Then tighten it with a torque wrench to the vehicle manufacturer’s specified torque. Do not overtighten.
    Gasket seat and tapered seat spark plugs compared

    Gasket Seat Spark Plug: Uses a crush gasket to seal against the cylinder head.

    Tapered Seat Spark Plug – No Gasket: Uses the tapered metal seat to seal directly against the cylinder head.

  • Step-5: Complete the Installation: Install the ignition coils, tighten the mounting bolts to specification, fully seat every connector and reconnect the negative battery cable.

Spark Plug Torque Reference

Spark Plug ThreadRecommended Torque
18 mm (M18)35–40 N·m (25.8–29.5 lb-ft)
14 mm (M14)25–30 N·m (18.4–22.1 lb-ft)
12 mm (M12)15–20 N·m (11.1–14.8 lb-ft)
10 mm (M10)10–12 N·m (7.4–8.9 lb-ft)
8 mm (M8)8–10 N·m (5.9–7.4 lb-ft)
Tapered Seat – No Gasket10–20 N·m (7.4–14.8 lb-ft)

Important: This table is for general reference only. Required torque varies by spark-plug design, seat type and cylinder-head material. Always follow the vehicle service manual or spark-plug manufacturer’s specification when available.

After Installation

  • Clear historical fault codes with an OBD-II scanner.
  • Start the engine and let it idle for several minutes.
  • Confirm smooth idle, normal acceleration and no misfire or unusual vibration.
  • Check that the malfunction indicator light remains off.
  • Perform a short road test, then rescan for returned fault codes.

Product Video

Product Description

ignition coilignition coil

Reviews

4.6/5

Based on 7 reviews

571%
414%
314%
20%
10%

Kelly_SUV_Life_34

07/27/2025

These ignition coils are built tough. They're a fraction of the cost of OEM parts but perform just as well, if not better. Excellent value.

Nancy_FirstCar_617

07/29/2025

Wow, what a difference these made! My LR3 used to hesitate a lot, but now it accelerates smoothly. It feels like a new vehicle again. Highly recommend.

FAQS

Fitment depends on your engine size and year. Please enter your vehicle's Brand, Year, and Model into the "Fitment Checker" at the top of the page to confirm a 100% match.

We stand behind the quality of our ignition systems with a 3-Year Limited Warranty. Scroll to the "Warranty & Support" section at the bottom of the page for full details on our 3-year reliability guarantee.

Yes, these are common symptoms of a failing coil (Code P0300-P0308). Review the "Product Highlights" section to see how our high-voltage output restores smooth engine performance.
