2006-2010 Hyundai Sonata 2.4L/3.3L | 6 PC Ignition Coil | OE#3013C010/UF546 - PHILTOP

2006-2010 Hyundai Sonata 2.4L/3.3L | 6 PC Ignition Coil | OE#3013C010/UF546 - PHILTOP

Quick Ignition Response

High-Grade Insulation

Built to Last

4.8

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
2585IGC127PUS

Specifications

Brand
PHILTOP
Items Included

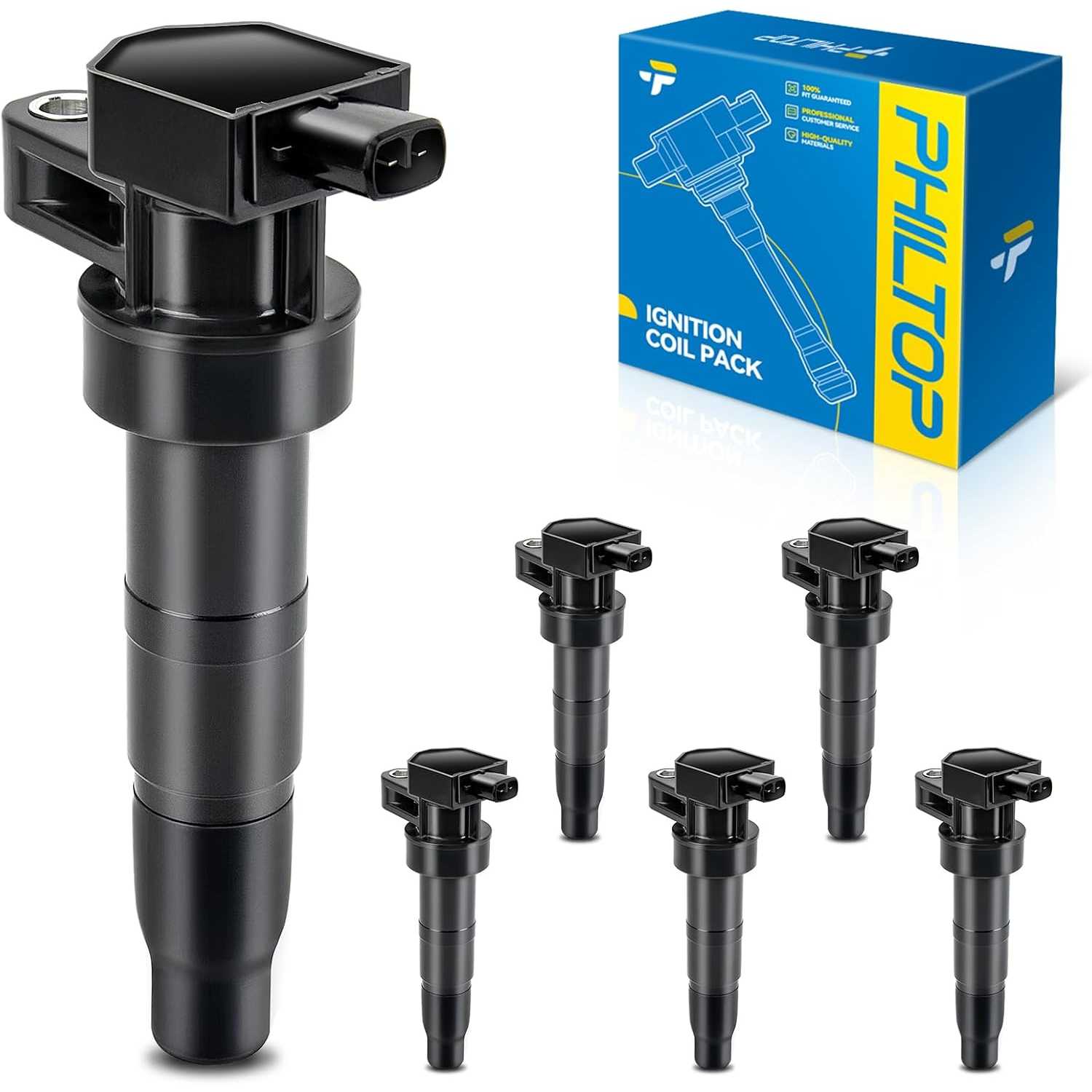

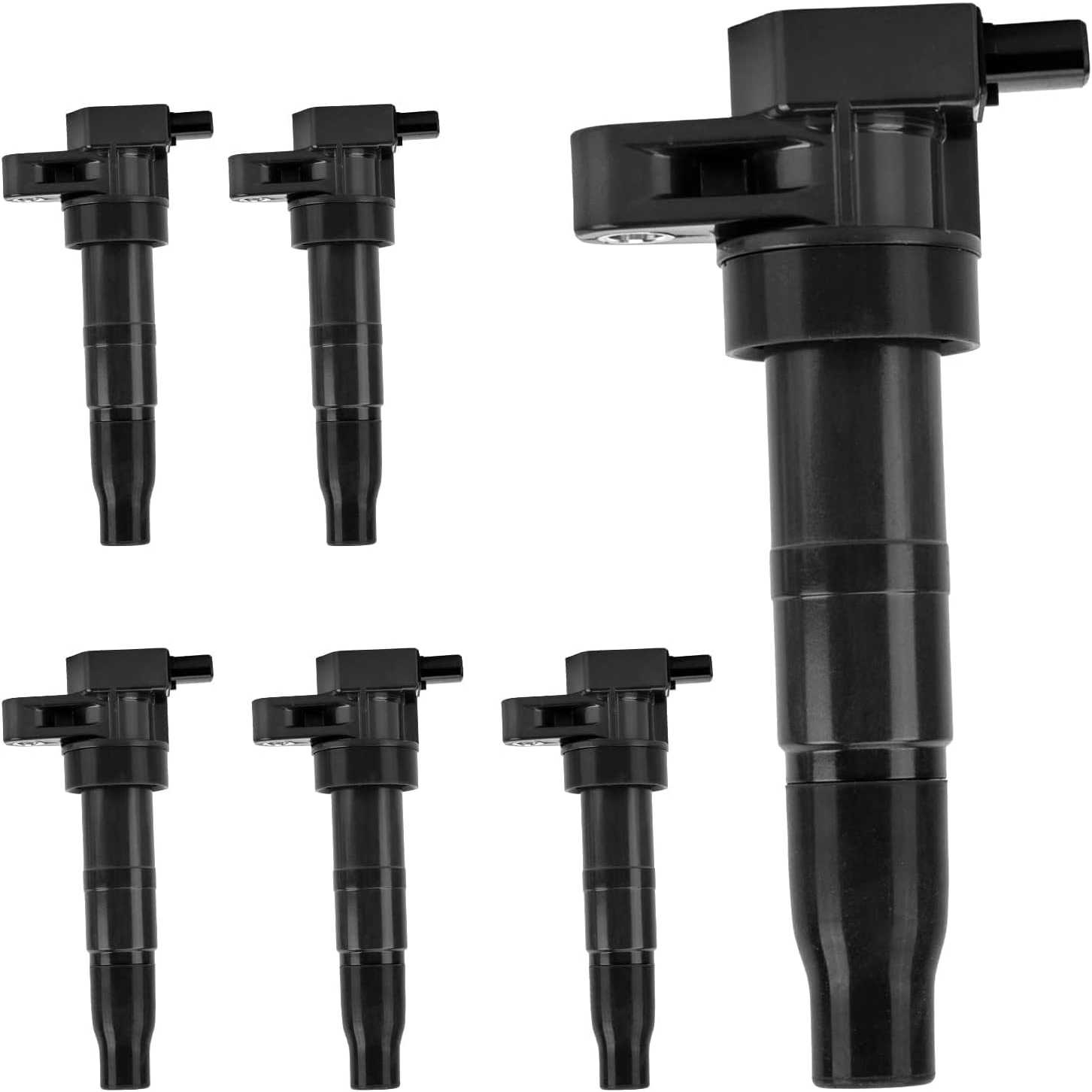

6x Ignition Coil - UF546
Type
Pen-Type
Quantity
6
Color
Black
Pin Count
2
Warranty Period
2-Year
OE Number
3013C010,273013C000,273013C010,273013C100
Part Number
UF546,E1046,6738312,GN10560,48935,C781,UF546T,U5087,2IGC0382,5C1587,C1544,CUF2457,COP236,IC626SB,C1668,CK36,MPSMF546,3312467757248557,5120,CLS1399,196118,921X2106,3312467757249019,72923014416,1415169,8415169,E1046P,1813920

Highlights

  • [Compatible Vehicle] The Ignition coils compatible with 2007-2018 Santa Fe 3.3/3.5L | 2019-2019 Santa Fe XL | 2006-2010 Sonata 2.4/3.3L | 2009-2016 Genesis 3.8L | 2006-2017 Azera | 2007-2012 Veracruz | 2010-2016 Genesis Coupe 3.8L | 2007-2008 Entourage | 2011-2017 Sorento 3.3/3.5L | 2007-2009 Sorento 3.3/3.8L, Amanti | 2006-2017 Sedona(Exc. 2013) | 2006-2006 Optima 2.4L 2359cc | 2007-2008 Optima 2.4L | 2007-2010 Rondo 2.4L | 2014-2015 Cadenza | 2009-2009 Borrego 3.8L | 2016-2017 K900 3.8L |
  • [Easy Installation] OE Interchange Number: UF546, 48935, 673-8312, C-781, GN10560, U5087, V52-70-0020. OE Standards ensure fast and easy installation. Please check the compatibility at the top of the page to confirm match your vehicle

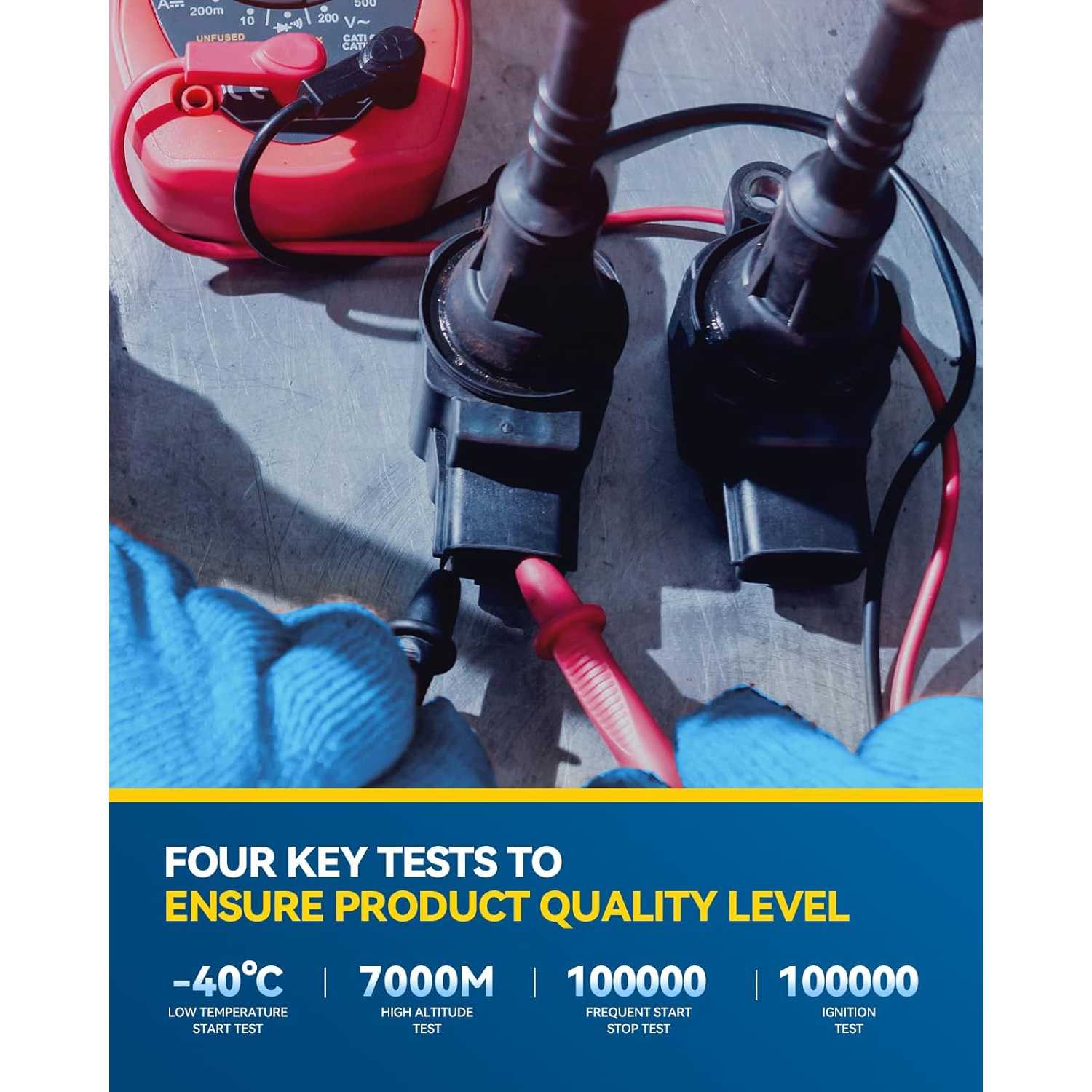

  • [Security] PHILTOP coil packs undergone strict quality control testing, providing excellent performance and reliability, and no worry for misfire

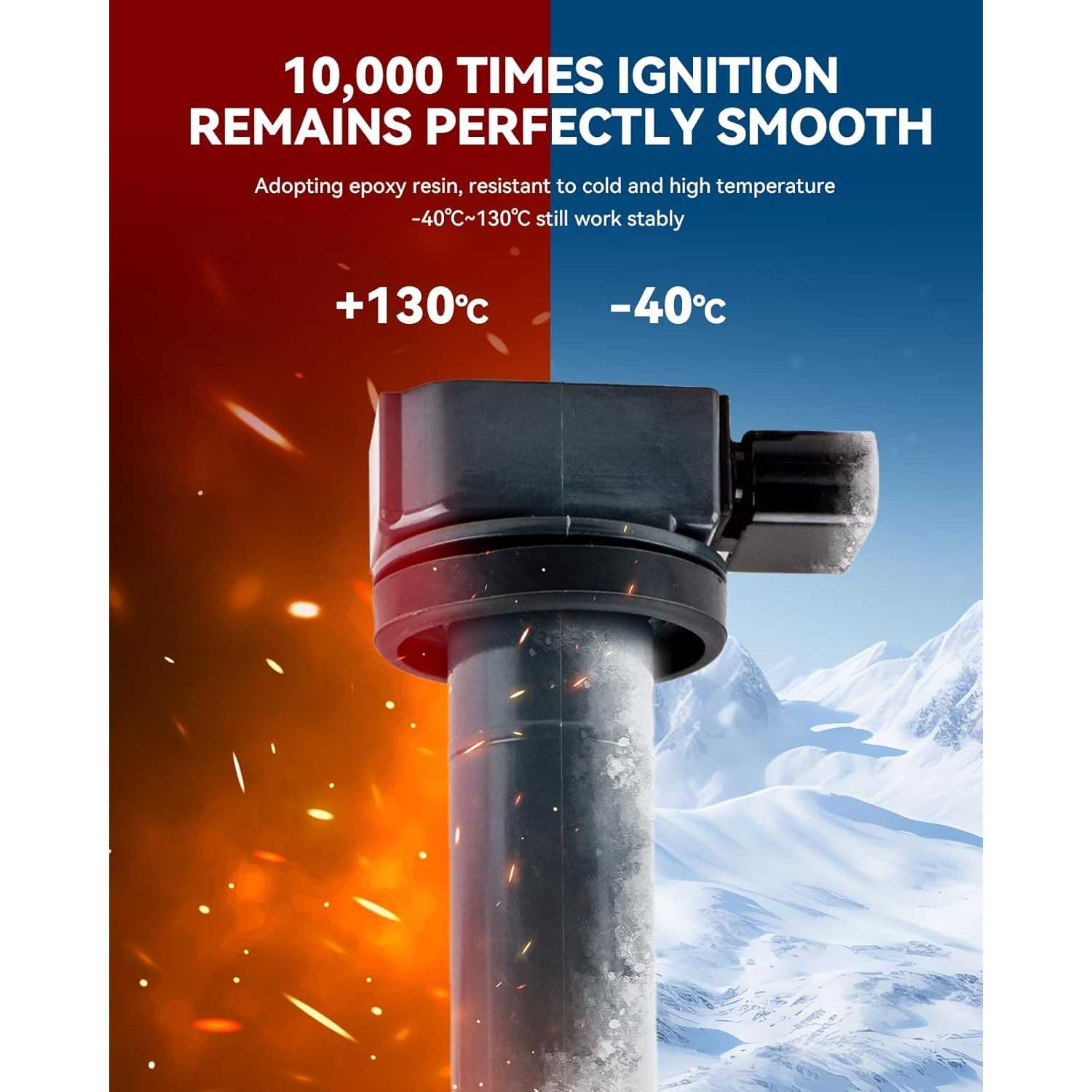

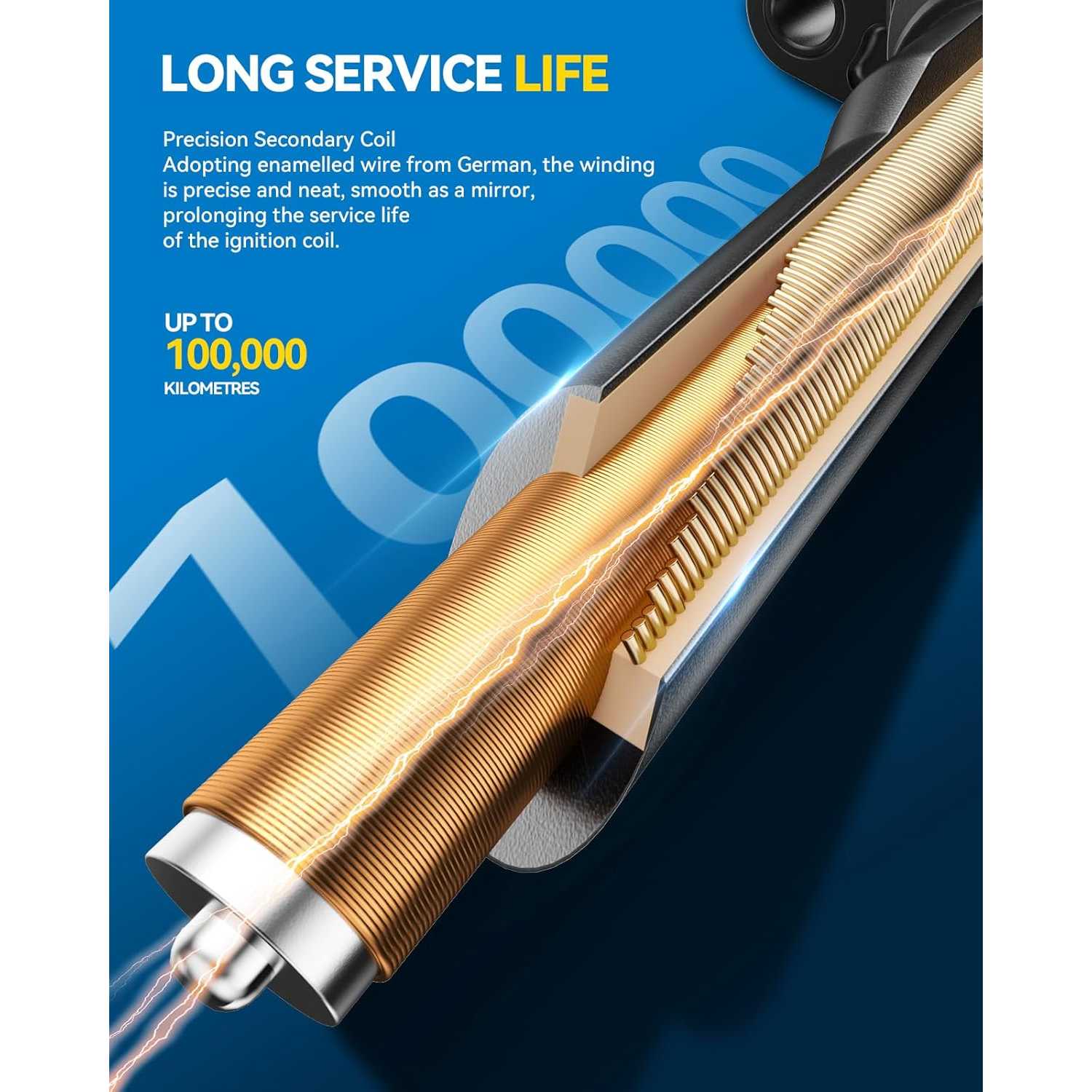

  • [Long Life] The coils with premium quality provide high corrosion and temperature resistance, for high energy output and fast ignition, extend the service life
  • [What You Get] Automotive replacement ignition coil | Fast ignition within 0.1-0.2 seconds | 140°C high temperature and corrosion resistance | RF Interference Protection | 6500Mi Longer lifespan | High voltage output | Smoothly Engine runs | After Sales Service

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2012 - 20172007 - 20112014 - 20172006 - 20112006 - 20072007 - 20082007 - 200820072009 - 201620102015 - 20162010 - 20142011 - 20162010 - 20132014 - 20162013 - 20152011 - 20122007 - 20092013 - 20172010 - 20122017 - 20182007 - 20092016 - 20182010 - 20122017 - 20182019201920062006 - 20072008200620092006200820072009 - 2010200820072009 - 20102007 - 20122007 - 20122007 - 20082007 - 2009200920092014 - 20152014 - 20152016 - 20172016 - 20172006 - 200720082006 - 200720082007 - 20102007 - 20102007 - 20102015 - 20172011 - 201220142006 - 20102015 - 20172015 - 20172011 - 201220142006 - 201020152015 - 20172015 - 20172008 - 200920072014 - 20172011 - 20132007 - 20092008 - 20092014 - 20172011 - 201320072014 - 20152014 - 20172011 - 20132016 - 2017
MakeHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKia
ModelAzeraAzeraAzeraAzeraAzeraEntourageEntourageEntourageGenesisGenesis CoupeGenesis CoupeGenesis CoupeGenesis CoupeGenesis CoupeGenesis CoupeSanta FeSanta FeSanta FeSanta FeSanta FeSanta FeSanta FeSanta FeSanta FeSanta FeSanta Fe XLSanta Fe XLSonataSonataSonataSonataSonataSonataSonataSonataSonataSonataSonataSonataVeracruzVeracruzVeracruzAmantiBorregoBorregoCadenzaCadenzaK900K900OptimaOptimaOptimaOptimaRondoRondoSedonaSedonaSedonaSedonaSedonaSedonaSedonaSedonaSedonaSedonaSedonaSedonaSedonaSorentoSorentoSorentoSorentoSorentoSorentoSorentoSorentoSorentoSorentoSorentoSorentoSorento
TrimBaseGLSLimitedLimitedSEGLSLimitedSE3.83.83.83.8 Grand Touring3.8 R-Spec3.8 Track3.8 UltimateGLSGLSLimitedLimitedLimitedLimited UltimateSESESESE UltimateLimited UltimateSEGLGLSGLSGLSGLSLXLimitedLimitedLimitedSESESEGLSLimitedSEBaseEXLXLimitedPremiumV6 LuxuryV6 PremiumEXEXLXLXEXLXBaseEXEXEXEXLLXLXLXLXLimitedSXSXLBaseBaseEXEXEXLXLXLXLXLimitedSXSXSX Limited
Engine3.3L V63.3L V63.3L V63.8L V63.8L V63.8L V63.8L V63.8L V63.8L V63.8L V63.8L V63.8L V63.8L V63.8L V63.8L V63.3L V63.5L V63.3L V63.3L V63.5L V63.3L V63.3L V63.3L V63.5L V63.3L V63.3L V63.3L V62.4L L42.4L L42.4L L43.3L V63.3L V63.3L V62.4L L43.3L V63.3L V62.4L L43.3L V63.3L V63.8L V63.8L V63.8L V63.8L V63.8L V63.8L V63.3L V63.3L V63.8L V63.8L V62.4L L42.4L L42.4L L42.4L L42.4L L42.4L L43.8L V63.3L V63.5L V63.5L V63.8L V63.3L V63.3L V63.5L V63.5L V63.8L V63.3L V63.3L V63.3L V63.3L V63.8L V63.3L V63.5L V63.8L V63.3L V63.3L V63.5L V63.8L V63.3L V63.3L V63.5L V63.3L V6
Note-----------------------------
To 1/08
---
To 1/08
--
To 1/08
-------------
To 7/08
-
To 7/08
----------------------------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Related Diagnostic Codes

  • P0300-Random/multiple-cylinder misfire — inspect the spark plugs, ignition coils, wiring and fuel system.
  • P0301–P0306-Specific-cylinder misfire — inspect the plug, coil and wiring for the indicated cylinder.
  • P0350-Ignition-coil primary/secondary circuit fault — check coil resistance, connectors and wiring.
  • P0351–P0356-Specific ignition-coil circuit fault — inspect the corresponding coil circuit and wiring.

Checks Before Installation

  • Confirm the ignition coils and spark plugs match the vehicle and original parts.
  • Check that the battery voltage meets the vehicle specification; the manual recommends at least 12.4V with the engine off.
  • Inspect the coil housings, connectors and wiring for cracks, corrosion or damage.
  • Check the spark-plug wells for oil, carbon deposits or debris.
  • Allow the engine to cool completely before removing the spark plugs.
  • Confirm the specified spark-plug gap and installation torque in the vehicle service manual.

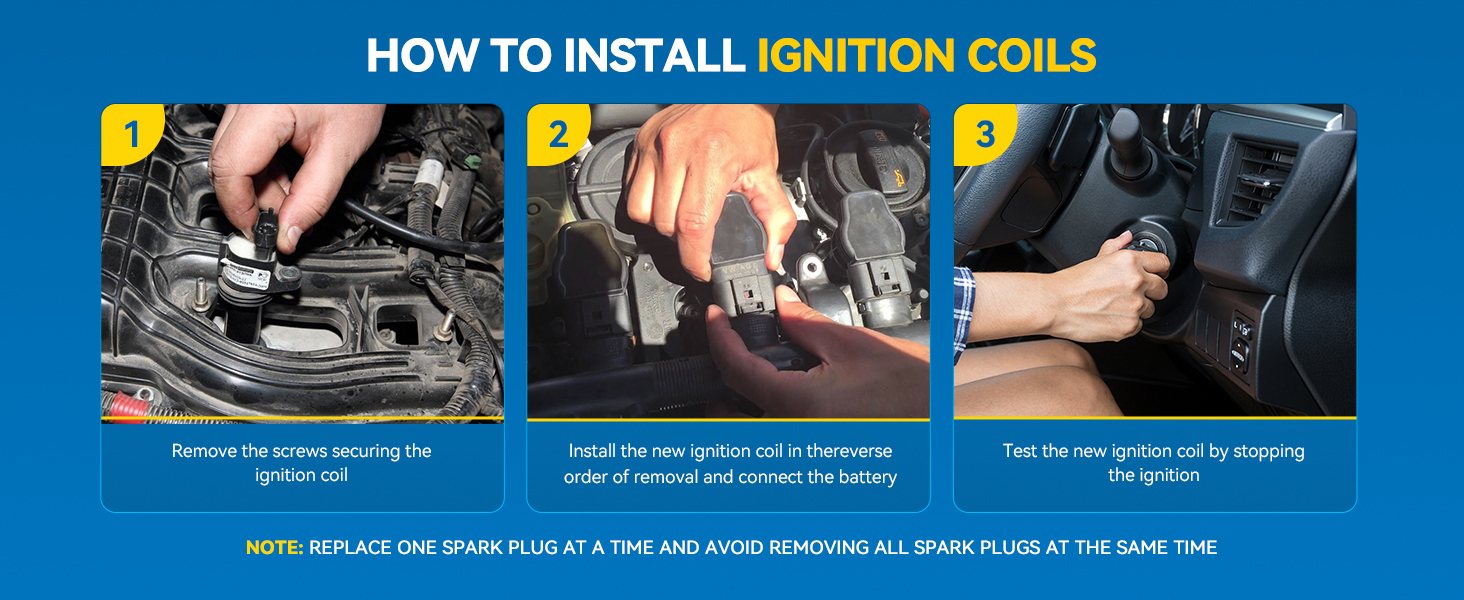

Installation Steps

  • Step-1: Disconnect the Battery: Switch off the ignition and disconnect the negative battery cable to prevent short circuits or accidental starting.
  • Step-2: Remove the Old Parts: Label the connectors when necessary, unplug and remove the ignition coils, then clean around each spark-plug well before removing the plugs.
  • Step-3: Check the New Spark Plugs: Confirm the correct model and measure the electrode gap with a feeler gauge. Do not install dropped or damaged spark plugs.
  • Step-4: Install and Torque the Spark Plugs: Thread each spark plug fully by hand to prevent cross-threading. Then tighten it with a torque wrench to the vehicle manufacturer’s specified torque. Do not overtighten.
    Gasket seat and tapered seat spark plugs compared

    Gasket Seat Spark Plug: Uses a crush gasket to seal against the cylinder head.

    Tapered Seat Spark Plug – No Gasket: Uses the tapered metal seat to seal directly against the cylinder head.

  • Step-5: Complete the Installation: Install the ignition coils, tighten the mounting bolts to specification, fully seat every connector and reconnect the negative battery cable.

Spark Plug Torque Reference

Spark Plug ThreadRecommended Torque
18 mm (M18)35–40 N·m (25.8–29.5 lb-ft)
14 mm (M14)25–30 N·m (18.4–22.1 lb-ft)
12 mm (M12)15–20 N·m (11.1–14.8 lb-ft)
10 mm (M10)10–12 N·m (7.4–8.9 lb-ft)
8 mm (M8)8–10 N·m (5.9–7.4 lb-ft)
Tapered Seat – No Gasket10–20 N·m (7.4–14.8 lb-ft)

Important: This table is for general reference only. Required torque varies by spark-plug design, seat type and cylinder-head material. Always follow the vehicle service manual or spark-plug manufacturer’s specification when available.

After Installation

  • Clear historical fault codes with an OBD-II scanner.
  • Start the engine and let it idle for several minutes.
  • Confirm smooth idle, normal acceleration and no misfire or unusual vibration.
  • Check that the malfunction indicator light remains off.
  • Perform a short road test, then rescan for returned fault codes.

Product Video

Product Description

11

Reviews

4.8/5

Based on 6 reviews

583%
417%
30%
20%
10%

Alex Jimenez

04/02/2025

Verified buyer

Quick Delivery! Great product.

Yadier M.

10/26/2024

Verified buyer

Genial gracias Read more

FAQS

Fitment depends on your engine size and year. Please enter your vehicle's Brand, Year, and Model into the "Fitment Checker" at the top of the page to confirm a 100% match.

We stand behind the quality of our ignition systems with a 3-Year Limited Warranty. Scroll to the "Warranty & Support" section at the bottom of the page for full details on our 3-year reliability guarantee.

Yes, these are common symptoms of a failing coil (Code P0300-P0308). Review the "Product Highlights" section to see how our high-voltage output restores smooth engine performance.
