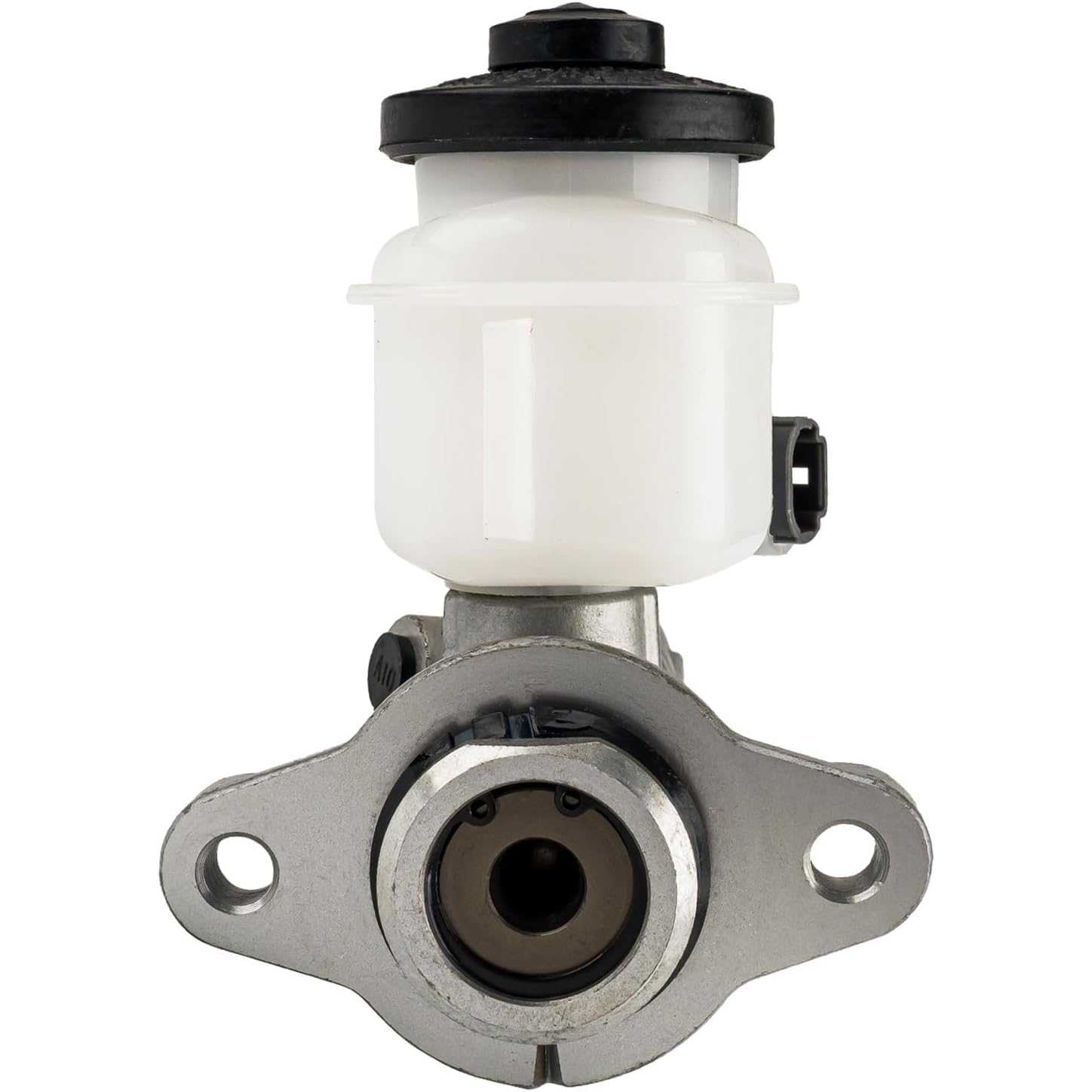

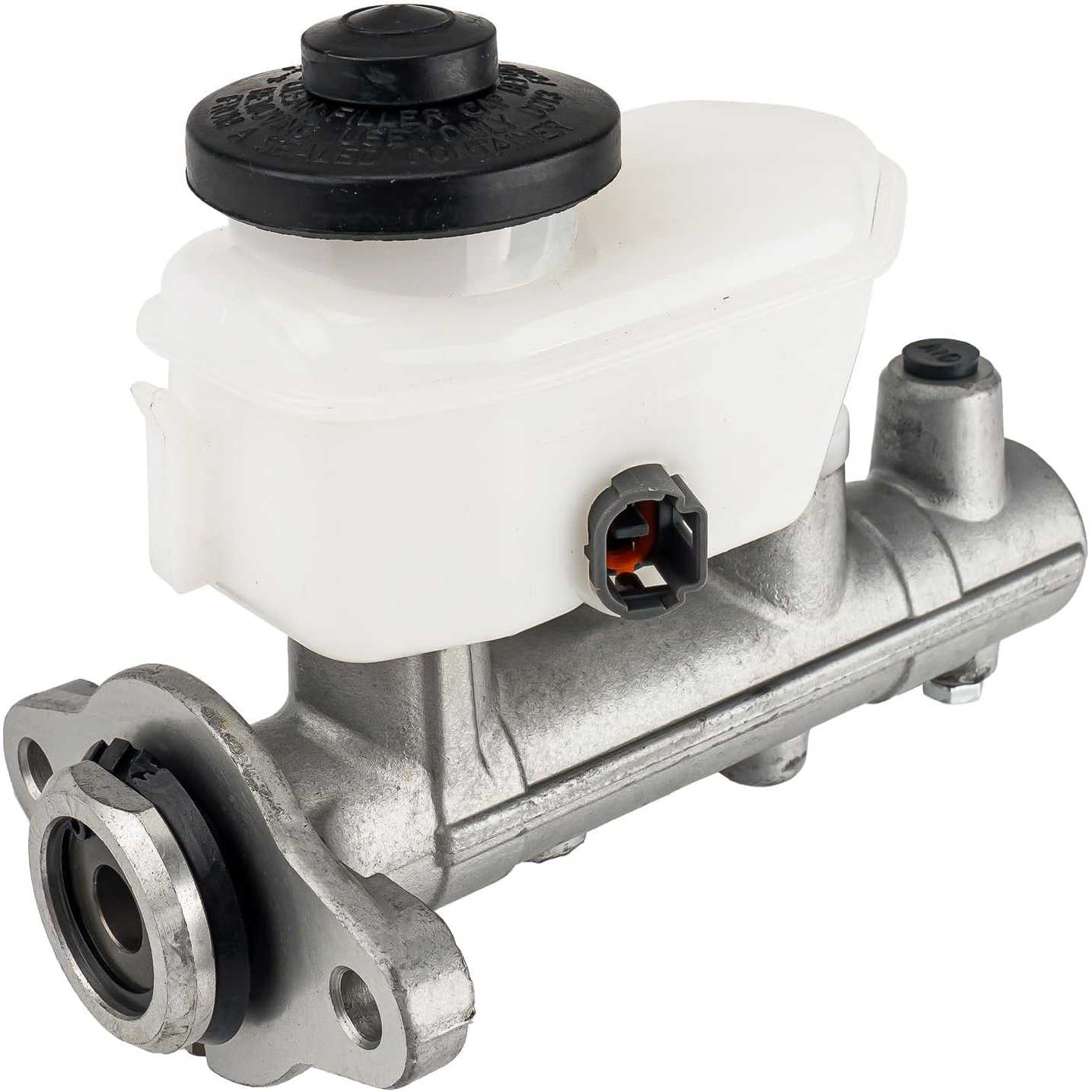

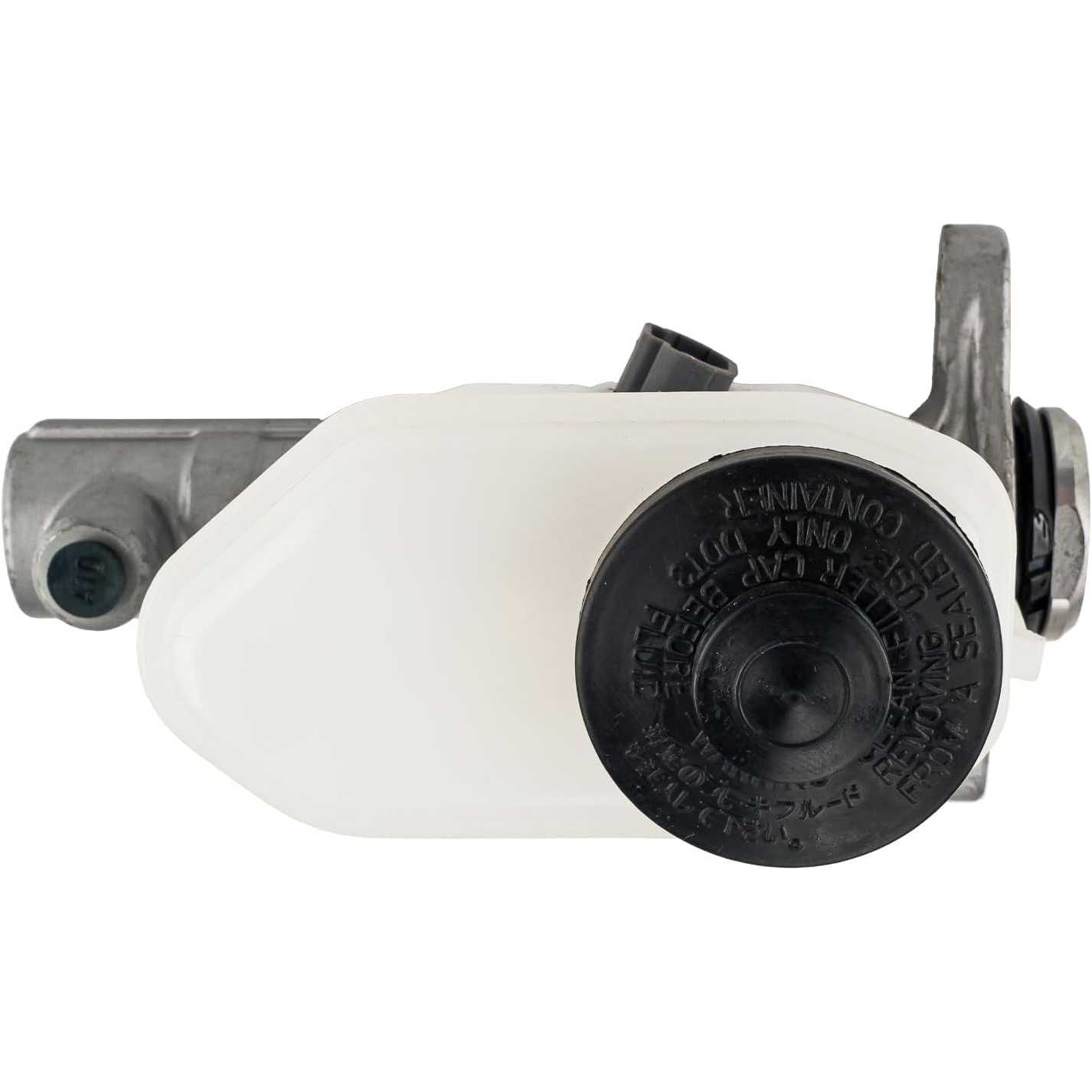

1995-2000 Toyota Camry 2.2L L4/3.0L V6 | 1 in Brake Master Cylinder w/Reservoir w/Sensor | M390292 - PHILTOP

1995-2000 Toyota Camry 2.2L L4/3.0L V6 | 1 in Brake Master Cylinder w/Reservoir w/Sensor | M390292 - PHILTOP

Sensor Included

Reservoir Included

Leak-Resistant Seal

4.6

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
1476BMC025SUS

Specifications

Brand
PHILTOP
Bore Diameter
1 in
Outlet Count
2
Rearward Outlet Size
M10 X 1.0
Reservoir Included
Yes
Secondary Outlet Thread Size
M10 X 1.0
Sensor Included
Yes
Items Included
1x Master Cylinder - M390292
Material
Aluminum
Quantity
1
Warranty Period
2-Year
Part Number
M390292

Highlights

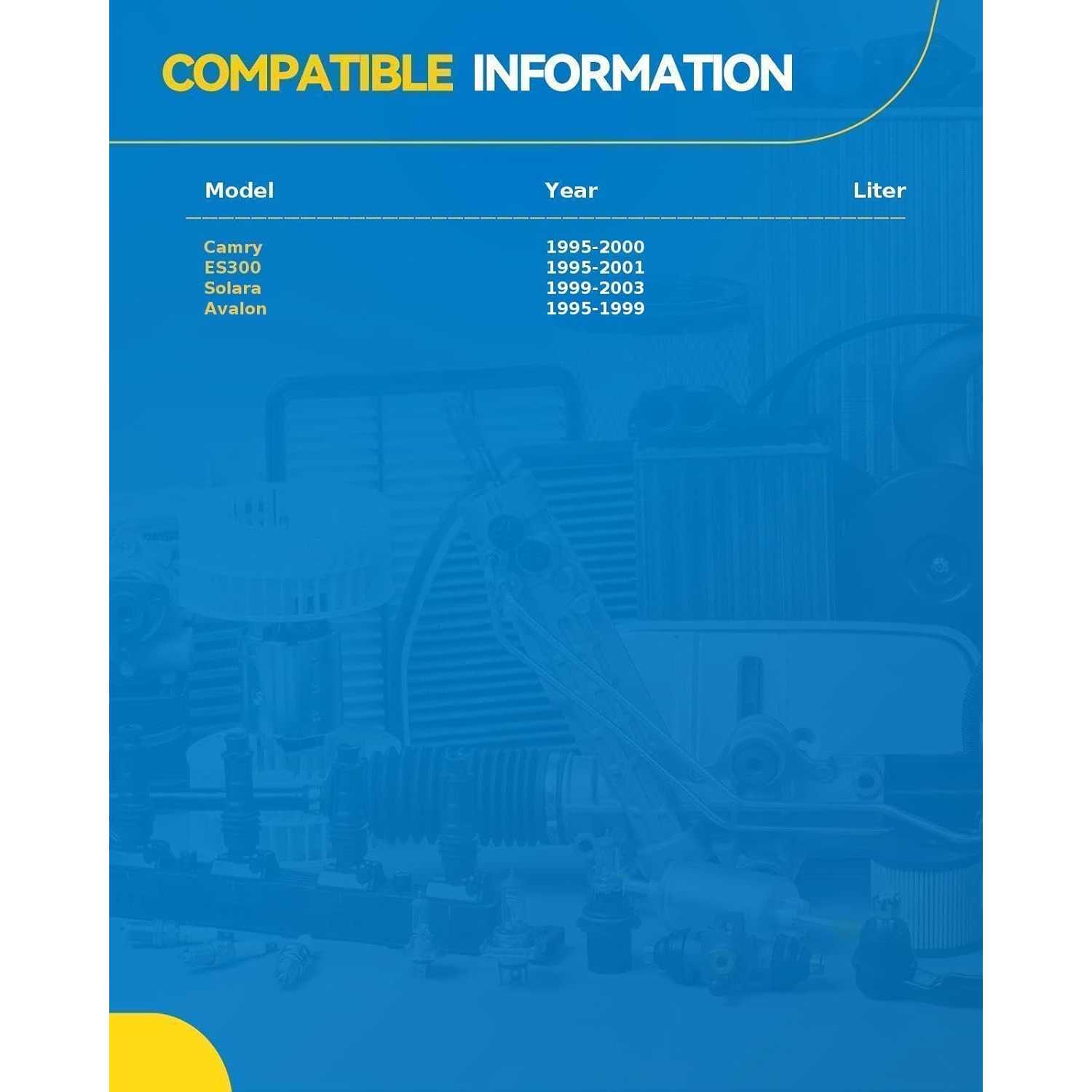

  • (FITMENT)This brake master cylinder compatible with Toyota Camry 1995-2000, Lexus ES300 1995-2001, Toyota Solara 1999-2003, Toyota Avalon 1995-1999.
  • (OE REPLACEMENT NUMBER)This brake master cylinder OE part number#: ‎072-9086; 11-2735; 11-2979; 11-3814; 13-2735; 130.44017; 130.44020; 130.44033; 13099; 131.44017; 83-22017; F120773; F128178; F131444; F140092; M-56017; M52735; M55228; M900974; M901206; MC131444; MC140092; MC390292; MC390665; MC390935; MC500360; NM52735; NM55228; 47201-07020; 47201-33130; 47201-33140; 47201-33200; 47201-33201.
  • (Specifications) Material: -; Master Cylinder Bore Diameter: 1 inch/25.4 mm; Number of Outlets: 2; Rearward Outlet Size: M10 x 1.0; Reservoir Included: Yes; Sensor Included: No; Mounting Hardware Included: NO.
  • (100% NEW AND PRECISE REPLACEMENT)This brake master cylinder is made from brand new materials and is not a remanufactured product to ensure high quality and safety; the cylinder housing is constructed to match the casting material of the original part to ensure fitment to your car.

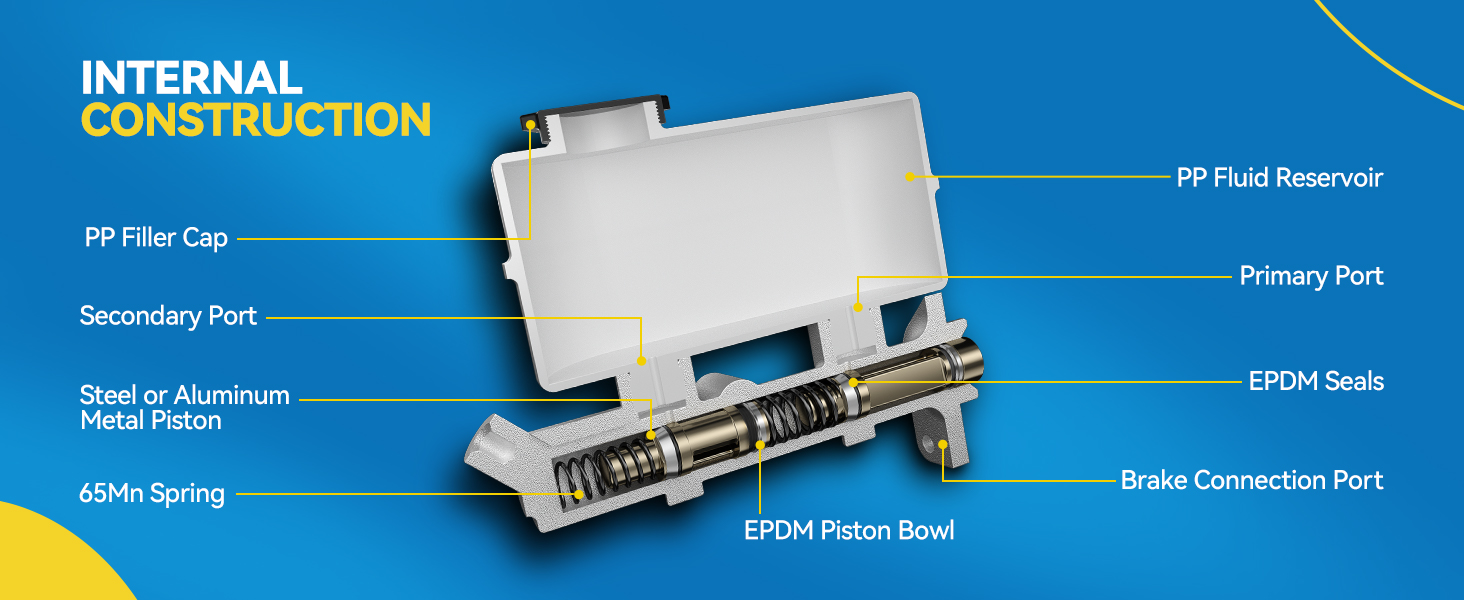

  • (SAE INTERNATIONAL STANDARDS)All rubber parts of this brake master cylinder are made of high-quality EPDM composite material, which is resistant to glycol brake fluid corrosion and meets stringent SAE International standards.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year1995 - 19961997 - 19981999 - 20011995 - 19961997 - 199919951997 - 19991997 - 20001997 - 19981995 - 19961995 - 19961997 - 20001995 - 19961997 - 20001995 - 19961995 - 19961997 - 20001995 - 19961997 - 20001999 - 20012002 - 20031999 - 20031999 - 2003
MakeLexusLexusLexusToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyota
ModelES300ES300ES300AvalonAvalonAvalonAvalonCamryCamryCamryCamryCamryCamryCamryCamryCamryCamryCamryCamrySolaraSolaraSolaraSolara
TrimBaseBaseBaseXLXLXLSXLSCECEDXLELELELESEXLEXLEXLEXLESESESESLE
Engine3.0L V63.0L V63.0L V63.0L V63.0L V63.0L V63.0L V62.2L L43.0L V62.2L L42.2L L42.2L L43.0L V63.0L V63.0L V62.2L L42.2L L43.0L V63.0L V62.2L L42.4L L43.0L V63.0L V6
Note
Bore: 1 In.
Bore: 1 In.;Exc. Traction Control
Bore: 1 In.;Exc. Traction Control;w/o Stability Control
Bore: 1 In.
Bore: 1 In.;Exc. Traction Control
Bore: 1 In.
Bore: 1 In.;Exc. Traction Control
Bore: 1 In.;Exc. Traction Control
Bore: 1 In.;Exc. Traction Control
Bore: 1 In.
Bore: 1 In.
Bore: 1 In.;Exc. Traction Control
Bore: 1 In.
Bore: 1 In.;Exc. Traction Control
Bore: 1 In.
Bore: 1 In.
Bore: 1 In.;Exc. Traction Control
Bore: 1 In.
Bore: 1 In.;Exc. Traction Control
Bore: 1 In.;Exc. Traction Control
Bore: 1 In.;Exc. Traction Control
Bore: 1 In.;Exc. Traction Control
Bore: 1 In.;Exc. Traction Control

How to Install?

Installation Manual Download

User manual (PDF)
Download

Installation Steps

  • Step-1: Remove the Old Unit: Extract the brake fluid, disconnect the brake lines and cap all openings immediately to prevent air and contamination from entering.
  • Step-2: Inspect the Booster: Remove the old master cylinder. Inspect the booster push rod, seal and mounting surface for wear, deformation or fluid leakage.
  • Step-3: Bench-Bleed the New Master Cylinder: Bench-bleed the new master cylinder with fresh, vehicle-approved brake fluid until no air bubbles remain. Follow the product instructions or vehicle service manual.
  • Step-4: Install the New Unit: Align the master cylinder with the booster push rod. Hand-start the mounting nuts, then tighten them evenly to the specified torque. Do not force the master cylinder into position.
  • Step-5: Reconnect the Brake Lines: Hand-start each brake-line fitting to prevent cross-threading, then tighten it to the vehicle manufacturer’s specification.
  • Step-6: Fill and Bleed the Brake System: Fill the reservoir with fresh brake fluid to the MAX line. Bleed the complete brake system in the sequence specified by the vehicle service manual. Keep the fluid level above MIN throughout the process. ABS/ESP systems may require a scan tool.

After Installation

  • Bleed the complete brake system after installation, following the sequence specified in the vehicle service manual. Keep the reservoir above MIN throughout the process.
  • Refill the brake fluid to the MAX line after bleeding.
  • With the engine off, pump the brake pedal until it feels firm with normal travel.
  • Check the brake-line fittings and master-cylinder-to-booster surface for leaks.
  • Confirm that the brake and ABS warning lights are off.
  • Perform a low-speed road test and confirm effective, straight braking.
  • Recheck the fluid level and all connections after the road test.

Product Video

Product Description

11

Reviews

4.6/5

Based on 7 reviews

571%
414%
314%
20%
10%

Salvador Davila

08/31/2026

Verified buyer

Excelente producto, servicio y responsabilidad

DIY_Karen_532

01/17/2026

Arrived super fast and fit my Solara perfectly. Installation was a breeze and the brakes feel great now. Couldn't be happier with the quick delivery and easy install.

FAQS

Please do not install the product. Take photos of the item, packaging and shipping label, then contact Philtop customer support as soon as possible for assistance.

Yes. Bore size and internal design affect hydraulic operation and pedal feel. Use the specification intended for the exact vehicle and brake system.

Bench bleeding is commonly recommended to remove air from the new master cylinder before it is connected to the vehicle. Follow the instructions supplied with the part.
