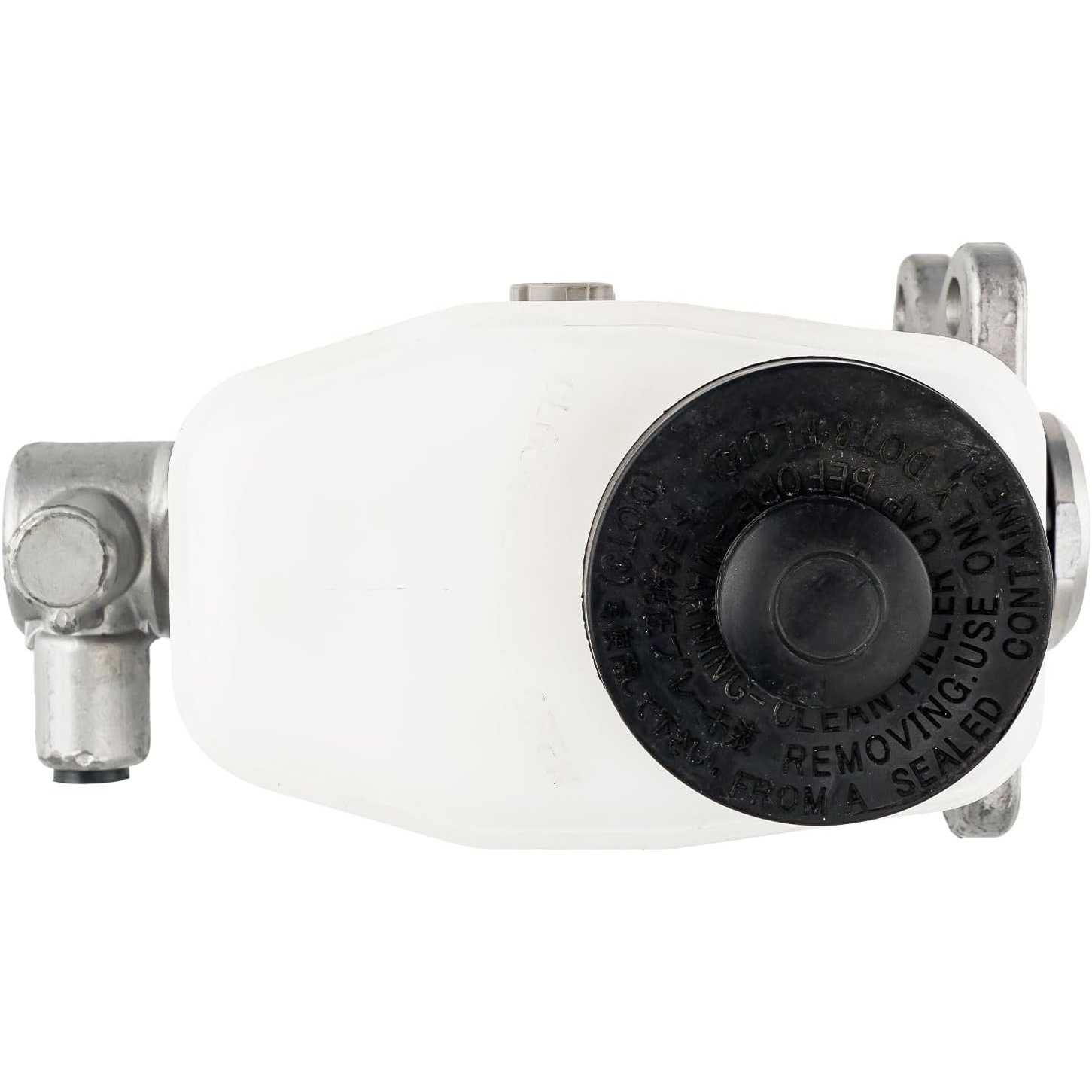

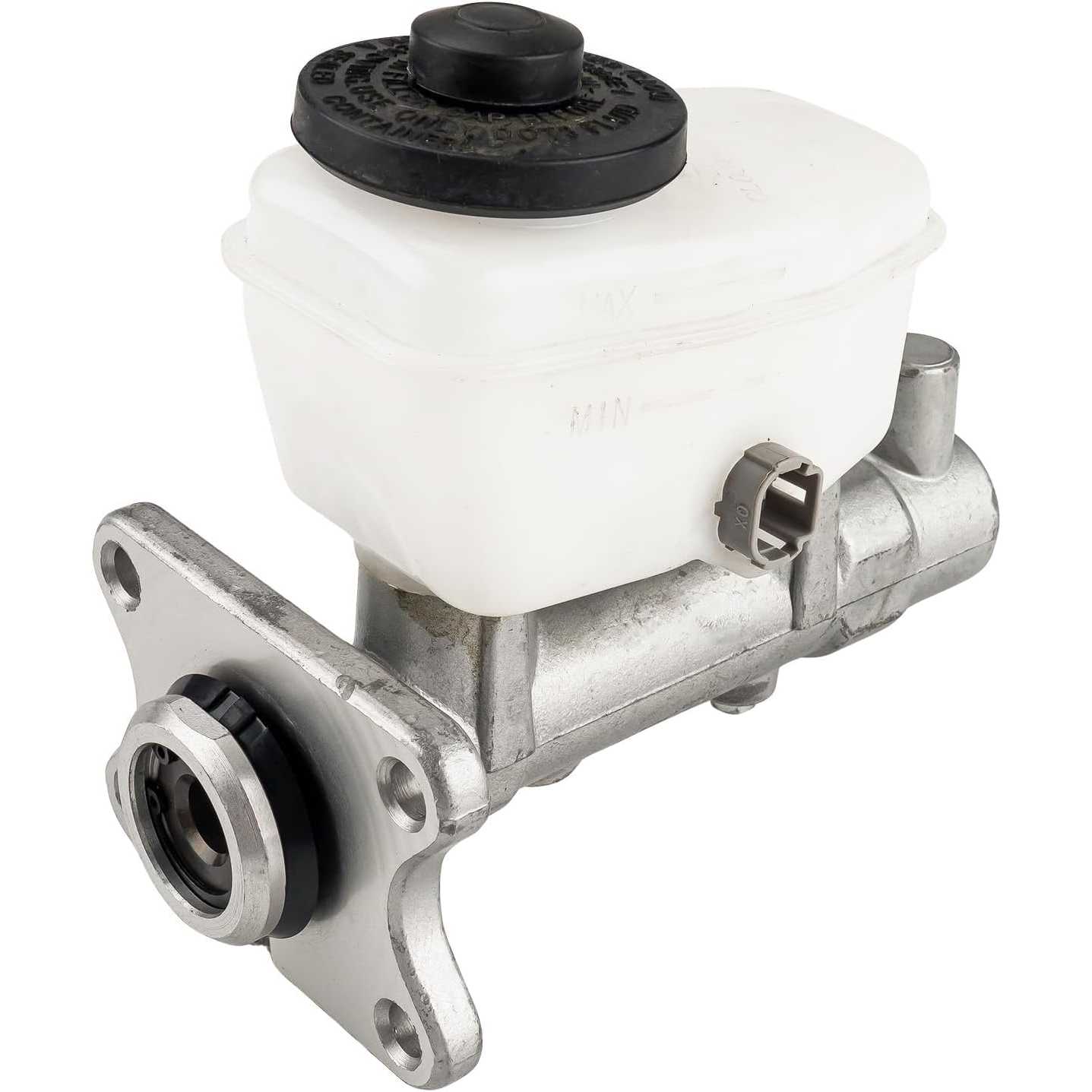

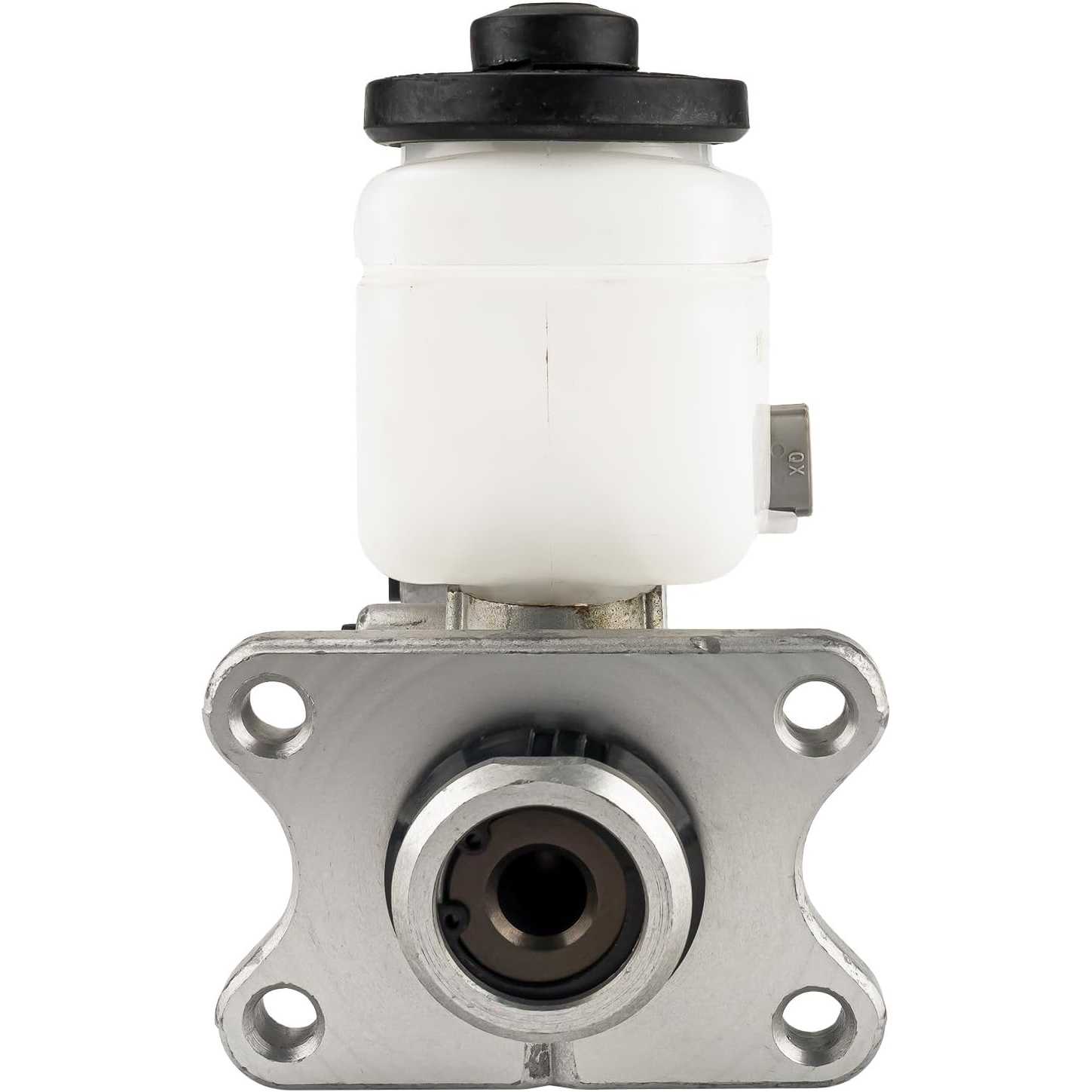

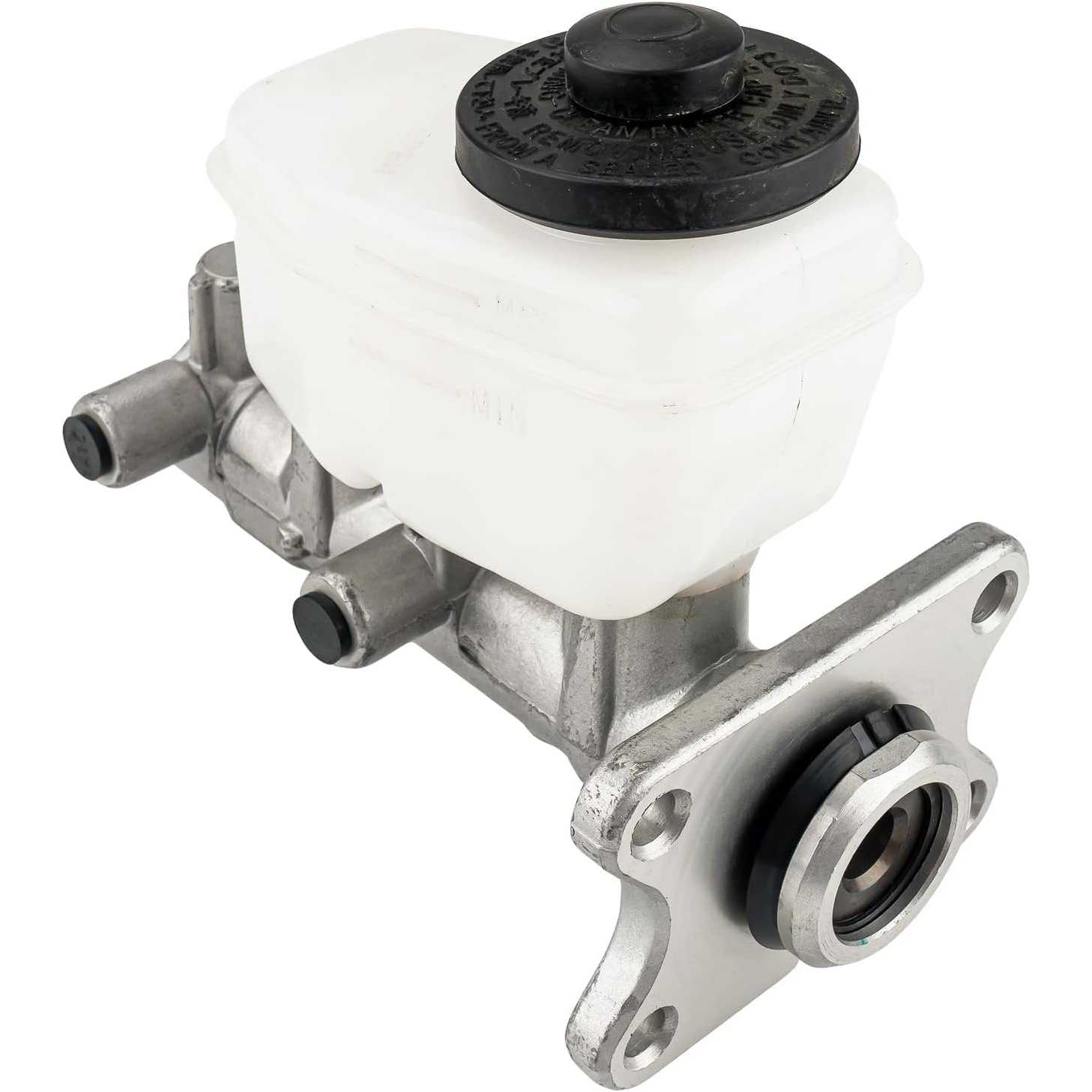

1993-1994 Toyota Land Cruiser 4.5L L6 | 1 in Brake Master Cylinder w/Reservoir w/Sensor | M39996 - PHILTOP

1993-1994 Toyota Land Cruiser 4.5L L6 | 1 in Brake Master Cylinder w/Reservoir w/Sensor | M39996 - PHILTOP

Sensor Included

Reservoir Included

Leak-Resistant Seal

4.6

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
4599BMC0235US

Specifications

Brand
PHILTOP
Bore Diameter
1 in
Outlet Count
2
Rearward Outlet Size
M10 X 1.0
Reservoir Included
Yes
Secondary Outlet Thread Size
M10 X 1.0
Sensor Included
Yes
Items Included
1x Master Cylinder - M39996
Material
Cast Iron
Quantity
1
Warranty Period
2-Year
Part Number
M39996

Highlights

  • (FITMENT)This brake master cylinder compatible with Pickup 1989-1995, 4Runner 1989-1995, T100 1993-1994, Lan-d Cruiser 1993-1994.
  • (OE REPLACEMENT NUMBER)This brake master cylinder OE part number#: ‎‎0728691; 0728790; 0728927; 0729077; 112530; 112713; 12361; 12367; 12831; 13044707; 13044720; 13065; 13067; 13144707; 13144720; 132530; 132713; 18M540; 8320009; 8322707; 8322720; F118404; F122252; F122301; F123545; F129473; F141596; M52713; M55034; M56707; M56720; M57009; M900746; MC118404; MC1184041; MC129473; MC390973; MC39996; NM52530; NM52594; NM52713; NM55034.
  • (Specifications) Material: -; Master Cylinder Bore Diameter: 1 inch/25.4 mm; Number of Outlets: 2; Rearward Outlet Size: M10 x 1.0; Reservoir Included: Yes; Sensor Included: No; Mounting Hardware Included: NO.
  • (100% NEW AND PRECISE REPLACEMENT)This brake master cylinder is made from brand new materials and is not a remanufactured product to ensure high quality and safety; the cylinder housing is constructed to match the casting material of the original part to ensure fitment to your car.
  • (SAE INTERNATIONAL STANDARDS)All rubber parts of this brake master cylinder are made of high-quality EPDM composite material, which is resistant to glycol brake fluid corrosion and meets stringent SAE International standards.

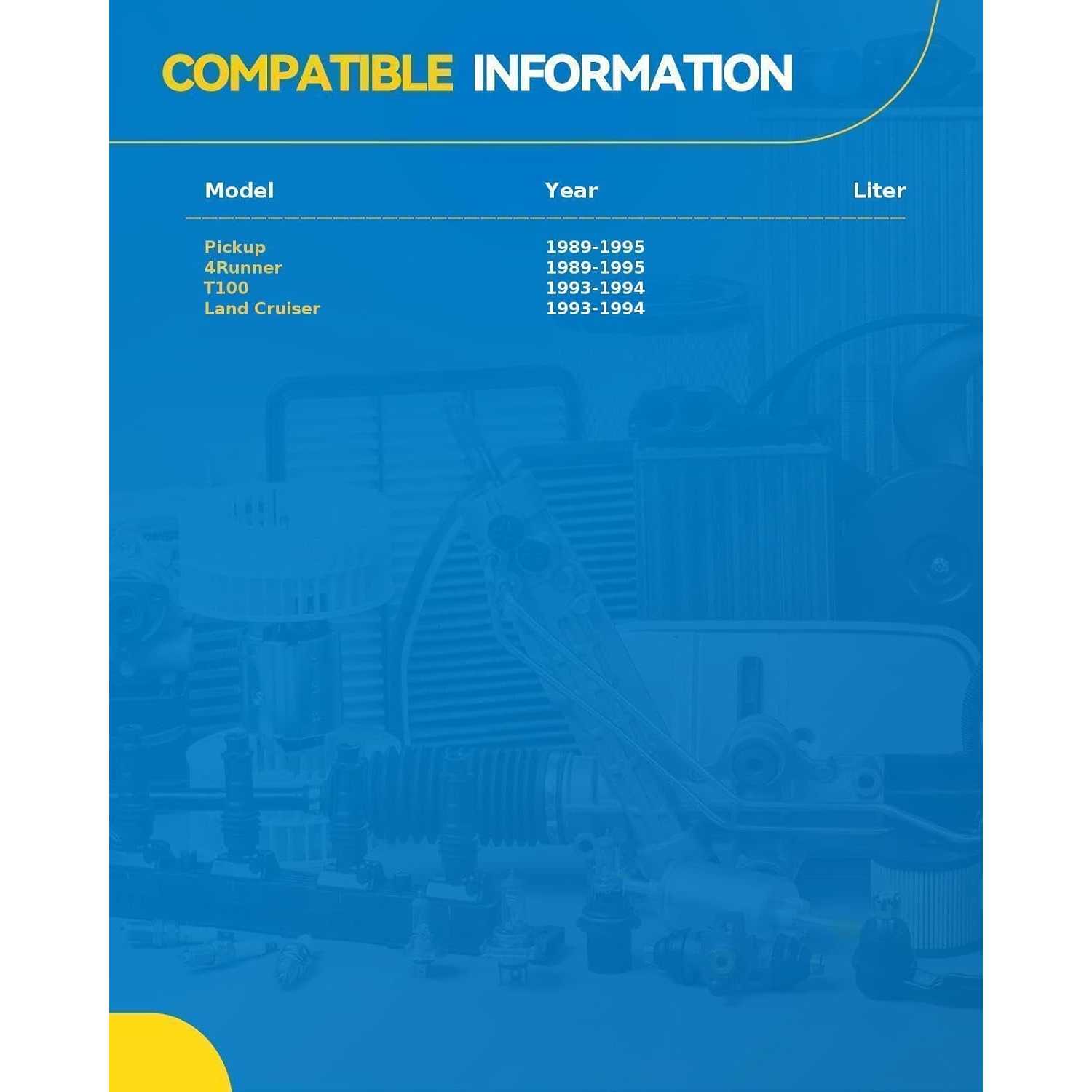

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year198919891989 - 19901991 - 19921993 - 19951989 - 19901991 - 19921993 - 1995199319941993199219931989 - 19901991 - 199219931994 - 19951989 - 19901991 - 199219931994 - 19951989 - 19901989 - 19901991 - 199219931994 - 199519941993199419931993 - 1994
MakeToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyota
Model4Runner4Runner4Runner4Runner4Runner4Runner4Runner4RunnerLand CruiserLand CruiserPickupPickupPickupPickupPickupPickupPickupPickupPickupPickupPickupPickupPickupPickupPickupPickupT100T100T100T100T100
TrimDLXDLXSR5SR5SR5SR5SR5SR5BaseBaseBaseBaseBaseDLXDLXDLXDLXDLXDLXDLXDLXSR5SR5SR5SR5SR5BaseBaseDXOne-TonSR5
Engine2.4L L43.0L V62.4L L42.4L L42.4L L43.0L V63.0L V63.0L V64.5L L64.5L L62.4L L43.0L V63.0L V62.4L L42.4L L42.4L L42.4L L43.0L V63.0L V63.0L V63.0L V62.4L L43.0L V63.0L V63.0L V63.0L V62.7L L43.0L V63.0L V63.0L V63.0L V6
Note---
Bore: 1 In.
--
Bore: 1 In.
--
Built in Japan;w/Long Bed
Built in Japan;Built in U.S.A.;w/Long Bed;with Short Bed
Bore: 1 In.
Built in Japan;Built in U.S.A.;w/Long Bed;with Short Bed
-
Bore: 1 In.
Built in Japan;Built in U.S.A.;w/Long Bed;with Short Bed
--
Bore: 1 In.
Built in Japan;Built in U.S.A.;w/Long Bed;with Short Bed
---
Bore: 1 In.
Built in Japan;Built in U.S.A.;w/Long Bed;with Short Bed
-
1/2 Ton;Bore: 1 In.
1/2 Ton;Bore: 1 In.
1/2 Ton;Bore: 1 In.
1/2 Ton;Bore: 1 In.
1/2 Ton;Bore: 1 In.

How to Install?

Installation Manual Download

User manual (PDF)
Download

Installation Steps

  • Step-1: Remove the Old Unit: Extract the brake fluid, disconnect the brake lines and cap all openings immediately to prevent air and contamination from entering.
  • Step-2: Inspect the Booster: Remove the old master cylinder. Inspect the booster push rod, seal and mounting surface for wear, deformation or fluid leakage.
  • Step-3: Bench-Bleed the New Master Cylinder: Bench-bleed the new master cylinder with fresh, vehicle-approved brake fluid until no air bubbles remain. Follow the product instructions or vehicle service manual.
  • Step-4: Install the New Unit: Align the master cylinder with the booster push rod. Hand-start the mounting nuts, then tighten them evenly to the specified torque. Do not force the master cylinder into position.
  • Step-5: Reconnect the Brake Lines: Hand-start each brake-line fitting to prevent cross-threading, then tighten it to the vehicle manufacturer’s specification.
  • Step-6: Fill and Bleed the Brake System: Fill the reservoir with fresh brake fluid to the MAX line. Bleed the complete brake system in the sequence specified by the vehicle service manual. Keep the fluid level above MIN throughout the process. ABS/ESP systems may require a scan tool.

After Installation

  • Bleed the complete brake system after installation, following the sequence specified in the vehicle service manual. Keep the reservoir above MIN throughout the process.
  • Refill the brake fluid to the MAX line after bleeding.
  • With the engine off, pump the brake pedal until it feels firm with normal travel.
  • Check the brake-line fittings and master-cylinder-to-booster surface for leaks.
  • Confirm that the brake and ABS warning lights are off.
  • Perform a low-speed road test and confirm effective, straight braking.
  • Recheck the fluid level and all connections after the road test.

Product Video

Product Description

11

Reviews

4.6/5

Based on 7 reviews

557%
443%
30%
20%
10%

D E

09/18/2026

Verified buyer

This looked slightly different than the original for my older vehicle. It fit well and has been working perfectly for months now. Very pleased!

Chris_GearHead_512

04/15/2026

Arrived in perfect condition and was a breeze to install. Everything fit perfectly and the shipping was super fast. Couldn't ask for more.

FAQS

Check the package contents listed on the product page. If an included item is missing, contact us with your order number and photos of everything received.

Before driving, press the brake pedal firmly several times until it feels firm, to seat the pads against the rotor.Confirm secure fittings, correct fluid level, no leakage, a stable pedal, normal warning-light status, and proper brake response before normal driving.

Possible signs include a pedal that slowly sinks, inconsistent pedal feel, fluid leakage, or difficulty building hydraulic pressure. Air, external leaks, and other brake components can cause similar symptoms.
