2009-2012 Ford Escape 2.5L/3.0L | 1.063 in Brake Master Cylinder w/Reservoir w/Sensor | M630529 - PHILTOP

2009-2012 Ford Escape 2.5L/3.0L | 1.063 in Brake Master Cylinder w/Reservoir w/Sensor | M630529 - PHILTOP

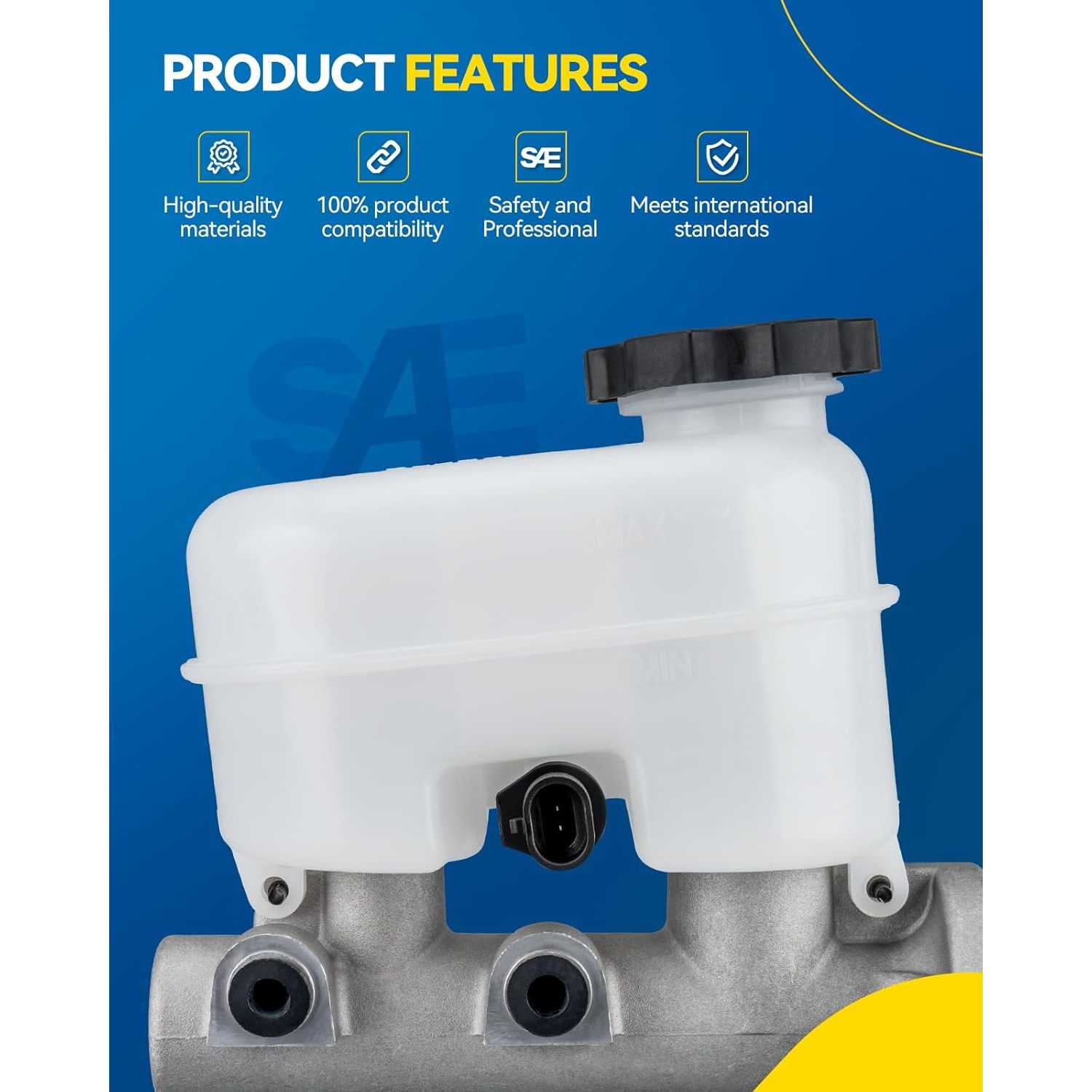

Sensor Included

Reservoir Included

Leak-Resistant Seal

4.6

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
7301BMC1088US

Specifications

Brand
PHILTOP
Bore Diameter
1.063 in
Outlet Count
2
Rearward Outlet Size
M14 X 1.5
Reservoir Included
Yes
Secondary Outlet Thread Size
M14 X 1.5
Sensor Included
Yes
Items Included
1x Master Cylinder - M630529
Material
Aluminum
Quantity
1
Warranty Period
2-Year
Part Number
M630529

Highlights

  • [Vehicle Fitment]: PHILTOP Brake Master Cylinder Compatible with Ford Escape 2009-2012 3.0L(Trans:Automatic), Ford Escape 2009-2012 2.5L(Trans:Automatic), Mercury Mariner 2009-2011 3.0L, Mercury Mariner 2009-2011 2.5L, Tribute 2008 2.3L(Trans:Automatic), Tribute 2009-2011 2.5L(Trans:Automatic), Tribute 2008-2011 3.0L(Trans:Automatic).
  • [Reference Number]: PHILTOP Brake Master Cylinder Assembly Replacement for: M630529,9L8Z2140A,ZZD143990.
  • [Precise Replacement]: PHILTOP Brake Master Cylinder Assembly are made entirely of new materials, not remanufactured, to ensure highest quality and safety; cylinder housing is constructed to match the casting material of the original part and ensure similar performance.
  • [Specifications]: ①Condition: New; ②Reservoir Included: Yes; ③Material: Aluminium; ④Master Cylinder Bore Diameter: 1.063(IN); ⑤Number of Outlets: 2; ⑥Rearward Outlet Size: M14 x 1.5; ⑦Sensor Included: Yes.
  • [Note]: Please check the “Suncentauto Confirmed Fit” bar at the top of this page before buying product to ensure this product works for your vehicle. If the “Suncentauto Confirmed Fit” bar has an “i” in a blue circle, this product has additional notes. Please hover over the “i” on the bar to see notes before making your purchase.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2009 - 20122009 - 20122009 - 20122009 - 20122009 - 201220082009 - 201120082009 - 20112009 - 20112009 - 20112009 - 20102009 - 2011
MakeFordFordFordFordFordMazdaMazdaMazdaMazdaMercuryMercuryMercuryMercury
ModelEscapeEscapeEscapeEscapeEscapeTributeTributeTributeTributeMarinerMarinerMarinerMariner
TrimLimitedLimitedXLSXLTXLTSSiiBaseBasePremierPremier
Engine2.5L L43.0L V62.5L L42.5L L43.0L V63.0L V63.0L V62.3L L42.5L L42.5L L43.0L V62.5L L43.0L V6
Note
Bore: 1.0625 In.
Bore: 1.0625 In.
Bore: 1.0625 In.
Bore: 1.0625 In.
Bore: 1.0625 In.
Bore: 1.0625 In.;From 06/23/2008
Bore: 1.0625 In.
Bore: 1.0625 In.;From 06/23/2008
Bore: 1.0625 In.
----

How to Install?

Installation Manual Download

User manual (PDF)
Download

Installation Steps

  • Step-1: Remove the Old Unit: Extract the brake fluid, disconnect the brake lines and cap all openings immediately to prevent air and contamination from entering.
  • Step-2: Inspect the Booster: Remove the old master cylinder. Inspect the booster push rod, seal and mounting surface for wear, deformation or fluid leakage.
  • Step-3: Bench-Bleed the New Master Cylinder: Bench-bleed the new master cylinder with fresh, vehicle-approved brake fluid until no air bubbles remain. Follow the product instructions or vehicle service manual.
  • Step-4: Install the New Unit: Align the master cylinder with the booster push rod. Hand-start the mounting nuts, then tighten them evenly to the specified torque. Do not force the master cylinder into position.
  • Step-5: Reconnect the Brake Lines: Hand-start each brake-line fitting to prevent cross-threading, then tighten it to the vehicle manufacturer’s specification.
  • Step-6: Fill and Bleed the Brake System: Fill the reservoir with fresh brake fluid to the MAX line. Bleed the complete brake system in the sequence specified by the vehicle service manual. Keep the fluid level above MIN throughout the process. ABS/ESP systems may require a scan tool.

After Installation

  • Bleed the complete brake system after installation, following the sequence specified in the vehicle service manual. Keep the reservoir above MIN throughout the process.
  • Refill the brake fluid to the MAX line after bleeding.
  • With the engine off, pump the brake pedal until it feels firm with normal travel.
  • Check the brake-line fittings and master-cylinder-to-booster surface for leaks.
  • Confirm that the brake and ABS warning lights are off.
  • Perform a low-speed road test and confirm effective, straight braking.
  • Recheck the fluid level and all connections after the road test.

Product Video

Product Description

11

Reviews

4.6/5

Based on 8 reviews

575%
413%
313%
20%
10%

Robert S

03/24/2026

Verified buyer

Works great. Good price.

Excelente lo ame

11/03/2025

Verified buyer

This replacement master cylinder fit perfectly and worked just like the original. The installation was easy, and the part feels solid and well-made. After installing it, the brakes responded smoothly and without any leaks or issues. I’ve been using it for a few weeks now, and it’s performing perfectly. Highly recommend this product for anyone needing a reliable replacement at a good price.

FAQS

Warranty coverage and duration may vary by product. For specific warranty period details by product category, please refer to our Warranty & Returns Policy page. Damage related to incorrect fitment, installation or other vehicle problems may require further review.

Bench bleeding is commonly recommended to remove air from the new master cylinder before it is connected to the vehicle. Follow the instructions supplied with the part.

Use the brake fluid type specified by the vehicle manufacturer. Keep the fluid clean and avoid leaving the reservoir open longer than necessary.
