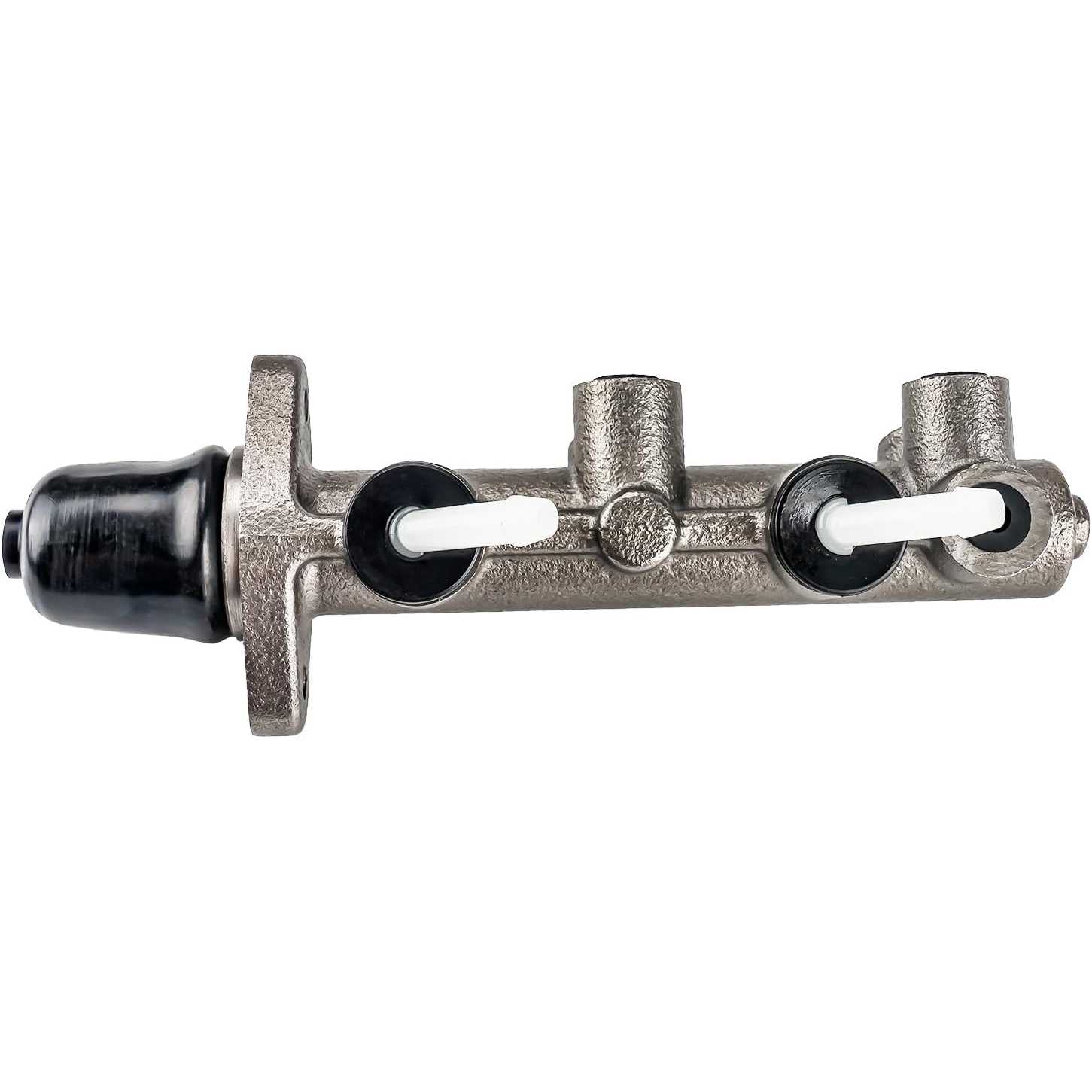

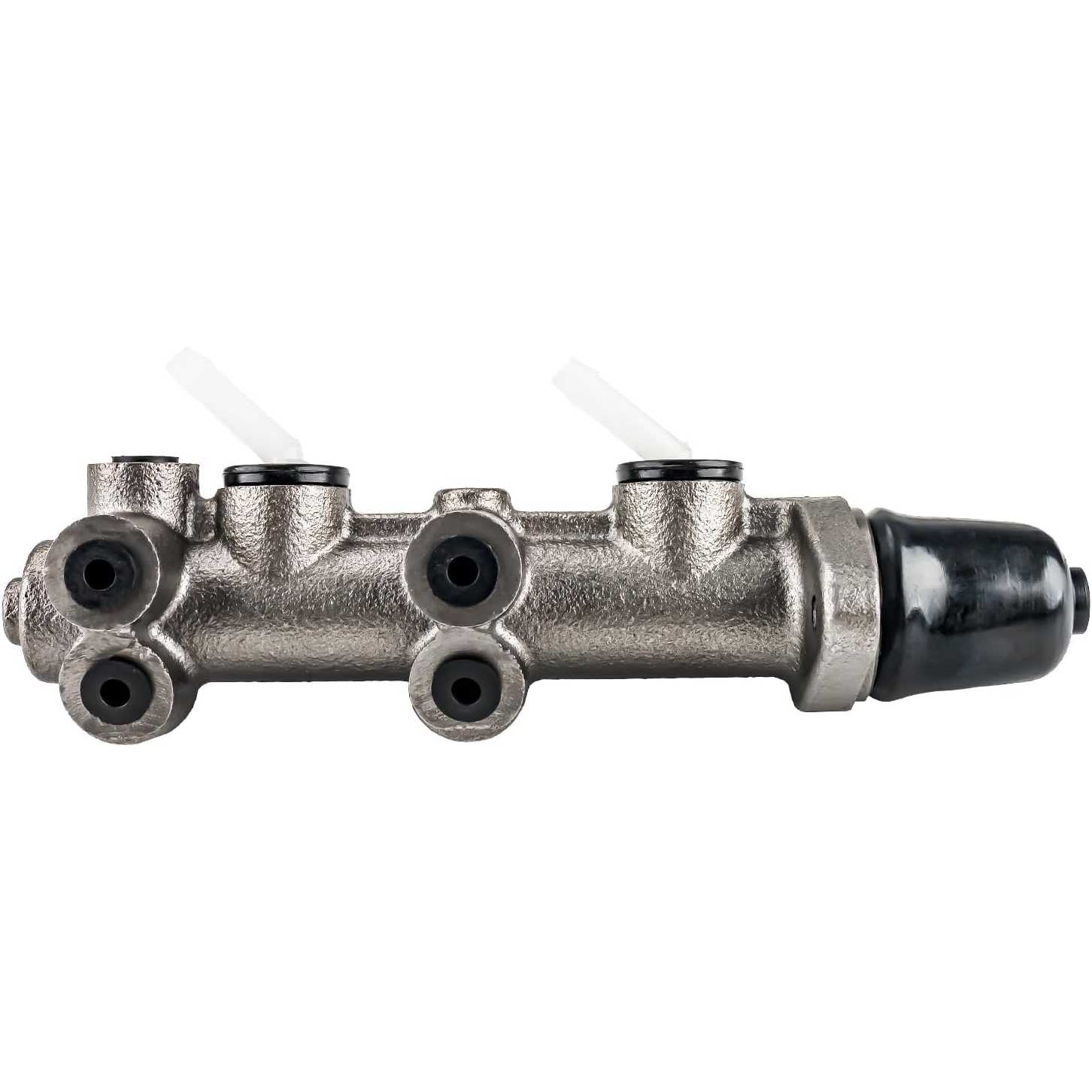

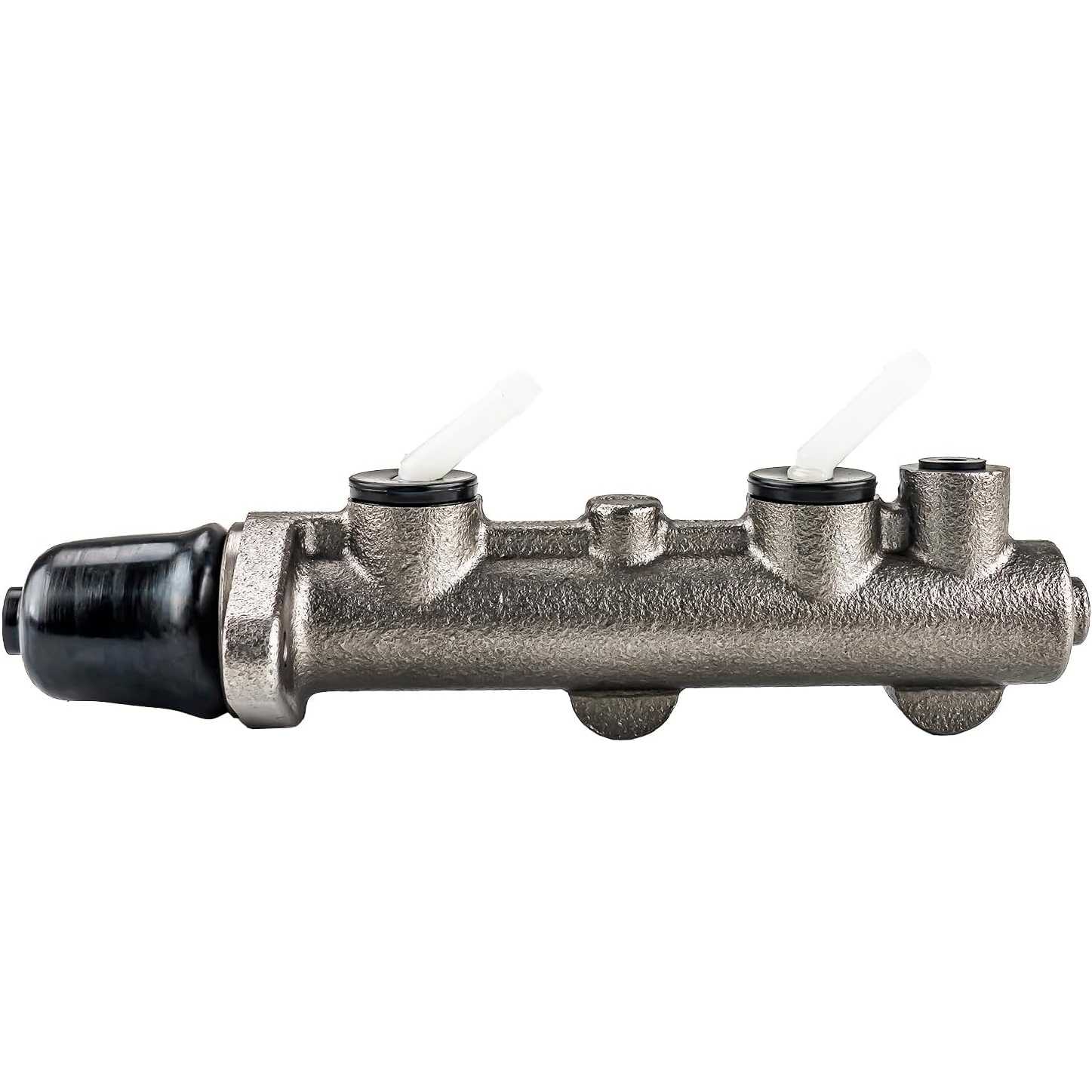

1967-1978 Volkswagen Beetle 1.5L/1.6L | 0.75 in Brake Master Cylinder w/o Sensor | M93354 - PHILTOP

1967-1978 Volkswagen Beetle 1.5L/1.6L | 0.75 in Brake Master Cylinder w/o Sensor | M93354 - PHILTOP

Sensor Not Included

Leak-Resistant Seal

4.6

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
3893BMC0040US

Specifications

Brand
PHILTOP
Bore Diameter
0.75 in
Outlet Count
5
Rearward Outlet Size
M10 X 1.0
Reservoir Included
No
Secondary Outlet Thread Size
M10 X 1.0
Sensor Included
No
Items Included
1x Master Cylinder - M93354
Material
Cast Iron
Quantity
1
Warranty Period
2-Year
Part Number
M93354

Highlights

  • (FITMENT)This brake master cylinder compatible with Beetle 1970-1978, Karmann Ghia 1970-1974, Thing 1973-1974.
  • (OE REPLACEMENT NUMBER)This brake master cylinder OE part number#: ‎072-8011; 072-8012; 072-8013; 11-1559; 11559; 13-1559; 130.33502; 131.33502; 18M16; 2536275; 783-94102; 783-94103; 83-94102; 96415; F106428; F96400; F96409; M-20102; M900111; MC106428; MC252420; MC36275; MC96400; MC96409; NM51559; 113 611 015B; 113 611 015BD; 113 611 015BQ; 113 611 015C; 113 611 015F; 113 611 015G; 113 611 017; 113 611 017B; 113 611 017C; 113 611 017D; 113 611 017E; 113 611 017K.
  • (Specifications) Material: Iron; Master Cylinder Bore Diameter: 0.75 inch/19.05 mm; Number of Outlets: 5; Rearward Outlet Size: M10 x 1.0; Reservoir Included: No; Sensor Included: No; Mounting Hardware Included: NO.
  • (100% NEW AND PRECISE REPLACEMENT)This brake master cylinder is made from brand new materials and is not a remanufactured product to ensure high quality and safety; the cylinder housing is constructed to match the casting material of the original part to ensure fitment to your car.

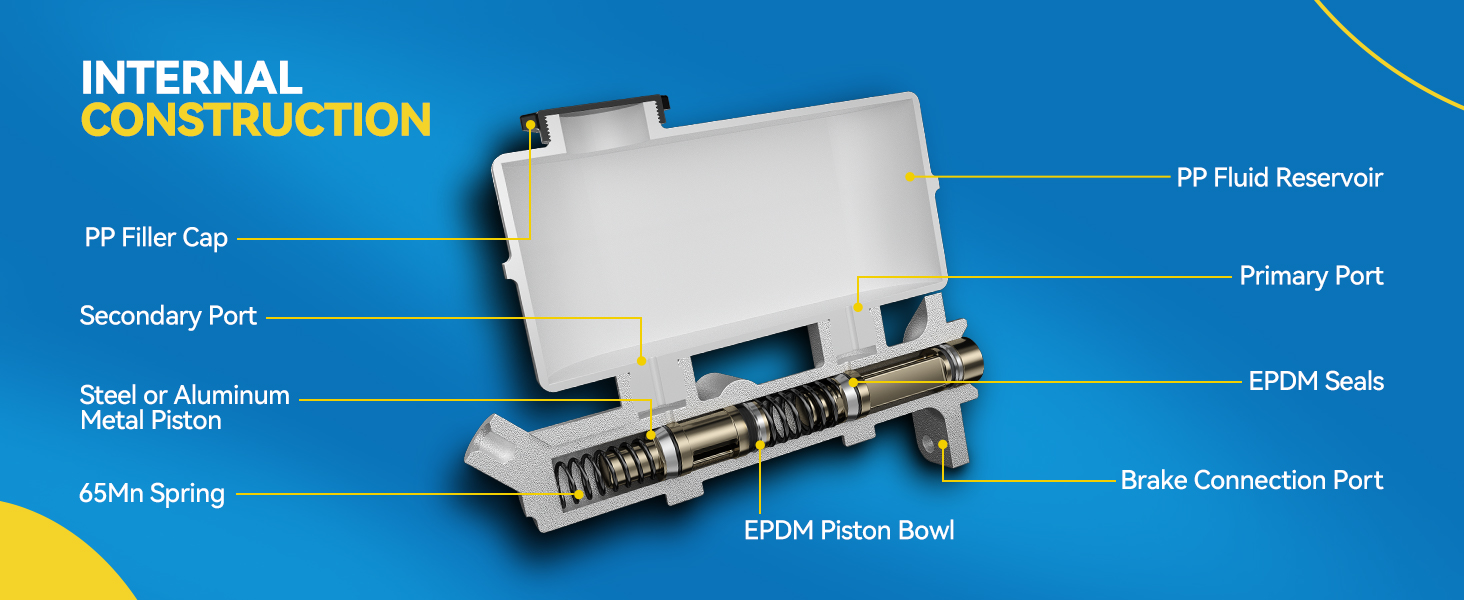

  • (SAE INTERNATIONAL STANDARDS)All rubber parts of this brake master cylinder are made of high-quality EPDM composite material, which is resistant to glycol brake fluid corrosion and meets stringent SAE International standards.

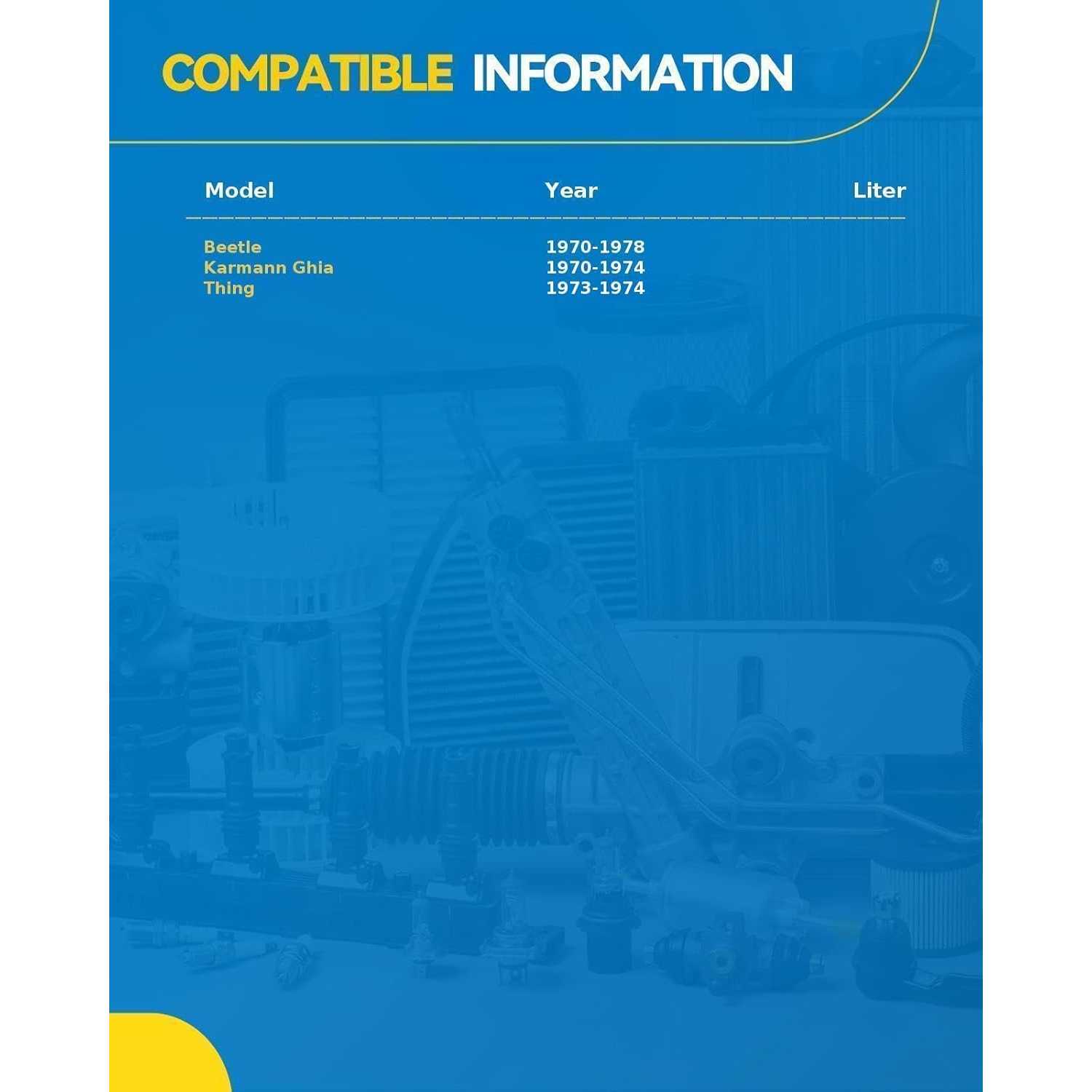

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year1967 - 196919701971 - 19741975 - 19781967 - 19691970 - 19741973 - 1974
MakeVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagen
ModelBeetleBeetleBeetleBeetleKarmann GhiaKarmann GhiaThing
TrimBaseBaseBaseBaseBaseBaseBase
Engine1.5L H41.6L H41.6L H41.6L H41.5L H41.6L H41.6L H4
Note
Bore: 3/4 In.;w/Dual Hydraulic System;w/Manual Brakes
Bore: 3/4 In.;w/Dual Hydraulic System;w/Manual Brakes
Bore: 3/4 In.;w/Manual Brakes
Bore: 3/4 In.
Bore: 3/4 In.;w/Manual Brakes
Bore: 3/4 In.;w/Manual Brakes
-

How to Install?

Installation Manual Download

User manual (PDF)
Download

Installation Steps

  • Step-1: Remove the Old Unit: Extract the brake fluid, disconnect the brake lines and cap all openings immediately to prevent air and contamination from entering.
  • Step-2: Inspect the Booster: Remove the old master cylinder. Inspect the booster push rod, seal and mounting surface for wear, deformation or fluid leakage.
  • Step-3: Bench-Bleed the New Master Cylinder: Bench-bleed the new master cylinder with fresh, vehicle-approved brake fluid until no air bubbles remain. Follow the product instructions or vehicle service manual.
  • Step-4: Install the New Unit: Align the master cylinder with the booster push rod. Hand-start the mounting nuts, then tighten them evenly to the specified torque. Do not force the master cylinder into position.
  • Step-5: Reconnect the Brake Lines: Hand-start each brake-line fitting to prevent cross-threading, then tighten it to the vehicle manufacturer’s specification.
  • Step-6: Fill and Bleed the Brake System: Fill the reservoir with fresh brake fluid to the MAX line. Bleed the complete brake system in the sequence specified by the vehicle service manual. Keep the fluid level above MIN throughout the process. ABS/ESP systems may require a scan tool.

After Installation

  • Bleed the complete brake system after installation, following the sequence specified in the vehicle service manual. Keep the reservoir above MIN throughout the process.
  • Refill the brake fluid to the MAX line after bleeding.
  • With the engine off, pump the brake pedal until it feels firm with normal travel.
  • Check the brake-line fittings and master-cylinder-to-booster surface for leaks.
  • Confirm that the brake and ABS warning lights are off.
  • Perform a low-speed road test and confirm effective, straight braking.
  • Recheck the fluid level and all connections after the road test.

Product Video

Product Description

11

Reviews

4.6/5

Based on 8 reviews

575%
413%
313%
20%
10%

K

04/02/2026

Verified buyer

Just the right fit

Luis Maldonado Maisonet

02/09/2026

Verified buyer

Excelente

FAQS

Please do not install the product. Take photos of the item, packaging and shipping label, then contact Philtop customer support as soon as possible for assistance.

Port location and thread size can vary between applications that otherwise look similar. Compare the new unit with the original and do not force or reshape lines unless the service procedure allows it.

Before driving, press the brake pedal firmly several times until it feels firm, to seat the pads against the rotor.Confirm secure fittings, correct fluid level, no leakage, a stable pedal, normal warning-light status, and proper brake response before normal driving.
