2008-2011 Ford Focus 2.0L L4 | 6-Groove Pulley 150A Alternator | 11272N - PHILTOP

2008-2011 Ford Focus 2.0L L4 | 6-Groove Pulley 150A Alternator | 11272N - PHILTOP

Pulley Grooves: S6

Amperage: 150 A

Built to Last

4.7

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
4358ANR1987US

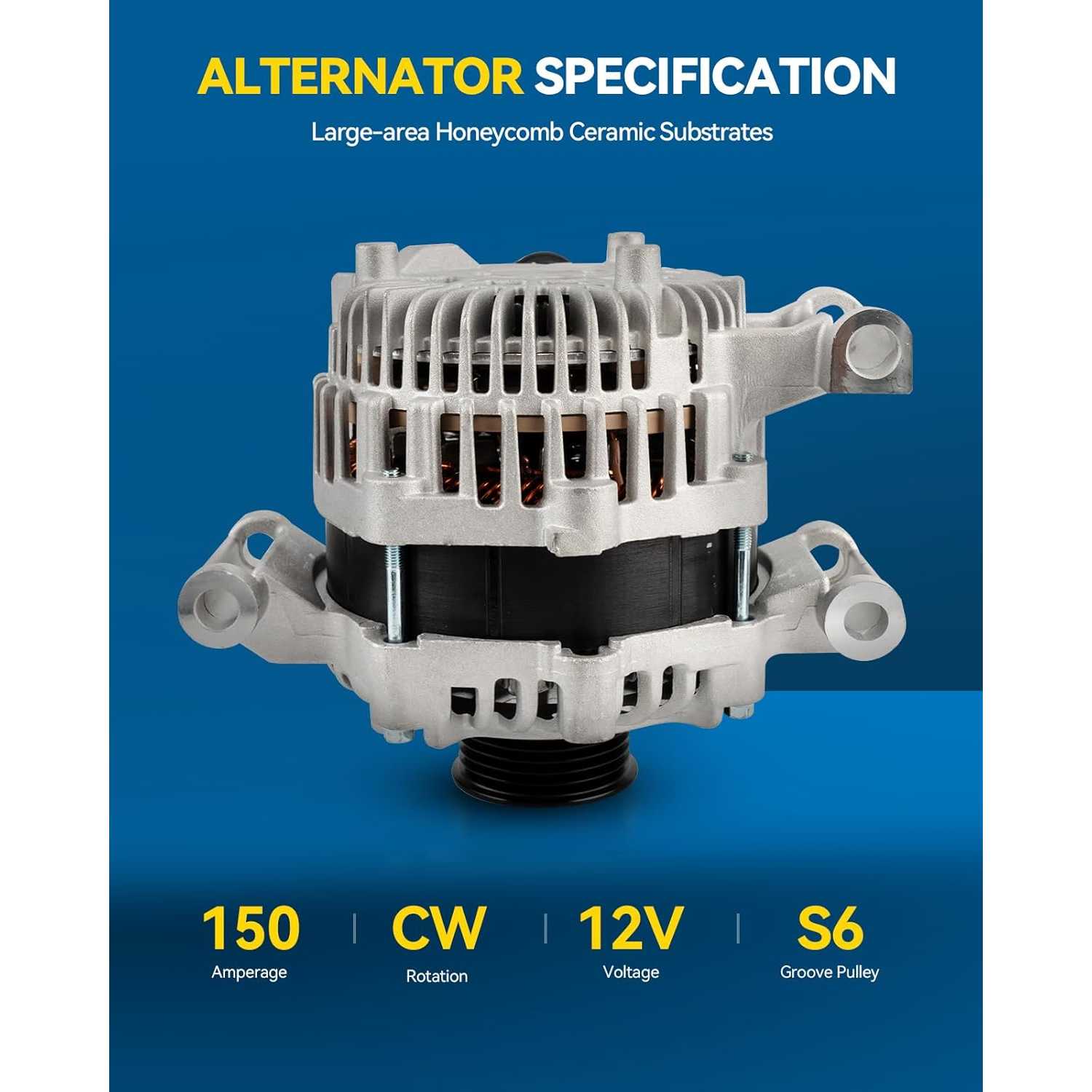

Specifications

Brand
PHILTOP
Pulley Grooves
S6
Amperage
150 A
Rotation Direction
CW
Regulator
IR
Fan Type
IF
Voltage
12 V
Material
Pure Copper Windings, Silicon Steel Laminations, Aluminum Housing
Items Included
1x Alternator 11272N 1x Manual
Warranty Period
2-Year
Part Number
11272N

Highlights

  • Fitment: This Alternator Compatible With 2008-2011 Focus(Mitsubishi Unit), 2009-2012 Escape Hybrid/Limited Hybrid, 2009 Escape(EngineVIN:9), 2010-2012 Escape GAS, 2010 Fusion(EngineVIN:A), 2010 Fusion/Milan Hybrid, 2010 Milan GAS, 2010-2013 Transit Connect 2.0L, 2009 Mariner Base/Premier 2.5L(Mitsubishi Unit), 2010-2011 Mariner GAS, 2009-2011 Mariner Hybrid, 2009-2010 Tribute i/Hybrid, 2011 Tribute 2.5L(150 Amp).(Please MATCH your vehicle on the left top before purchasing)
  • Specifications: ① Voltage:12V; ② Amperage: 150Amp; ③ Rotation: CW; ④ Pulley Class: S6; ⑤ Number of Grooves: 6-Groove Pulley; ⑥ Condition: New; [Reference Number] : 11272N, 8S4T10300AA, 11272, 8S4Z10346A, ZZC718300, 12862, A2TX0191, 2104304, ZZC718300R00, A3272, 90273378, AL7656X.This car alternator meets or exceeds OE standards
  • Premium Alternators: Rigorously tested to OE standards with 2000H endurance, 96H corrosion resistance test, extreme temperatures from -40°C to 105°C, and harsh vibration impacts. Built for unparalleled reliability, ensuring your safety and stable power in any condition
  • Ensure Safety: New alternator engineered to eliminate persistent vehicle issues. By delivering robust, stable, and protected electrical output, it ensures your vehicle's electrical system operates at its peak, eliminating the worry and risk of roadside breakdowns

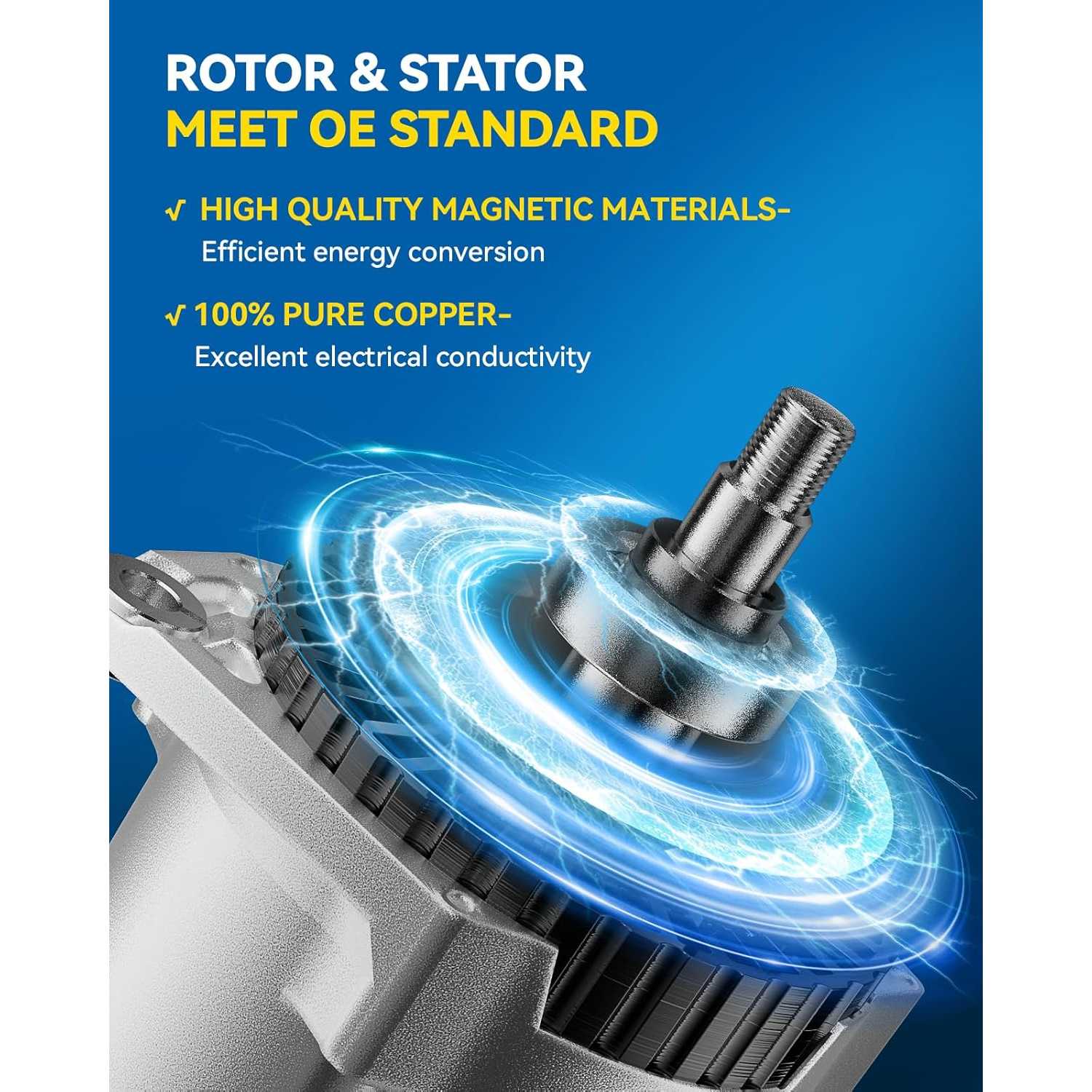

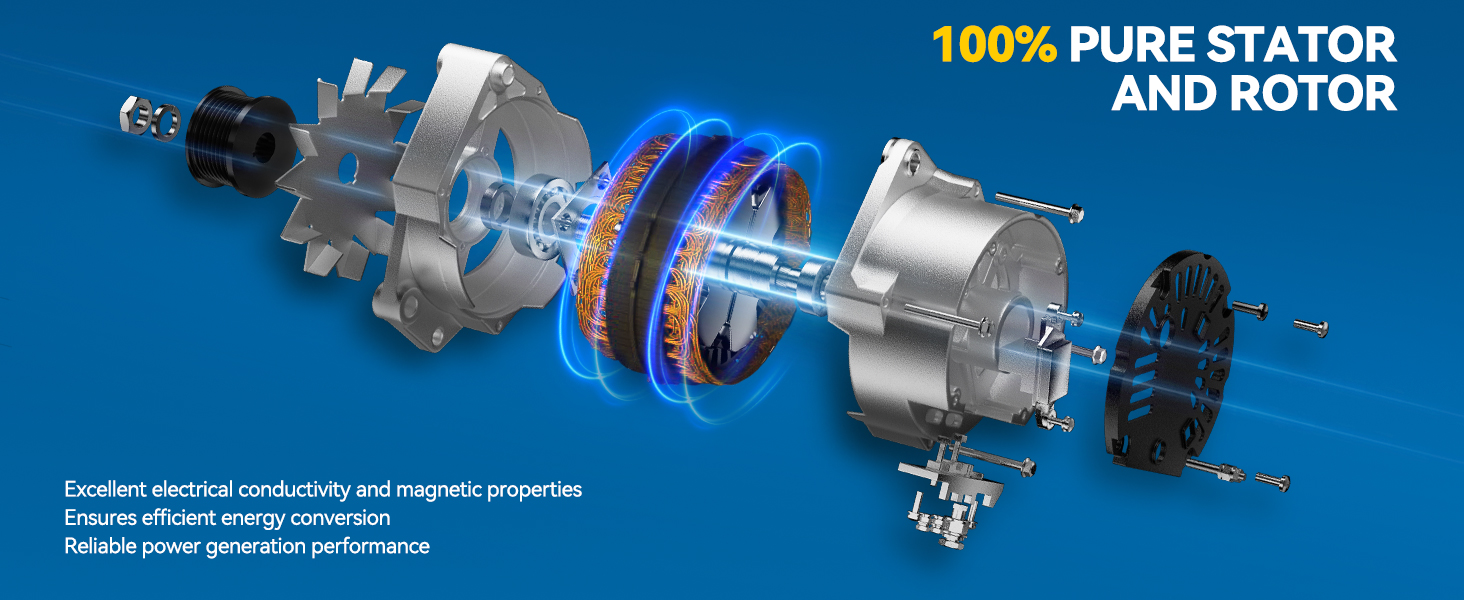

  • High Quality Alternator: Made by precision CNC machining castings, Die-cast aluminum alternator, Pure copper winding, external insulating coating to prevent short circuit, stable and strong power for vehicle, If there is excess power, the power storage system will be fully utilized.Our AC generators are strictly manufactured according to original factory standards, ensuring stable performance, excellent craftsmanship, and rigorous quality control testing

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2009 - 20122009 - 20122009 - 20122008 - 20112008 - 20112009 - 20112008 - 20112010201020102010 - 20132010 - 20132011 - 20132009 - 20112009 - 20112009 - 2010
MakeFordFordFordFordFordFordFordFordFordFordFordFordFordMazdaMercuryMercury
ModelEscapeEscapeEscapeFocusFocusFocusFocusFusionFusionFusionTransit ConnectTransit ConnectTransit ConnectTributeMarinerMariner
TrimLimitedXLSXLTSSESELSESSSESELXLXLTXLT PremiumiBasePremier
Engine2.5L L42.5L L42.5L L42.0L L42.0L L42.0L L42.0L L42.5L L42.5L L42.5L L42.0L L42.0L L42.0L L42.5L L42.5L L42.5L L4
Note----------------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Primary Fault Code Analysis

  • P0562-Low system voltage:check the battery, charging output, and connections.
  • P0563-High system voltage:check voltage regulation and grounds.
  • P0620-Generator control circuit fault:check control wiring and connections.
  • P0621-Generator lamp/L terminal circuit fault:check the warning-light circuit.
  • P0622-Generator field/F terminal circuit fault:check the field circuit and connections.
  • P065B-Generator control circuit range/performance:check charging performance and control signals.

Codes alone do not confirm alternator failure. Definitions and diagnostic procedures vary by vehicle.

Checks Before Installation

  • Check fitment: Match the mounting points and electrical connectors to the original alternator.
  • Check the battery: Charge and test the battery before installation.
  • Inspect the drive system: Check the belt, tensioner, wiring, and terminals for wear, damage, or corrosion.

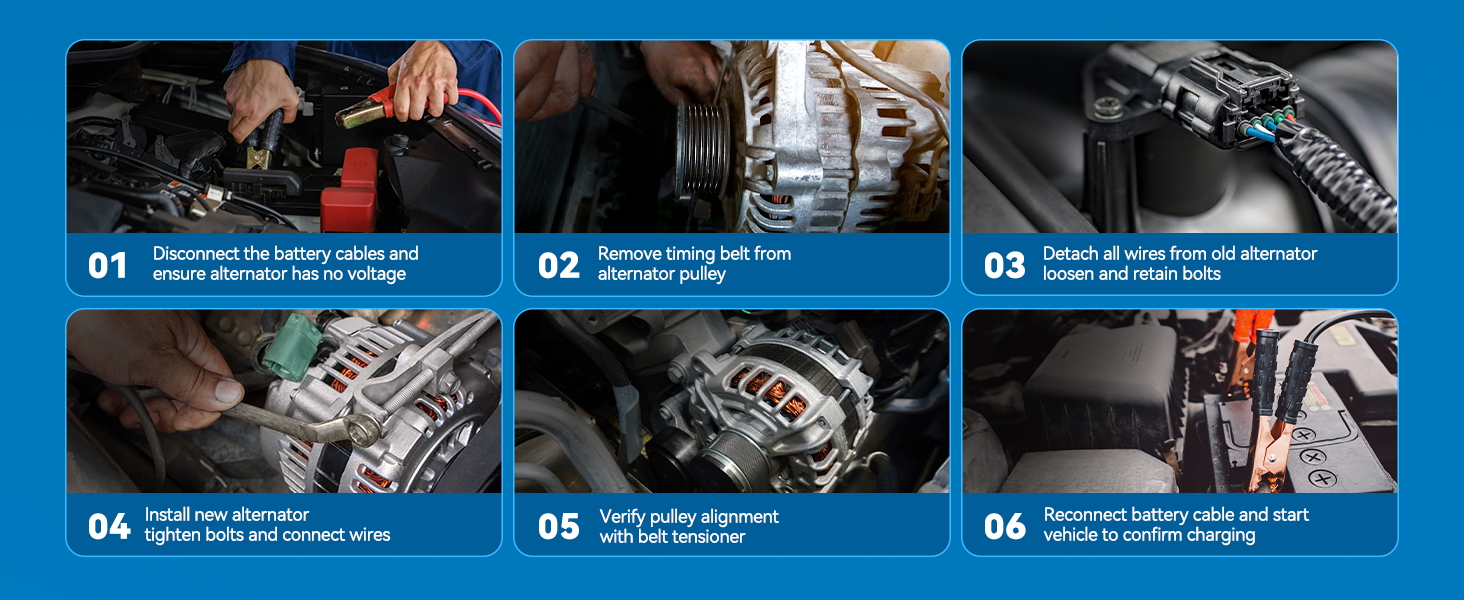

Installation Steps

  • STEP 1 — Park on a level surface, apply the parking brake, and switch off the ignition. Disconnect the negative battery cable.
  • STEP 2 — Photograph the belt routing and wiring connections. Release belt tension and remove the belt from the alternator pulley.
  • STEP 3 — Disconnect the power cable and electrical connectors. Support the alternator and remove its mounting bolts.
  • STEP 4 — Install the new alternator and tighten the mounting bolts to the vehicle manufacturer’s specifications.
  • STEP 5 — Reconnect the wiring and reinstall the belt. Confirm correct belt routing, alignment, and tension before reconnecting the negative battery cable.

After Installation

  • Check that all connections are secure and the belt is seated correctly.
  • Start the engine and confirm the charging warning light turns off.
  • Check charging voltage at the battery against the vehicle manufacturer’s specifications.
  • Switch on the headlights and blower to check charging performance under load. Listen for belt squeal or unusual noise.

Product Video

Product Description

Alternator Replacement forAlternator Replacement for

Reviews

4.7/5

Based on 11 reviews

582%
49%
39%
20%
10%

Nina’s Raves-N-Faves

10/03/2026

Verified buyer

As a professional automotive technician, I’ve installed and tested plenty of aftermarket replacement components over the years, and PHILTOP is quickly becoming one of those brands that consistently impresses me. Their product quality has noticeably improved, and if they continue down this path, I can genuinely see them becoming a serious competitor in the aftermarket automotive parts industry. This particular alternator for the 2008–2011 Ford Focus is another excellent example. The overall construction looks great, the unit performs exactly as expected, and the charging performance is right where I want it to be. After installation, I tested the charging system using my multimeter and measured 14.4 volts at the battery. That’s an excellent charging voltage under my testing conditions. Everything was functioning properly, and I encountered no performance issues. One thing I particularly appreciated about this alternator was the packaging. PHILTOP really did an excellent job protecting this unit during shipping. The alternator arrived surrounded by protective foam, providing cushioning on all sides. That’s exactly the kind of packaging I want to see when ordering an electrical automotive component. An alternator contains sensitive internal electrical components, including a voltage regulator and rectifier assembly. Protecting those components from unnecessary impacts during transportation is important. I’ve received replacement parts from other manufacturers with nowhere near this level of protection, so it’s refreshing to see PHILTOP paying attention to these details. Between the construction quality, charging performance, protective packaging, and overall presentation, I’m extremely pleased with this replacement. Pros * Excellent charging performance, measuring 14.4V during my testing * Solid construction and good overall build quality * Performed exactly as expected after installation * Outstanding protective packaging with foam surrounding the alternator * Another positive experience with PHILTOP aftermarket components * Good replacement option for compatible Ford Focus applications * installing this part was easy, as you should expect with any good alternator there where no issues Cons * None encountered during installation or initial testing * Long-term durability will need to be evaluated over time * the fitment was a little tight one of the resting screws for a little bit snug for my liking PHILTOP continues to earn my confidence as a professional technician. I’ve been increasingly impressed with the quality of their replacement automotive components, and this alternator certainly hasn’t disappointed. Everything from the packaging to the actual charging performance demonstrates attention to quality. If it continues performing this well over the long term, I’ll have absolutely no complaints. Five stars for another excellent replacement component from PHILTOP.

Nina’s Raves-N-Faves

10/03/2026

Verified buyer

As a professional automotive technician, I’ve installed and tested plenty of aftermarket replacement components over the years, and PHILTOP is quickly becoming one of those brands that consistently impresses me. Their product quality has noticeably improved, and if they continue down this path, I can genuinely see them becoming a serious competitor in the aftermarket automotive parts industry.This particular alternator for the 2008–2011 Ford Focus is another excellent example. The overall construction looks great, the unit performs exactly as expected, and the charging performance is right where I want it to be.After installation, I tested the charging system using my multimeter and measured 14.4 volts at the battery. That’s an excellent charging voltage under my testing conditions. Everything was functioning properly, and I encountered no performance issues.One thing I particularly appreciated about this alternator was the packaging. PHILTOP really did an excellent job protecting this unit during shipping. The alternator arrived surrounded by protective foam, providing cushioning on all sides. That’s exactly the kind of packaging I want to see when ordering an electrical automotive component.An alternator contains sensitive internal electrical components, including a voltage regulator and rectifier assembly. Protecting those components from unnecessary impacts during transportation is important. I’ve received replacement parts from other manufacturers with nowhere near this level of protection, so it’s refreshing to see PHILTOP paying attention to these details.Between the construction quality, charging performance, protective packaging, and overall presentation, I’m extremely pleased with this replacement.Pros* Excellent charging performance, measuring 14.4V during my testing* Solid construction and good overall build quality* Performed exactly as expected after installation* Outstanding protective packaging with foam surrounding the alternator* Another positive experience with PHILTOP aftermarket components* Good replacement option for compatible Ford Focus applications* installing this part was easy, as you should expect with any good alternator there where no issuesCons* None encountered during installation or initial testing* Long-term durability will need to be evaluated over time* the fitment was a little tight one of the resting screws for a little bit snug for my likingPHILTOP continues to earn my confidence as a professional technician. I’ve been increasingly impressed with the quality of their replacement automotive components, and this alternator certainly hasn’t disappointed.Everything from the packaging to the actual charging performance demonstrates attention to quality. If it continues performing this well over the long term, I’ll have absolutely no complaints.Five stars for another excellent replacement component from PHILTOP.

FAQS

Check the battery, belt, and wiring first. A charging-system test can help confirm the cause.

No. This can damage vehicle electronics. Use a charging-system tester instead.

PHILTOP Alternator are specifically designed for [specific vehicle models]. You can check the vehicle compatibility and product images on this page, or reach out for confirmation to ensure a perfect match.
