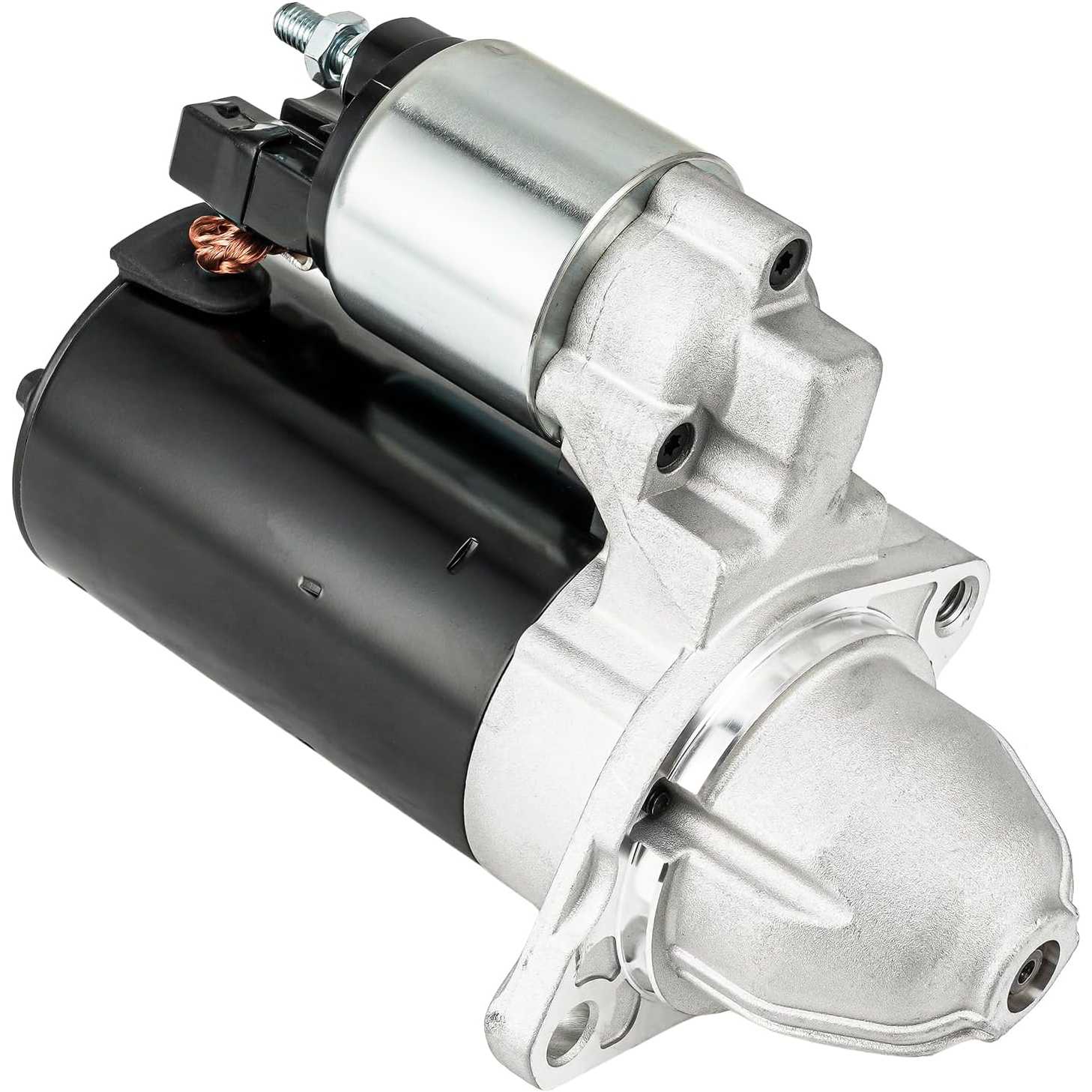

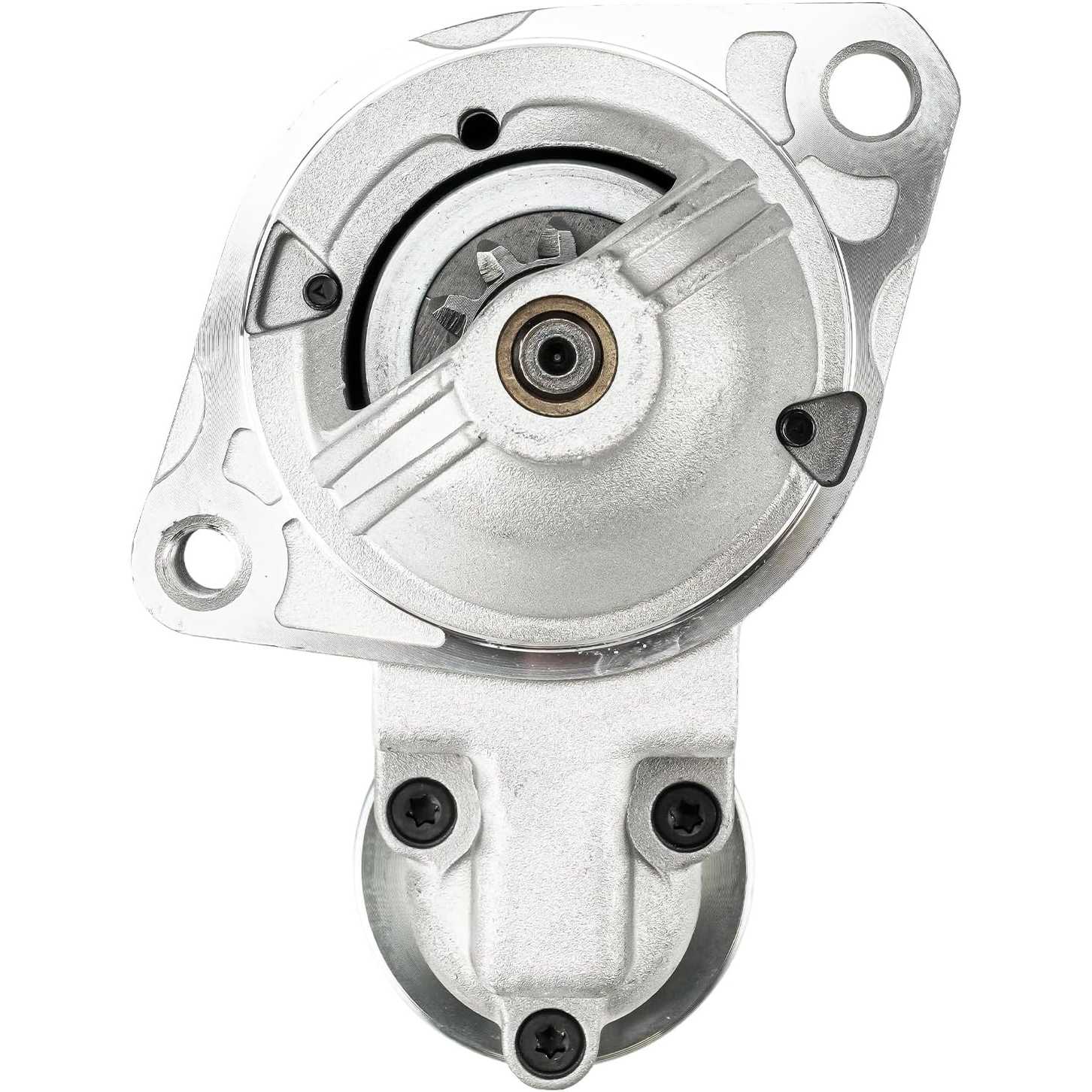

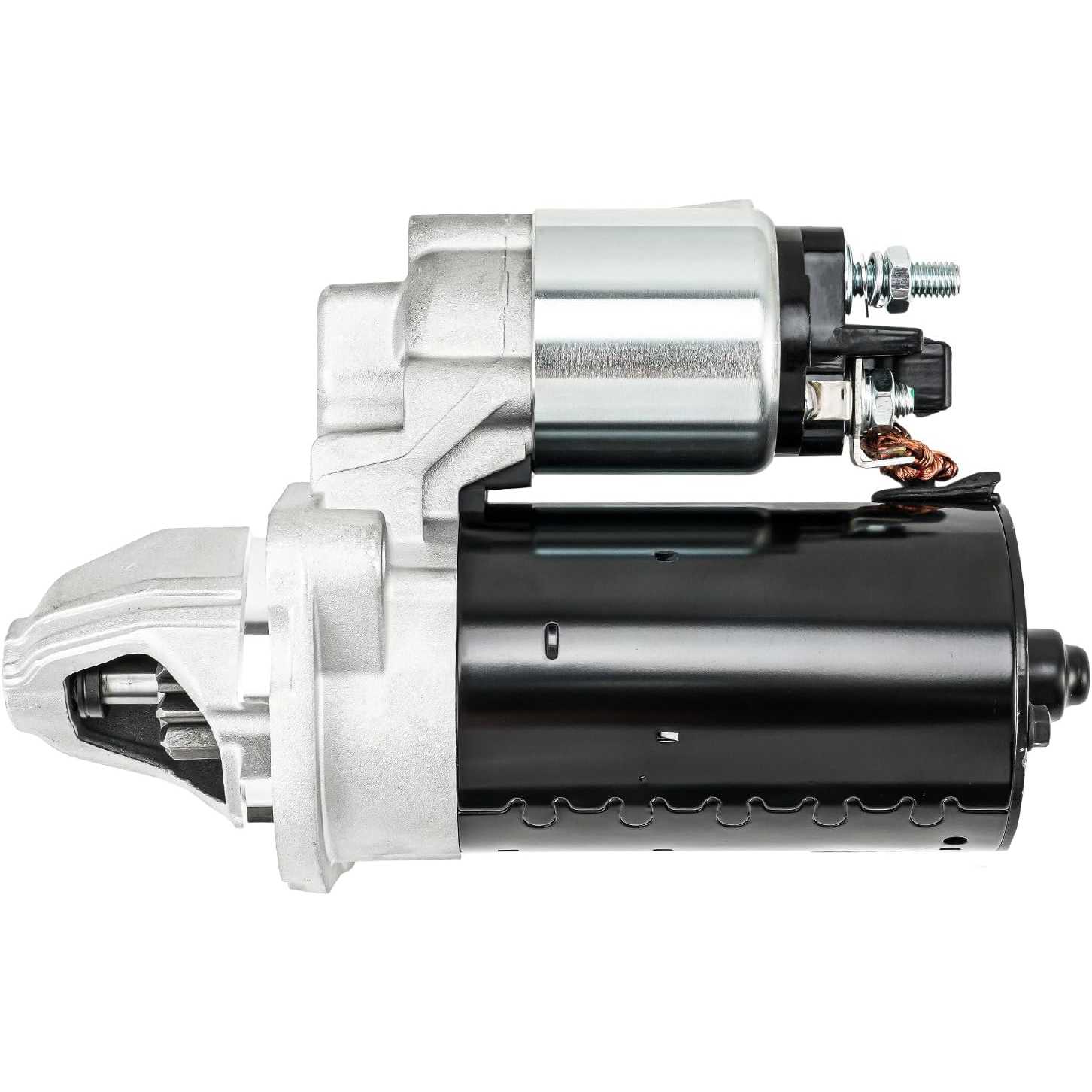

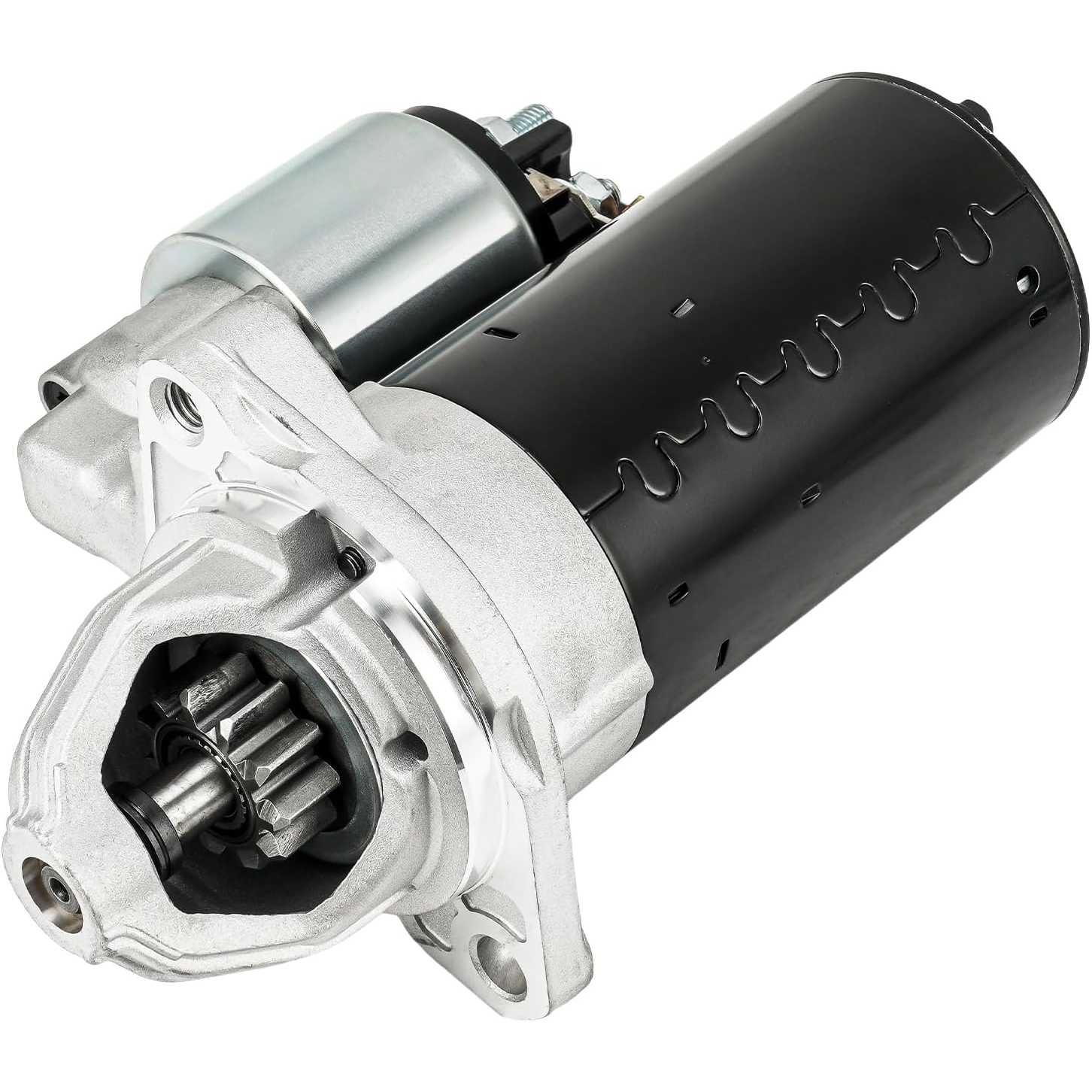

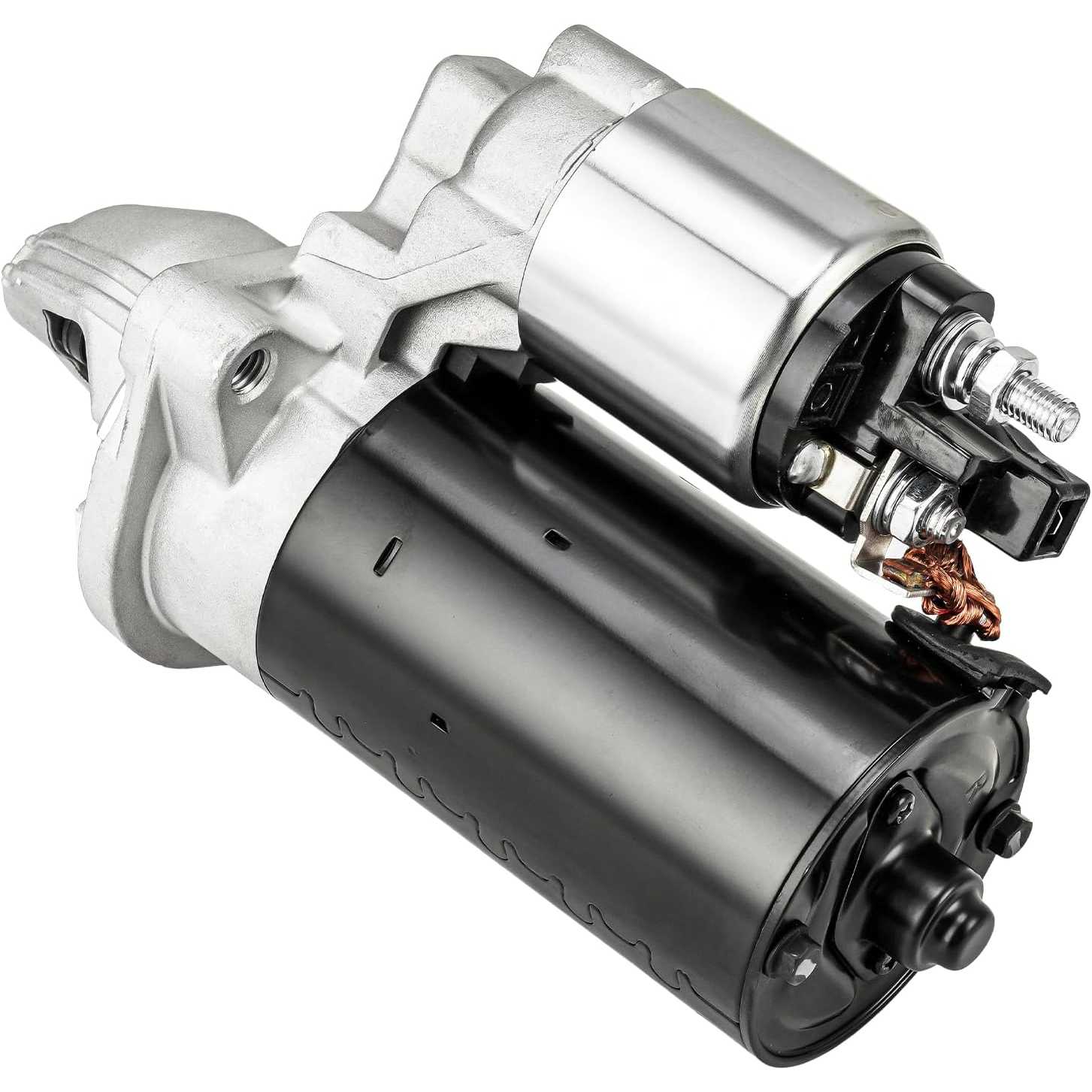

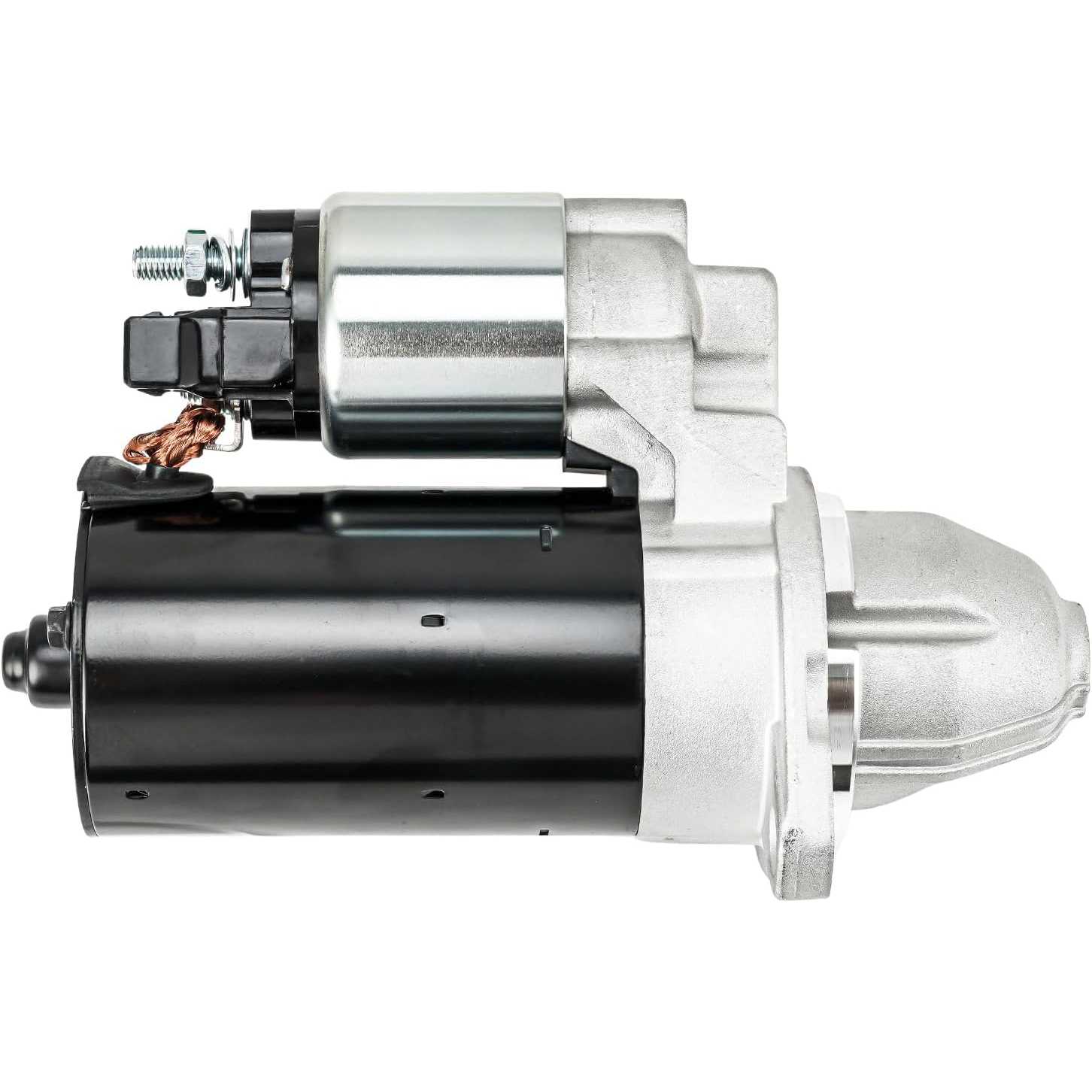

2013-2017 BMW X3 2.0L L4 | 1.7KW 11-Tooth Starter | 19308N - PHILTOP

2013-2017 BMW X3 2.0L L4 | 1.7KW 11-Tooth Starter | 19308N - PHILTOP

Power: 1.7 kW

Pinion Teeth: 11

Quick Starting Response

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
9434STM109FUS

Specifications

Brand
PHILTOP
Power
1.7 kW
Pinion Teeth
11
Voltage
12 V
Rotation Direction
CW
Material
Pure Copper Windings, Aluminum Housing, Laminated Steel Core
Items Included
1x Starter 19308N 1x Manual
Warranty Period
2-Year
Part Number
19308N

Highlights

  • Fitment: Starter Compatible with BMW 2014-2016 228i Automatic, 2013-2018 320i, 2016-2018 320i xDrive, 2012-2016 328i 2.0L Automatic, 2016 328i xDrive, 328i GT xDrive, 2014 428i, 2015-2016 428i Coupe Automatic, 2014-2016 528i, 2012,2014-2015 X1 2.0L, 2013-2017 X3 2.0L, 2015-2018 X4 2.0L, 2014-2016 Z4 2.0L Automatic, (Bosch Permanent Magnet Gear Reduction; 1.7kw; 11-Tooth).(Please MATCH your vehicle on the left top before purchasing)
  • Specifications: ①Power: 1.7Kw, ②Voltage:12, ③Rotation Direction: CW, ④Specs for: Bosch PMGR, ⑤Tooth Pinion: 11.[Reference Number]:19308N
  • Premium Starters: Rigorously tested to OE standards with 2000H endurance, 96H corrosion resistance test, extreme temperatures from -40°C to 105°C, and harsh vibration impacts. Built for unparalleled reliability, ensuring your safety and stable power in any condition
  • Efficient Quiet: New Starter with high-quality coils and precision gears enable quick, smooth starts with no noise. Superior conductive materials reduce fuel consumption and prevent short circuits. Install once for lasting performance
  • Easy Installation: Our replacement alternators for cars are designed for plug-and-play installation, requiring no modifications or drilling, making the installation quick and easy. Note: 1.Please double check the part number of your item, matching information is for reference only.2.Product functions are fully compatible with the original equipment. Minor cosmetic differences may occur across production batches; please refer to the actual product for details

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2014 - 20162013 - 20182012 - 20162014 - 20162014 - 20162014 - 201520122014 - 20152015 - 20172015 - 20172013 - 20172015 - 20182014 - 2016
MakeBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMW
Model228i320i328i428i528iX1X1X1X3X3X3X4Z4
TrimBaseBaseBaseBaseBasesDrive28ixDrive28ixDrive28isDrive28ixDrive28dxDrive28ixDrive28isDrive28i
Engine2.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L4
Note----
Stop/Start Feature
---
From 07/2013
From 07/2013
From 07/2013
-
Stop/Start Feature

How to Install?

Installation Manual Download

User manual (PDF)
Download

Primary Fault Code Analysis

  • P0562-Low system voltage:check the battery, cables, and grounds.
  • P0615-Starter relay circuit fault:check the relay and control wiring.
  • P0616-Starter relay circuit low:check for wiring damage or a short to ground.
  • P0617-Starter relay circuit high:check for an open circuit or a short to power.
  • P0335-Crankshaft position sensor “A” circuit fault:may cause a crank-but-no-start condition.

Codes alone do not confirm starter failure. Definitions and diagnostic procedures vary by vehicle.

Checks Before Installation

  • Check fitment: Match the mounting points, electrical connections, and gear size/tooth count to the original starter.
  • Check the battery: Make sure it is fully charged and the terminals are clean and secure.
  • Check related components: Inspect the starter fuse, relay, wiring, and flywheel ring gear before replacement.

Installation Steps

  • STEP 1 — Park on a level surface, apply the parking brake, and switch off the ignition. Disconnect the negative battery cable.
  • STEP 2 — Photograph the wiring connections, then disconnect the starter cables and connectors.
  • STEP 3 — Support the starter, remove the mounting bolts, and carefully remove the old unit.
  • STEP 4 — Install the new starter and tighten the mounting bolts to the vehicle manufacturer’s specifications.
  • STEP 5 — Reconnect the cables and connectors, refit protective covers, and reconnect the negative battery cable last.

After Installation

  • Confirm all bolts and electrical connections are secure and wiring is clear of moving parts.
  • With the transmission in Park or Neutral and the parking brake applied, perform a brief starting test.
  • Check for smooth cranking and proper gear disengagement. Stop if you hear grinding or unusual noise.
  • Switch off the engine and inspect for loose connections or signs of overheating.

Product Video

Product Description

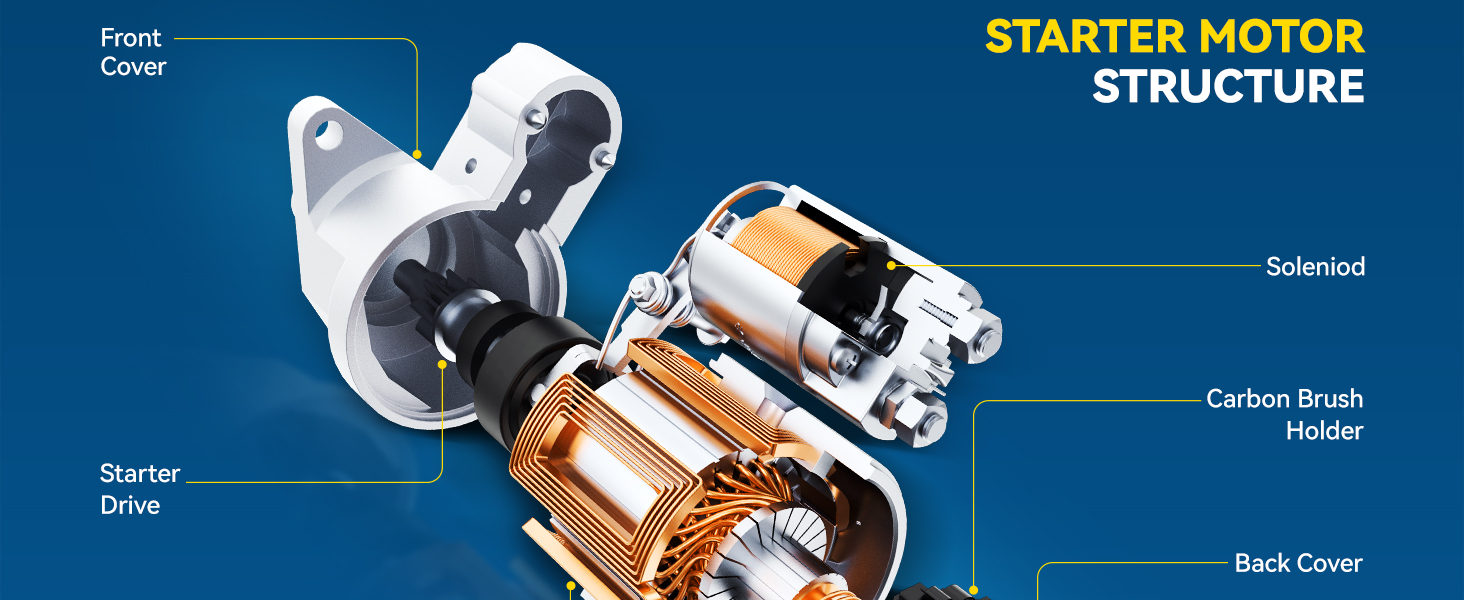

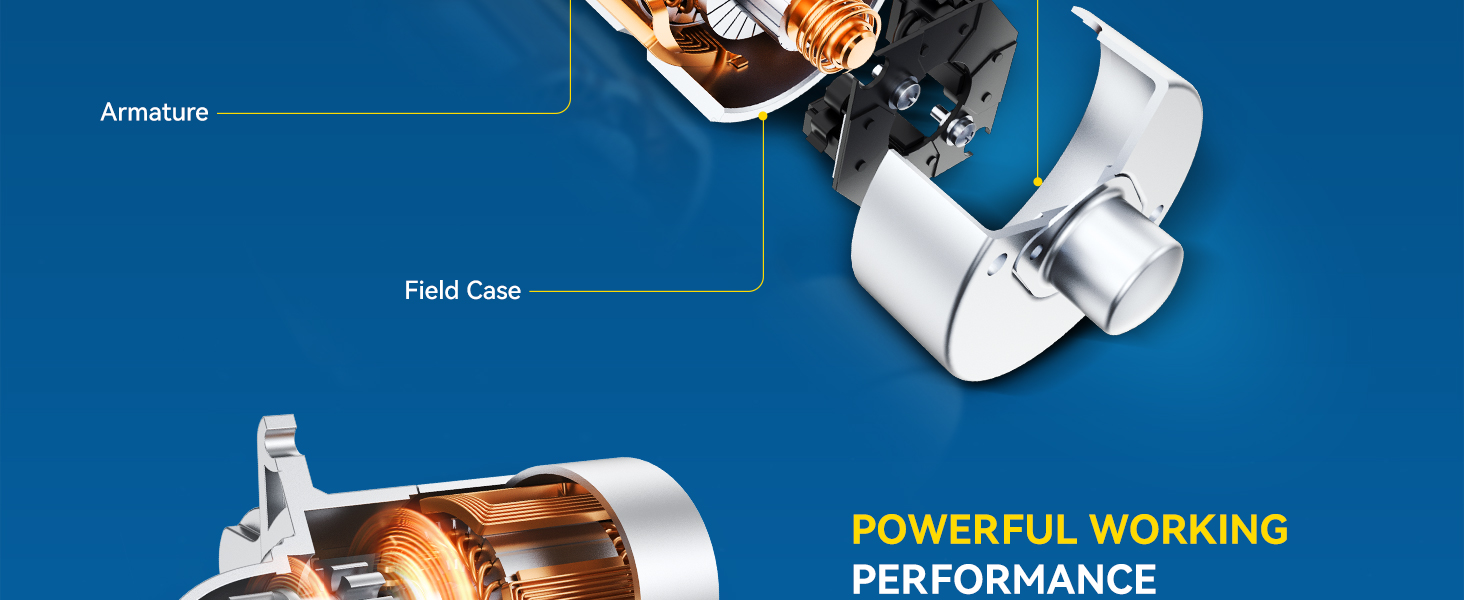

starter motorstarter motor

Reviews

5.0/5

Based on 4 reviews

5100%
40%
30%
20%
10%

Nancy_FirstCar_408

10/14/2025

This totally fixed my cold start issues on the X3. It sounds very crisp when starting up now, much better than the failing Bosch unit it replaced.

Nancy_FirstCar_3

11/22/2025

Super impressed with how fast this arrived at my door. The fitment was perfect for my 328i, and I had the whole thing swapped out in under an hour.

FAQS

PHILTOP Starter are specifically designed for [specific vehicle models]. Rigorously tested to OE standards. You can check the vehicle compatibility and product images to ensure a perfect match.

Slow cranking can also result from low battery charge, poor ground connections, damaged cables, unsuitable engine oil viscosity, or mechanical resistance in the engine. Check these conditions before assuming the replacement starter is faulty.

Check the battery and cable connections first. Low battery power or loose wiring can cause similar starting problems.
