2004-2005 Chevrolet Classic 2.2L | 1.2KW 9-Tooth Starter | 6493N - PHILTOP

2004-2005 Chevrolet Classic 2.2L | 1.2KW 9-Tooth Starter | 6493N - PHILTOP

Power: 1.2 kW

Pinion Teeth: 9

Quick Starting Response

4.5

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
8522STM050YUS

Specifications

Brand
PHILTOP
Power
1.2 kW
Pinion Teeth
9
Voltage
12 V
Rotation Direction
CW
Material
Pure Copper Windings, Aluminum Housing, Laminated Steel Core
Items Included
1x Starter 6493N 1x Manual
Warranty Period
2-Year
Part Number
6493N

Highlights

  • Fitment: Starter Compatible with Chevy 2002 Cavalier 2.2L, 2003,2005 Cavalier, 2004 Cavalier BI-FUEL, 2004-2005 Classic, 2005-2007 Cobalt, 2006-2007 HHR, 2004-2007 Malibu 2.2L, Saturn 2003-2007 Ion, 2004 L300 2.2L, 2007 Sky, 2002-2007 Vue 2.2L, 2007 Vue 2.4L, Pontiac 2007 G5, 2006-2007 G6 2.4L, 2002-2005 Grand Am 2.2L, 2005-2006 Pursuit, 2006-2007 Solstice, 2002-2005 Sunfire 2.2L, Oldsmobile 2002-2004 Alero 2.2L.(Please MATCH your vehicle on the left top before purchasing)
  • Specifications: ①Power: 1.2Kw, ②Voltage:12, ③Rotation Direction: CW, ④Specs for: Delco PG260D PMGR, ⑤Tooth Pinion: 9.[Reference Number]:12564089, 89017756, 89017523, 9000856, 12581146, 12586764, 89017443, 10465551, 12587865, 12575083, 9000959, 9000933, 6493N, 9000976, 9000977, 89018113, 12596233, 12564088, 8100012
  • Premium Starters: Rigorously tested to OE standards with 2000H endurance, 96H corrosion resistance test, extreme temperatures from -40°C to 105°C, and harsh vibration impacts. Built for unparalleled reliability, ensuring your safety and stable power in any condition
  • Efficient Quiet: New Starter with high-quality coils and precision gears enable quick, smooth starts with no noise. Superior conductive materials reduce fuel consumption and prevent short circuits. Install once for lasting performance
  • Easy Installation: Our replacement alternators for cars are designed for plug-and-play installation, requiring no modifications or drilling, making the installation quick and easy. Note: 1.Please double check the part number of your item, matching information is for reference only.2.Product functions are fully compatible with the original equipment. Minor cosmetic differences may occur across production batches; please refer to the actual product for details

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2002 - 20052002 - 200320052002 - 200320052004 - 2005200420052005 - 20072005 - 20072006 - 20072005 - 20072006 - 20072006 - 200720072006 - 20072006 - 2007200720072004 - 20052006 - 20072006 - 20072002 - 20042002 - 20032002 - 2004200720072006 - 20072002 - 20052002 - 20042006 - 2007200720052002 - 20032002 - 20042003 - 20052003 - 20072003 - 20072006 - 20072004 - 20072004200720072002 - 20072007
MakeChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletOldsmobileOldsmobileOldsmobilePontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacSaturnSaturnSaturnSaturnSaturnSaturnSaturnSaturnSaturnSaturn
ModelCavalierCavalierCavalierCavalierCavalierClassicClassicCobaltCobaltCobaltCobaltCobaltCobaltHHRHHRHHRHHRHHRHHRMalibuMalibuMalibuAleroAleroAleroG5G5G6Grand AmGrand AmSolsticeSolsticeSunfireSunfireSunfireIonIonIonIonIonL300SkySkyVueVue
TrimBaseLSLSLS SportLS SportBaseLSBaseLSLTLTZSSSSLSLS PanelLTLTLT PanelLT PanelBaseLSLTGLGLSGXBaseGTBaseSESE1BaseGXPBaseGTSE1233Red Line1BaseRed LineBaseGreen Line
Engine2.2L L42.2L L42.2L L42.2L L42.2L L42.2L L42.2L L42.2L L42.2L L42.2L L42.2L L42.0L L42.4L L42.2L L42.2L L42.2L L42.4L L42.2L L42.4L L42.2L L42.2L L42.2L L42.2L L42.2L L42.2L L42.2L L42.4L L42.4L L42.2L L42.2L L42.4L L42.0L L42.2L L42.2L L42.2L L42.2L L42.2L L42.2L L42.4L L42.0L L42.2L L42.4L L42.0L L42.2L L42.4L L4
Note---------------------------------------------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Primary Fault Code Analysis

  • P0562-Low system voltage:check the battery, cables, and grounds.
  • P0615-Starter relay circuit fault:check the relay and control wiring.
  • P0616-Starter relay circuit low:check for wiring damage or a short to ground.
  • P0617-Starter relay circuit high:check for an open circuit or a short to power.
  • P0335-Crankshaft position sensor “A” circuit fault:may cause a crank-but-no-start condition.

Codes alone do not confirm starter failure. Definitions and diagnostic procedures vary by vehicle.

Checks Before Installation

  • Check fitment: Match the mounting points, electrical connections, and gear size/tooth count to the original starter.
  • Check the battery: Make sure it is fully charged and the terminals are clean and secure.
  • Check related components: Inspect the starter fuse, relay, wiring, and flywheel ring gear before replacement.

Installation Steps

  • STEP 1 — Park on a level surface, apply the parking brake, and switch off the ignition. Disconnect the negative battery cable.
  • STEP 2 — Photograph the wiring connections, then disconnect the starter cables and connectors.
  • STEP 3 — Support the starter, remove the mounting bolts, and carefully remove the old unit.
  • STEP 4 — Install the new starter and tighten the mounting bolts to the vehicle manufacturer’s specifications.
  • STEP 5 — Reconnect the cables and connectors, refit protective covers, and reconnect the negative battery cable last.

After Installation

  • Confirm all bolts and electrical connections are secure and wiring is clear of moving parts.
  • With the transmission in Park or Neutral and the parking brake applied, perform a brief starting test.
  • Check for smooth cranking and proper gear disengagement. Stop if you hear grinding or unusual noise.
  • Switch off the engine and inspect for loose connections or signs of overheating.

Product Video

Product Description

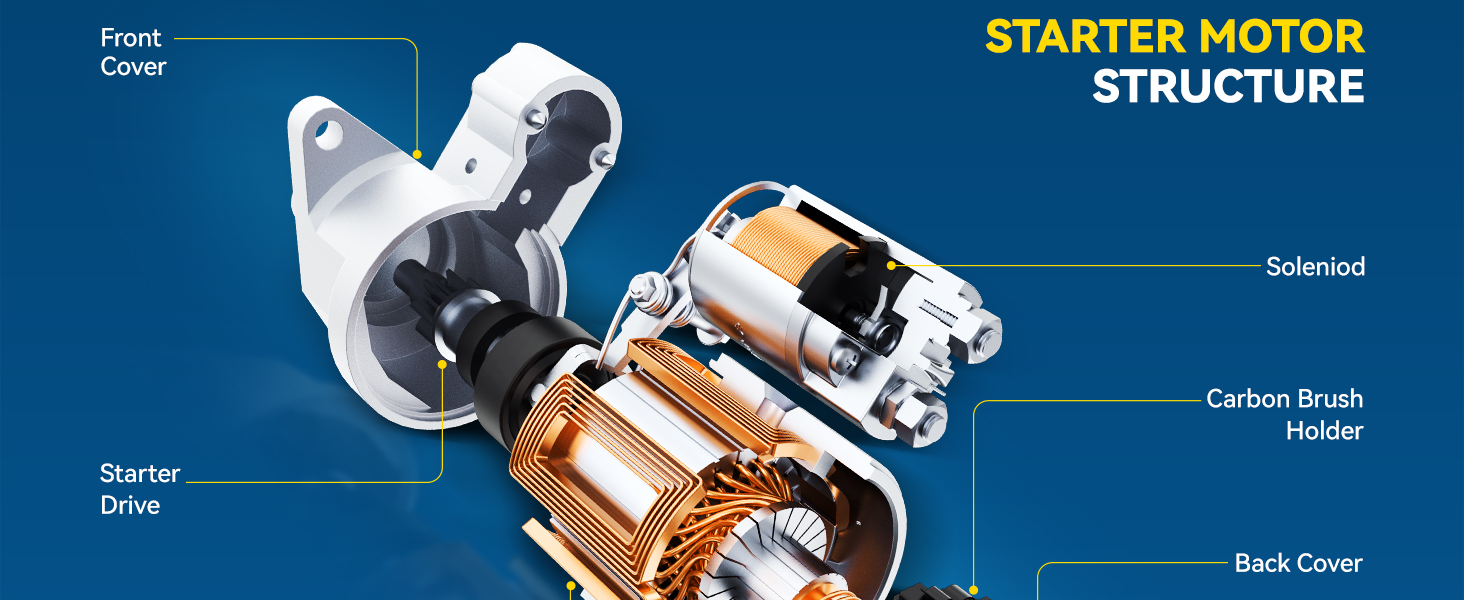

starter motorstarter motor

Reviews

4.5/5

Based on 2 reviews

550%
450%
30%
20%
10%

Lisa_CivicDriver_303

10/22/2025

Shipping was very quick and it fit my Cavalier without any issues. Very easy project for a Saturday morning.

Steve_DIYer_658

03/07/2026

It fixed the starting issues on my Malibu right away. There was a small bolt missing in the box, but the customer service team was quick to ship it to me.

FAQS

Check the package contents listed on the product page. If an included item is missing, contact us with your order number and photos of everything received.

Consider replacement if you notice: slow cranking, loud grinding/clicking noises, or the engine not turning over. Please confirm the specific parameters of the product before purchasing.

Please refer to the picture. Generally,a starter does not include bolts or other accessories. It is recommended to make full use of the existing bolts, screws and other accessories, which can be perfectly matched with the original accessories.
