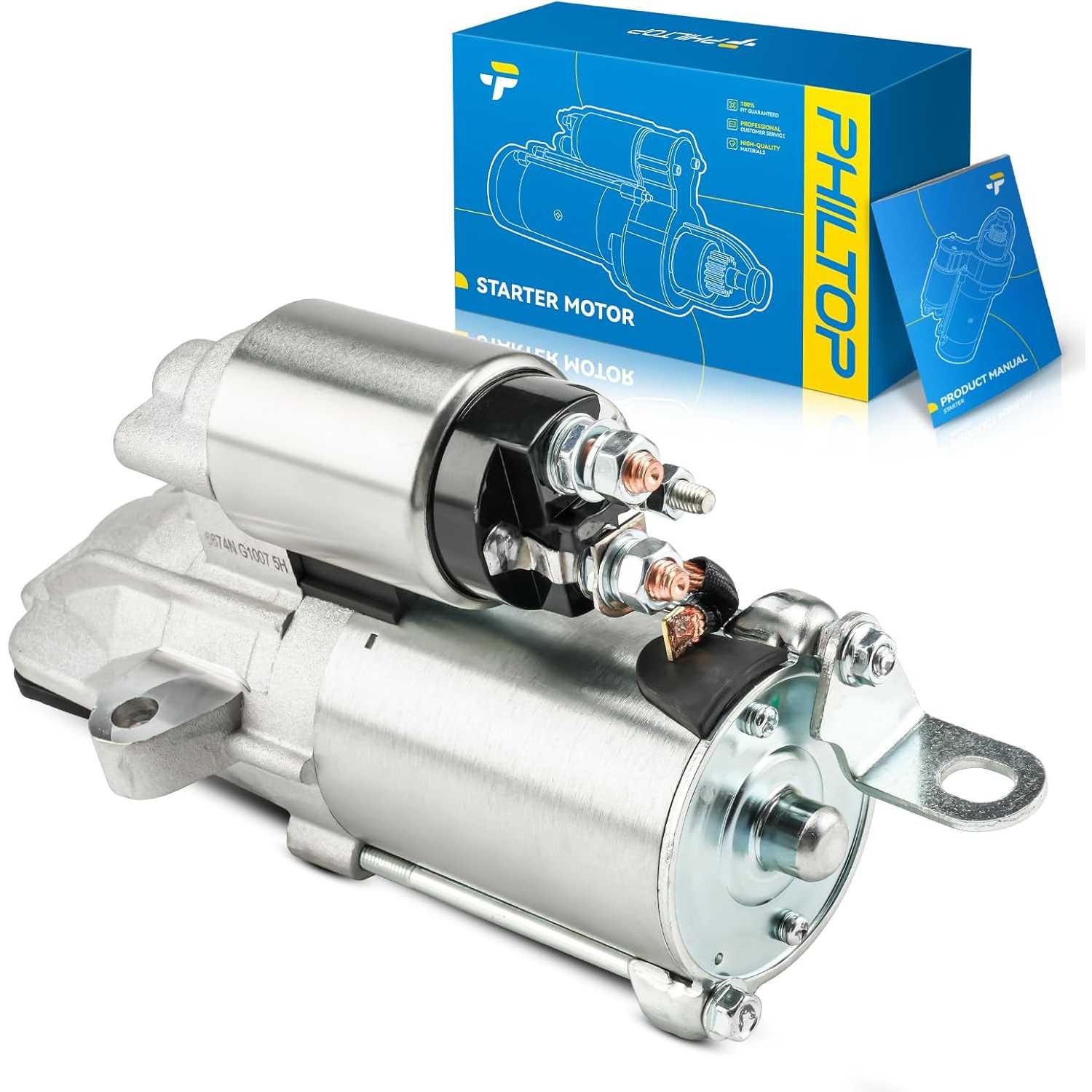

2003-2010 Ford Focus 2.3L/2.0L | 1.4KW 11-Tooth Starter | 6674N - PHILTOP

2003-2010 Ford Focus 2.3L/2.0L | 1.4KW 11-Tooth Starter | 6674N - PHILTOP

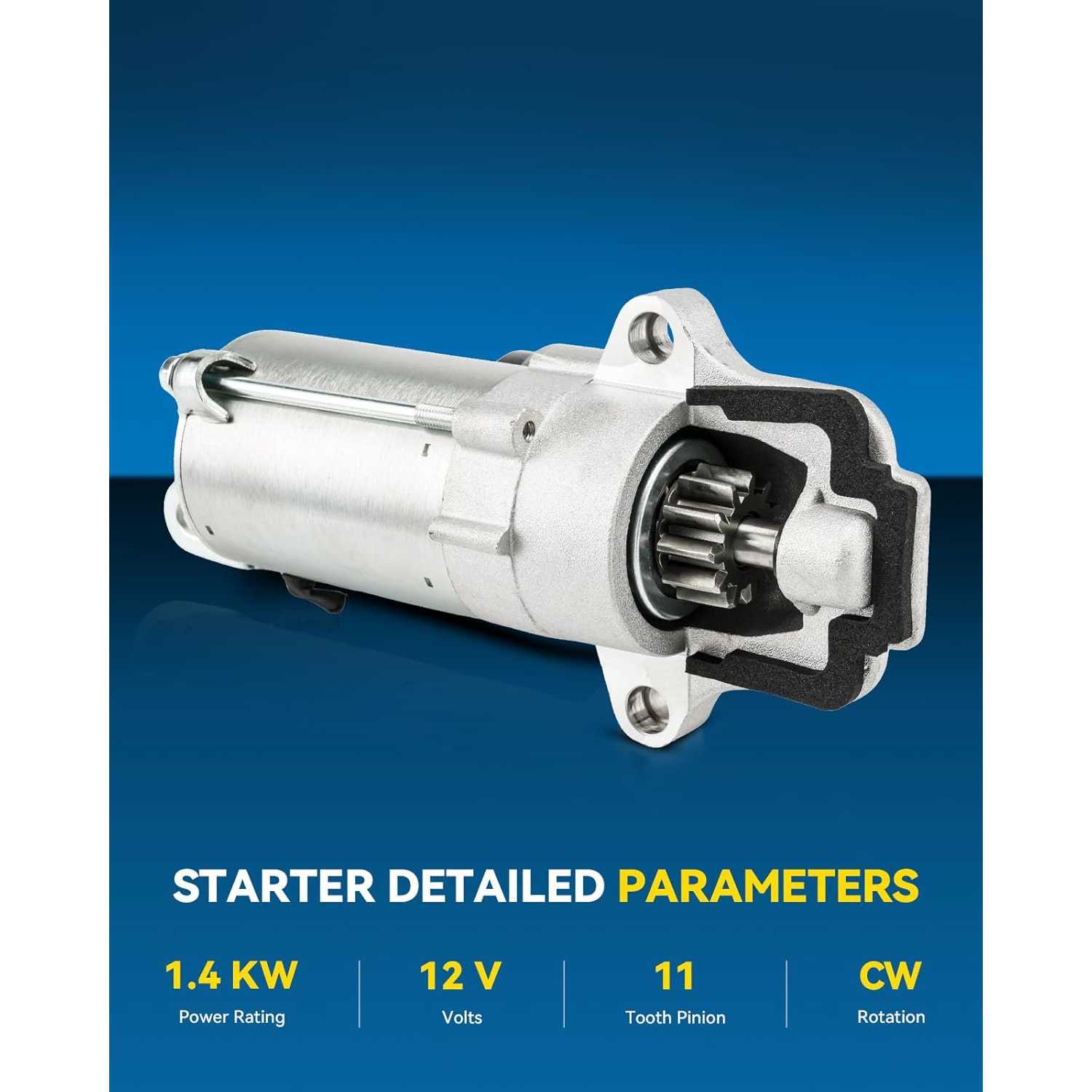

Power: 1.4 kW

Pinion Teeth: 11

Quick Starting Response

4.2

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
2883STM0529US

Specifications

Brand
PHILTOP
Power
1.4 kW
Pinion Teeth
11
Voltage
12 V
Rotation Direction
CW
Material
Pure Copper Windings, Aluminum Housing, Laminated Steel Core
Items Included
1x Starter 6674N 1x Manual
Warranty Period
2-Year
Part Number
6674N

Highlights

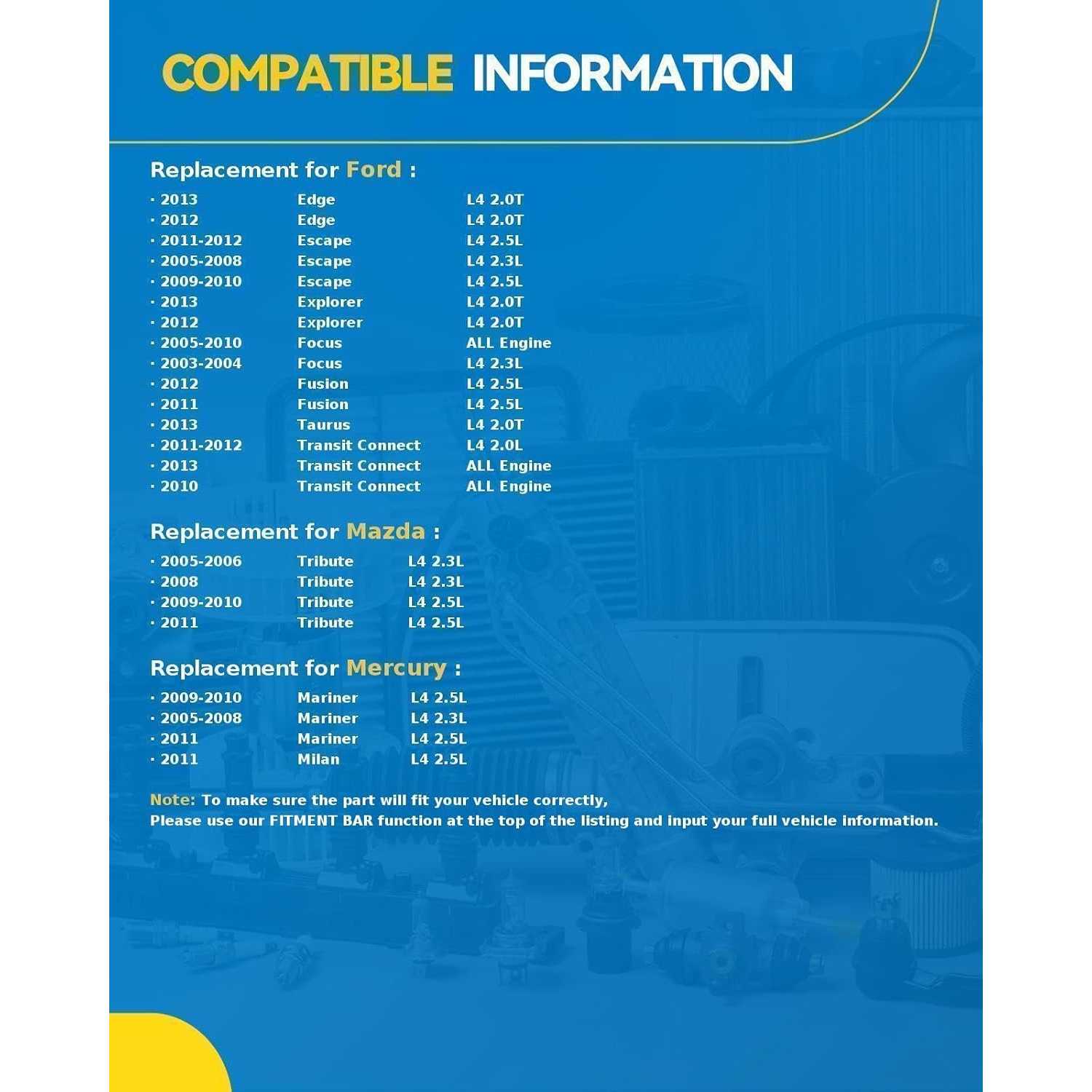

  • Starter Compatible with:2005-2010 Focus, 2009-2012 Escape 2.5L, 2011-2012 Fusion 2.5L, 2005-2008 Escape 2.3L, 2010 2013 Transit Connect, 2011-2012 Transit Connect 2.0L, 2003-2004 Focus 2.3L, 2012-2013 Edge 2.0T, 2005-2006 2008 Tribute 2.3L, 2009-2011 Mariner 2.5L, 2012-2013 Explorer 2.0T, 2005-2008 Mariner 2.3L, 2009-2011 Tribute 2.5L, 2013 Taurus 2.0T, 2011 Milan 2.5L
  • Starter Replacement OE Number:6674N,3S4T11000AB, 3S4T11000AC, L3H518400, 3S4Z11002AB, ZZC118400, 6S4T11000AA, 5S4Z11002A, 6S4Z11002AA, 4S4T11000AA, 5S4T11000AA, 4S4Z11002AA, 6674N
  • Package Included: 6674N NEW Starter; 1.4KW;12V; 11Tooth PinionTeeth; CW; PMGR
  • Perfect Fit:Precision-engineered with 100% new, OEM-grade materials to ensure exact dimensional accuracy and perfect fitment for a direct, no-modification installation
  • Engineered for Reliable Starts: Built with wear-resistant components and validated through rigorous testing, this starter is designed to deliver consistent cranking power and withstand the demands of daily operation, ensuring a prolonged lifespan

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2012 - 20132012 - 20132012 - 20132005 - 20082009 - 20122009 - 20122009 - 20122005 - 20082009 - 20122005 - 20082009 - 201220052012 - 20132012 - 20132012 - 20132003 - 20042007 - 20102007 - 20102003 - 20042009 - 20102007 - 201020072003 - 20042003 - 20042005 - 20062003 - 20042005 - 20062005 - 20062005 - 20062003 - 20042005 - 20062011 - 20122011 - 20122011 - 20122011 - 20122013201320132010 - 20132010 - 20132011 - 201320082009 - 20102005 - 200620082009 - 2011200520082009 - 20112006 - 20072006 - 20082009 - 20112009 - 2010201120112011
MakeFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordMazdaMazdaMazdaMazdaMazdaMercuryMercuryMercuryMercuryMercuryMercuryMercuryMercuryMercuryMercury
ModelEdgeEdgeEdgeEscapeEscapeEscapeEscapeEscapeEscapeEscapeEscapeEscapeExplorerExplorerExplorerFocusFocusFocusFocusFocusFocusFocusFocusFocusFocusFocusFocusFocusFocusFocusFocusFusionFusionFusionFusionTaurusTaurusTaurusTransit ConnectTransit ConnectTransit ConnectTributeTributeTributeTributeTributeMarinerMarinerMarinerMarinerMarinerMarinerMarinerMilanMilanMilan
TrimLimitedSESELHybridHybridLimitedLimited HybridXLSXLSXLTXLTXLT No BoundariesBaseLimitedXLTLXSSESESELSESSTZTSZTWZX3ZX3ZX4ZX4 STZX5ZX5ZXWHybridSSESELLimitedSESELXLXLTXLT PremiumHybridHybridiiiBaseBaseBaseConvenienceHybridHybridPremierBaseHybridPremier
Engine2.0L L42.0L L42.0L L42.3L L42.5L L42.5L L42.5L L42.3L L42.5L L42.3L L42.5L L42.3L L42.0L L42.0L L42.0L L42.3L L42.0L L42.0L L42.3L L42.0L L42.0L L42.3L L42.3L L42.3L L42.0L L42.3L L42.0L L42.3L L42.0L L42.3L L42.0L L42.5L L42.5L L42.5L L42.5L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.3L L42.5L L42.3L L42.3L L42.5L L42.3L L42.3L L42.5L L42.3L L42.3L L42.5L L42.5L L42.5L L42.5L L42.5L L4
Note
To 06/05/2012
To 06/05/2012
To 06/05/2012
---------
To 07/09/2012
To 07/09/2012
To 07/09/2012
----------------
To 11/09/2011
To 11/09/2011
To 11/09/2011
To 11/09/2011
To 07/09/2012
To 07/09/2012
To 07/09/2012
------------------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Primary Fault Code Analysis

  • P0562-Low system voltage:check the battery, cables, and grounds.
  • P0615-Starter relay circuit fault:check the relay and control wiring.
  • P0616-Starter relay circuit low:check for wiring damage or a short to ground.
  • P0617-Starter relay circuit high:check for an open circuit or a short to power.
  • P0335-Crankshaft position sensor “A” circuit fault:may cause a crank-but-no-start condition.

Codes alone do not confirm starter failure. Definitions and diagnostic procedures vary by vehicle.

Checks Before Installation

  • Check fitment: Match the mounting points, electrical connections, and gear size/tooth count to the original starter.
  • Check the battery: Make sure it is fully charged and the terminals are clean and secure.
  • Check related components: Inspect the starter fuse, relay, wiring, and flywheel ring gear before replacement.

Installation Steps

  • STEP 1 — Park on a level surface, apply the parking brake, and switch off the ignition. Disconnect the negative battery cable.
  • STEP 2 — Photograph the wiring connections, then disconnect the starter cables and connectors.
  • STEP 3 — Support the starter, remove the mounting bolts, and carefully remove the old unit.
  • STEP 4 — Install the new starter and tighten the mounting bolts to the vehicle manufacturer’s specifications.
  • STEP 5 — Reconnect the cables and connectors, refit protective covers, and reconnect the negative battery cable last.

After Installation

  • Confirm all bolts and electrical connections are secure and wiring is clear of moving parts.
  • With the transmission in Park or Neutral and the parking brake applied, perform a brief starting test.
  • Check for smooth cranking and proper gear disengagement. Stop if you hear grinding or unusual noise.
  • Switch off the engine and inspect for loose connections or signs of overheating.

Product Video

Product Description

Reviews

4.2/5

Based on 5 reviews

540%
440%
320%
20%
10%

DaveTheMechanic_105

02/08/2026

You can tell this is a well-made part just by looking at it. Excellent value for a brand new starter motor for my Ford Edge.

Jennifer_Auto_118

12/31/2025

Shipping was lightning fast, which I really needed. Bolted right onto my Fusion with no issues at all and worked on the first try.

FAQS

Check the package contents listed on the product page. If an included item is missing, contact us with your order number and photos of everything received.

Avoid prolonged or repeated cranking. Follow your vehicle’s recommended starting intervals to prevent overheating.

Slow cranking can also result from low battery charge, poor ground connections, damaged cables, unsuitable engine oil viscosity, or mechanical resistance in the engine. Check these conditions before assuming the replacement starter is faulty.
