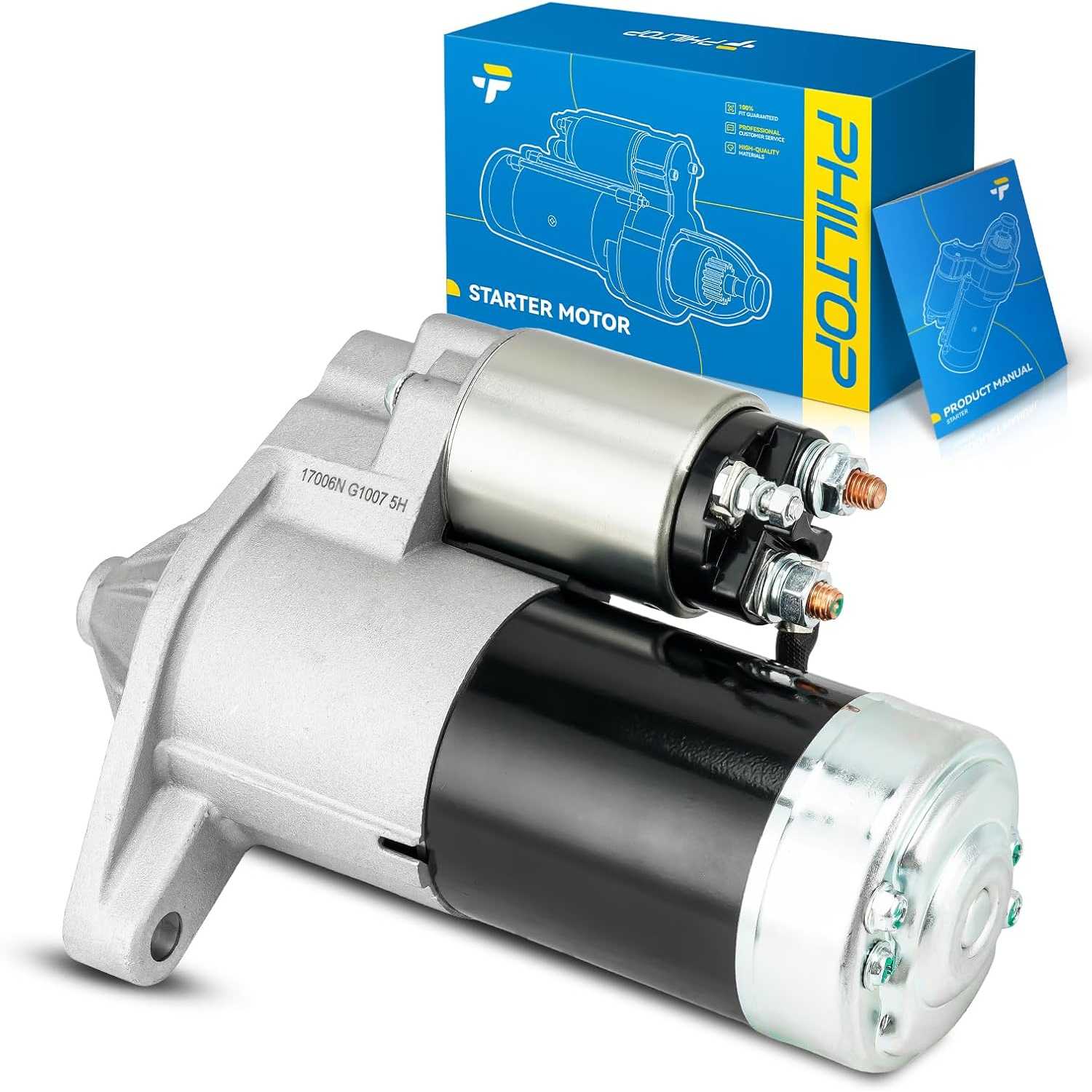

1988-1998 Jeep Wrangler 4.0L L6 | 1.7KW 10-Tooth Starter | 17006N - PHILTOP

1988-1998 Jeep Wrangler 4.0L L6 | 1.7KW 10-Tooth Starter | 17006N - PHILTOP

Power: 1.7 kW

Pinion Teeth: 10

Quick Starting Response

4.8

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
2963STM006HUS

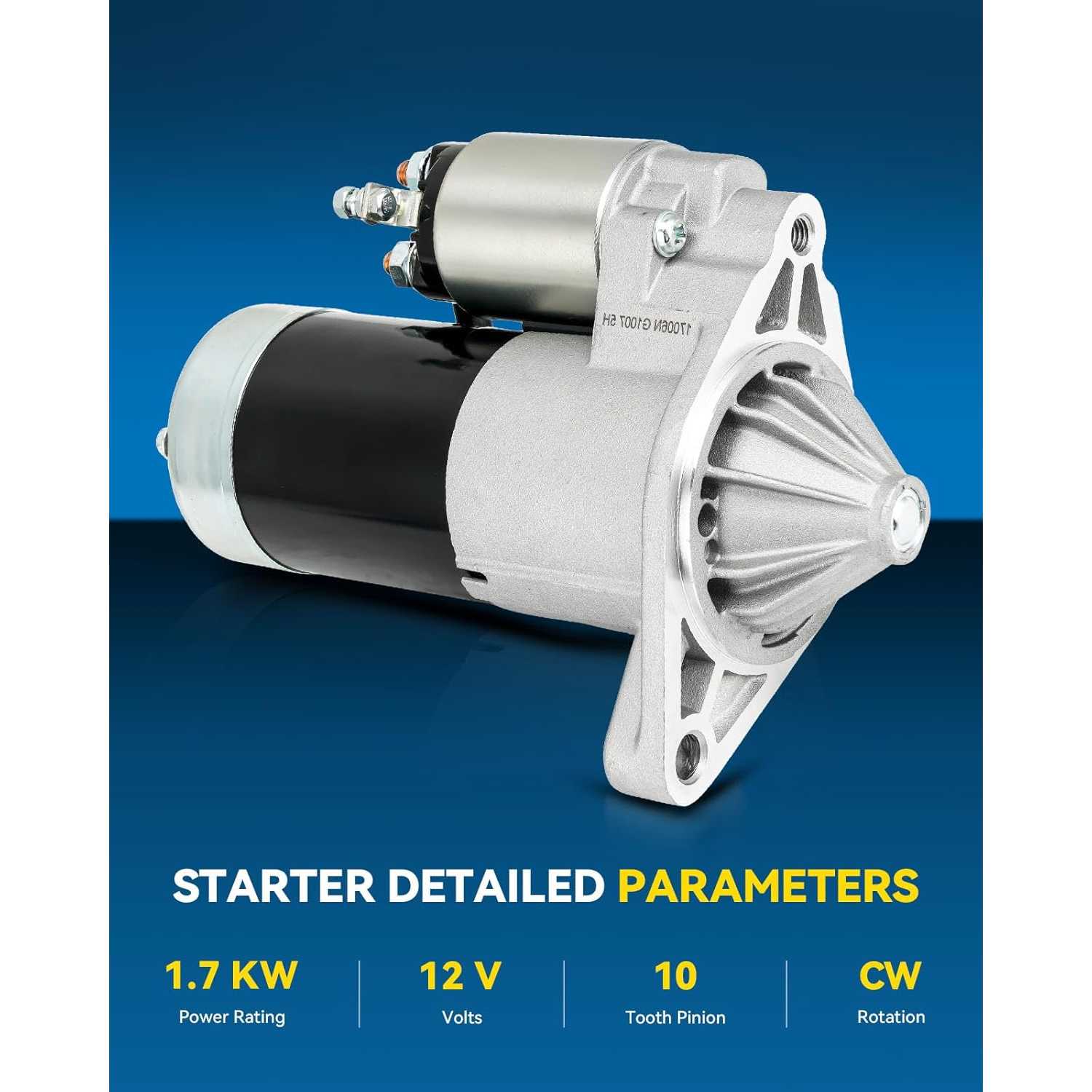

Specifications

Brand
PHILTOP
Power
1.7 kW
Pinion Teeth
10
Voltage
12 V
Rotation Direction
CW
Material
Pure Copper Windings, Aluminum Housing, Laminated Steel Core
Items Included
1x Starter 17006N 1x Manual
Warranty Period
2-Year
Part Number
17006N

Highlights

  • Starter Compatible with:1987-1998 Cherokee 4.0L, 1991-1995 1997-1998 Wrangler 4.0L, 1993-1998 Grand Cherokee 4.0L, 1988-1990 Wrangler 4.2L, 1987-1992 Comanche 4.0L, 1988-1991 Grand Wagoneer, 1988-1990 Wagoneer, 1987 Wagoneer 4.0L, 1988 J20, 1988 J10, 1988 Eagle
  • Starter Replacement OE Number:17006N,33002709, 56041014, 56041012, 56027317, 8933002709, JR775123, 8982775123, 17006N
  • Package Included: 17006N NEW Starter; 1.7KW;12V; 10Tooth PinionTeeth; CW; PMGR
  • Perfect Fit:Precision-engineered with 100% new, OEM-grade materials to ensure exact dimensional accuracy and perfect fitment for a direct, no-modification installation
  • Engineered for Reliable Starts: Built with wear-resistant components and validated through rigorous testing, this starter is designed to deliver consistent cranking power and withstand the demands of daily operation, ensuring a prolonged lifespan

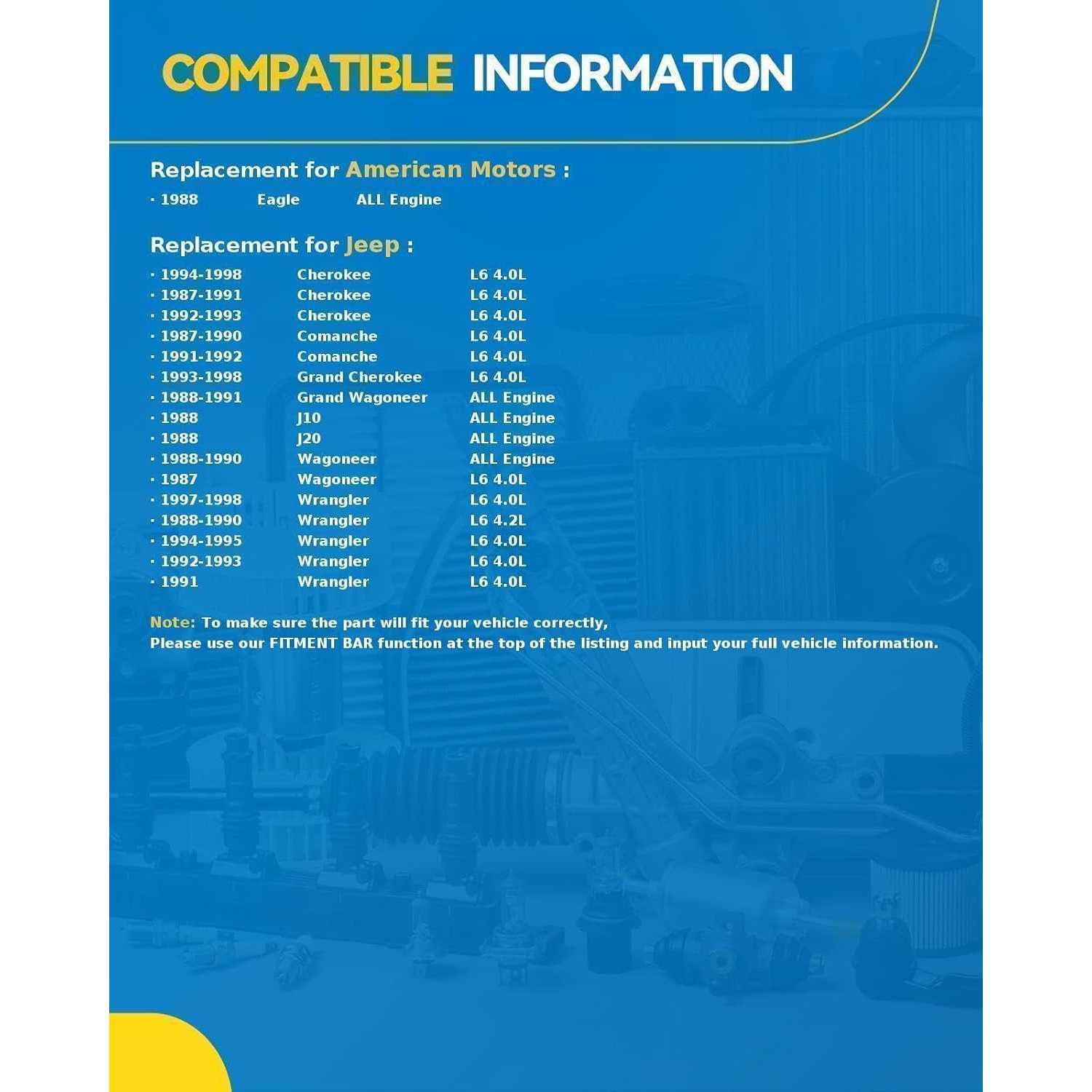

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year19881987 - 19931991 - 19921987 - 1988199619981993 - 19971987 - 19921987 - 199219981987 - 19901994 - 19981989 - 19981987 - 19921987 - 19881988 - 19921987 - 19881987 - 199219931993 - 19981993 - 1998199519971994 - 19951997 - 19981988 - 19911988198819871987 - 19901991 - 19931988 - 19901991 - 19921988 - 19901988 - 19901991 - 199419881994 - 19951991 - 19951997 - 19981988 - 19901997 - 19981988
MakeAmerican MotorsJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeep
ModelEagleCherokeeCherokeeCherokeeCherokeeCherokeeCherokeeCherokeeCherokeeCherokeeCherokeeCherokeeCherokeeComancheComancheComancheComancheComancheGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand WagoneerJ10J20WagoneerWagoneerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWrangler
TrimBaseBaseBriarwoodChiefClassicClassicCountryLaredoLimitedLimitedPioneerSESportBaseChiefEliminatorLaredoPioneerBaseLaredoLimitedOrvisOrvisSETSiBaseBaseBaseBaseLimitedBaseBaseIslanderIslanderLaredoRenegadeSSESaharaSaharaSaharaSportSport
Engine4.2L L64.0L L64.0L L64.0L L64.0L L64.0L L64.0L L64.0L L64.0L L64.0L L64.0L L64.0L L64.0L L64.0L L64.0L L64.0L L64.0L L64.0L L64.0L L64.0L L64.0L L64.0L L64.0L L64.0L L64.0L L65.9L V85.9L V85.9L V84.0L L64.0L L64.0L L64.2L L64.0L L64.2L L64.2L L64.0L L64.2L L64.0L L64.0L L64.0L L64.2L L64.0L L64.2L L6
Note-------------------------------------------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Primary Fault Code Analysis

  • P0562-Low system voltage:check the battery, cables, and grounds.
  • P0615-Starter relay circuit fault:check the relay and control wiring.
  • P0616-Starter relay circuit low:check for wiring damage or a short to ground.
  • P0617-Starter relay circuit high:check for an open circuit or a short to power.
  • P0335-Crankshaft position sensor “A” circuit fault:may cause a crank-but-no-start condition.

Codes alone do not confirm starter failure. Definitions and diagnostic procedures vary by vehicle.

Checks Before Installation

  • Check fitment: Match the mounting points, electrical connections, and gear size/tooth count to the original starter.
  • Check the battery: Make sure it is fully charged and the terminals are clean and secure.
  • Check related components: Inspect the starter fuse, relay, wiring, and flywheel ring gear before replacement.

Installation Steps

  • STEP 1 — Park on a level surface, apply the parking brake, and switch off the ignition. Disconnect the negative battery cable.
  • STEP 2 — Photograph the wiring connections, then disconnect the starter cables and connectors.
  • STEP 3 — Support the starter, remove the mounting bolts, and carefully remove the old unit.
  • STEP 4 — Install the new starter and tighten the mounting bolts to the vehicle manufacturer’s specifications.
  • STEP 5 — Reconnect the cables and connectors, refit protective covers, and reconnect the negative battery cable last.

After Installation

  • Confirm all bolts and electrical connections are secure and wiring is clear of moving parts.
  • With the transmission in Park or Neutral and the parking brake applied, perform a brief starting test.
  • Check for smooth cranking and proper gear disengagement. Stop if you hear grinding or unusual noise.
  • Switch off the engine and inspect for loose connections or signs of overheating.

Product Video

Product Description

Reviews

4.8/5

Based on 5 reviews

580%
420%
30%
20%
10%

DaveTheMechanic_221

04/19/2026

This starter has tons of torque and fires up my Wagoneer every time. It is a huge upgrade over the old, tired motor I was using.

DaveTheMechanic_909

04/18/2026

You really cannot beat the price on this. The quality seems top-notch and it is way cheaper than what the local parts store wanted.

FAQS

Please refer to the picture. Generally,a starter does not include bolts or other accessories. It is recommended to make full use of the existing bolts, screws and other accessories, which can be perfectly matched with the original accessories.

Slow cranking can also result from low battery charge, poor ground connections, damaged cables, unsuitable engine oil viscosity, or mechanical resistance in the engine. Check these conditions before assuming the replacement starter is faulty.

Check the battery and cable connections first. Low battery power or loose wiring can cause similar starting problems.
