2004-2009 Mazda 3 2.3L L4 | 1.4KW 11-Tooth Starter | 17914N - PHILTOP

2004-2009 Mazda 3 2.3L L4 | 1.4KW 11-Tooth Starter | 17914N - PHILTOP

Power: 1.4 kW

Pinion Teeth: 11

Quick Starting Response

4.8

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
8812STM033CUS

Specifications

Brand
PHILTOP
Power
1.4 kW
Pinion Teeth
11
Voltage
12 V
Rotation Direction
CW
Material
Pure Copper Windings, Aluminum Housing, Laminated Steel Core
Items Included
1x Starter 17914N 1x Manual
Warranty Period
2-Year
Part Number
17914N

Highlights

  • Fitment: Starter Compatible with Mazda 2004-2009 3 2.3L, 2006-2010 5, 2007-2009 CX-7, 2006-2007 6.(Please MATCH your vehicle on the left top before purchasing)
  • Specifications: ①Power: 1.4Kw, ②Voltage:12, ③Rotation Direction: CW, ④Specs for: Mitsubishi PMGR, ⑤Tooth Pinion: 11.[Reference Number]:L32718400, L32718400R00, 17914N
  • Premium Starters: Rigorously tested to OE standards with 2000H endurance, 96H corrosion resistance test, extreme temperatures from -40°C to 105°C, and harsh vibration impacts. Built for unparalleled reliability, ensuring your safety and stable power in any condition
  • Efficient Quiet: New Starter with high-quality coils and precision gears enable quick, smooth starts with no noise. Superior conductive materials reduce fuel consumption and prevent short circuits. Install once for lasting performance
  • Easy Installation: Our replacement alternators for cars are designed for plug-and-play installation, requiring no modifications or drilling, making the installation quick and easy. Note: 1.Please double check the part number of your item, matching information is for reference only.2.Product functions are fully compatible with the original equipment. Minor cosmetic differences may occur across production batches; please refer to the actual product for details

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2007 - 20092004 - 200920052007 - 20102006 - 20102006 - 20102006 - 20072007 - 20092007 - 20092007 - 2009
MakeMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazdaMazda
Model3335556CX-7CX-7CX-7
TrimMazdaspeedSSP23Grand TouringSportTouringMazdaspeedGrand TouringSportTouring
Engine2.3L L42.3L L42.3L L42.3L L42.3L L42.3L L42.3L L42.3L L42.3L L42.3L L4
Note----------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Primary Fault Code Analysis

  • P0562-Low system voltage:check the battery, cables, and grounds.
  • P0615-Starter relay circuit fault:check the relay and control wiring.
  • P0616-Starter relay circuit low:check for wiring damage or a short to ground.
  • P0617-Starter relay circuit high:check for an open circuit or a short to power.
  • P0335-Crankshaft position sensor “A” circuit fault:may cause a crank-but-no-start condition.

Codes alone do not confirm starter failure. Definitions and diagnostic procedures vary by vehicle.

Checks Before Installation

  • Check fitment: Match the mounting points, electrical connections, and gear size/tooth count to the original starter.
  • Check the battery: Make sure it is fully charged and the terminals are clean and secure.
  • Check related components: Inspect the starter fuse, relay, wiring, and flywheel ring gear before replacement.

Installation Steps

  • STEP 1 — Park on a level surface, apply the parking brake, and switch off the ignition. Disconnect the negative battery cable.
  • STEP 2 — Photograph the wiring connections, then disconnect the starter cables and connectors.
  • STEP 3 — Support the starter, remove the mounting bolts, and carefully remove the old unit.
  • STEP 4 — Install the new starter and tighten the mounting bolts to the vehicle manufacturer’s specifications.
  • STEP 5 — Reconnect the cables and connectors, refit protective covers, and reconnect the negative battery cable last.

After Installation

  • Confirm all bolts and electrical connections are secure and wiring is clear of moving parts.
  • With the transmission in Park or Neutral and the parking brake applied, perform a brief starting test.
  • Check for smooth cranking and proper gear disengagement. Stop if you hear grinding or unusual noise.
  • Switch off the engine and inspect for loose connections or signs of overheating.

Product Video

Product Description

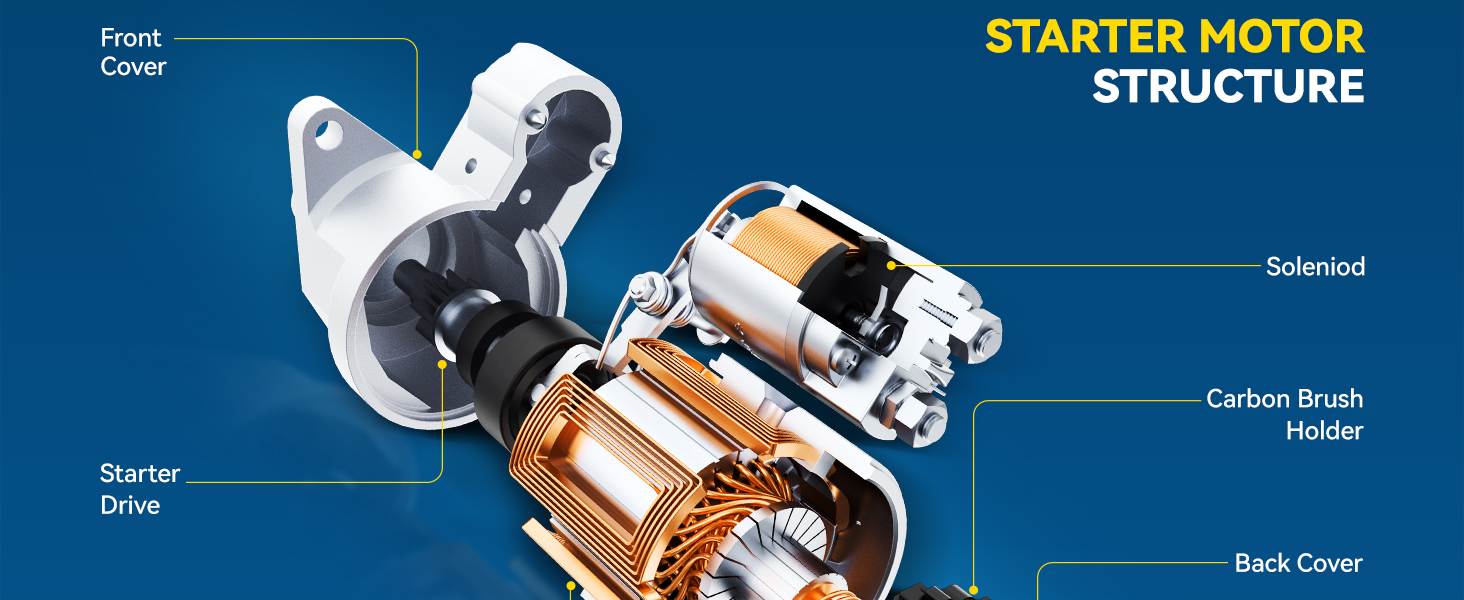

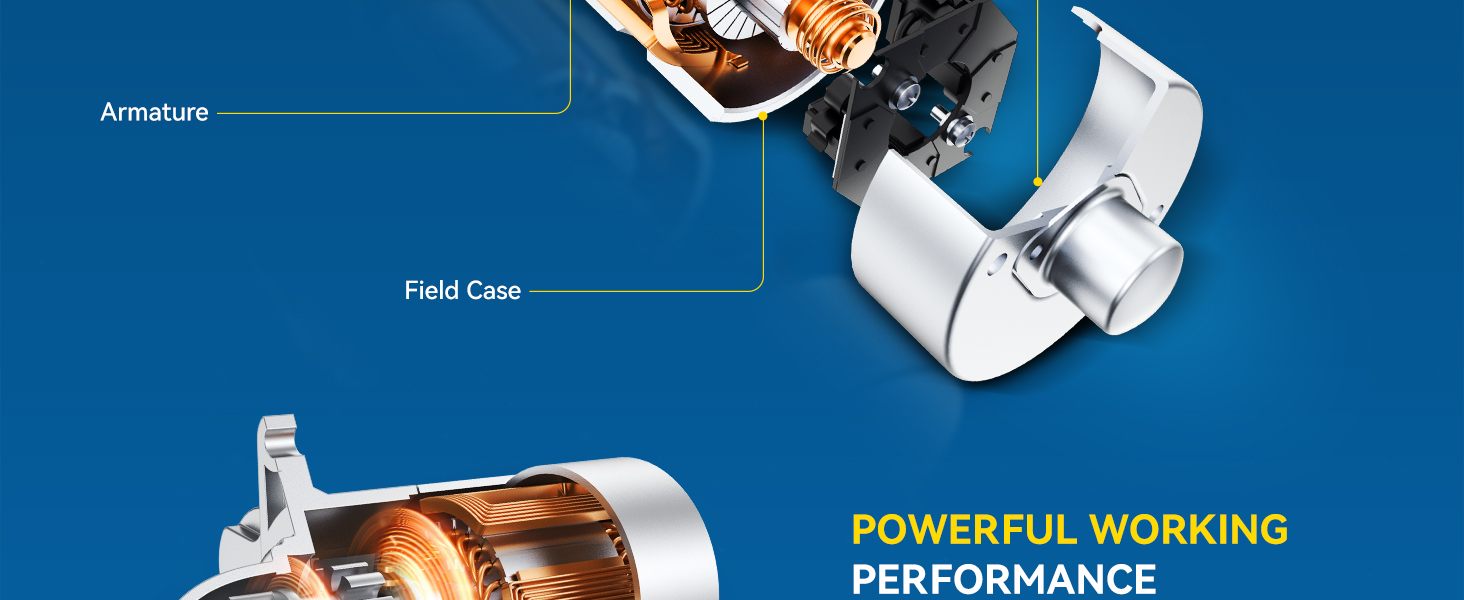

starter motorstarter motor

Reviews

4.8/5

Based on 9 reviews

578%
422%
30%
20%
10%

Customer photos and videos

Cracked Canvas by KPCracked Canvas by KP

12/28/2025

Verified buyer

The PHILTOP Starter Replacement is a heavy-duty, 1.4KW unit that removes the friction of a failing ignition. It is designed to meet or exceed OEM specifications, ensuring your Mazda starts reliably every time to keep your daily routine disciplined.This starter is highly rated for its perfect fitment and robust build quality. It provides a significant performance boost over aging factory units, offering quick, powerful engine turnover even in cold weather. By choosing this 100% new replacement, you avoid the risks of refurbished parts.

RickFixIt_837

11/02/2025

Fast shipping and a perfect fit. I was able to swap it out in my driveway without any trouble at all.

FAQS

Yes, easy to install. To ensure safety and correct installation, which varies by vehicle, professional tools are required. Consult our included manual and video guide.

Check the battery and cable connections first. Low battery power or loose wiring can cause similar starting problems.

Yes. Follow your vehicle’s instructions; on most conventional vehicles, disconnect the negative terminal first.
