2009-2016 Toyota Corolla 1.8L L4 | 1.6KW 9-Tooth Starter | 19049N - PHILTOP

2009-2016 Toyota Corolla 1.8L L4 | 1.6KW 9-Tooth Starter | 19049N - PHILTOP

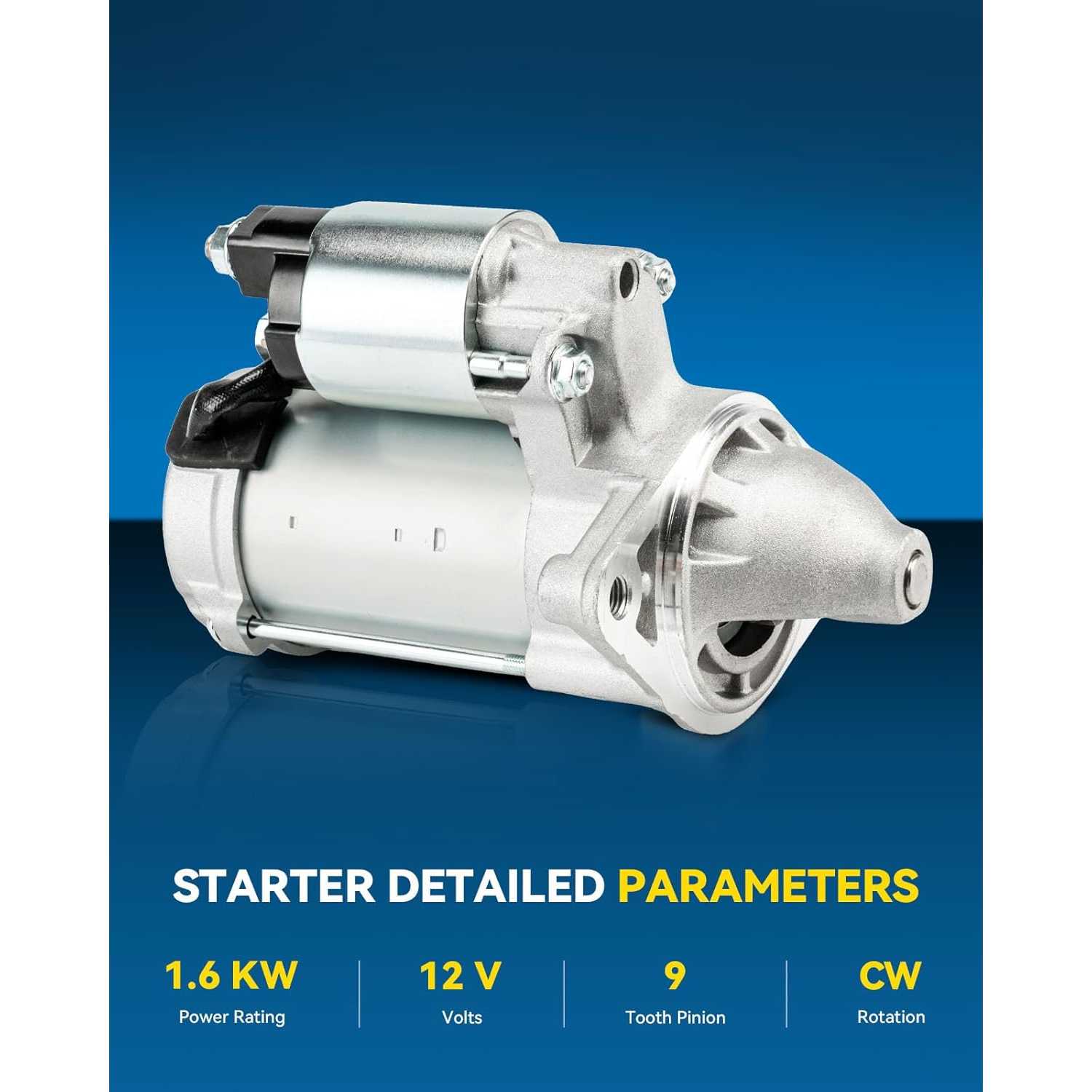

Power: 1.6 kW

Pinion Teeth: 9

Quick Starting Response

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
9094STM0590US

Specifications

Brand
PHILTOP
Power
1.6 kW
Pinion Teeth
9
Voltage
12 V
Rotation Direction
CW
Material
Pure Copper Windings, Aluminum Housing, Laminated Steel Core
Items Included

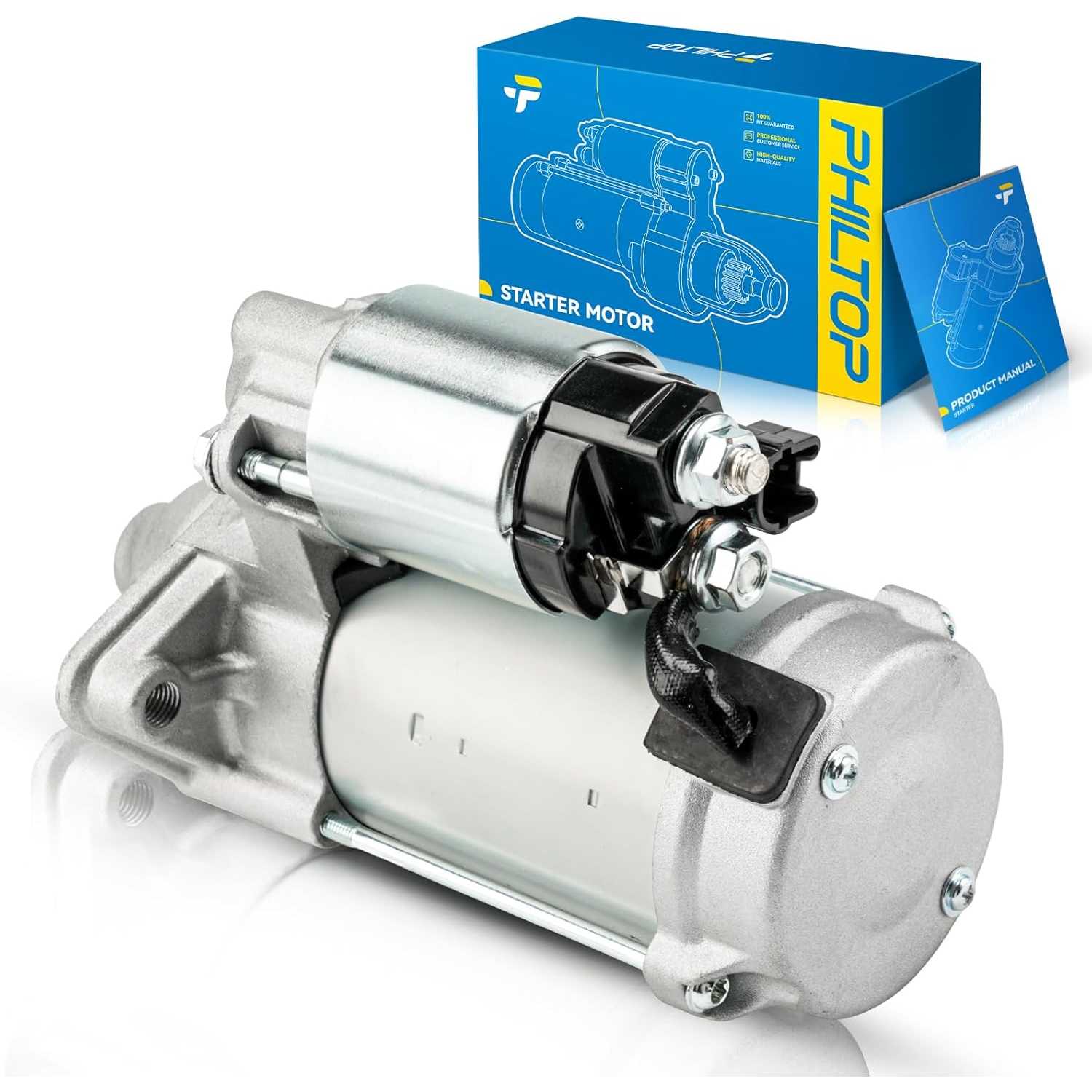

1x Starter 19049N 1x Manual
Warranty Period
2-Year
Part Number
19049N

Highlights

  • Starter Compatible with:2009-2010 2014-2016 Corolla 1.8L, 2011-2013 Corolla, 2009-2013 Matrix 1.8L, 2009-2010 Vibe 1.8L
  • Starter Replacement OE Number:19049N,19049N
  • Package Included: 19049N NEW Starter; 1.6KW;12V; 9Tooth PinionTeeth; CW; PMGR
  • Perfect Fit:Precision-engineered with 100% new, OEM-grade materials to ensure exact dimensional accuracy and perfect fitment for a direct, no-modification installation
  • Engineered for Reliable Starts: Built with wear-resistant components and validated through rigorous testing, this starter is designed to deliver consistent cranking power and withstand the demands of daily operation, ensuring a prolonged lifespan

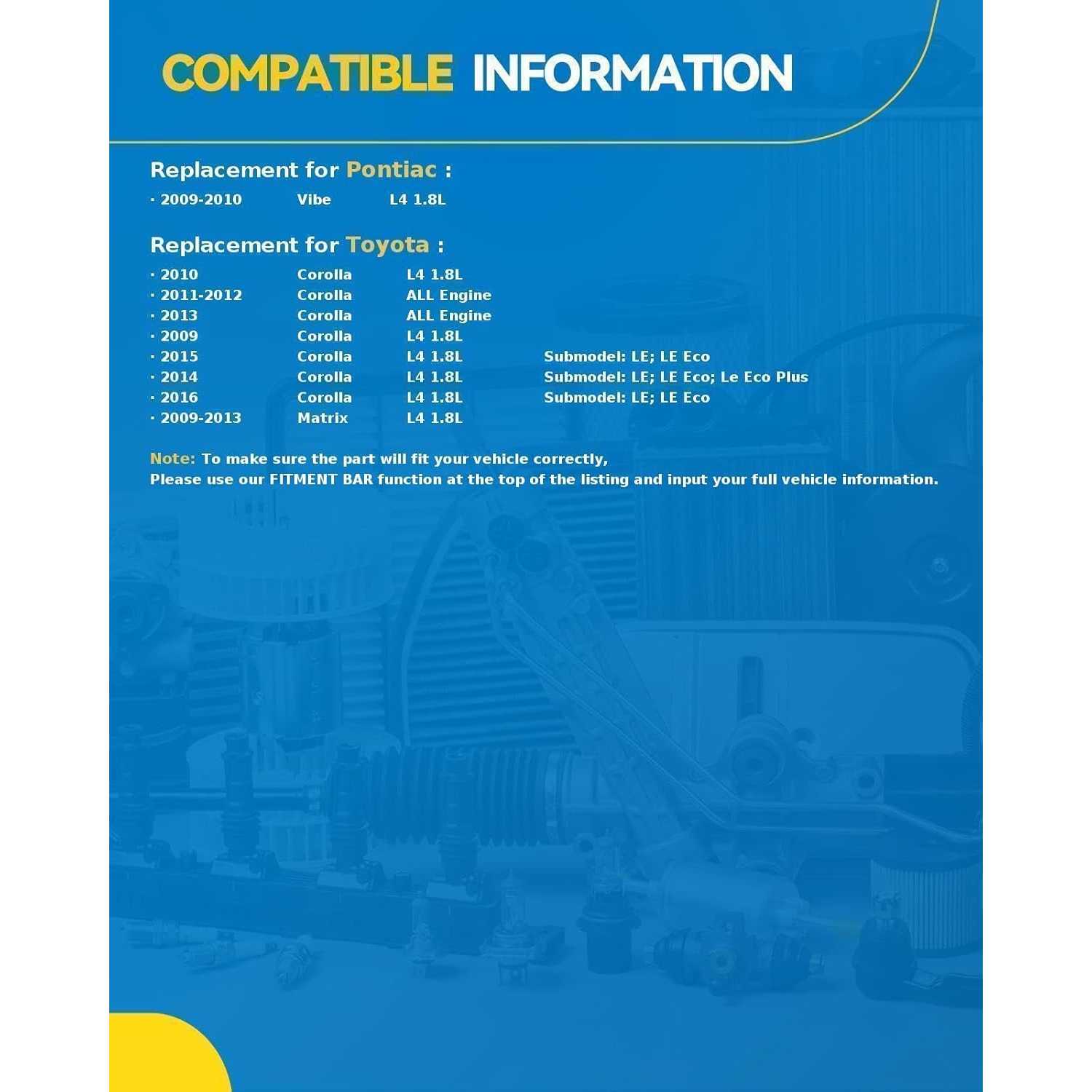

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2009 - 201020092010 - 20112012 - 201320092010 - 201520162014 - 20152016201420092010 - 2013200920102009 - 2013
MakePontiacToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyota
ModelVibeCorollaCorollaCorollaCorollaCorollaCorollaCorollaCorollaCorollaCorollaCorollaCorollaCorollaMatrix
TrimBaseBaseBaseLLELELELE EcoLE EcoLe Eco PlusSSXLEXLEBase
Engine1.8L L41.8L L41.8L L41.8L L41.8L L41.8L L41.8L L41.8L L41.8L L41.8L L41.8L L41.8L L41.8L L41.8L L41.8L L4
Note-
Engine VIN L or Engine VIN U
--
Engine VIN L or Engine VIN U
-
To 08/2015
-
To 08/2015
-
Engine VIN L or Engine VIN U
-
Engine VIN L or Engine VIN U
--

How to Install?

Installation Manual Download

User manual (PDF)
Download

Primary Fault Code Analysis

  • P0562-Low system voltage:check the battery, cables, and grounds.
  • P0615-Starter relay circuit fault:check the relay and control wiring.
  • P0616-Starter relay circuit low:check for wiring damage or a short to ground.
  • P0617-Starter relay circuit high:check for an open circuit or a short to power.
  • P0335-Crankshaft position sensor “A” circuit fault:may cause a crank-but-no-start condition.

Codes alone do not confirm starter failure. Definitions and diagnostic procedures vary by vehicle.

Checks Before Installation

  • Check fitment: Match the mounting points, electrical connections, and gear size/tooth count to the original starter.
  • Check the battery: Make sure it is fully charged and the terminals are clean and secure.
  • Check related components: Inspect the starter fuse, relay, wiring, and flywheel ring gear before replacement.

Installation Steps

  • STEP 1 — Park on a level surface, apply the parking brake, and switch off the ignition. Disconnect the negative battery cable.
  • STEP 2 — Photograph the wiring connections, then disconnect the starter cables and connectors.
  • STEP 3 — Support the starter, remove the mounting bolts, and carefully remove the old unit.
  • STEP 4 — Install the new starter and tighten the mounting bolts to the vehicle manufacturer’s specifications.
  • STEP 5 — Reconnect the cables and connectors, refit protective covers, and reconnect the negative battery cable last.

After Installation

  • Confirm all bolts and electrical connections are secure and wiring is clear of moving parts.
  • With the transmission in Park or Neutral and the parking brake applied, perform a brief starting test.
  • Check for smooth cranking and proper gear disengagement. Stop if you hear grinding or unusual noise.
  • Switch off the engine and inspect for loose connections or signs of overheating.

Product Video

Product Description

Reviews

5.0/5

Based on 3 reviews

5100%
40%
30%
20%
10%

Armando Beltran

04/20/2026

Verified buyer

Excelente funcionamiento

Steve_DIYer_706

02/06/2026

You can tell this is a quality part just by holding it. It's a fantastic value for a Toyota starter and works like a dream.

FAQS

Proven in extreme temperatures, our starter delivers powerful torque and rapid response. Built with premium field coils and all-copper windings, its compact design ensures reliable operation and extended service life.

Check the part number, mounting points, and electrical connections. Confirm any differences before installation.

Not necessarily. Keep your existing battery if it tests good and holds a charge.
