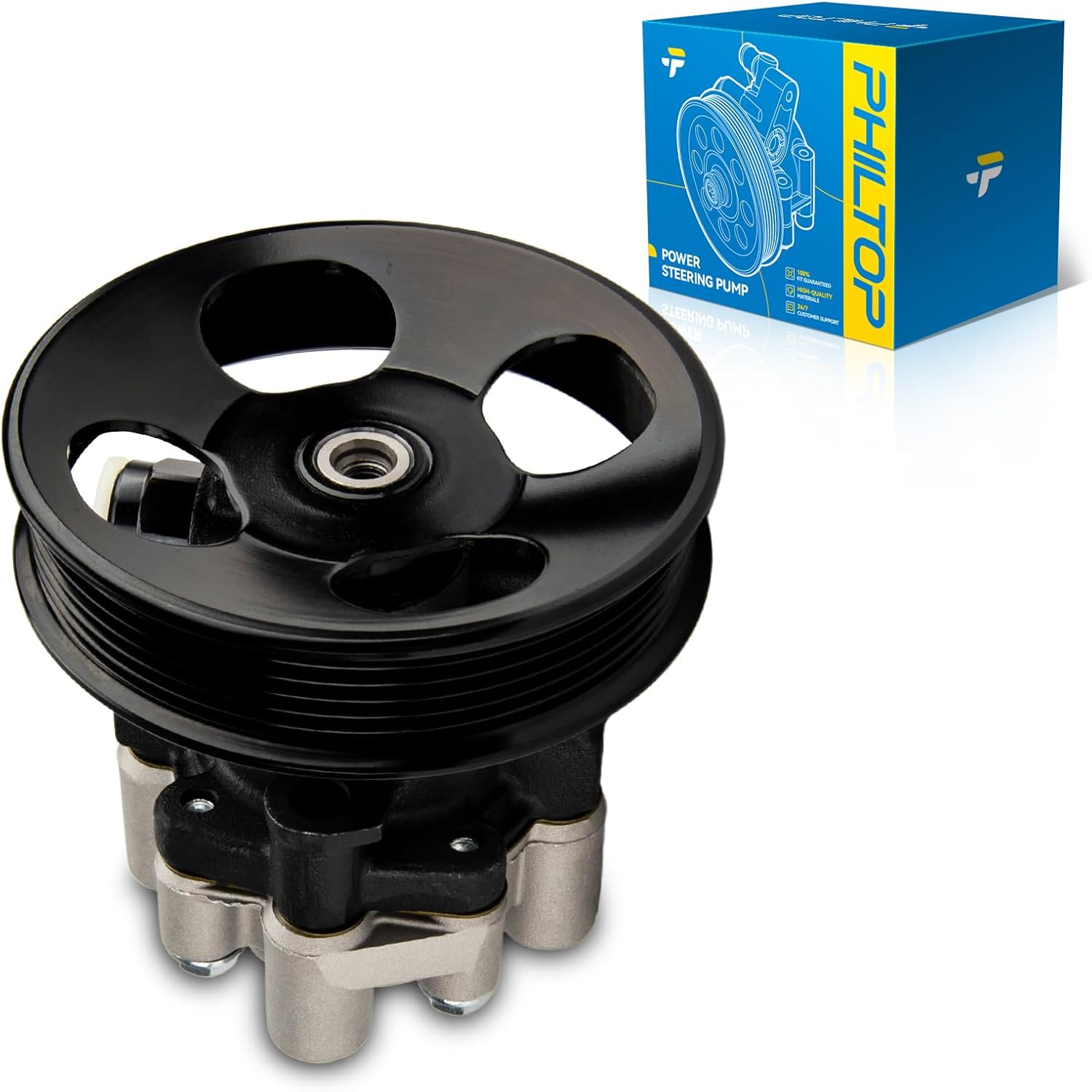

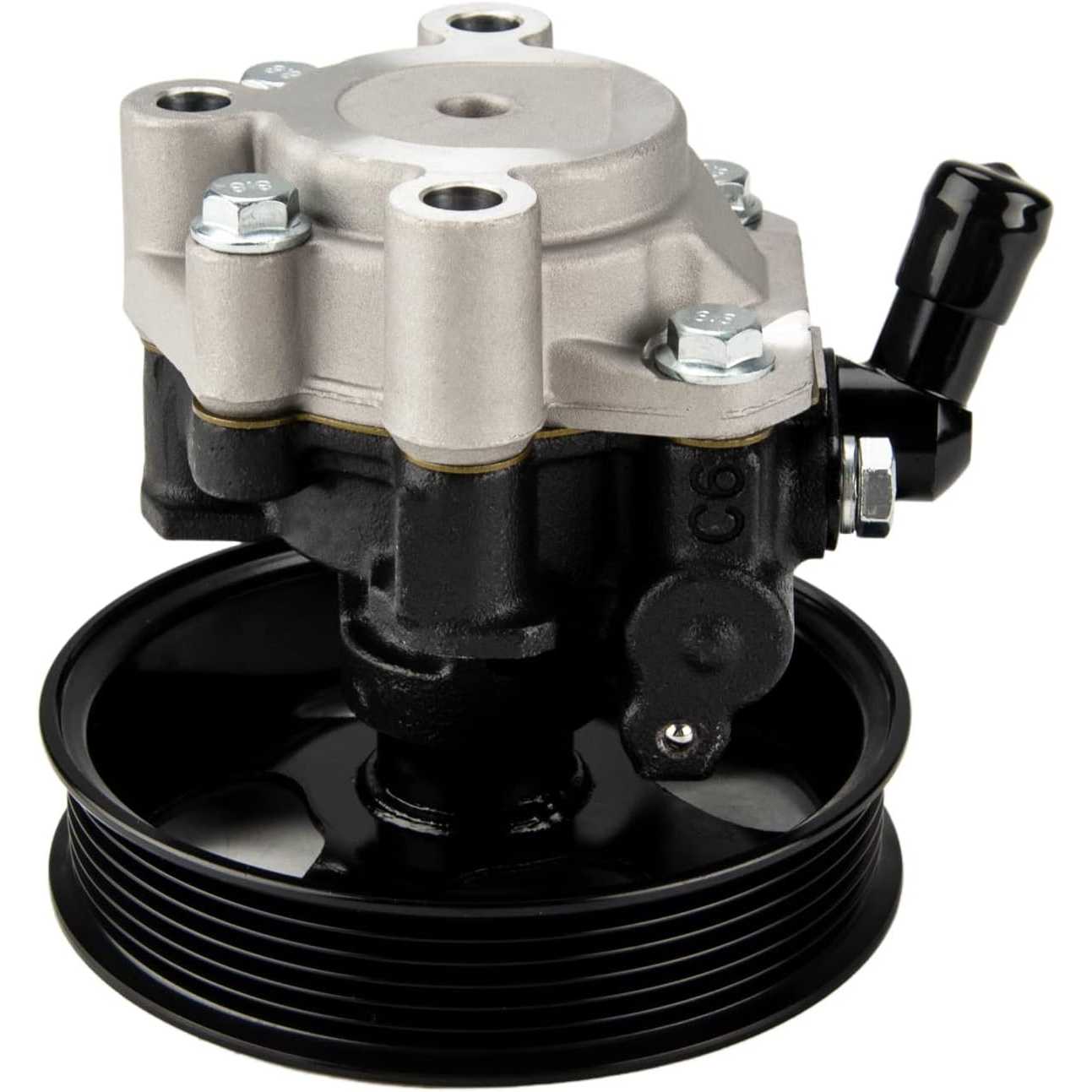

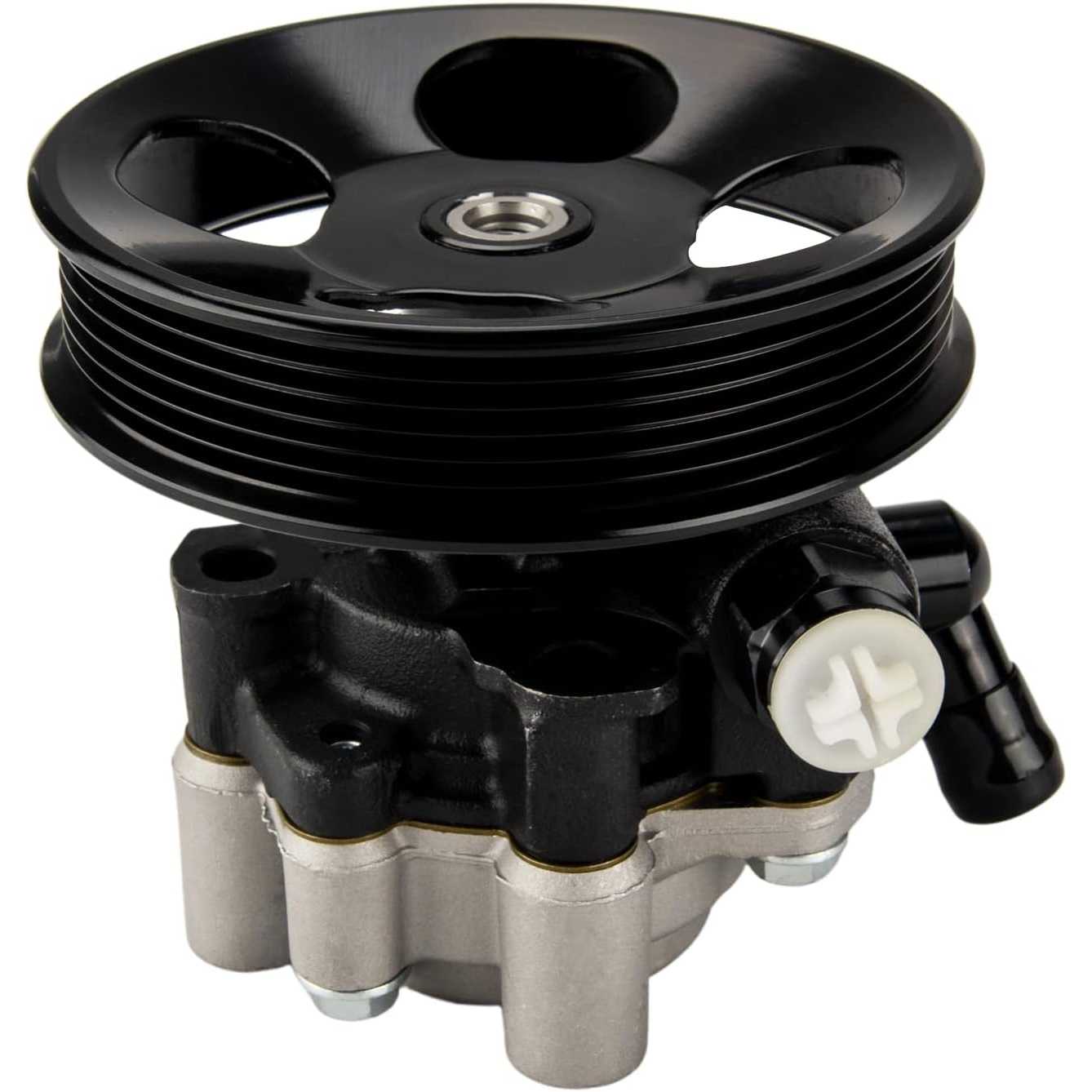

2000-2006 Toyota Tundra 4.7L V8 | Power Steering Pump | 215264 - PHILTOP

2000-2006 Toyota Tundra 4.7L V8 | Power Steering Pump | 215264 - PHILTOP

Complete Parts Range

Leak-Tested

Durable

4.8

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
5586PSP105VUS

Specifications

Brand
PHILTOP

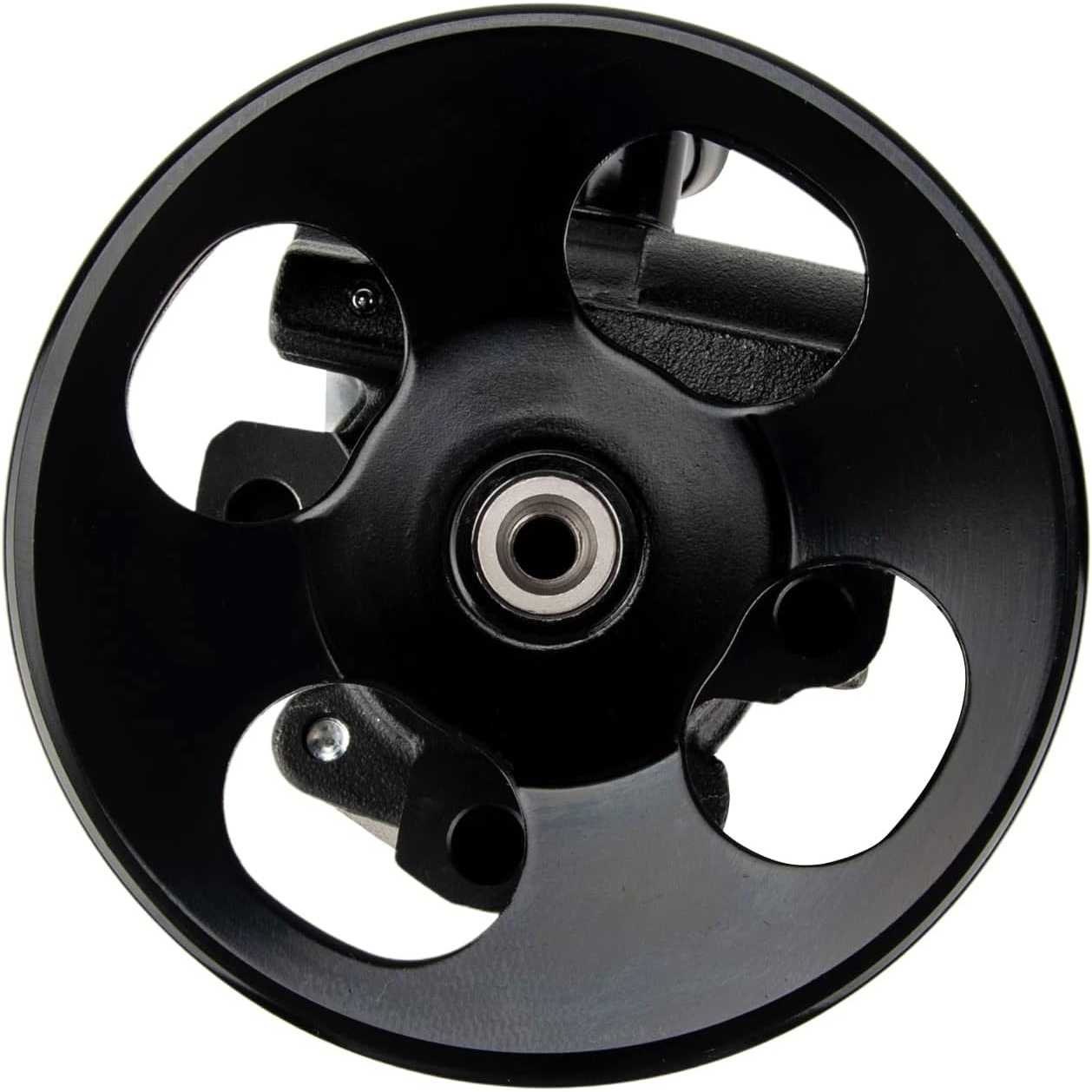

Pulley Included
Yes
Reservoir Included
No
Pulley Attachment Type
Press-on
Outlet Connection Type
Threaded
Outlet Thread Size
16X1.5 in
Inlet Connection Type
Hose Barb
Drive Type
Engine
Material
Aluminium/Iron
Items Included
1x Power Steering Pump - 215264, 1x Manual
Warranty Period
2-Year
Part Number
215264

Highlights

  • (Fit Verification)2000 2001 2002 2003 2004 2005 2006 Tundra 4.7L Extended/Standard Cab,2001-2007 Sequoia
  • (OEM Fit) 21-5264、443100C030、443200C020、443200C030, Condition: Brand New (Not Remanufactured); Pulley Included: Yes, Reservoir Included: No, Inlet Attachement Type:Hose Barb, Outlet Attachment Type: Threaded, Pulley attachment types: Press-on, Outlet inner diameter size: 16X1.5
  • (Material)Power steering reservoir built with premium quality material and multiple tests has been taken to ensure quality and durability with beautiful finish.Automotive steering system replacement parts maintain a good strength to give the parts long time performance.
  • (Installation)Before installing the power steering pump, it is highly recommended that the system be flushed. If there is noise after installing the steering pump, make sure that the air is expelled, the oil feed line is locked, the oil filter is not blocked, and the oil is clean and low viscosity.
  • (Function)Automotive steering system replacement parts assist you in solving the problems of leakage from old steering pump, difficult to turn or unresponsive steering wheel, groaning and squealing noises of the pump, when the vehicle starts.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2001 - 20072001 - 20072005 - 20062000 - 20062000 - 2006
MakeToyotaToyotaToyotaToyotaToyota
ModelSequoiaSequoiaTundraTundraTundra
TrimLimitedSR5BaseLimitedSR5
Engine4.7L V84.7L V84.7L V84.7L V84.7L V8
Note
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Reservoir Not Included
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Reservoir Not Included
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Reservoir Not Included
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Reservoir Not Included
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Reservoir Not Included

How to Install?

Installation Manual Download

User manual (PDF)
Download

Primary Fault Code Analysis

  • P0550-Power steering pressure sensor circuit — inspect the sensor connector and wiring.
  • P0551–P0553-Pressure sensor circuit range/performance or low/high input — check pressure, sensor signals, and wiring.
  • P0620-Generator control circuit — check the charging system and related wiring.
  • P0562-Low system voltage — check the battery, charging output, and power connections.

Codes alone do not confirm power steering pump failure. Definitions and diagnostic procedures vary by vehicle.

Checks Before Installation

  • Confirm fitment: Compare mounting points, pulley specifications, fluid ports, and any sensor connectors.
  • Inspect the system: Check fluid condition, hoses, seals, and the drive belt for leaks or damage.
  • Check the new pump: Inspect for shipping damage and confirm smooth pulley rotation where applicable.

Installation Steps

  • STEP 1 — Let the engine cool, disconnect the negative battery cable, and drain the power steering fluid.
  • STEP 2 — Photograph the belt routing and hose connections. Release belt tension and remove the belt from the pump.
  • STEP 3 — Disconnect hoses and any wiring. Cap open lines to keep out dirt, then remove the old pump.
  • STEP 4 — Clean or flush contaminated lines. Install the new pump with new specified seals and tighten fasteners to vehicle specifications.
  • STEP 5 — Reconnect hoses and wiring. Reinstall the belt with correct alignment and tension.
  • STEP 6 — Fill with the specified fluid and bleed the system using the vehicle-specific procedure. Never run the pump dry or hold the steering at full lock.

After Installation

  • Verify correct belt seating and secure hose connections.
  • With the engine idling, check for smooth steering assist without unusual noise or vibration.
  • Inspect the pump and lines for leaks.
  • Switch off the engine, allow the fluid to settle, and recheck the level.

Product Video

Product Description

1steering1

Reviews

4.8/5

Based on 6 reviews

583%
417%
30%
20%
10%

Lazaro Molina Carbo

03/30/2026

Verified buyer

Satisfecho con el producto

Laura

11/09/2025

Verified buyer

It fit perfect and the price was right.

FAQS

Please take the time to carefully verify if your vehicle is compatible with our offering.Please under the guidance of professionals, ensure a smooth and expert installation process. (Instructions not included)

Mismatched high-pressure interface size, aging of sealing ring or gasket. The low-pressure pipe is damaged or loosened: Check whether the oil pipe is loose after tightening the bolts, and whether the gasket or seal is deformed.

Check the package contents listed on the product page. If an included item is missing, contact us with your order number and photos of everything received.
