2002-2011 Honda CR-V 2.4L L4 | Power Steering Pump | 215419 - PHILTOP

2002-2011 Honda CR-V 2.4L L4 | Power Steering Pump | 215419 - PHILTOP

Leak-Tested

Durable

4.5

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
4291PSP093MUS

Specifications

Brand
PHILTOP
Pulley Included
No
Reservoir Included
No
Pulley Attachment Type
Bolt-on
Outlet Connection Type
Bolt-on
Inlet Connection Type
Hose Barb
Drive Type
Engine
Material
Aluminium/Iron
Items Included
1x Power Steering Pump - 215419, 1x Manual
Warranty Period
2-Year
Part Number
215419

Highlights

  • [Vehicle Fitment] 2002,2005 2006 2007 2008 2009 2010 2011 CR-V,2006-2007 Accord 2.4L,2006-2011 Element,2002-2006 RSX,2006-2008 TSX
  • [OEM Standard Replacement] 21-5419、56110PZDA02、56110PNBA01、56110RAAA02、56110PND003、56110PNBA04、56110PNBA03、56110PNDJ01、56110RBBE02、56110PNDA51、56110PNDA01、56110RTA003, Condition: Brand New (Not Remanufactured); Pulley Included: No, Reservoir Included: No, Inlet Attachement Type:Hose Barb, Outlet Attachment Type: Bolt-on, Pulley attachment types: Bolt-on
  • [High Quality and Durability] Made of high-grade aluminum alloy and wear-resistant metal materials, this automotive replacement power steering pump not only provides excellent corrosion resistance, but also can withstand harsh conditions of use, ensuring stable and durable performance in extreme weather and road conditions. Precision-made internal components increase the service life of the pump, greatly reduce the frequency of replacement, and bring you a more lasting use experience

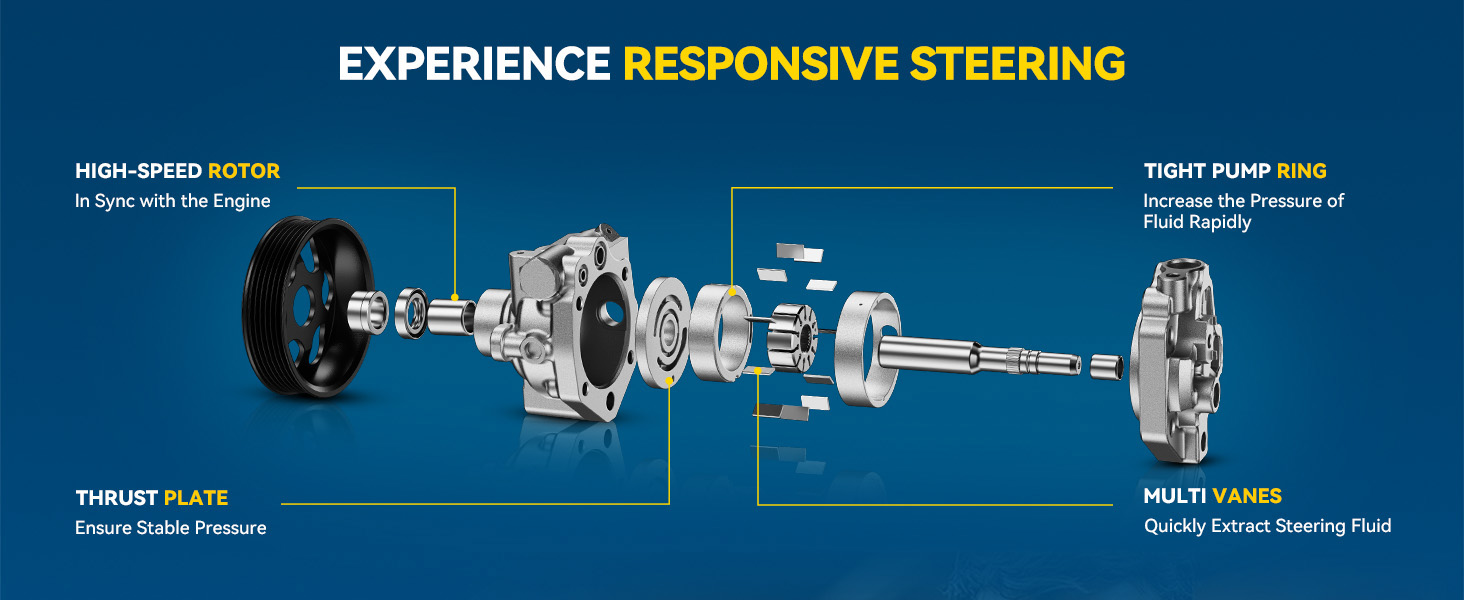

  • [High Efficiency and Low Noise] This power assist pump uses advanced flow and pressure control technology to provide stable and fast steering response, while ensuring low noise operation, reducing unnecessary vibration and improving driving comfort. Its energy-saving design effectively reduces fuel consumption and improves fuel efficiency, making it an ideal energy-saving choice
  • [Customer Support] PHILTOP has been committed to the research and development and production of auto parts for a long time. Any parts produced are 100% matched with the original car. We promise to provide two-year quality assurance and comprehensive after-sales support. If you encounter any product problems, you can contact us at any time, we will respond in time and provide solutions

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2002 - 20062002 - 20062006 - 20082006 - 200720072006 - 2007200620072006 - 200720022005 - 20112007 - 201120022005 - 20112005 - 200620112006 - 20112006 - 20112007 - 2010
MakeAcuraAcuraAcuraHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHonda
ModelRSXRSXTSXAccordAccordAccordAccordAccordAccordCR-VCR-VCR-VCR-VCR-VCR-VCR-VElementElementElement
TrimBaseType-SBaseEXEX-LLXLX Special EditionSpecial EditionValue PackageEXEXEX-LLXLXSESEEXLXSC
Engine2.0L L42.0L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L4
Note
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;It is critical that Honda/Acura Power Steering fluid is used. Failure to do so could cause performance, noise and failure issues. It is also recommended to install a filter and flush the system before pump installation;Reservoir Not Included
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;It is critical that Honda/Acura Power Steering fluid is used. Failure to do so could cause performance, noise and failure issues. It is also recommended to install a filter and flush the system before pump installation;Reservoir Not Included
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;It is critical that Honda/Acura Power Steering fluid is used. Failure to do so could cause performance, noise and failure issues. It is also recommended to install a filter and flush the system before pump installation;Reservoir Not Included
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;It is critical that Honda/Acura Power Steering fluid is used. Failure to do so could cause performance, noise and failure issues. It is also recommended to install a filter and flush the system before pump installation;Reservoir Not Included
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;It is critical that Honda/Acura Power Steering fluid is used. Failure to do so could cause performance, noise and failure issues. It is also recommended to install a filter and flush the system before pump installation;Reservoir Not Included
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;It is critical that Honda/Acura Power Steering fluid is used. Failure to do so could cause performance, noise and failure issues. It is also recommended to install a filter and flush the system before pump installation;Reservoir Not Included
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;It is critical that Honda/Acura Power Steering fluid is used. Failure to do so could cause performance, noise and failure issues. It is also recommended to install a filter and flush the system before pump installation;Reservoir Not Included
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;It is critical that Honda/Acura Power Steering fluid is used. Failure to do so could cause performance, noise and failure issues. It is also recommended to install a filter and flush the system before pump installation;Reservoir Not Included
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;It is critical that Honda/Acura Power Steering fluid is used. Failure to do so could cause performance, noise and failure issues. It is also recommended to install a filter and flush the system before pump installation;Reservoir Not Included
-
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;It is critical that Honda/Acura Power Steering fluid is used. Failure to do so could cause performance, noise and failure issues. It is also recommended to install a filter and flush the system before pump installation;Reservoir Not Included
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;It is critical that Honda/Acura Power Steering fluid is used. Failure to do so could cause performance, noise and failure issues. It is also recommended to install a filter and flush the system before pump installation;Reservoir Not Included
-
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;It is critical that Honda/Acura Power Steering fluid is used. Failure to do so could cause performance, noise and failure issues. It is also recommended to install a filter and flush the system before pump installation;Reservoir Not Included
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;It is critical that Honda/Acura Power Steering fluid is used. Failure to do so could cause performance, noise and failure issues. It is also recommended to install a filter and flush the system before pump installation;Reservoir Not Included
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;It is critical that Honda/Acura Power Steering fluid is used. Failure to do so could cause performance, noise and failure issues. It is also recommended to install a filter and flush the system before pump installation;Reservoir Not Included
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;It is critical that Honda/Acura Power Steering fluid is used. Failure to do so could cause performance, noise and failure issues. It is also recommended to install a filter and flush the system before pump installation;Reservoir Not Included
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;It is critical that Honda/Acura Power Steering fluid is used. Failure to do so could cause performance, noise and failure issues. It is also recommended to install a filter and flush the system before pump installation;Reservoir Not Included
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;It is critical that Honda/Acura Power Steering fluid is used. Failure to do so could cause performance, noise and failure issues. It is also recommended to install a filter and flush the system before pump installation;Reservoir Not Included

How to Install?

Installation Manual Download

User manual (PDF)
Download

Primary Fault Code Analysis

  • P0550-Power steering pressure sensor circuit — inspect the sensor connector and wiring.
  • P0551–P0553-Pressure sensor circuit range/performance or low/high input — check pressure, sensor signals, and wiring.
  • P0620-Generator control circuit — check the charging system and related wiring.
  • P0562-Low system voltage — check the battery, charging output, and power connections.

Codes alone do not confirm power steering pump failure. Definitions and diagnostic procedures vary by vehicle.

Checks Before Installation

  • Confirm fitment: Compare mounting points, pulley specifications, fluid ports, and any sensor connectors.
  • Inspect the system: Check fluid condition, hoses, seals, and the drive belt for leaks or damage.
  • Check the new pump: Inspect for shipping damage and confirm smooth pulley rotation where applicable.

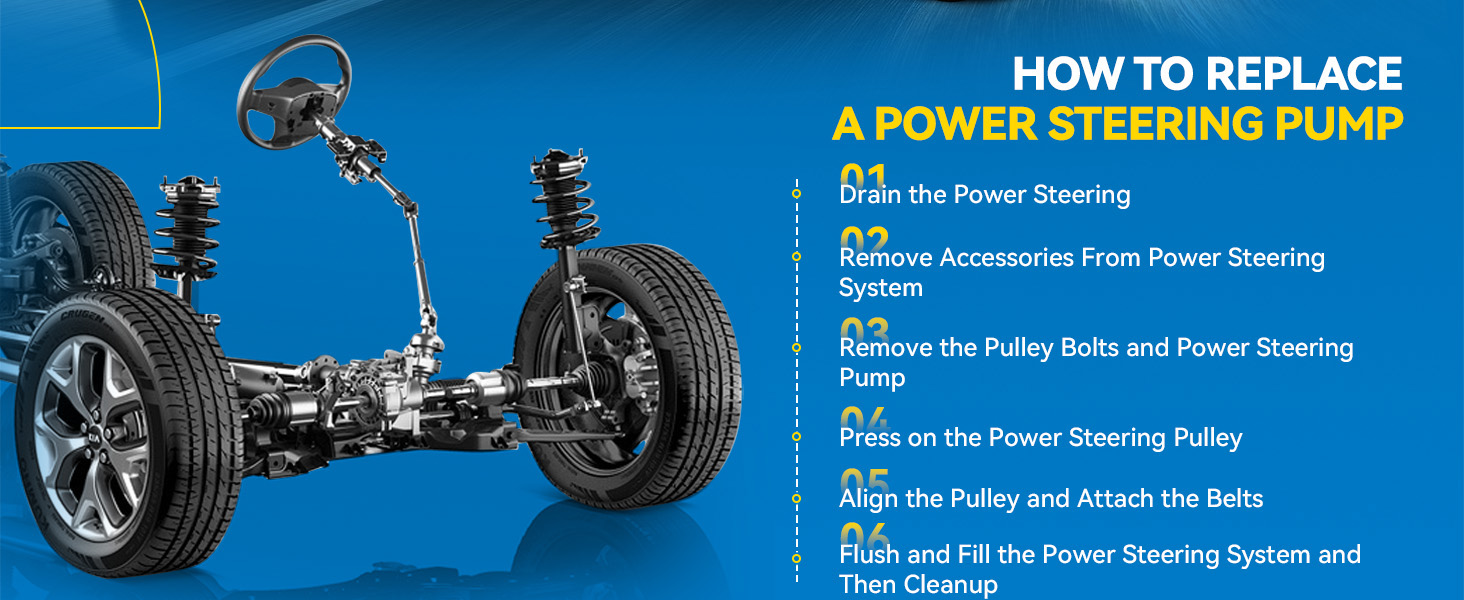

Installation Steps

  • STEP 1 — Let the engine cool, disconnect the negative battery cable, and drain the power steering fluid.
  • STEP 2 — Photograph the belt routing and hose connections. Release belt tension and remove the belt from the pump.
  • STEP 3 — Disconnect hoses and any wiring. Cap open lines to keep out dirt, then remove the old pump.
  • STEP 4 — Clean or flush contaminated lines. Install the new pump with new specified seals and tighten fasteners to vehicle specifications.
  • STEP 5 — Reconnect hoses and wiring. Reinstall the belt with correct alignment and tension.
  • STEP 6 — Fill with the specified fluid and bleed the system using the vehicle-specific procedure. Never run the pump dry or hold the steering at full lock.

After Installation

  • Verify correct belt seating and secure hose connections.
  • With the engine idling, check for smooth steering assist without unusual noise or vibration.
  • Inspect the pump and lines for leaks.
  • Switch off the engine, allow the fluid to settle, and recheck the level.

Product Video

Product Description

Power Steering PumpSteering Pumpautomotive replacement power steering pump

Reviews

4.5/5

Based on 13 reviews

569%
415%
315%
20%
10%

wendy boyd

05/28/2025

Verified buyer

Steering pump works great no noise at all not even a slight whine awesome 2008 honda crv 2.4L

Chris poplin

10/26/2024

Verified buyer

Product appears to be working normally. Read more

FAQS

1.Power steering fluid low: Check oil tank level. 2. Air in the boost system: Check the oil for air bubbles. 3. Aging pipes and clip: Check the aging of low pressure pipe. 4. Rotational system issues: Check associated axle clearance except crankshaft

Please take the time to carefully verify if your vehicle is compatible with our offering.Please under the guidance of professionals, ensure a smooth and expert installation process. (Instructions not included)

Check the package contents listed on the product page. If an included item is missing, contact us with your order number and photos of everything received.
