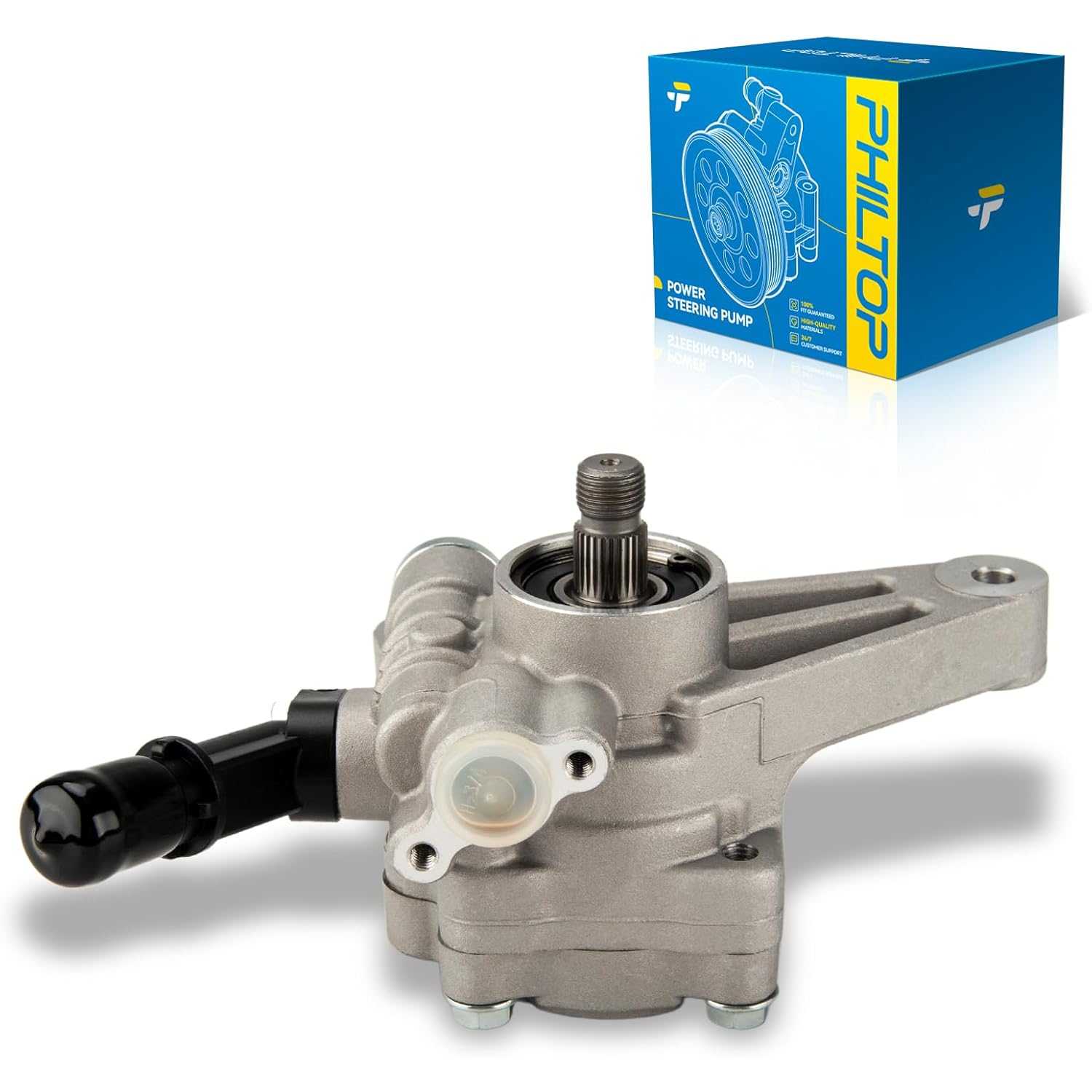

2009-2011 Honda Pilot 3.5L V6 | Power Steering Pump | 215494 - PHILTOP

2009-2011 Honda Pilot 3.5L V6 | Power Steering Pump | 215494 - PHILTOP

Leak-Tested

Durable

4.5

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
2305PSP094RUS

Specifications

Brand
PHILTOP
Pulley Included
No
Reservoir Included
No
Pulley Attachment Type
Bolt-on
Outlet Connection Type
Bolt-on
Inlet Connection Type
Hose Barb
Drive Type
Engine
Material
Aluminium/Iron
Items Included
1x Power Steering Pump - 215494, 1x Manual
Warranty Period
2-Year
Part Number
215494

Highlights

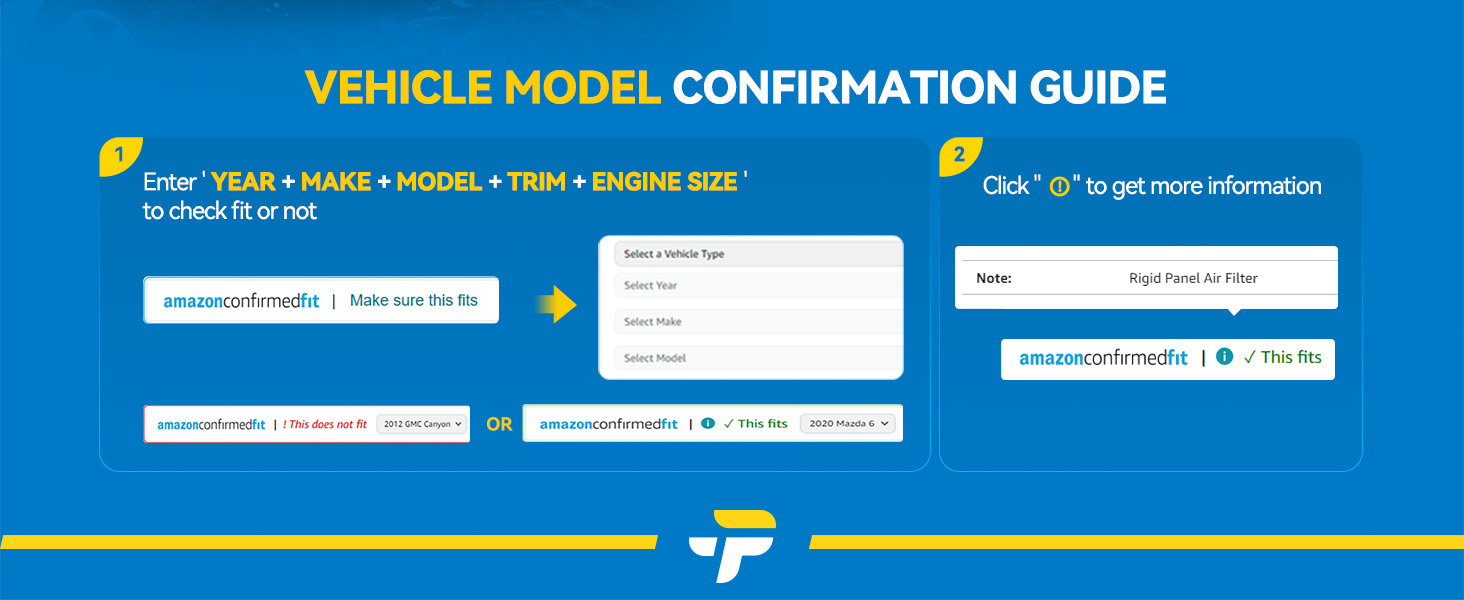

  • [Vehicle Fitment] PHILTOP power steering pump compatible with 2009-2011 Pilot, 2008-2012 Accord 3.5L, 2010-2011 Accord Crosstour, 2012 Crosstour 3.5L. Please use Suncentauto's vehicle fitment tool to confirm if the part is suitable for your vehicle application
  • [OEM Standard Replacement] This steering pump exactly matches the original size, easy to install, and can be replaced as a part 215494, 56110R70A11, 56110R70A12, 56110RN0A01, 56110RN0A02, 56110RN0A03, 56110RNA305, 6049P. Inlet Attachement Type: Hose Barb; Outlet Attachment Type: Bolt-on; Pulley Attachement Type: Bolt-on
  • [High Quality and Durability] Made of high-grade aluminum alloy and wear-resistant metal materials, this automotive replacement power steering pump not only provides excellent corrosion resistance, but also can withstand harsh conditions of use, ensuring stable and durable performance in extreme weather and road conditions. Precision-made internal components increase the service life of the pump, greatly reduce the frequency of replacement, and bring you a more lasting use experience

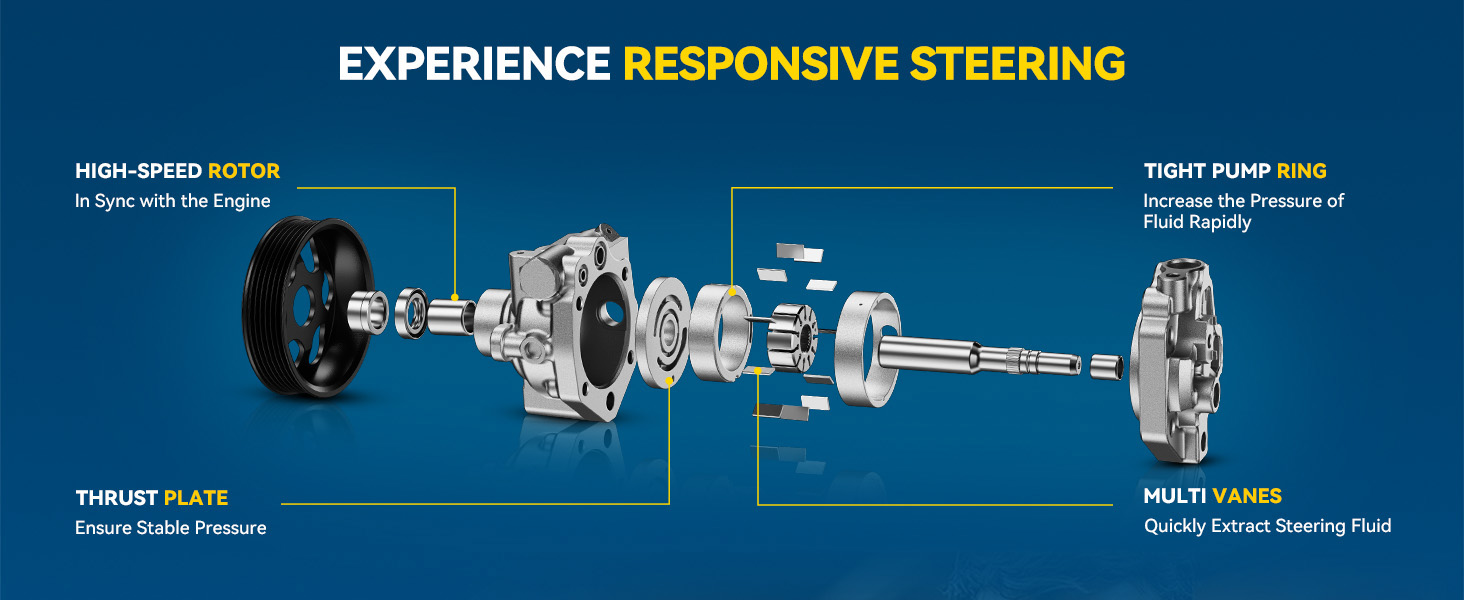

  • [High Efficiency and Low Noise] This power assist pump uses advanced flow and pressure control technology to provide stable and fast steering response, while ensuring low noise operation, reducing unnecessary vibration and improving driving comfort. Its energy-saving design effectively reduces fuel consumption and improves fuel efficiency, making it an ideal energy-saving choice
  • [Customer Support] PHILTOP has been committed to the research and development and production of auto parts for a long time. Any parts produced are 100% matched with the original car. We promise to provide two-year quality assurance and comprehensive after-sales support. If you encounter any product problems, you can contact us at any time, we will respond in time and provide solutions

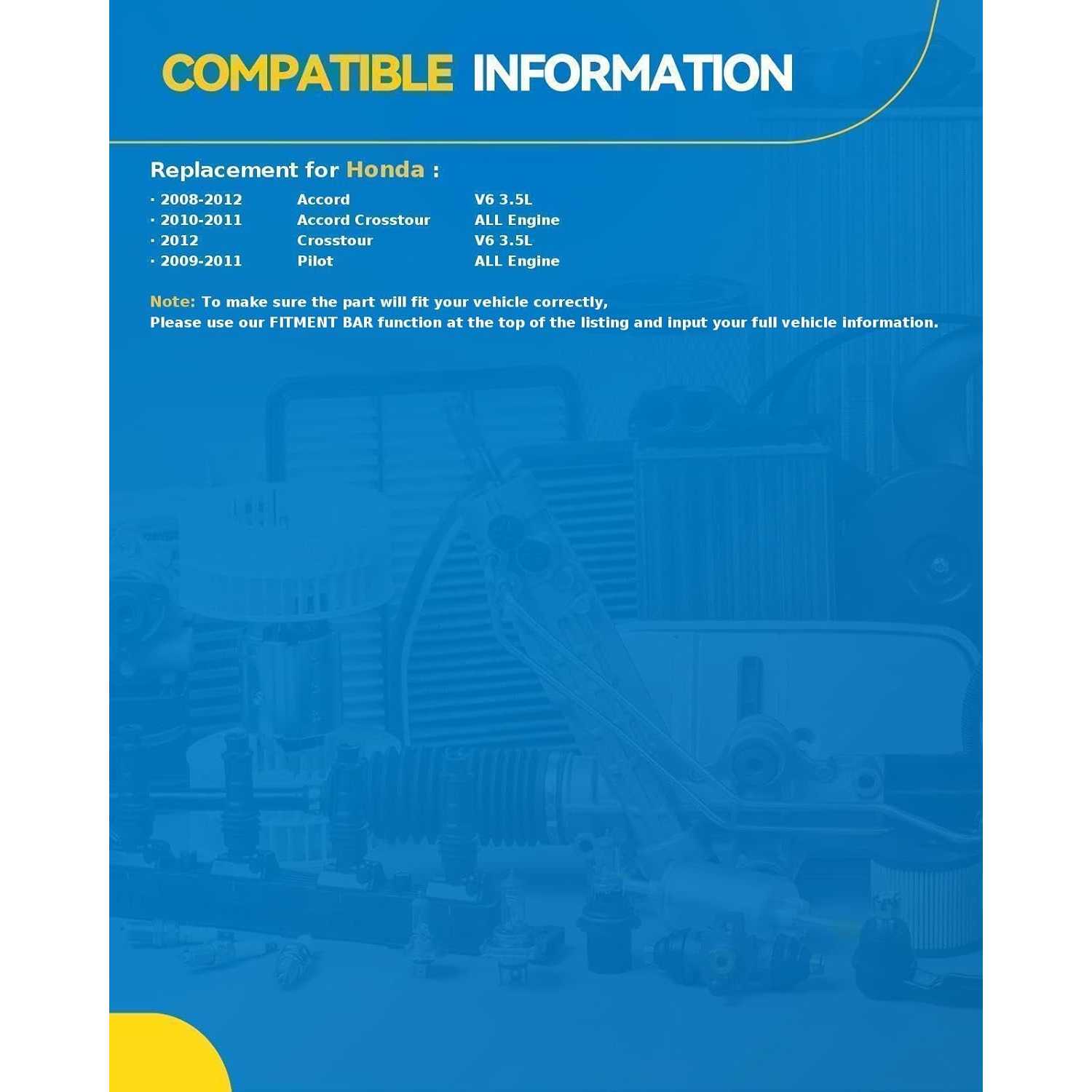

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2008 - 20122008 - 20122010 - 20112010 - 2011201220122009 - 20112009 - 20112009 - 20112009 - 2011
MakeHondaHondaHondaHondaHondaHondaHondaHondaHondaHonda
ModelAccordAccordAccord CrosstourAccord CrosstourCrosstourCrosstourPilotPilotPilotPilot
TrimEXEX-LEXEX-LEXEX-LEXEX-LLXTouring
Engine3.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V6
Note
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;It is critical that Honda/Acura Power Steering fluid is used. Failure to do so could cause performance, noise and failure issues. It is also recommended to install a filter and flush the system before pump installation;Reservoir Not Included
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;It is critical that Honda/Acura Power Steering fluid is used. Failure to do so could cause performance, noise and failure issues. It is also recommended to install a filter and flush the system before pump installation;Reservoir Not Included
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;It is critical that Honda/Acura Power Steering fluid is used. Failure to do so could cause performance, noise and failure issues. It is also recommended to install a filter and flush the system before pump installation;Reservoir Not Included
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;It is critical that Honda/Acura Power Steering fluid is used. Failure to do so could cause performance, noise and failure issues. It is also recommended to install a filter and flush the system before pump installation;Reservoir Not Included
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;It is critical that Honda/Acura Power Steering fluid is used. Failure to do so could cause performance, noise and failure issues. It is also recommended to install a filter and flush the system before pump installation;Reservoir Not Included
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;It is critical that Honda/Acura Power Steering fluid is used. Failure to do so could cause performance, noise and failure issues. It is also recommended to install a filter and flush the system before pump installation;Reservoir Not Included
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;It is critical that Honda/Acura Power Steering fluid is used. Failure to do so could cause performance, noise and failure issues. It is also recommended to install a filter and flush the system before pump installation;Reservoir Not Included
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;It is critical that Honda/Acura Power Steering fluid is used. Failure to do so could cause performance, noise and failure issues. It is also recommended to install a filter and flush the system before pump installation;Reservoir Not Included
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;It is critical that Honda/Acura Power Steering fluid is used. Failure to do so could cause performance, noise and failure issues. It is also recommended to install a filter and flush the system before pump installation;Reservoir Not Included
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;It is critical that Honda/Acura Power Steering fluid is used. Failure to do so could cause performance, noise and failure issues. It is also recommended to install a filter and flush the system before pump installation;Reservoir Not Included

How to Install?

Installation Manual Download

User manual (PDF)
Download

Primary Fault Code Analysis

  • P0550-Power steering pressure sensor circuit — inspect the sensor connector and wiring.
  • P0551–P0553-Pressure sensor circuit range/performance or low/high input — check pressure, sensor signals, and wiring.
  • P0620-Generator control circuit — check the charging system and related wiring.
  • P0562-Low system voltage — check the battery, charging output, and power connections.

Codes alone do not confirm power steering pump failure. Definitions and diagnostic procedures vary by vehicle.

Checks Before Installation

  • Confirm fitment: Compare mounting points, pulley specifications, fluid ports, and any sensor connectors.
  • Inspect the system: Check fluid condition, hoses, seals, and the drive belt for leaks or damage.
  • Check the new pump: Inspect for shipping damage and confirm smooth pulley rotation where applicable.

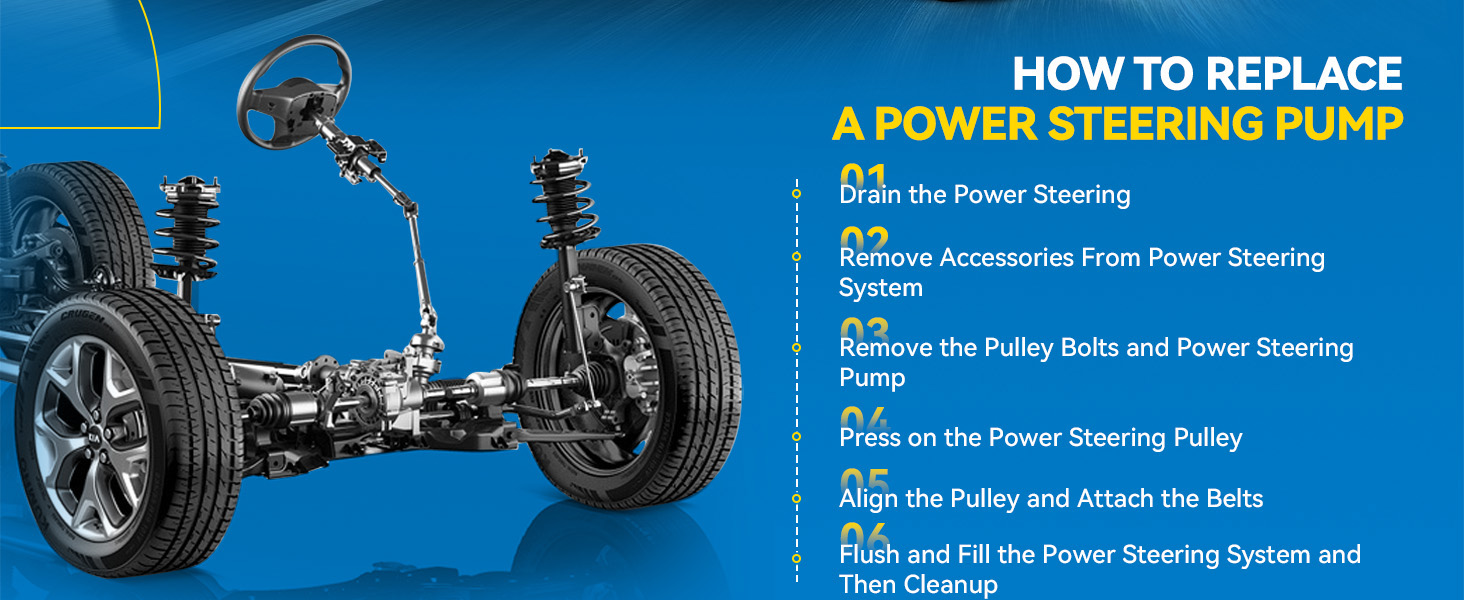

Installation Steps

  • STEP 1 — Let the engine cool, disconnect the negative battery cable, and drain the power steering fluid.
  • STEP 2 — Photograph the belt routing and hose connections. Release belt tension and remove the belt from the pump.
  • STEP 3 — Disconnect hoses and any wiring. Cap open lines to keep out dirt, then remove the old pump.
  • STEP 4 — Clean or flush contaminated lines. Install the new pump with new specified seals and tighten fasteners to vehicle specifications.
  • STEP 5 — Reconnect hoses and wiring. Reinstall the belt with correct alignment and tension.
  • STEP 6 — Fill with the specified fluid and bleed the system using the vehicle-specific procedure. Never run the pump dry or hold the steering at full lock.

After Installation

  • Verify correct belt seating and secure hose connections.
  • With the engine idling, check for smooth steering assist without unusual noise or vibration.
  • Inspect the pump and lines for leaks.
  • Switch off the engine, allow the fluid to settle, and recheck the level.

Product Video

Product Description

Power Steering PumpSteering Pumpautomotive replacement power steering pump

Reviews

4.5/5

Based on 2 reviews

550%
450%
30%
20%
10%

Maria Arismendi

03/18/2024

Verified buyer

Rápido seguro y buen precio

DaveTheMechanic_167

01/08/2026

The build quality on this pump is pretty good for the price. It feels solid and worked right out of the box. They did forget a small bracket, but customer service sent it out super quick, so no biggie.

FAQS

Mismatched high-pressure interface size, aging of sealing ring or gasket. The low-pressure pipe is damaged or loosened: Check whether the oil pipe is loose after tightening the bolts, and whether the gasket or seal is deformed.

1. The long storage time causes the vanes to be stuck by oil: Check for oil fluctuations in oil tank. 2. Faults of tie rods, ball cages, tires, steering gear: Check the relevant parts

1.Power steering fluid low: Check oil tank level. 2. Air in the boost system: Check the oil for air bubbles. 3. Aging pipes and clip: Check the aging of low pressure pipe. 4. Rotational system issues: Check associated axle clearance except crankshaft
