2000-2002 Audi S4 2.7L V6 | Hydraulic Power Steering Rack & Pinion Assembly | 269006 - PHILTOP

2000-2002 Audi S4 2.7L V6 | Hydraulic Power Steering Rack & Pinion Assembly | 269006 - PHILTOP

Hydraulic Power

Effortless Steering

Leak-Tested

4.6

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
2330SGE1749US

Specifications

Brand
PHILTOP
Steering Type
Hydraulic Power
Pressure Port Thread Size
M14 X 1.5
Return Port Thread Size
M16 X 1.5
Input Shaft Diameter
0.75 in
Input Shaft Length
1.50 in
Rack Length
40.12 in
Thread Length
2.02 in
Material
Aluminum / Iron
Items Included

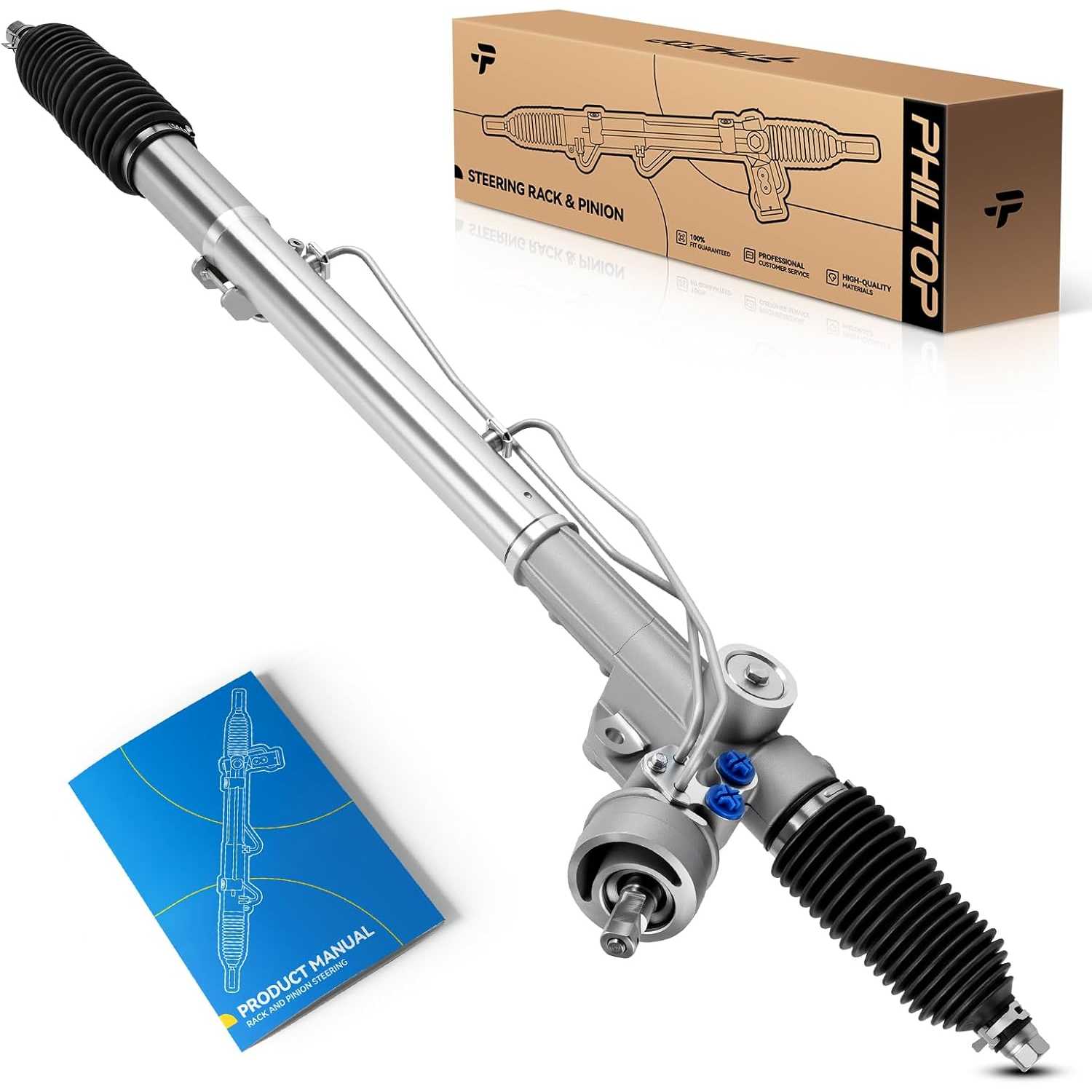

1x Rack and Pinion - 269006
Warranty Period
2-Year
Part Number
269006

Highlights

  • [Vehicle Fitment]: Hydraulic steering rack and pinion assembly compatible with 1996-1997, 1999-2001 A4 Quattro, 1998 A4 Quattro 1.8L, 1996-1997 A4, 1998-1999 A4 1.8L, 2000-2001 A4, 2000-2002 S4, 1998, 2000-2001 Passat, 1999 Passat 1.8L, 2002-2004 Passat 1.8/2.0/2.8L, 2005 Passat. NOTE: Fits 1998–2002 Passat (excl. Koyo gear; 2000 from Chassis #3B-XE498356); 1996–1999 A4/A4 Quattro (excl. Koyo gear; 1999 Quattro from Chassis #8D-X-302334; 1998 A4 from #8D-W-007800).
  • [Reference Number]: Rack and pinion steering assembly OE number 26-9006, 269006, 8D1422052KX, 8D1422052L, 8D1422052LX, 8D1422052M, 8D1422052MX, 8D1422053A, 8D1422053AV, 8D1422053AX, 8D1422053BV, 8D1422053BX, 8D1422065J, 8D1422071M, 8D1422071P, 8D1422072A.
  • [Specifications]: ①Steering Type: Hydraulic Power; ②Rack Length(In): 40.12; ③Thread Length(In): 2.02; ④Input Shaft Length(In): 1.5; ⑤Input Shaft Diameter(In): 0.75; ⑥Pressure Port Thread Size: M14 x 1.5; ⑦Return Port Thread Size: M16 x 1.5. Package included: 1x Rack and Pinion - 269006.

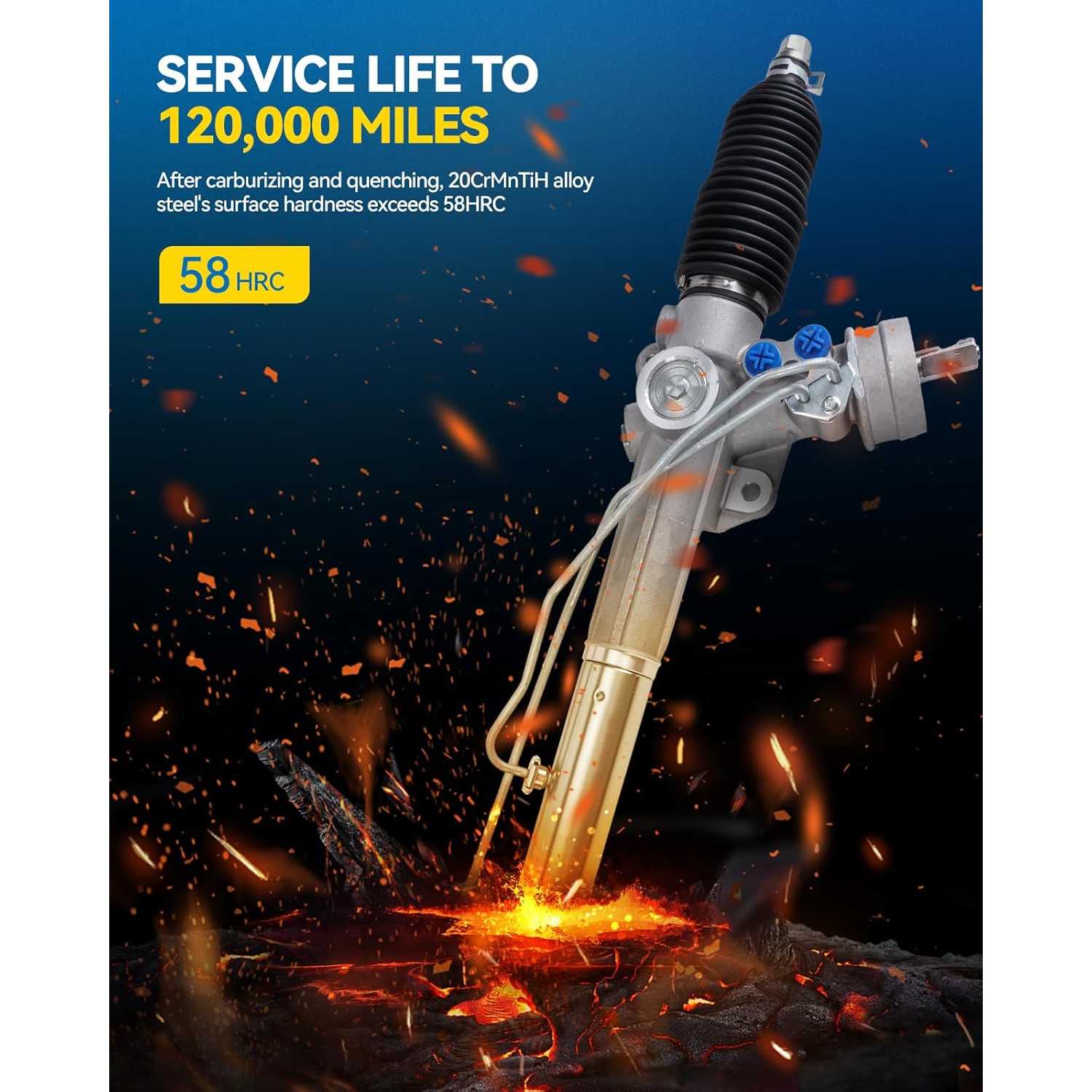

  • [High Verticality]: The rack and worm gear in the steering rack and pinion are made of high-strength alloy steel processed by high-precision CNC, which ensures the high verticality of the helical gear system, making the steering wheel operation more stable and driving safer. Closely integrated with the vehicle chassis will not produce noise and vibration.

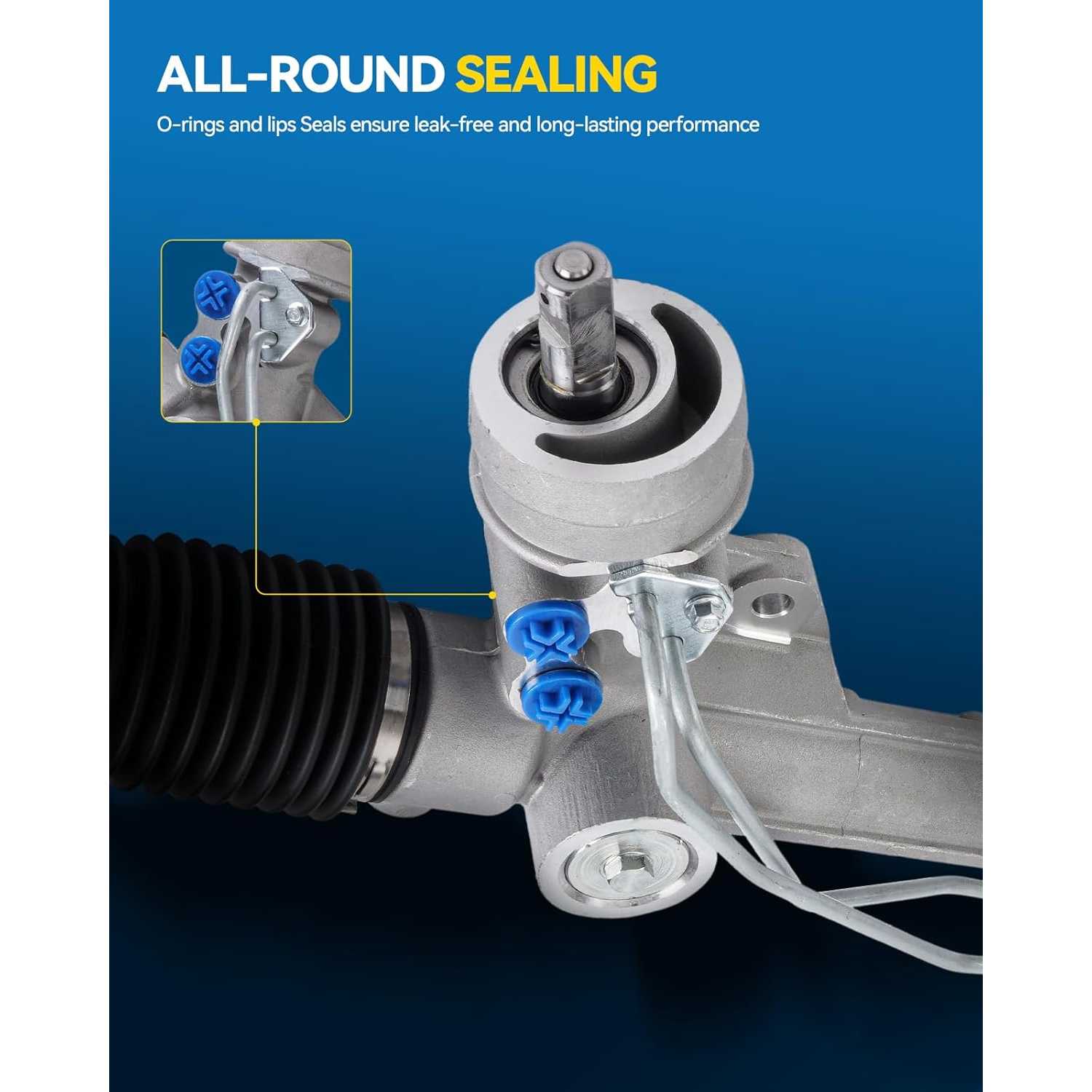

  • [Durable Performance]: PHILTOP steering rack and pinion adopts corrosion-resistant oil seals and lip seals, and butyl rubber sealing covers. The 360°dust cover is fully protected to effectively prevent dust and dirt from entering the rack gear to cause wear and oil leakage. Service life more than 120,000 miles, 24-month unlimited mileage guarantee.

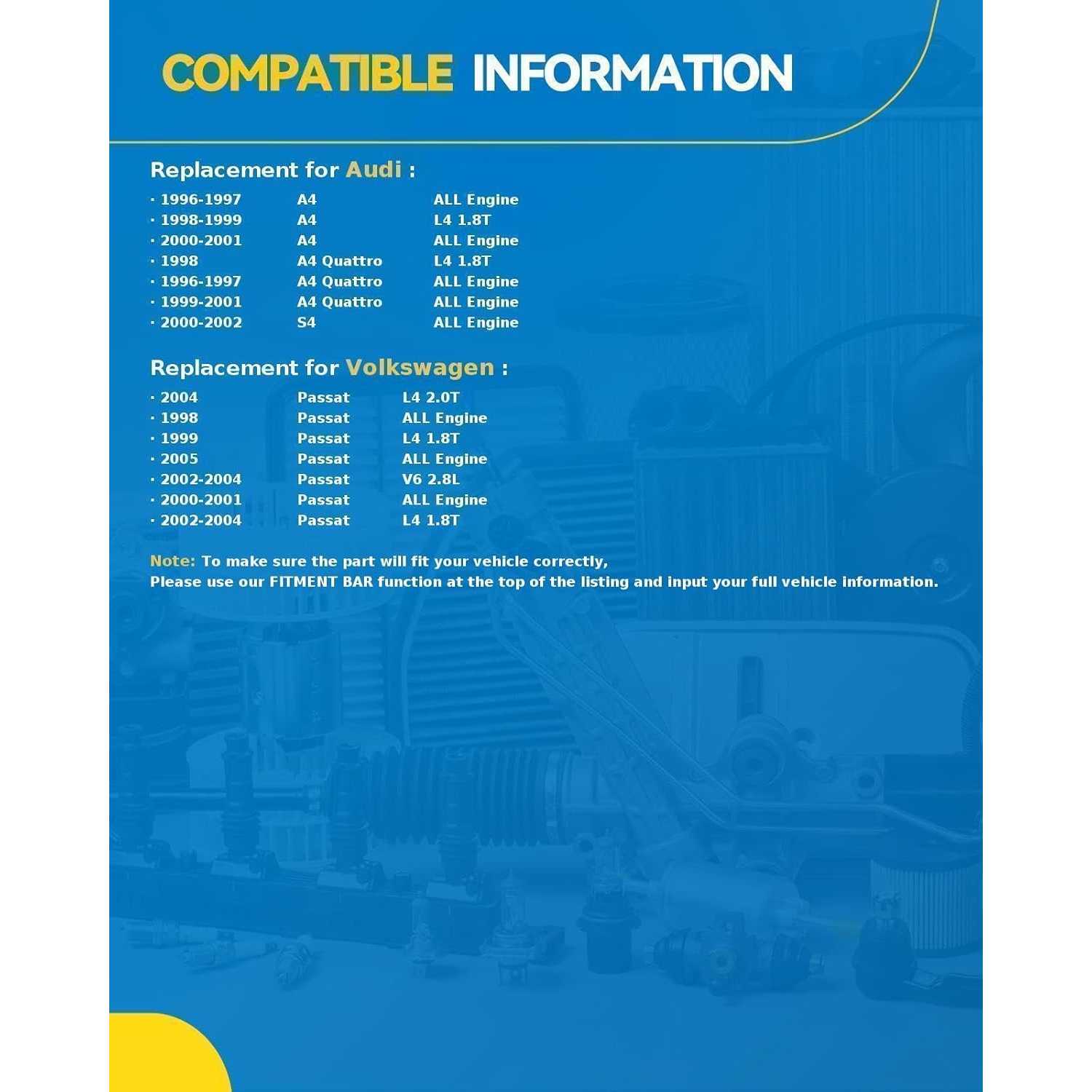

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year1997199819992000 - 20011996 - 19972000 - 200119992000 - 200119992000 - 20011997 - 199819992000 - 20011996 - 199719992000 - 20012001 - 20022000 - 200220002003 - 200420052003 - 2004200420051998199920002001 - 20022003 - 20042005199820002001 - 20022003 - 20042005200420052001 - 2002200520042005199820002001 - 20022003 - 200420052001 - 20022003 - 20042005
MakeAudiAudiAudiAudiAudiAudiAudiAudiAudiAudiAudiAudiAudiAudiAudiAudiAudiAudiVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagen
ModelA4A4A4A4A4A4A4 QuattroA4 QuattroA4 QuattroA4 QuattroA4 QuattroA4 QuattroA4 QuattroA4 QuattroA4 QuattroA4 QuattroS4S4PassatPassatPassatPassatPassatPassatPassatPassatPassatPassatPassatPassatPassatPassatPassatPassatPassatPassatPassatPassatPassatPassatPassatPassatPassatPassatPassatPassatPassatPassatPassat
TrimBaseBaseBaseBaseBaseBaseAvantAvantAvantAvantBaseBaseBaseBaseBaseBaseAvantBase4 MotionGLGLGLGL TDIGL TDIGLSGLSGLSGLSGLSGLSGLSGLSGLSGLSGLSGLS 4 MotionGLS 4 MotionGLS 4 MotionGLS 4 MotionGLS TDIGLS TDIGLXGLXGLXGLXGLXGLX 4 MotionGLX 4 MotionGLX 4 Motion
Engine1.8L L41.8L L41.8L L41.8L L42.8L V62.8L V61.8L L41.8L L42.8L V62.8L V61.8L L41.8L L41.8L L42.8L V62.8L V62.8L V62.7L V62.7L V62.8L V61.8L L41.8L L42.8L V62.0L L42.0L L41.8L L41.8L L41.8L L41.8L L41.8L L41.8L L42.8L V62.8L V62.8L V62.8L V62.8L V61.8L L41.8L L42.8L V62.8L V62.0L L42.0L L42.8L V62.8L V62.8L V62.8L V62.8L V62.8L V62.8L V62.8L V6
Note
Except Koyo Gear;For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
Except Koyo Gear;For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;From Chassis # 8D-W-007800;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
Except Koyo Gear;For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
Except Koyo Gear;For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;From Chassis # 8D-X-302334;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;From Chassis # 8D-X-302334;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
Except Koyo Gear;For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;From Chassis # 8D-X-302334;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
Except Koyo Gear;For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;From Chassis # 8D-X-302334;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;From Chassis # 3B-XE498356;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
-
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
-
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
Except Koyo Gear;For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;From Chassis # 3B-XE498356;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
Except Koyo Gear;For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
-
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;From Chassis # 3B-XE498356;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
Except Koyo Gear;For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
-
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
-
Except Koyo Gear;For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
-
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
-
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;From Chassis # 3B-XE498356;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
Except Koyo Gear;For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
-
Except Koyo Gear;For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
-

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm fitment: Compare mounting dimensions, input shaft connections, and hydraulic ports.
  • Inspect related parts: Check tires, suspension, tie rods, steering joints, pump, and hoses.
  • Prepare the system: Flush contaminated fluid and prepare new seals that match vehicle specifications.

Installation Steps

  • STEP 1 — Secure the vehicle, disconnect the negative battery cable, and secure the steering wheel to prevent free rotation.
  • STEP 2 — Mark connection positions. Disconnect tie rods, hydraulic lines, and the steering shaft; collect drained fluid.
  • STEP 3 — Remove the old rack and flush the lines before connecting the replacement.
  • STEP 4 — Center the new rack and install it in alignment with the steering wheel. Tighten fasteners to vehicle specifications.
  • STEP 5 — Reconnect the steering shaft, tie rods, and hydraulic lines using new specified seals.
  • STEP 6 — Refill with the correct power steering fluid and bleed the system using the vehicle-specific procedure. Never run the system without sufficient fluid.

After Installation

  • Check fluid level, hydraulic connections, and fasteners.
  • Verify smooth steering without binding, unusual noise, or fluid foaming.
  • Have a four-wheel alignment performed.
  • After the alignment and safety checks, road-test for straight tracking, steering wheel centering, and normal steering return.

Product Video

Product Description

power rack and pinion assemblyPower Steering Rack and Pinion

Reviews

4.6/5

Based on 7 reviews

571%
414%
314%
20%
10%

Rob_HomeGarage_260

10/18/2025

Delivery was quick and the packaging protected the part well. Installation went smoothly, no surprises. Happy with the purchase.

CarGuy_John_369

03/28/2026

Nice heavy-duty construction. Feels like a really quality piece. For the price, it’s hard to find anything better. Great value.

FAQS

You can expect a rack and pinion to last between fifteen and twenty years, on average.

They may be reused if they are compatible and remain in serviceable condition. Inspect them for looseness, damaged threads, or worn joints before installation.

Check the fasteners, fluid level, hose connections, steering movement, and wheel alignment. Confirm that there is no binding, leakage, or unusual noise before normal driving.
