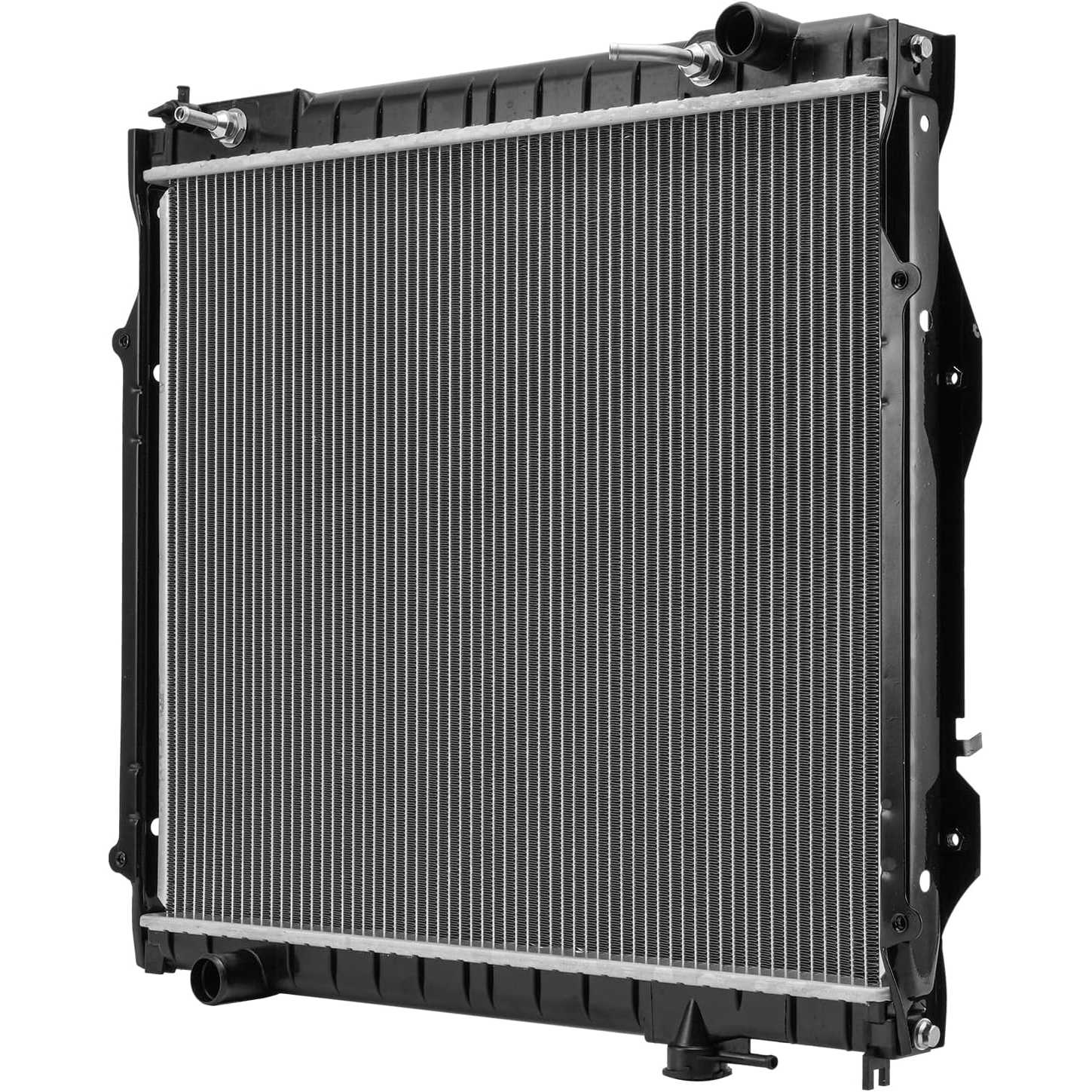

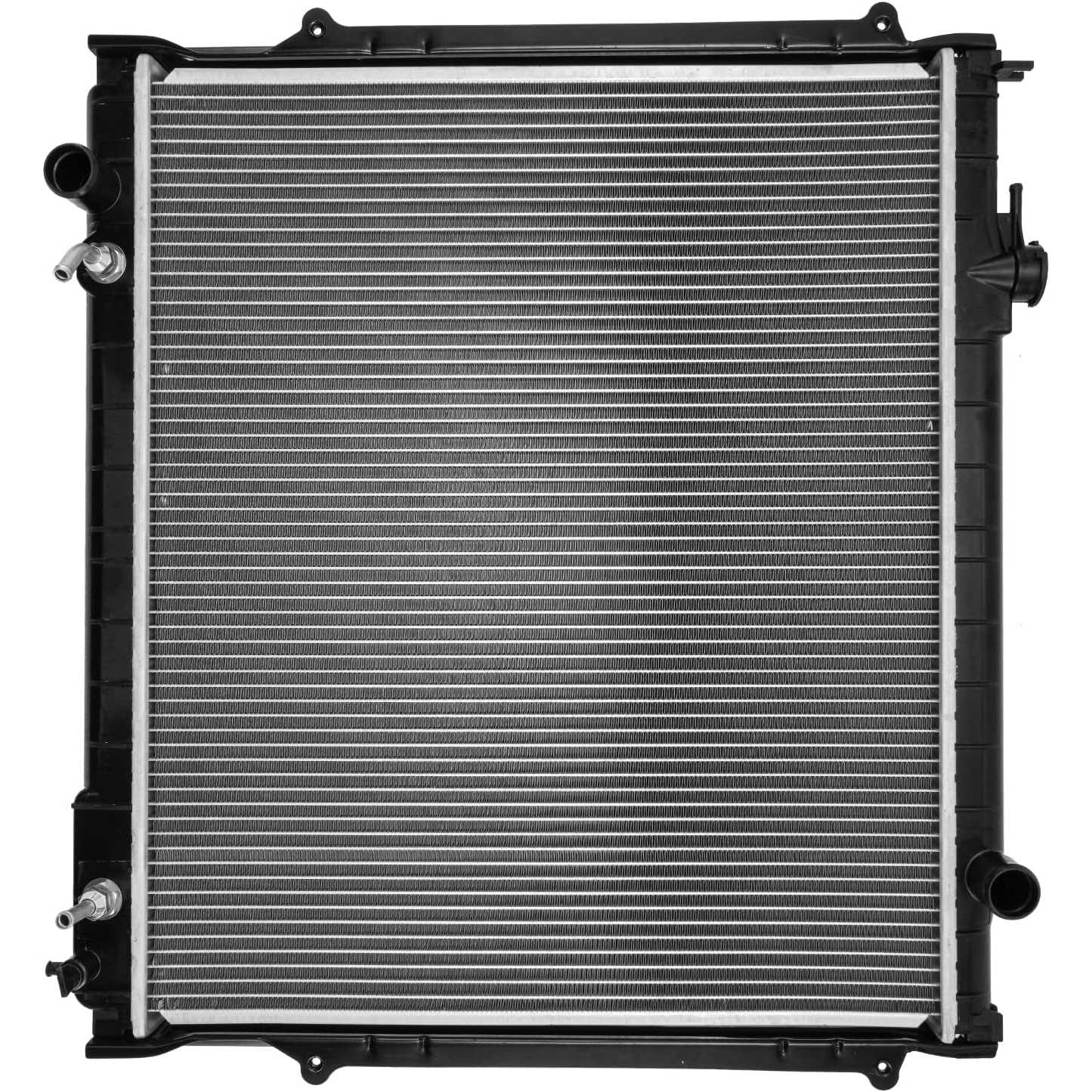

1995-2004 Toyota Tacoma 2.4L L4 | Aluminum 1" Radiator | OE#1641007061/CU1774 - PHILTOP

1995-2004 Toyota Tacoma 2.4L L4 | Aluminum 1" Radiator | OE#1641007061/CU1774 - PHILTOP

Leak-Resistant

4.8

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
8882RAD094UUS

Specifications

Brand
PHILTOP
Transmission Oil Cooler Included
Yes
Engine Oil Cooler Included
No
Core Thickness
1 in
Core Width
25-1/2 in
Core Height
20-11/16 in
Radiator Cap Included
No
Inlet Diameter
1-5/16 in
Outlet Diameter
1-5/16 in
Items Included
1x Radiator - CU1774, 1x Instruction Manual
Mounting Type
Flange Mount
Core Material
Aluminium
Radiator Flow Type
Down Flow
Warranty Period
2-Year
OE Number
1641007061,0416004011,416004040,416004030,416004020,416004010,164100C024,1641007060,164100C031,164100C032,164100C021,164100C030,164100C022,52469687,16400C040,164100C023,164100C020,52469686,52469685
Part Number
CU1774,2213136,1774C,411774,TO3010178,1985,TO3010180,431377,431372,PR1774A,SBR1774,KLI1774,REA411776A,3155,431374,56120,646231,CR1985,9730,SBR1774V,REA411774A,431488,CR1774,1981202361,BES1774,CRS1774,CUC1774,0R001774A3CM,AM1774,NR1774B,B1774

Highlights

  • Vehicle Adaptation Model:1995-1998 2000-2004 Tacoma, 1999 Tacoma 2.4L, 1999 Tacoma 2.7L, 1999 Tacoma 3.4L
  • Replacement OEM Part Number:CU1774, 2213136, 1774C, 411774, 0416004010, 164100C024, 0416004011, 164100C020, 1641007060, 1641007061, 164100C022, 164100C021, 0416004020, 0416004030, 0416004040
  • Dimension - Core Width: 25-1/2 In. Core Height: 20-11/16 In. Core Thickness: 1 In. Inlet Diameter: 1-5/16 In. Outlet Diameter: 1-5/16 In.
  • IATF16949 Certification: Designed with outstanding durability, in compliance with the original specifications, and suitable for direct replacement.

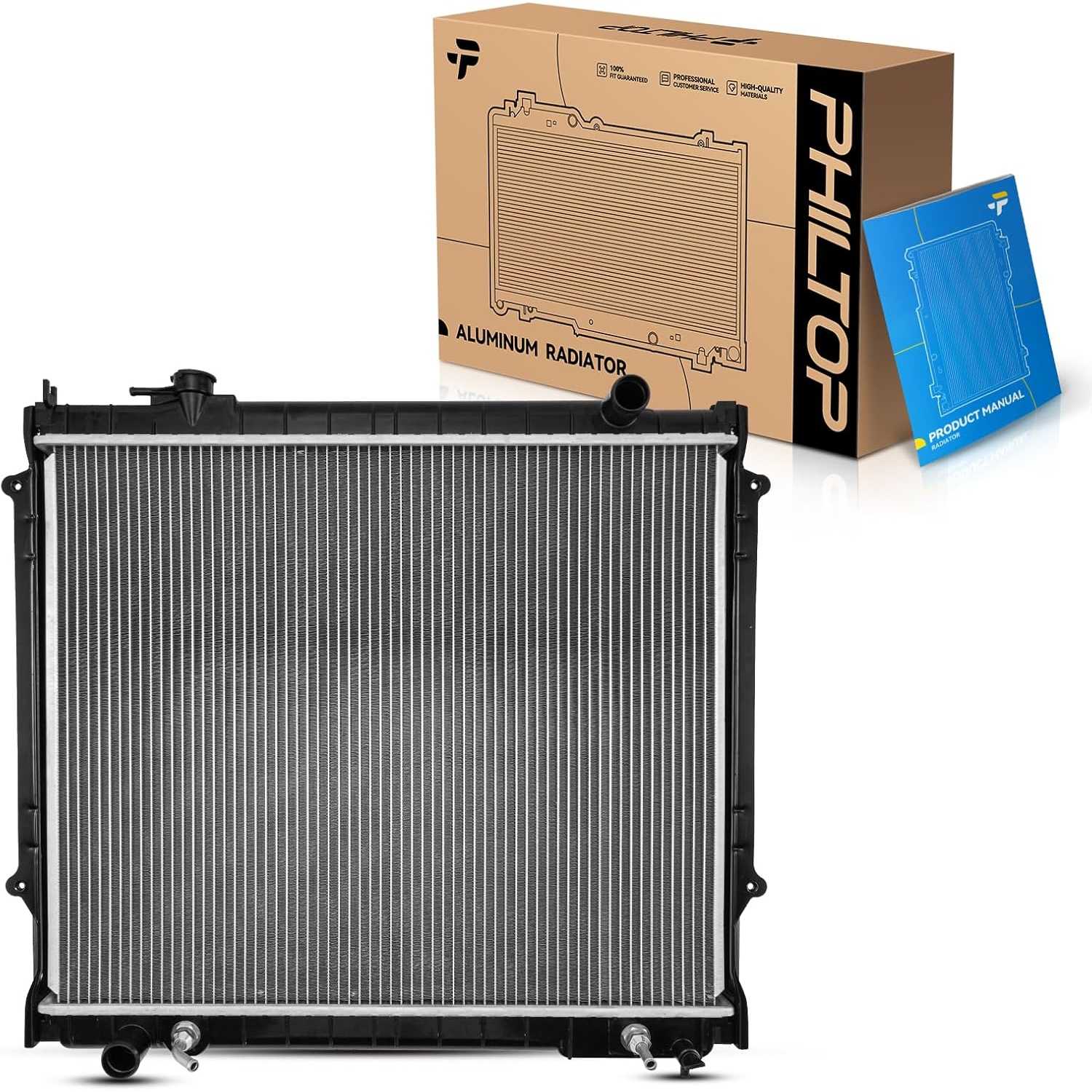

  • Enhanced Package: Package come with 1x PHILTOP Radiator Complete Radiator and. Fixed foam in four corners for the purpose of fixing the radiator, no bending and no damage.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year1995 - 19992000 - 20041995 - 19992000 - 20041995 - 19992000 - 20041998199819981998 - 199920001998 - 19992000 - 200419982000 - 20042001 - 20041998 - 199920001998 - 199920001995 - 19992000
MakeToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyota
ModelTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacomaTacoma
TrimBaseBaseBaseBaseBaseBaseDLXDLXDLXLimitedLimitedPre RunnerPre RunnerPre RunnerPre RunnerS-RunnerSR5SR5SR5SR5SR5SR5
Engine2.4L L42.4L L42.7L L42.7L L43.4L V63.4L V62.4L L42.7L L43.4L V63.4L V63.4L V62.7L L42.7L L43.4L V63.4L V63.4L V62.4L L42.4L L42.7L L42.7L L43.4L V63.4L V6
Note
20-3/4 in. Between Tanks;Radiator Cap Is Required
-
20-3/4 in. Between Tanks;Radiator Cap Is Required
-
20-3/4 in. Between Tanks;Radiator Cap Is Required
-
20-3/4 in. Between Tanks;Radiator Cap Is Required
20-3/4 in. Between Tanks;Radiator Cap Is Required
20-3/4 in. Between Tanks;Radiator Cap Is Required
20-3/4 in. Between Tanks;Radiator Cap Is Required
-
20-3/4 in. Between Tanks;Radiator Cap Is Required
-
20-3/4 in. Between Tanks;Radiator Cap Is Required
--
20-3/4 in. Between Tanks;Radiator Cap Is Required
-
20-3/4 in. Between Tanks;Radiator Cap Is Required
-
20-3/4 in. Between Tanks;Radiator Cap Is Required
-

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm fitment: Compare mounting points, hose connections, and oil cooler ports with the original radiator.
  • Inspect components: Check the radiator, hoses, clamps, and seals for damage or leaks.
  • Check coolant: Inspect the coolant level and condition. Flush contaminated coolant before installing the new radiator.

Installation Steps

  • STEP 1 — Let the engine cool completely, then disconnect the negative battery cable. Never open the pressure cap while hot.
  • STEP 2 — Drain the coolant into a suitable container and flush the system as required.
  • STEP 3 — Disconnect hoses, applicable oil cooler lines, and fan wiring. Remove the fan assembly and radiator as required by the vehicle’s service procedure.
  • STEP 4 — Transfer required brackets and accessories. Install the new radiator and tighten fasteners to vehicle specifications.
  • STEP 5 — Reconnect hoses, cooler lines, and electrical connectors. Refill with the specified coolant, bleed trapped air, and fit the correct pressure cap.

After Installation

  • Check hose connections, cooler lines, and the cooling system for leaks.
  • Confirm normal engine temperature and proper cooling fan operation.
  • After the engine cools completely, recheck the coolant level and top up as needed.
  • Recheck for leaks after a short test drive.

Product Video

Product Description

PHILTOP radiatorradiators

Reviews

4.8/5

Based on 5 reviews

580%
420%
30%
20%
10%

Customer photos and videos

BingfBingf

06/15/2026

Verified buyer

This radiator was purchased to replace the factory original radiator on a 1998 Toyota Tacoma 4X4 3.4v6 5speed. My radiator core measured 21" by 25.5". The mounting holes were slightly closer together than the factory radiator so I removed the mounting brackets from my original radiator and replaced the brackets that came with the new one. I had to increase the size of the top attaching hole by about 1/8 inch but it bolted right up and was now a perfect fit. The mounting holes now match the holes in the truck and the fan shroud bolted up no problem. Looks like a factory fit. Attached pic is the hole in the mount that needed to be enlarged.

Emma_DailyCommute_989

04/02/2026

The delivery was surprisingly quick, and the radiator was packaged well. Installation was a cinch, everything lined up perfectly with the stock components. Couldn't have asked for a smoother replacement.

FAQS

Stop the installation and contact Philtop customer support. Please provide your vehicle information, order number and photos of the original and received parts so we can help review the fitment.

Check the coolant level, hose and cooler-line connections, mounting points, and operating temperature. Inspect for leakage again after the engine cools.

Some radiators include transmission-cooler connections. Check the specifications and compare the fittings with the original radiator.
