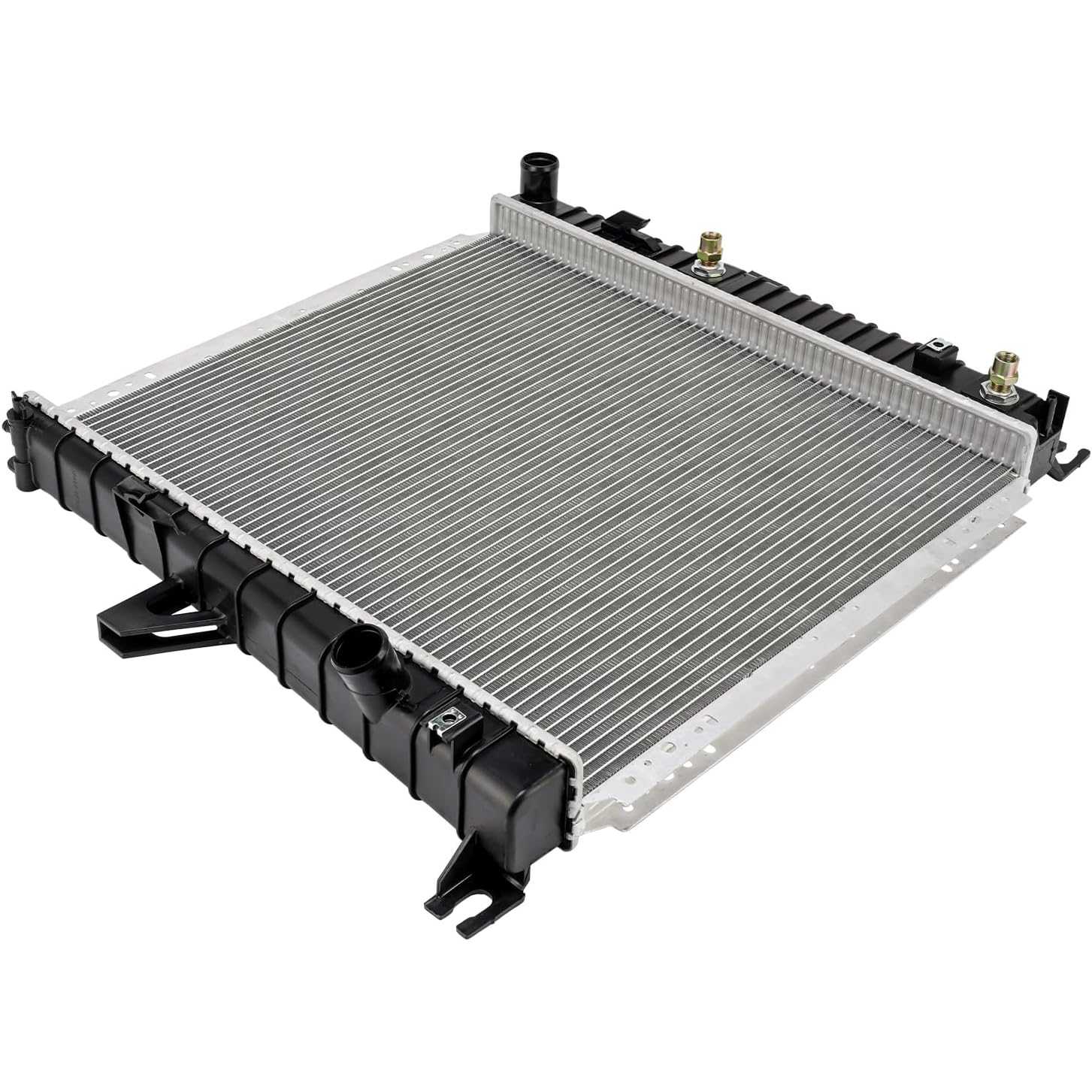

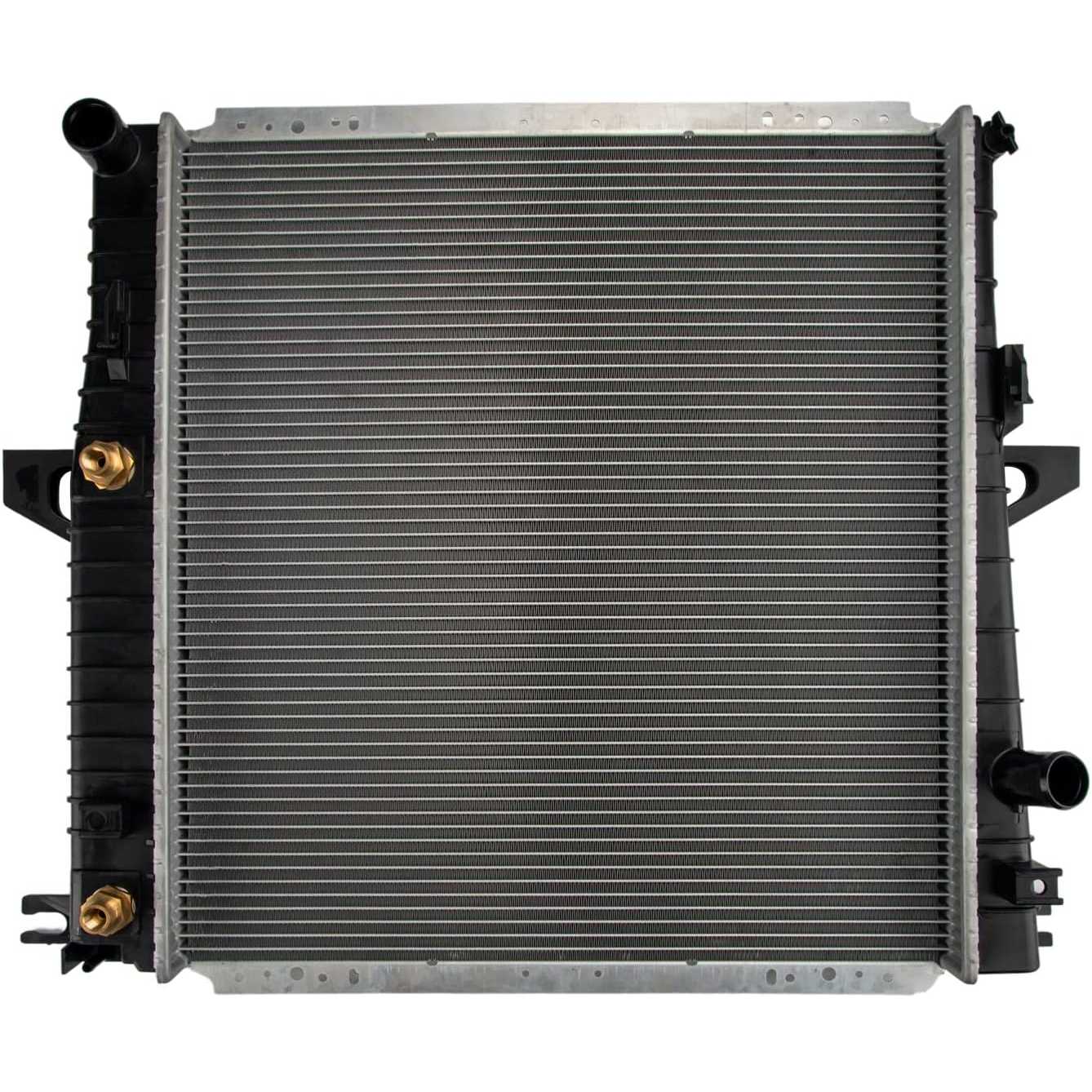

2001-2009 Mazda B2300 2.3L L4 | Aluminum 1" Radiator | OE#1L5H8005GA/CU2470 - PHILTOP

2001-2009 Mazda B2300 2.3L L4 | Aluminum 1" Radiator | OE#1L5H8005GA/CU2470 - PHILTOP

Leak-Resistant

4.8

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
2710CFK0536US

Specifications

Brand
PHILTOP
Transmission Oil Cooler Included
Yes
Engine Oil Cooler Included
No
Core Thickness
1 in
Core Width
23-5/8 in
Core Height
20-3/4 in
Radiator Cap Included
No
Inlet Diameter
1-1/2 in
Outlet Diameter
1-1/2 in
Items Included
1x Radiator - CU2470, 1x Instruction Manual
Mounting Type
Flange Mount
Core Material
Aluminium
Radiator Flow Type
Cross Flow
Warranty Period
2-Year
OE Number
1L5H8005GA,1F8015200,1F8315200,1F7015200,1F7315200,6L5Z8005AA,6L5Z8005BA,1L5Z8005HA,1L5Z8005GA,1L5H8005HA,XL2H8005DA,4L5Z8005AA,4L5Z8005BA,1L5H8005NA,1L4H8005GA,2480579
Part Number
CU2470,2219168,2470C,412470,MA3010199,432620,9433,KLI2470,SBR2470,PR2470A,CUC2470,REA412470A,CR2470,NR2470B,AM2470,0R002470A2CM,CRS2470,BES2470,B2470

Highlights

  • Vehicle Adaptation Model:2001-2011 Ranger 2.3L, 2001-2009 B2300
  • Replacement OEM Part Number: 1F7015200, 1F7315200, 1F8015200, 1F8315200, 1L4H8005GA, 1L5H8005HA, 1L5H8005NA, 1L5Z8005GA, 1L5Z8005HA, 4L5Z8005AA, 4L5Z8005BA, 6L5Z8005AA, 6L5Z8005BA, XL2H8005DA
  • Dimension - Core Width: 23-5/8 in Core Height: 20-3/4 in Core Thickness: 1 in Inlet Diameter: 1-1/2 in Outlet Diameter: 1-1/2 in
  • IATF16949 Certification: Designed with outstanding durability, in compliance with the original specifications, and suitable for direct replacement.

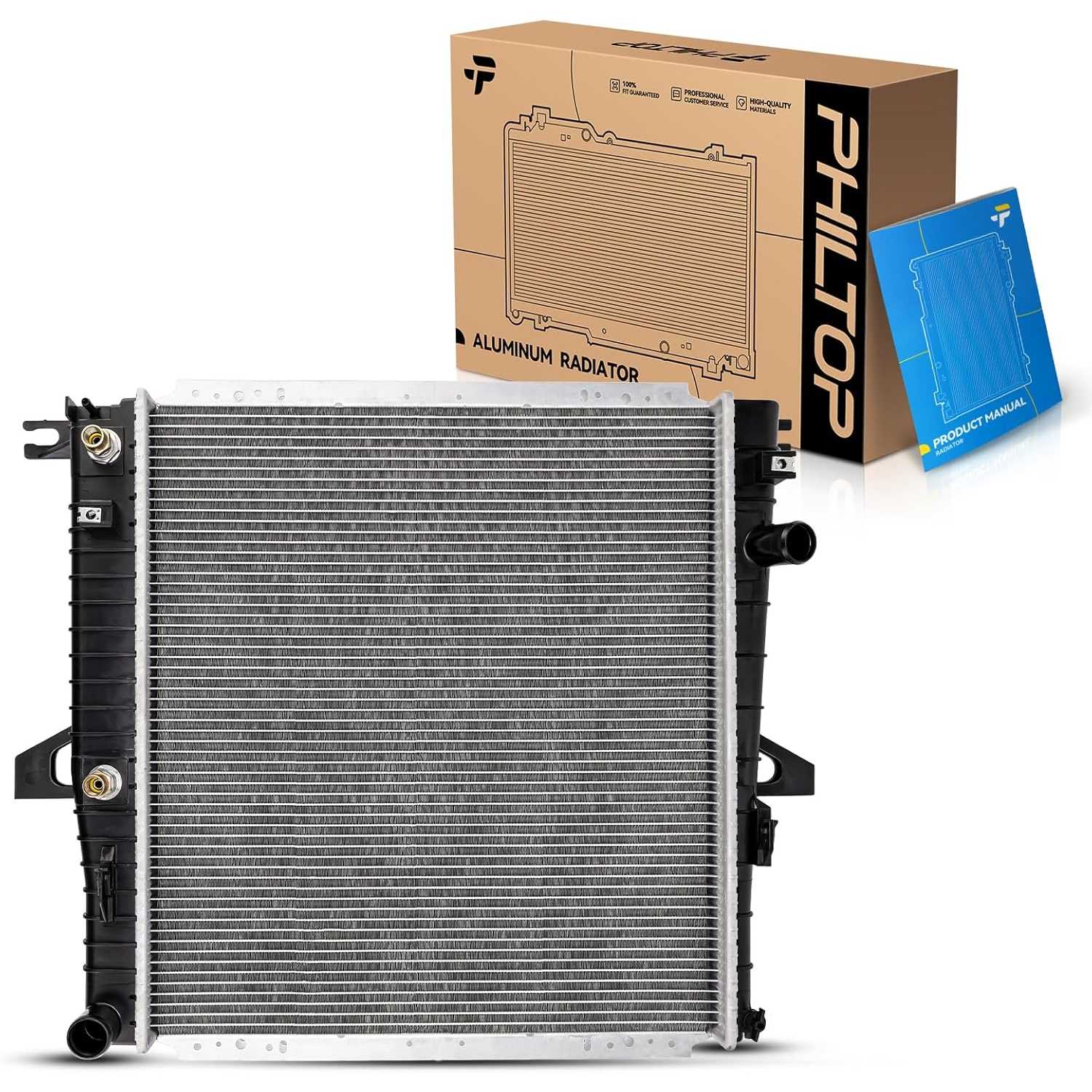

  • Enhanced Package: Package come with 1x PHILTOP Radiator Complete Radiator and. Fixed foam in four corners for the purpose of fixing the radiator, no bending and no damage.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year200720092001 - 20112001 - 20112002 - 200920012003 - 20042001
MakeFordFordFordFordMazdaMazdaMazdaMazda
ModelRangerRangerRangerRangerB2300B2300B2300B2300
TrimSTXSportXLXLTBaseSESESX
Engine2.3L L42.3L L42.3L L42.3L L42.3L L42.3L L42.3L L42.3L L4
Note--------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm fitment: Compare mounting points, hose connections, and oil cooler ports with the original radiator.
  • Inspect components: Check the radiator, hoses, clamps, and seals for damage or leaks.
  • Check coolant: Inspect the coolant level and condition. Flush contaminated coolant before installing the new radiator.

Installation Steps

  • STEP 1 — Let the engine cool completely, then disconnect the negative battery cable. Never open the pressure cap while hot.
  • STEP 2 — Drain the coolant into a suitable container and flush the system as required.
  • STEP 3 — Disconnect hoses, applicable oil cooler lines, and fan wiring. Remove the fan assembly and radiator as required by the vehicle’s service procedure.
  • STEP 4 — Transfer required brackets and accessories. Install the new radiator and tighten fasteners to vehicle specifications.
  • STEP 5 — Reconnect hoses, cooler lines, and electrical connectors. Refill with the specified coolant, bleed trapped air, and fit the correct pressure cap.

After Installation

  • Check hose connections, cooler lines, and the cooling system for leaks.
  • Confirm normal engine temperature and proper cooling fan operation.
  • After the engine cools completely, recheck the coolant level and top up as needed.
  • Recheck for leaks after a short test drive.

Product Video

Product Description

PHILTOP radiatorradiators

Reviews

4.8/5

Based on 6 reviews

583%
417%
30%
20%
10%

Wilfredo sosa torres

06/19/2026

Verified buyer

Me llego bien

Dan Dailey

06/17/2026

Verified buyer

Exactly what was needed as there was no repairing old one.

FAQS

Stop the installation and contact Philtop customer support. Please provide your vehicle information, order number and photos of the original and received parts so we can help review the fitment.

Check the coolant level, hose and cooler-line connections, mounting points, and operating temperature. Inspect for leakage again after the engine cools.

Some radiators include transmission-cooler connections. Check the specifications and compare the fittings with the original radiator.
