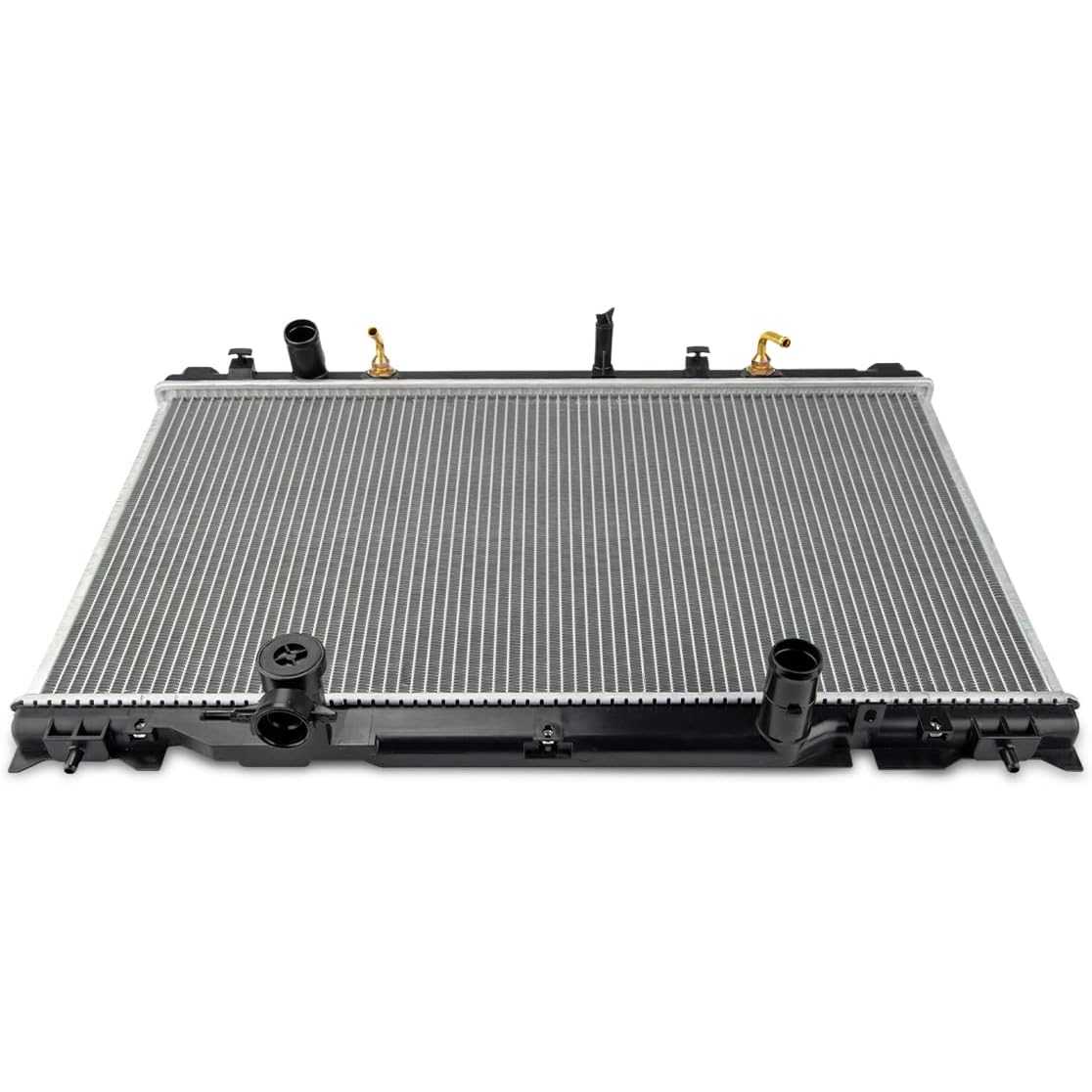

2002-2006 Toyota Camry 2.4L L4 | Aluminum 5/8" Radiator | OE#1640028280/CU2437 - PHILTOP

2002-2006 Toyota Camry 2.4L L4 | Aluminum 5/8" Radiator | OE#1640028280/CU2437 - PHILTOP

Leak-Resistant

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
2157CFK119CUS

Specifications

Brand
PHILTOP
Transmission Oil Cooler Included
Yes
Engine Oil Cooler Included
No
Core Thickness
5/8 in
Core Width
28-11/16 in
Core Height
15-3/4 in
Radiator Cap Included
No
Inlet Diameter
1-5/16 in
Outlet Diameter
1-5/16 in
Items Included
1x Radiator - CU2437, 1x Instruction Manual
Mounting Type
Top / Bottom Pin

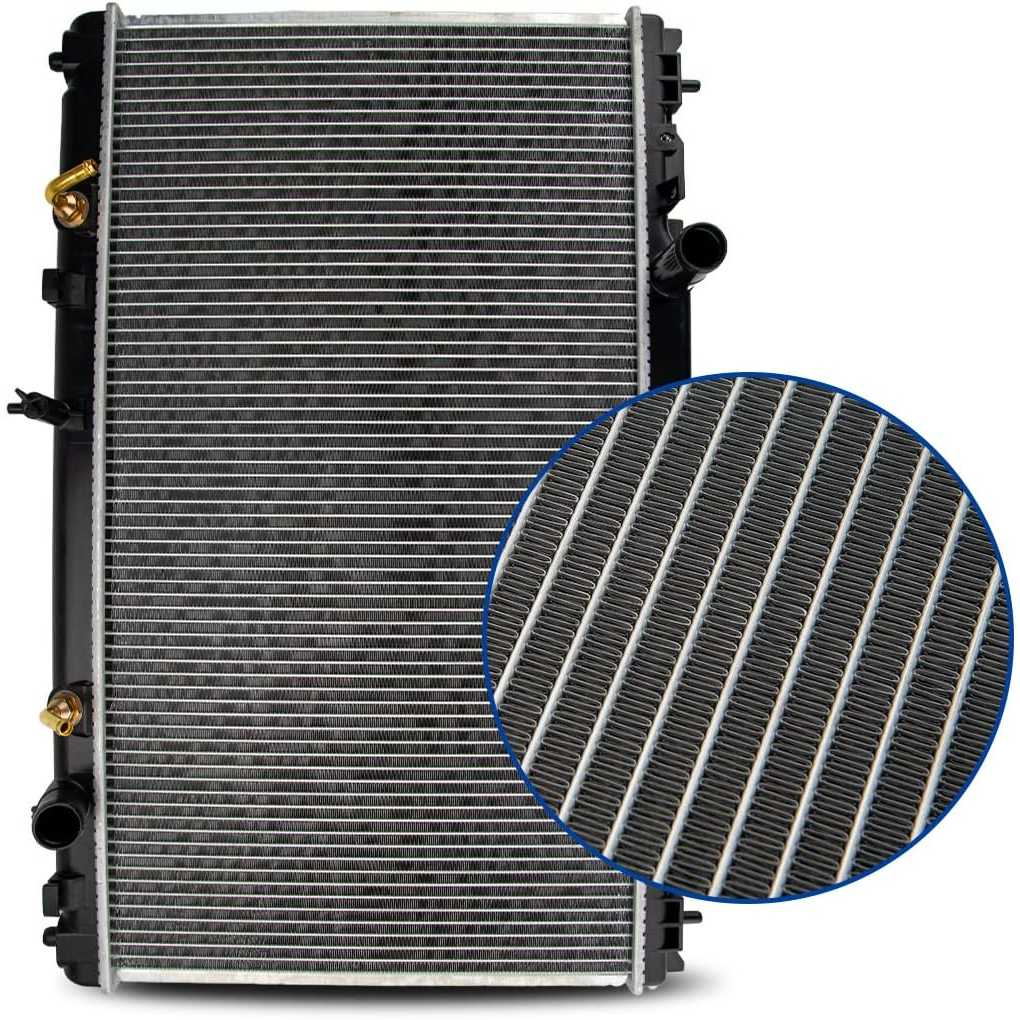

Core Material
Aluminium
Radiator Flow Type
Down Flow
Warranty Period
2-Year
OE Number
1640028280,1640028271,1640028281,1640028540,164030A240,164030H130,164000H200,16410YZZAF,164000H030,1640028270,164000H020
Part Number
CU2437,2210505,412437,2436C,TO3010256,2437,2819,432307,9659,SBR2437,2788,646351,REA412437A,KLI2437,432701,BES2437,PR2437A,TO3010283,1981202435,B2437,56106,53587,CR2437,NR2437B,AM2437,0R002437A2CM,CUC2437,CRS2437,376724571

Highlights

  • Vehicle Adaptation Model:2002-2006 Camry 2.4L
  • Replacement OEM Part Number:CU2797, 412797, 2213229, 2213256, 2797C, 19010RJEA01, 19010RAAA81, 19010RAAA61, 19010RAAA52, 19010RAAA51, 19010RAAA12, 19010RAAA62, 19010RAAA72, 19010RAAA71, 19010RAAA11
  • Dimension - Core Width: 28-1/4 in Core Height: 15-5/8 in Core Thickness: 5/8 in Inlet Diameter: 1-1/4 in Outlet Diameter: 1-1/4 in
  • IATF16949 Certification: Designed with outstanding durability, in compliance with the original specifications, and suitable for direct replacement.

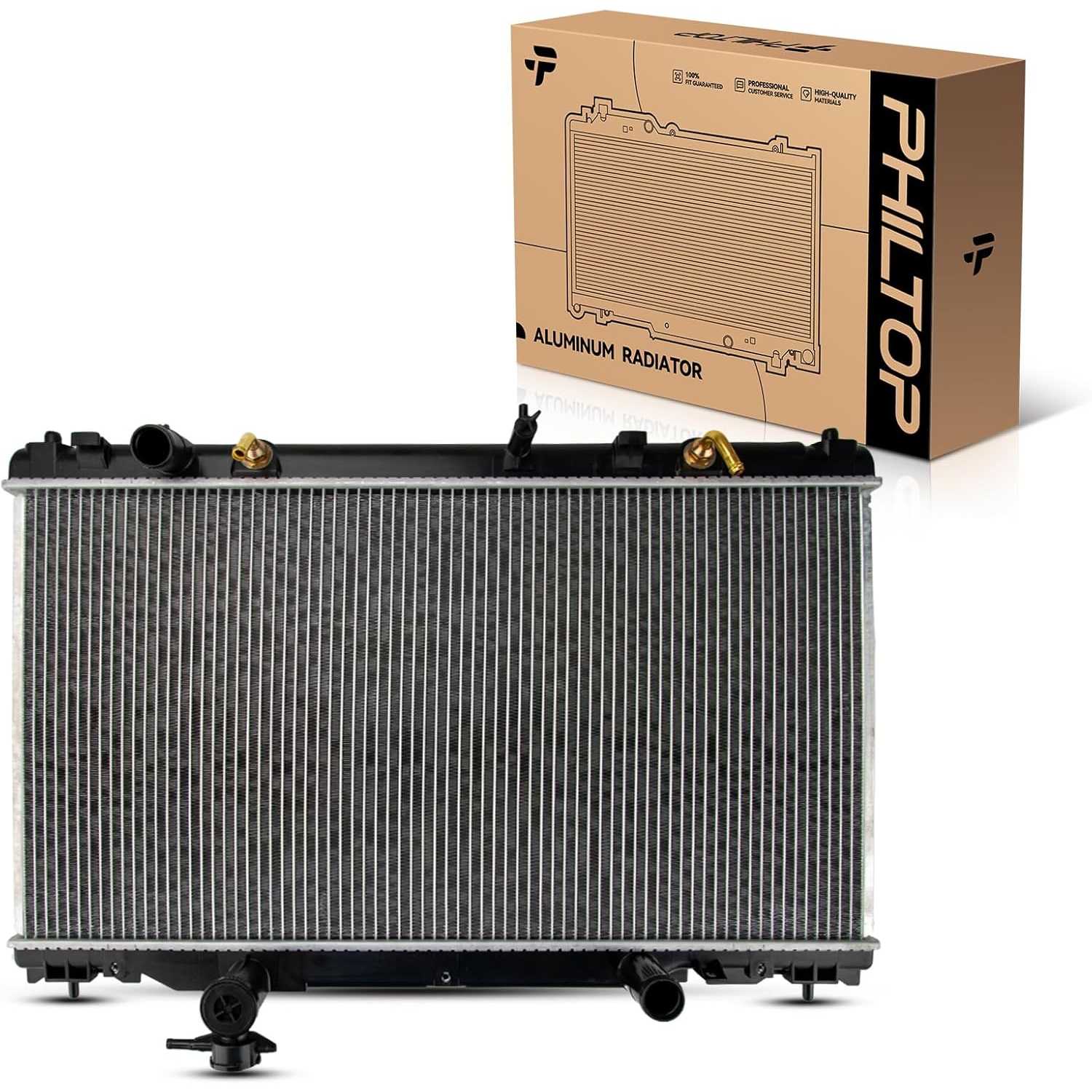

  • Enhanced Package: Package come with 1x PHILTOP Radiator Complete Radiator and. Fixed foam in four corners for the purpose of fixing the radiator, no bending and no damage.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2005 - 20062002 - 20062002 - 20062002 - 2006
MakeToyotaToyotaToyotaToyota
ModelCamryCamryCamryCamry
TrimBaseLESEXLE
Engine2.4L L42.4L L42.4L L42.4L L4
Note
5/8 Thick Core;Radiator Cap Is Required
5/8 Thick Core;Radiator Cap Is Required
5/8 Thick Core;Radiator Cap Is Required
5/8 Thick Core;Radiator Cap Is Required

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm fitment: Compare mounting points, hose connections, and oil cooler ports with the original radiator.
  • Inspect components: Check the radiator, hoses, clamps, and seals for damage or leaks.
  • Check coolant: Inspect the coolant level and condition. Flush contaminated coolant before installing the new radiator.

Installation Steps

  • STEP 1 — Let the engine cool completely, then disconnect the negative battery cable. Never open the pressure cap while hot.
  • STEP 2 — Drain the coolant into a suitable container and flush the system as required.
  • STEP 3 — Disconnect hoses, applicable oil cooler lines, and fan wiring. Remove the fan assembly and radiator as required by the vehicle’s service procedure.
  • STEP 4 — Transfer required brackets and accessories. Install the new radiator and tighten fasteners to vehicle specifications.
  • STEP 5 — Reconnect hoses, cooler lines, and electrical connectors. Refill with the specified coolant, bleed trapped air, and fit the correct pressure cap.

After Installation

  • Check hose connections, cooler lines, and the cooling system for leaks.
  • Confirm normal engine temperature and proper cooling fan operation.
  • After the engine cools completely, recheck the coolant level and top up as needed.
  • Recheck for leaks after a short test drive.

Product Video

Product Description

PHILTOP radiatorradiators

Reviews

5.0/5

Based on 3 reviews

5100%
40%
30%
20%
10%

Christopher

11/20/2025

Verified buyer

Perfect fit

Andra

09/30/2026

Verified buyer

Very happy with my purchase on this radiator! Installed over 2 months ago and running great!

FAQS

Check the package contents listed on the product page. If an included item is missing, contact us with your order number and photos of everything received.

Many cooling systems require bleeding after refilling to remove trapped air. Follow the procedure specified for the vehicle.

Overheating may also involve low coolant, trapped air, a thermostat, water pump, cooling fan, cap, hose, sensor, or engine condition.
