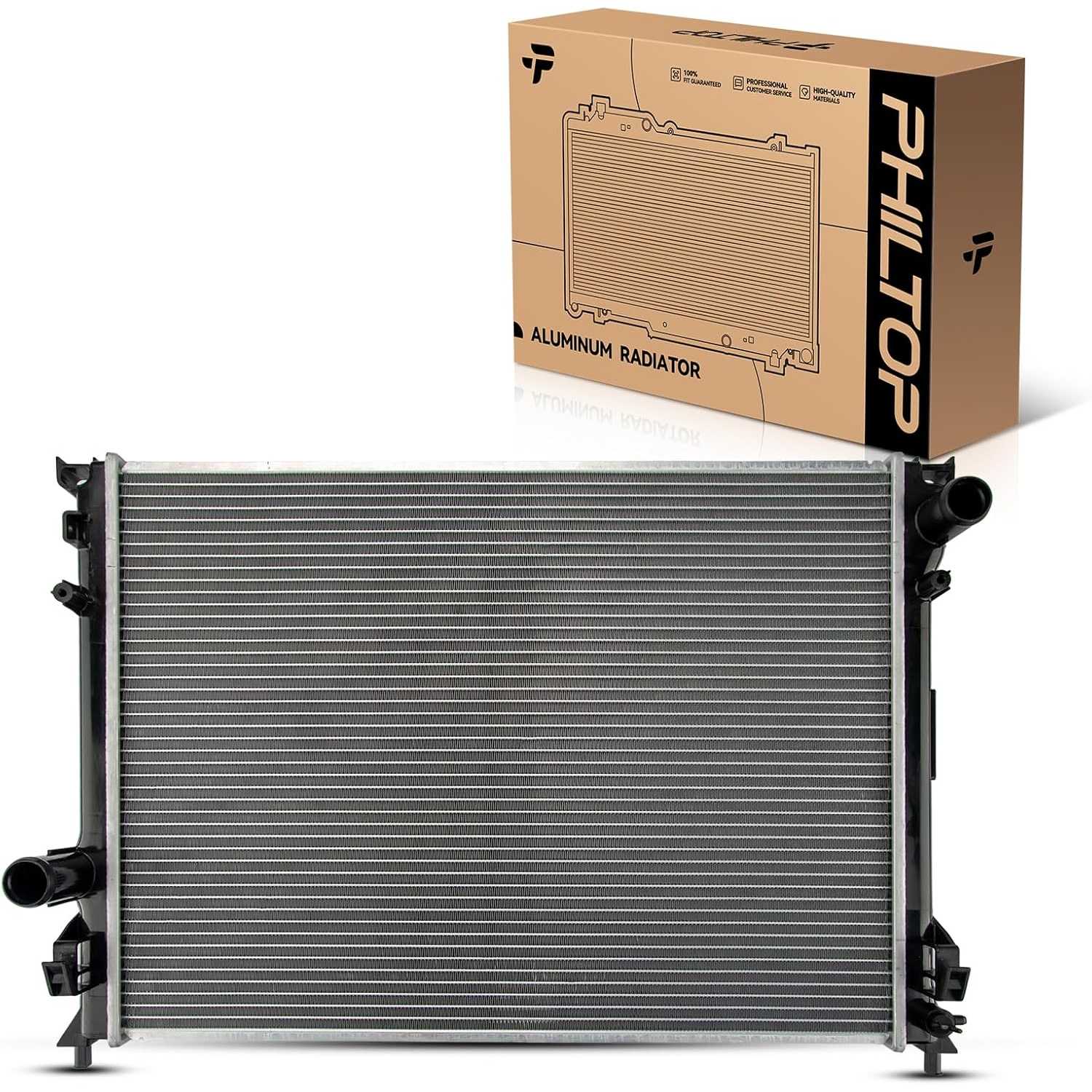

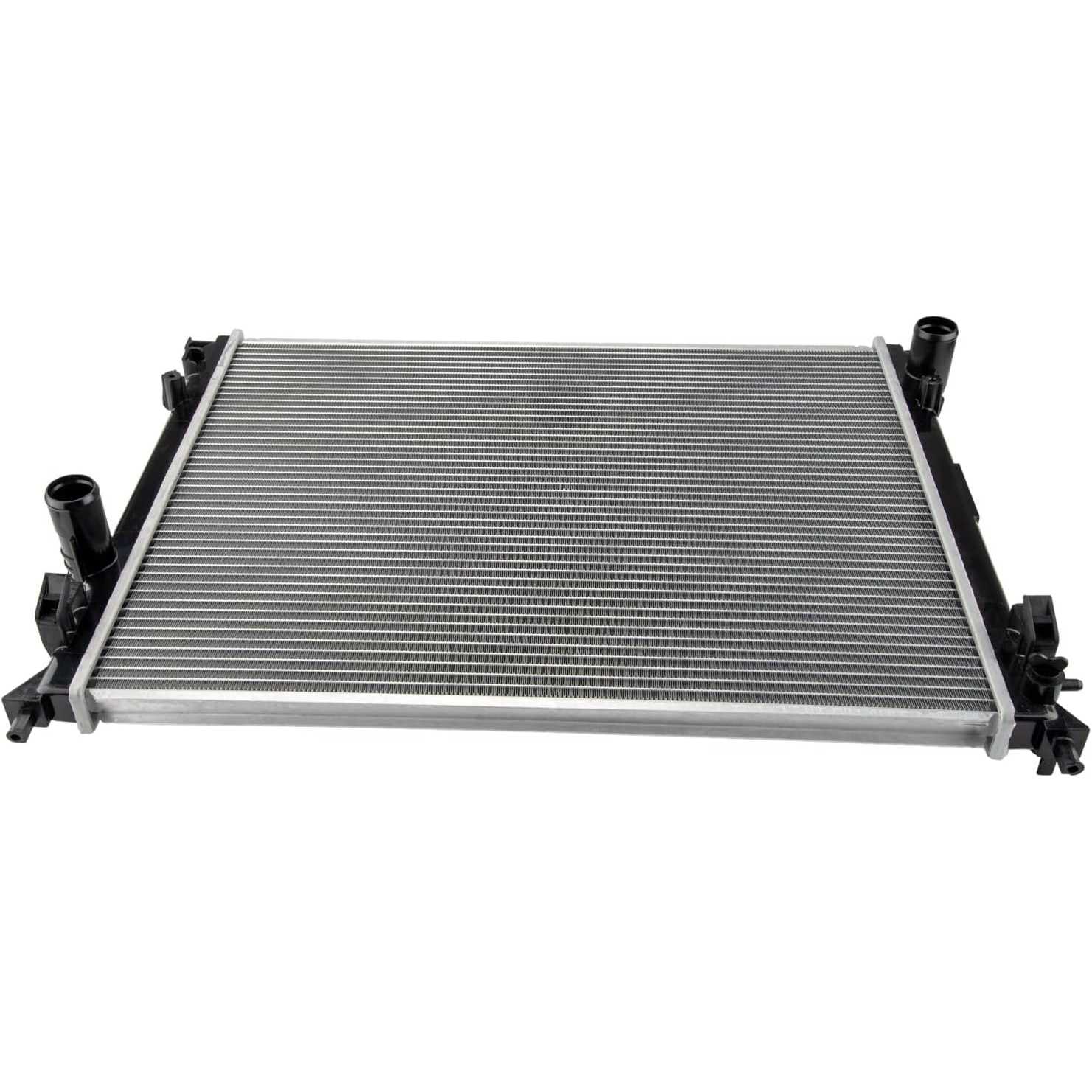

2009-2023 Dodge Challenger 6.4L V8/3.6L V6/5.7L V8 | Aluminum 1" Radiator | OE#2AMR3157AA/CU13157 - PHILTOP

2009-2023 Dodge Challenger 6.4L V8/3.6L V6/5.7L V8 | Aluminum 1" Radiator | OE#2AMR3157AA/CU13157 - PHILTOP

Leak-Resistant

4.6

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
5223CFK1029US

Specifications

Brand
PHILTOP
Transmission Oil Cooler Included
No
Engine Oil Cooler Included
No
Core Thickness
1 in
Core Width
18-1/16 in
Core Height
24-1/8 in
Radiator Cap Included
No
Inlet Diameter
1-7/16 in
Outlet Diameter
1-7/16 in
Items Included
1x Radiator - CU13157, 1x Instruction Manual
Mounting Type
Bottom Pin / Cradle
Core Material
Aluminium
Radiator Flow Type
Cross Flow
Warranty Period
2-Year
OE Number
2AMR3157AA,68050126AB,68050126AA
Part Number
CU13157,4113157,2219250,13157C,CH3010358,8013157,SBR13157,PR13157A,KLI13157,BES13157,RA13157,56531,CR13157,NR13157A,0R013157A2CM,B13157,1981200433,813157

Highlights

  • Fit: PHILTOP radiator compatible with 300 2009-2017, Challenger 2009-2017, Charger 2009-2017
  • High Performance: Built with high density multi-louvered fins for maximum cooling efficiency, to ensure durability in extreme cold weather
  • High Quality: Made of excellent aluminum, fast heat dissipation, not easy to be corroded, making the radiator more durable and extend the service life
  • OEM Design: Special vehicle-specific water inlet, easy and quick installation, direct bolt-on OEM assembly or replacement
  • Package Including:Package come with 1x New Radiator (Please confirm the compatible vehicles before ordering)

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2011 - 20142013 - 20142015 - 20172009 - 20142015 - 202020232013 - 20142012 - 20142015 - 20172015 - 20172009 - 201020092009 - 20102011 - 20122015 - 202020102012 - 20142015 - 20212022 - 202320102012 - 20142015 - 20212022 - 2023200920102009 - 20102018 - 20212022 - 20232018 - 20212022 - 202320162017 - 20212022 - 20232009 - 20102011 - 20212022 - 20232017 - 201920122015 - 201620162016 - 20212022 - 202320212019 - 20212022 - 2023201620142009 - 201020112015 - 2018201820232015 - 2021202220232019 - 2021202220232019 - 2021202220232018 - 20212022202320222020 - 20212022 - 20232009 - 20102012 - 20212022 - 202320122015 - 201820152017 - 20182017 - 20182021201720172022 - 20232009 - 20102011 - 20142015 - 20172022 - 20232009 - 20102012 - 20142015 - 20172022 - 20232009 - 20102012 - 20142015 - 20172022 - 202320172015 - 20162015 - 20172009 - 20102009 - 20102011 - 20142015 - 20172009 - 20102012 - 20132015 - 20172015 - 20172022 - 202320232022 - 2023202320222009 - 20102009 - 20102012 - 20142015 - 20172022 - 202320122022 - 20232022 - 2023
MakeChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodge
Model300300300300300300300300300300300300300300300300300300300300300300300300300300300300300300ChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChallengerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerChargerCharger
TrimBaseCCCCCC LuxuryC LuxuryC PlatinumC PlatinumC SRT8LXLimitedLimitedLimitedSSSSSSSSSignature SeriesTouringTouringTouringTouringTouring LTouring L392 Hemi Scat Pack ShakerGTGTR/TR/TR/TR/T 392R/T ClassicR/T PlusR/T Plus ShakerR/T Scat PackR/T Scat PackR/T Scat Pack Shaker WidebodyR/T Scat Pack WidebodyR/T Scat Pack WidebodyR/T ShakerRallye RedlineSESESRT 392SRT DemonSRT Demon 170SRT HellcatSRT HellcatSRT Hellcat JailbreakSRT Hellcat RedeyeSRT Hellcat RedeyeSRT Hellcat Redeye JailbreakSRT Hellcat Redeye WidebodySRT Hellcat Redeye WidebodySRT Hellcat Redeye Widebody JailbreakSRT Hellcat WidebodySRT Hellcat WidebodySRT Hellcat Widebody JailbreakSRT JailbreakSRT Super StockSRT Super StockSRT8SXTSXTSXT PlusSXT PlusScat PackT/AT/A 392T/A 392 WidebodyDaytonaDaytona 392GTPursuitPursuitPursuitPursuitPursuitPursuitPursuitPursuitR/TR/TR/TR/TR/T 392R/T Road & TrackR/T Scat PackSESESESESESESRT 392SRT HellcatSRT Hellcat Redeye WidebodySRT Hellcat Redeye Widebody JailbreakSRT Hellcat WidebodySRT Hellcat Widebody JailbreakSRT JailbreakSRT8SXTSXTSXTSXTSXT PlusScat PackScat Pack Widebody
Engine3.6L V63.6L V63.6L V65.7L V85.7L V86.4L V83.6L V65.7L V83.6L V65.7L V86.1L V82.7L V63.5L V63.6L V63.6L V63.5L V63.6L V63.6L V63.6L V65.7L V85.7L V85.7L V85.7L V83.5L V62.7L V63.5L V63.6L V63.6L V63.6L V63.6L V66.4L V83.6L V63.6L V65.7L V85.7L V85.7L V86.4L V85.7L V85.7L V85.7L V86.4L V86.4L V86.4L V86.4L V86.4L V85.7L V83.6L V63.5L V63.6L V66.4L V86.2L V86.2L V86.2L V86.2L V86.2L V86.2L V86.2L V86.2L V86.2L V86.2L V86.2L V86.2L V86.2L V86.2L V86.2L V86.2L V86.2L V86.1L V83.6L V63.6L V63.6L V63.6L V66.4L V85.7L V86.4L V86.4L V85.7L V86.4L V83.6L V63.5L V63.6L V63.6L V63.6L V65.7L V85.7L V85.7L V85.7L V85.7L V85.7L V85.7L V85.7L V86.4L V85.7L V86.4L V82.7L V63.5L V63.6L V63.6L V65.7L V85.7L V86.4L V86.2L V86.2L V86.2L V86.2L V86.2L V86.2L V86.1L V83.5L V63.6L V63.6L V63.6L V63.6L V66.4L V86.4L V8
Note
w/ Standard Duty Cooling
w/ Standard Duty Cooling
-
w/ Standard Duty Cooling
-
w/ Severe Duty Cooling;w/ Standard Duty Cooling
w/ Standard Duty Cooling
w/ Standard Duty Cooling
--
w/ Standard Duty Cooling
w/ Standard Duty Cooling
w/ Standard Duty Cooling
w/ Standard Duty Cooling
-
w/ Standard Duty Cooling
w/ Standard Duty Cooling
-
w/ Severe Duty Cooling;w/ Standard Duty Cooling
w/ Standard Duty Cooling
w/ Standard Duty Cooling
-
w/ Severe Duty Cooling;w/ Standard Duty Cooling
w/ Standard Duty Cooling
w/ Standard Duty Cooling
w/ Standard Duty Cooling
-
w/ Severe Duty Cooling;w/ Standard Duty Cooling
-
w/ Severe Duty Cooling;w/ Standard Duty Cooling
w/ Standard Duty Cooling
w/ Standard Duty Cooling
w/ Severe Duty Cooling;w/ Standard Duty Cooling
w/ Heavy Duty Cooling
w/ Standard Duty Cooling
w/ Severe Duty Cooling;w/ Standard Duty Cooling
w/ Standard Duty Cooling
w/ Standard Duty Cooling
w/ Standard Duty Cooling
w/ Standard Duty Cooling
w/ Standard Duty Cooling
w/ Severe Duty Cooling;w/ Standard Duty Cooling
w/ Standard Duty Cooling
w/ Standard Duty Cooling
w/ Severe Duty Cooling;w/ Standard Duty Cooling
w/ Standard Duty Cooling
w/ Standard Duty Cooling
w/ Heavy Duty Cooling
w/ Standard Duty Cooling
w/ Standard Duty Cooling
w/ Standard Duty Cooling
w/ Severe Duty Cooling;w/ Standard Duty Cooling
w/ Standard Duty Cooling
w/ Severe Duty Cooling;w/ Standard Duty Cooling
w/ Severe Duty Cooling;w/ Standard Duty Cooling
w/ Standard Duty Cooling
w/ Severe Duty Cooling;w/ Standard Duty Cooling
w/ Severe Duty Cooling;w/ Standard Duty Cooling
w/ Standard Duty Cooling
w/ Severe Duty Cooling;w/ Standard Duty Cooling
w/ Severe Duty Cooling;w/ Standard Duty Cooling
w/ Standard Duty Cooling
w/ Severe Duty Cooling;w/ Standard Duty Cooling
w/ Severe Duty Cooling;w/ Standard Duty Cooling
w/ Severe Duty Cooling;w/ Standard Duty Cooling
w/ Standard Duty Cooling
w/ Severe Duty Cooling;w/ Standard Duty Cooling
w/ Heavy Duty Cooling
w/ Standard Duty Cooling
w/ Severe Duty Cooling;w/ Standard Duty Cooling
w/ Standard Duty Cooling
w/ Standard Duty Cooling
w/ Standard Duty Cooling
w/ Standard Duty Cooling
w/ Standard Duty Cooling
w/ Standard Duty Cooling
--
w/ Severe Duty Cooling;w/ Standard Duty Cooling
w/ Standard Duty Cooling
w/ Standard Duty Cooling
-
w/ Severe Duty Cooling;w/ Standard Duty Cooling
w/ Standard Duty Cooling
w/ Standard Duty Cooling
-
w/ Severe Duty Cooling;w/ Standard Duty Cooling
w/ Standard Duty Cooling
w/ Standard Duty Cooling
-
w/ Severe Duty Cooling;w/ Standard Duty Cooling
---
w/ Standard Duty Cooling
w/ Standard Duty Cooling
w/ Standard Duty Cooling
-
w/ Standard Duty Cooling
w/ Standard Duty Cooling
--
w/ Severe Duty Cooling;w/ Standard Duty Cooling
w/ Severe Duty Cooling;w/ Standard Duty Cooling
w/ Severe Duty Cooling;w/ Standard Duty Cooling
w/ Severe Duty Cooling;w/ Standard Duty Cooling
w/ Severe Duty Cooling;w/ Standard Duty Cooling
w/ Standard Duty Cooling
w/ Standard Duty Cooling
w/ Standard Duty Cooling
-
w/ Severe Duty Cooling;w/ Standard Duty Cooling
w/ Standard Duty Cooling
w/ Severe Duty Cooling;w/ Standard Duty Cooling
w/ Severe Duty Cooling;w/ Standard Duty Cooling

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm fitment: Compare mounting points, hose connections, and oil cooler ports with the original radiator.
  • Inspect components: Check the radiator, hoses, clamps, and seals for damage or leaks.
  • Check coolant: Inspect the coolant level and condition. Flush contaminated coolant before installing the new radiator.

Installation Steps

  • STEP 1 — Let the engine cool completely, then disconnect the negative battery cable. Never open the pressure cap while hot.
  • STEP 2 — Drain the coolant into a suitable container and flush the system as required.
  • STEP 3 — Disconnect hoses, applicable oil cooler lines, and fan wiring. Remove the fan assembly and radiator as required by the vehicle’s service procedure.
  • STEP 4 — Transfer required brackets and accessories. Install the new radiator and tighten fasteners to vehicle specifications.
  • STEP 5 — Reconnect hoses, cooler lines, and electrical connectors. Refill with the specified coolant, bleed trapped air, and fit the correct pressure cap.

After Installation

  • Check hose connections, cooler lines, and the cooling system for leaks.
  • Confirm normal engine temperature and proper cooling fan operation.
  • After the engine cools completely, recheck the coolant level and top up as needed.
  • Recheck for leaks after a short test drive.

Product Video

Product Description

PHILTOP radiatorradiators

Reviews

4.6/5

Based on 10 reviews

570%
420%
310%
20%
10%

Boo

10/01/2025

Verified buyer

Good fit n cools good A+

Nicole Elkins

08/30/2024

Verified buyer

Great value for it's cost on the Challenger 2009

FAQS

Check the package contents listed on the product page. If an included item is missing, contact us with your order number and photos of everything received.

Some radiators include transmission-cooler connections. Check the specifications and compare the fittings with the original radiator.

A flush may help remove old coolant and debris when contamination is present. Follow the vehicle manufacturer’s service procedure.
