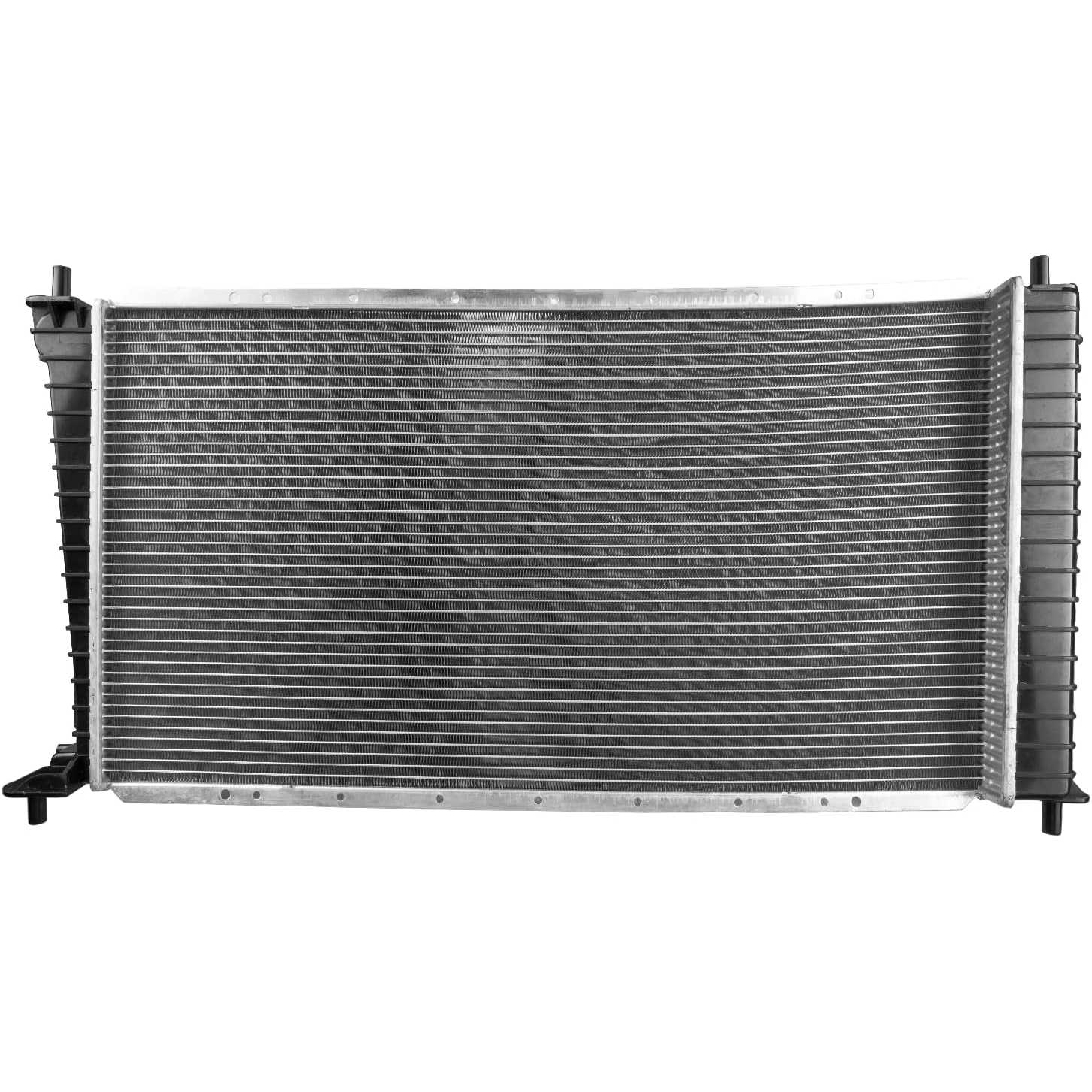

1999-2003 Ford F-150 4.2L V6 | Aluminum 5/8" Radiator | OE#XL3H8005BB/CU2257 - PHILTOP

1999-2003 Ford F-150 4.2L V6 | Aluminum 5/8" Radiator | OE#XL3H8005BB/CU2257 - PHILTOP

Leak-Resistant

4.8

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
1161CFK018XUS

Specifications

Brand
PHILTOP
Transmission Oil Cooler Included
Yes
Engine Oil Cooler Included
No
Core Thickness
5/8 in
Core Width
16-7/8 in
Core Height
31-7/8 in
Radiator Cap Included
No
Inlet Diameter
1-3/4 in
Outlet Diameter
1-3/4 in
Items Included

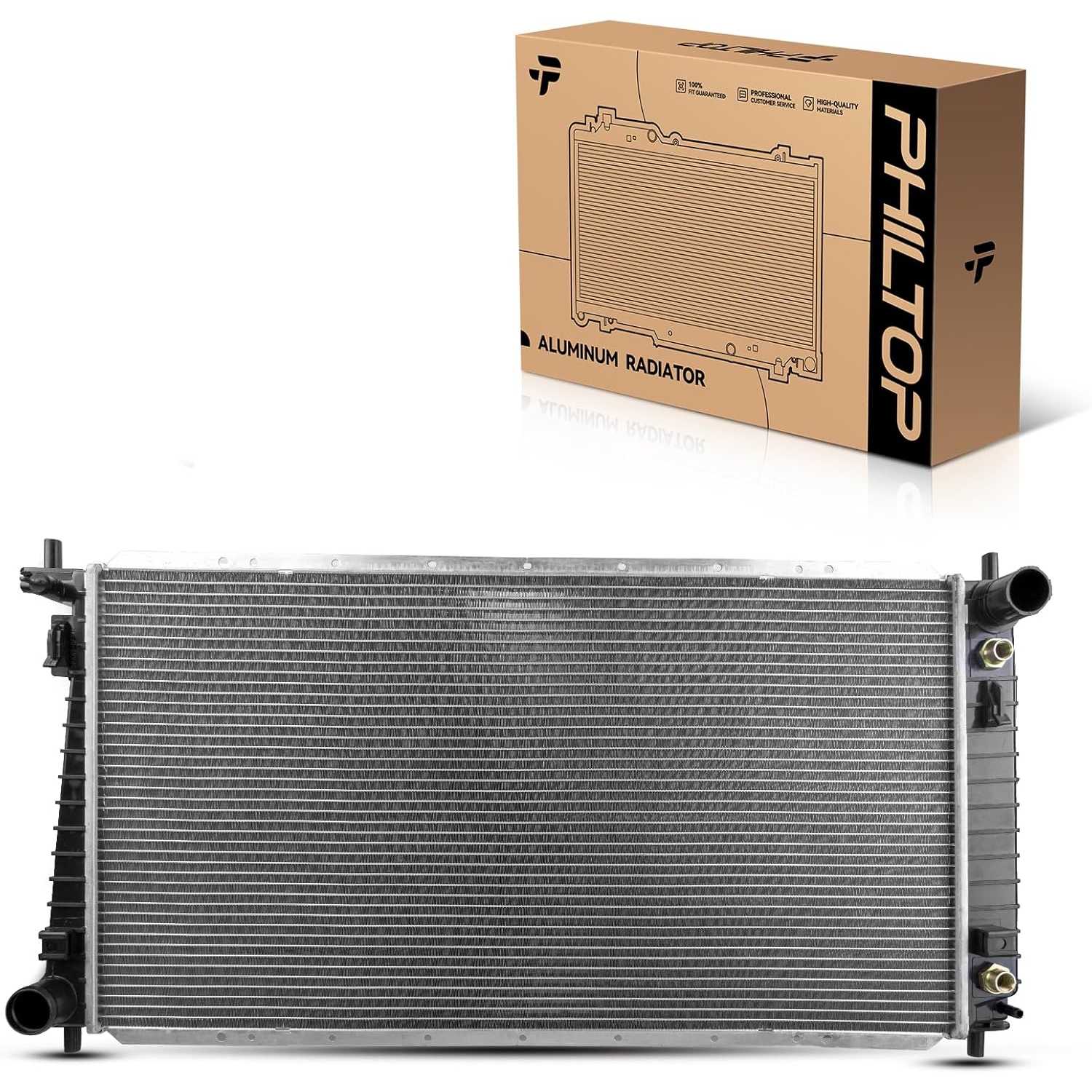

1x Radiator - CU2257, 1x Instruction Manual
Mounting Type
Pin
Core Material
Aluminium
Radiator Flow Type
Cross Flow
Warranty Period
2-Year
OE Number
XL3H8005BB,15162212,XL1ZAA,XL3H8005DA,XL1HAA,XL3HBB,XL3ZBA,XL3H8005AB,XL3ZDA,F75ZJA,XL3HAB,YL3Z8005GACP,F75Z8005LACP,3C3Z8005FACP,F75Z8005GACP,F75Z8005JACP,F75Z8005MACP,F81Z8005FACP,XL1Z8005AACP,XL3Z8005AACP,XL3Z8005BACP,YL3Z8005BACP,YL1Z8005CA,XL1Z8005AA,F75Z8005LA,YL3Z8005GA,YL3Z8005AA
Part Number
CU2257,412257,412401

Highlights

  • [Vehicle Fitment] The complete radiator compatible with 1999-2002 Expedition(w/o Towing Package) 1999-2003 F-150 4.2/4.6/5.4L(Light Duty) 2004 F-150 Heritage 4.2/4.6L 1999 F-250(Light Duty) 1999-2003 F-250/F-350 Super Duty 5.4L(Light Duty) 2002 Blackwood 1999-2001 Navigator(w/o Towing Package) (1 Row Core)
  • [Specifications] Core Thickness 3/4 in. Core Width 31-7/8 in. Core Height 16-3/4 in. Inlet Diameter 1-3/4 in. Outlet Diameter 1-3/4 in
  • [High Quality Material] PHILTOP radiator housing is made of Aluminum, which can prevent corrosion and is stronger. The tank end interface is made of PA223 plastic to keep the shape of the radiator without deformation. Effectively ensure the service life
  • [Fast Heat Dissipation] The Aluminum water pipe is designed in a flat shape, and the heat sink is corrugated, focusing on heat dissipation performance. The cooling efficiency is at least 35%-202% higher than the radiators in the market. Gaskets and O-rings withstand thermal shock, ensuring durability in extreme cold weather
  • [No Leakage] PHILTOP Radiator Assembly has passed thousands of anti-leakage tests before leaving the factory, refuses to leak water

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year1999 - 20021999 - 20021999 - 20021999 - 20021999 - 20001999 - 20001999 - 20002000 - 20032001 - 20032001 - 20031999 - 20031999 - 20031999 - 20031999 - 20031999 - 20031999 - 20031999 - 20031999 - 20031999 - 20032004200420042004199919991999199919991999199919991999 - 20031999 - 20031999 - 200320031999 - 20031999 - 20031999 - 200320021999 - 2001
MakeFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordLincolnLincoln
ModelExpeditionExpeditionExpeditionExpeditionF-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150 HeritageF-150 HeritageF-150 HeritageF-150 HeritageF-250F-250F-250F-250F-250F-250F-250F-250F-250 Super DutyF-250 Super DutyF-250 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyBlackwoodNavigator
TrimEddie BauerEddie BauerXLTXLTBaseBaseBaseHarley-Davidson EditionKing RanchKing RanchLariatLariatLightningXLXLXLXLTXLTXLTXLXLXLTXLTBaseBaseLariatLariatXLXLXLTXLTLariatXLXLTKing RanchLariatXLXLTBaseBase
Engine4.6L V85.4L V84.6L V85.4L V84.2L V64.6L V85.4L V85.4L V84.6L V85.4L V84.6L V85.4L V85.4L V84.2L V64.6L V85.4L V84.2L V64.6L V85.4L V84.2L V64.6L V84.2L V64.6L V84.6L V85.4L V84.6L V85.4L V84.6L V85.4L V84.6L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V8
Note
w/o Towing Package
w/o Towing Package
w/o Towing Package
w/o Towing Package
1 Row Core;w/ 3/8 in. Flare Fittings
1 Row Core;w/ 3/8 in. Flare Fittings
1 Row Core;w/ 3/8 in. Flare Fittings
1 Row Core;w/ 3/8 in. Flare Fittings
1 Row Core;w/ 3/8 in. Flare Fittings
1 Row Core;w/ 3/8 in. Flare Fittings
1 Row Core;w/ 3/8 in. Flare Fittings
1 Row Core;w/ 3/8 in. Flare Fittings
1 Row Core;w/ 3/8 in. Flare Fittings
1 Row Core;w/ 3/8 in. Flare Fittings
1 Row Core;w/ 3/8 in. Flare Fittings
1 Row Core;w/ 3/8 in. Flare Fittings
1 Row Core;w/ 3/8 in. Flare Fittings
1 Row Core;w/ 3/8 in. Flare Fittings
1 Row Core;w/ 3/8 in. Flare Fittings
1 Row Core;w/ 3/8 in. Flare Fittings
1 Row Core;w/ 3/8 in. Flare Fittings
1 Row Core;w/ 3/8 in. Flare Fittings
1 Row Core;w/ 3/8 in. Flare Fittings
1 Row Core;w/ 3/8 in. Flare Fittings
1 Row Core;w/ 3/8 in. Flare Fittings
1 Row Core;w/ 3/8 in. Flare Fittings
1 Row Core;w/ 3/8 in. Flare Fittings
1 Row Core;w/ 3/8 in. Flare Fittings
1 Row Core;w/ 3/8 in. Flare Fittings
1 Row Core;w/ 3/8 in. Flare Fittings
1 Row Core;w/ 3/8 in. Flare Fittings
1 Row Core;w/ 3/8 in. Flare Fittings
1 Row Core;w/ 3/8 in. Flare Fittings
1 Row Core;w/ 3/8 in. Flare Fittings
1 Row Core;w/ 3/8 in. Flare Fittings
1 Row Core;w/ 3/8 in. Flare Fittings
1 Row Core;w/ 3/8 in. Flare Fittings
1 Row Core;w/ 3/8 in. Flare Fittings
1 Row Core;w/ 3/8 in. Flare Fittings
w/o Towing Package

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm fitment: Compare mounting points, hose connections, and oil cooler ports with the original radiator.
  • Inspect components: Check the radiator, hoses, clamps, and seals for damage or leaks.
  • Check coolant: Inspect the coolant level and condition. Flush contaminated coolant before installing the new radiator.

Installation Steps

  • STEP 1 — Let the engine cool completely, then disconnect the negative battery cable. Never open the pressure cap while hot.
  • STEP 2 — Drain the coolant into a suitable container and flush the system as required.
  • STEP 3 — Disconnect hoses, applicable oil cooler lines, and fan wiring. Remove the fan assembly and radiator as required by the vehicle’s service procedure.
  • STEP 4 — Transfer required brackets and accessories. Install the new radiator and tighten fasteners to vehicle specifications.
  • STEP 5 — Reconnect hoses, cooler lines, and electrical connectors. Refill with the specified coolant, bleed trapped air, and fit the correct pressure cap.

After Installation

  • Check hose connections, cooler lines, and the cooling system for leaks.
  • Confirm normal engine temperature and proper cooling fan operation.
  • After the engine cools completely, recheck the coolant level and top up as needed.
  • Recheck for leaks after a short test drive.

Product Video

Product Description

excellent car radiatorsEfficient heat dissipation radiator

Reviews

4.8/5

Based on 5 reviews

580%
420%
30%
20%
10%

Amanda_MomOfThree_505

04/06/2026

My F250 is running much cooler now thanks to this radiator. It was a pretty easy swap and it's performing perfectly. Definitely a good fix for overheating.

Mike from Texas_380

04/27/2026

This radiator feels really solid and well-made. The price was fantastic too. It's a great upgrade for my truck, and I'm impressed with the quality for the cost.

FAQS

Stop the installation and contact Philtop customer support. Please provide your vehicle information, order number and photos of the original and received parts so we can help review the fitment.

Minor fin movement can occur during handling and may not affect normal operation. Do not install the radiator if the tubes, tanks, or mounting points are damaged.

Many cooling systems require bleeding after refilling to remove trapped air. Follow the procedure specified for the vehicle.
