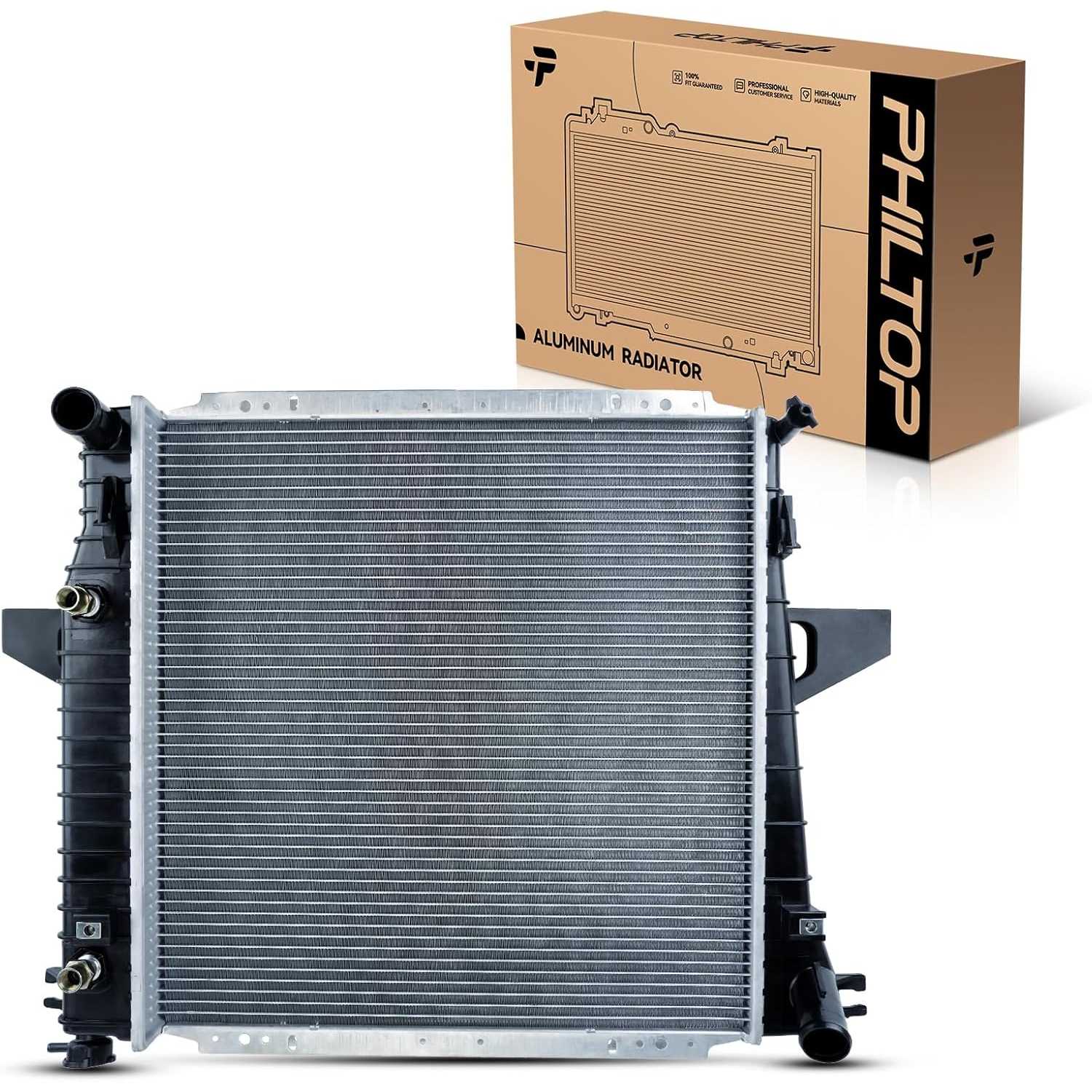

1998-2001 Mazda B2500 2.5L L4 | Aluminum 3/4" Radiator | OE#1F2515200/CU2172 - PHILTOP

1998-2001 Mazda B2500 2.5L L4 | Aluminum 3/4" Radiator | OE#1F2515200/CU2172 - PHILTOP

Leak-Resistant

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
4502CFK104TUS

Specifications

Brand
PHILTOP
Transmission Oil Cooler Included
Yes
Engine Oil Cooler Included
No
Core Thickness
3/4 in
Core Width
20 in
Core Height
21-1/8 in
Radiator Cap Included
No
Inlet Diameter
1-1/2 in
Outlet Diameter
1-1/2 in
Items Included
1x Radiator - CU2172, 1x Instruction Manual
Mounting Type
Flange Mount
Core Material
Aluminium
Radiator Flow Type
Cross Flow
Warranty Period
2-Year
OE Number
1F2515200,ZZP115200B,F87ZGA,F87ZDA,F87H8005DA,F87HGA,XL5Z8005CA,F87Z8005GACP,F87Z8005GA,ZZP315200,F87Z8005DA,ZZP015200,F87H8005GA,2480620
Part Number
CU2172,412172,2172C,FO3010161,9395,431388,MA3010130,KLI2172,SBR2172,REA412172A,PR2172A,CRS2172,PR2172KA,C2172,NR2172B,AM2172,0R002172A2CM,CUC2172,BES2172,1981200523,CR2172,66855,56550,MA3010132,RA2172

Highlights

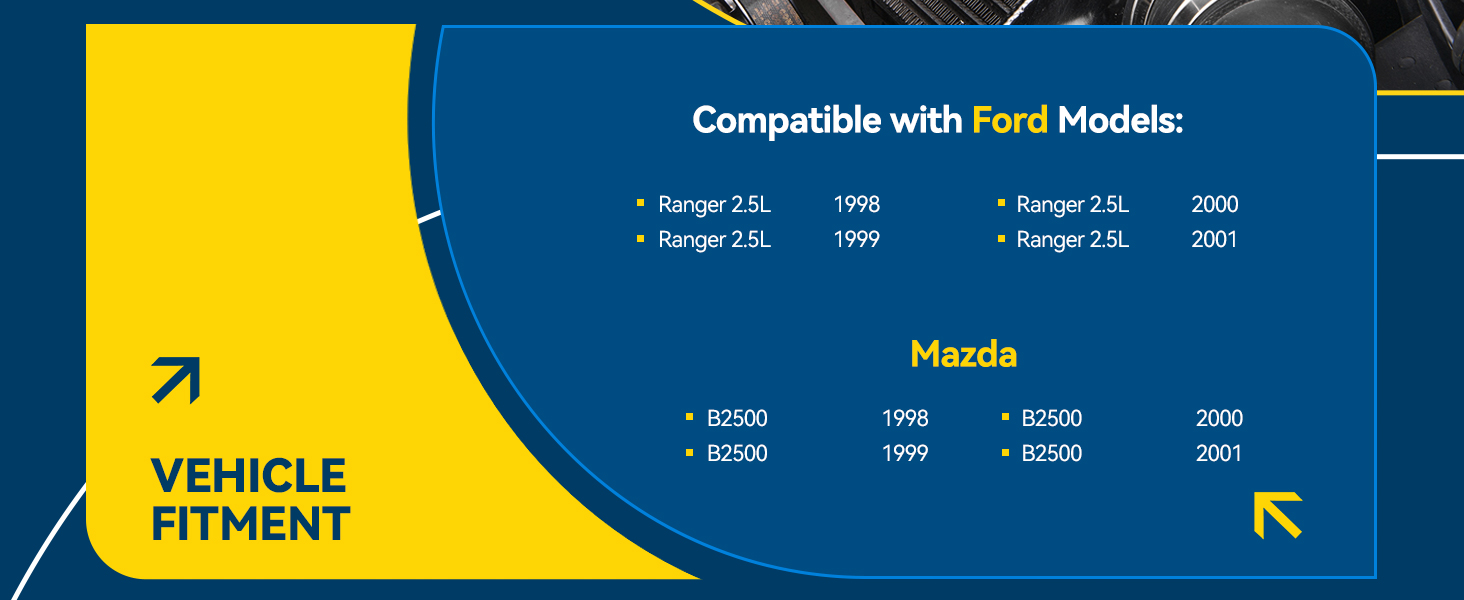

  • [Vehicle Fitment] The complete radiator compatible with 1998-2001 B2500, Ranger 2.5L
  • [Specifications] Core Thickness 3/4 in. Core Width 20 in. Core Height 21-1/8 in. Inlet Diameter 1-1/2 in. Outlet Diameter 1-1/2 in
  • [High Quality Material] PHILTOP radiator housing is made of Aluminum, which can prevent corrosion and is stronger. The tank end interface is made of PA222 plastic to keep the shape of the radiator without deformation. Effectively ensure the service life
  • [Fast Heat Dissipation] The Aluminum water pipe is designed in a flat shape, and the heat sink is corrugated, focusing on heat dissipation performance. The cooling efficiency is at least 35%-201% higher than the radiators in the market. Gaskets and O-rings withstand thermal shock, ensuring durability in extreme cold weather
  • [No Leakage] PHILTOP Radiator Assembly has passed thousands of anti-leakage tests before leaving the factory, refuses to leak water

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year19981998 - 20011998 - 20011998 - 20011998 - 20011999
MakeFordFordFordMazdaMazdaMazda
ModelRangerRangerRangerB2500B2500B2500
TrimSplashXLXLTSESXTroy Lee
Engine2.5L L42.5L L42.5L L42.5L L42.5L L42.5L L4
Note
Radiator Cap Is Required
Radiator Cap Is Required
Radiator Cap Is Required
Radiator Cap Is Required
Radiator Cap Is Required
Radiator Cap Is Required

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm fitment: Compare mounting points, hose connections, and oil cooler ports with the original radiator.
  • Inspect components: Check the radiator, hoses, clamps, and seals for damage or leaks.
  • Check coolant: Inspect the coolant level and condition. Flush contaminated coolant before installing the new radiator.

Installation Steps

  • STEP 1 — Let the engine cool completely, then disconnect the negative battery cable. Never open the pressure cap while hot.
  • STEP 2 — Drain the coolant into a suitable container and flush the system as required.
  • STEP 3 — Disconnect hoses, applicable oil cooler lines, and fan wiring. Remove the fan assembly and radiator as required by the vehicle’s service procedure.
  • STEP 4 — Transfer required brackets and accessories. Install the new radiator and tighten fasteners to vehicle specifications.
  • STEP 5 — Reconnect hoses, cooler lines, and electrical connectors. Refill with the specified coolant, bleed trapped air, and fit the correct pressure cap.

After Installation

  • Check hose connections, cooler lines, and the cooling system for leaks.
  • Confirm normal engine temperature and proper cooling fan operation.
  • After the engine cools completely, recheck the coolant level and top up as needed.
  • Recheck for leaks after a short test drive.

Product Video

Product Description

excellent car radiators1

Reviews

5.0/5

Based on 3 reviews

5100%
40%
30%
20%
10%

Randall Brewer

10/29/2024

Verified buyer

Looks good Read more

Jfaust78

09/12/2024

Verified buyer

Fit perfect on all accounts. Went into a 1998 ford ranger 2.5l

FAQS

Warranty coverage and duration may vary by product. For specific warranty period details by product category, please refer to our Warranty & Returns Policy page. Damage related to incorrect fitment, installation or other vehicle problems may require further review.

Many cooling systems require bleeding after refilling to remove trapped air. Follow the procedure specified for the vehicle.

Overheating may also involve low coolant, trapped air, a thermostat, water pump, cooling fan, cap, hose, sensor, or engine condition.
