2016-2021 Subaru Crosstrek 2.0L/2.5L | 1 PC Rear Wheel Bearing | 28473FJ020/512518 - PHILTOP

2016-2021 Subaru Crosstrek 2.0L/2.5L | 1 PC Rear Wheel Bearing | 28473FJ020/512518 - PHILTOP

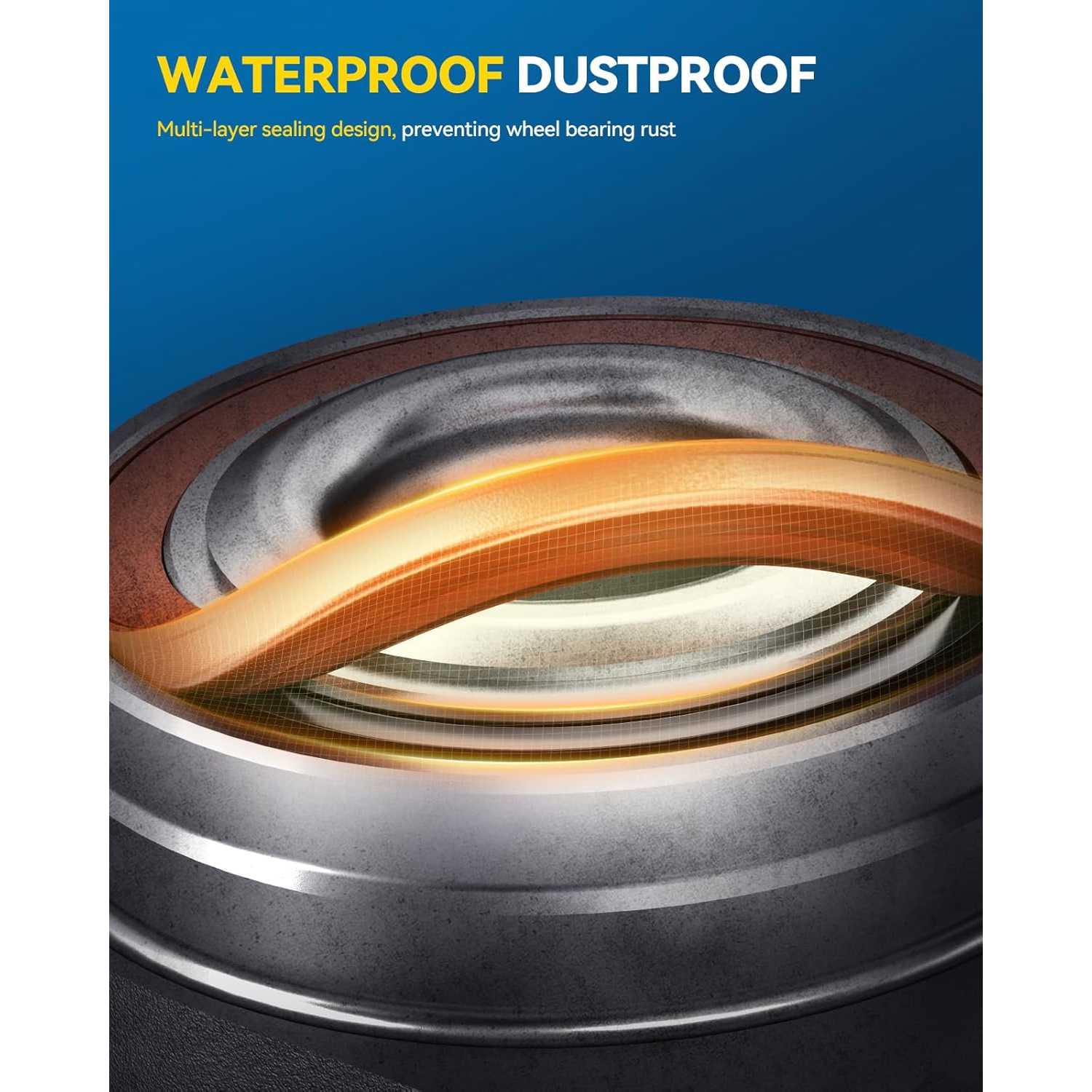

Triple-Lip Seal

Rear

AISI 52100

4.5

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
1500WBK112PUS

Specifications

Brand
PHILTOP
ABS Type
Magnetic Ring
Lug Count
5
Position
Rear
Flange Bolt Hole Count
4
Material
SAE 1055 Steel and SAE 52100 Steel
Items Included

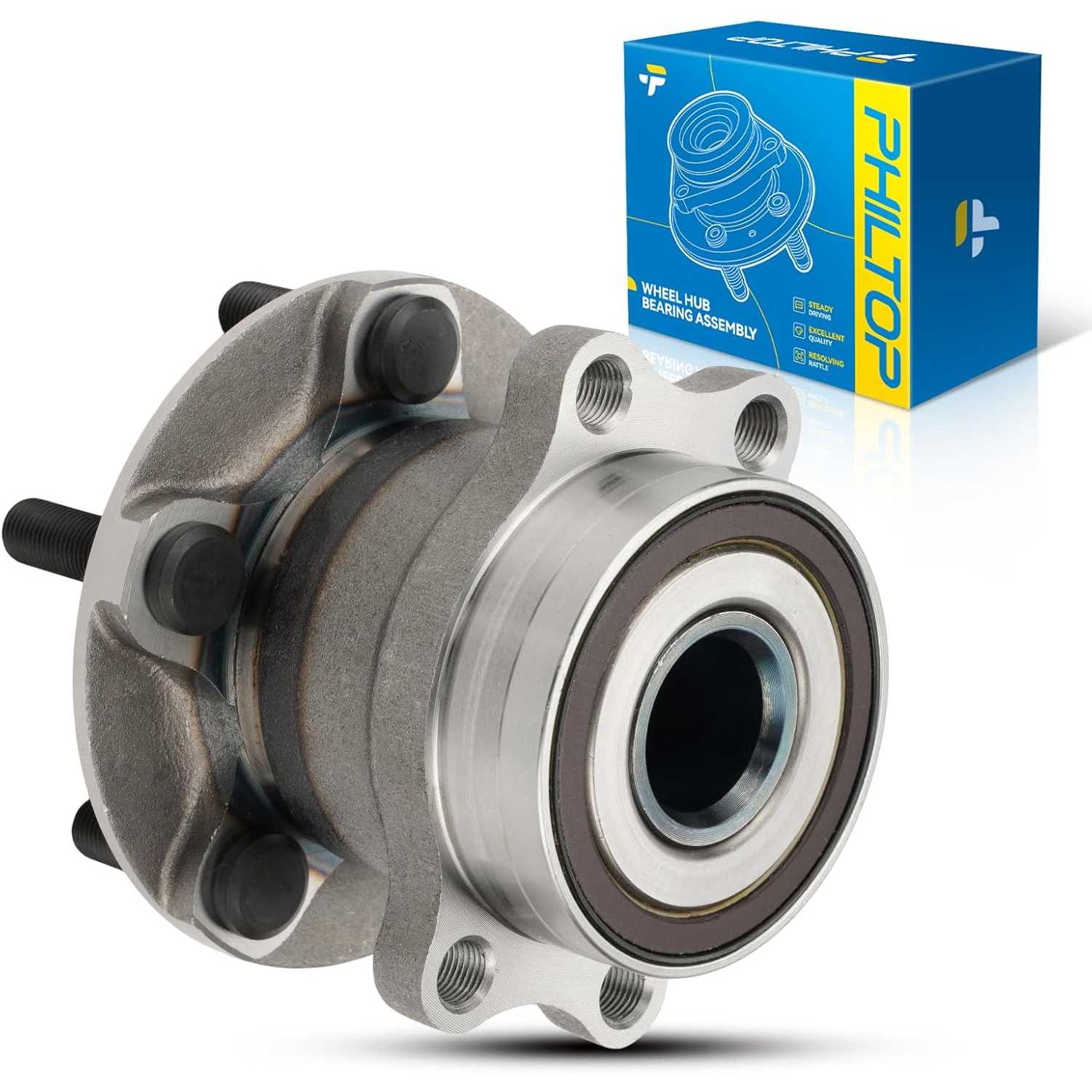

1x Rear Wheel Hub and Bearing Assembly - 512518,Installation Instructions
Bolt Pattern
5 X 3.94
Surface Finish
Polished, Rust Protected
Hub Pilot Diameter
3.3 in
Wheel Stud Size
M12*1.25
Flange Offset
2.62 in/66.5 mm
Flange Diameter
4.88 in/123.9 mm
Brake Pilot Diameter
2.28 in/57.9 mm
Warranty Period
2-Year
OE Number
28473FJ020,28473FL040,28473FJ000
Part Number
512518,HA590522,WE61771,951402,MB80304,WA512518,102593,7603030,29512518,40147005E,G80304,40147005,91556344,HA590719
Quantity
1

Highlights

  • Fitment: Philtop Rear wheel hub bearing assembly for Crosstrek 2016-2020, Forester 2014-2018, Impreza 2012-2019, XV Crosstrek 2013-2015. Please use the Suncentauto filter to determine if the hub bearing is suitable for your vehicle.
  • Wheel Hubs Parameter: Anti Lock Brake Sensor Included: Yes; Bolt Circle Diameter: 99.800 mm; Brake Pilot Diameter: 57.900 mm; Flange Bolt Hole Quantity: 4; Flange Diameter: 123.900 mm; Flange Offset: 66.500 mm; Flange Shape: RECTANGLE; Hub Pilot Diameter: 83.900 mm; Spline Quantity: 27; Wheel Pilot Diameter: 55.900 mm; Wheel Stud Quantity: 5.
  • OE NUMBER: Rear wheel bearing hub assembly fits 512518, 28473FJ000, 28473FJ020, 28473FL040, HA590522.
  • Long Service Life: Wheel bearings are made of high-quality bearing steel, the wheel hubs have the greatest anti-corrosion capacity with fine workmanship and strong bearing capacity.
  • Tips: For more details, please confirm the adaptation of your vehicle with "Suncentautoconfirmedfit". This is very necessary for a better experience.

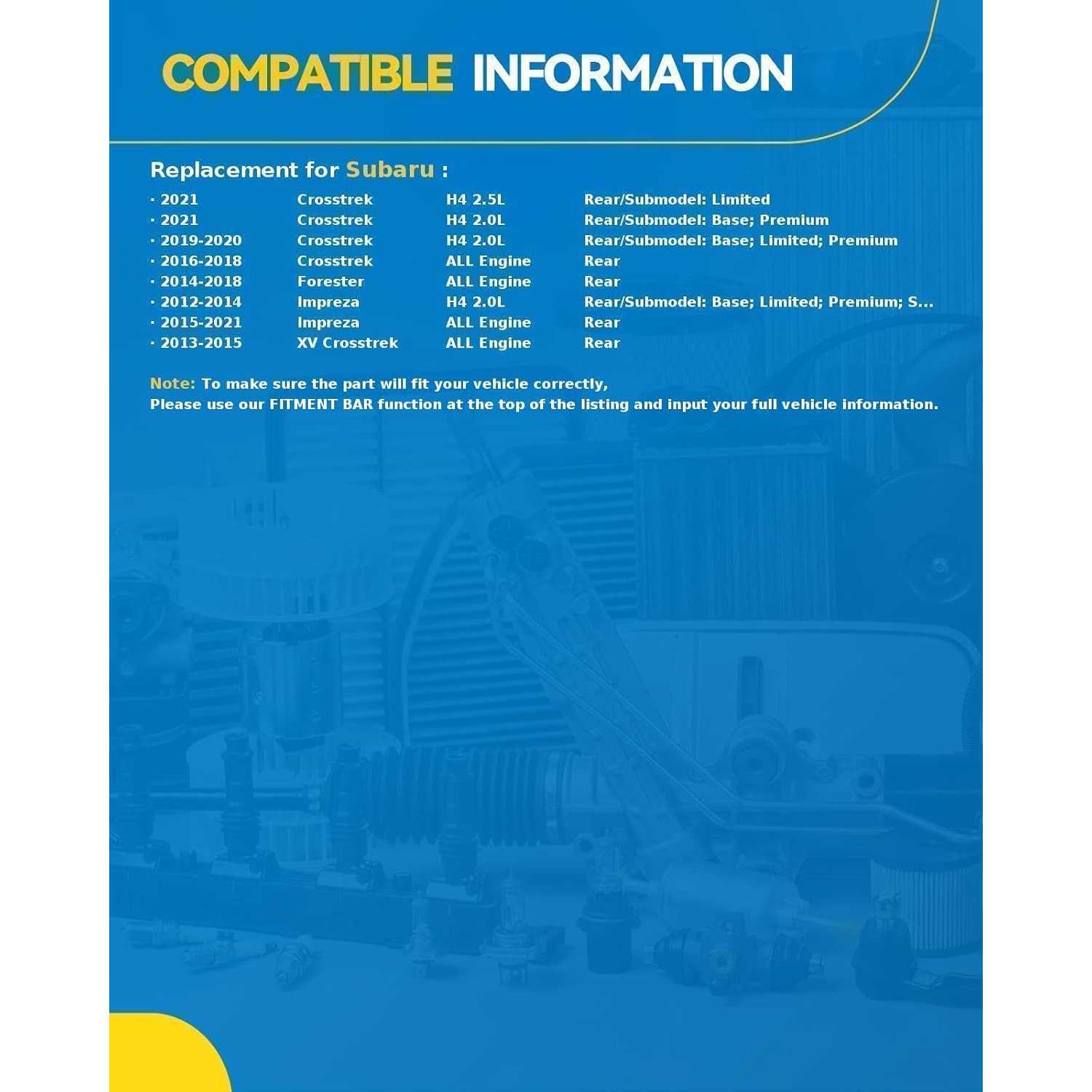

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2016 - 2021201620162016 - 202020212016 - 20212014 - 20182014 - 20182014 - 20182014 - 20182014 - 20182014 - 20182012 - 20212012 - 20212012 - 20212017 - 20212012 - 20162012 - 201620152014 - 20152014 - 20152013 - 20152013 - 2015
MakeSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaru
ModelCrosstrekCrosstrekCrosstrekCrosstrekCrosstrekCrosstrekForesterForesterForesterForesterForesterForesterImprezaImprezaImprezaImprezaImprezaImprezaXV CrosstrekXV CrosstrekXV CrosstrekXV CrosstrekXV Crosstrek
TrimBaseHybridHybrid TouringLimitedLimitedPremium2.0XT Premium2.0XT Touring2.5i2.5i Limited2.5i Premium2.5i TouringBaseLimitedPremiumSportSport LimitedSport PremiumBaseHybridHybrid TouringLimitedPremium
Engine2.0L H42.0L H42.0L H42.0L H42.5L H42.0L H42.0L H42.0L H42.5L H42.5L H42.5L H42.5L H42.0L H42.0L H42.0L H42.0L H42.0L H42.0L H42.0L H42.0L H42.0L H42.0L H42.0L H4
Note-----------------------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the vehicle, position, drive type and ABS compatibility.
  • Compare the mounting holes, splines and sensor configuration with the original part.
  • Prepare a press or puller and the vehicle-specific torque specifications.
  • Park on level ground, chock the wheels and support the vehicle with jack stands.

Installation Steps

  • Step-1: Loosen the Axle Nut:Loosen the axle nut while the vehicle is on the ground, then raise and secure the vehicle.
  • Step-2: Remove the Components:Remove the wheel, brake caliper and rotor. Support the caliper without pulling on the brake hose.
  • Step-3: Remove the Old Bearing:Disconnect the ABS sensor and use the correct puller or press. Do not hammer the bearing or steering knuckle.
  • Step-4: Clean the Mounting Surface:Remove rust, dirt and debris to ensure the new bearing seats correctly.
  • Step-5: Install the New Bearing:Install the ABS encoder in the correct direction and press the bearing evenly into position.
  • Step-6: Reassemble and Torque:Start all bolts by hand, reinstall the components and tighten all fasteners to the OE-specified torque.

After Installation

  • Rotate the wheel and check for noise, resistance or play.
  • Confirm proper brake operation and make sure the ABS light is off.
  • Perform a low-speed road test and check for vibration, steering pull or unusual noise.
  • Retorque after approximately 100 km when required by the vehicle manufacturer.

Critical Installation Notes

  • Use the Correct Pressing Surface: Press on the outer race when installing the bearing into the steering knuckle; press on the inner race when installing it onto the hub.
  • Do Not Use an Impact Wrench for Final Tightening: Complete final tightening with a torque wrench.
  • Replace the Axle Nut: Most self-locking axle nuts are designed for one-time use.
  • Protect the ABS Components: Keep grease and debris away from the magnetic encoder and wheel speed sensor.
  • Start Bolts by Hand: Thread bolts two or three turns before using power tools.
  • Follow OE Torque Specifications: Over-tightening can preload the bearing; under-tightening can cause looseness.

Product Video

Product Description

PHILTOPPT

Reviews

4.5/5

Based on 8 reviews

563%
425%
313%
20%
10%

RickFixIt_80

03/22/2026

My Subaru Impreza was making that awful whining noise from the rear wheel. Replaced the bearing with this unit and it's completely silent now. Drives so much better.

Jennifer_Auto_124

03/30/2026

The old wheel bearing was shot, making my Forester sound like a jet engine. This new one fixed it right up. The ride is quiet and smooth again, couldn't be happier.

FAQS

Please provide your order number, vehicle information, installation date, current mileage and a description of the issue. Photos, videos or inspection information may also help us review the claim.

Package contents vary by part number. Please check the product images and specifications to confirm whether the hub, ABS sensor, axle nut, or other hardware is included.

A single bearing can often be replaced when only one side is worn. The condition of the bearing on the opposite side should also be checked because wear can vary by vehicle and use.
