2007-2010 Jeep Compass 2.4L L4/2.0L L4 | Rear Shock Absorbers Assembly | OE#5105178AF/272401 - PHILTOP

2007-2010 Jeep Compass 2.4L L4/2.0L L4 | Rear Shock Absorbers Assembly | OE#5105178AF/272401 - PHILTOP

Rear

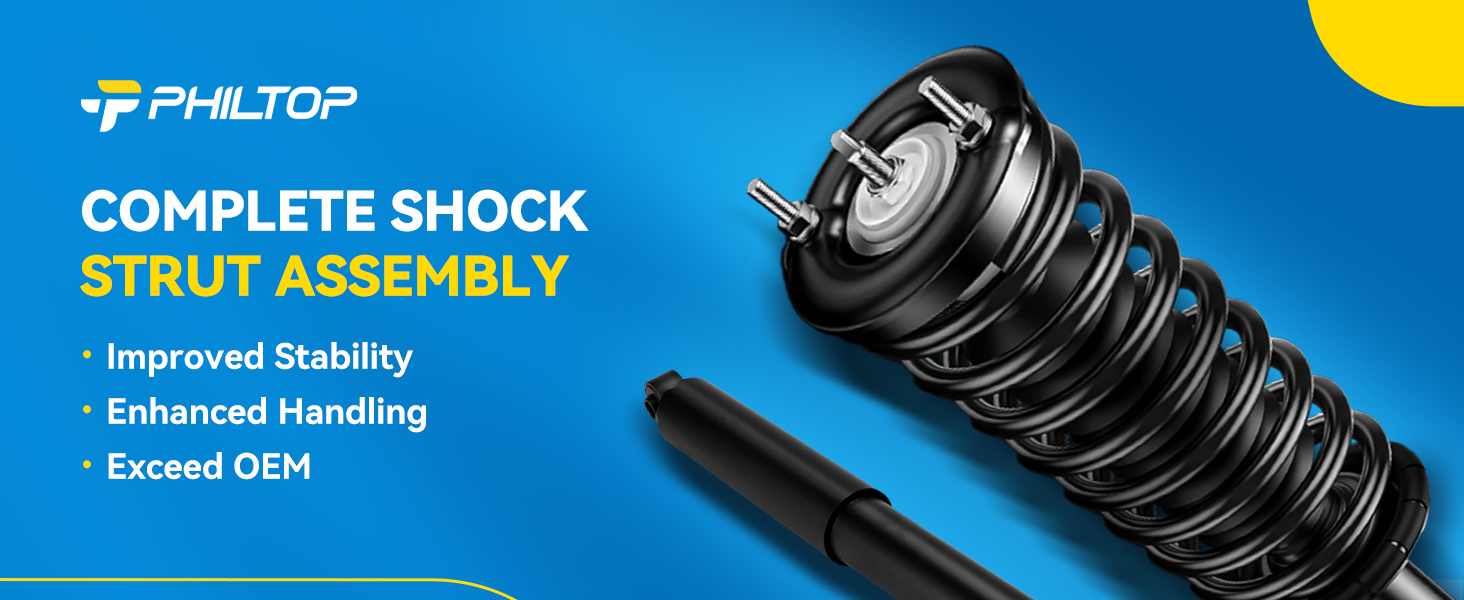

Complete Strut & Coil Spring Assembly

4.8

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
3818SAA04VUUS

Specifications

Brand
PHILTOP
Items Included

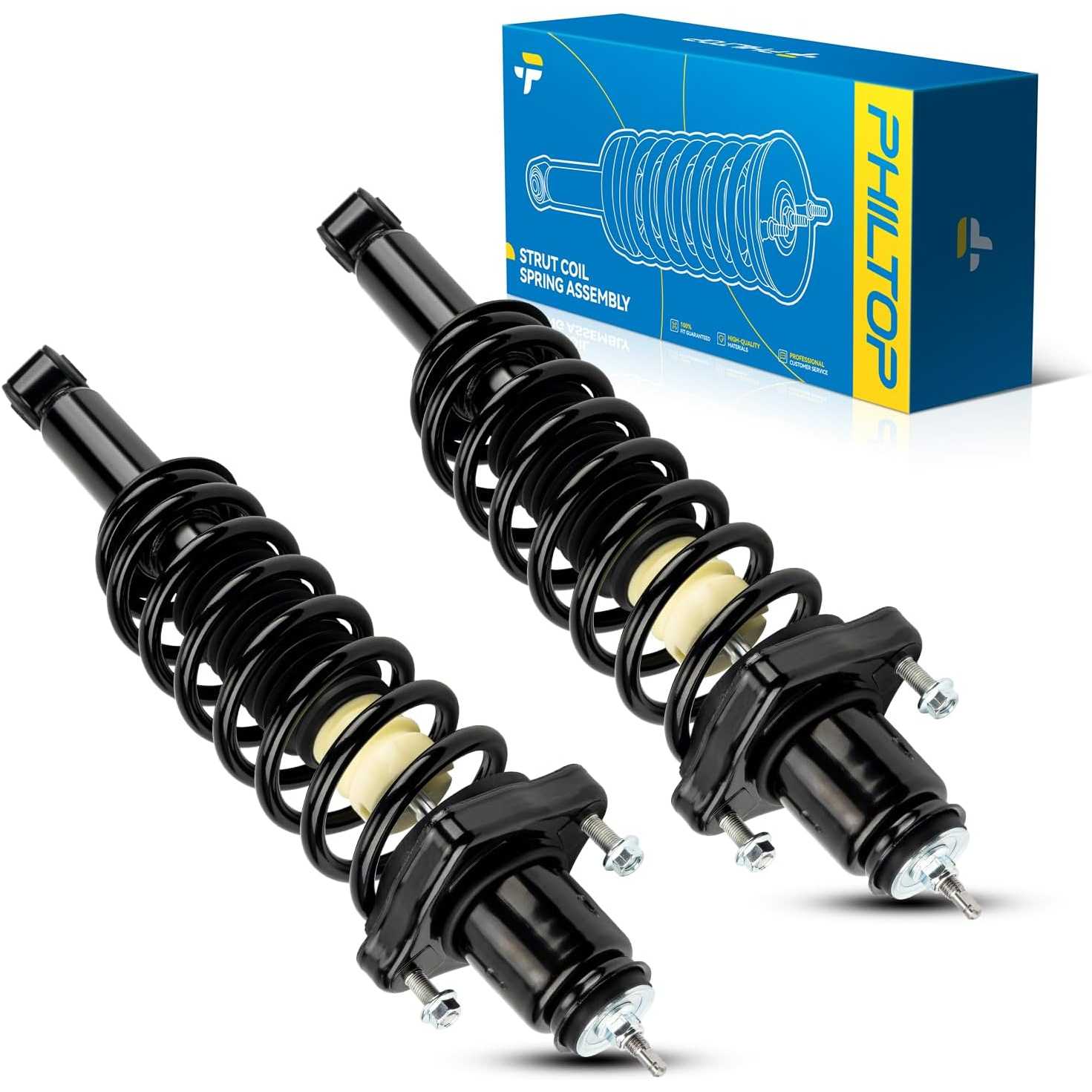

2x Rear Strut & Coil Spring Shock Assemblies - 272401
Color
Black
Steel Tube Material
Mild Steel(ST37 Equivalent)
Bump Stop Included
Polyurethane

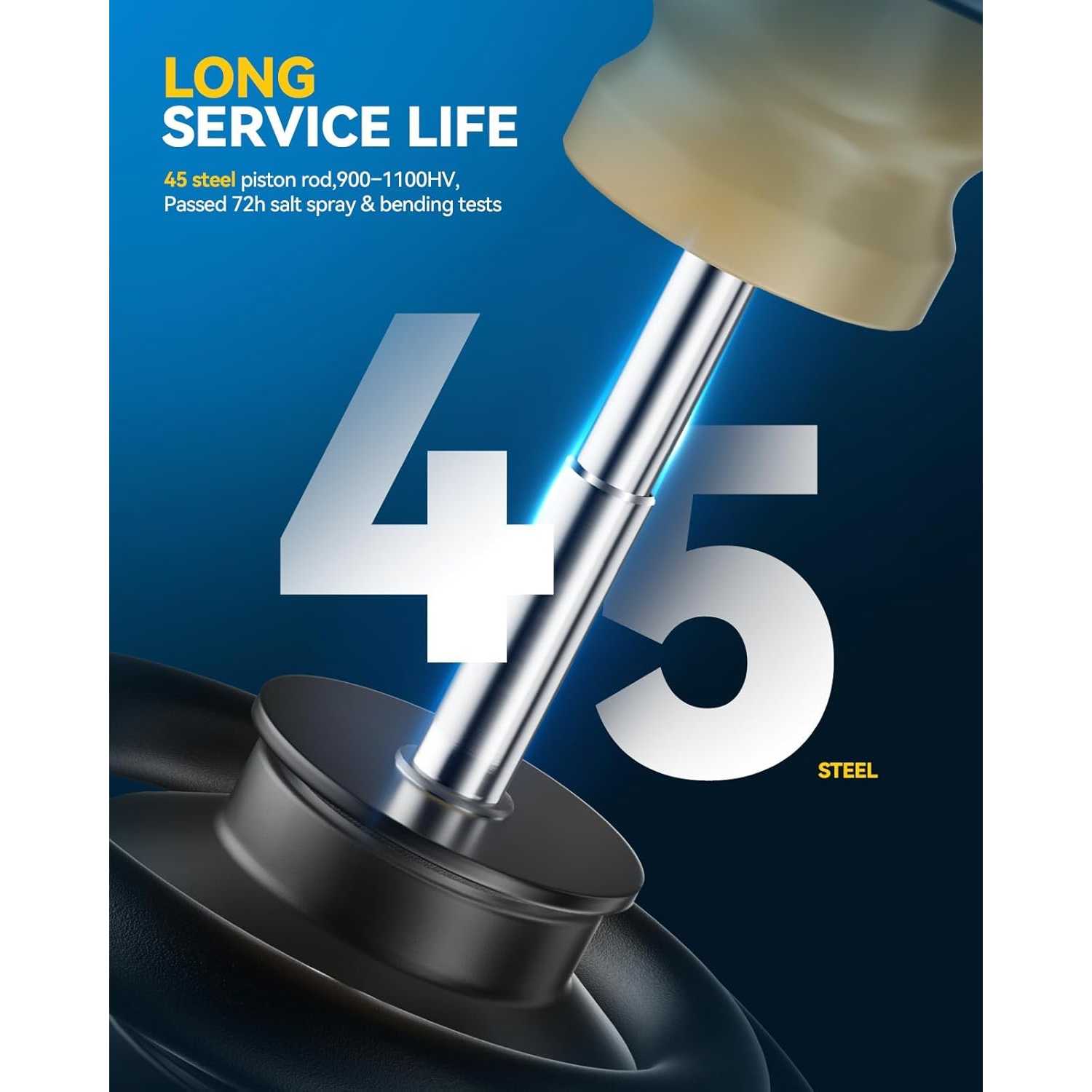

Piston Rod Material
SAE 1045 Steel
Type
Complete Strut & Coil Spring Assembly
Quantity
2
Position
Rear

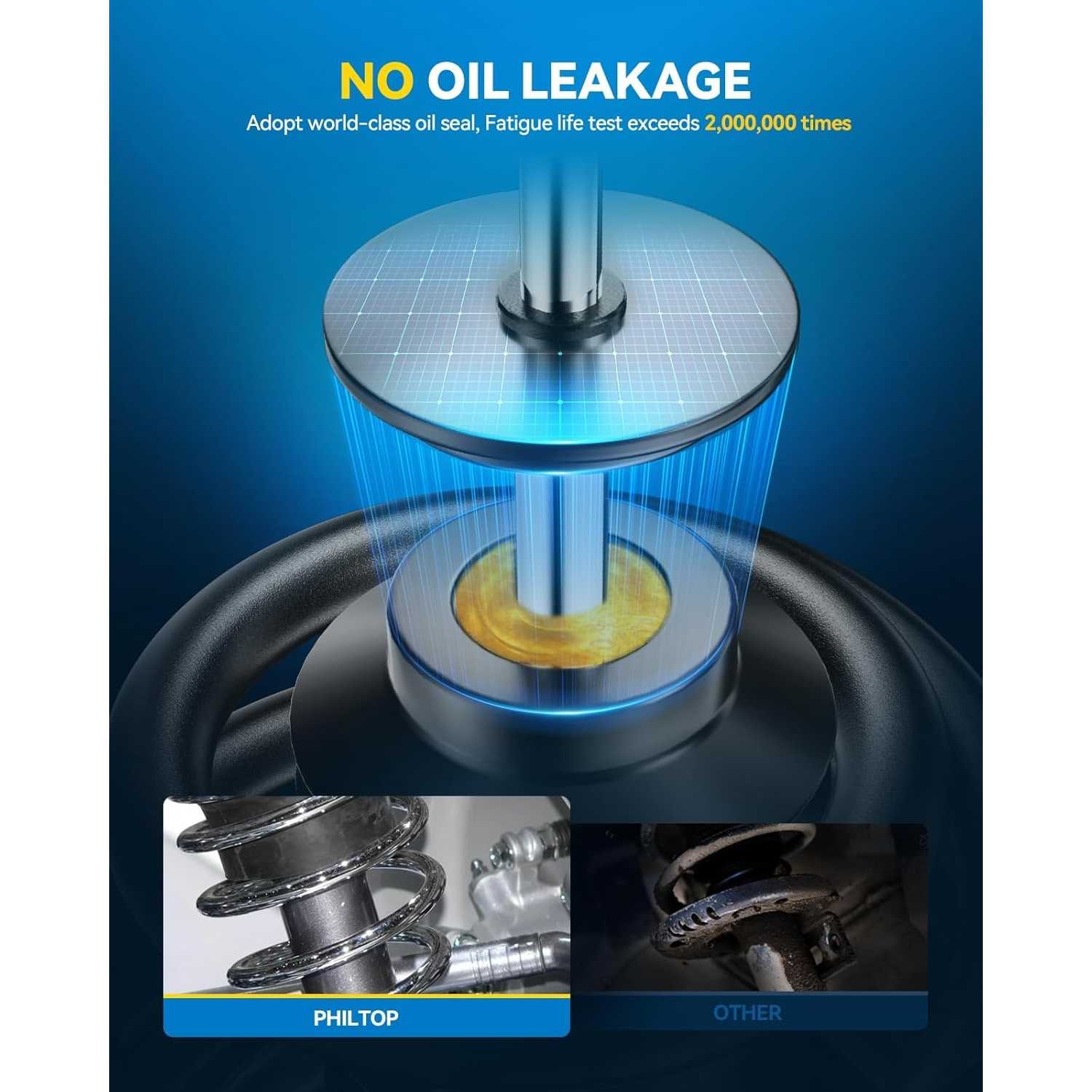

Oil Seal Material
Nitrile Rubber
Warranty Period
2-Year
OE Number
5105178AF
Part Number
272401,282401,5105178AG

Highlights

  • Shocks and Struts OE Number: G57607,68051843AA,5105178AG,5105173AF,2345484,5272718AC,5105178AE,5105178AF,272401,5272718AA,32DG1101,05105178AG,282401,05105172AG,05105173AG,NS272401,LS5494252L,2701552542,818370,ABS0513.
  • Vehicle compatibility: The PHILTOP Rear Strut Shocks Assembly is compatible withJeep 2007-2010 Patriot,Jeep 2007-2010 Compass,.
  • High-Grade Material Construction: The strut assembly is manufactured using advanced alloy steel with an electrophoretic surface treatment. This design enhances corrosion resistance and wear resistance, ensuring extended service reliability and maintaining superior suspension performance for vehicles in extreme environments.

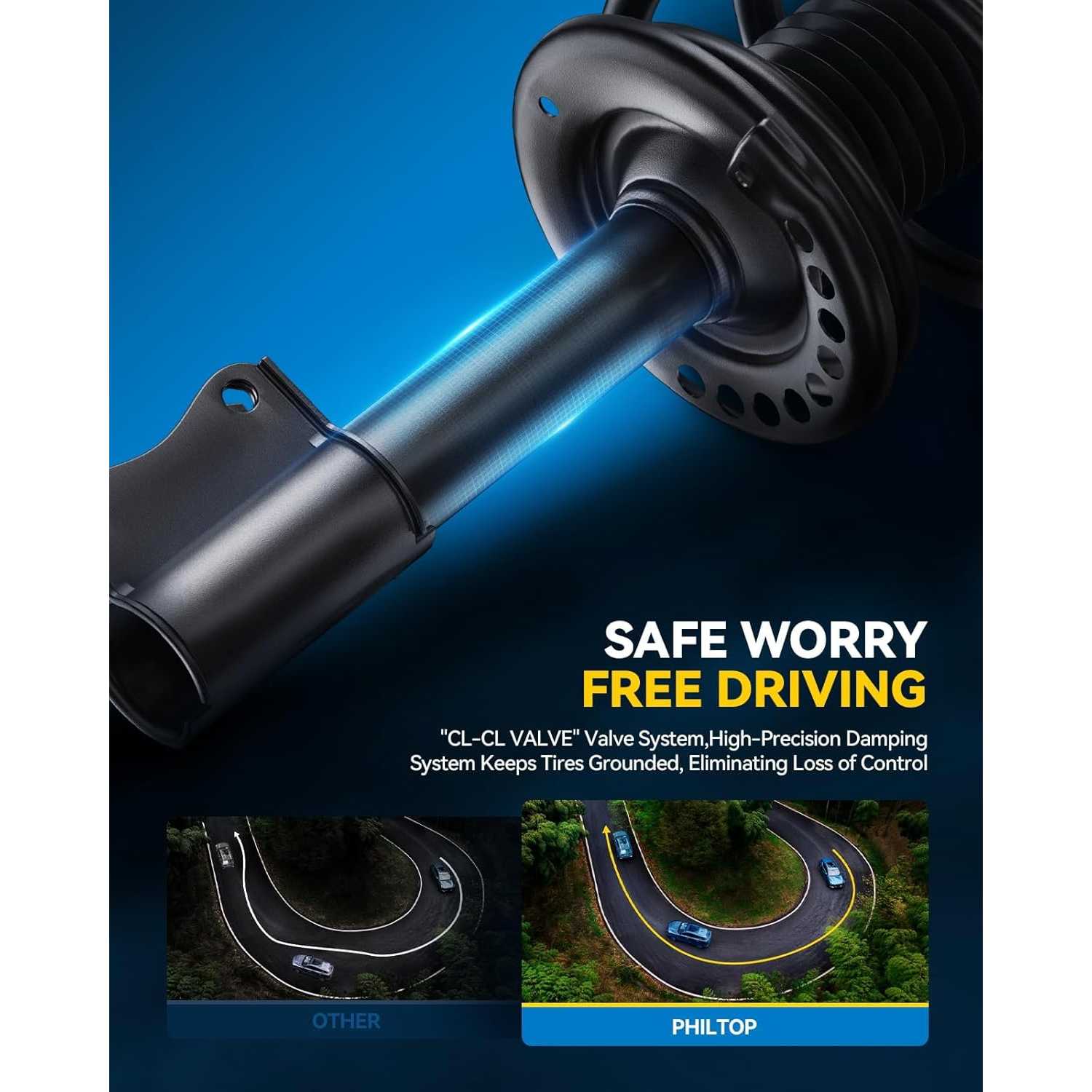

  • FUNCTION: PHILTOP struts deliver superior damping performance, efficiently absorbing energy from uneven road surfaces to ensure a smooth, stable ride. They maintain consistent tire-road contact, enhancing driving safety and reducing driver fatigue. Engineered for durability and precision, these premium shock absorbers provide a comfortable yet responsive driving experience.
  • Kits includes:2x Rear Strut & Coil Spring Shock Assemblies - 272401.

Compatible Vehicles

Check if this fits your vehicle

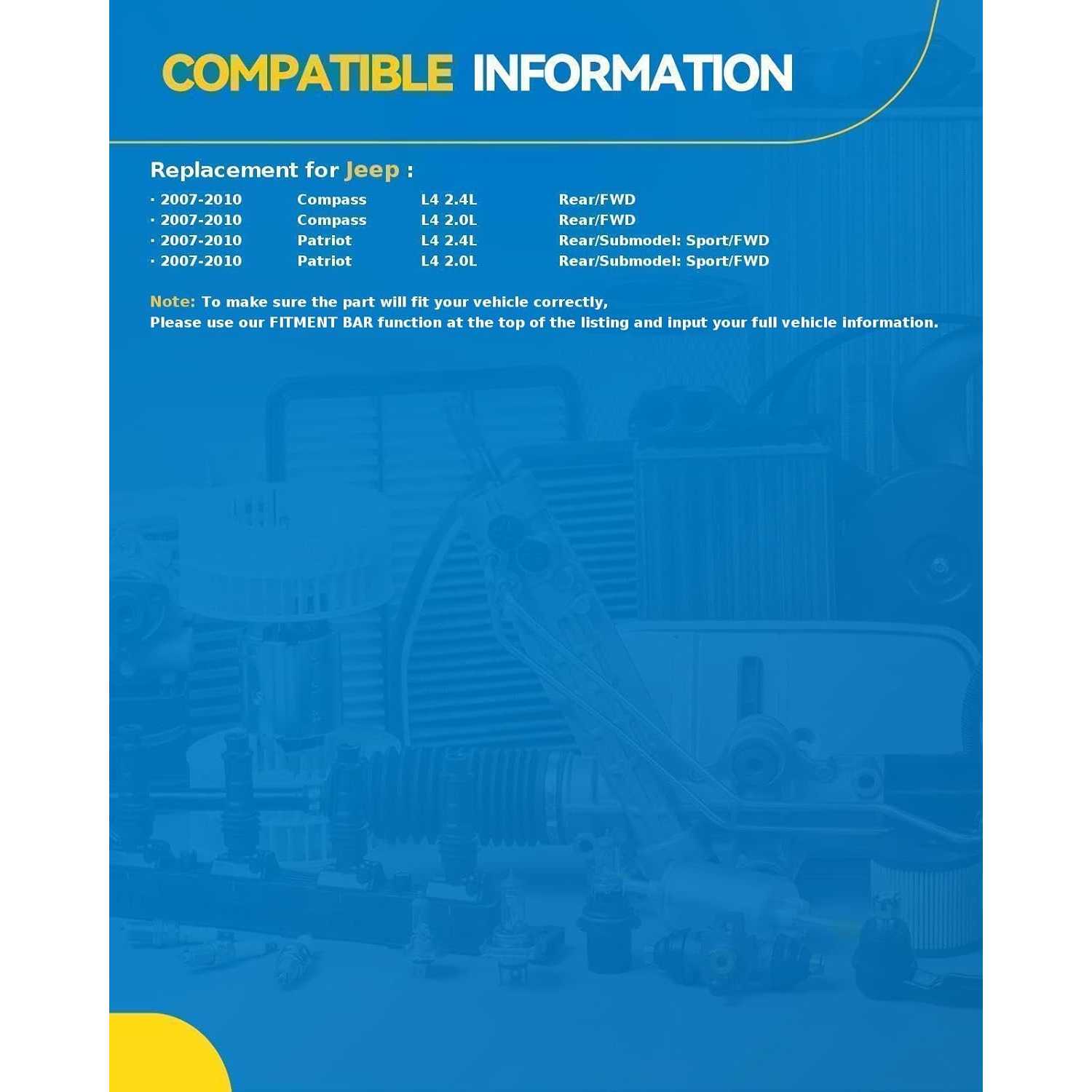

Vehicle(s) Fit Information

Year2007 - 20102007 - 20102007 - 20102007 - 20102007 - 2010
MakeJeepJeepJeepJeepJeep
ModelCompassCompassCompassPatriotPatriot
TrimLimitedSportSportSportSport
Engine2.4L L42.0L L42.4L L42.0L L42.4L L4
Note
Recommended OE Application -Specific Replacement;Replaces Part 282401
Recommended OE Application -Specific Replacement;Replaces Part 282401
Recommended OE Application -Specific Replacement;Replaces Part 282401
Recommended OE Application -Specific Replacement;Replaces Part 282401
Recommended OE Application -Specific Replacement;Replaces Part 282401

How to Install?

Installation Manual Download

User manual (PDF)
Download

Purchase & Installation Notice

  • Confirm the vehicle year, model, suspension type, installation position and part number before ordering.
  • For a complete strut assembly, replacing only individual accessories is not recommended. Mixing worn and new springs, mounts, bearings, dust boots or bump stops may cause noise, uneven ride height and repeated labor costs. Replace the complete assembly when these components are worn or damaged.
  • For balanced damping and handling, inspect both sides of the same axle and replace them as a pair when necessary.

Installation Steps

  • Step-1: Secure the Vehicle: Park on level ground, raise and support the vehicle with approved jack stands, then remove the wheel.
  • Step-2: Disconnect Related Components: Detach the stabilizer link, brake-hose bracket and ABS wiring as required. Support the steering knuckle to prevent pulling on hoses or wires.
  • Step-3: Remove the Old Unit: Remove the lower and upper mounting hardware, support the assembly and carefully remove it.
  • Step-4: Install the New Unit: Confirm the correct side and orientation, position the new assembly and hand-start all fasteners. If spring transfer is required, use a professional spring compressor. Never loosen the center nut with the spring under tension.
  • Step-5: Reconnect and Torque: Reinstall all brackets, links, hoses and wiring. Ensure nothing is twisted or stretched, then tighten all fasteners to the vehicle manufacturer’s specified torque. Do not grip or damage the polished piston rod.
  • Step-6: Reinstall and Align: Reinstall the wheel, lower the vehicle, complete the final torque check and perform a professional wheel alignment.

Product Description

11

Reviews

4.8/5

Based on 4 reviews

575%
425%
30%
20%
10%

NYC Amazon Junkie

09/26/2026

Verified buyer

Installed in my 2008 suburban without issue. Since it was an older truck I was worried about getting the original bolts off. Thankfully they came off and I was able to install with ease. Very easy install. I didn’t even have to take the wheels off.

Lisa_CivicDriver_881

04/10/2026

The rear end of my Compass was feeling really loose, but these struts tightened everything up. The car feels more stable and secure on the road now. Very happy with the results.

FAQS

Fitment depends on your car's year, model, and engine type. Please enter your vehicle's Brand, Year, and Model into the "Fitment Checker" at the top of the page to confirm a 100% match.

We stand behind our suspension quality with a 3-Year Limited Warranty against leaks and structural failure. Scroll to the "Warranty & Support" section at the bottom of the page for full details.

Yes, our Quick-Strut units include the strut, coil spring, strut mount, boot, and bumper pre-assembled. Review our product photos to see the fully integrated unit ready for bolt-on installation.
