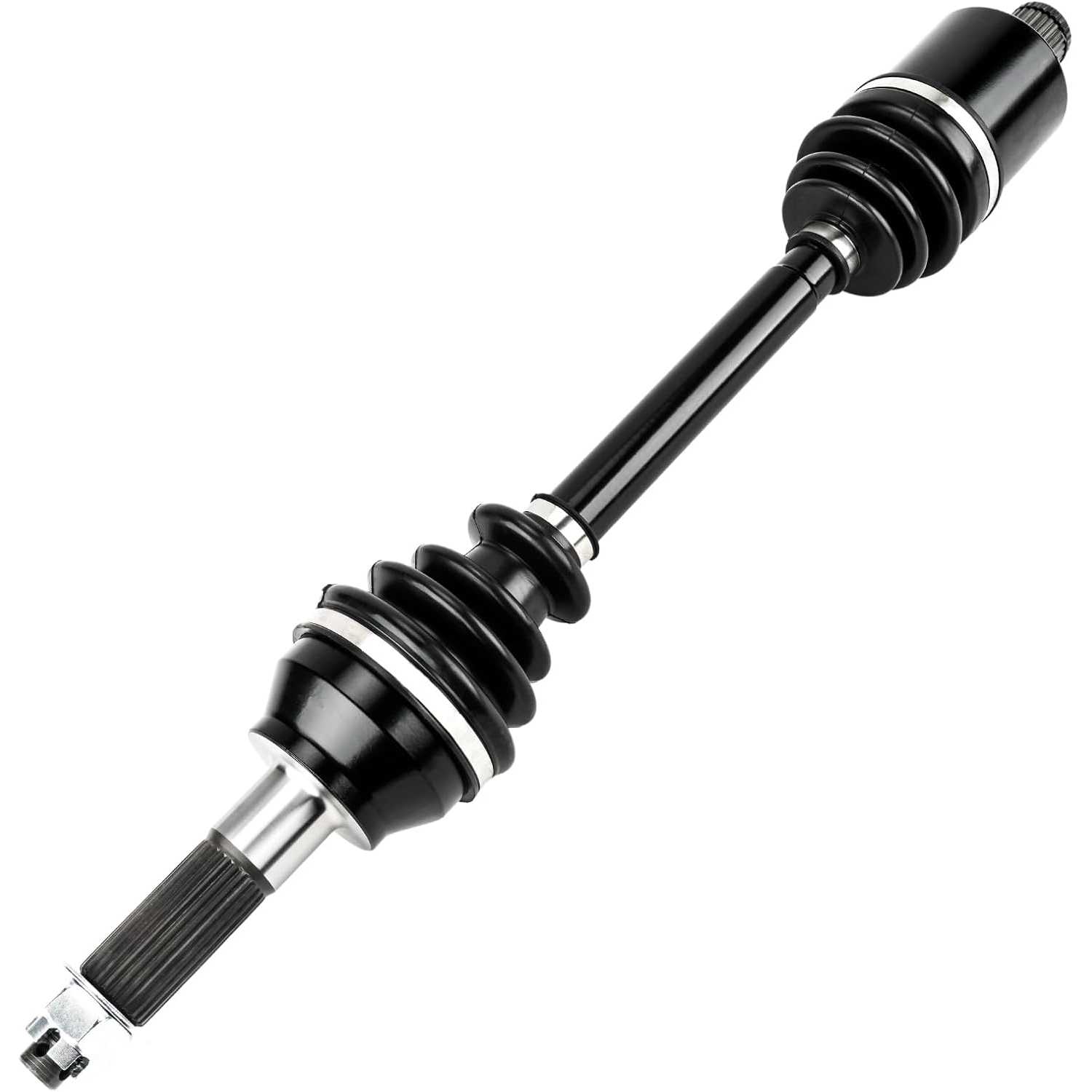

2017-2021 Polaris Sportsman 570 | Rear Driver Side & Passenger Side ATV/UTV Compatible CV Axle 21.75in | POL7074 - PHILTOP

2017-2021 Polaris Sportsman 570 | Rear Driver Side & Passenger Side ATV/UTV Compatible CV Axle 21.75in | POL7074 - PHILTOP

Rear Left or Right

Built to Last

4.3

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
5901SHA205SUS

Specifications

Brand
PHILTOP
Position
Rear Left or Right
ABS Ring Included
No
Quantity
1
Input Shaft Spline Count
28
Material
SAE 1055 Steel and Chloroprene Rubber
Output Shaft Spline Count
26
Items Included
1x Rear Left or Right Cv Axle Shaft
Axle Nut Included
Yes
Warranty Period
2-Year
Part Number
POL7074

Highlights

  • Compatible Vehicles: 21.7in Rear Axles for 2017-2021 Sportsman 450 HO, 2017-2021 Sportsman 450 HO EPS, 2017-2019 Sportsman 450 HO Utility Edition, 2017-2021 Sportsman 570.
  • Specifications: Axle Nut Included: Yes, ABS Ring Included: No, Input Shaft Spline Count: 28, Output Shaft Spline Count: 26, Compressed Length: 21.75 inch, Position: Rear Left or Right.
  • Safe Driving: The drive shaft's superb ball cage design minimises transmission angle loss, ensuring efficient power transfer. The new drive shaft contributes to enhanced driving stability.
  • Long Service Life: The drive shaft surfaces undergo heat treatment for enhanced wear and corrosion resistance, ensuring suitability for demanding road conditions and climatic environments. The chloroprene dust covers on the cv axle shafts effectively prevent fluid leakage.
  • OE Standard: The new automotive half-shaft threads and splines undergo precision rolling for seamless direct replacement. Each cv axle shaft is rigorously tested to original equipment manufacturer standards, ensuring vehicle compatibility and product reliability.

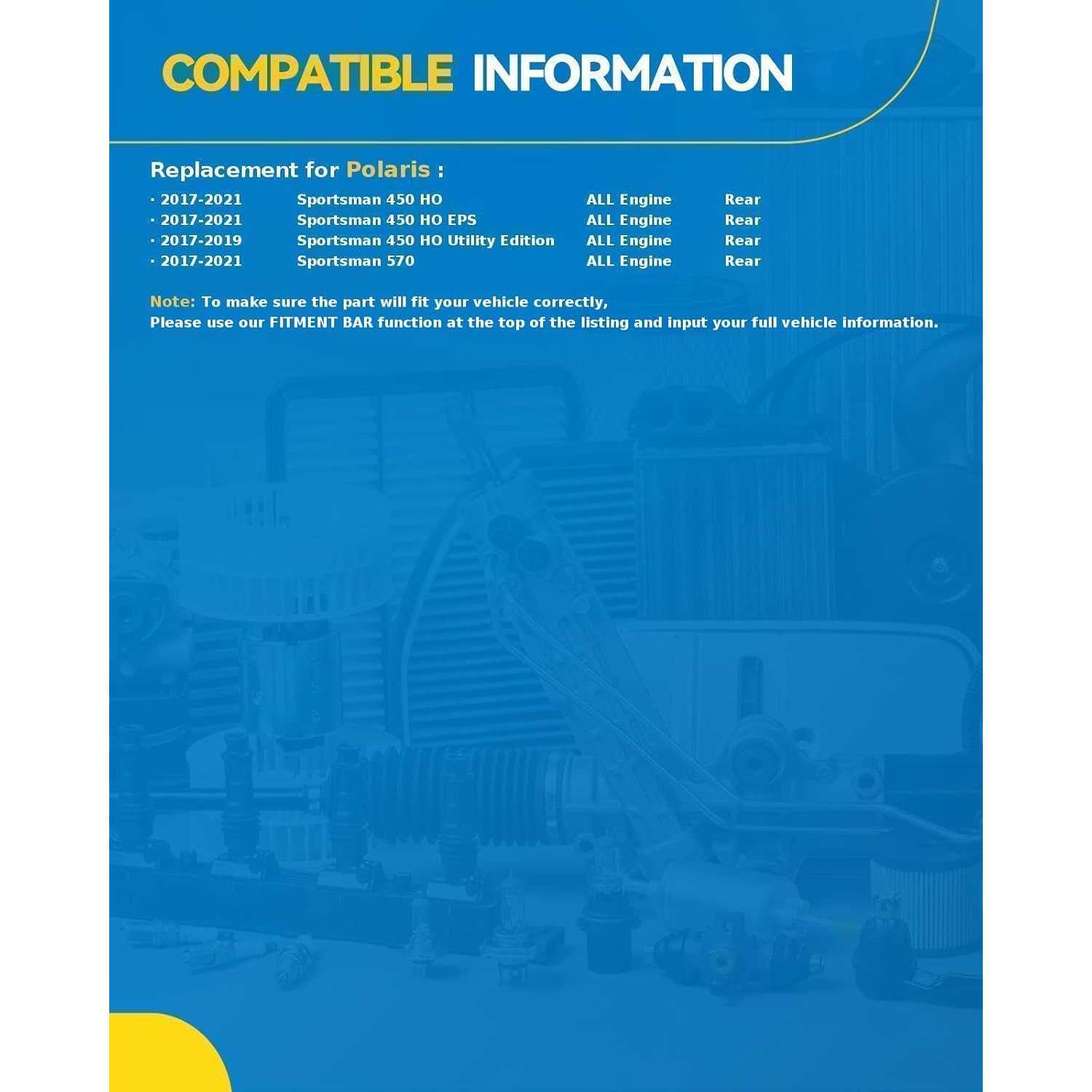

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2017 - 20212017 - 20212017 - 20192017 - 2021
MakePolarisPolarisPolarisPolaris
ModelSportsman 450 HOSportsman 450 HO EPSSportsman 450 HO Utility EditionSportsman 570
TrimBaseBaseBaseBase
Engine----
Note
Standard Duty Replacement
Standard Duty Replacement
Standard Duty Replacement
Standard Duty Replacement

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the vehicle, installation position, spline counts, mounting points and ABS components match.
  • Inspect the hub bearing, suspension parts, transmission mount and axle seal. Repair looseness, damage or leakage first.
  • Compare the new and original axles in a fully compressed position. Confirm the compressed length and key dimensions match.
    Verify that the new and original CV axles have the same compressed length
  • Check that the boots, clamps, splines and supplied axle nut are complete and undamaged.
  • Support both CV joints when handling. Do not pull, sharply bend or carry the axle by its rubber boot.
    The correct way to hold a CV axle

Installation Steps

  • Step-1: Secure the Vehicle: Loosen the axle nut with the wheels on the ground. Raise the vehicle on a level surface and support it securely with jack stands.
  • Step-2: Remove the Old Axle: Remove the wheel and necessary suspension components. Separate the outer spline from the hub with the proper puller.
  • Step-3: Release the Inner Joint: Use a CV joint puller or slide hammer. Never strike the axle directly or pull it out with bolts. Be prepared for possible transmission-fluid loss.
  • Step-4: Install the New Axle: Clean the splines and seal-contact surface. Insert the inner joint straight into the transmission until the retaining ring fully locks, then install the outer spline into the hub.
  • Step-5: Reassemble and Torque: Reinstall all suspension components and use a new axle nut. Hand-start the fasteners and tighten everything to the vehicle manufacturer’s specified torque.
  • Step-6: Final Assembly: Reinstall the wheel, torque the lug nuts in a crisscross pattern and check or refill the specified transmission fluid if required.

After Installation

  • Confirm the inner joint is fully seated and all fasteners are secure.
  • Check the CV boots, clamps and axle seal for damage or leakage.
  • Rotate the wheel by hand and verify the axle moves smoothly without binding or contacting nearby components.
  • Perform a low-speed road test. Check for clicking while turning, clunking during acceleration, vibration and fluid leakage.
  • If suspension geometry was disturbed, have the wheel alignment checked.

Product Video

Product Description

Reviews

4.3/5

Based on 4 reviews

550%
425%
325%
20%
10%

Jennifer_Auto_177

01/27/2026

This rear axle is built like a tank! Feels very high quality, especially for the price. It’s a significant improvement over my old one, and I feel confident taking it on rough terrain now.

DaveTheMechanic_177

04/10/2026

This axle feels really well-made, and the price was unbelievable. It's a great upgrade for my Sportsman 450, and I'm very happy with the quality for what I paid. Solid purchase.

FAQS

Fitment depends on the engine, transmission, and whether your car has ABS. Please enter your vehicle's Brand, Year, and Model into the "Fitment Checker" at the top of the page to confirm a match.

Most CV axles are side-specific due to different lengths. Please check the "Placement on Vehicle" section in our specifications table to ensure you are ordering the correct side for your repair.

The number of teeth (splines) on the ends must match exactly. Please refer to the "Technical Specifications" on this page to verify the Inner and Outer Spline counts before purchasing.
