Rear

Built to Last

4.4

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
7227SHA221TUS

Specifications

Brand
PHILTOP
Position
Rear
ABS Ring Included
No
Quantity
2
Input Shaft Spline Count
28
Material
SAE 1055 Steel and Chloroprene Rubber
Output Shaft Spline Count
26
Items Included

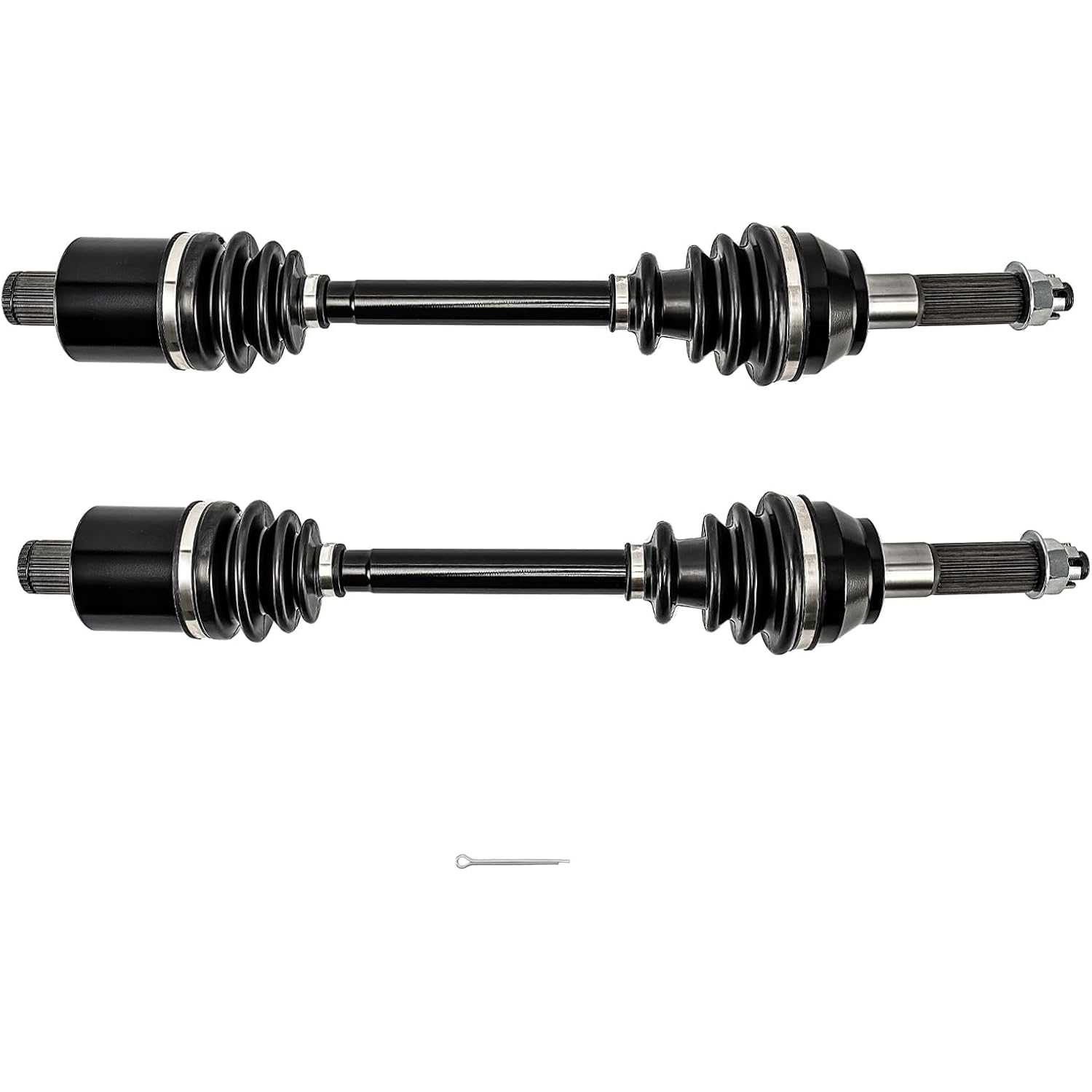

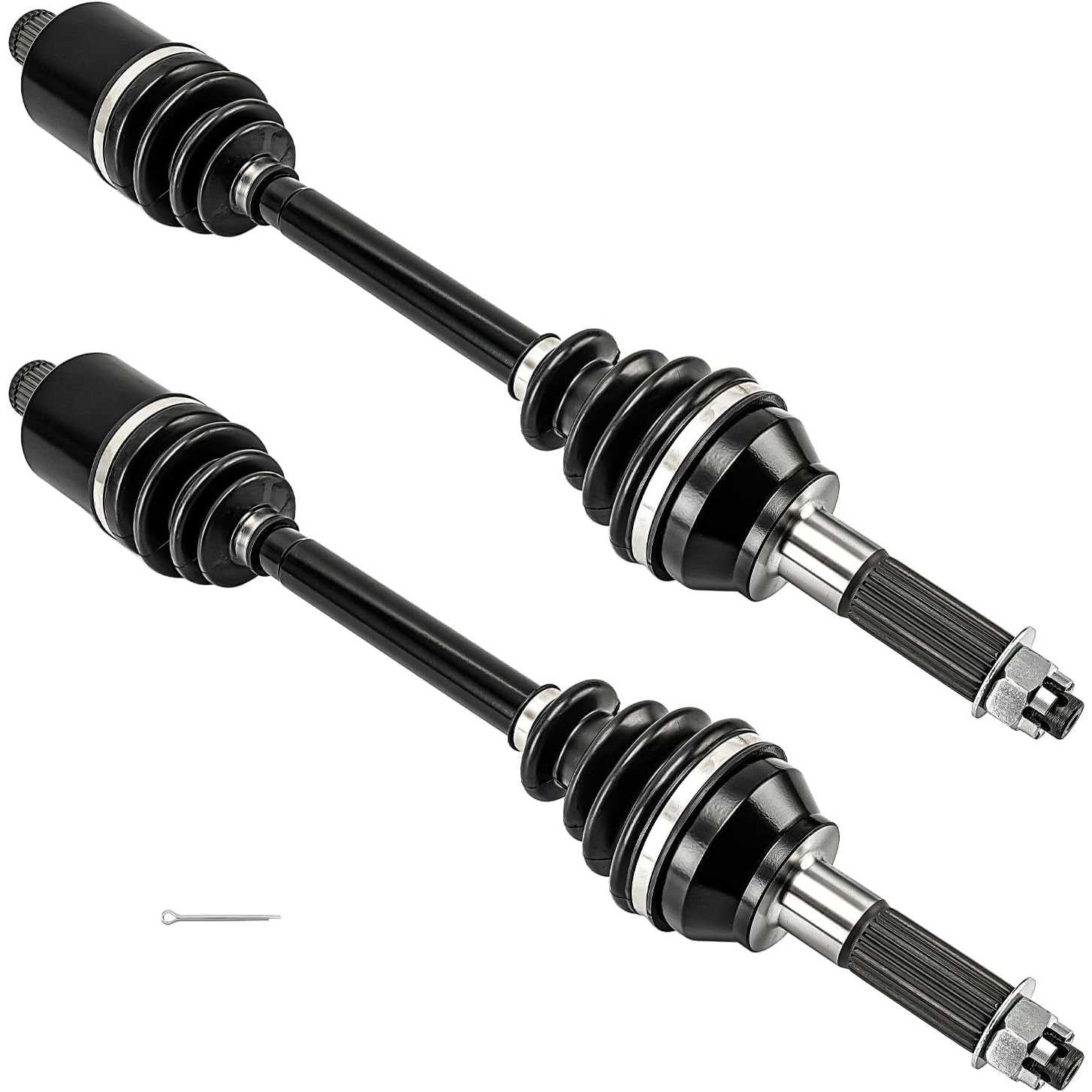

2x Rear Cv Axle Shaft
Axle Nut Included
Yes
Warranty Period
2-Year
Part Number
POL7074

Highlights

  • Fitment: PHILTOP Axle Shaft Fits Sportsman 570 Touring EPS 2015-2021, Sportsman 570 EPS 2015-2021, Sportsman 570 Big Boss 6x6 EPS 2017-2018, Sportsman ETX 2015, Sportsman 570 Trail 2021-2022, Sportsman 570 SP 2015-2019, Sportsman 570 Utility HD LE 2021, Sportsman 450 HO EPS 2017-2021, Sportsman 570 Premium 2020-2021, Sportsman 570 EPS Utility Edition 2022.
  • Adaptation Verification: For a better experience, make sure the CV Axle Shaft is suitable for your vehicle before purchasing the Axle Shaft.

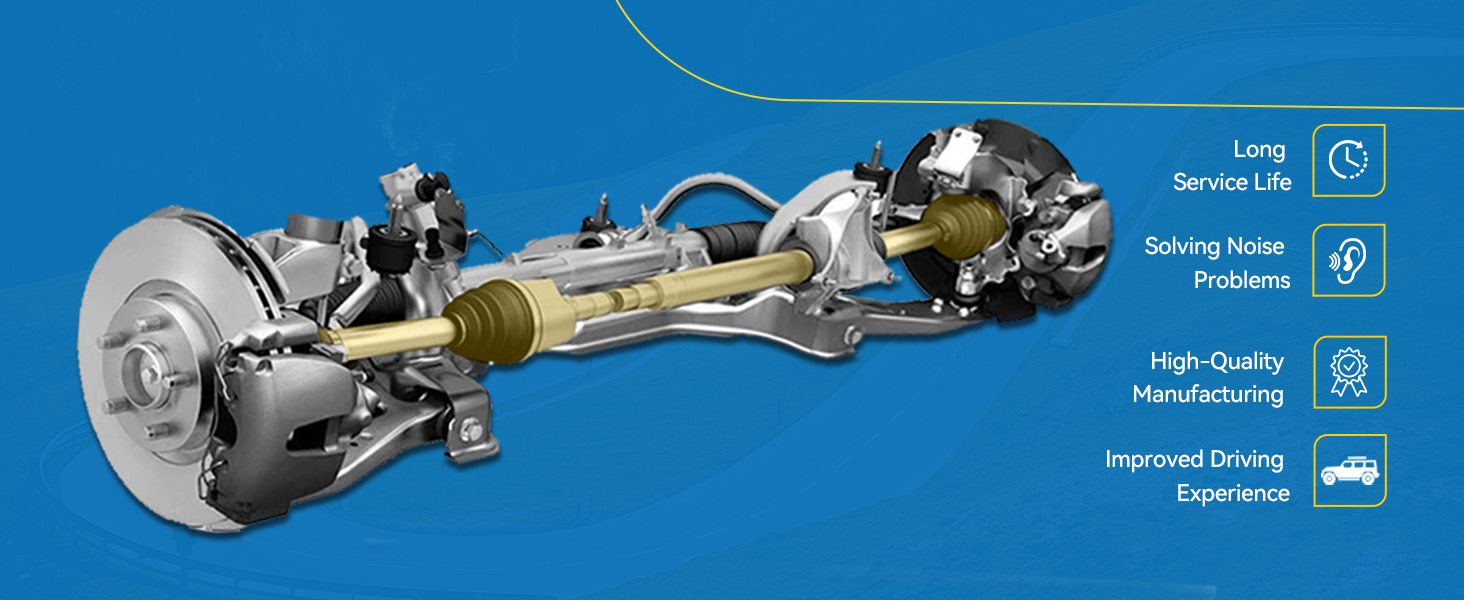

  • Function: CV axles are the final link between the engine and the wheels, transferring power from the vehicle's transmission and differential to the wheels to drive the vehicle forward. A good CV axle assembly makes for a smoother ride.

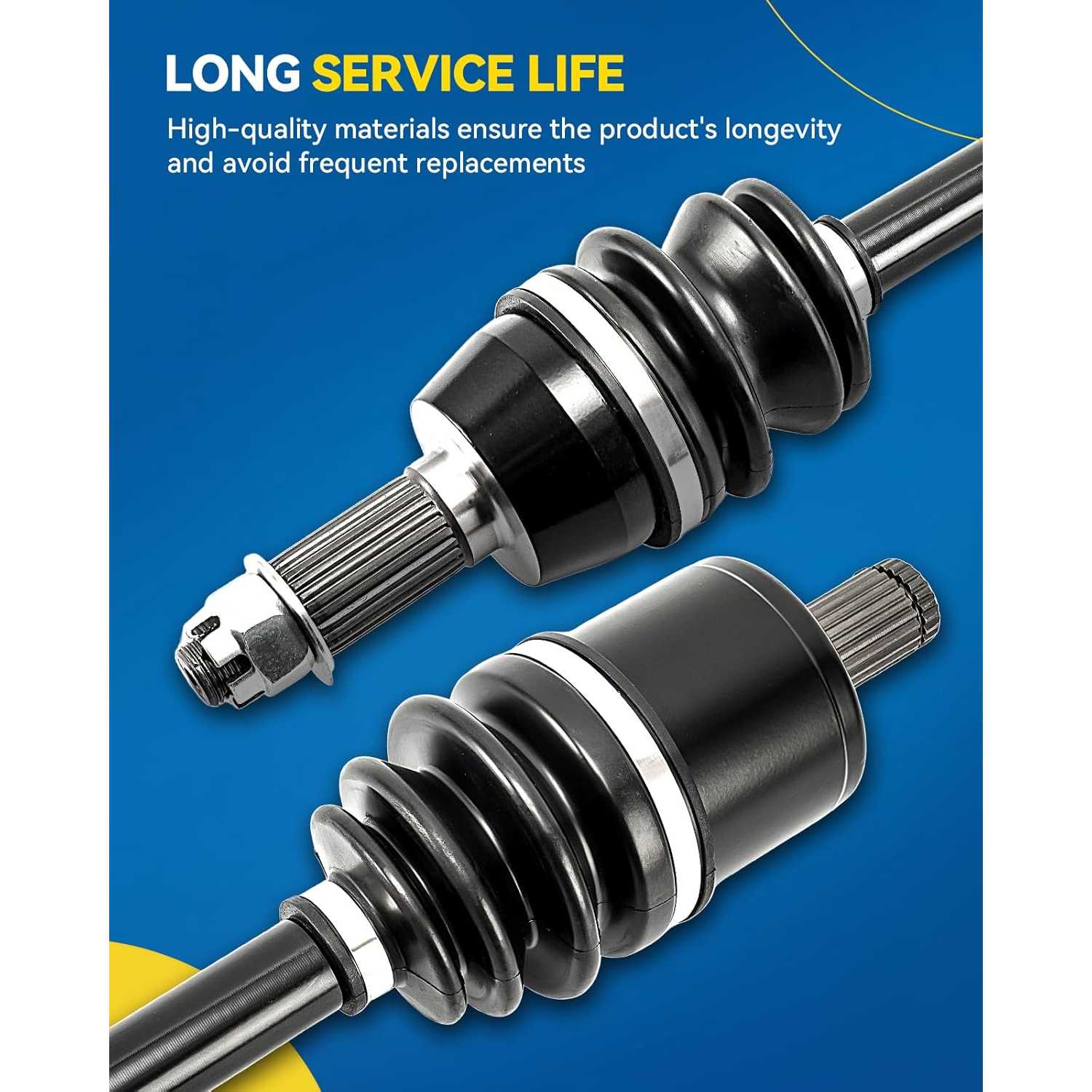

  • High Quality: The cv axle shafts are made of high quality materials with strong corrosion resistance, which improves the reliability and performance of the cv axle assembly.
  • Easy to install: Brand new cv axle shaft. Threads and splines are precision rolled for easy direct replacement.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2017 - 20212017 - 20212017 - 20192017 - 2021
MakePolarisPolarisPolarisPolaris
ModelSportsman 450 HOSportsman 450 HO EPSSportsman 450 HO Utility EditionSportsman 570
TrimBaseBaseBaseBase
Engine----
Note
Standard Duty Replacement
Standard Duty Replacement
Standard Duty Replacement
Standard Duty Replacement

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the vehicle, installation position, spline counts, mounting points and ABS components match.
  • Inspect the hub bearing, suspension parts, transmission mount and axle seal. Repair looseness, damage or leakage first.
  • Compare the new and original axles in a fully compressed position. Confirm the compressed length and key dimensions match.
    Verify that the new and original CV axles have the same compressed length
  • Check that the boots, clamps, splines and supplied axle nut are complete and undamaged.
  • Support both CV joints when handling. Do not pull, sharply bend or carry the axle by its rubber boot.
    The correct way to hold a CV axle

Installation Steps

  • Step-1: Secure the Vehicle: Loosen the axle nut with the wheels on the ground. Raise the vehicle on a level surface and support it securely with jack stands.
  • Step-2: Remove the Old Axle: Remove the wheel and necessary suspension components. Separate the outer spline from the hub with the proper puller.
  • Step-3: Release the Inner Joint: Use a CV joint puller or slide hammer. Never strike the axle directly or pull it out with bolts. Be prepared for possible transmission-fluid loss.
  • Step-4: Install the New Axle: Clean the splines and seal-contact surface. Insert the inner joint straight into the transmission until the retaining ring fully locks, then install the outer spline into the hub.
  • Step-5: Reassemble and Torque: Reinstall all suspension components and use a new axle nut. Hand-start the fasteners and tighten everything to the vehicle manufacturer’s specified torque.
  • Step-6: Final Assembly: Reinstall the wheel, torque the lug nuts in a crisscross pattern and check or refill the specified transmission fluid if required.

After Installation

  • Confirm the inner joint is fully seated and all fasteners are secure.
  • Check the CV boots, clamps and axle seal for damage or leakage.
  • Rotate the wheel by hand and verify the axle moves smoothly without binding or contacting nearby components.
  • Perform a low-speed road test. Check for clicking while turning, clunking during acceleration, vibration and fluid leakage.
  • If suspension geometry was disturbed, have the wheel alignment checked.

Product Video

Product Description

12

Reviews

4.4/5

Based on 7 reviews

557%
429%
314%
20%
10%

Mil

09/24/2026

Verified buyer

It has good quality, a good size, and works quickly and efficiently. It has great functionality, looks gorgeous, and feels durable. It operates quietly without making excessive noise and only requires proper setup to work correctly. Overall, I really like it.

Rob_HomeGarage_144

02/24/2026

The old axle was completely shot, making my ride unbearable. This new one from PHILTOP fixed all those clunking sounds. It feels so much more stable and confident now, truly a game-changer.

FAQS

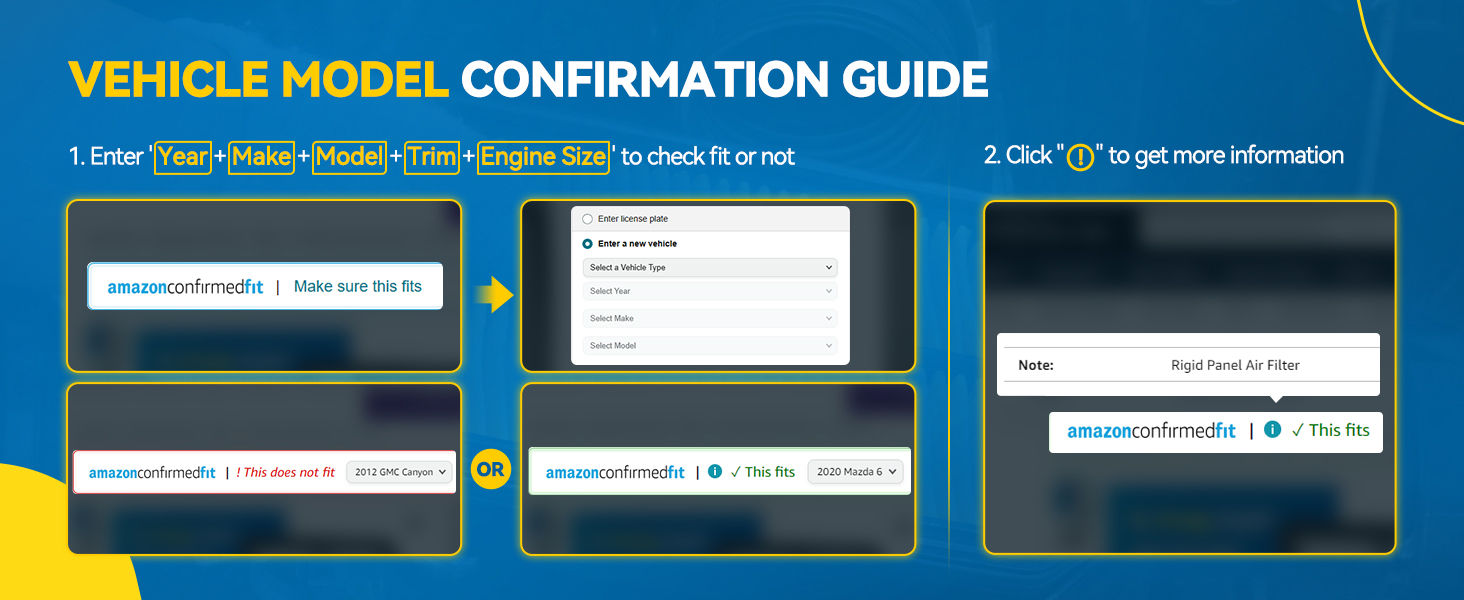

Fitment depends on the engine, transmission, and whether your car has ABS. Please enter your vehicle's Brand, Year, and Model into the "Fitment Checker" at the top of the page to confirm a match.

Most CV axles are side-specific due to different lengths. Please check the "Placement on Vehicle" section in our specifications table to ensure you are ordering the correct side for your repair.

The number of teeth (splines) on the ends must match exactly. Please refer to the "Technical Specifications" on this page to verify the Inner and Outer Spline counts before purchasing.
