2003-2005 Lincoln Aviator 4.6L V8 | Rear Driver Side CV Axle Shaft | 662193 - PHILTOP

2003-2005 Lincoln Aviator 4.6L V8 | Rear Driver Side CV Axle Shaft | 662193 - PHILTOP

Rear Left

Built to Last

4.4

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
9850SHA500YUS

Specifications

Brand
PHILTOP
Position
Rear Left

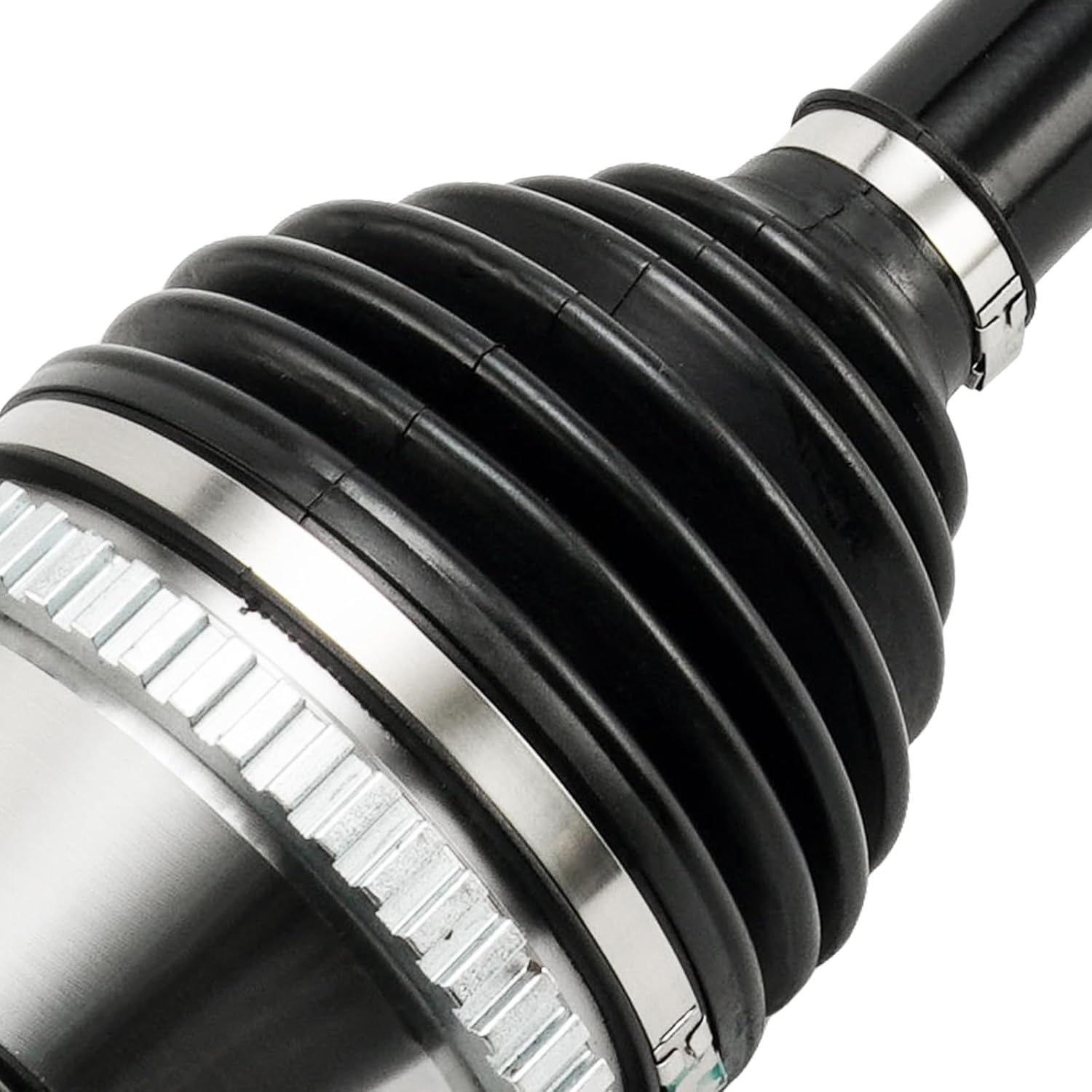

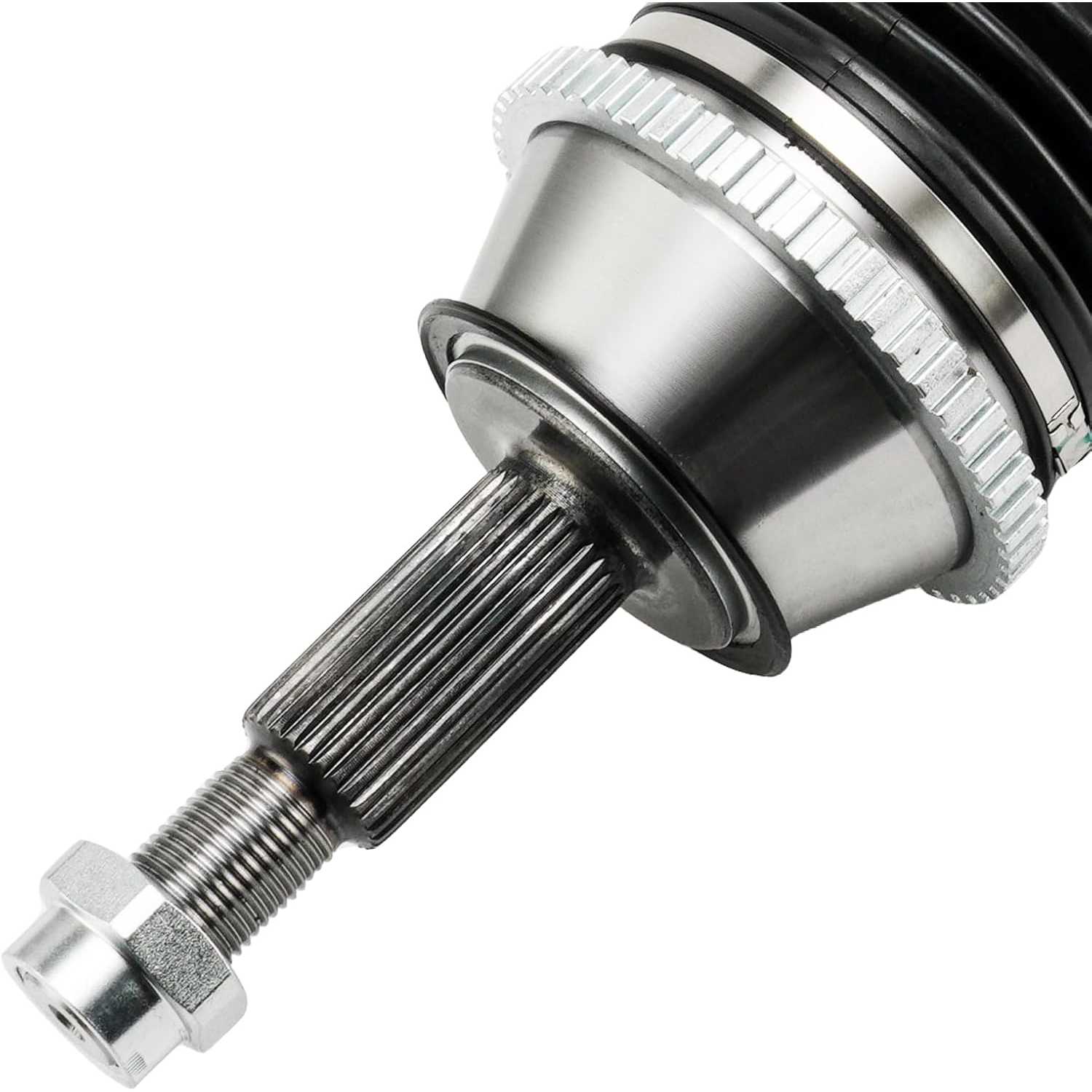

ABS Ring Included
Yes
Quantity
1
Input Shaft Spline Count
31

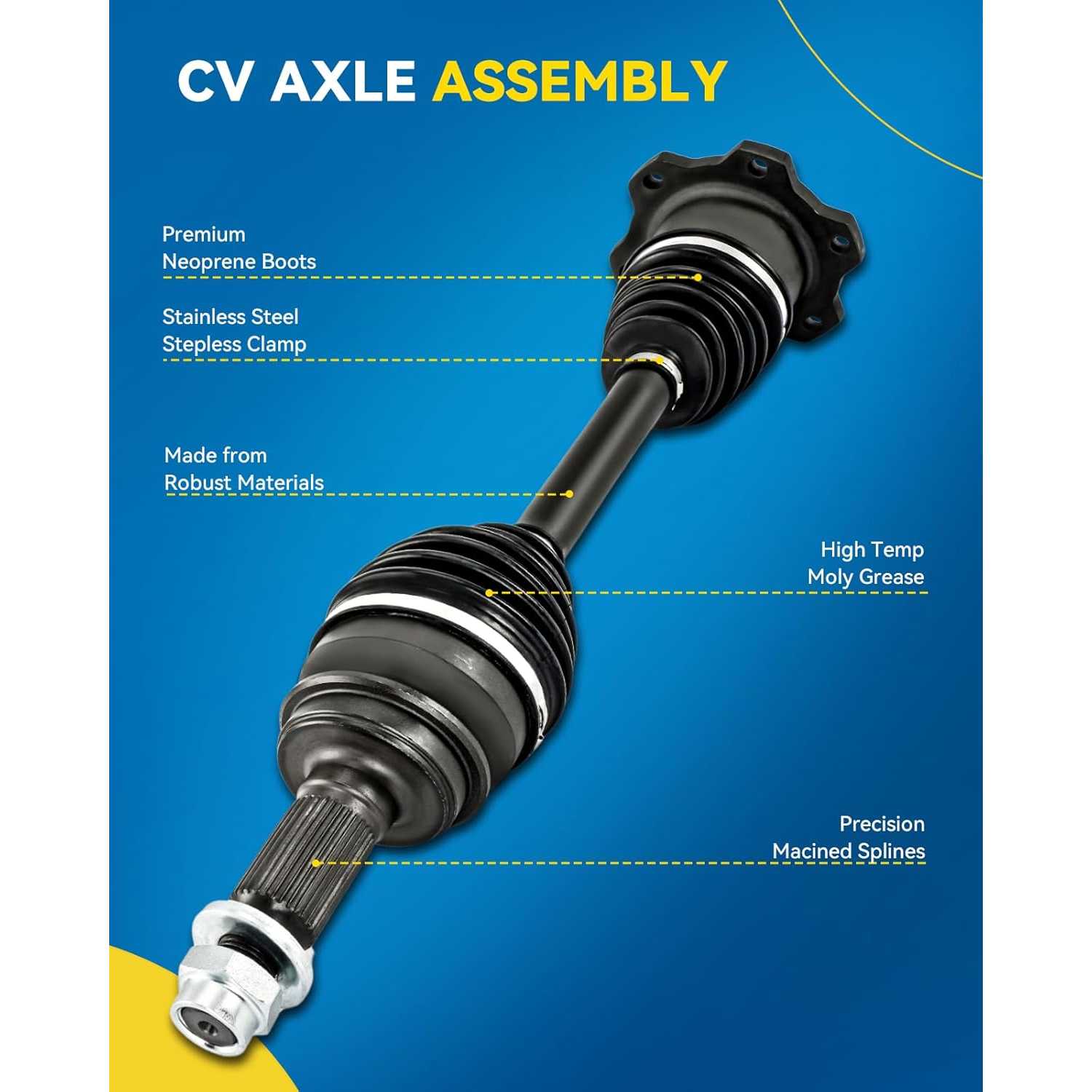

Material
SAE 1055 Steel and Chloroprene Rubber
Output Shaft Spline Count
29
Items Included

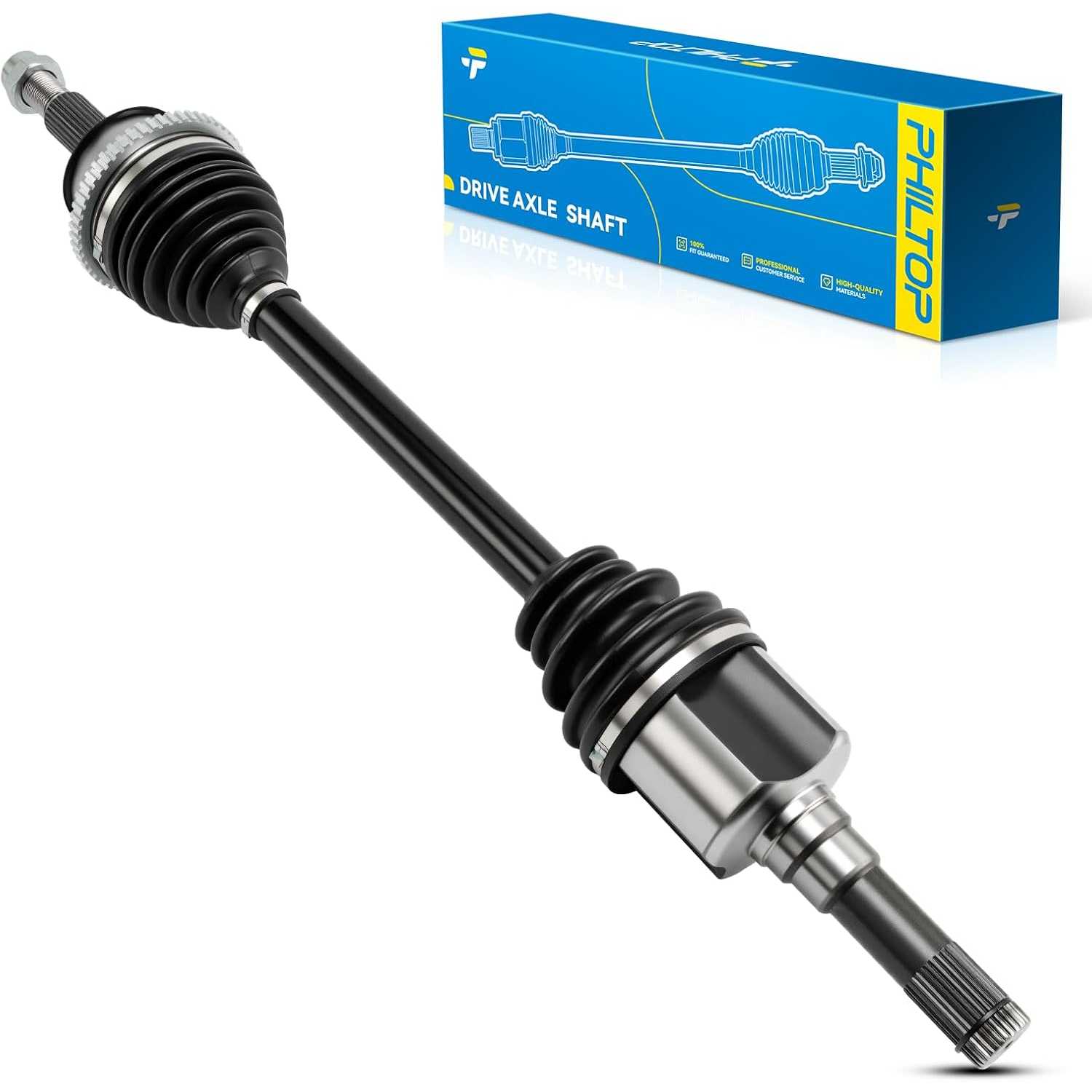

1x Rear Left Cv Axle Shaft - 66-2193
Axle Nut Included
Yes
Warranty Period
2-Year
Part Number
662193

Highlights

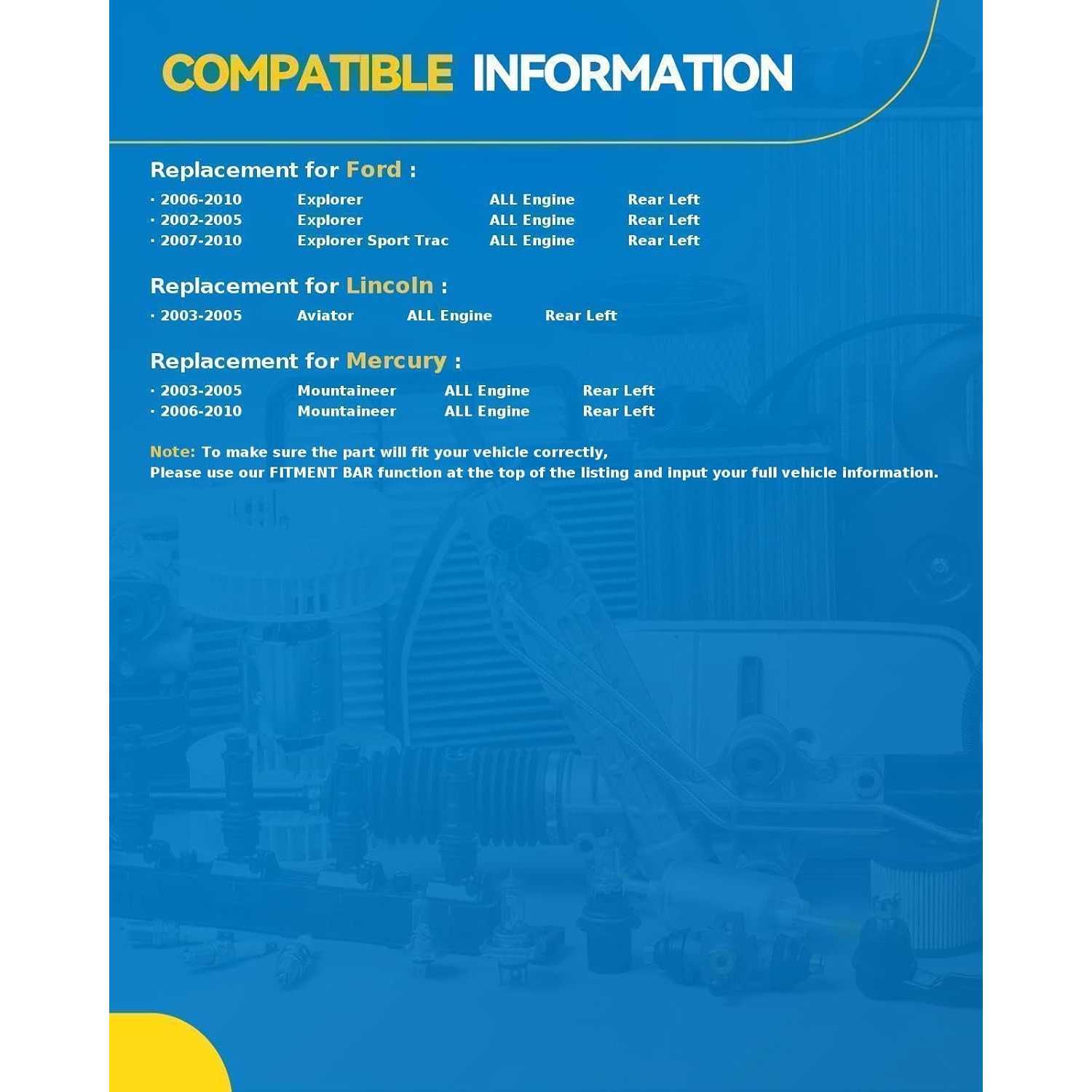

  • Vehicle Fitment: Rear Left 66-2193 Axle Shaft for 2002-2010 Explorer, 2007-2010 Explorer Sport Trac, 2003-2005 Aviator, 2003-2010 Mountaineer.
  • CV Joint OE Number: 6L2Z4K139B, 7L2Z4K139A, 2L2Z4K139BA, 66-2193, 662193, APCVA274, 6L2Z4K139A.

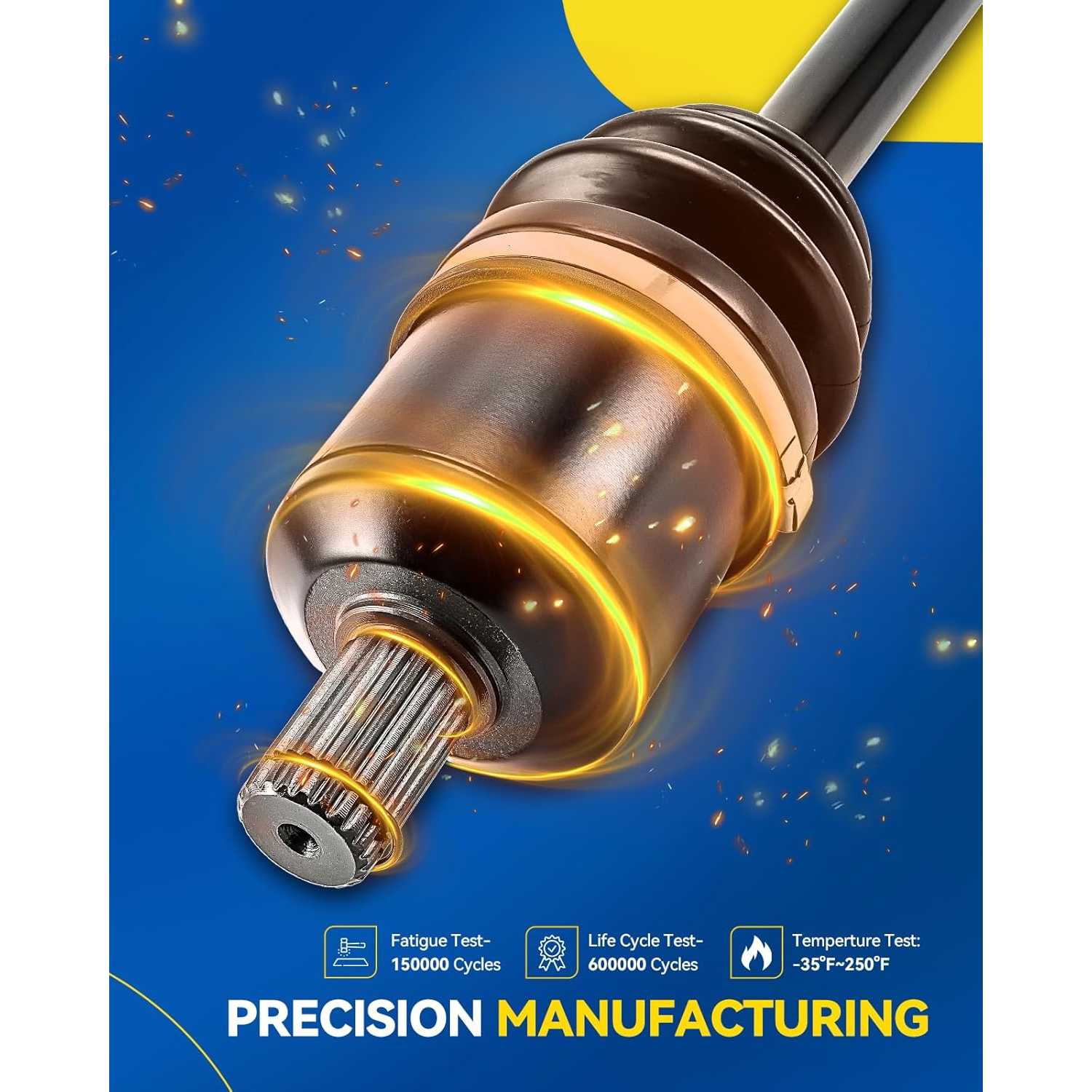

  • High Quality: Half shafts are normalized to ensure product stability.The cv shafts are also ground to improve the ball path and ball surface finish to prolong the product life.
  • Factory Testing: All cv axle shafts undergo a triple factory inspection as a means of confirming product accuracy.Our Axle shafts remain in great condition under extreme conditions.
  • Purchase Verification: Before purchasing, please confirm that the cv axle will fit your vehicle by entering 'Year-Make-Model' through the Suncentauto adapter.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2002 - 20052006 - 20102002 - 20052006 - 20102002 - 20052006 - 20102002 - 20052006 - 2010200420042002 - 20032002 - 200520062004 - 20052002 - 20052006 - 20102002 - 20052006 - 20102004 - 20052004 - 20052007 - 20102007 - 20102007 - 20102007 - 20102003 - 20052003 - 20042007 - 20102003 - 200420052006200520052006200520062004 - 20052007 - 20102004 - 20052006 - 2010
MakeFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordLincolnMercuryMercuryMercuryMercuryMercuryMercuryMercuryMercuryMercuryMercuryMercuryMercuryMercuryMercury
ModelExplorerExplorerExplorerExplorerExplorerExplorerExplorerExplorerExplorerExplorerExplorerExplorerExplorerExplorerExplorerExplorerExplorerExplorerExplorerExplorerExplorer Sport TracExplorer Sport TracExplorer Sport TracExplorer Sport TracAviatorMountaineerMountaineerMountaineerMountaineerMountaineerMountaineerMountaineerMountaineerMountaineerMountaineerMountaineerMountaineerMountaineerMountaineer
TrimEddie BauerEddie BauerEddie BauerEddie BauerLimitedLimitedLimitedLimitedNBXNBXPostalXLSXLSXLS SportXLTXLTXLTXLTXLT SportXLT SportLimitedLimitedXLTXLTBaseBaseBaseBaseConvenienceConvenienceConvenienceLuxuryLuxuryLuxuryLuxuryPremierPremierPremierPremier
Engine4.0L V64.0L V64.6L V84.6L V84.0L V64.0L V64.6L V84.6L V84.0L V64.6L V84.0L V64.0L V64.0L V64.0L V64.0L V64.0L V64.6L V84.6L V84.0L V64.6L V84.0L V64.6L V84.0L V64.6L V84.6L V84.0L V64.0L V64.6L V84.0L V64.0L V64.6L V84.0L V64.0L V64.6L V84.6L V84.0L V64.0L V64.6L V84.6L V8
Note
w/ Advance Trac
-
w/ Advance Trac
-
w/ Advance Trac
-
w/ Advance Trac
-
w/ Advance Trac
w/ Advance Trac
w/ Advance Trac
w/ Advance Trac
-
w/ Advance Trac
w/ Advance Trac
-
w/ Advance Trac
-
w/ Advance Trac
w/ Advance Trac
----
w/ Advance Trac
w/ Advance Trac
-
w/ Advance Trac
w/ Advance Trac
-
w/ Advance Trac
w/ Advance Trac
-
w/ Advance Trac
-
w/ Advance Trac
-
w/ Advance Trac
-

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the vehicle, installation position, spline counts, mounting points and ABS components match.
  • Inspect the hub bearing, suspension parts, transmission mount and axle seal. Repair looseness, damage or leakage first.
  • Compare the new and original axles in a fully compressed position. Confirm the compressed length and key dimensions match.
    Verify that the new and original CV axles have the same compressed length
  • Check that the boots, clamps, splines and supplied axle nut are complete and undamaged.
  • Support both CV joints when handling. Do not pull, sharply bend or carry the axle by its rubber boot.
    The correct way to hold a CV axle

Installation Steps

  • Step-1: Secure the Vehicle: Loosen the axle nut with the wheels on the ground. Raise the vehicle on a level surface and support it securely with jack stands.
  • Step-2: Remove the Old Axle: Remove the wheel and necessary suspension components. Separate the outer spline from the hub with the proper puller.
  • Step-3: Release the Inner Joint: Use a CV joint puller or slide hammer. Never strike the axle directly or pull it out with bolts. Be prepared for possible transmission-fluid loss.
  • Step-4: Install the New Axle: Clean the splines and seal-contact surface. Insert the inner joint straight into the transmission until the retaining ring fully locks, then install the outer spline into the hub.
  • Step-5: Reassemble and Torque: Reinstall all suspension components and use a new axle nut. Hand-start the fasteners and tighten everything to the vehicle manufacturer’s specified torque.
  • Step-6: Final Assembly: Reinstall the wheel, torque the lug nuts in a crisscross pattern and check or refill the specified transmission fluid if required.

After Installation

  • Confirm the inner joint is fully seated and all fasteners are secure.
  • Check the CV boots, clamps and axle seal for damage or leakage.
  • Rotate the wheel by hand and verify the axle moves smoothly without binding or contacting nearby components.
  • Perform a low-speed road test. Check for clicking while turning, clunking during acceleration, vibration and fluid leakage.
  • If suspension geometry was disturbed, have the wheel alignment checked.

Product Video

Product Description

12

Reviews

4.4/5

Based on 5 reviews

560%
420%
320%
20%
10%

Ashley_RoadTrip_992

03/13/2026

The fit and finish on this axle is excellent. Feels very strong and durable. Definitely a great value for the price point. Highly recommended.

Kelly_SUV_Life_823

04/25/2026

This thing slid right into place on my Mountaineer. Installation was a breeze and it got here super fast. Couldn't have asked for a smoother transaction.

FAQS

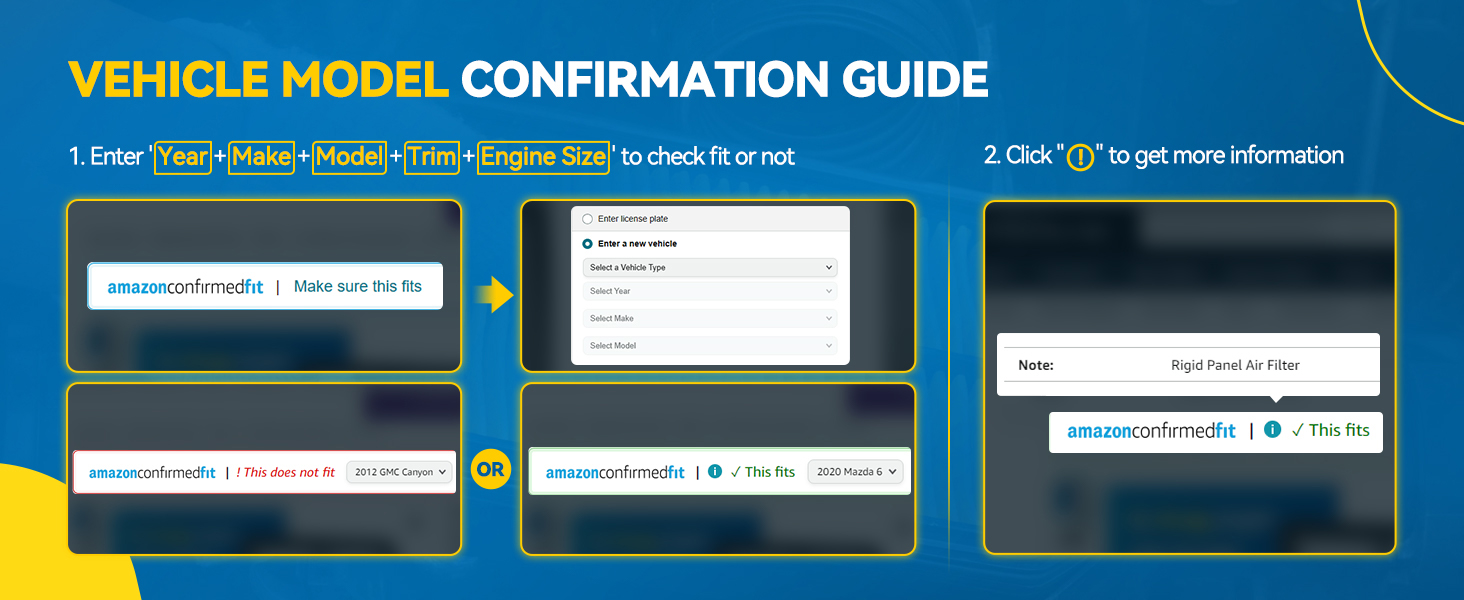

Fitment depends on the engine, transmission, and whether your car has ABS. Please enter your vehicle's Brand, Year, and Model into the "Fitment Checker" at the top of the page to confirm a match.

Most CV axles are side-specific due to different lengths. Please check the "Placement on Vehicle" section in our specifications table to ensure you are ordering the correct side for your repair.

The number of teeth (splines) on the ends must match exactly. Please refer to the "Technical Specifications" on this page to verify the Inner and Outer Spline counts before purchasing.
