Rear

Complete Strut & Coil Spring Assembly

4.8

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
5228SAA737RUS

Specifications

Brand
PHILTOP
Items Included

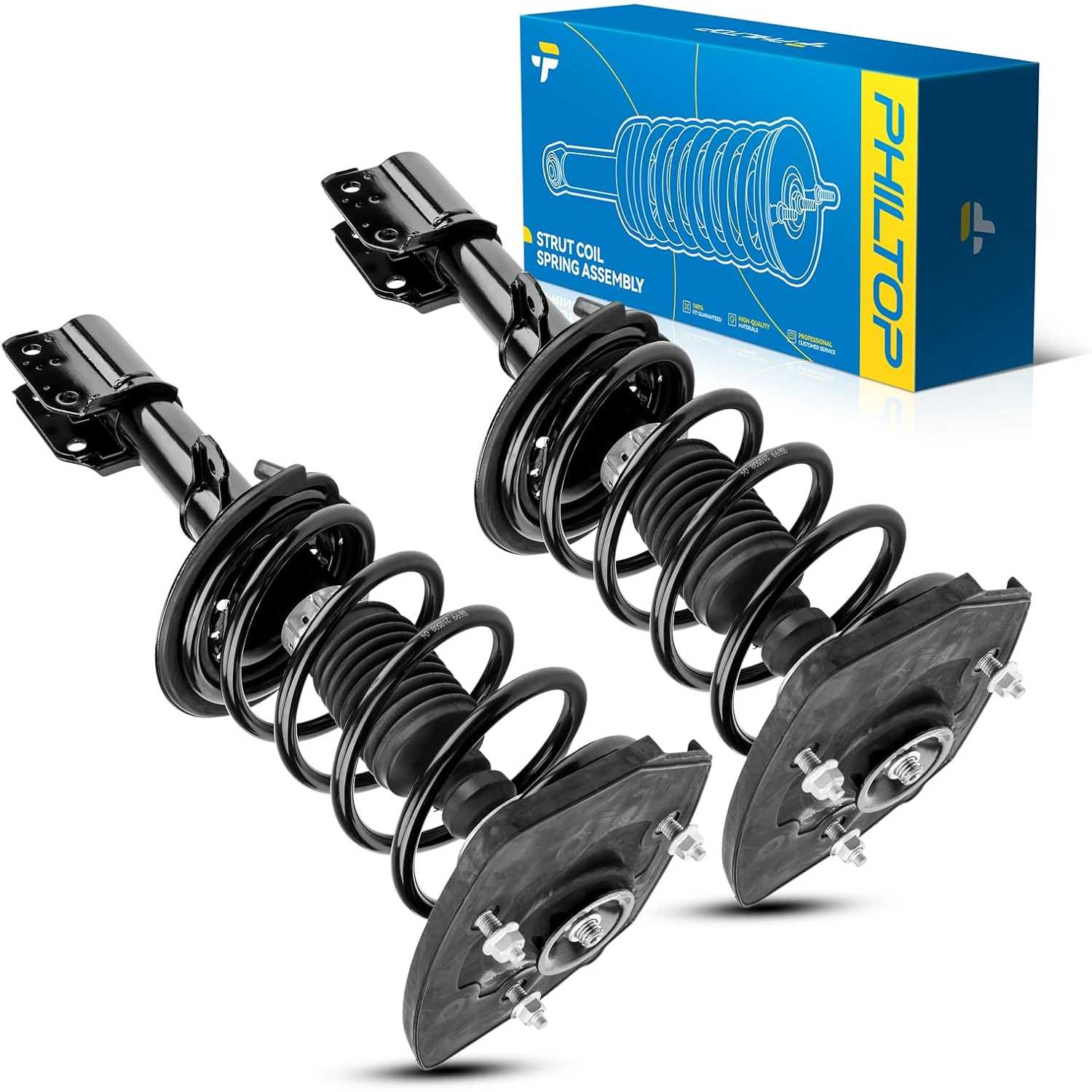

1x Rear Right Complete Strut Assembly - 372471R 1x Rear Left Complete Strut Assembly - 372471L
Color
Black
Steel Tube Material
Mild Steel(ST37 Equivalent)
Bump Stop Included
Polyurethane

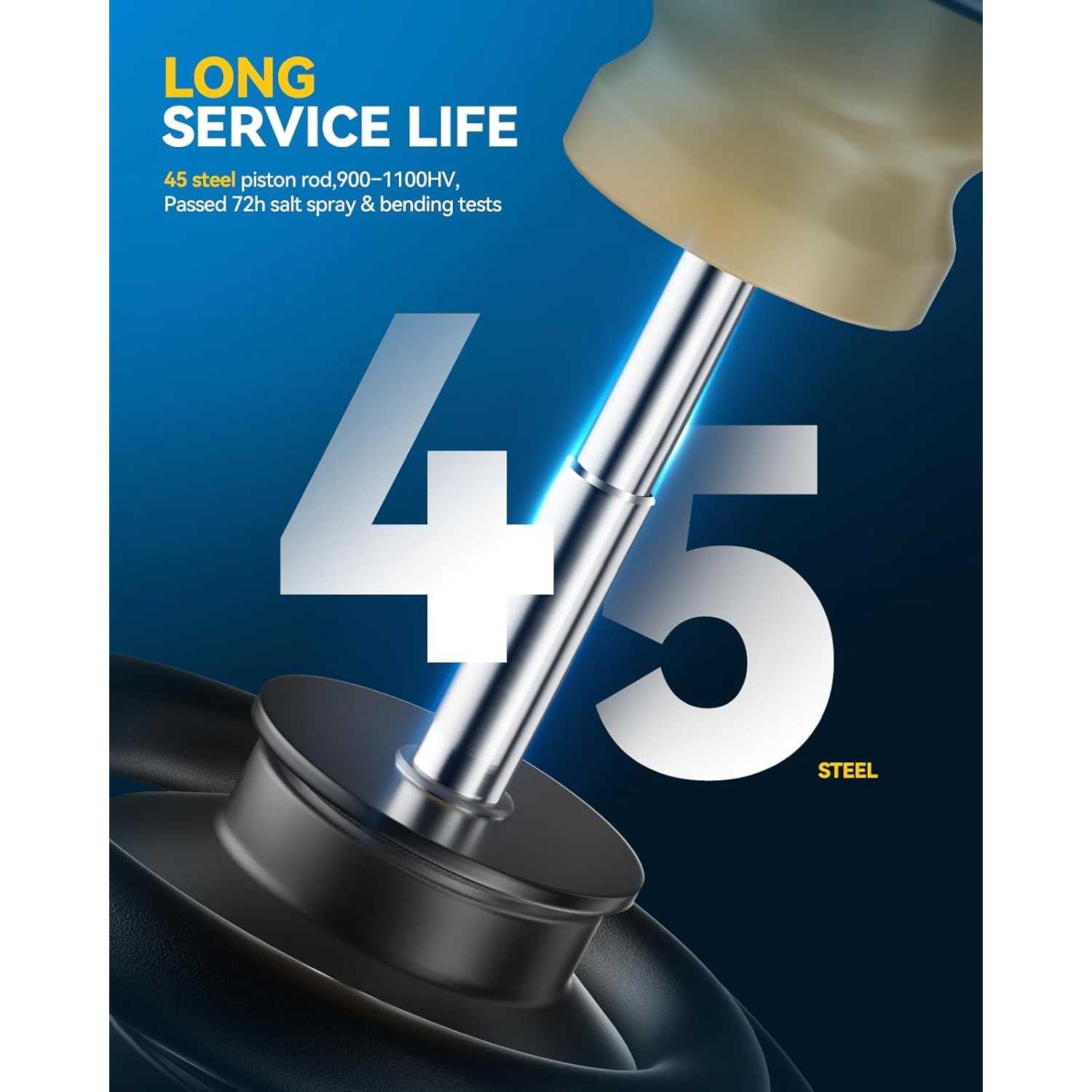

Piston Rod Material
SAE 1045 Steel
Type
Complete Strut & Coil Spring Assembly
Quantity
2
Position
Rear

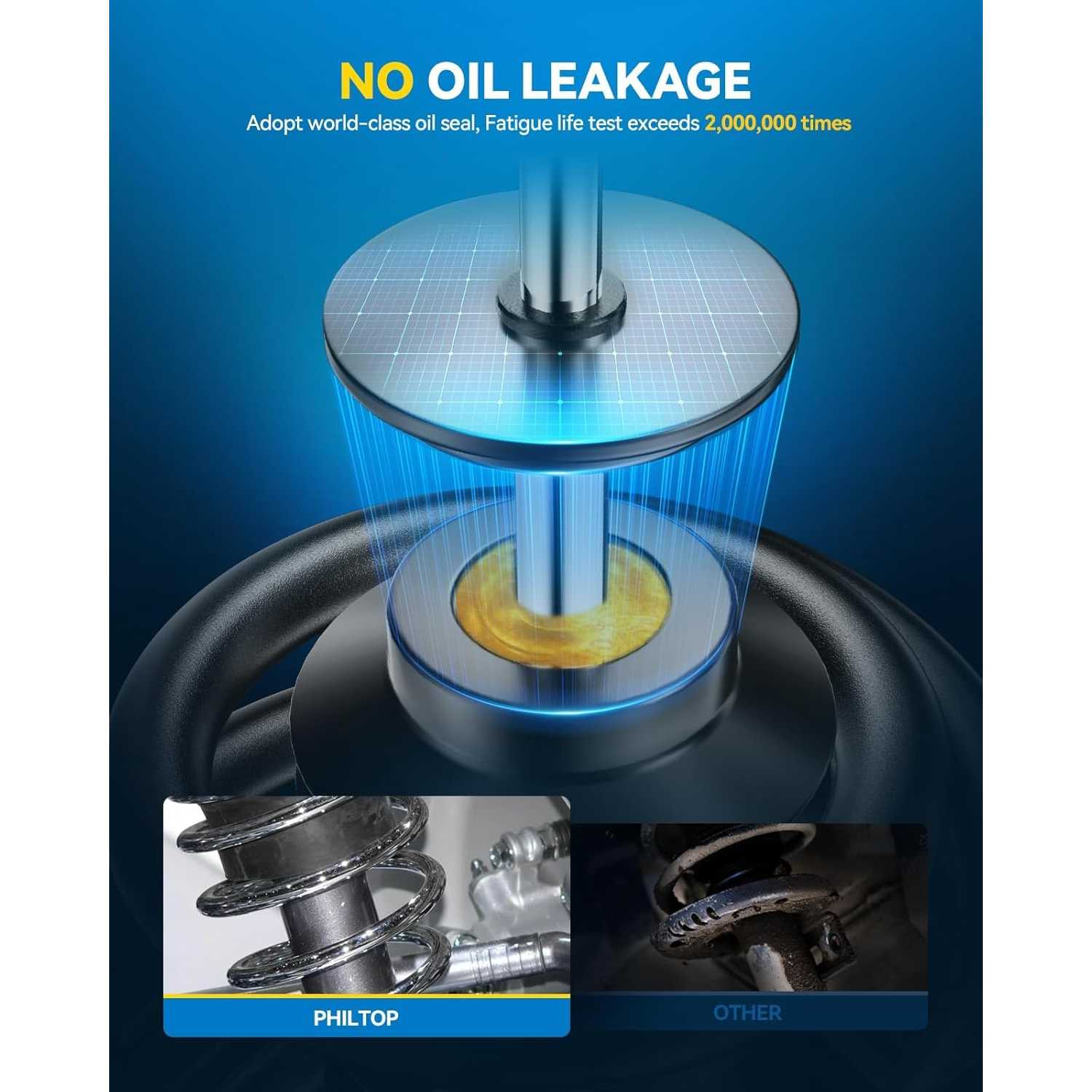

Oil Seal Material
Nitrile Rubber
Warranty Period
2-Year
OE Number
88965469,20906121,88965468
Part Number
SR4104,SR4103,372471R,372471L,382471R,382471L

Highlights

  • Fitment: Struts FOR 2012-2013 Chevrolet Impala 3.6L 2004-2007 Pontiac Grand Prix 2004-2005 Chevrolet Impala 2014-2016 Chevrolet Impala Limited 3.6L 2008-2011 Chevrolet Impala 3.9L 2008-2009 Chevrolet Impala 5.3L 2008 Chevrolet Impala 3.5L
  • OEM Numbers: 382471R, 372471R, SR4104, SR4103, 372471L, 382471L, 88965469, 88965468, 20906121, 1333354L, 1333354R, 92140958, 2701524555, 34GM1122, LS5494562R, 92140959, 2701524554, 34GM1121, LS5494562L, 272471R, 272471L
  • [ High Material ]: Strut assembly adopted advanced alloy steel and electrophoretic painted surface improved corrosion-resistance and wear-resistance, ensuring prolonged reliability, promising exceptional suspension performance for vehicles in extreme environment.
  • Product passed high and low temp testing , blasting testing and etc ensures the quality of each Struts. Our shock absorbers epitomize a perfect blend of strength and superior damping characteristics for a smooth and comfortable ride.
  • Package Includes: 1x Rear Right Complete Strut Assembly - 372471R 1x Rear Left Complete Strut Assembly - 372471L

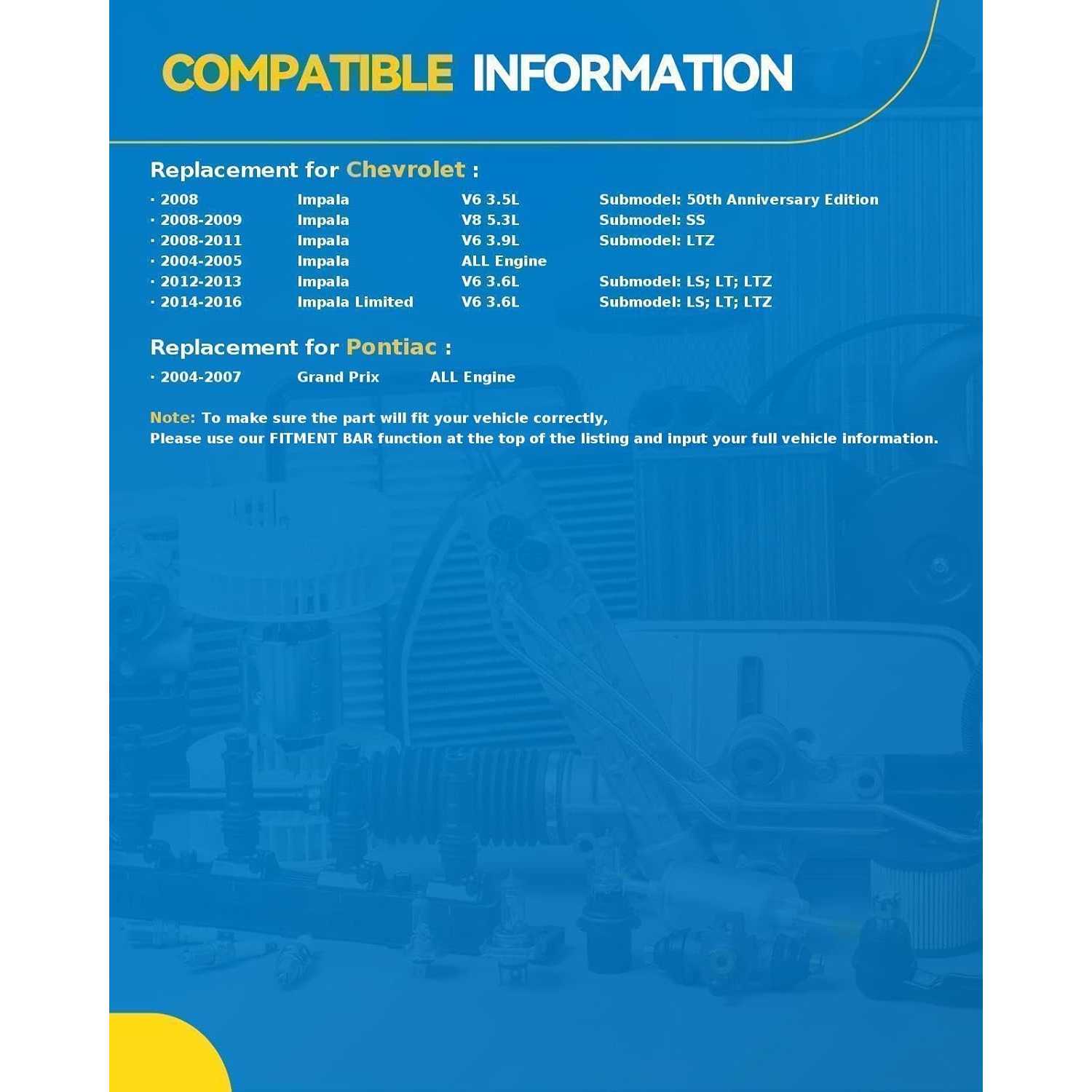

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year20082004 - 20052004 - 20052012 - 20132004 - 20052012 - 20132012 - 20132008 - 20112004 - 20052004 - 20052008 - 20092014 - 20162014 - 20162014 - 20162005 - 20072005 - 2007200420042004 - 20052005 - 2007
MakeChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletPontiacPontiacPontiacPontiacPontiacPontiac
ModelImpalaImpalaImpalaImpalaImpalaImpalaImpalaImpalaImpalaImpalaImpalaImpala LimitedImpala LimitedImpala LimitedGrand PrixGrand PrixGrand PrixGrand PrixGrand PrixGrand Prix
Trim50th Anniversary EditionBaseBaseLSLSLTLTZLTZPoliceSSSSLSLTLTZBaseGTGT1GT2GTPGXP
Engine3.5L V63.4L V63.8L V63.6L V63.8L V63.6L V63.6L V63.9L V63.8L V63.8L V65.3L V83.6L V63.6L V63.6L V63.8L V63.8L V63.8L V63.8L V63.8L V65.3L V8
Note
without Police/Taxi Packages;Replaces Part 382471L/382471R;Recommended OE Application -Specific Replacement
w/ 17Inch or 18Inch Wheels; w/o Police/Taxi Packages
w/ 17Inch or 18Inch Wheels; w/o Police/Taxi Packages
without Police/Taxi Packages;Replaces Part 382471L/382471R;Recommended OE Application -Specific Replacement
w/ 17Inch or 18Inch Wheels; w/o Police/Taxi Packages
without Police/Taxi Packages;Replaces Part 382471L/382471R;Recommended OE Application -Specific Replacement
without Police/Taxi Packages;Replaces Part 382471L/382471R;Recommended OE Application -Specific Replacement
without Police/Taxi Packages;Replaces Part 382471L/382471R;Recommended OE Application -Specific Replacement
w/ 17Inch or 18Inch Wheels; w/o Police/Taxi Packages
w/ 17Inch or 18Inch Wheels; w/o Police/Taxi Packages
without Police/Taxi Packages;Replaces Part 382471L/382471R;Recommended OE Application -Specific Replacement
without Police/Taxi Packages;Replaces Part 382471L/382471R;Recommended OE Application -Specific Replacement
without Police/Taxi Packages;Replaces Part 382471L/382471R;Recommended OE Application -Specific Replacement
without Police/Taxi Packages;Replaces Part 382471L/382471R;Recommended OE Application -Specific Replacement
w/ 17Inch or 18Inch Wheels
w/ 17Inch or 18Inch Wheels
w/ 17Inch or 18Inch Wheels
w/ 17Inch or 18Inch Wheels
w/ 17Inch or 18Inch Wheels
w/ 17Inch or 18Inch Wheels

How to Install?

Installation Manual Download

User manual (PDF)
Download

Purchase & Installation Notice

  • Confirm the vehicle year, model, suspension type, installation position and part number before ordering.
  • For a complete strut assembly, replacing only individual accessories is not recommended. Mixing worn and new springs, mounts, bearings, dust boots or bump stops may cause noise, uneven ride height and repeated labor costs. Replace the complete assembly when these components are worn or damaged.
  • For balanced damping and handling, inspect both sides of the same axle and replace them as a pair when necessary.

Installation Steps

  • Step-1: Secure the Vehicle: Park on level ground, raise and support the vehicle with approved jack stands, then remove the wheel.
  • Step-2: Disconnect Related Components: Detach the stabilizer link, brake-hose bracket and ABS wiring as required. Support the steering knuckle to prevent pulling on hoses or wires.
  • Step-3: Remove the Old Unit: Remove the lower and upper mounting hardware, support the assembly and carefully remove it.
  • Step-4: Install the New Unit: Confirm the correct side and orientation, position the new assembly and hand-start all fasteners. If spring transfer is required, use a professional spring compressor. Never loosen the center nut with the spring under tension.
  • Step-5: Reconnect and Torque: Reinstall all brackets, links, hoses and wiring. Ensure nothing is twisted or stretched, then tighten all fasteners to the vehicle manufacturer’s specified torque. Do not grip or damage the polished piston rod.
  • Step-6: Reinstall and Align: Reinstall the wheel, lower the vehicle, complete the final torque check and perform a professional wheel alignment.

Product Description

总成无适配12

Reviews

4.8/5

Based on 12 reviews

592%
40%
38%
20%
10%

Brad

07/21/2026

Verified buyer

These worked out great, the installation is real quick and easy with a whole assembly instead of putting it together. The upper and lower mounting points fits great and smoothed everything out, they appear to be well made.

Emma_DailyCommute_14

03/08/2026

Super fast shipping, got them in just a couple of days. Everything was well-protected in the box. Really happy with how quickly they arrived.

FAQS

Fitment depends on your car's year, model, and engine type. Please enter your vehicle's Brand, Year, and Model into the "Fitment Checker" at the top of the page to confirm a 100% match.

We stand behind our suspension quality with a 3-Year Limited Warranty against leaks and structural failure. Scroll to the "Warranty & Support" section at the bottom of the page for full details.

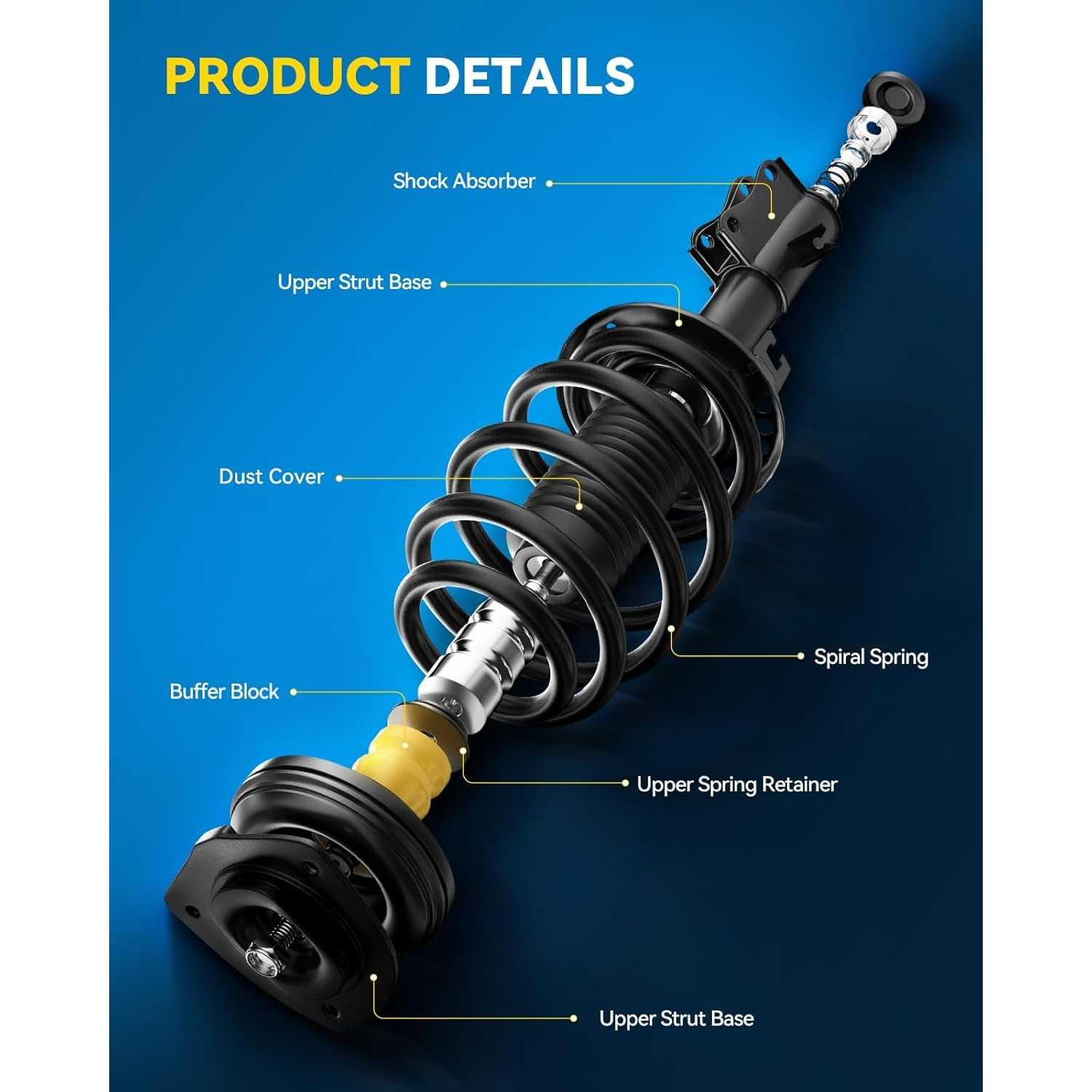

Yes, our Quick-Strut units include the strut, coil spring, strut mount, boot, and bumper pre-assembled. Review our product photos to see the fully integrated unit ready for bolt-on installation.
