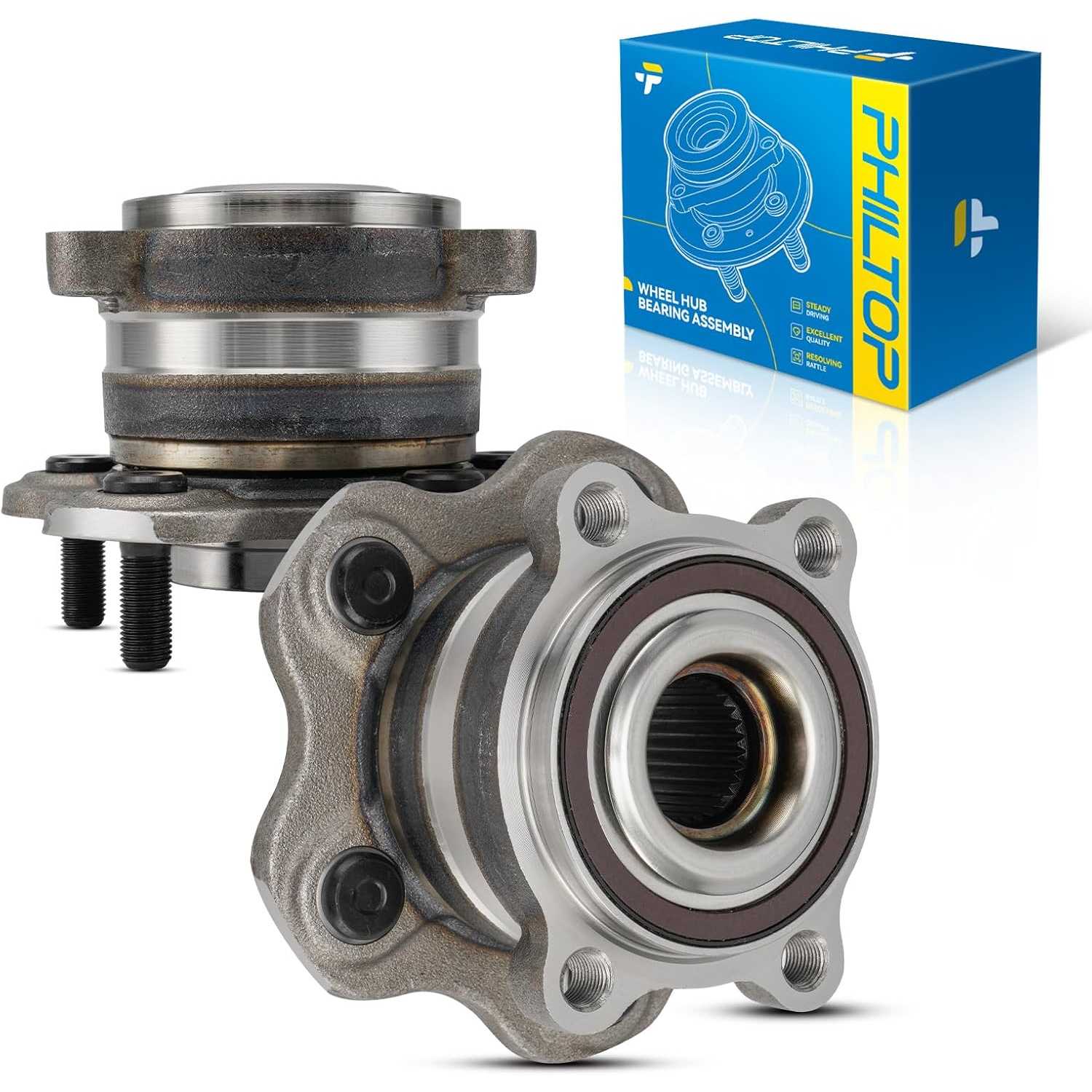

2014-2020 INFINITI QX60 3.5L/2.5L | 2 PC Rear Wheel Bearing | OE#432025NBA0B/512548 - PHILTOP

2014-2020 INFINITI QX60 3.5L/2.5L | 2 PC Rear Wheel Bearing | OE#432025NBA0B/512548 - PHILTOP

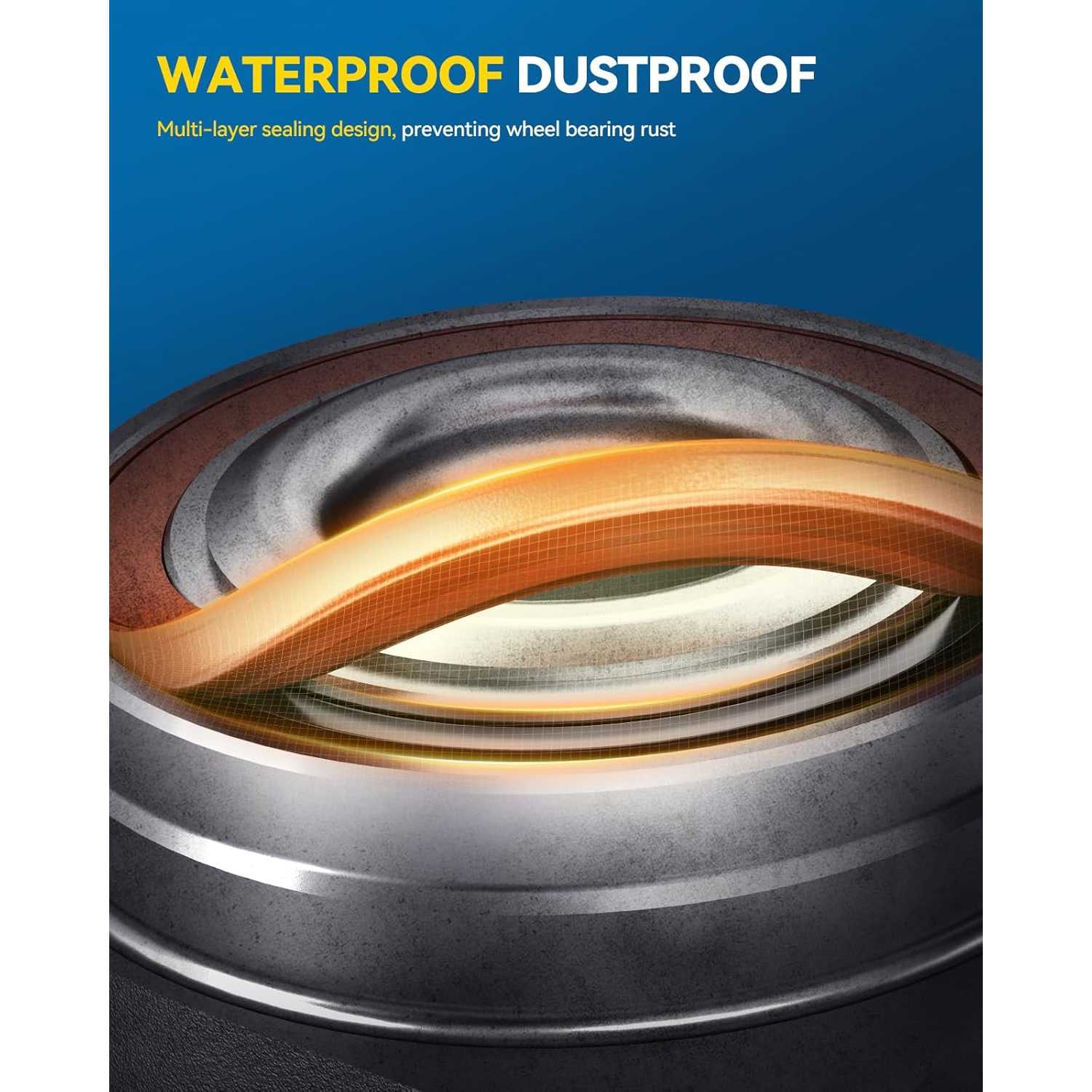

Triple-Lip Seal

Rear

AISI 52100

4.8

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
3404WBR273EUS

Specifications

Brand
PHILTOP
ABS Type
Magnetic Ring
Lug Count
5
Position
Rear
Flange Bolt Hole Count
4
Material
SAE 1055 Steel and SAE 52100 Steel
Items Included
2x Rear Wheel Hub and Bearing Assembly - 512548,Installation Instructions
Bolt Pattern
5 X 4.5
Surface Finish
Polished, Rust Protected
Hub Pilot Diameter
3.3 in
Wheel Stud Size
M12x1.25
Flange Offset
2.72 in/69 mm
Flange Diameter
5.83 in/148.0 mm
Brake Pilot Diameter
2.68 in/68.0 mm
Warranty Period
2-Year
OE Number
432025NBA0B,432023JA0B,432023JA1B
Part Number
512548,MB30330,WE61773,HA590560,WA512548,103197,40142003E,7503180,91556377
Quantity
2

Highlights

  • Fitment: Rear Wheel Bearing Hub Assembly fits AWD Murano 2015-2023, 4WD Pathfinder 2013-2019, AWD QX60 2014-2020, AWD Altima 2019-2023, AWD Pathfinder 2020, AWD JX35 2013.
  • Part Number: 512548, 432023JA0B, HA590560, BR930868, WA512548, 432023JA1B, 103197, 40142003E, MB30330, WE61773, 432023JA1D, G30330, 432025NBA0B, 7503180.

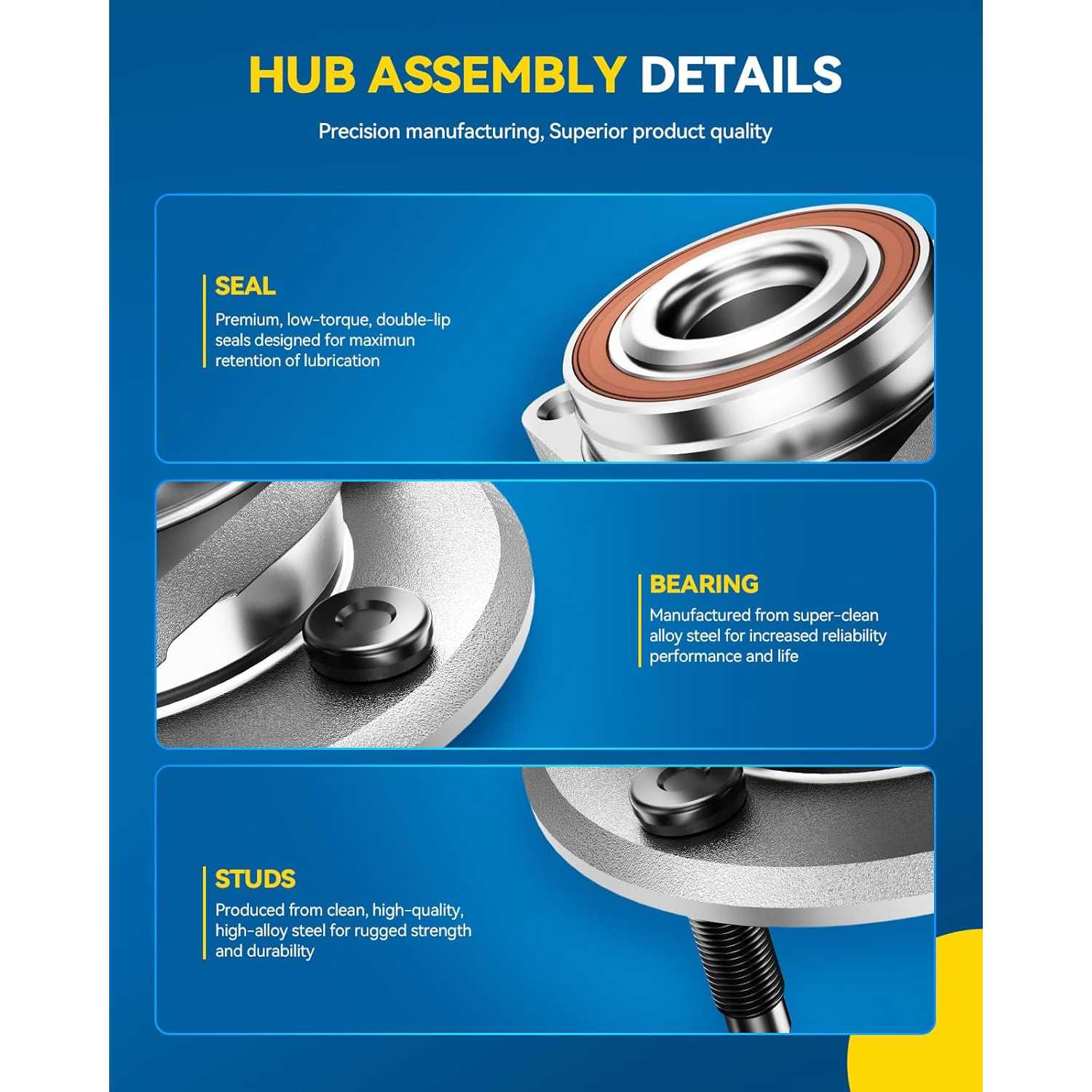

  • Durable and Long-lasting: Our wheel bearings are made of high-quality materials and are therefore hard, flexible and wear-resistant. This significantly extends the service life of the wheel hub assembly. In addition, the wheel hubs are tested and comply with OE standards.
  • Restoring Vehicle Performance:Replacing the wheel hub bearings with new ones will solve the problem of rattling and wobbling of the vehicle. Our wheel bearing assemblies ensure your driving safety and experience.
  • Installation Advice: Although the wheel bearings conform to the original factory design, it is still recommended that you seek the help of a professional mechanic or refer to a specialized installation manual.

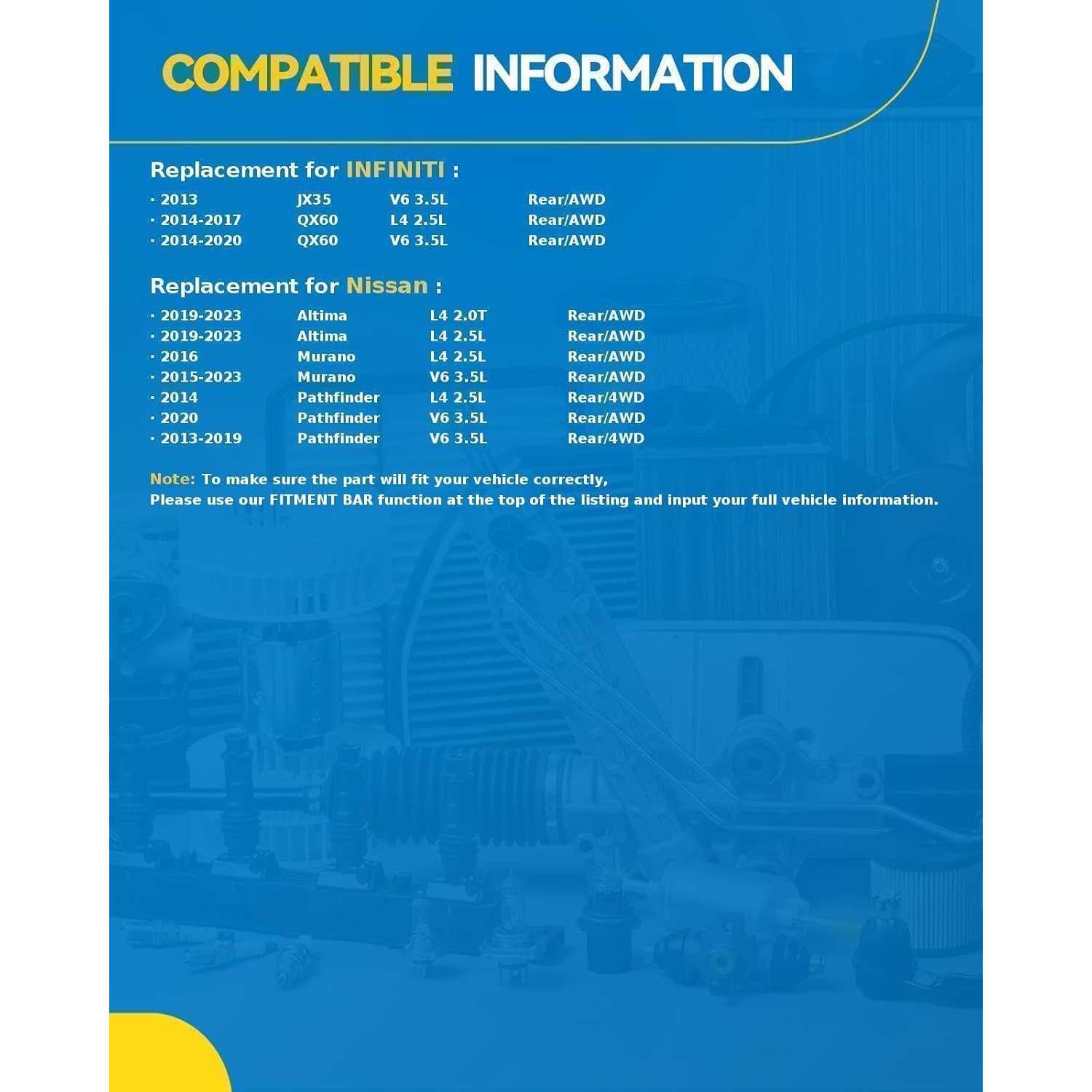

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year20132014 - 20182014 - 20172019 - 20202019 - 20202019 - 20202019 - 20222019 - 20202019 - 20232019 - 20232019 - 20232019 - 202320222015 - 202320162015 - 20232015 - 202320162015 - 20232013 - 2019202020142013 - 201920202013 - 2019202020142013 - 201920202014
MakeINFINITIINFINITIINFINITIINFINITIINFINITINissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissan
ModelJX35QX60QX60QX60QX60AltimaAltimaAltimaAltimaAltimaAltimaAltimaMuranoMuranoMuranoMuranoMuranoMuranoMuranoPathfinderPathfinderPathfinderPathfinderPathfinderPathfinderPathfinderPathfinderPathfinderPathfinderPathfinder
TrimBaseBaseHybridLuxePurePlatinumPlatinumSSLSRSRSVMidnight EditionPlatinumPlatinum HybridSSLSL HybridSVPlatinumPlatinumPlatinum HybridSSSLSLSL HybridSVSVSV Hybrid
Engine3.5L V63.5L V62.5L L43.5L V63.5L V62.0L L42.5L L42.5L L42.5L L42.0L L42.5L L42.5L L43.5L V63.5L V62.5L L43.5L V63.5L V62.5L L43.5L V63.5L V63.5L V62.5L L43.5L V63.5L V63.5L V63.5L V62.5L L43.5L V63.5L V62.5L L4
Note
All-Wheel Drive
All-Wheel Drive
All-Wheel Drive
All-Wheel Drive
All-Wheel Drive
All-Wheel Drive
All-Wheel Drive
All-Wheel Drive
All-Wheel Drive
All-Wheel Drive
All-Wheel Drive
All-Wheel Drive
All-Wheel Drive
All-Wheel Drive
All-Wheel Drive
All-Wheel Drive
All-Wheel Drive
All-Wheel Drive
All-Wheel Drive
Four-Wheel Drive
All-Wheel Drive
Four-Wheel Drive
Four-Wheel Drive
All-Wheel Drive
Four-Wheel Drive
All-Wheel Drive
Four-Wheel Drive
Four-Wheel Drive
All-Wheel Drive
Four-Wheel Drive

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the vehicle, position, drive type and ABS compatibility.
  • Compare the mounting holes, splines and sensor configuration with the original part.
  • Prepare a press or puller and the vehicle-specific torque specifications.
  • Park on level ground, chock the wheels and support the vehicle with jack stands.

Installation Steps

  • Step-1: Loosen the Axle Nut:Loosen the axle nut while the vehicle is on the ground, then raise and secure the vehicle.
  • Step-2: Remove the Components:Remove the wheel, brake caliper and rotor. Support the caliper without pulling on the brake hose.
  • Step-3: Remove the Old Bearing:Disconnect the ABS sensor and use the correct puller or press. Do not hammer the bearing or steering knuckle.
  • Step-4: Clean the Mounting Surface:Remove rust, dirt and debris to ensure the new bearing seats correctly.
  • Step-5: Install the New Bearing:Install the ABS encoder in the correct direction and press the bearing evenly into position.
  • Step-6: Reassemble and Torque:Start all bolts by hand, reinstall the components and tighten all fasteners to the OE-specified torque.

After Installation

  • Rotate the wheel and check for noise, resistance or play.
  • Confirm proper brake operation and make sure the ABS light is off.
  • Perform a low-speed road test and check for vibration, steering pull or unusual noise.
  • Retorque after approximately 100 km when required by the vehicle manufacturer.

Critical Installation Notes

  • Use the Correct Pressing Surface: Press on the outer race when installing the bearing into the steering knuckle; press on the inner race when installing it onto the hub.
  • Do Not Use an Impact Wrench for Final Tightening: Complete final tightening with a torque wrench.
  • Replace the Axle Nut: Most self-locking axle nuts are designed for one-time use.
  • Protect the ABS Components: Keep grease and debris away from the magnetic encoder and wheel speed sensor.
  • Start Bolts by Hand: Thread bolts two or three turns before using power tools.
  • Follow OE Torque Specifications: Over-tightening can preload the bearing; under-tightening can cause looseness.

Product Video

Product Description

11

Reviews

4.8/5

Based on 4 reviews

575%
425%
30%
20%
10%

Darin R.

03/28/2026

Verified buyer

It took care of my rest grinding noise which was going on for a minute until I did the test and found the tire had give. This was 2 months ago and there is no issue anymore 😁.

Nancy_FirstCar_21

10/25/2025

Installation was surprisingly simple on my Altima, and the delivery was quick. Everything lined up perfectly. It's great to have a reliable part that arrived so fast. Highly recommend this brand.

FAQS

Stop the installation and contact Philtop customer support. Please provide your vehicle information, order number and photos of the original and received parts so we can help review the fitment.

Noise may come from another wheel bearing, the tire, brake, CV joint, or an installation issue. Recheck the installation and inspect nearby components before assuming the new bearing is faulty.

Keep the part clean, avoid impact through the rolling elements, use the correct pressing surface, and tighten fasteners to the specified torque. Professional installation is recommended if special tools are required.
