Triple-Lip Seal

Rear

FWD

4.9

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
3658WBK098LUS

Specifications

Brand
PHILTOP
ABS Type
Speed Sensor
Drive Type
FWD
Lug Count
5
Position
Rear
Flange Bolt Hole Count
4
Material
SAE 1055 Steel and SAE 52100 Steel
Items Included

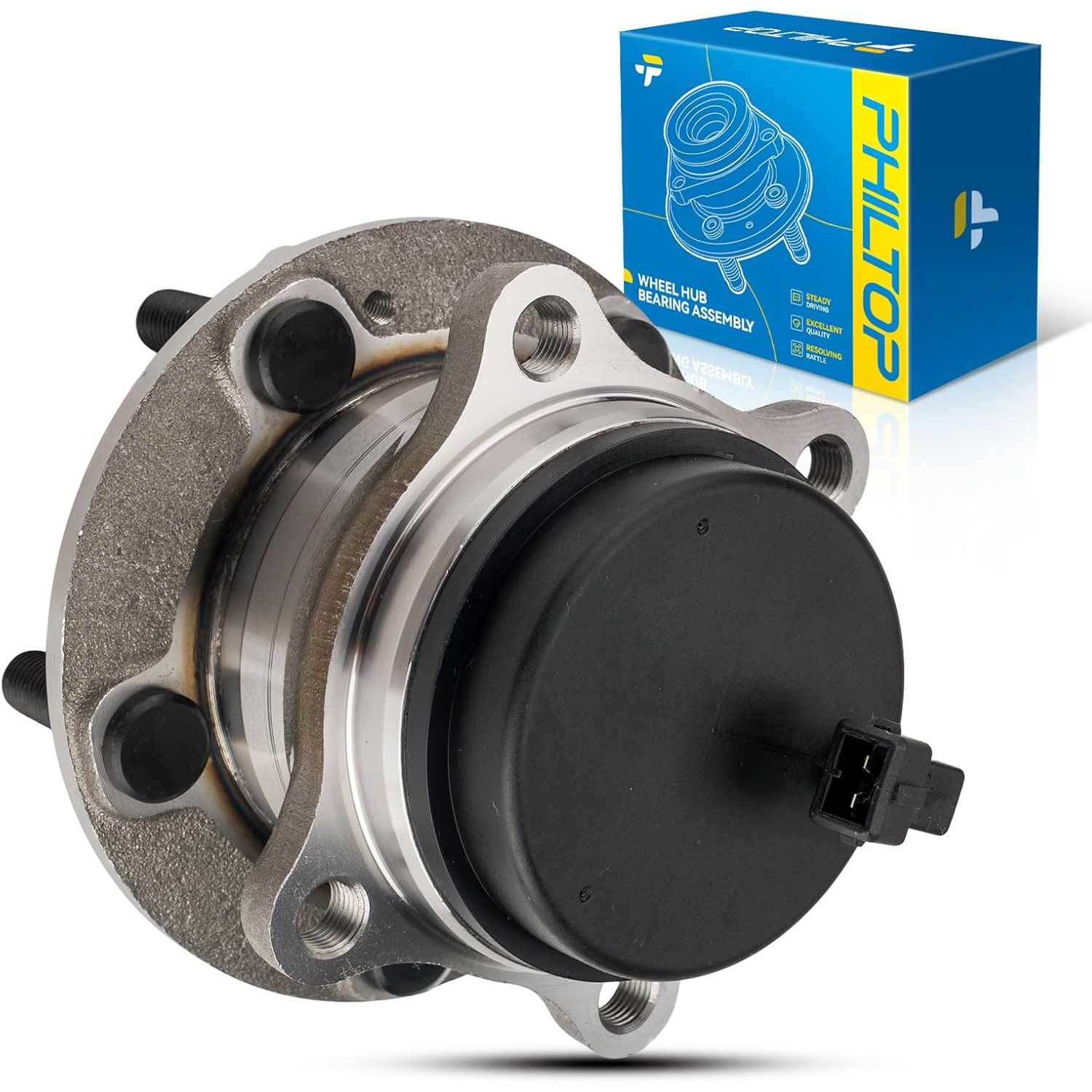

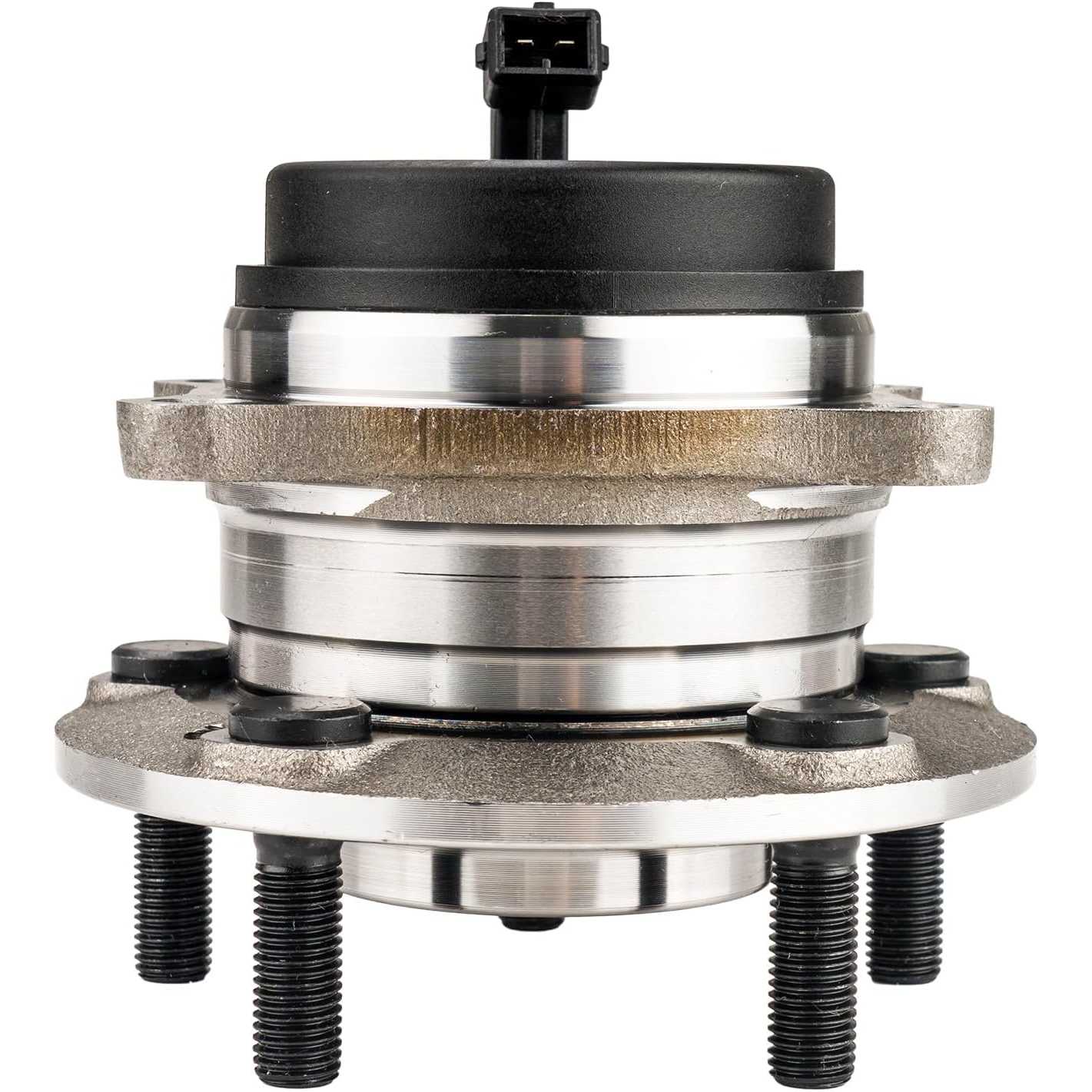

1x Rear Wheel Hub and Bearing Assembly - 512326,Installation Instructions
Bolt Pattern
5 X 4.5
Surface Finish
Polished, Rust Protected
Hub Pilot Diameter
3.6 in
Wheel Stud Size
M12x1.5
Flange Offset
2.11 in/53.5 mm
Flange Diameter
5.49 in/139.4 mm
Brake Pilot Diameter
2.72 in/69.0 mm
Warranty Period
2-Year
OE Number
527502B100,52750A9000
Part Number
512326,WE60824,40751000,BR930646,WH512326,40751000E,29512326,373326,1411246663,101943,RW8326,IJ113012,1010344
Quantity
1

Highlights

  • Fitment: Rear Wheel Bearing Hub Assembly fits FWD Santa Fe 2007-2020, FWD Sorento 2011-2015, FWD Santa Fe Sport 2013-2018, FWD Veracruz 2007-2012, FWD Santa Fe XL 2019.
  • Part Number: 512326, 527502B100, BR930646, WE60824, 0516225, 40751000, PBR930358, 7460005, H512326, QHUB194, 516225.

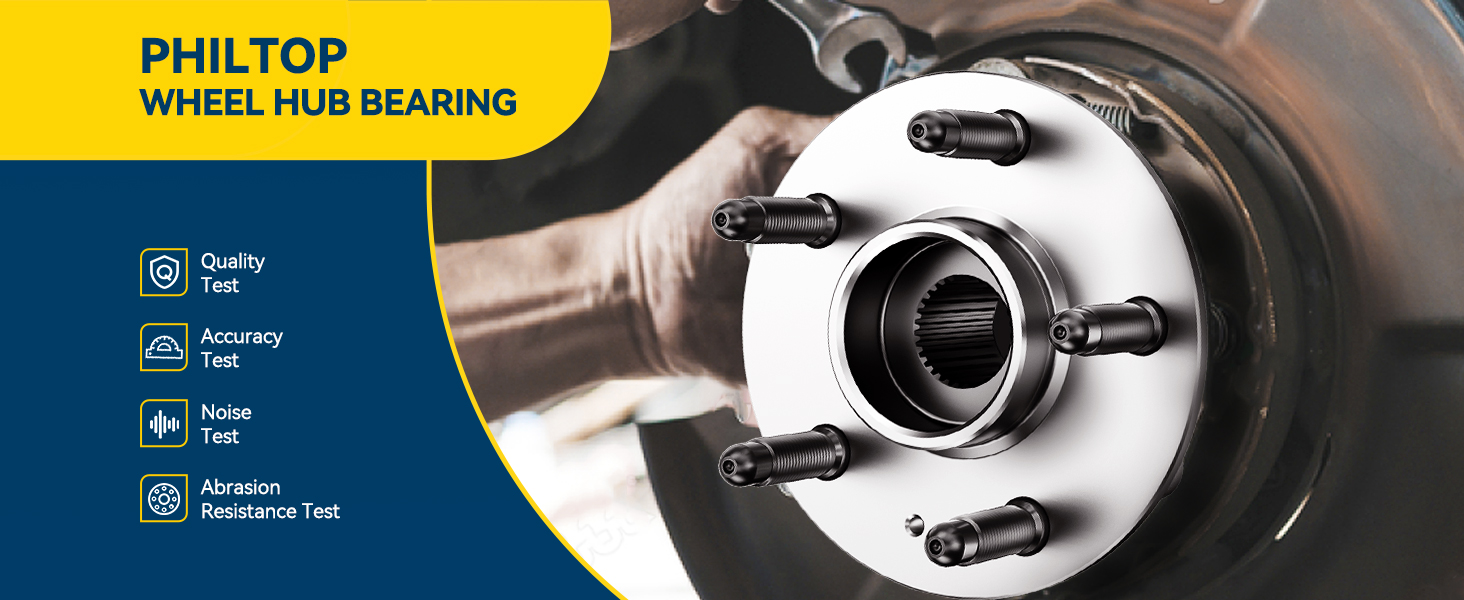

  • Durable and Long-lasting: Our wheel bearings are made of high-quality materials and are therefore hard, flexible and wear-resistant. This significantly extends the service life of the wheel hub assembly. In addition, the wheel hubs are professionally tested and comply with OE standards.
  • Restoring Vehicle Performance:Replacing the wheel hub bearings with new ones will solve the problem of rattling and wobbling of the vehicle. Our wheel bearings ensure your driving safety and experience.
  • Installation Advice: Although the wheel bearings conform to the original factory design, it is still recommended that you seek the help of a professional mechanic or refer to a specialized installation manual.

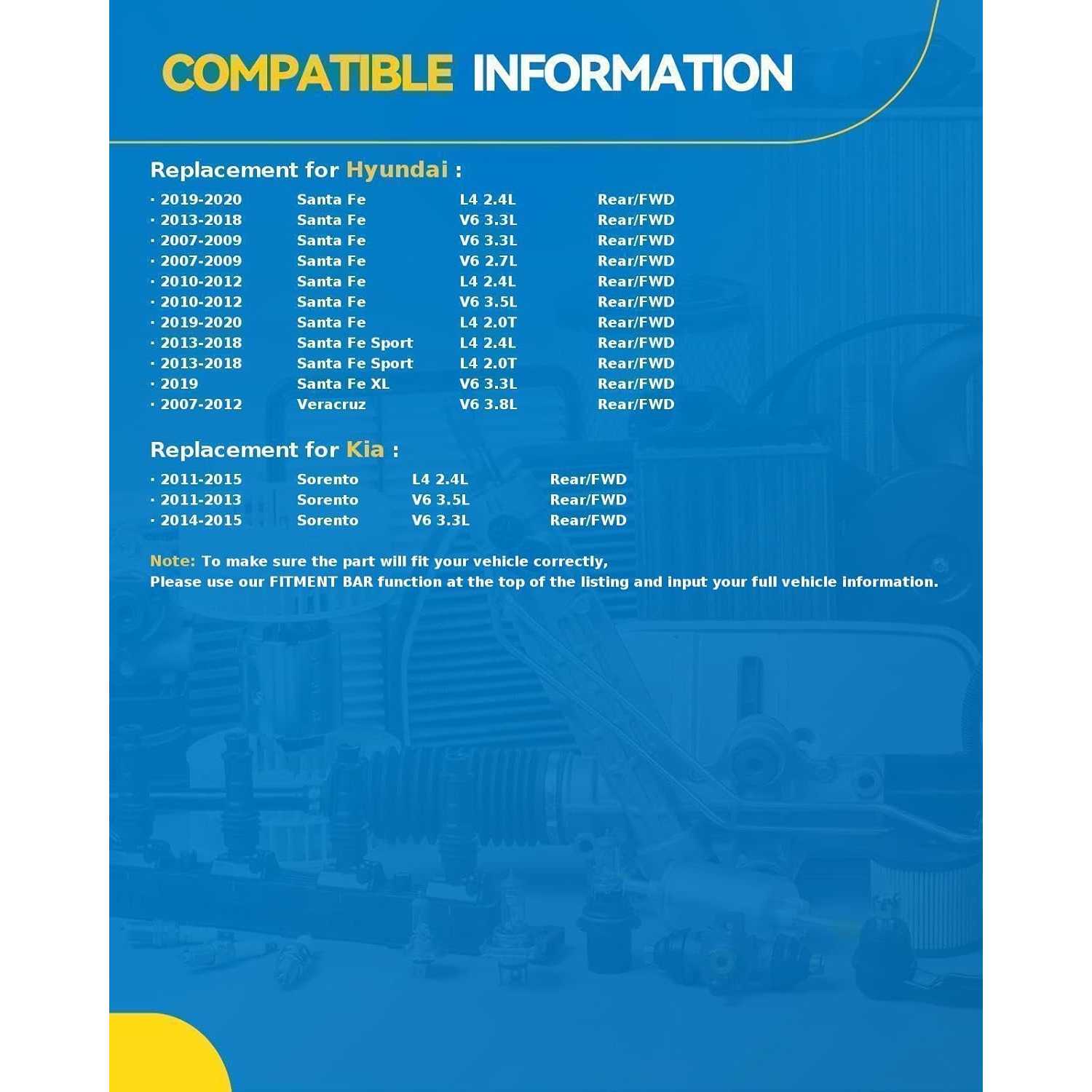

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2010 - 20122007 - 20092013 - 20152011 - 20122019 - 20202010 - 20122019 - 20202007 - 20092013 - 20172010 - 20122017 - 20182019 - 20202007 - 20092016 - 20182010 - 20122017 - 201820202019 - 20202019201920192013 - 20182017 - 20182013 - 2018201920192007 - 20122007 - 20122007 - 20082011 - 20122011 - 20132014 - 20152011 - 20132011 - 20152014 - 20152011 - 20132014 - 20152014 - 20152011 - 2013
MakeHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiKiaKiaKiaKiaKiaKiaKiaKiaKiaKia
ModelSanta FeSanta FeSanta FeSanta FeSanta FeSanta FeSanta FeSanta FeSanta FeSanta FeSanta FeSanta FeSanta FeSanta FeSanta FeSanta FeSanta FeSanta FeSanta FeSanta FeSanta FeSanta Fe SportSanta Fe SportSanta Fe SportSanta Fe XLSanta Fe XLVeracruzVeracruzVeracruzSorentoSorentoSorentoSorentoSorentoSorentoSorentoSorentoSorentoSorento
TrimGLSGLSGLSGLSLimitedLimitedLimitedLimitedLimitedLimitedLimited UltimateSESESESESE UltimateSELSELSEL PlusUltimateUltimate2.0T2.0T UltimateBaseLimited UltimateSEGLSLimitedSEBaseEXEXEXLXLXLXLimitedSXSX
Engine2.4L L42.7L V63.3L V63.5L V62.0L L42.4L L42.4L L43.3L V63.3L V63.5L V63.3L V62.4L L43.3L V63.3L V63.5L V63.3L V62.0L L42.4L L42.4L L42.0L L42.4L L42.0L L42.0L L42.4L L43.3L V63.3L V63.8L V63.8L V63.8L V62.4L L42.4L L43.3L V63.5L V62.4L L43.3L V63.5L V63.3L V63.3L V63.5L V6
Note---------------------------------------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the vehicle, position, drive type and ABS compatibility.
  • Compare the mounting holes, splines and sensor configuration with the original part.
  • Prepare a press or puller and the vehicle-specific torque specifications.
  • Park on level ground, chock the wheels and support the vehicle with jack stands.

Installation Steps

  • Step-1: Loosen the Axle Nut:Loosen the axle nut while the vehicle is on the ground, then raise and secure the vehicle.
  • Step-2: Remove the Components:Remove the wheel, brake caliper and rotor. Support the caliper without pulling on the brake hose.
  • Step-3: Remove the Old Bearing:Disconnect the ABS sensor and use the correct puller or press. Do not hammer the bearing or steering knuckle.
  • Step-4: Clean the Mounting Surface:Remove rust, dirt and debris to ensure the new bearing seats correctly.
  • Step-5: Install the New Bearing:Install the ABS encoder in the correct direction and press the bearing evenly into position.
  • Step-6: Reassemble and Torque:Start all bolts by hand, reinstall the components and tighten all fasteners to the OE-specified torque.

After Installation

  • Rotate the wheel and check for noise, resistance or play.
  • Confirm proper brake operation and make sure the ABS light is off.
  • Perform a low-speed road test and check for vibration, steering pull or unusual noise.
  • Retorque after approximately 100 km when required by the vehicle manufacturer.

Critical Installation Notes

  • Use the Correct Pressing Surface: Press on the outer race when installing the bearing into the steering knuckle; press on the inner race when installing it onto the hub.
  • Do Not Use an Impact Wrench for Final Tightening: Complete final tightening with a torque wrench.
  • Replace the Axle Nut: Most self-locking axle nuts are designed for one-time use.
  • Protect the ABS Components: Keep grease and debris away from the magnetic encoder and wheel speed sensor.
  • Start Bolts by Hand: Thread bolts two or three turns before using power tools.
  • Follow OE Torque Specifications: Over-tightening can preload the bearing; under-tightening can cause looseness.

Product Video

Product Description

11

Reviews

4.9/5

Based on 7 reviews

586%
414%
30%
20%
10%

nopennameplease

11/09/2025

Verified buyer

Simple part that serves its purpose.

KIM, Dong-sung

11/09/2025

Verified buyer

Standard installation process. Nothing complicated.

FAQS

Please provide your order number, vehicle information, installation date, current mileage and a description of the issue. Photos, videos or inspection information may also help us review the claim.

Alignment may be advisable if suspension or steering components are disturbed during the repair. Follow the vehicle service procedure and check alignment if the vehicle pulls or the steering wheel is off-center.

Noise may come from another wheel bearing, the tire, brake, CV joint, or an installation issue. Recheck the installation and inspect nearby components before assuming the new bearing is faulty.
