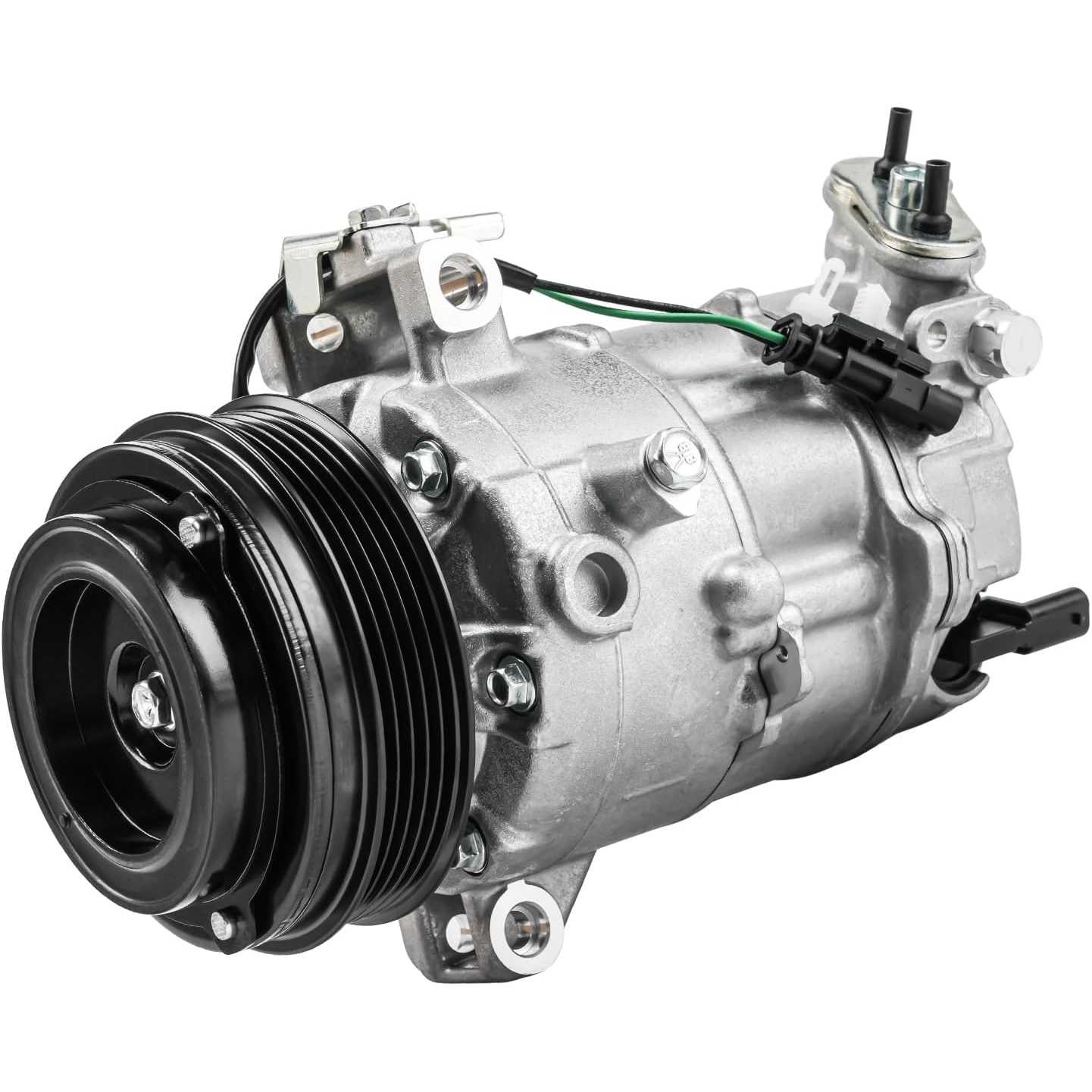

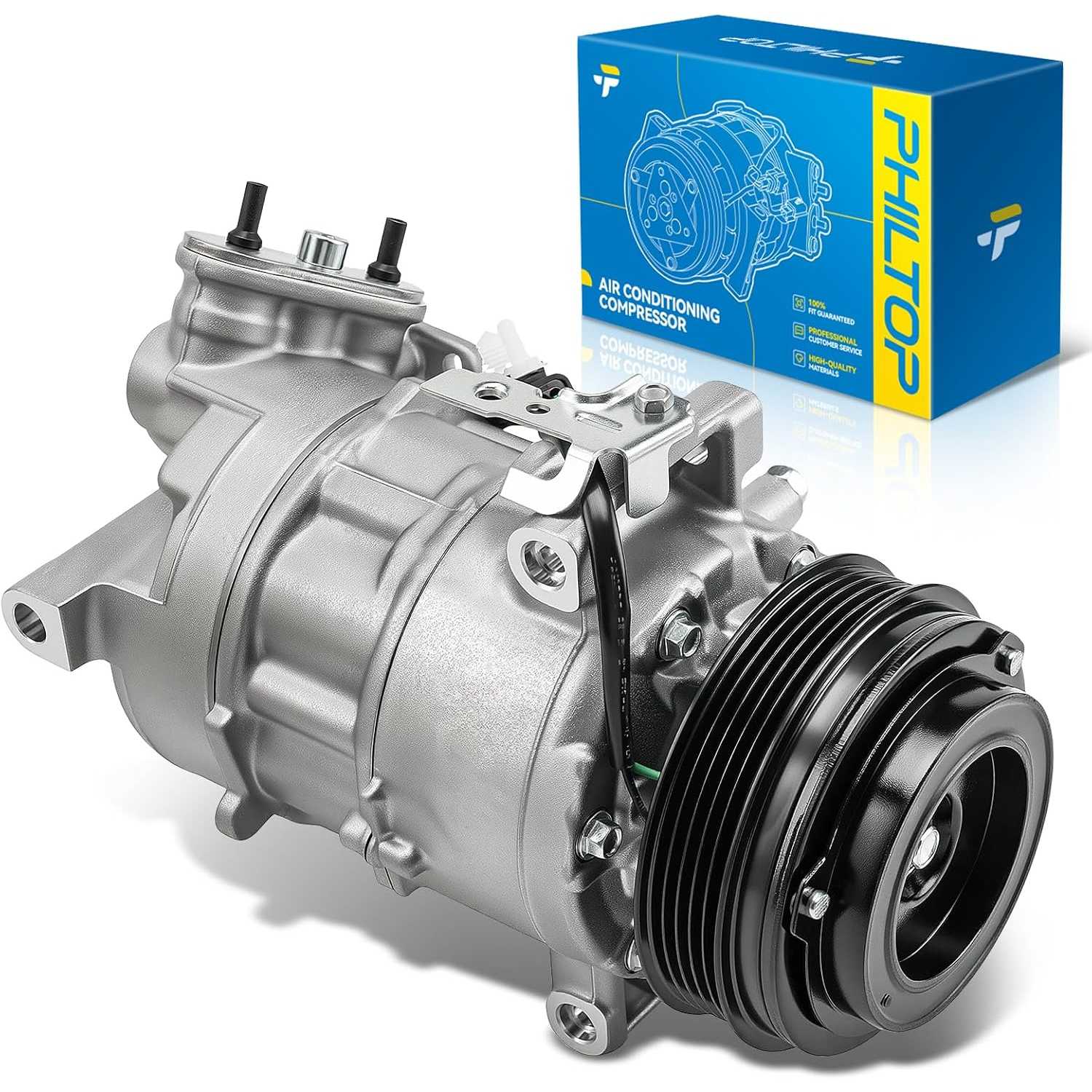

2013-2019 Cadillac ATS 2.0L L4/2.5L L4 | 6SAS14C New A/C Compressor | OE#23192235/68321 - PHILTOP

2013-2019 Cadillac ATS 2.0L L4/2.5L L4 | 6SAS14C New A/C Compressor | OE#23192235/68321 - PHILTOP

PAG

6SAS14C

R-134a or R1234yf

4.3

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
1961ACC2782US

Specifications

Brand
PHILTOP
Oil Type
-
Compressor Type
6SAS14C
Belt Type
Multi-Groove Serpentine
Refrigerant Type
R-134a or R1234yf

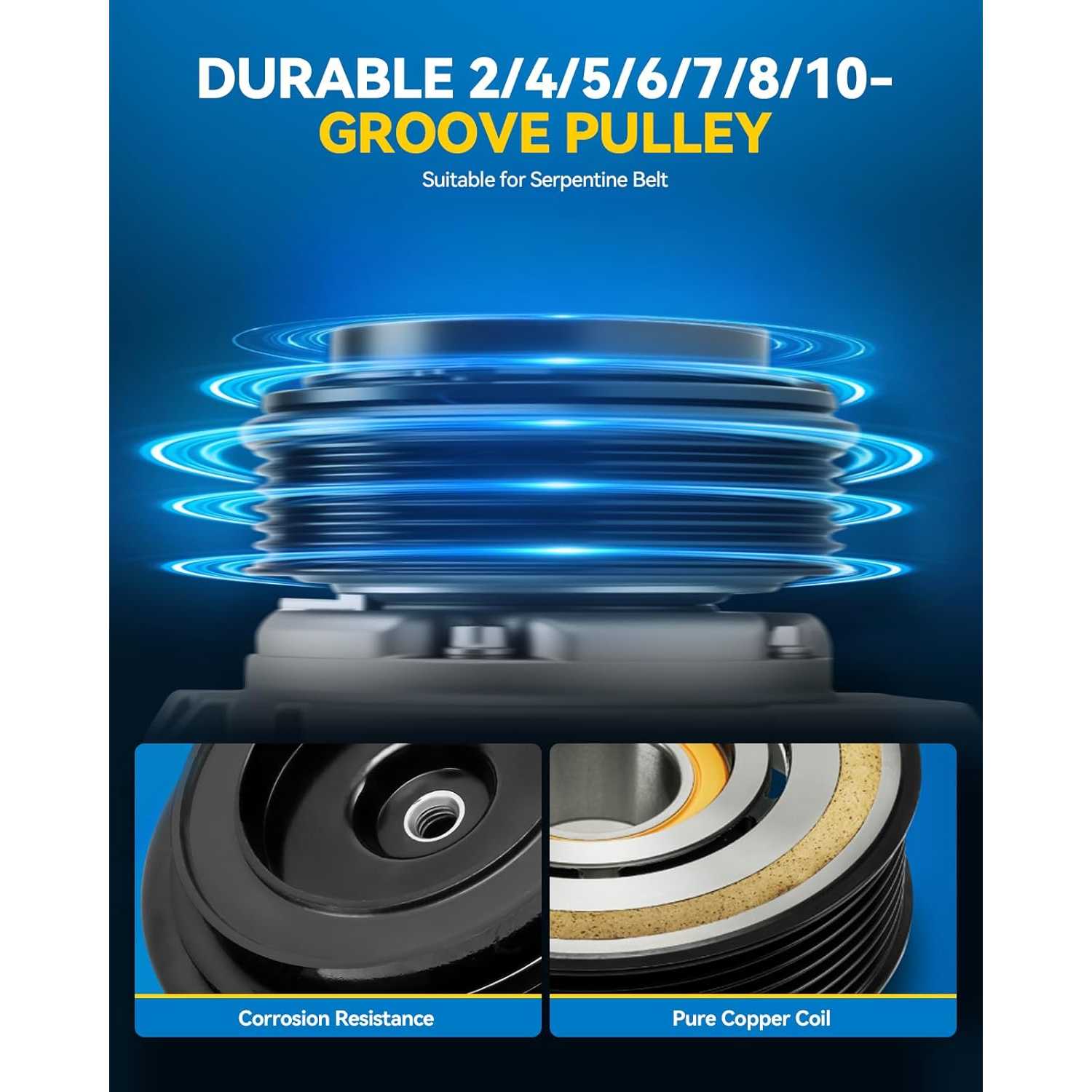

Pulley Groove Count
5
Items Included
1x A/C Compressors & Clutches - 68321,1x Manual
Material

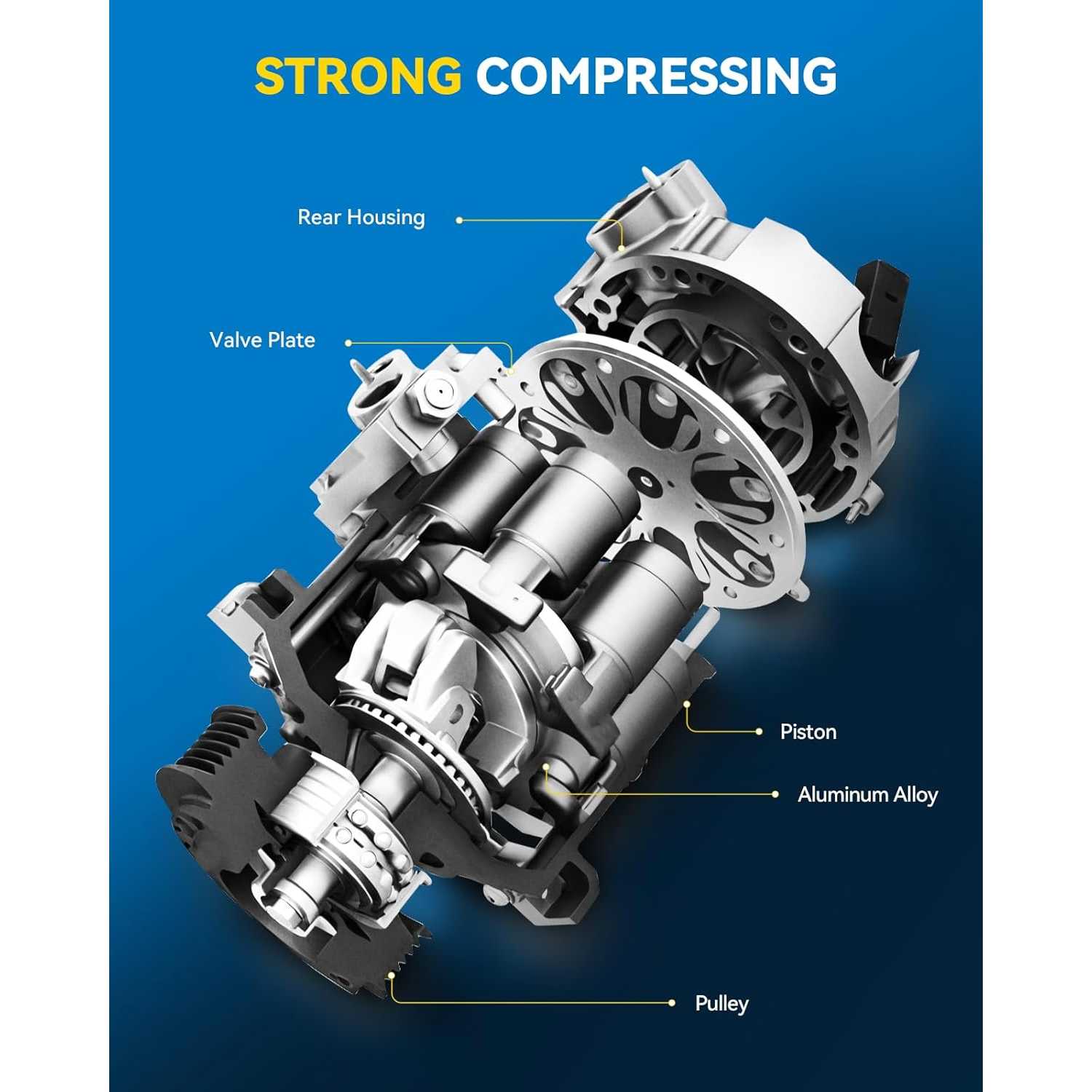

Aluminum Alloy Housing,Cast Iron Pulley,Stainless Steel Valve Plate
Noise Level Range
65-75 dB
Power Source
‎Corded Electric
Voltage
12 V
Mounting Type
Tangent Mount
Clutch Diameter
4.33 in/109.98 mm
Mounting Distance
1.25 in/31.75 mm
Maximum Working Pressure
22 bar
Warranty Period
2-Year
OE Number
23192235,84123928,22799359
Part Number
68321,6513013,1422262,648392,7421638,1177333,2020775,1522302,67321,1178333,257575

Highlights

  • #90,911 in Automotive (See Top 100 in Automotive)
  • #80 in Automotive Replacement Air Conditioning Compressors
  • Ensures Fast Refrigeration And Defogging: ①Oil Type:-;②R-efrigerant Type:R-134a or R1234yf;③Pulley Grooves: 5;④Pulley Diameter:4.33 inch ;⑤Compressor type:6SAS14C;⑥Pulley type:Multi-Groove Serpentine;⑦Clutch Included: Yes; ⑧Noise:<72 dB.Our air conditioning compressor supply Stable and Consistent Cooling, It ensures stable and consistent cooling throughout your drive.

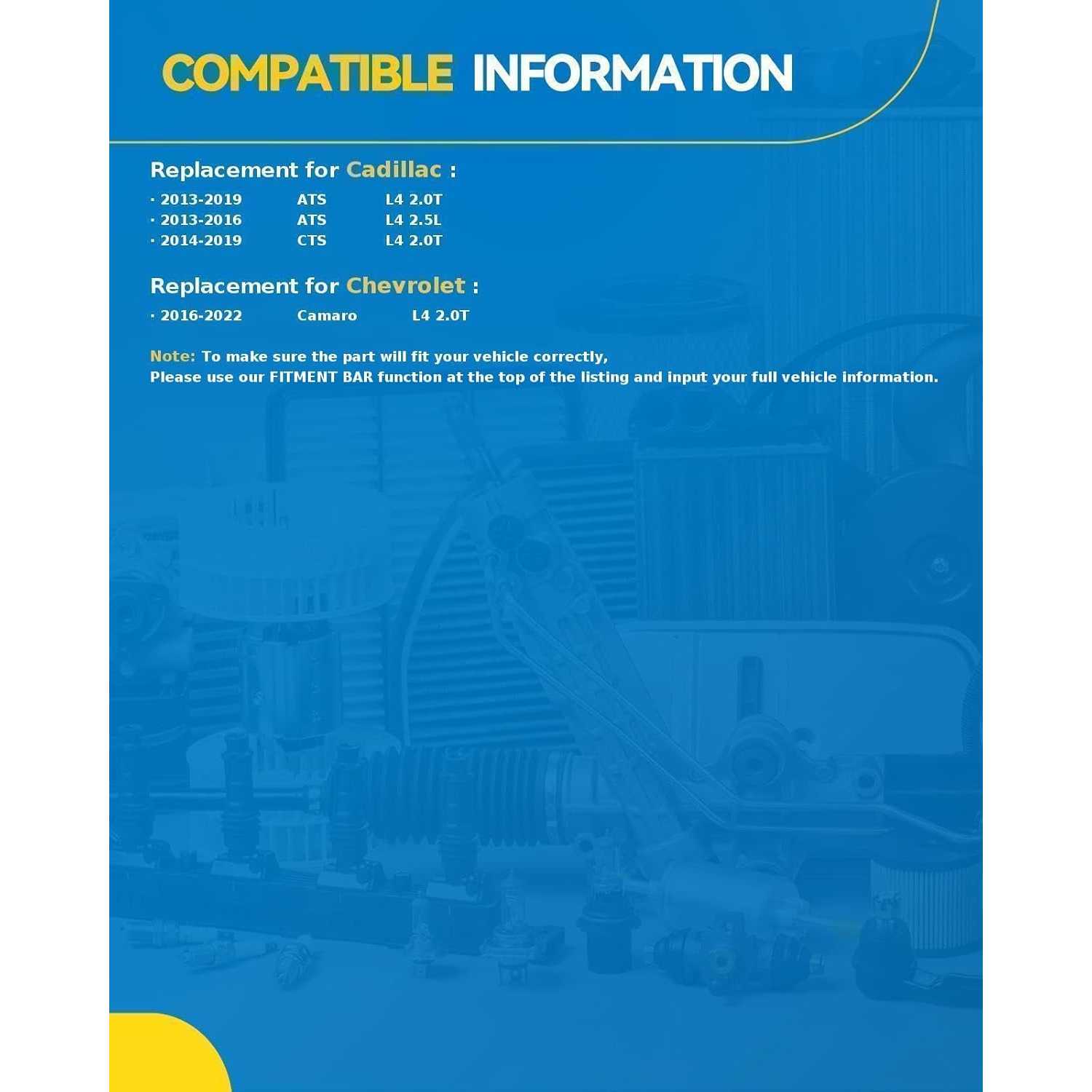

  • Widely Compatible: PHILTOP AC Compressor with Clutch Compatible with ATS 2013-2016 2.5L, 2013-2019 2.0T, Camaro 2016-2022 2.0T, CTS 2014-2019 2.0T.Please confirm your vehicle details and old part number before ordering.
  • Guaranteed Compatibility : Replaces OEM part numbers:23192235,84123928,22799359,6513013,1177333,274518,CO22302Z,204110,AC1204110,T68321,A74518,1522262,2020775,CO22302C,7513013,1522302,1422262,648392,67321,68321,7421638,1178333,257575.Verify your vehicle info using the Suncentauto compatibility checker.
  • Fully Tested & Easy Installation: The ac compressor with clutch has been examined and tested carefully before its delivery. Air conditioning compressor is pre-filled with oil upon delivery, therefore, there is no need to add oil during initial use. Excessive oil addition may damage the ac compressor.
  • Low Noise & Low Fuel Consumption: AC compressor works excellent and has low noise with a better experience. With a lower load factor, low power will be input when driving at high speed, which increases fuel economy and makes operation smoothly.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2013 - 20192013 - 20162013 - 20192013 - 20162013 - 20162013 - 20162014 - 20192014 - 20192014 - 20162014 - 20162017 - 20222016 - 2022
MakeCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacChevroletChevrolet
ModelATSATSATSATSATSATSCTSCTSCTSCTSCamaroCamaro
TrimBaseBaseLuxuryLuxuryPerformancePremiumBaseLuxuryPerformancePremiumLSLT
Engine2.0L L42.5L L42.0L L42.5L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L4
Note
w/ 6SAS14C Compressor
w/ 6SAS14C Compressor
w/ 6SAS14C Compressor
w/ 6SAS14C Compressor
w/ 6SAS14C Compressor
w/ 6SAS14C Compressor
w/ 6SAS14C Compressor
w/ 6SAS14C Compressor
w/ 6SAS14C Compressor
w/ 6SAS14C Compressor
w/ 6SAS14C Compressor
w/ 6SAS14C Compressor

How to Install?

Related Diagnostic Codes

  • P0530-A/C refrigerant pressure sensor circuit — inspect the sensor connector, wiring and refrigerant pressure.
  • P0531-Pressure sensor circuit range/performance — check the refrigerant charge, sensor signal and system pressure.
  • P0532–P0533-Pressure sensor circuit low/high input — inspect for wiring faults, refrigerant leaks, overcharging or excessive system pressure.
  • P0646-A/C compressor clutch relay control circuit low — check the relay, power supply, ground connection and related wiring.

These codes may relate to the A/C control system and do not necessarily indicate a faulty compressor. Perform a complete system diagnosis before replacement.

Checks Before Installation

  • Compare the new compressor with the original. Confirm the electrical connector, mounting holes, pulley specifications, and high- and low-pressure port locations match.
  • Check the connector terminals for damage, oxidation or corrosion.
  • Verify the correct refrigerant type, PAG oil type and oil quantity. Shipping oil may not meet the vehicle’s requirements.
  • Inspect the lines and condenser for leaks, blockage or metal contamination. Flush the system if the old compressor seized or failed internally.
  • Recover the refrigerant with approved equipment. Disconnect the battery and allow the engine to cool.

Installation Steps

  • Step-1: Recover the Refrigerant:Professionally recover the refrigerant. Do not release it into the atmosphere or mix different refrigerant types.
  • Step-2: Remove the Old Compressor:Photograph the original layout and label the high-pressure (H) and low-pressure (L) lines. Remove the belt, wiring and refrigerant lines, then seal all open ports immediately.
  • Step-3: Inspect and Clean the System:Check the lines, condenser, expansion valve and receiver-drier for debris or blockage. Flush or replace contaminated components as required.
  • Step-4: Prepare the New Compressor:Adjust the refrigerant oil to the vehicle manufacturer’s specified type and quantity. Do not mix different oil types.
  • Step-5: Install the Compressor:Hand-start the mounting bolts and tighten them diagonally to the specified torque. Install new oil-lubricated O-rings, then reconnect the wiring and H/L lines according to the labels.
  • Step-6: Evacuate and Recharge:Reinstall and tension the drive belt. Evacuate the system for at least 30 minutes, then charge the specified type and amount of refrigerant.

Product Description

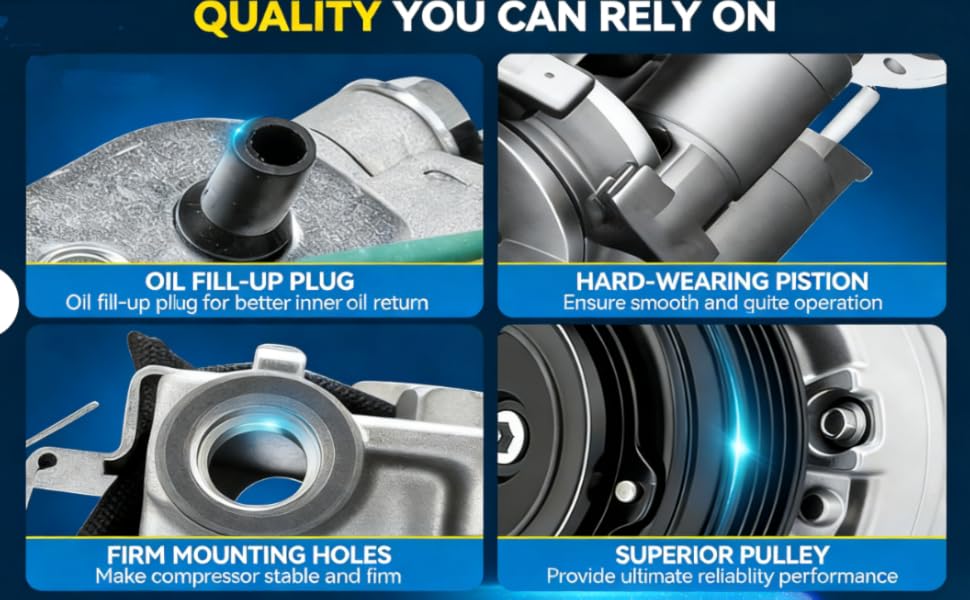

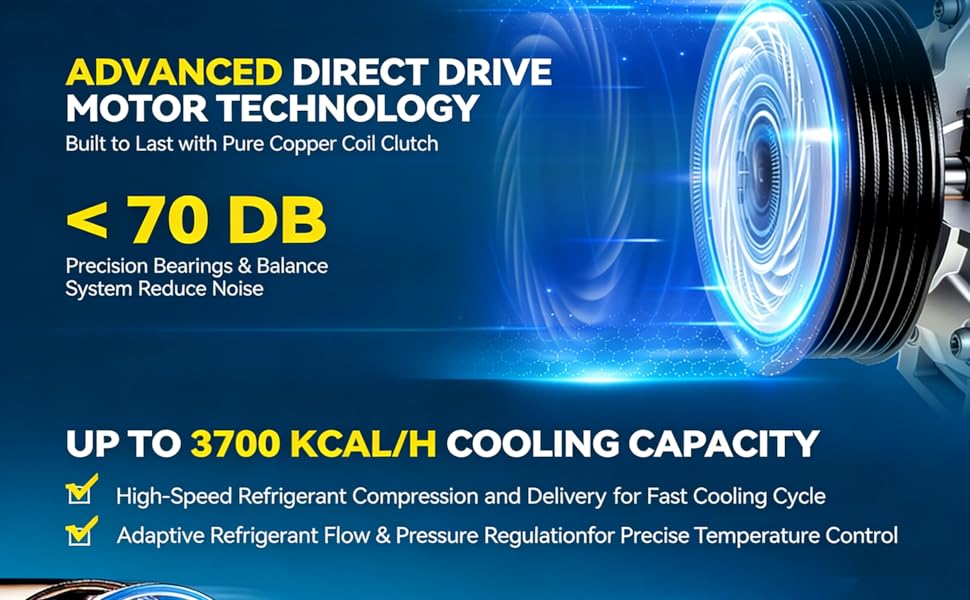

PHILTOP AC CompressorAC Compressor

Reviews

4.3/5

Based on 6 reviews

550%
433%
317%
20%
10%

Kelly_SUV_Life_16

03/30/2026

My AC was blowing hot air forever, and this part fixed it completely. It's been working perfectly since I installed it. Definitely a good buy.

AutoMom_2019_320

10/31/2025

Super fast shipping, arrived much sooner than expected. Installation was a breeze on my ATS. AC is blasting cold air now, couldn't be happier.

FAQS

Please provide your order number, vehicle information, installation date, current mileage and a description of the issue. Photos, videos or inspection information may also help us review the claim.

Confirm that the compressor is the source of the problem and inspect the belt drive, electrical circuit, refrigerant charge, leaks, and other A/C components. Similar symptoms may have different causes.

Oil content varies by compressor. Check the product label or instructions before installation and adjust the oil type and quantity according to the vehicle service specification.
