2009-2012 Ford Escape 3.0L V6 | 6 PC Ignition Coil | UF486 - PHILTOP

2009-2012 Ford Escape 3.0L V6 | 6 PC Ignition Coil | UF486 - PHILTOP

Quick Ignition Response

High-Grade Insulation

Built to Last

4.5

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
6417IGC164FUS

Specifications

Brand
PHILTOP
Items Included

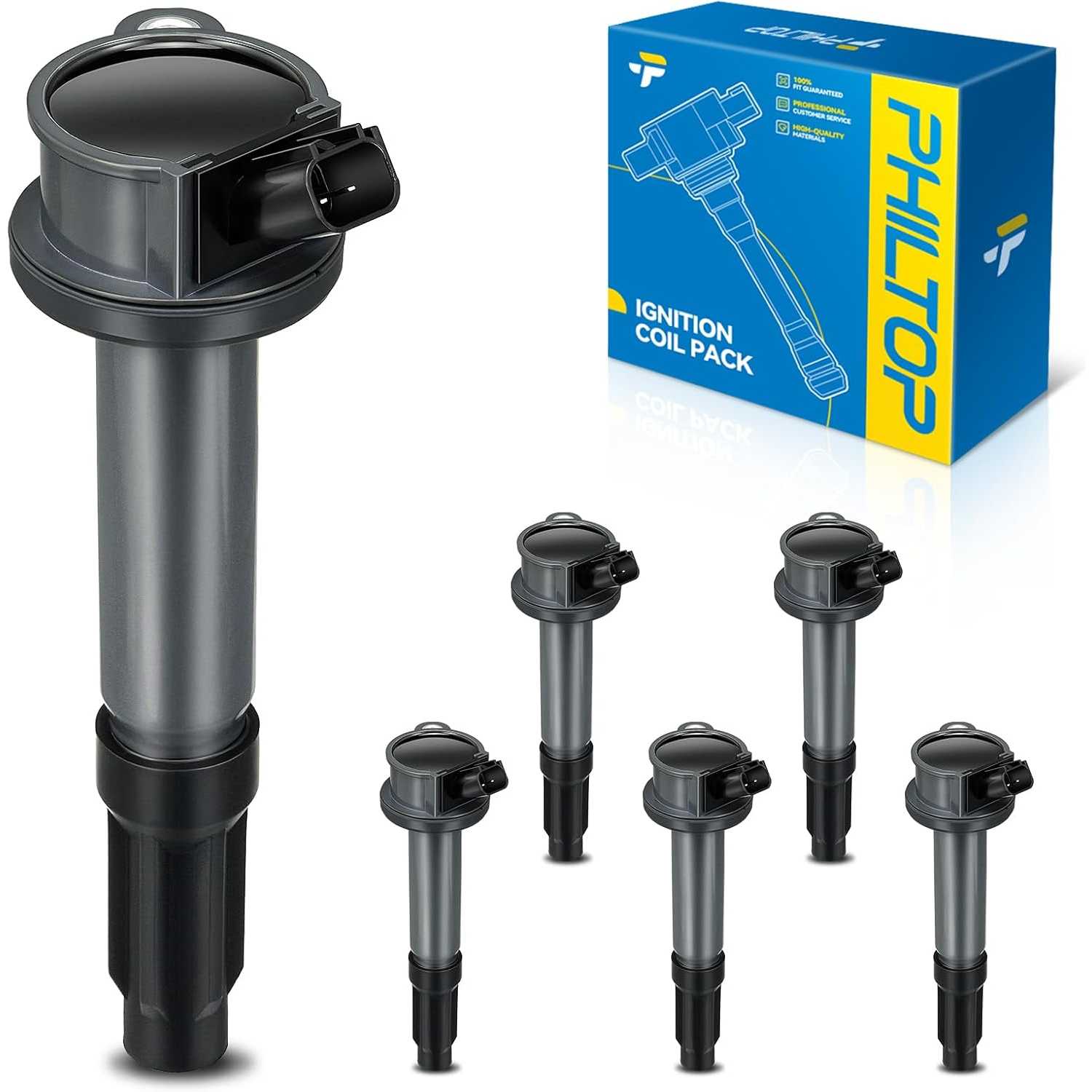

6x Ignition Coil - UF486
Type
Pen-Type
Quantity
6
Color
Black
Pin Count
2
Warranty Period
2-Year
Part Number
UF486

Highlights

  • [Vehicle Fitment]: Compatible with 3.0L For: [Ford] 2009-2012 Escape 2006-2012 Fusion [Lincoln] 2006-2006 Zephyr [Mazda] 2008-2011 Tribute [Mercury] 2006-2011 Milan 2009-2011 Mariner
  • [OEM Coil Packs Design]: Meets strict OE specifications for precise fit and performance, matching or exceeding the original factory part. Reference Number: Extends OE manufacturer part number6E5Z12029BA, ZZD418100

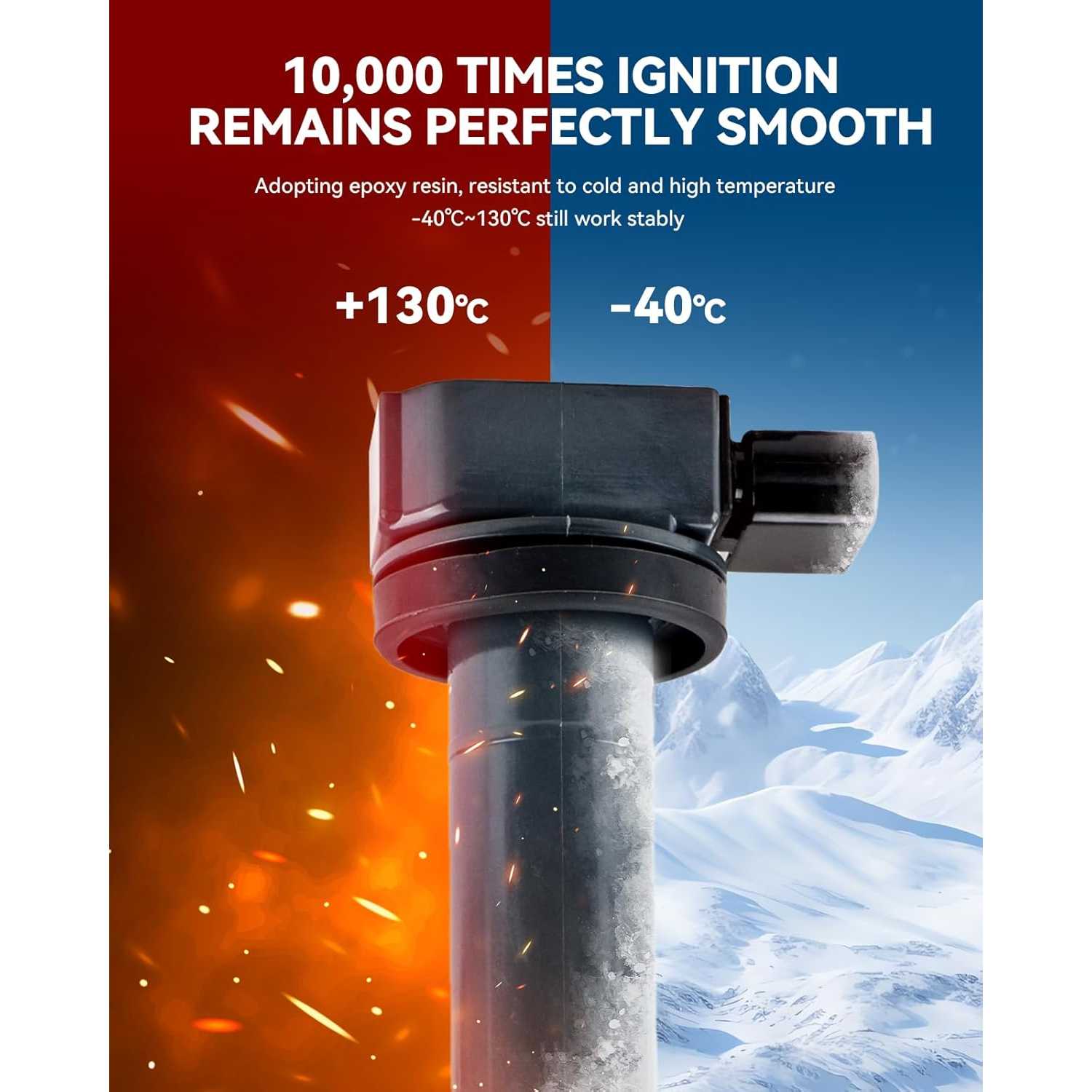

  • [High-Quality Ignition Coils]: OEM replacement ignition coil | Ignites within 0.1–0.2 seconds | Resists corrosion at up to 140 °C | Provides RF interference protection | Offers a lifespan of 6500+ miles | Delivers high voltage output | Ensures smooth engine operation.
  • [Easy Installation]: Rigorous testing ensures maximum durability. Backed by 166+ years of expertise for simple, safe installation and reliable performance.
  • [Warm Tips]: Please enter your vehicle’s year, make, and model to verify fitment before purchasing.

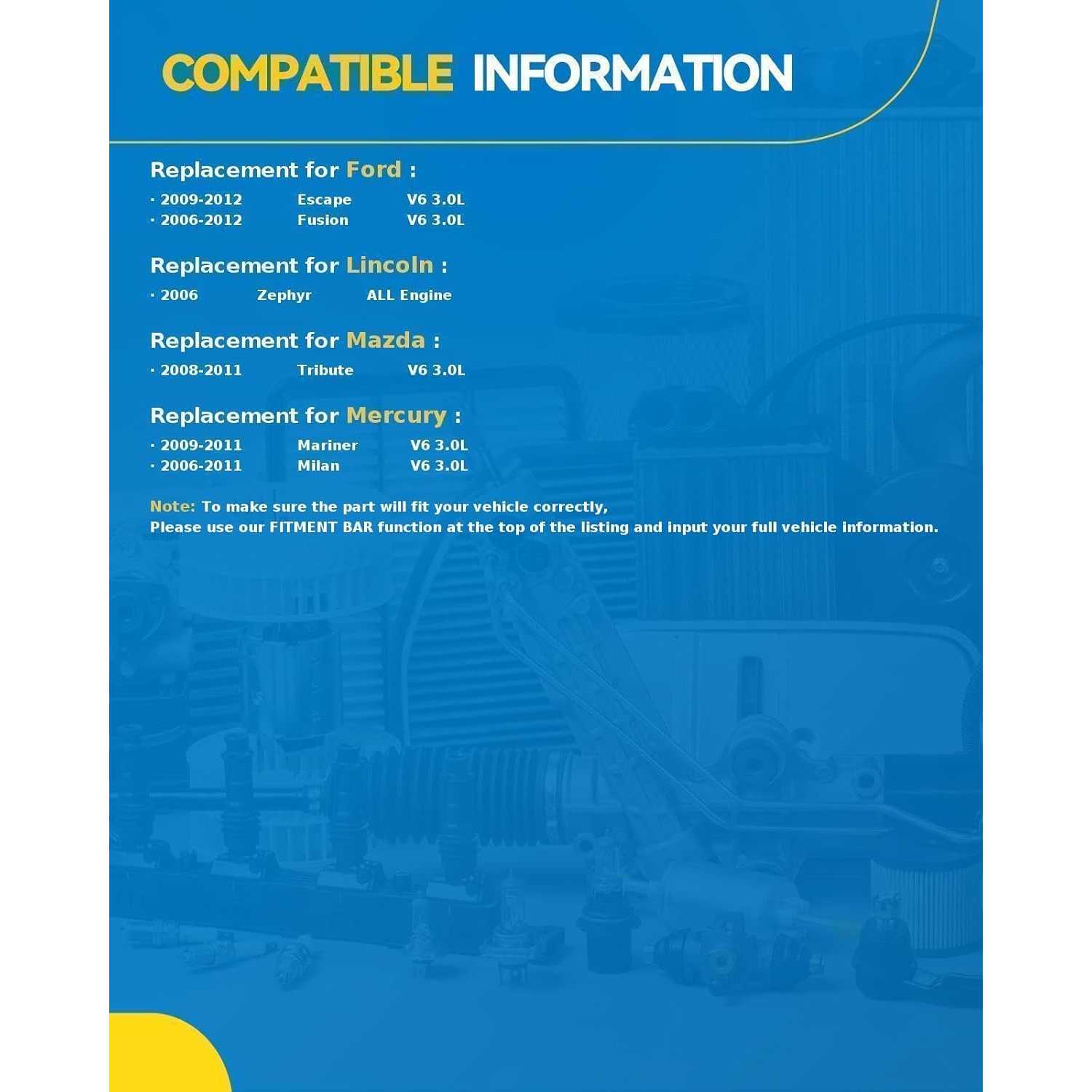

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2009 - 20122009 - 20122006 - 20122006 - 201220062008 - 20112009 - 20112009 - 20112006 - 20092006 - 2011
MakeFordFordFordFordLincolnMazdaMercuryMercuryMercuryMercury
ModelEscapeEscapeFusionFusionZephyrTributeMarinerMarinerMilanMilan
TrimLimitedXLTSESELBaseSBasePremierBasePremier
Engine3.0L V63.0L V63.0L V63.0L V63.0L V63.0L V63.0L V63.0L V63.0L V63.0L V6
Note----------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Related Diagnostic Codes

  • P0300-Random/multiple-cylinder misfire — inspect the spark plugs, ignition coils, wiring and fuel system.
  • P0301–P0306-Specific-cylinder misfire — inspect the plug, coil and wiring for the indicated cylinder.
  • P0350-Ignition-coil primary/secondary circuit fault — check coil resistance, connectors and wiring.
  • P0351–P0356-Specific ignition-coil circuit fault — inspect the corresponding coil circuit and wiring.

Checks Before Installation

  • Confirm the ignition coils and spark plugs match the vehicle and original parts.
  • Check that the battery voltage meets the vehicle specification; the manual recommends at least 12.4V with the engine off.
  • Inspect the coil housings, connectors and wiring for cracks, corrosion or damage.
  • Check the spark-plug wells for oil, carbon deposits or debris.
  • Allow the engine to cool completely before removing the spark plugs.
  • Confirm the specified spark-plug gap and installation torque in the vehicle service manual.

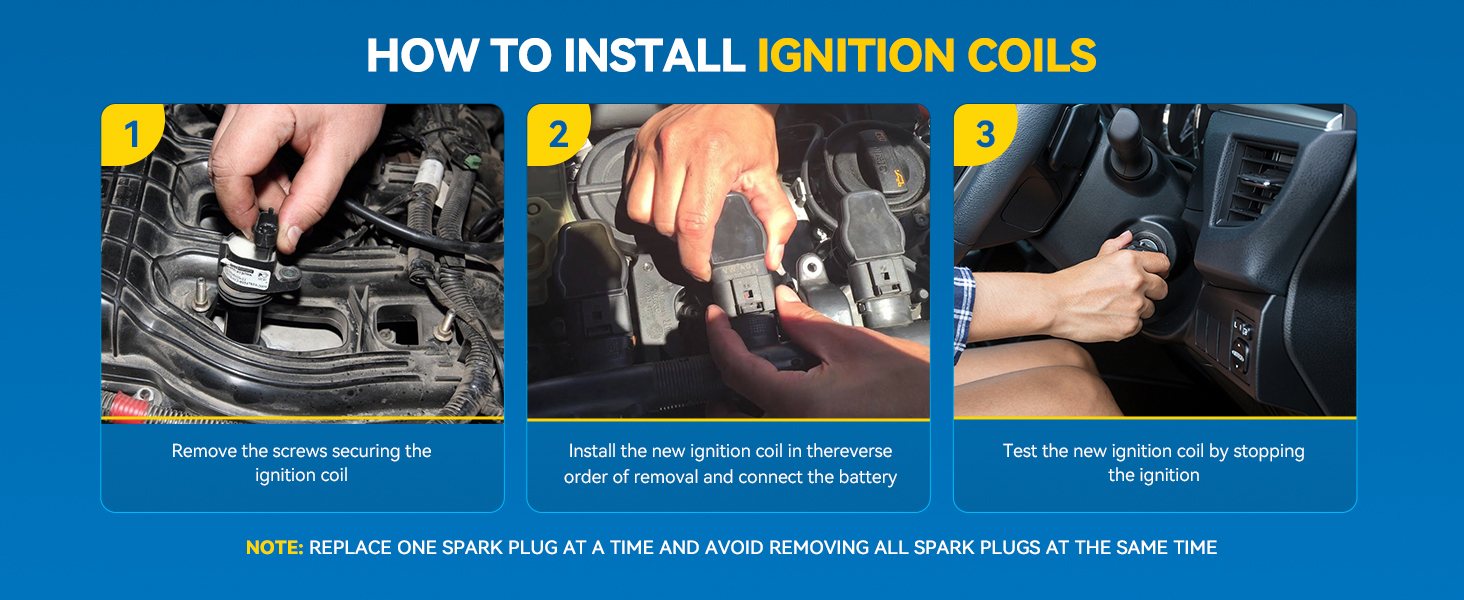

Installation Steps

  • Step-1: Disconnect the Battery: Switch off the ignition and disconnect the negative battery cable to prevent short circuits or accidental starting.
  • Step-2: Remove the Old Parts: Label the connectors when necessary, unplug and remove the ignition coils, then clean around each spark-plug well before removing the plugs.
  • Step-3: Check the New Spark Plugs: Confirm the correct model and measure the electrode gap with a feeler gauge. Do not install dropped or damaged spark plugs.
  • Step-4: Install and Torque the Spark Plugs: Thread each spark plug fully by hand to prevent cross-threading. Then tighten it with a torque wrench to the vehicle manufacturer’s specified torque. Do not overtighten.
    Gasket seat and tapered seat spark plugs compared

    Gasket Seat Spark Plug: Uses a crush gasket to seal against the cylinder head.

    Tapered Seat Spark Plug – No Gasket: Uses the tapered metal seat to seal directly against the cylinder head.

  • Step-5: Complete the Installation: Install the ignition coils, tighten the mounting bolts to specification, fully seat every connector and reconnect the negative battery cable.

Spark Plug Torque Reference

Spark Plug ThreadRecommended Torque
18 mm (M18)35–40 N·m (25.8–29.5 lb-ft)
14 mm (M14)25–30 N·m (18.4–22.1 lb-ft)
12 mm (M12)15–20 N·m (11.1–14.8 lb-ft)
10 mm (M10)10–12 N·m (7.4–8.9 lb-ft)
8 mm (M8)8–10 N·m (5.9–7.4 lb-ft)
Tapered Seat – No Gasket10–20 N·m (7.4–14.8 lb-ft)

Important: This table is for general reference only. Required torque varies by spark-plug design, seat type and cylinder-head material. Always follow the vehicle service manual or spark-plug manufacturer’s specification when available.

After Installation

  • Clear historical fault codes with an OBD-II scanner.
  • Start the engine and let it idle for several minutes.
  • Confirm smooth idle, normal acceleration and no misfire or unusual vibration.
  • Check that the malfunction indicator light remains off.
  • Perform a short road test, then rescan for returned fault codes.

Product Video

Product Description

11

Reviews

4.5/5

Based on 8 reviews

563%
425%
313%
20%
10%

SarahDrives_398

08/19/2025

Installation was a breeze, and they got here faster than expected. My Fusion is running like a champ again. Great product and super quick service.

AutoMom_2019_670

08/22/2025

My Escape was shaking pretty bad, but these coils fixed it right up. It's running smooth and quiet now, like it should be. Big difference.

FAQS

Fitment depends on your engine size and year. Please enter your vehicle's Brand, Year, and Model into the "Fitment Checker" at the top of the page to confirm a 100% match.

We stand behind the quality of our ignition systems with a 3-Year Limited Warranty. Scroll to the "Warranty & Support" section at the bottom of the page for full details on our 3-year reliability guarantee.

Yes, these are common symptoms of a failing coil (Code P0300-P0308). Review the "Product Highlights" section to see how our high-voltage output restores smooth engine performance.
