2015-2021 Jeep Renegade 2.4L L4 | 4 PC Ignition Coil | OE#68242286AA/UF751 - PHILTOP

2015-2021 Jeep Renegade 2.4L L4 | 4 PC Ignition Coil | OE#68242286AA/UF751 - PHILTOP

Quick Ignition Response

High-Grade Insulation

Built to Last

4.8

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
3081IGC1873US

Specifications

Brand
PHILTOP
Items Included

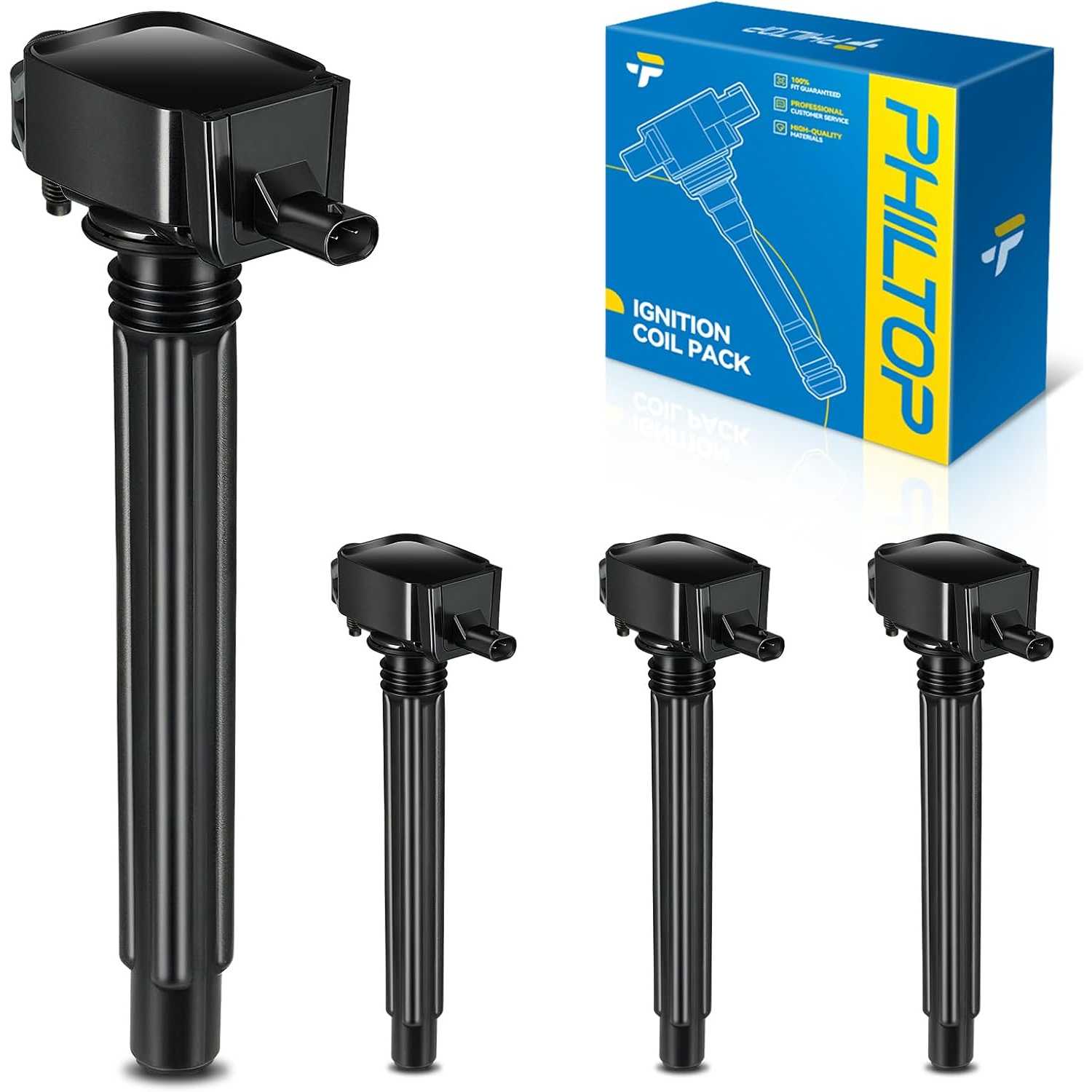

4x Ignition Coil - UF751
Type
Pen-Type
Quantity
4
Color
Black

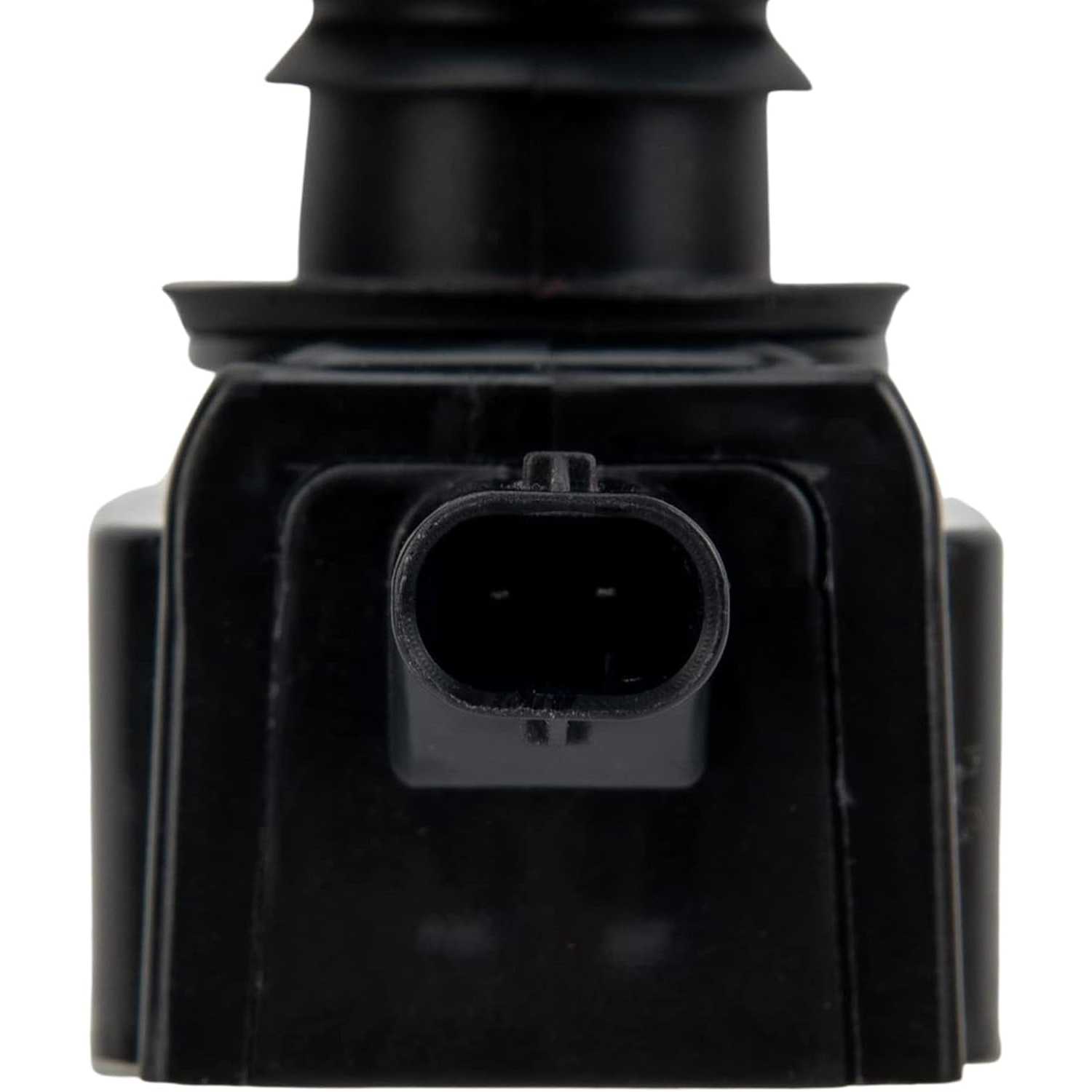

Pin Count
2
Warranty Period
2-Year
OE Number
68242286AA,68242286AB
Part Number
UF751,GN10738,C875,49132,E1251,U5364,2IGC0545,6735204,C2054,0221504037,5C2113,C1829VC,221504050,5189,171318,368270,MPSMF751,1IC469,CC41,IC860,E1254P,E1254,3312467757248717,3307350303715404

Highlights

  • VEHICLE FITMENT:2014-2020 Cherokee 2.4L, 2018-2021 Compass, 2015-2021 Renegade 2.4L, 2015-2017 200 2.4L, 2013-2016 Dart 2.4L, 2015-2021 ProMaster City, 2016-2018 500X 2.4L
  • REPLACE OEM PART NUMBER: 0221504037,0221504050,171318,1788555,1IC469,221504050,250262,25029,2IGC0545,3307350303715404,3312467757248717,368265,368270,49132,5189,55000827AB,5C2113,6735204,68080508AB,68080580AB,68242286AA,68242286AB,9212205,C1829,C1829VC,C2054,C50042DL,C875,CC41,E1251,E1254,E1254P,EBC1029,GN10738,IC857,IC860,IGNB10048,MPC50042DL4,MPSMF751,SKIC517,U5364,UF751,UF754

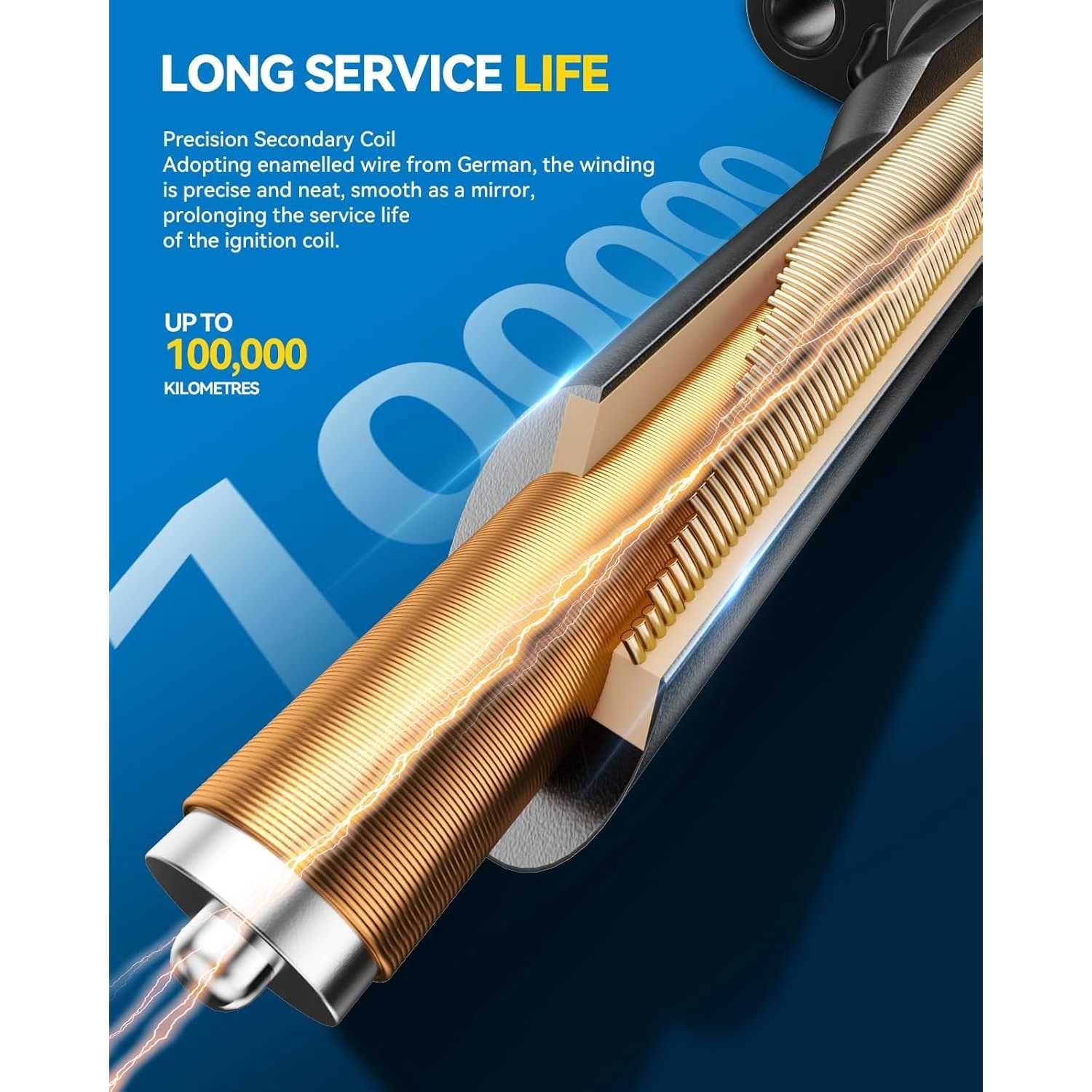

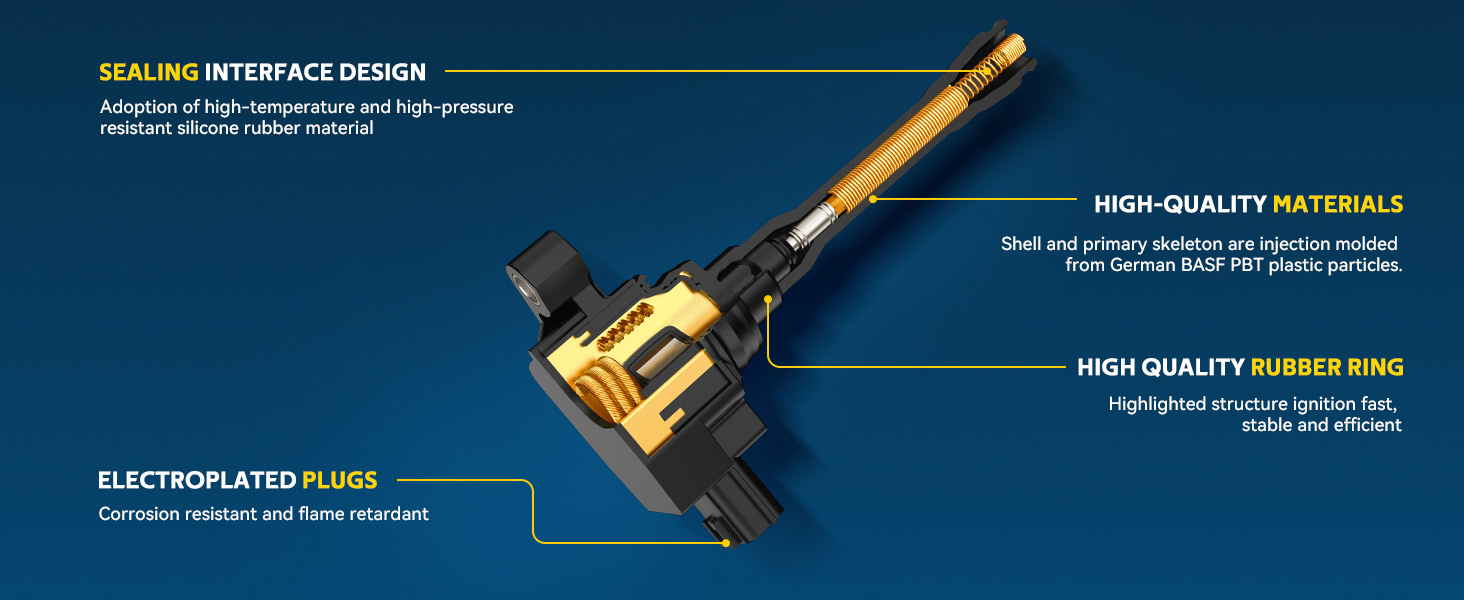

  • OEM QUALITY : PHILTOP Ignition Coils are made with high quality wires and premium materials for high shock resistance and long life. Each coil is design for specific application, low-emissions, high energy output.
  • EFFICIENT WORK:Automotive Replacement Ignition Coil | Fast Ignition Within 0.1-0.2 Seconds | 140 掳 C High Temperature Corrosion Resistance | Rf Interference Protection | 6500Mi Longer Lifespan | High Voltage Output | Smooth Engine Operation.
  • EASY INSTALLATION: Quick And Easy Installation; PURCHASE NOTE: Before purchasing, please use Suncentauto's Your Garage function to fill in the year/make/model of your vehicle, and verify the fitment of the auto part by the OE number of the replaceable part.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2015 - 20172015 - 20172015 - 20172015 - 20172013 - 20162014 - 201620132014 - 201620162016 - 20182016 - 20182016 - 201820162017 - 201820162019 - 20212019 - 20202014 - 20212018 - 20212014 - 202020222016 - 20182014 - 20172014 - 201820212019 - 20222019 - 2020202220172019 - 2022202220172019 - 2022202220172019 - 202220172019 - 20222019201620212018 - 20202016202120212015 - 20212015 - 20182015 - 20212015 - 20182019 - 20212015 - 20222015 - 20212015 - 20222015 - 2021
MakeChryslerChryslerChryslerChryslerDodgeDodgeDodgeDodgeFiatFiatFiatFiatFiatFiatJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepRamRamRamRam
Model200200200200DartDartDartDart500X500X500X500X500X500XCherokeeCherokeeCherokeeCherokeeCherokeeCherokeeCherokeeCherokeeCherokeeCherokeeCompassCompassCompassCompassCompassCompassCompassCompassCompassCompassCompassCompassCompassCompassCompassRenegadeRenegadeRenegadeRenegadeRenegadeRenegadeRenegadeRenegadeRenegadeRenegadeRenegadeProMaster CityProMaster CityProMaster CityProMaster City
TrimCLXLimitedSGTLimitedR/TSXTEasyLoungePopTrekkingTrekking PlusUrbana75th AnniversaryAltitudeHigh AltitudeLatitudeLatitude PlusLimitedLimitedOverlandSportTrailhawk80th AnniversaryAltitudeHigh AltitudeHigh AltitudeLatitudeLatitudeLatitude LuxLimitedLimitedRedSportSportTrailhawkTrailhawkUpland75th Anniversary80th AnniversaryAltitudeDawn Of JusticeIslanderJeepsterLatitudeLimitedSportTrailhawkUplandBaseSLTTradesmanTradesman SLT
Engine2.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L4
Note------------------------------------------------------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Related Diagnostic Codes

  • P0300-Random/multiple-cylinder misfire — inspect the spark plugs, ignition coils, wiring and fuel system.
  • P0301–P0306-Specific-cylinder misfire — inspect the plug, coil and wiring for the indicated cylinder.
  • P0350-Ignition-coil primary/secondary circuit fault — check coil resistance, connectors and wiring.
  • P0351–P0356-Specific ignition-coil circuit fault — inspect the corresponding coil circuit and wiring.

Checks Before Installation

  • Confirm the ignition coils and spark plugs match the vehicle and original parts.
  • Check that the battery voltage meets the vehicle specification; the manual recommends at least 12.4V with the engine off.
  • Inspect the coil housings, connectors and wiring for cracks, corrosion or damage.
  • Check the spark-plug wells for oil, carbon deposits or debris.
  • Allow the engine to cool completely before removing the spark plugs.
  • Confirm the specified spark-plug gap and installation torque in the vehicle service manual.

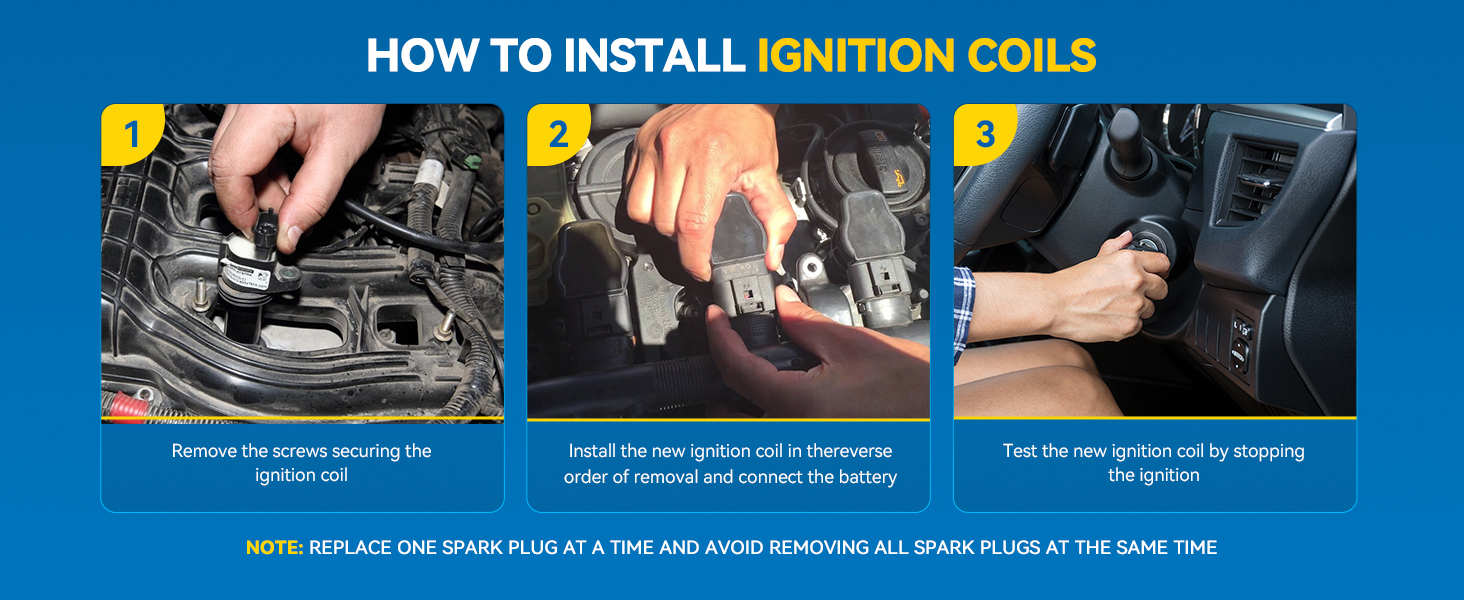

Installation Steps

  • Step-1: Disconnect the Battery: Switch off the ignition and disconnect the negative battery cable to prevent short circuits or accidental starting.
  • Step-2: Remove the Old Parts: Label the connectors when necessary, unplug and remove the ignition coils, then clean around each spark-plug well before removing the plugs.
  • Step-3: Check the New Spark Plugs: Confirm the correct model and measure the electrode gap with a feeler gauge. Do not install dropped or damaged spark plugs.
  • Step-4: Install and Torque the Spark Plugs: Thread each spark plug fully by hand to prevent cross-threading. Then tighten it with a torque wrench to the vehicle manufacturer’s specified torque. Do not overtighten.
    Gasket seat and tapered seat spark plugs compared

    Gasket Seat Spark Plug: Uses a crush gasket to seal against the cylinder head.

    Tapered Seat Spark Plug – No Gasket: Uses the tapered metal seat to seal directly against the cylinder head.

  • Step-5: Complete the Installation: Install the ignition coils, tighten the mounting bolts to specification, fully seat every connector and reconnect the negative battery cable.

Spark Plug Torque Reference

Spark Plug ThreadRecommended Torque
18 mm (M18)35–40 N·m (25.8–29.5 lb-ft)
14 mm (M14)25–30 N·m (18.4–22.1 lb-ft)
12 mm (M12)15–20 N·m (11.1–14.8 lb-ft)
10 mm (M10)10–12 N·m (7.4–8.9 lb-ft)
8 mm (M8)8–10 N·m (5.9–7.4 lb-ft)
Tapered Seat – No Gasket10–20 N·m (7.4–14.8 lb-ft)

Important: This table is for general reference only. Required torque varies by spark-plug design, seat type and cylinder-head material. Always follow the vehicle service manual or spark-plug manufacturer’s specification when available.

After Installation

  • Clear historical fault codes with an OBD-II scanner.
  • Start the engine and let it idle for several minutes.
  • Confirm smooth idle, normal acceleration and no misfire or unusual vibration.
  • Check that the malfunction indicator light remains off.
  • Perform a short road test, then rescan for returned fault codes.

Product Video

Product Description

11

Reviews

4.8/5

Based on 18 reviews

583%
411%
36%
20%
10%

MFuller

10/03/2026

Verified buyer

I replaced all four ignition coils on my son's 2008 Prius at 246000 miles. The car had set P0301 and P0302 misfire codes. I only changed the coils, not the spark plugs because I wanted to see whether the coils alone fixed it. They're a direct fit replacement for the originals. The rubber boots sealed well, the spark plugs gripped snugly inside the boots, and each coil snapped smoothly into its connector. The engine started smoothly right away. After clearing the codes and regularly checking for pending codes, the misfire hasn't returned in about 60 miles.. so it appears to have fixed the issue. I'll update this review if that changes over time.

keith

07/12/2026

Verified buyer

Worked great

FAQS

Fitment depends on your engine size and year. Please enter your vehicle's Brand, Year, and Model into the "Fitment Checker" at the top of the page to confirm a 100% match.

We stand behind the quality of our ignition systems with a 3-Year Limited Warranty. Scroll to the "Warranty & Support" section at the bottom of the page for full details on our 3-year reliability guarantee.

Yes, these are common symptoms of a failing coil (Code P0300-P0308). Review the "Product Highlights" section to see how our high-voltage output restores smooth engine performance.
