Hydraulic Power

Effortless Steering

Leak-Tested

4.7

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
54ISSGE0797US

Specifications

Brand
PHILTOP
Steering Type
Hydraulic Power
Input Shaft Diameter
0.73 in
Input Shaft Length
2.13 in
Rack Length
55.63 in
Thread Length
3.01 in
Material
Aluminum / Iron
Items Included
1x Rack and Pinion - 222039
Warranty Period
2-Year
Part Number
222039

Highlights

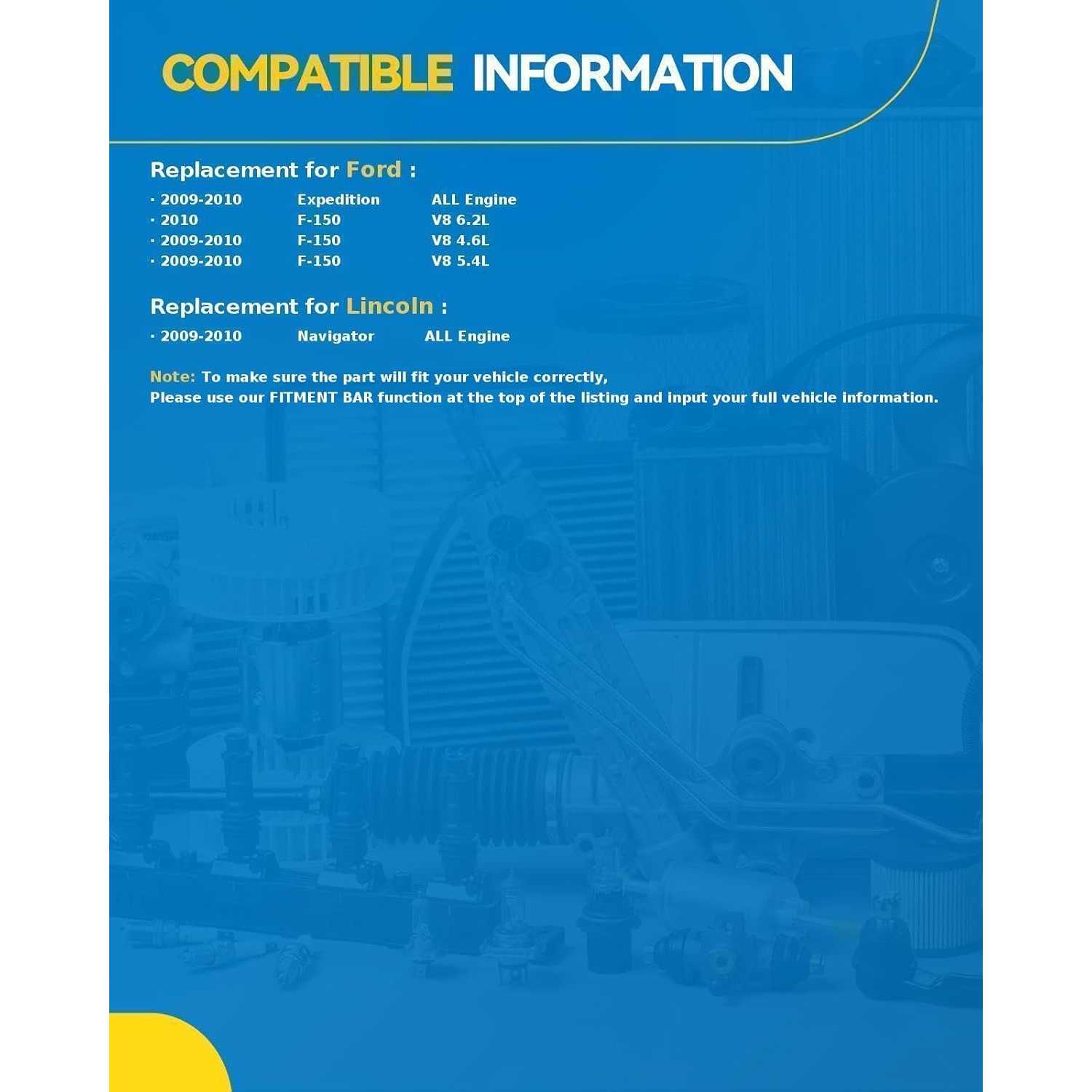

  • [Vehicle Fitment]: Hydraulic steering rack and pinion assembly compatible with 2009-2010 F-150(WheelBase:126.0/133.0), 2009-2010 F-150(WheelBase:126.0/133.0/145.0/157.0;without Heavy Duty Trailer Tow Package), 2009-2010 Expedition, 2008-2010 Navigator (2008 Navigator From 12/04/2007).
  • [Reference Number]: Rack and pinion steering assembly OE number 22-2039, 222039, 44011724, 611041, 611552, 9L1Z3504A, 9L3Z3280A, 9L3Z3504A, AL3Z3504A, AL3Z3504B.
  • [Specifications]: ①Steering Type: Hydraulic Power; ②Rack Length(In): 55.63; ③Thread Length(In): 3.01; ④Input Shaft Length(In): 2.13; ⑤Input Shaft Diameter(In): 0.73; Package included: 1x Rack and Pinion - 222039.

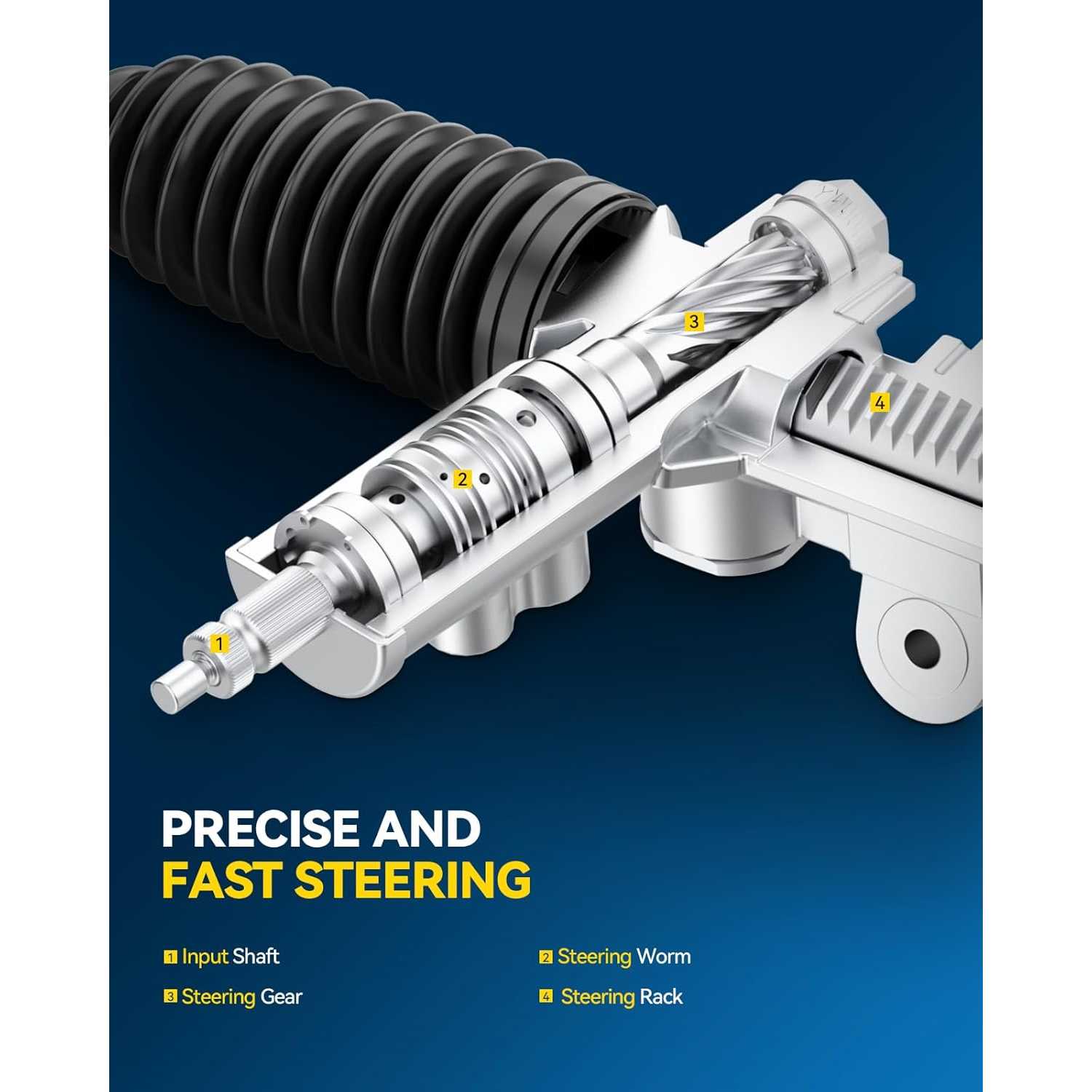

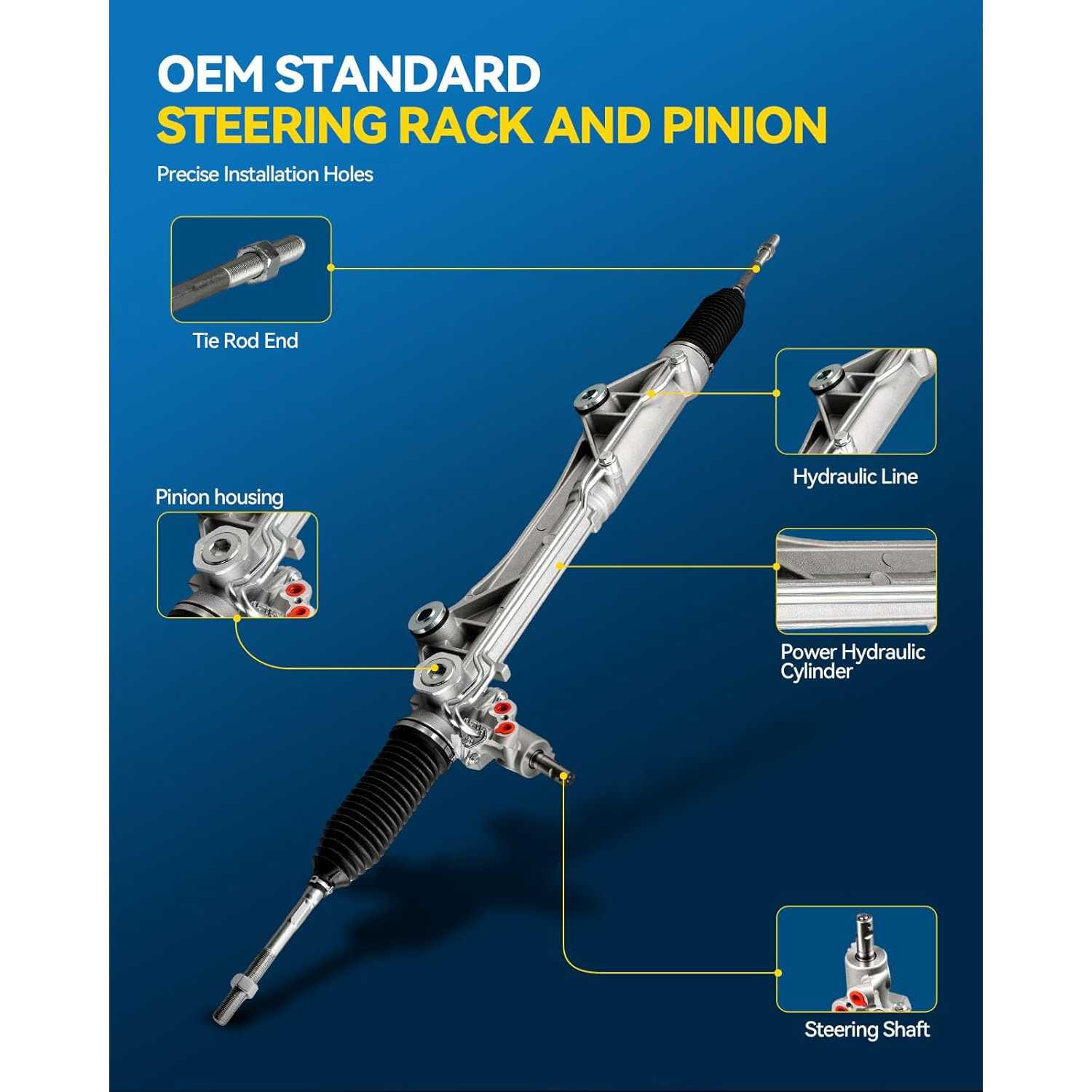

  • [High Verticality]: The rack and worm gear in the steering rack and pinion are made of high-strength alloy steel processed by high-precision CNC, which ensures the high verticality of the helical gear system, making the steering wheel operation more stable and driving safer. Closely integrated with the vehicle chassis will not produce noise and vibration.

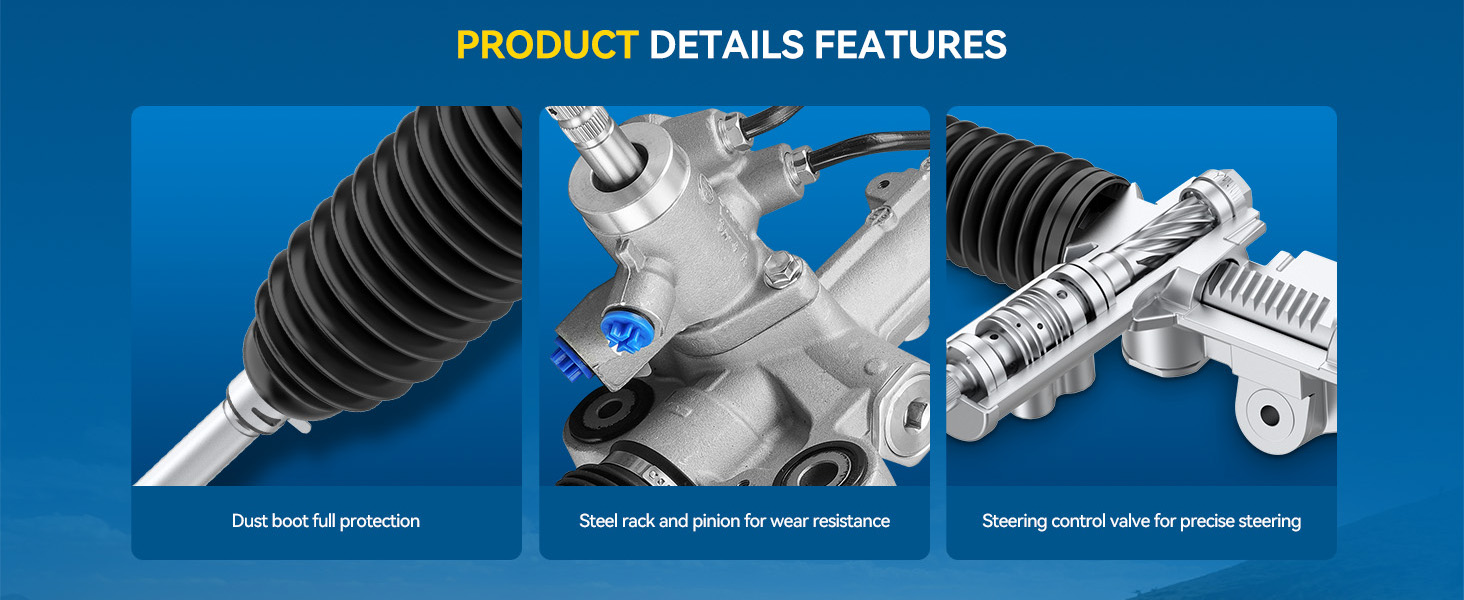

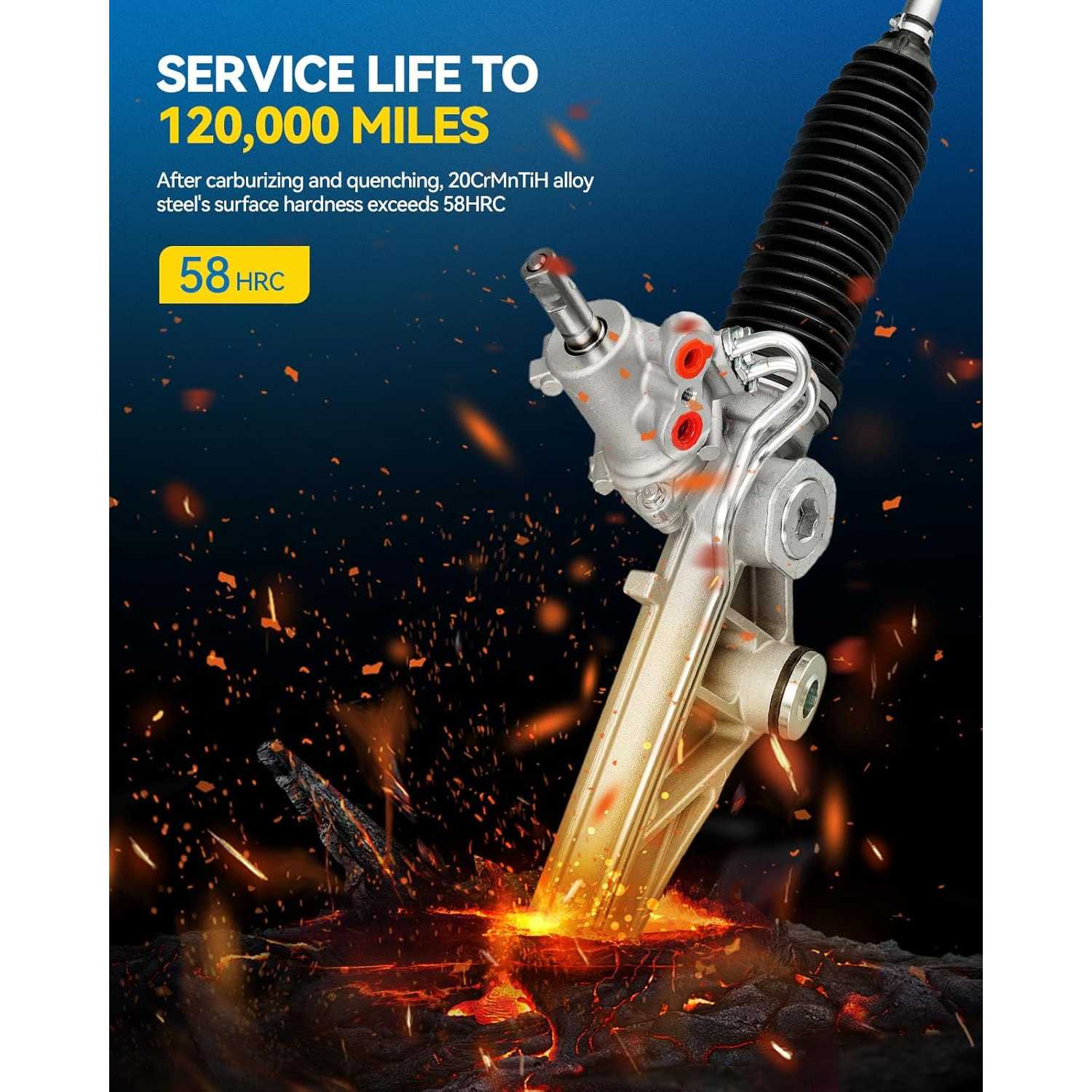

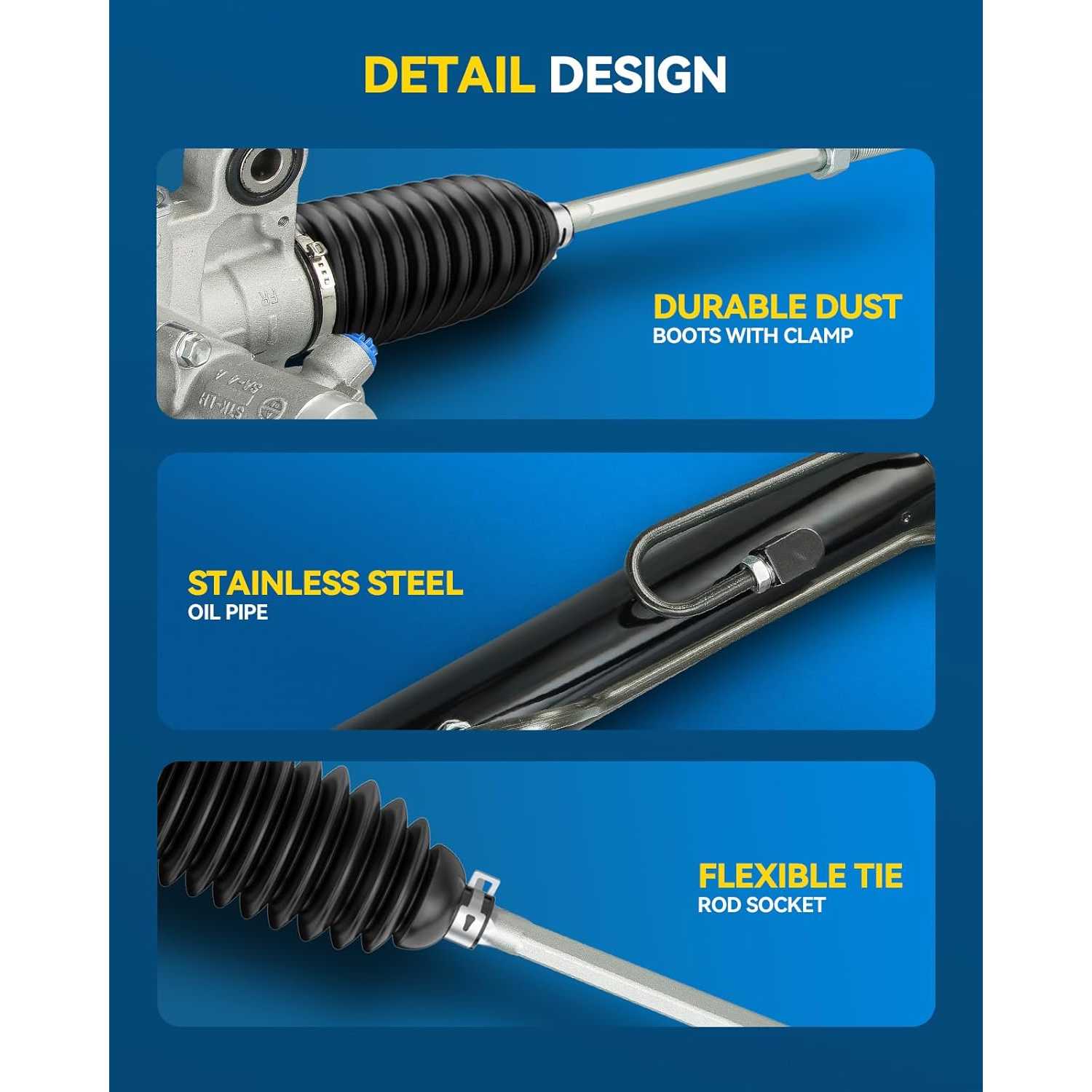

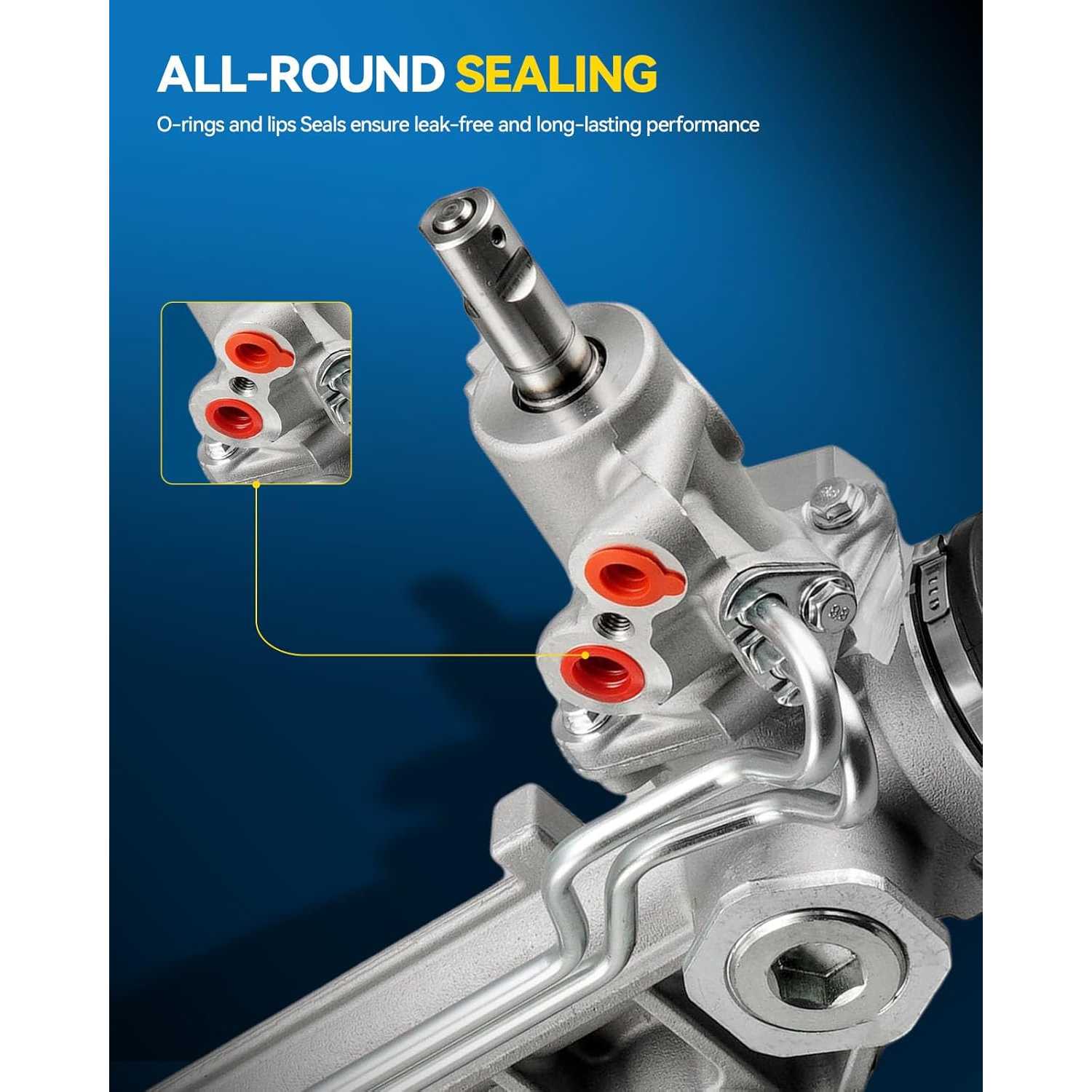

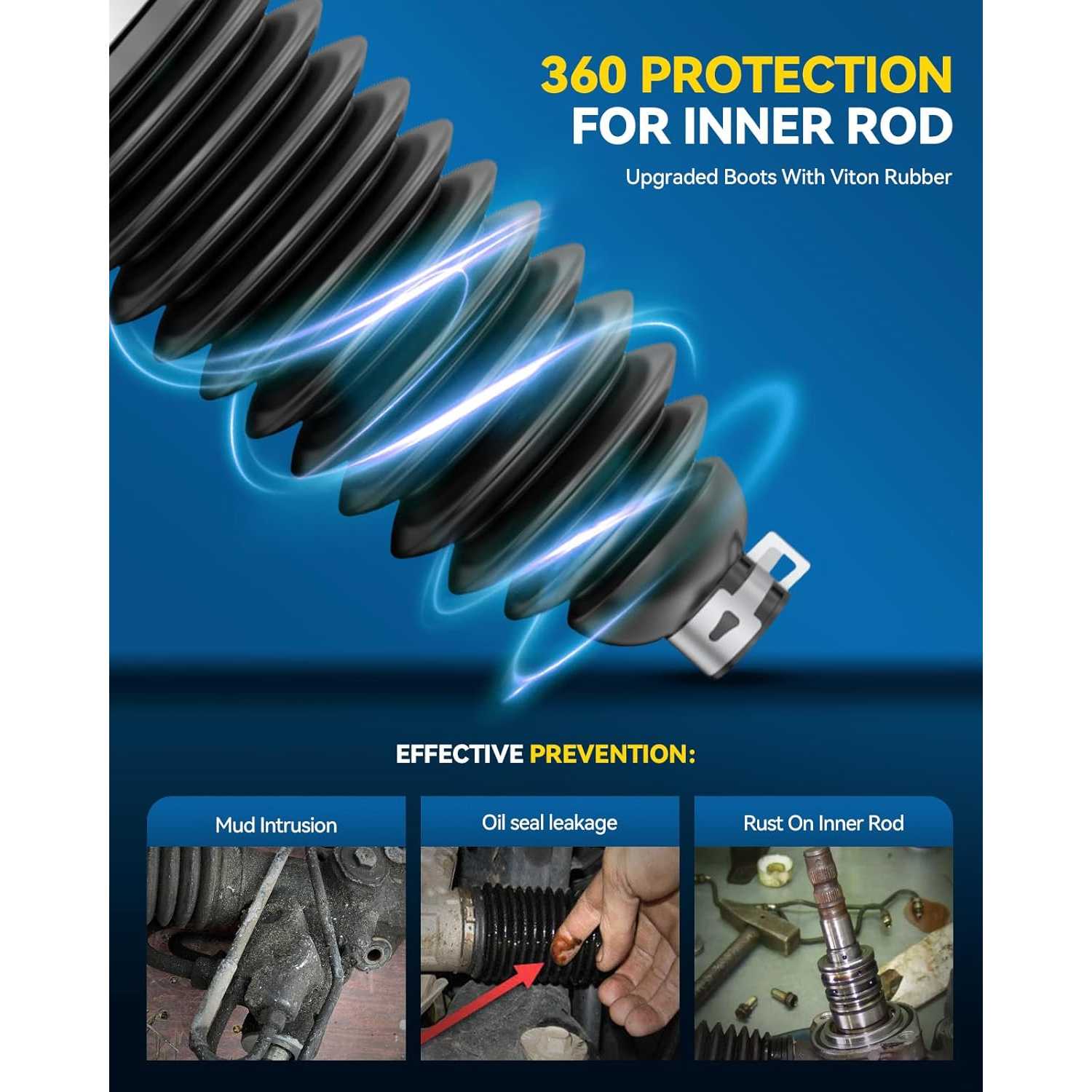

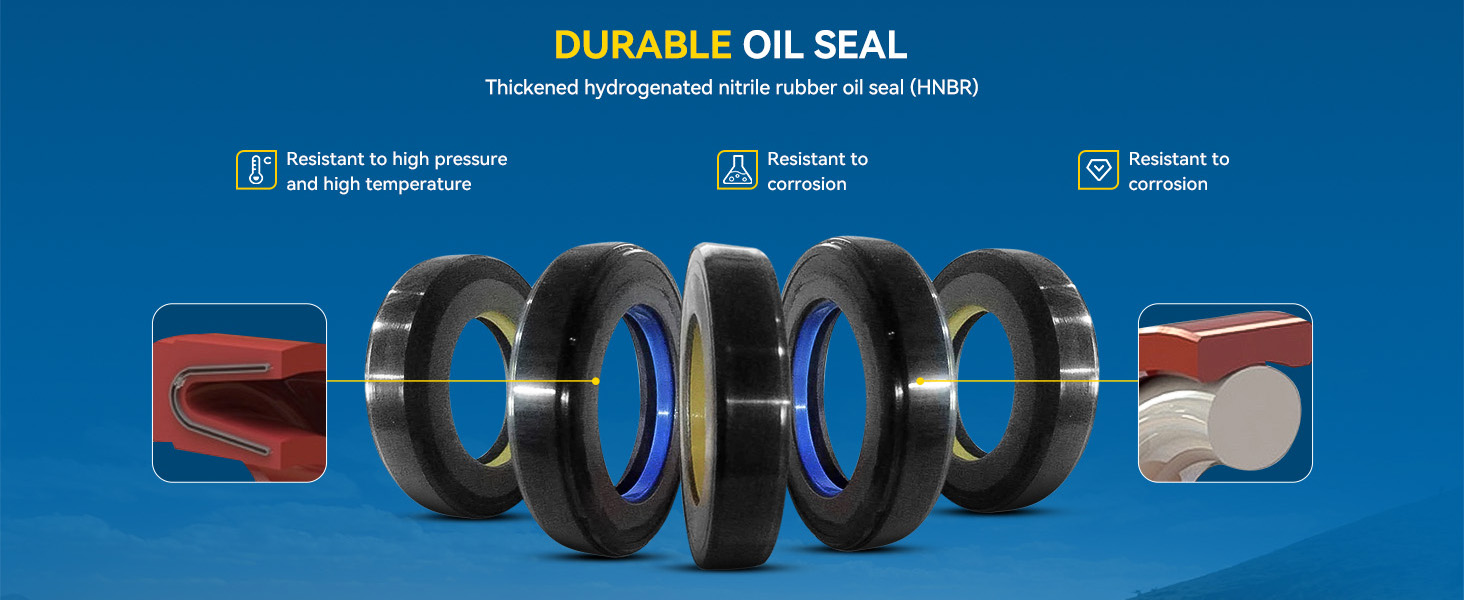

  • [Durable Performance]: PHILTOP steering rack and pinion adopts corrosion-resistant oil seals and lip seals, and butyl rubber sealing covers. The 360°dust cover is fully protected to effectively prevent dust and dirt from entering the rack gear to cause wear and oil leakage. Service life more than 120,000 miles, 24-month unlimited mileage guarantee.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2009 - 20102009 - 20102009 - 20102009 - 20102009 - 20102009 - 20102009 - 20102009 - 2010201020102009 - 201020102009 - 20102009 - 20102009 - 20102009 - 2010201020102009 - 20102009 - 20102009 - 20102009 - 201020082009 - 201020082009 - 2010
MakeFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordLincolnLincolnLincolnLincoln
ModelExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionExpeditionF-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150NavigatorNavigatorNavigatorNavigator
TrimEL Eddie BauerEL King RanchEL LimitedEL XLTEddie BauerKing RanchLimitedXLTFX2FX2FX4Harley-Davidson EditionKing RanchLariatPlatinumSTXSVT RaptorSVT RaptorXLXLXLTXLTBaseBaseLL
Engine5.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V84.6L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V84.6L V85.4L V86.2L V84.6L V85.4L V84.6L V85.4L V85.4L V85.4L V85.4L V85.4L V8
Note
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;From 12/04/2007;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;From 12/04/2007;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power
For warranty purposes it is recommended to always install a filter and to use suggested OE Fluid and flush the system;In-Line Filter available;Includes Inner Tie Rods;with Hydraulic Power

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm fitment: Compare mounting dimensions, input shaft connections, and hydraulic ports.
  • Inspect related parts: Check tires, suspension, tie rods, steering joints, pump, and hoses.
  • Prepare the system: Flush contaminated fluid and prepare new seals that match vehicle specifications.

Installation Steps

  • STEP 1 — Secure the vehicle, disconnect the negative battery cable, and secure the steering wheel to prevent free rotation.
  • STEP 2 — Mark connection positions. Disconnect tie rods, hydraulic lines, and the steering shaft; collect drained fluid.
  • STEP 3 — Remove the old rack and flush the lines before connecting the replacement.
  • STEP 4 — Center the new rack and install it in alignment with the steering wheel. Tighten fasteners to vehicle specifications.
  • STEP 5 — Reconnect the steering shaft, tie rods, and hydraulic lines using new specified seals.
  • STEP 6 — Refill with the correct power steering fluid and bleed the system using the vehicle-specific procedure. Never run the system without sufficient fluid.

After Installation

  • Check fluid level, hydraulic connections, and fasteners.
  • Verify smooth steering without binding, unusual noise, or fluid foaming.
  • Have a four-wheel alignment performed.
  • After the alignment and safety checks, road-test for straight tracking, steering wheel centering, and normal steering return.

Product Video

Product Description

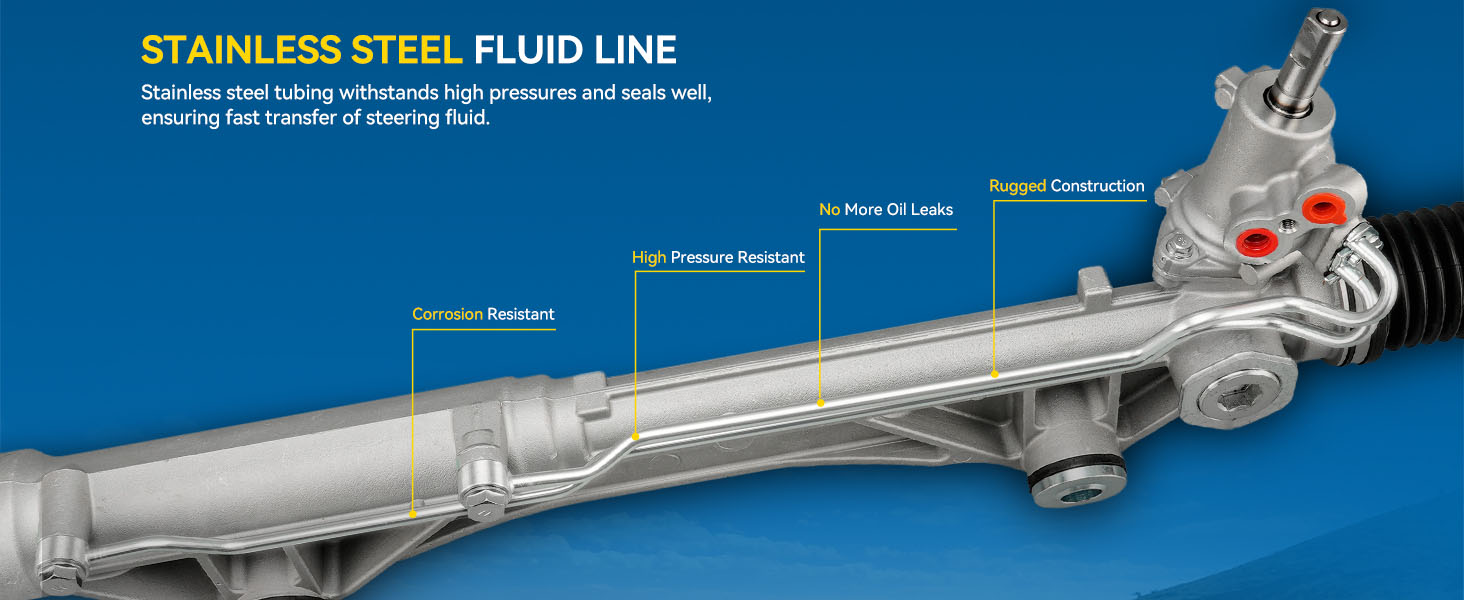

POWER RACK AND PINION ASSEMBLYPOWER STEERING RACK AND PINION ASSEMBLY

Reviews

4.7/5

Based on 3 reviews

567%
433%
30%
20%
10%

dtsguy13

04/02/2026

Verified buyer

Fit my 2010 F-150 perfectly. Easy install and seemingly great product! I'll update this review if I have any initial issues after putting some miles on the truck.

Ashley_RoadTrip_468

06/20/2026

Installation was pretty straightforward, no major issues. Fitment was spot on with my F150, unlike some aftermarket parts that can be a pain. Definitely a good replacement for the factory unit.

FAQS

You can expect a rack and pinion to last between fifteen and twenty years, on average.

Installed or modified products may require additional review and may not qualify for a standard return. Please contact Philtop before removing or returning the product.

Unused products may be eligible for return according to the Philtop return policy. Please keep the product and packaging in their original condition and contact us before sending it back.
